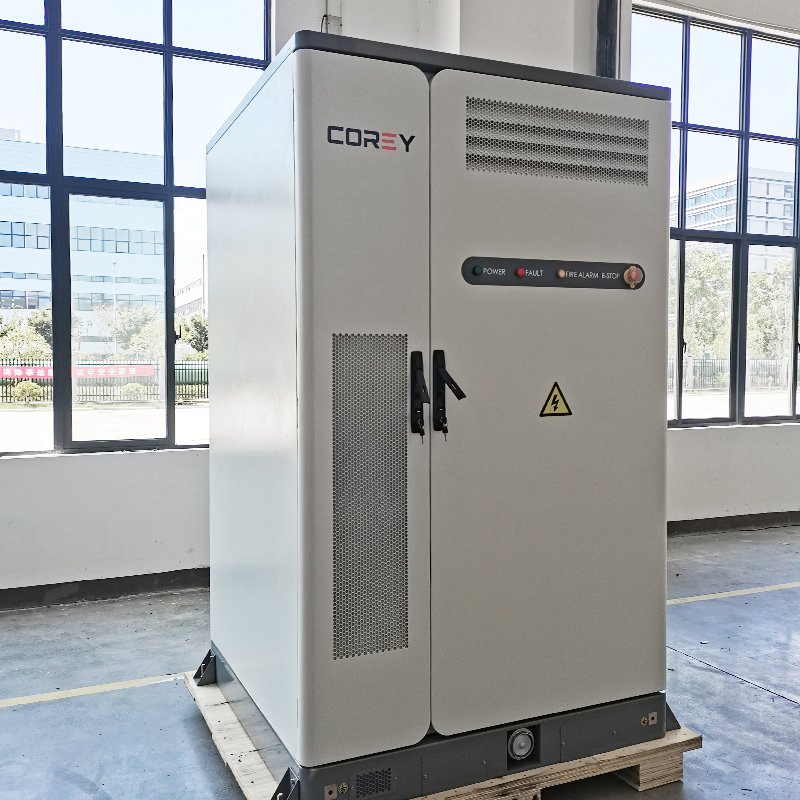

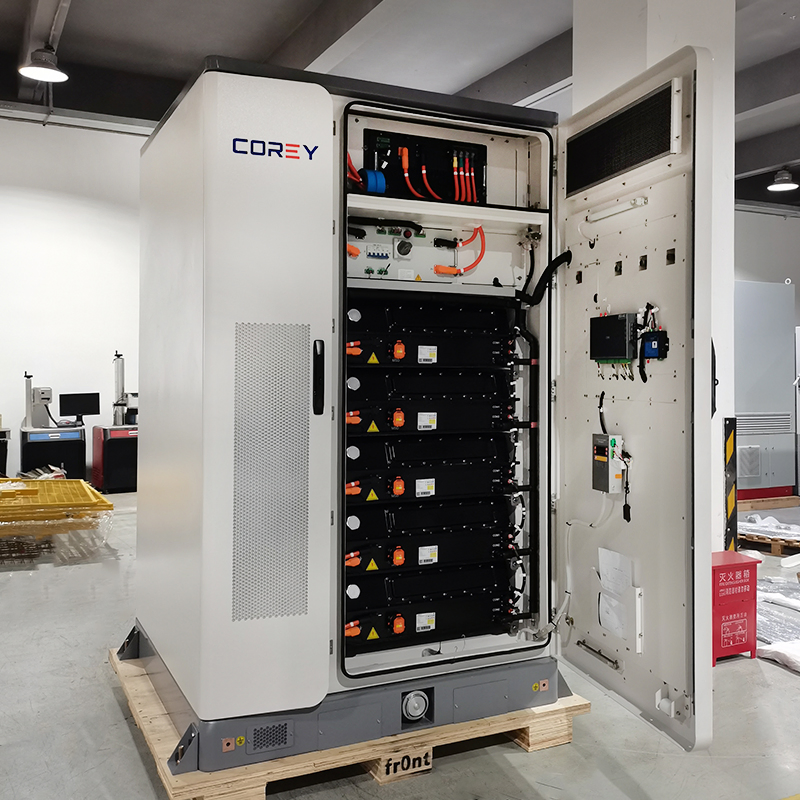

Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
1 / 5
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System
Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System

Industrial Solar Energy Storage System 215kwh 233kwh Battery Energy Storage System

Customization: Available
Container Size: L1560mm*D1380mm*H2385mm
Weight: 2600kg
Send Inquiry

Product Description

!

Basic Information

Model NO.Corey233
Nominal Voltage230V/400V
Warranty5 Years
Nominal Capacity233kWh
Cycle Life9000
Battery TypeLiFePO4
Grid ConnectionHybrid Grid
Cooling MethodIntelligent Liquid Cooling
Discharge Depth95% Dod
Protection LevelIP54
AC Rated Frequency50/60 Hz
DimensionsL1560*D1380*H2385mm
Energy Storage System Front
Energy Storage Analysis
$

Revenue Model & Analysis

Based on European market data, the system offers a high return on investment through peak and valley electricity pricing, with a static payback period of approximately 4.4 years.

📈
Peak-Valley Arbitrage: Charge during low-cost valley periods and discharge during high-cost peak periods.
🛡️
Power Supply Reliability: Functions as a backup power source during grid outages.
⚡
Power Quality: Mitigates fluctuations and ensures stable operation of electrical equipment.
🤝
Demand Response: Modify usage patterns to earn grid financial incentives.
Revenue Chart
✓

Product Advantages

Safe & Reliable: Multi-stage protection and liquid cooling fire safety design.
Flexible: Modular design for easy expansion and customization.
Efficient: Optimized energy usage to reduce operational costs.
Intelligent: Smart O&M to promote green energy consumption.
⚙

Technical Parameters

System Parameter Numerical Value
Battery CellLFP (LiFePO4) 3.2V 280Ah
System Capacity233kWh
Rated Power105kW
Cooling MethodIntelligent Liquid Cooling
Fire FightingAerosol + Water Fire Protection
Protection LevelIP54 / C4
AC SideRated Voltage230V/400V(±15%)
Maximum Current167A
Switching Time20ms (Optional)
DC SideRated Voltage832V
📍

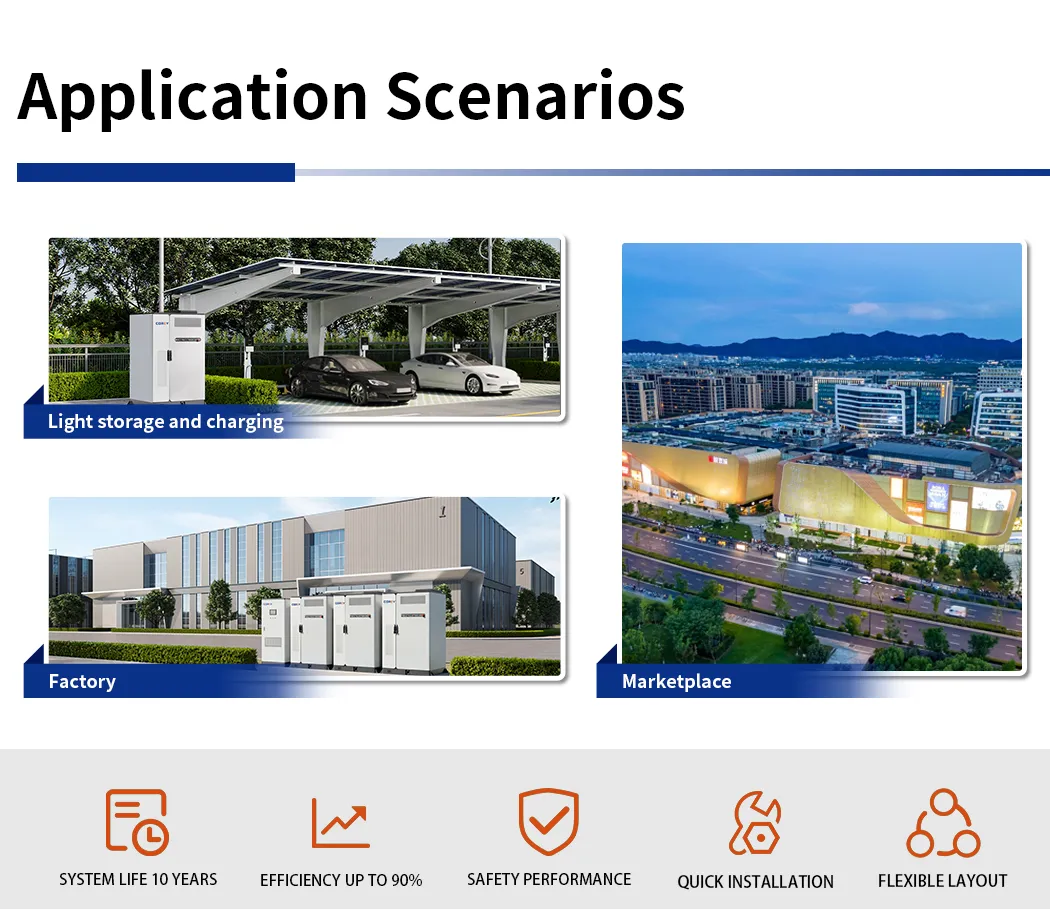

Applications & Projects

Suitable for commercial buildings, factories, and remote areas with power shortages.

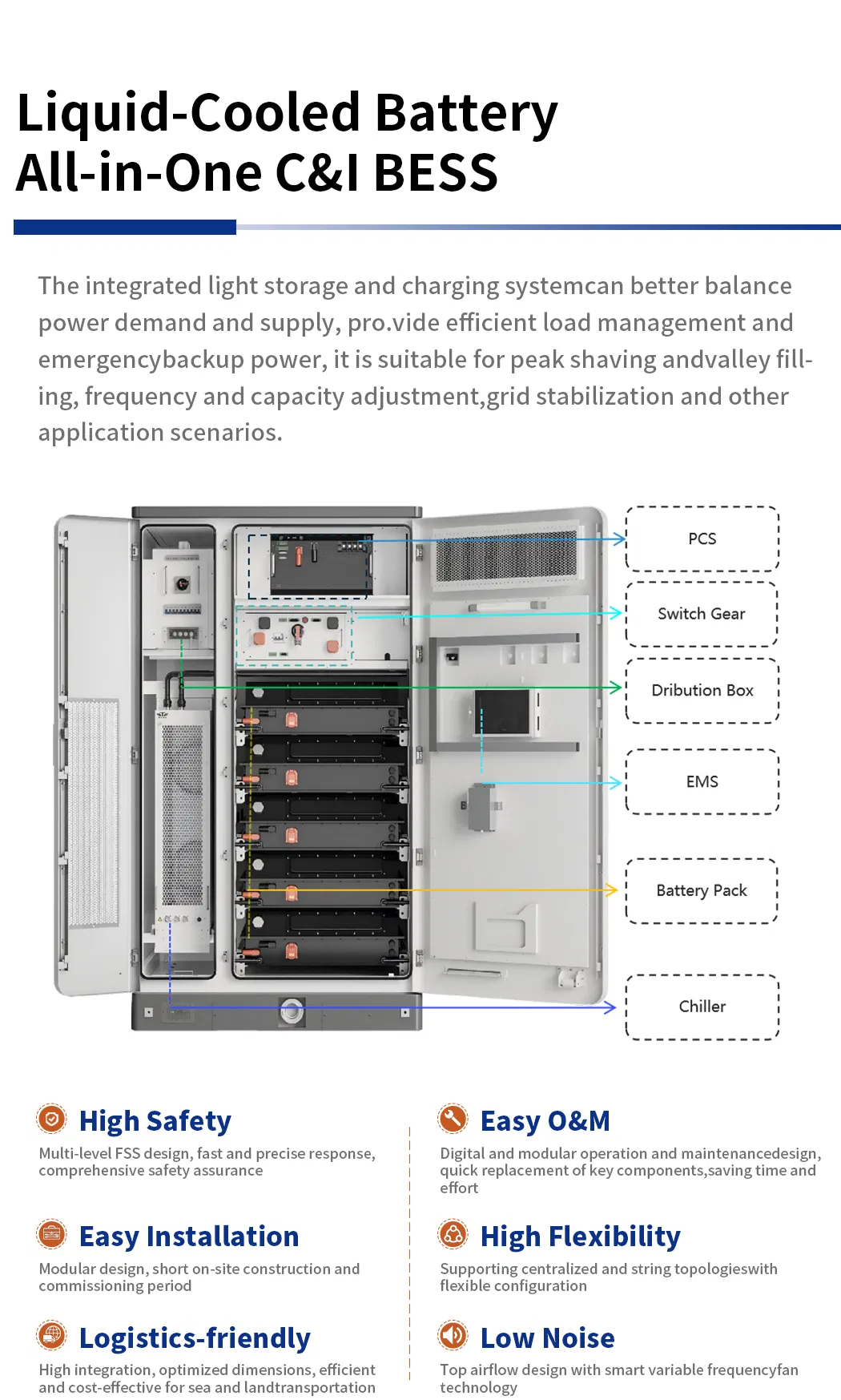

Application 1
Project Case

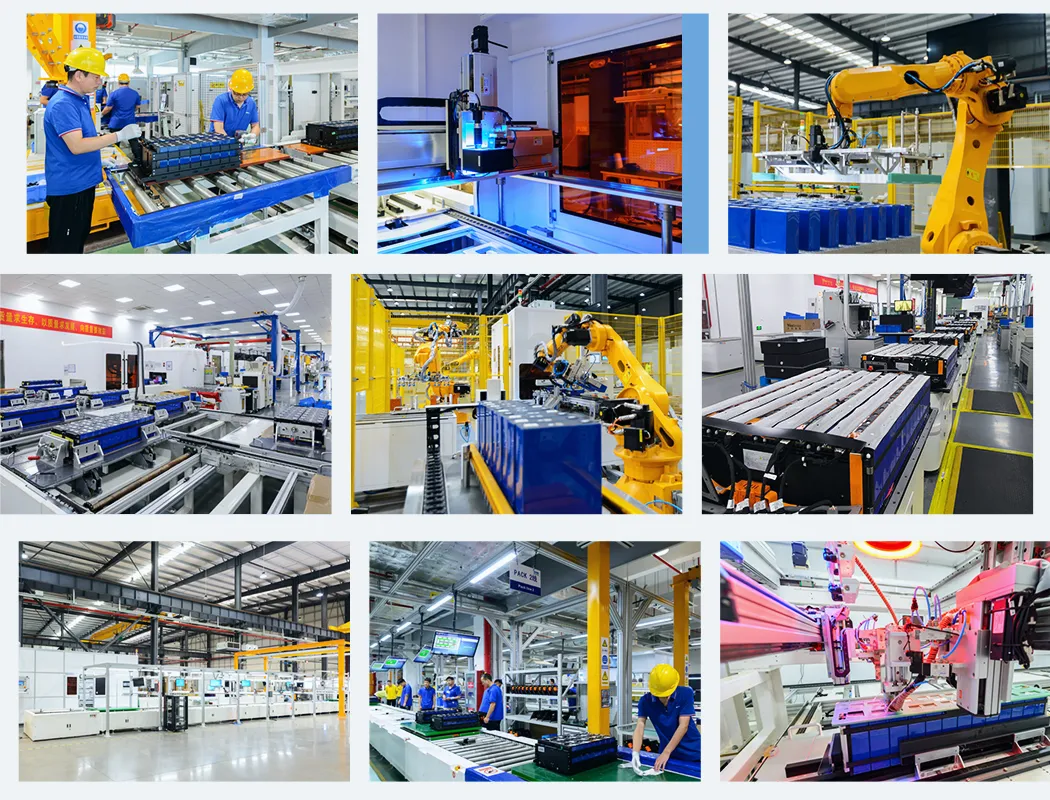

Factory Installation
System Detail
?

Frequently Asked Questions

What is the capacity and battery type of this system?
The system has a nominal capacity of 233kWh and uses high-safety LiFePO4 (Lithium Iron Phosphate) battery cells.
How is the battery system cooled?
It utilizes an intelligent liquid cooling system to ensure uniform temperature distribution and extend battery life.
What is the estimated payback period for industrial use?
Based on market data for peak-shaving and arbitrage, the static payback period is approximately 4.4 years.
Can the system be used outdoors in harsh environments?
Yes, the cabinet features an IP54 protection level and C4 anti-corrosion rating, making it suitable for various outdoor conditions.
Does it support off-grid operation?
Yes, it supports hybrid grid connection and can provide automatic on-grid/off-grid switching in as little as 20ms (optional).
What is the warranty and expected cycle life?
The product comes with a 5-year warranty and is designed for a cycle life of up to 9000 cycles.
