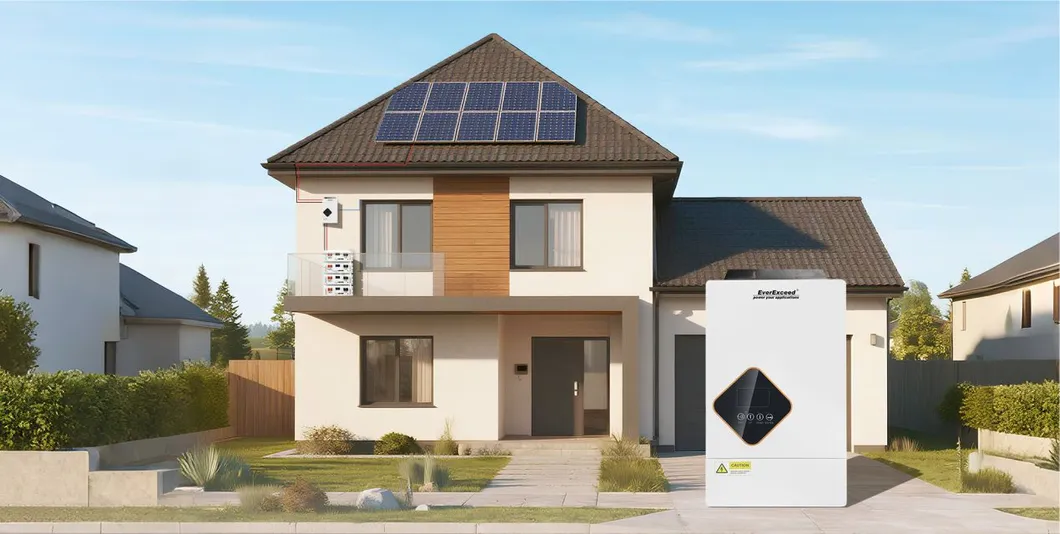

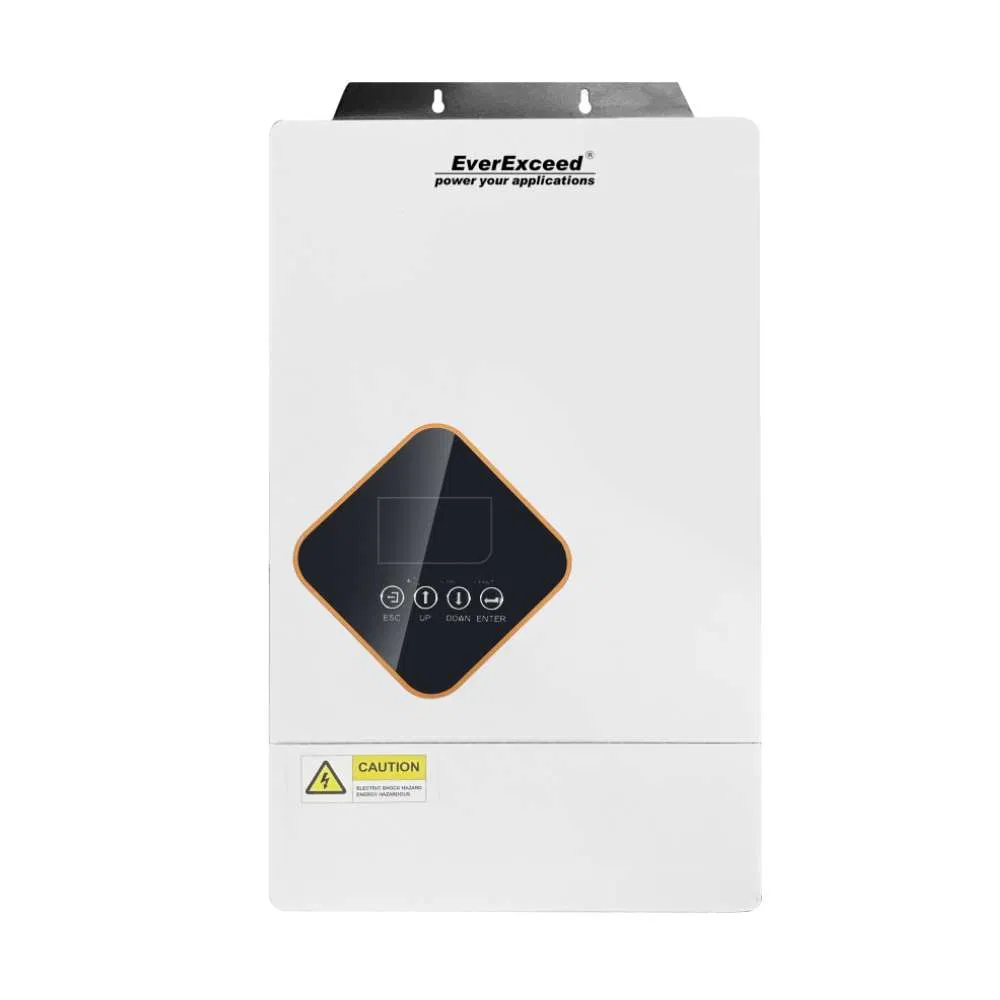

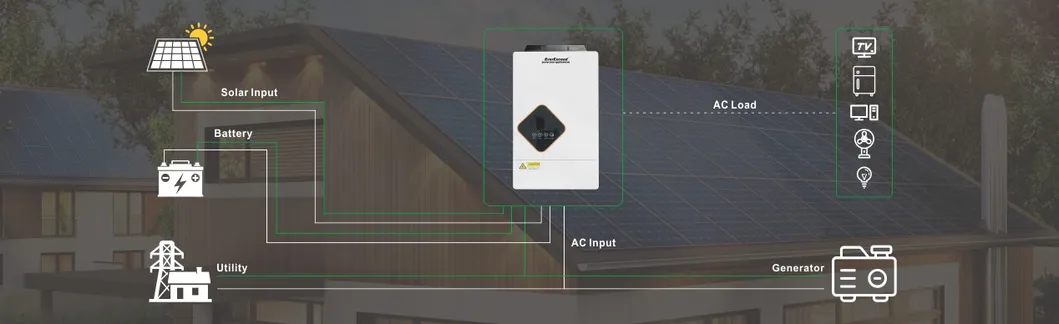

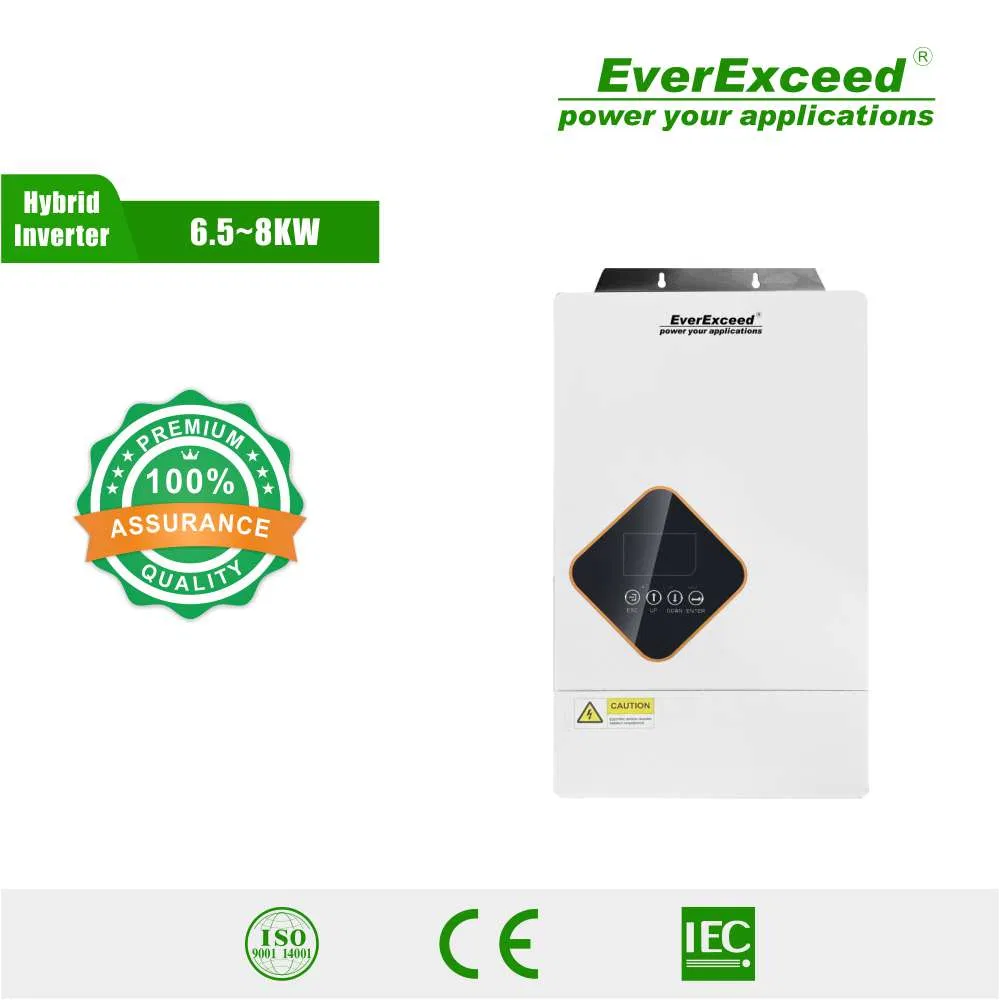

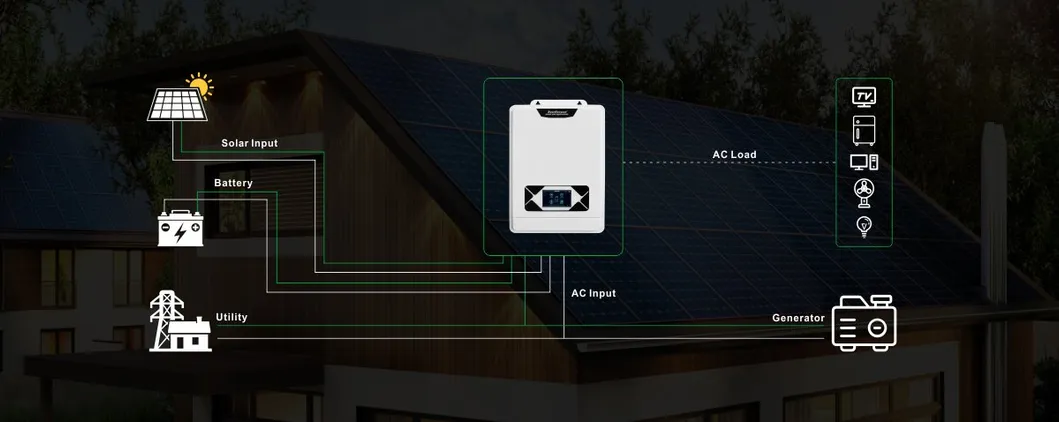

The EHCS series inverter is a high-end solar hybrid inverter designed for households and small commercial solar power plants. It utilizes solar power, batteries, and utility grid for hybrid power supply to ensure uninterrupted power supply. It optimizes solar consumption, reducing energy costs and dependence on external energy providers.
Pure sine wave output with selectable charging current based on specific applications.
Perfect match for a variety of batteries including Lithium, AGM, and GEL.
Comprehensive safety including short circuit, over voltage, over temperature, overload, and reverse current protection.
Supports remote monitoring via mobile APP with an optional WiFi module.
Parallel capability for up to 9 units to meet growing power demands.
Maximum support for 80A charging current for rapid energy recovery.
| Models | EHCS-6.5K-Pro | EHCS-8K-Pro | |
|---|---|---|---|
| AC Output | Rated Power | 6500W | 8000W |
| Output Voltage | 208/220/230/240VAC | ||
| Battery | Rated Voltage | 48VDC | |
| Float Charge | 54.0VDC (Adjustable) | ||
| PV Charge | Max. PV Power | 6500W | 7000W |
| MPPT Voltage Range | 60-430VDC | ||
| Max. Charge Current | 100A | 110A | |
| General | Dimensions | 440x300x120mm | |
