You can purchase solar panels from us or simply buy the solar water pump and controller separately. If the controller or motor is damaged within 3 years, we will provide a new replacement. If the impeller is damaged within 3 years, spare impellers will be sent for replacement.

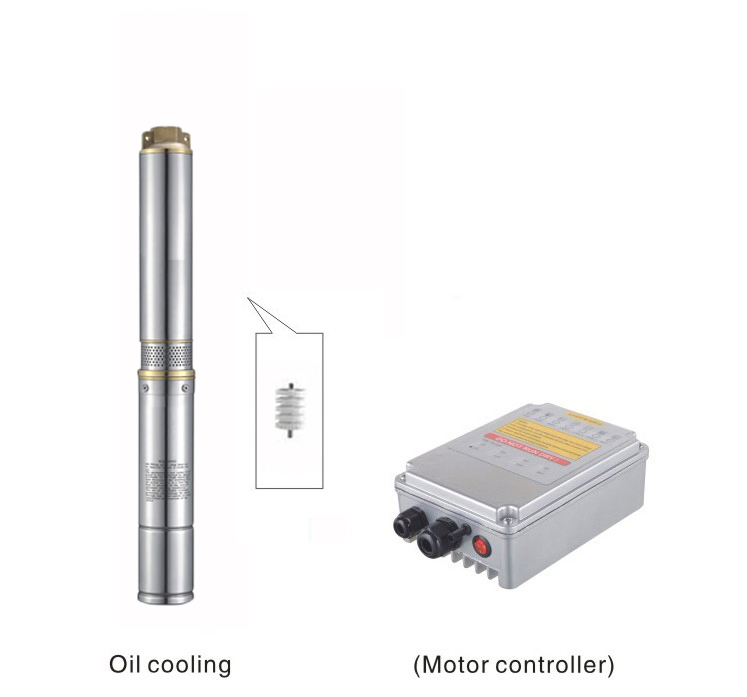

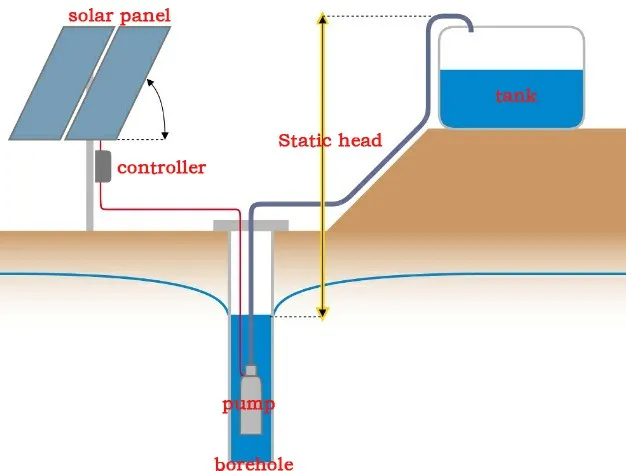

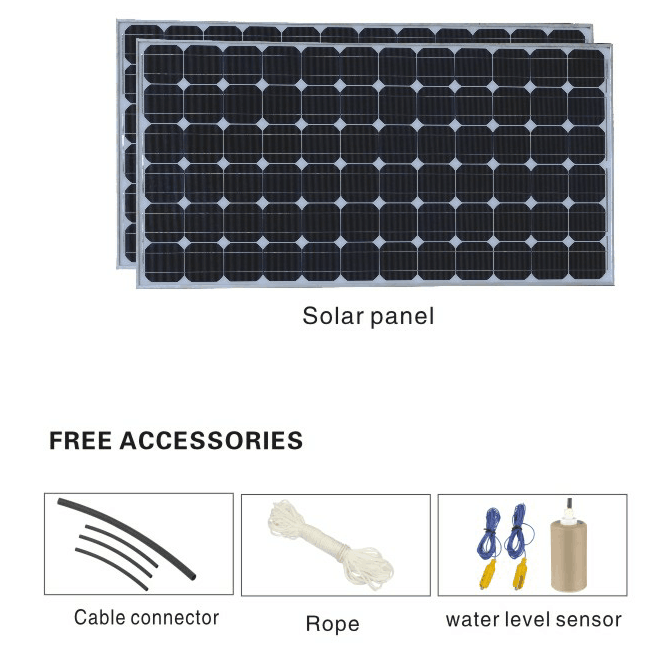

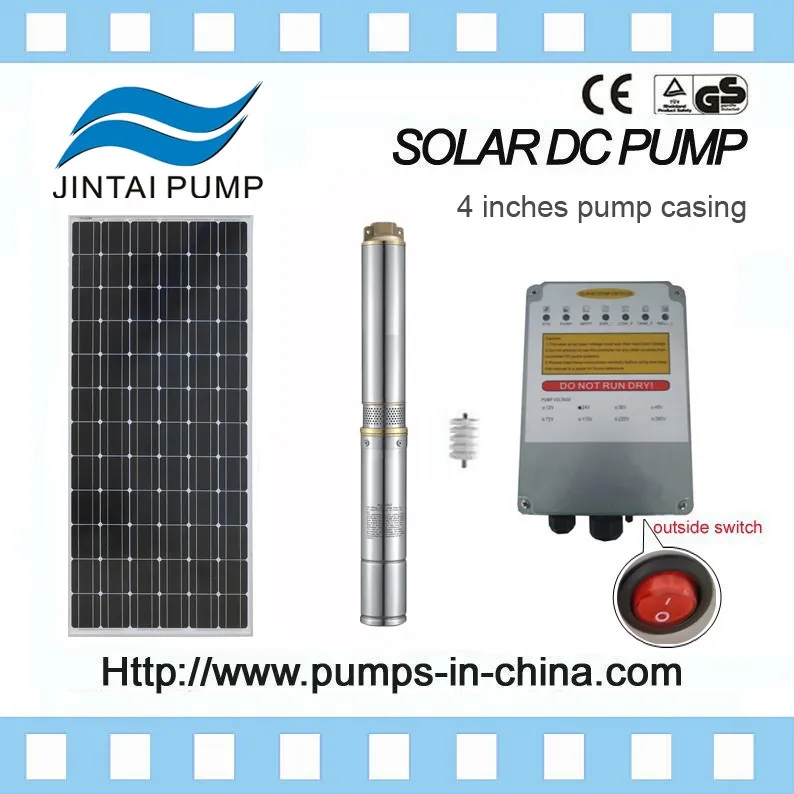

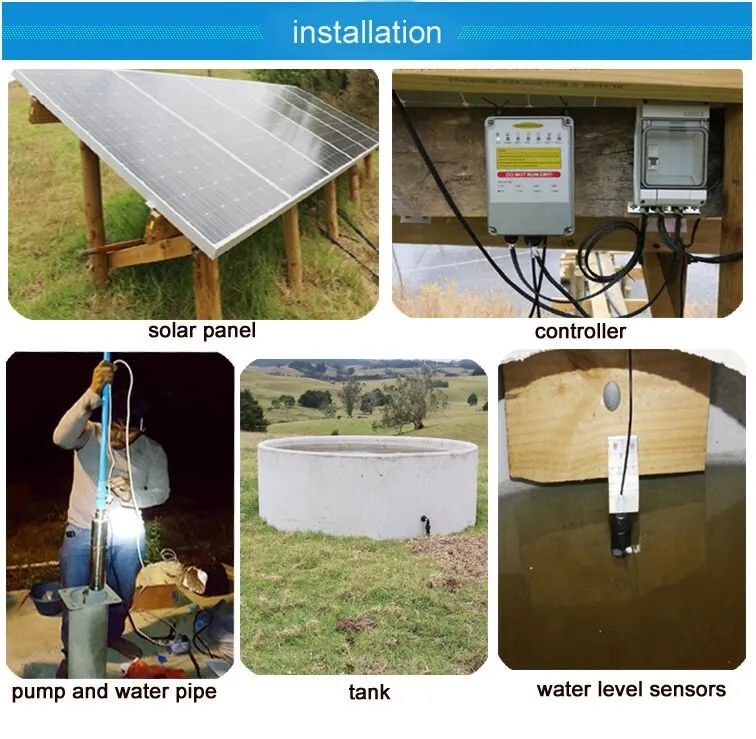

The solar submersible pump is immersed into water and connects the motor with the pump directly. The system consists of a submersible pump, motor, MPPT controller, water pipe, cable, and solar panels.

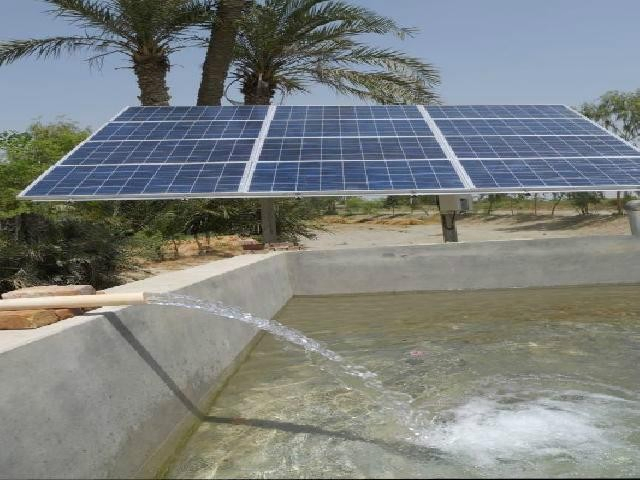

Solar panels convert solar energy into electrical energy, connecting to the dedicated low-voltage solar pump. The pump runs automatically in the sun and can run continuously via battery or grid electric when there is little sunshine.
1. Application Innovation: Permanent magnetism DC brushless motor improves efficiency by 25% compared to traditional AC machines.
2. Technics Innovation: Double plastic package for rotor and stator; motor insulation ≥300MΩ for enhanced security.

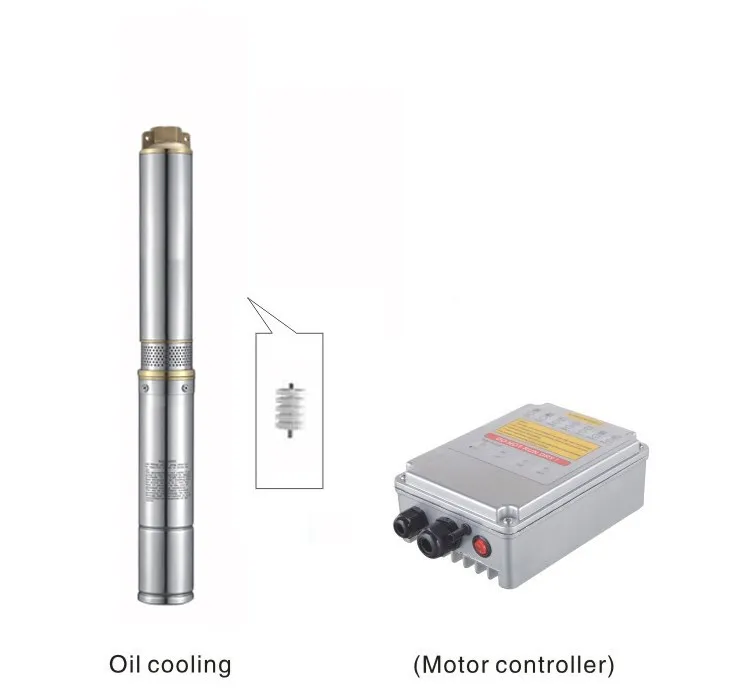

3. Structure Innovation: Oil filling for convenient installation and environmental protection.
Outlet: Brass or Stainless Steel
Pump Body: Stainless Steel
Motor Casing: Stainless Steel
Motor Stator: 100% Copper Wiring
Motor Rotor: Permanent Magnetism
Impeller: Plastic PPO
Bearing: NSK
| TYPE | VOLTAGE (V) | POWER (W) | WATER OUTPUT DAILY | LIFT HEAD (M) | OUTLET (Inch) | DIAMETER (mm) |
|---|---|---|---|---|---|---|
| JC4-5.5-32 | 36 | 360 | 12,000-24,000 | 5 to 25m | 1.25 | 100 |
| JC4-5.8-43 | 36 | 500 | 12,000-24,000 | 5 to 35m | 1.25 | 100 |
| JS4-3.1-66 | 36 | 500 | 8,000-16,000 | 5 to 50m | 1.25 | 100 |
| JC4-4.0-60 | 48 | 720 | 10,000-16,000 | 5 to 45m | 1.25 | 100 |
| JC4-6.8-60 | 72 | 1000 | 15,000-28,000 | 5 to 45m | 1.25 | 100 |
| JC4-6.0-88 | 72 | 1000 | 13,000-26,000 | 5 to 60m | 1.25 | 100 |
| JC4-8.0-55 | 72 | 1000 | 18,000-35,000 | 5 to 40m | 1.5 | 100 |
| JC4-10.0-45 | 72 | 1000 | 23,000-45,000 | 5 to 30m | 2 | 100 |
| JC4-14.0-33 | 72 | 1000 | 32,000-60,000 | 5 to 25m | 2 | 100 |

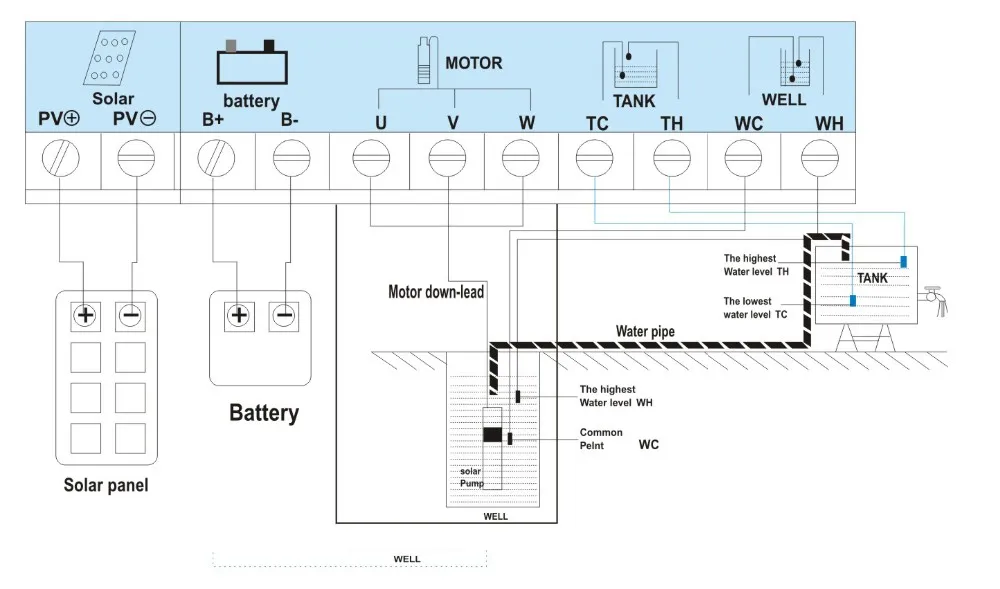

Controller with Battery Backup Function:

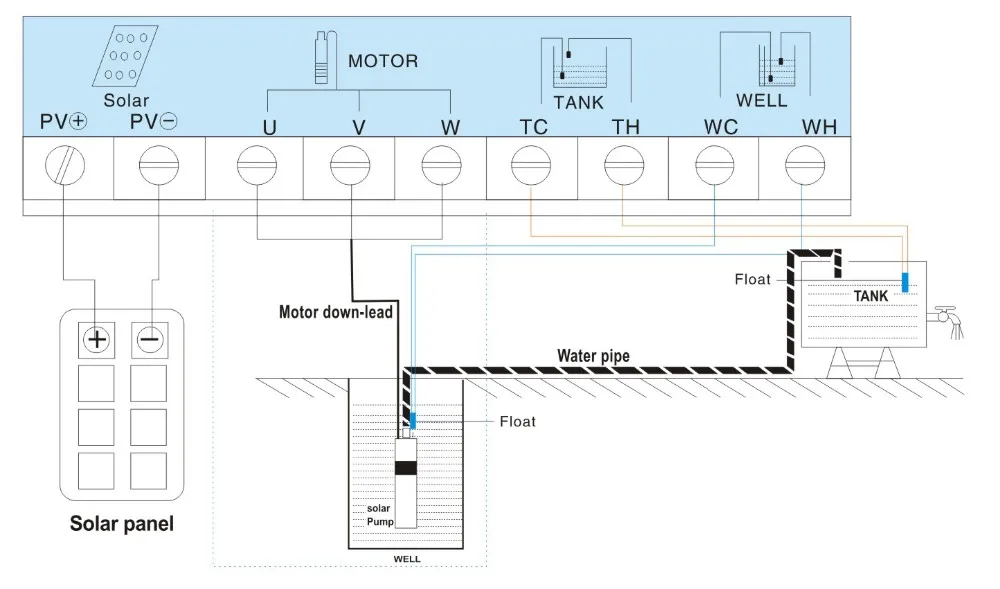

Controller without Battery Backup Function:
1. Solar Panel Power: Power of pump × 1.3. The voltage of the solar panel should match the pump voltage.
2. Battery Duration Formula: Use Hours = Battery Capacity ÷ (Machine Power ÷ Battery Voltage) × 0.6.
3. Capacity Requirement: Battery Capacity = Use Hours ÷ 0.6 × (Machine Power ÷ Battery Voltage).
