Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
1 / 5
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
SUB-D
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Charge Controller Solar Hybrid off Inverter
Transport Package
Safey Packing
Specification
SUB(SB)3200-24
Origin
China
HS Code
8504403090
Production Capacity
60, 000PCS/Year
💡 Off Grid Hybrid Solar Inverter SUB-D 3-11KW

KEY FEATURES

  • High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
  • 3 in 1 design: Power Inverter + MPPT controller + Grid Charger
  • Working without battery during daytime
  • Support lithium activation wake-up and cold start function
  • Auto restart while AC is recovering
  • Intelligent power supply mode: Distribution of solar/mains/battery power shares
  • AC and PV charge voltage adjustable for different battery types
  • Adjustable Charge Current & Voltage (Lead acid / Lithium)
  • Solar, Grid and Battery Energy complement each other, priority selectable
  • RS232, BMS/RS485, Dry Contact Communication
  • WiFi Plug or GPRS option for Mobile App
  • 3KW economical model with small capacity MPPT

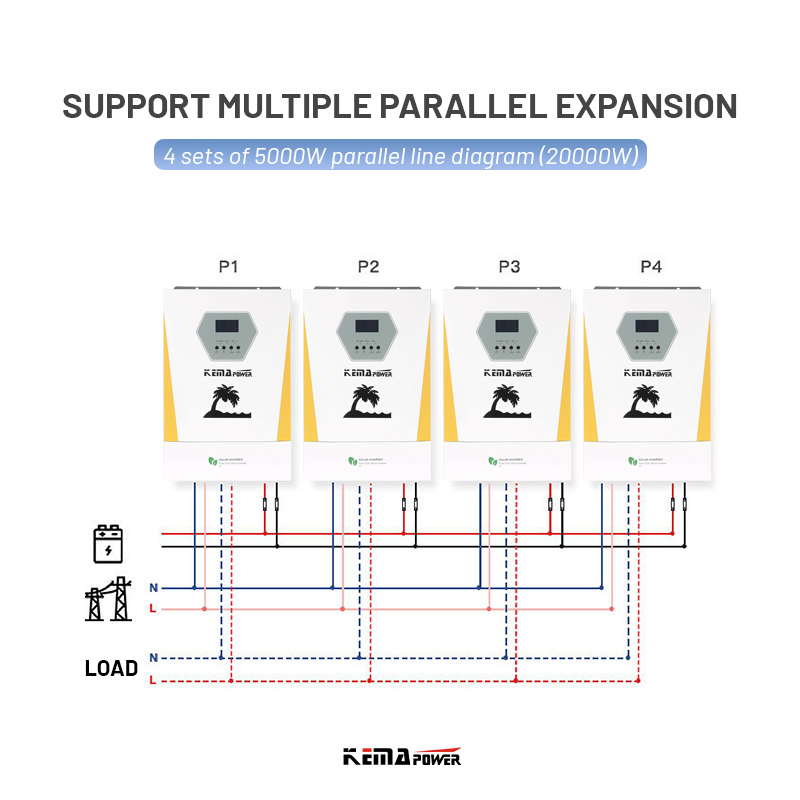

  • 6.2KW/11KW parallel function, max 9 units
  • Wide MPPT range 40-500VDC / 120-500VDC
  • Intelligent 3 stage AC battery charger (60/80A/150A)
  • Selectable Utility, Solar or Battery priority
  • Pure sine wave output for sensitive loads
  • Full protection: overload, over temp, short-circuit, battery reverse
📋 Technical Specifications
ITEM Model SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048 SUB-D-6248GP SUB-D-11048GP
INPUT RATED POWER 3KW 3.6KW 6.2KW 11KW 6.2KW 11KW
Voltage 220/230/240VAC
Frequency 50 Hz/60 Hz (Auto sensing)
OUTPUT Voltage 220/230/240VAC ± 5%(Bat Mode)
Waveform Pure sine wave
Parallel No No No No Max 9PCS Max 9PCS
BATTERY Voltage 24 VDC 48 VDC
Max Charge 60A 80A 80A 150A 80A 150A
SOLAR PV Power 3KW 4.2KW 6.2KW 2*5.5KW 6.2KW 2*5.5KW
MPPT Range 50~500VDC 150~500VDC
📸 Product Display

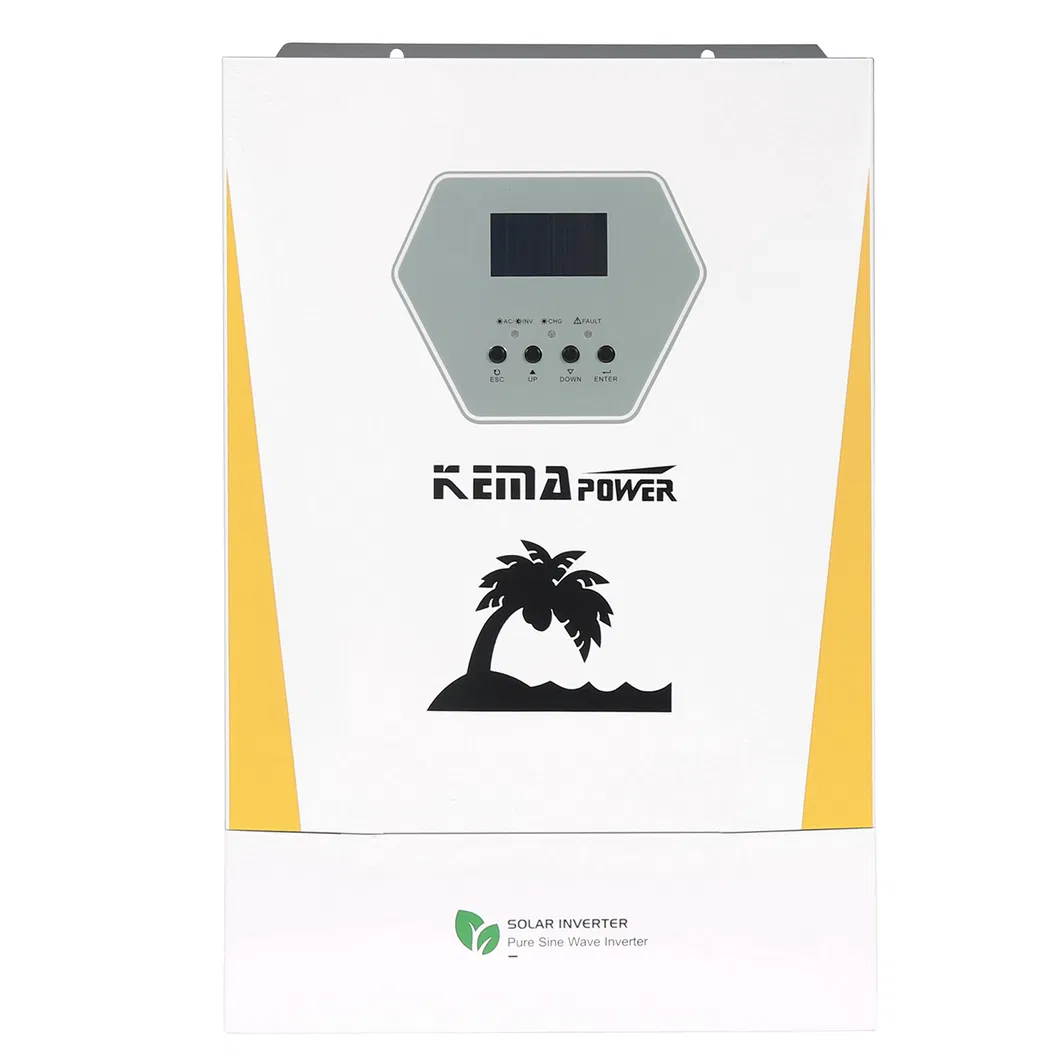

Hybrid Solar Inverter Display 1

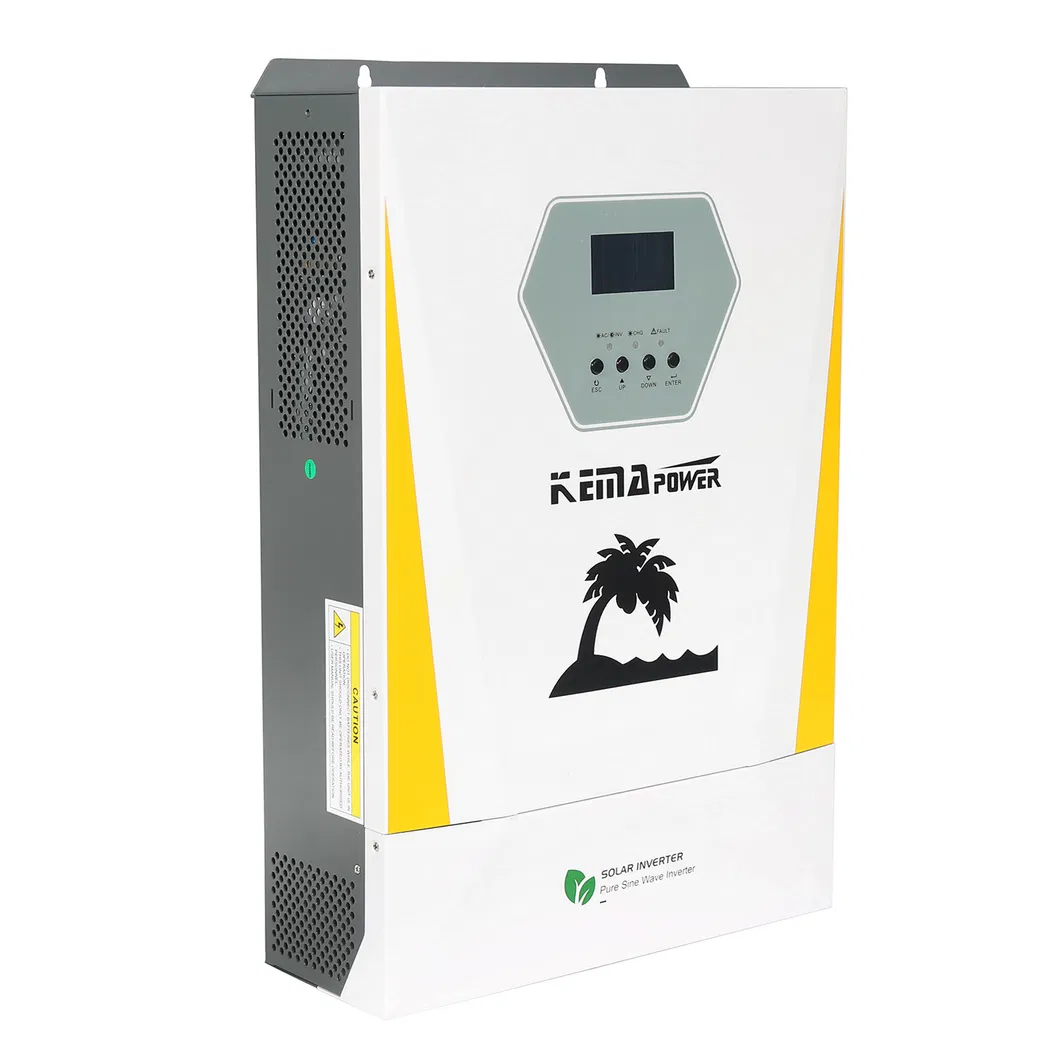

Hybrid Solar Inverter Display 2

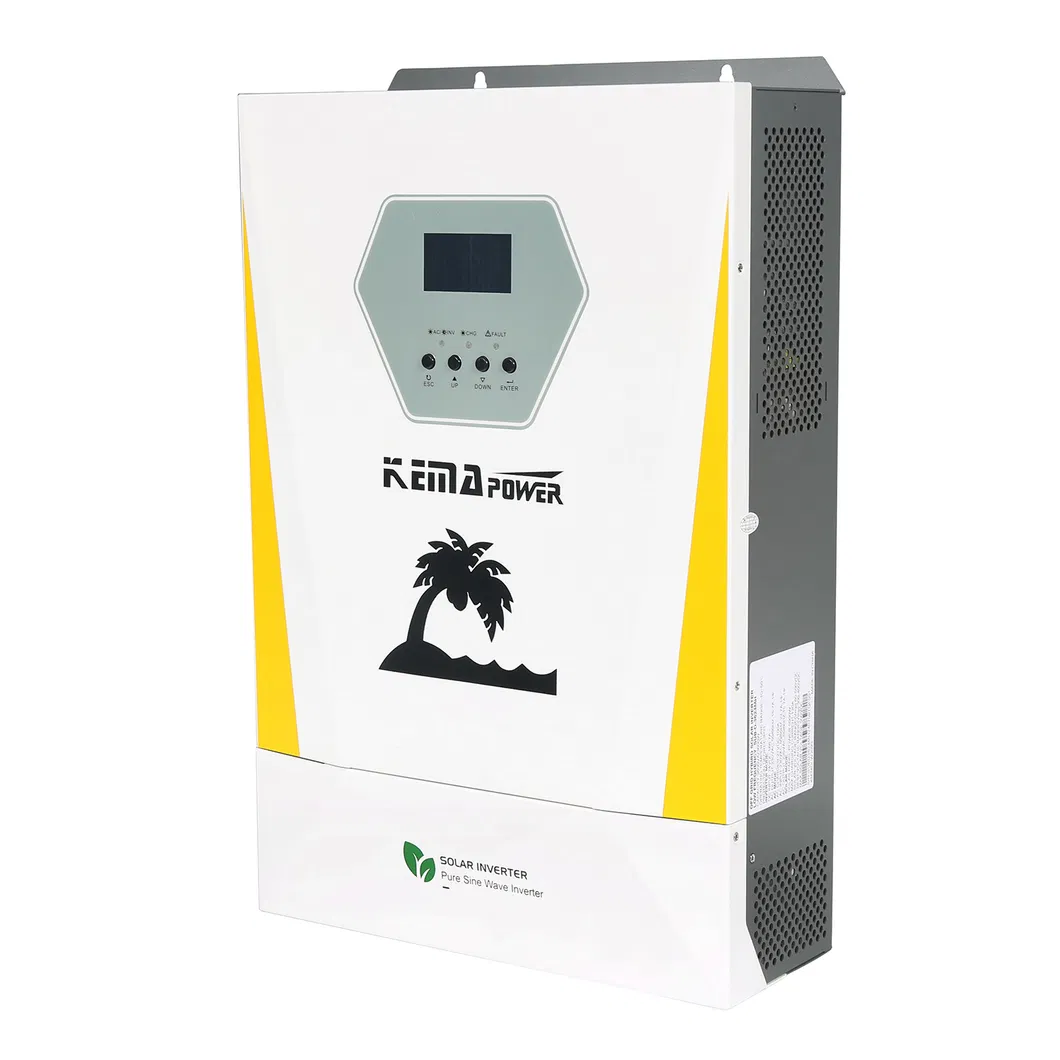

Hybrid Solar Inverter Display 3

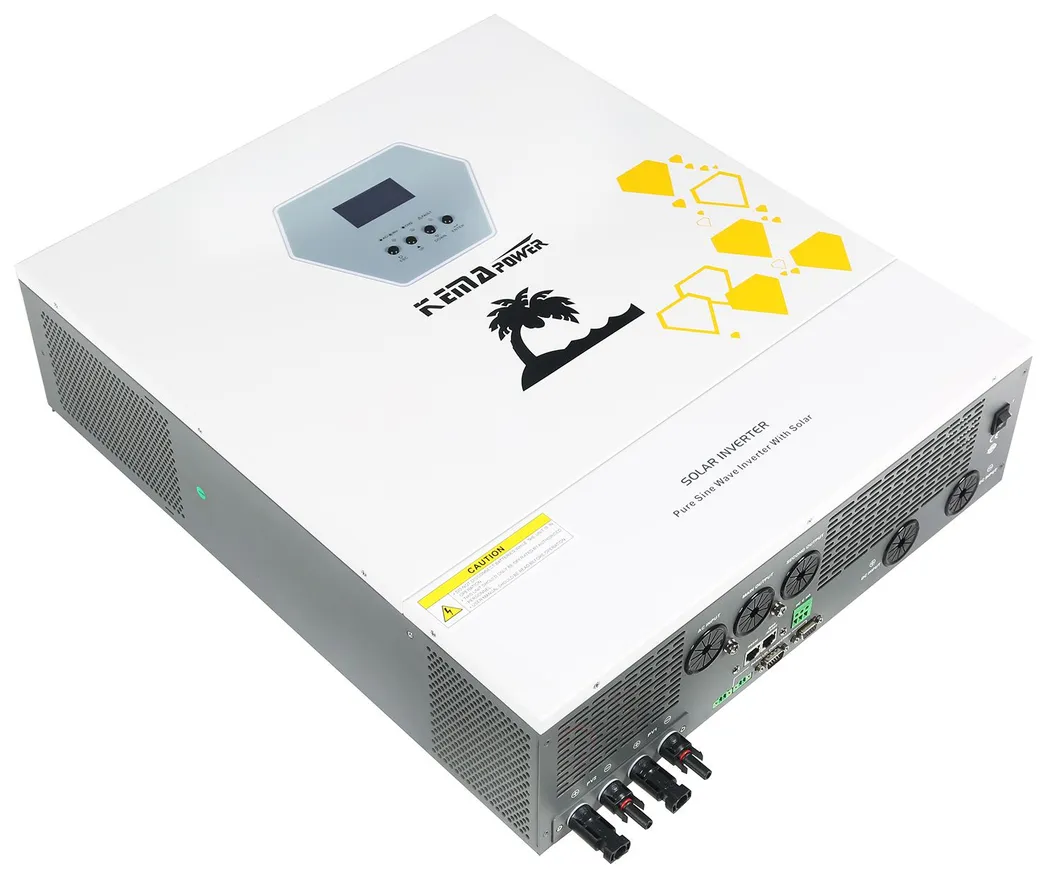

Hybrid Solar Inverter Detail 1

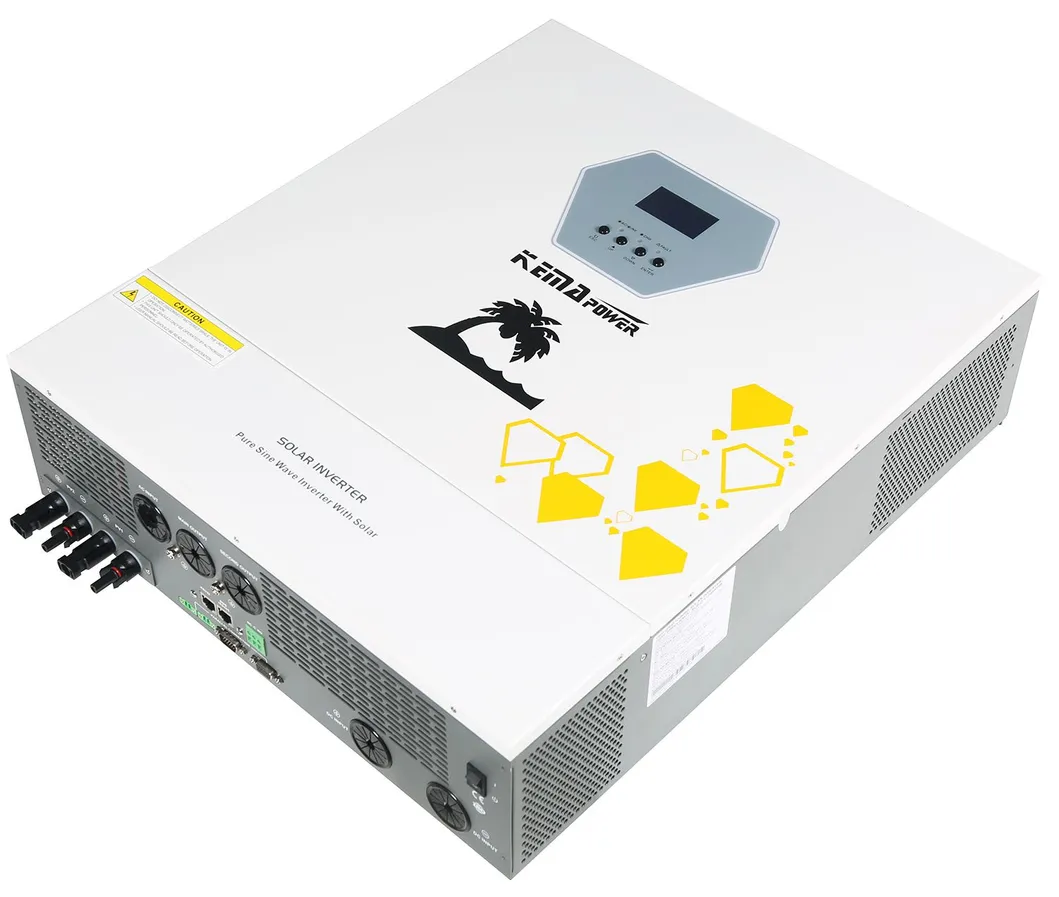

Hybrid Solar Inverter Detail 2

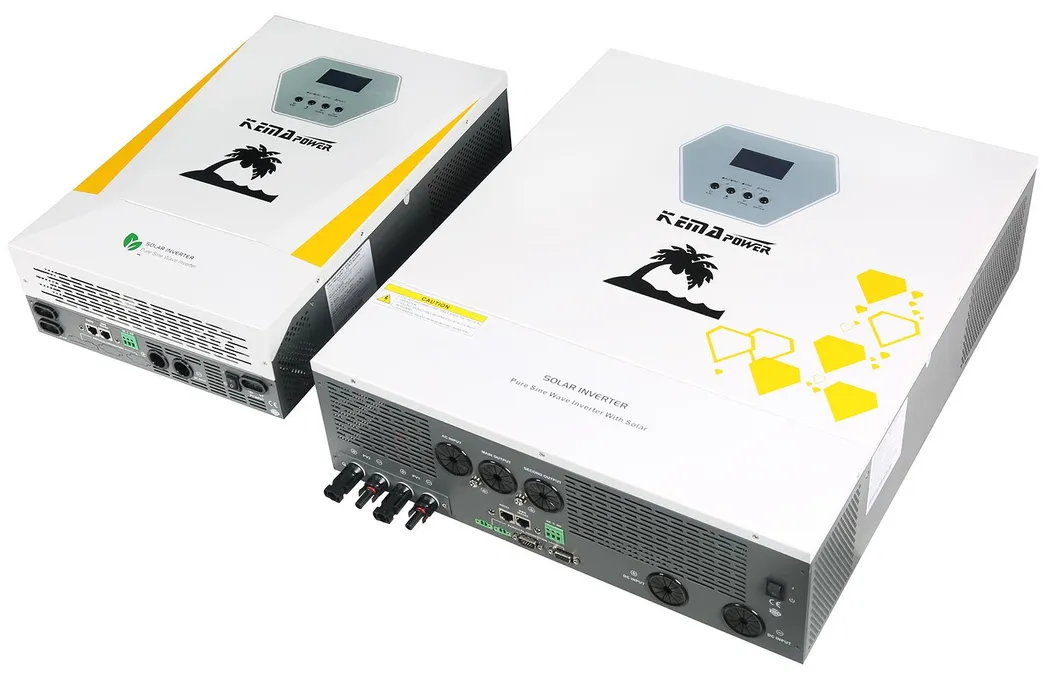

Inverter Interface 1

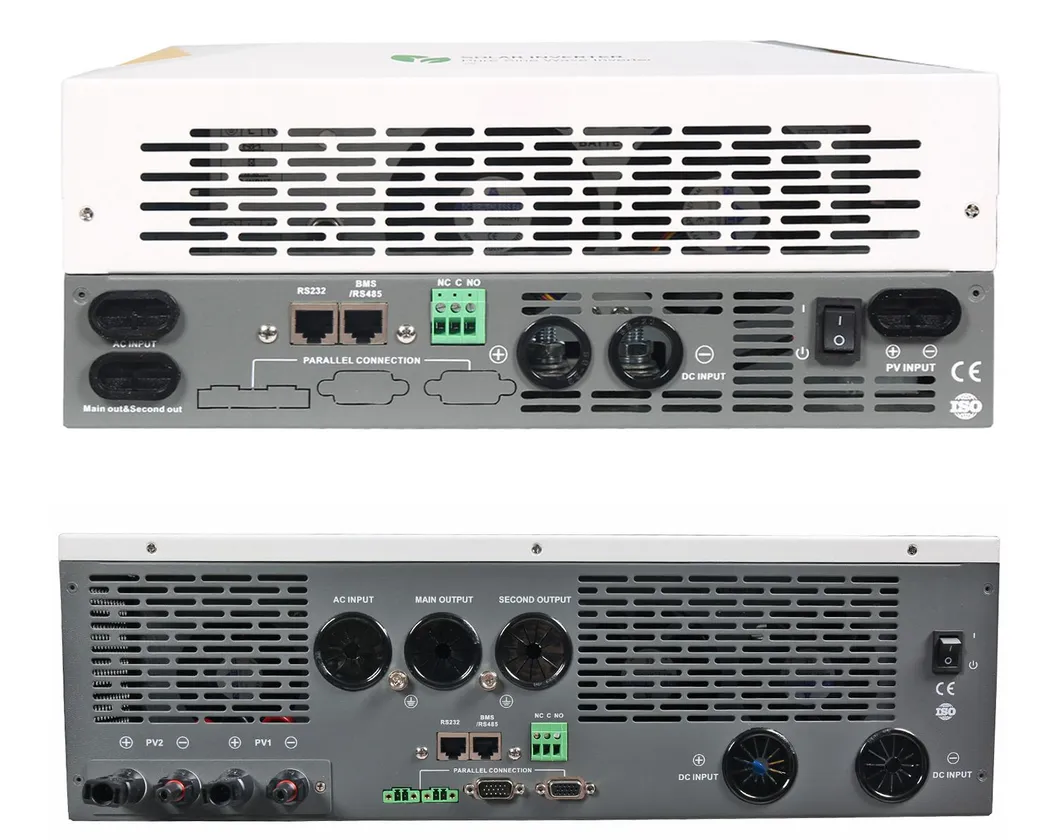

Inverter Interface 2

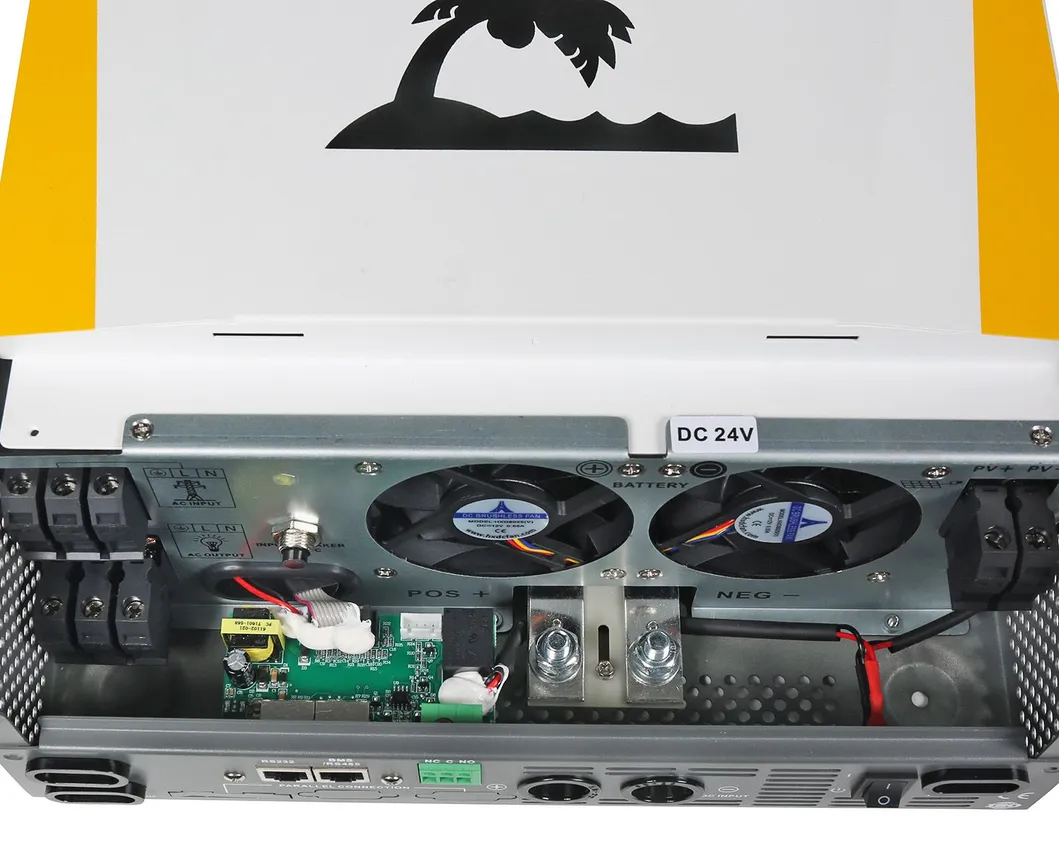

Inverter Interface 3

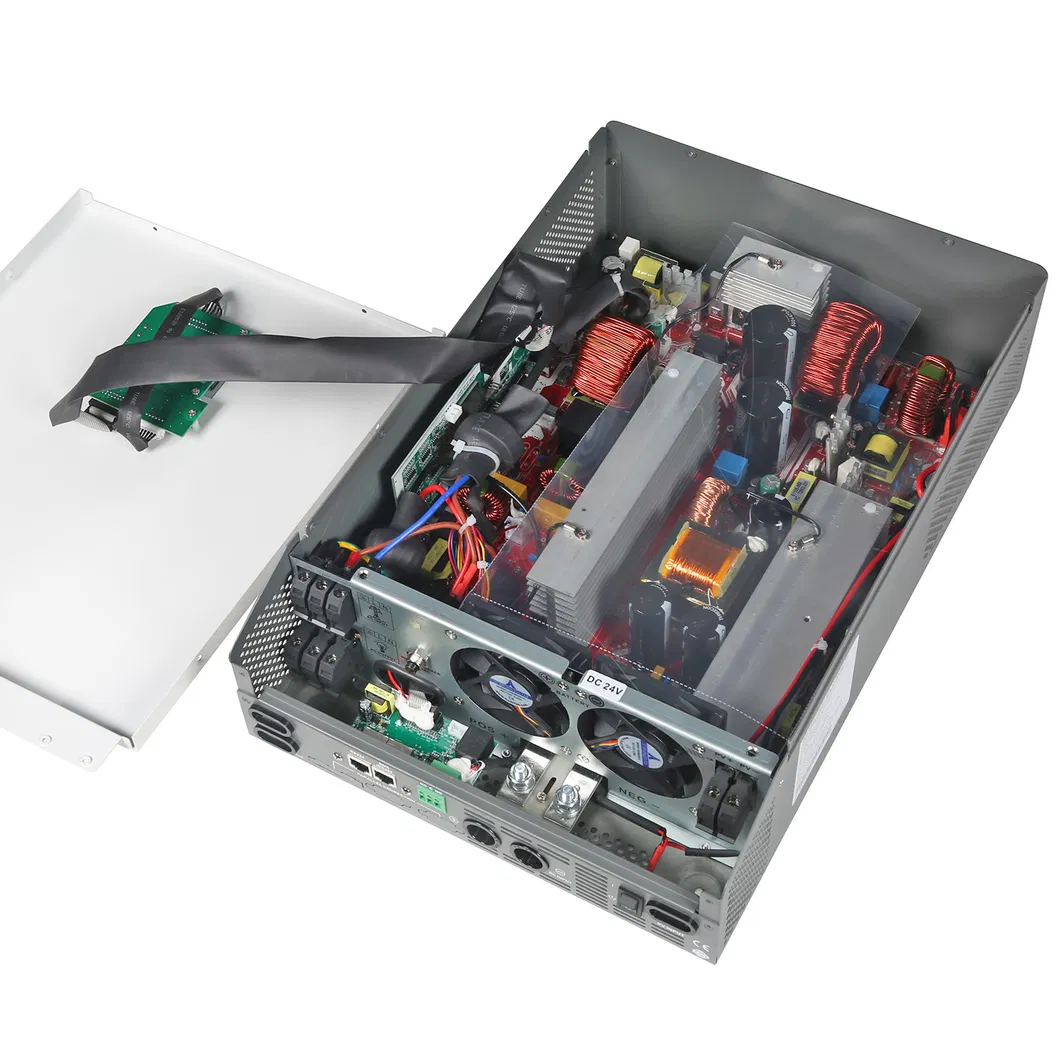

Inverter Internal 1

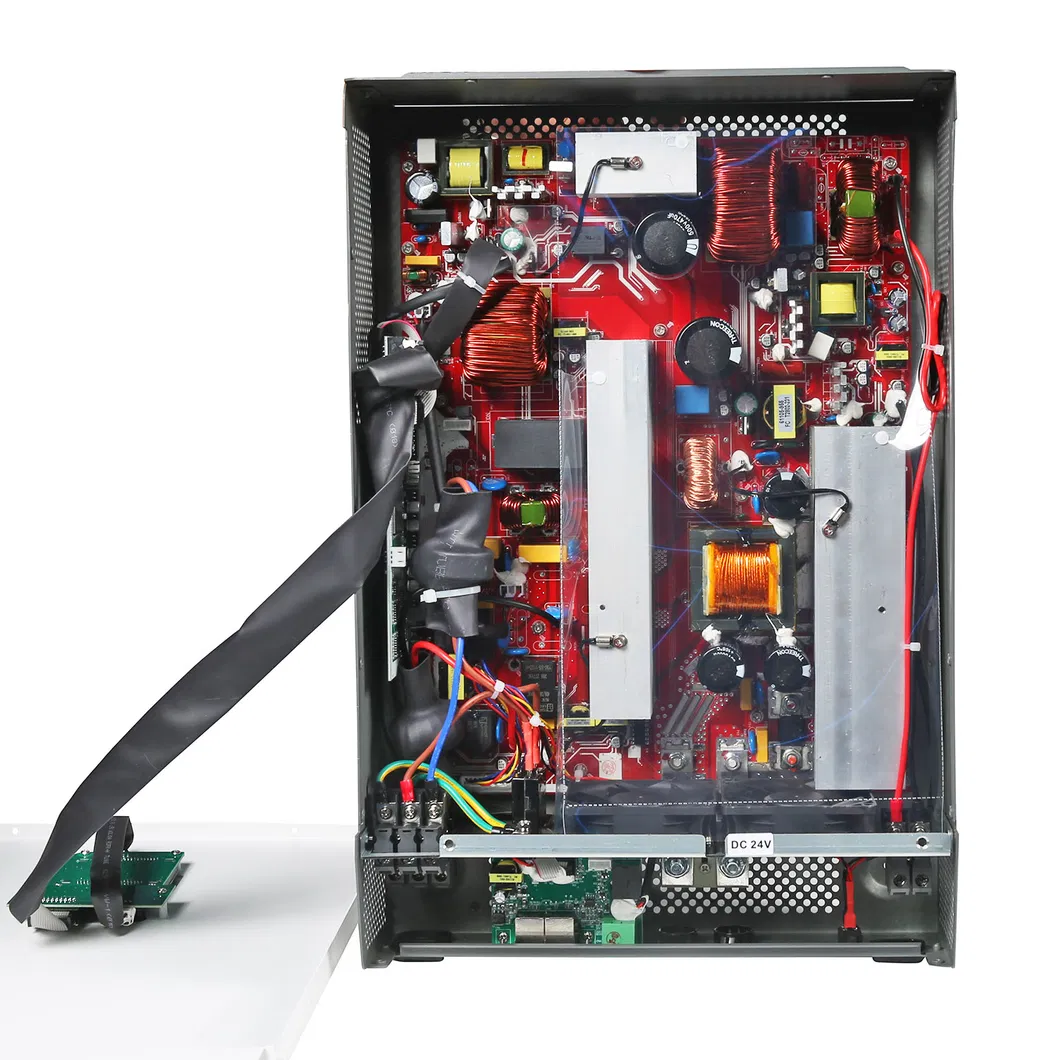

Inverter Internal 2

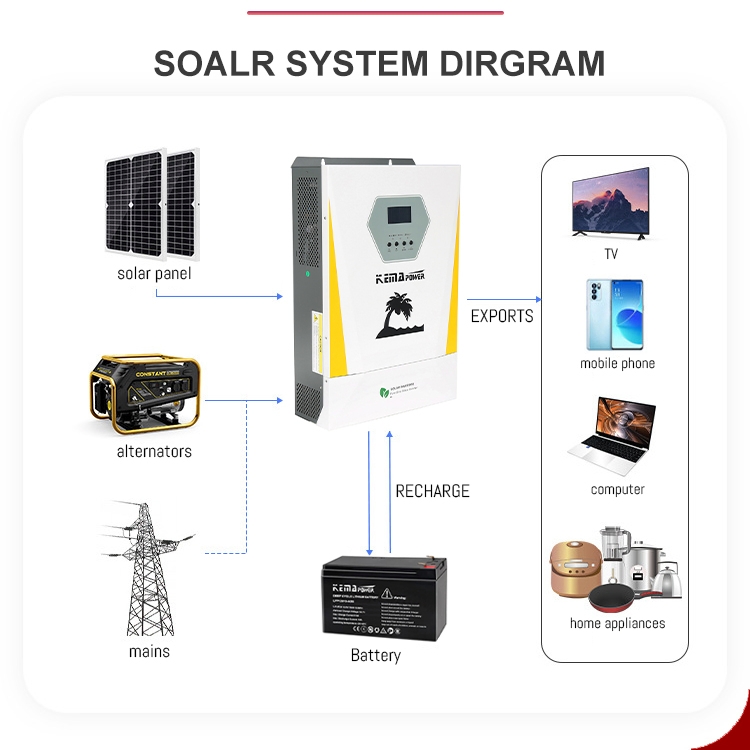

Inverter Application Diagram
Inverter Connection Guide
Inverter Dimensions
Inverter Features Summary

Frequently Asked Questions

Can this hybrid inverter work without a battery?
Yes, the SUB-D series is designed to operate without a battery during the daytime, utilizing solar energy directly to power your loads.
What is the maximum parallel capacity for this system?
The 6.2KW and 11KW models support parallel operation, allowing you to connect up to 9 units together for increased power capacity.
Does the inverter support lithium battery activation?
Yes, it features a lithium activation wake-up function and cold start capability, making it compatible with modern lithium battery systems.
What kind of output waveform does it provide?
The inverter provides a pure sine wave output, which ensures stable and safe power for all types of sensitive electronic appliances.
How can I monitor the inverter's performance?
The system supports multiple communication interfaces including RS232, BMS/RS485, and Dry Contact. There are also options for WiFi or GPRS plugs for mobile app monitoring.
What are the main protection features included?
The inverter includes comprehensive protection against overload, over-temperature, short-circuits, low battery voltage, and battery reverse connection.
