📊 Basic Specifications
Application
Home, Industrial, Commercial, Agriculture

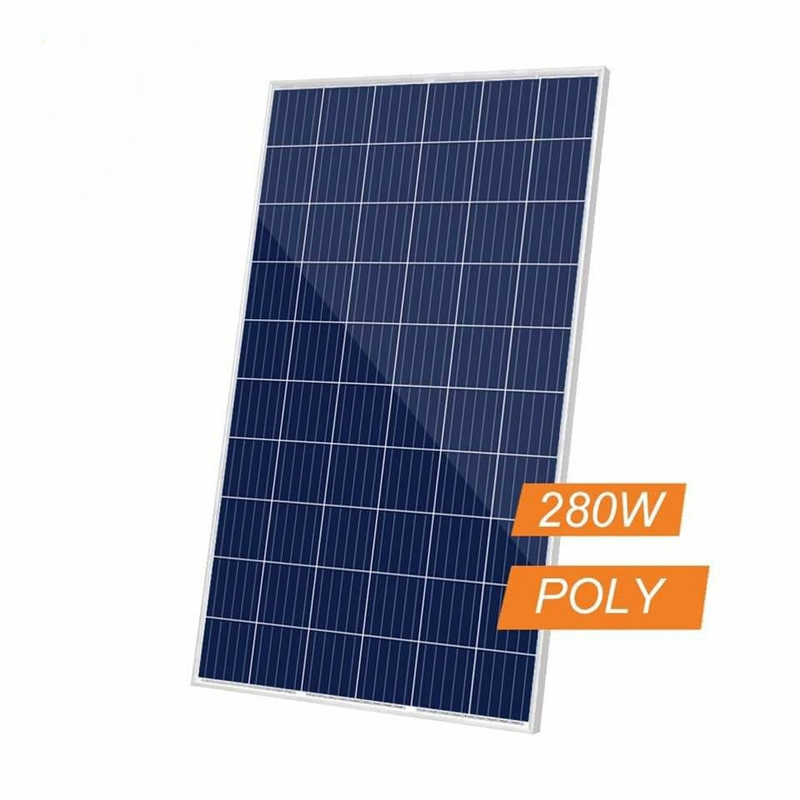

Solar Panel
280W Poly, 1652*992*35mm, A Grade, 4PCS

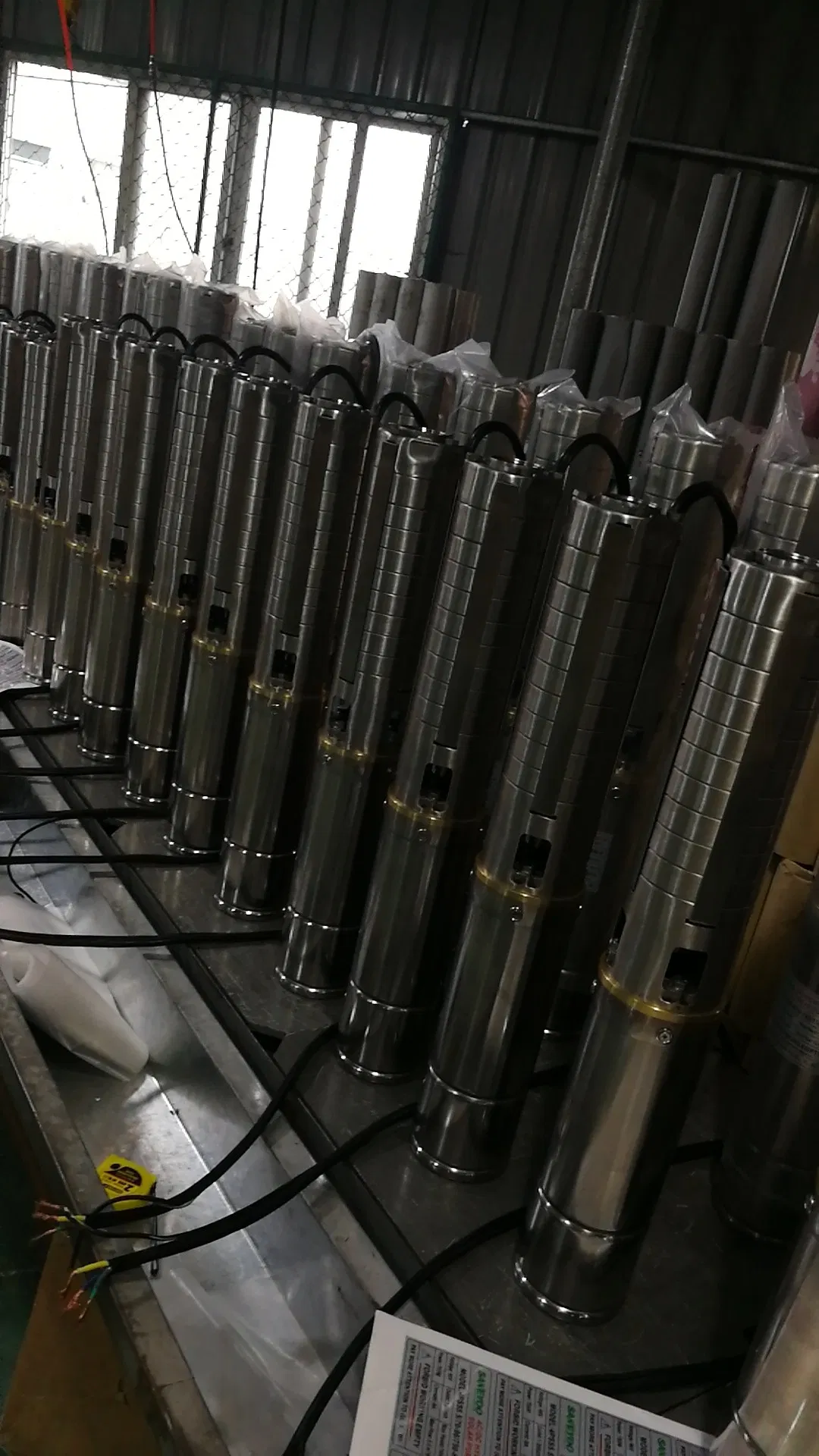

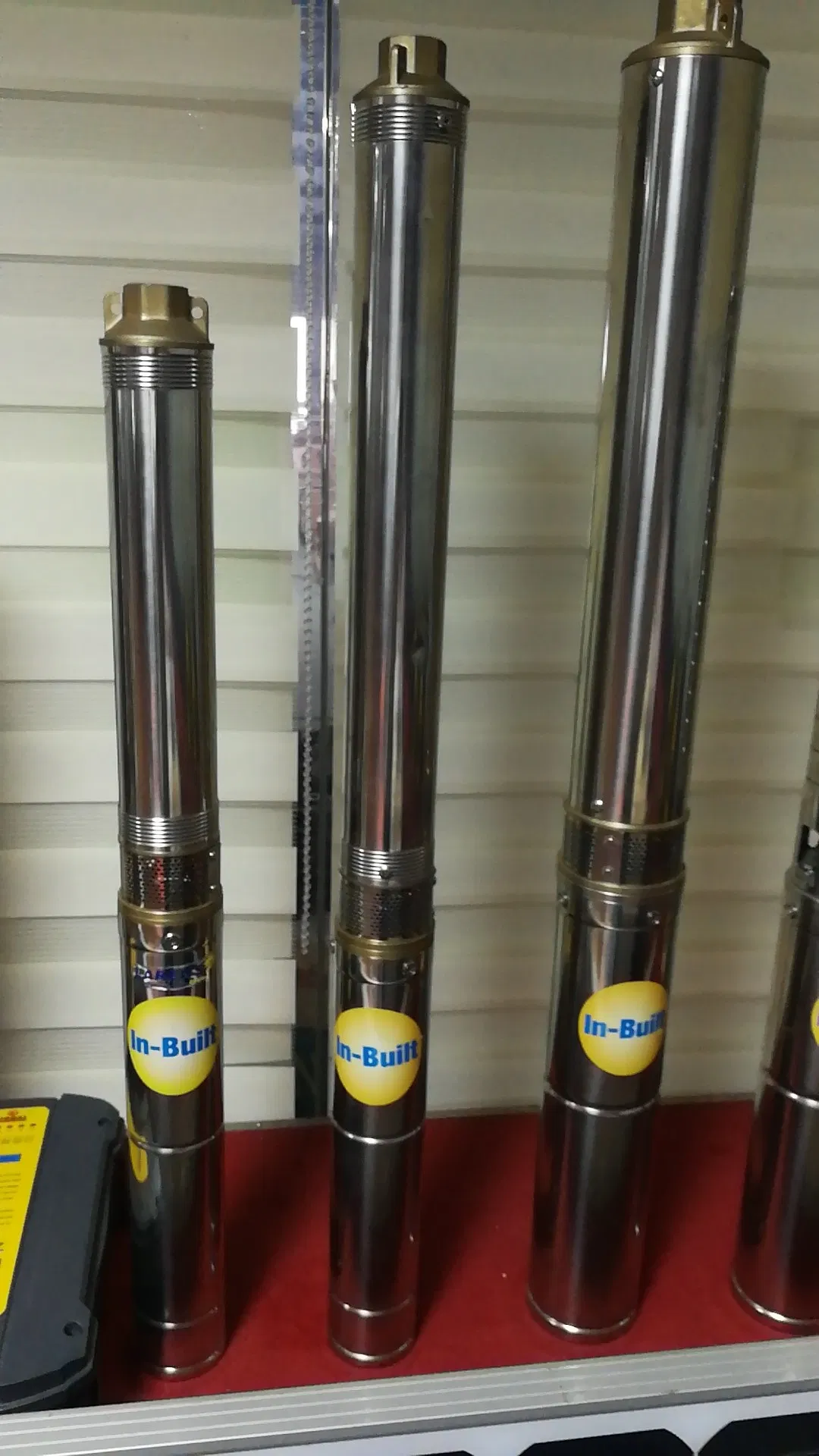

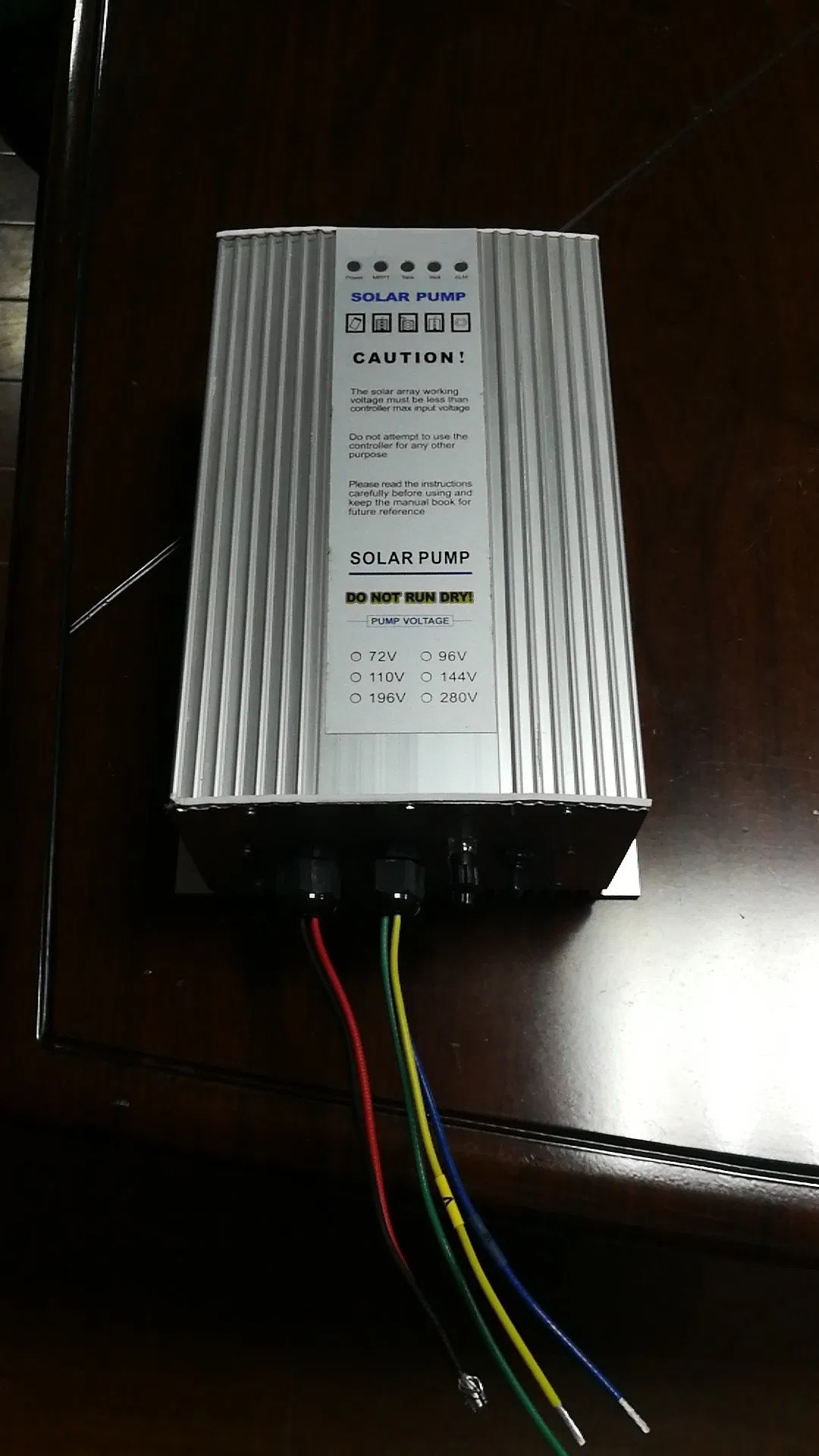

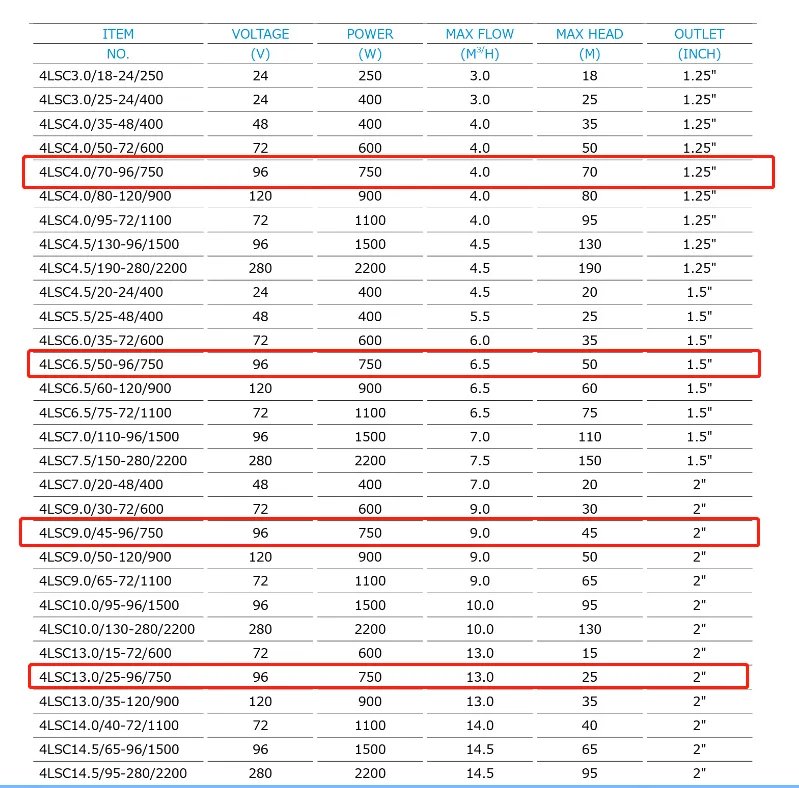

Solar Pump
96V, 750W, 9.0m3/H, 45m Head
Mounting Brackets
Hot DIP Galvanizing Carbon Steel

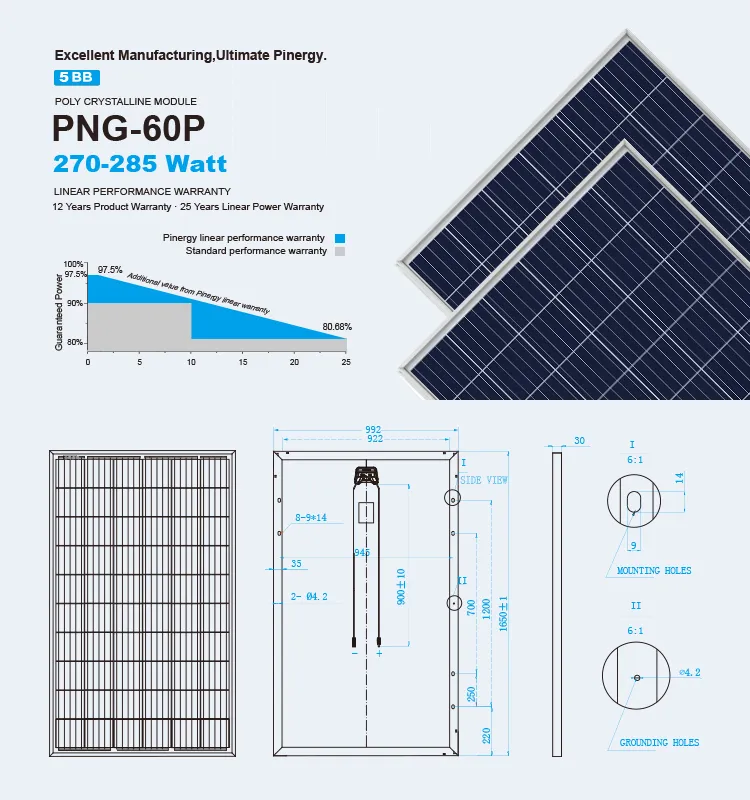

⚙️ Technical Performances
| Module Type |
PNG60P-270 |
PNG60P-275 |
PNG60P-280 |
PNG60P-290 |
| Rated Output (Pmp/Wp) |
270 |
275 |
280 |
290 |
| Short Circuit Current (Isc/A) |
9.06 |
9.18 |
9.29 |
9.38 |
| Open Circuit Voltage (Voc/V) |
37.2 |
38.0 |
38.5 |
38.7 |
| Max. Power Voltage (Vmpp/V) |
31.2 |
31.4 |
31.6 |
31.8 |
| Module Efficiency |
16.50% |
16.80% |
17.11% |
17.41% |

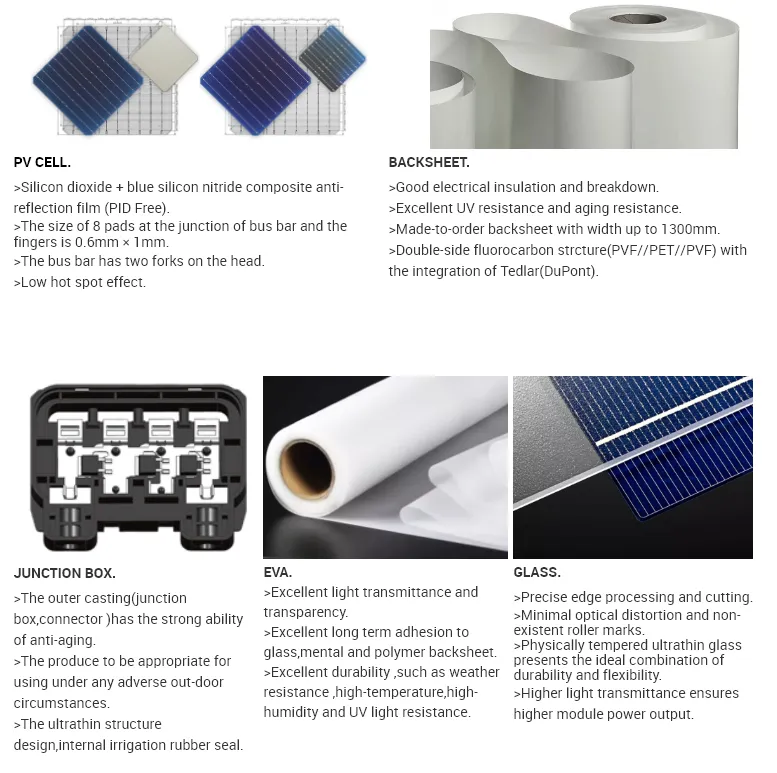

🛠️ System Materials & Components
❓ Frequently Asked Questions
1. What is the maximum water flow and head for this system?
The system features a 750W solar pump capable of a maximum flow rate of 9.0m³/H and a maximum lift head of 45 meters.
2. What type of solar panels are included in the package?
The kit includes 4 pieces of A-Grade 280W Polycrystalline solar panels, ensuring high efficiency and stable power output.
3. Is the mounting bracket durable for outdoor environments?
Yes, the mounting brackets are made from Hot DIP Galvanized Carbon Steel, providing excellent corrosion resistance for long-term outdoor use.
4. Can this solar pump system be used for large-scale agriculture?
Absolutely. While suitable for home and commercial use, its high flow rate makes it an ideal solution for agricultural irrigation.
5. What size of water tubing is required for installation?
The system is designed to work with a standard 2.0-inch water tube for optimal flow efficiency.
6. What are the standard test conditions (STC) for the solar modules?
The modules are tested under an irradiance of 1000W/m², a cell temperature of 25ºC, and an air mass of AM 1.5.
