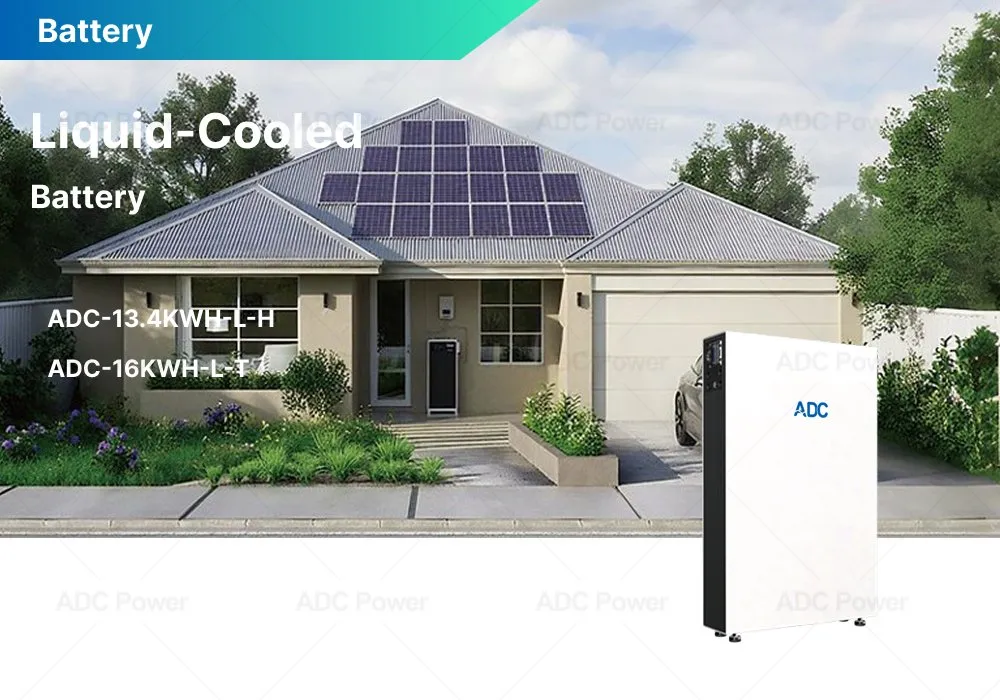

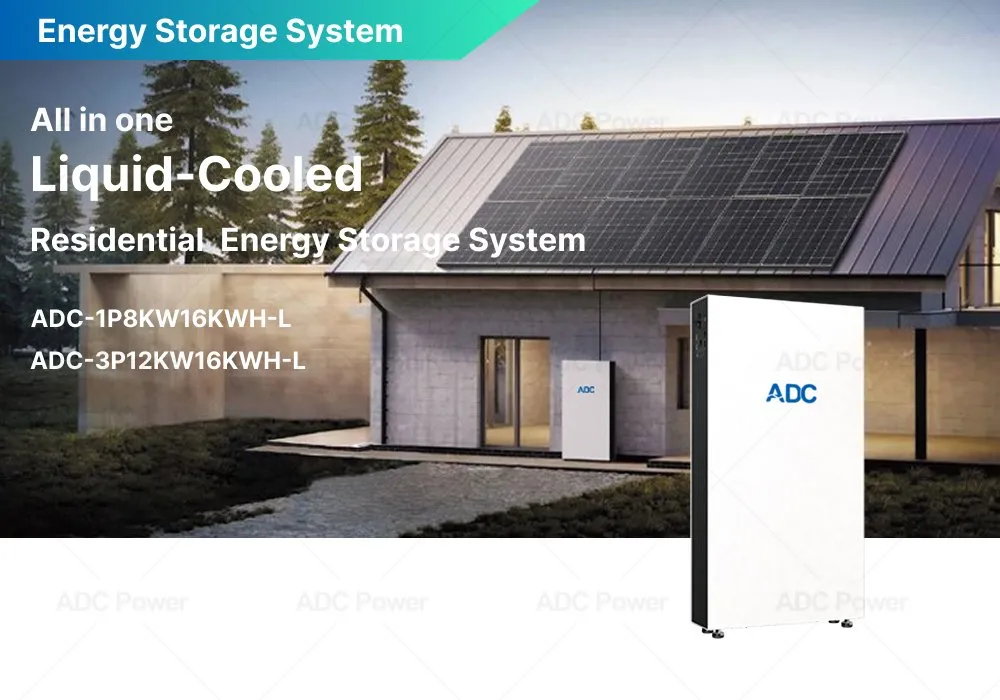

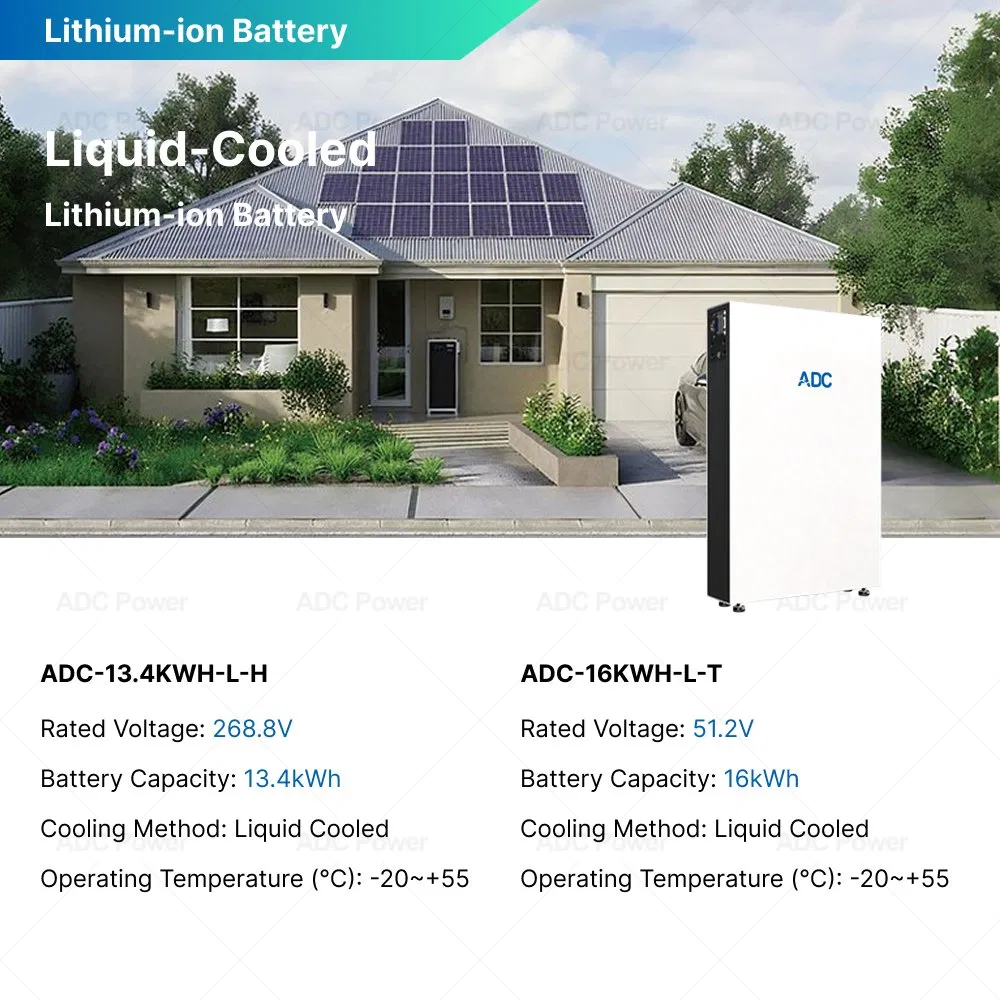

Both the inverter and battery use liquid cooling to ensure efficient heat dissipation and long-term reliability.

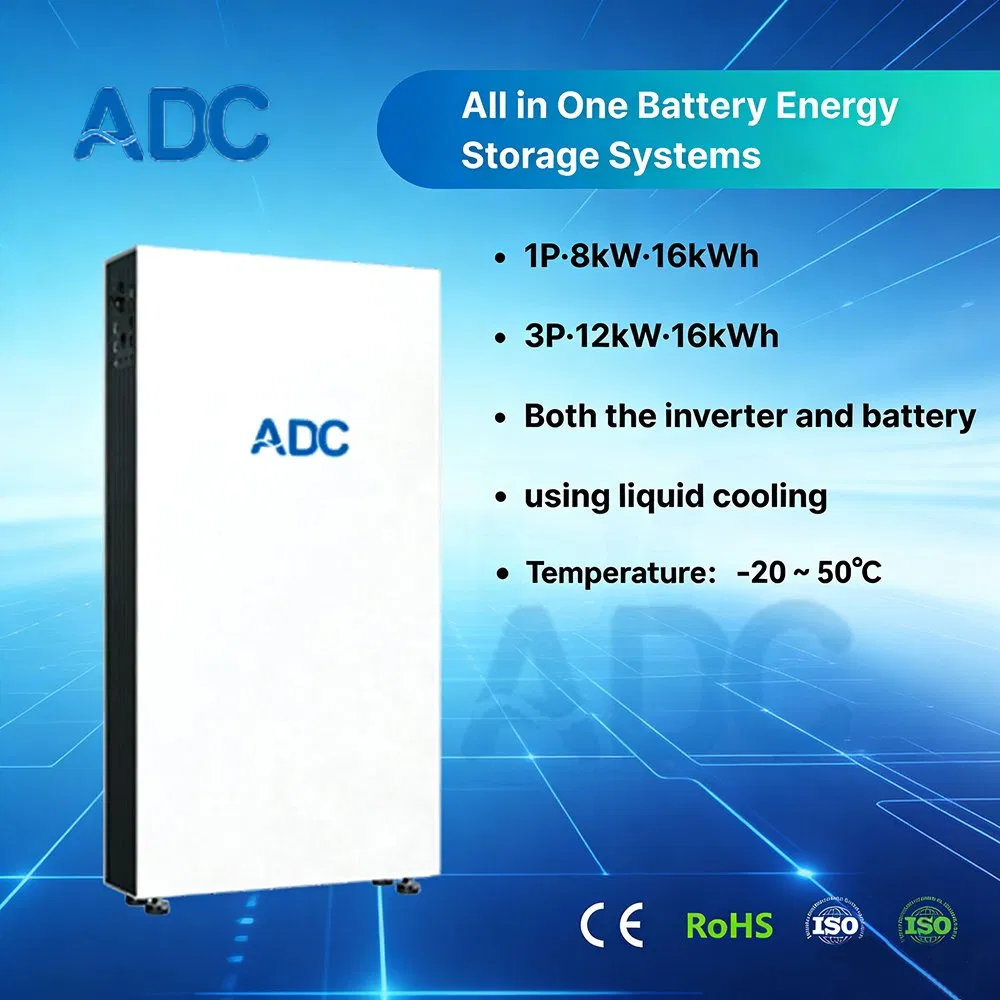

Available in single-phase 12 kW / 16 kWh and three-phase 8 kW / 16 kWh versions.

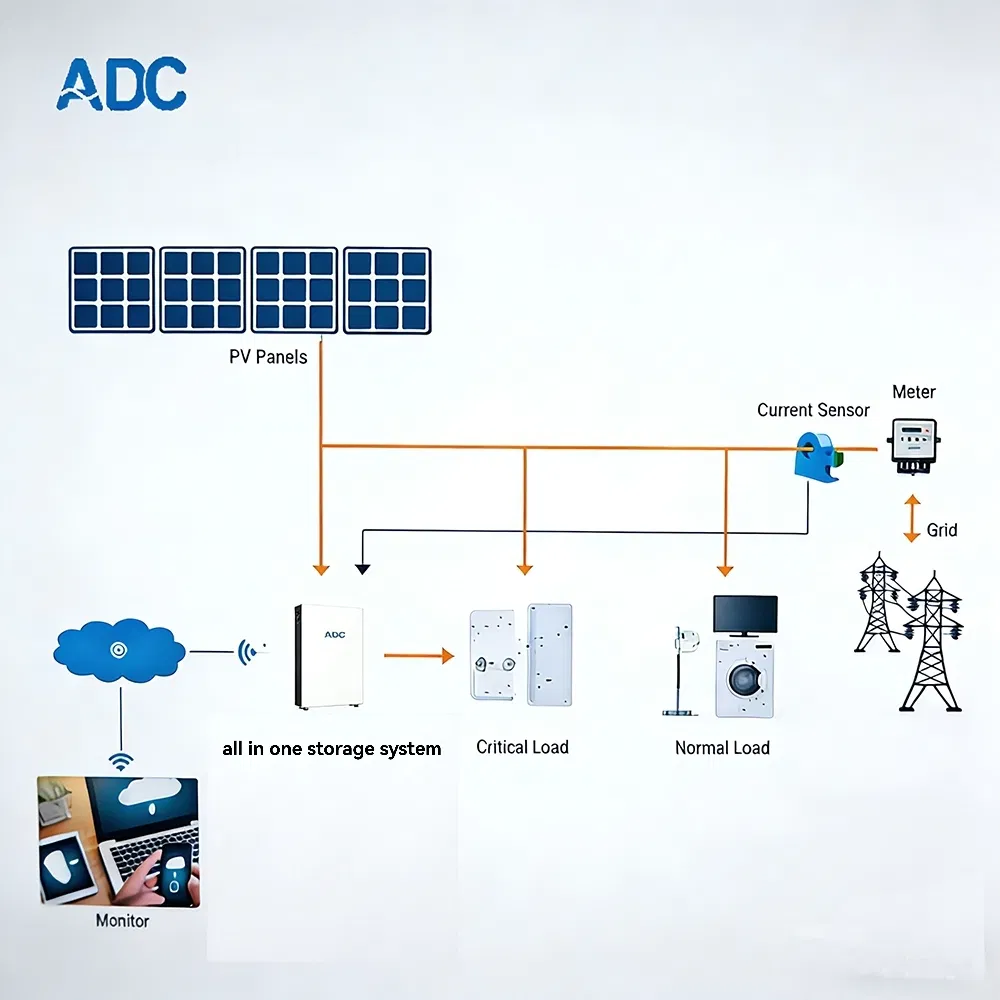

Supports both on-grid and off-grid operation for self-consumption and backup power.
Direct connection to photovoltaic panels for seamless solar integration.
Low-voltage battery system (46.4–57.6 V) ensures simplified installation and maintenance.
IP65-rated dust and water protection, suitable for various outdoor environments.

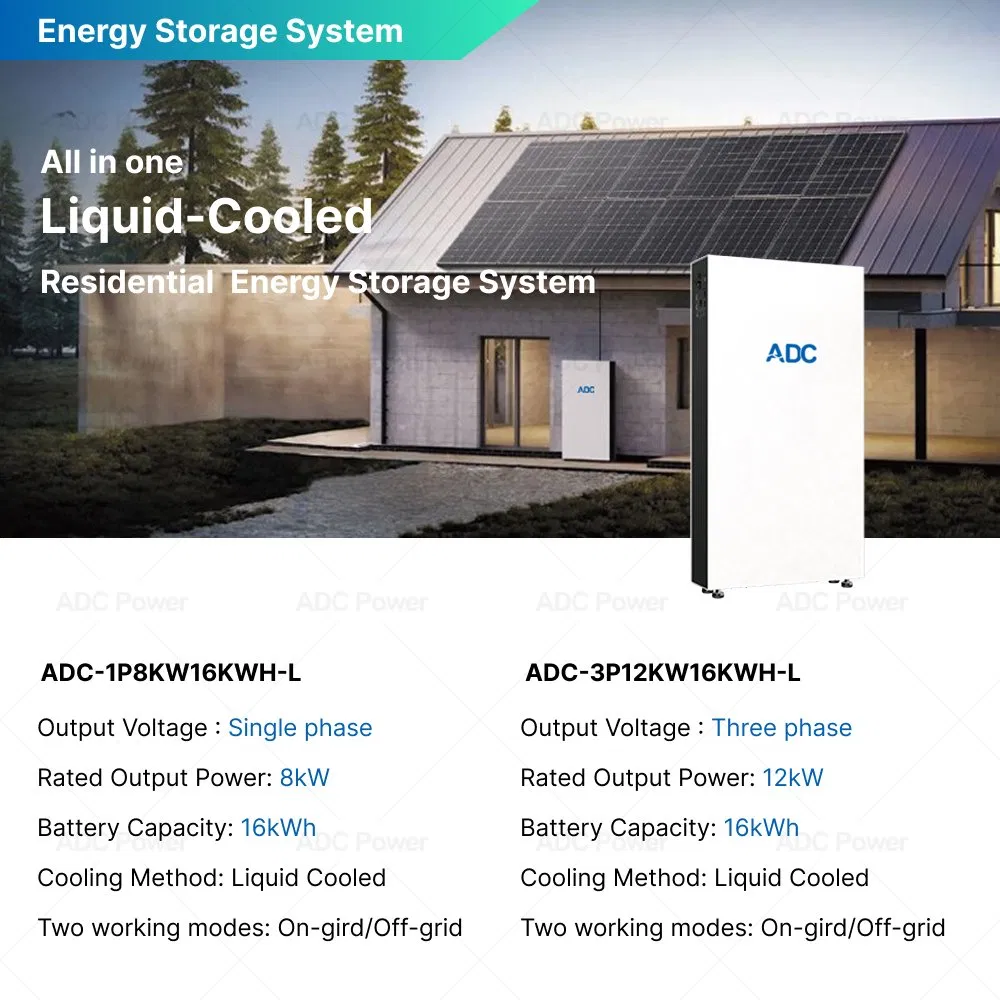

| Parameter | ADC-1P8KW16KWH-L | ADC-3P12KW16KWH-L |
|---|---|---|
| Max PV String Power (Wp) | 12000 | 15600 |
| Max Input Voltage (V) | 500 | 800 |
| MPPT Voltage Range (V) | 150-425 | 200-650 |
| Battery Capacity (Wh) | 16076 | 16076 |
| Rated Output Power (W) | 8000 | 12000 |
| Grid Connection | L/N/PE, 220/230/240V | 3L/N/PE, 380/400Vac |
| Protection Rating | IP65 | IP65 |
| Dimensions (mm) | 1220×670×188 | 1330×670×188 |
With over 20 years in power technology, we specialize in AC to DC, DC to AC, battery monitoring, solar power, and new energy system developments. Our expertise covers:
We maintain high-level technology equipment with ISO9001 and ISO14001 certification, ensuring customized product development and timely delivery to global markets including Europe, Middle East, Asia, and Africa.
