Low Power Solar Pump 110-1125W Efficient 36-108V System for Water Lifting

Quick Overview

Model NO.

2JS

Max. Head

30-50m

Max. Capacity

<50 L/min

Driving Type

Brushless DC Drive

Material

Stainless Steel

Structure

Screw Pump

Power Source

Solar Energy

Media

Clean Water

HS Code

8413810090

Industry

Agricultural Irrigation

Product Description

Low Power Solar Pump 110-1125W Efficient 36-108V System

⚡

High Efficiency: Features MPPT technology and 85% motor efficiency, outperforming traditional AC pumps by 18-22%.

🛡️

Durable Construction: Built with high-grade stainless steel for superior corrosion resistance and long lifespan.

💧

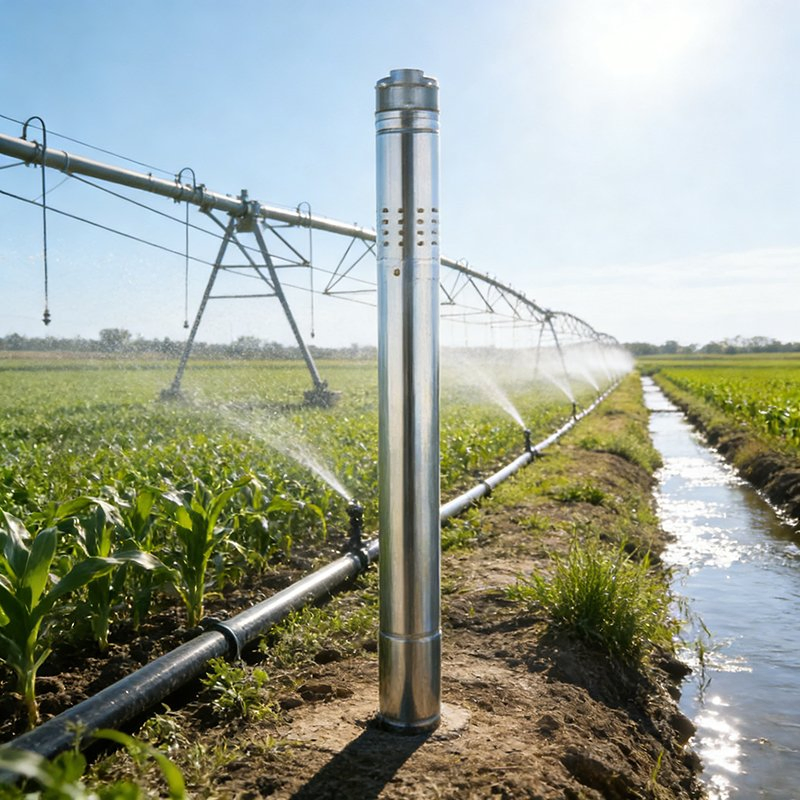

Versatile Applications: Ideal for deep well water extraction, garden irrigation, and fountain systems.

✅

Safety Guaranteed: IP65 waterproof rating with integrated protection against under-voltage, overload, and dry-running.

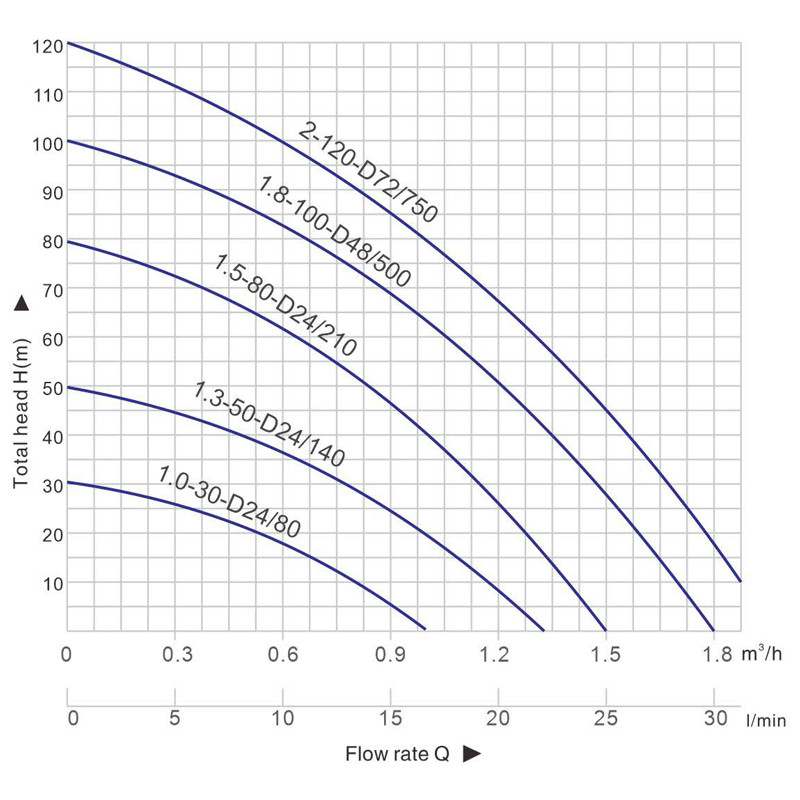

Technical Specifications

Model	Impeller	Solar Array Voltage (V)	Solar Array Power (W)	Best Input Voltage (DC)	Max Flow (m³/h)	Max Head (m)	Outlet (inch)	VOC
2JS1.0-30-D24/80	Screw	36	110	30-48	1	30	0.5”	<100V
2JS1.3-50-D24/140	Screw	36	180	30-48	1.3	50	0.5”	<100V
2JS1.5-80-D24/210	Screw	36	280	30-48	1.5	80	0.5”	<100V
2JS1.8-100-D48/500	Screw	72	750	60-90	1.8	100	0.5”	<100V
2JS2-120-D72/750	Screw	108	1125	90-120	2	120	0.5"	<150V

Quality & Production

Frequently Asked Questions

Do these solar water pumps require grid power or batteries?

We offer two main types: direct-drive models that operate solely on sunlight (no battery needed) and hybrid models equipped with batteries for continuous operation during cloudy days or at night.

What application scenarios are suitable for these pumps?

They are widely used in agricultural irrigation, rural water supply, desertification control, and landscape water circulation, making them ideal for remote off-grid locations.

How do I select the right model for my project?

Selection depends on your required water flow, lift height (head), and local solar irradiance. We can help recommend the most suitable model and matching solar panel configuration based on these parameters.

What is the typical warranty and maintenance requirement?

The pump body generally comes with a 24-month warranty. Maintenance is minimal, primarily involving regular cleaning of solar panels and periodic checks for pipe blockages.

How are the products packaged for safe international transport?

Pumps are wrapped in waterproof film and secured in sturdy wooden cases, while solar panels are packed in anti-scratch cartons. All wooden packaging meets international import requirements with necessary fumigation certificates.

Are the pumps resistant to harsh environments?

Yes, the use of high-quality stainless steel and an IP65 protection rating ensures the pumps operate reliably in various outdoor conditions and resist corrosion from clean water sources.
