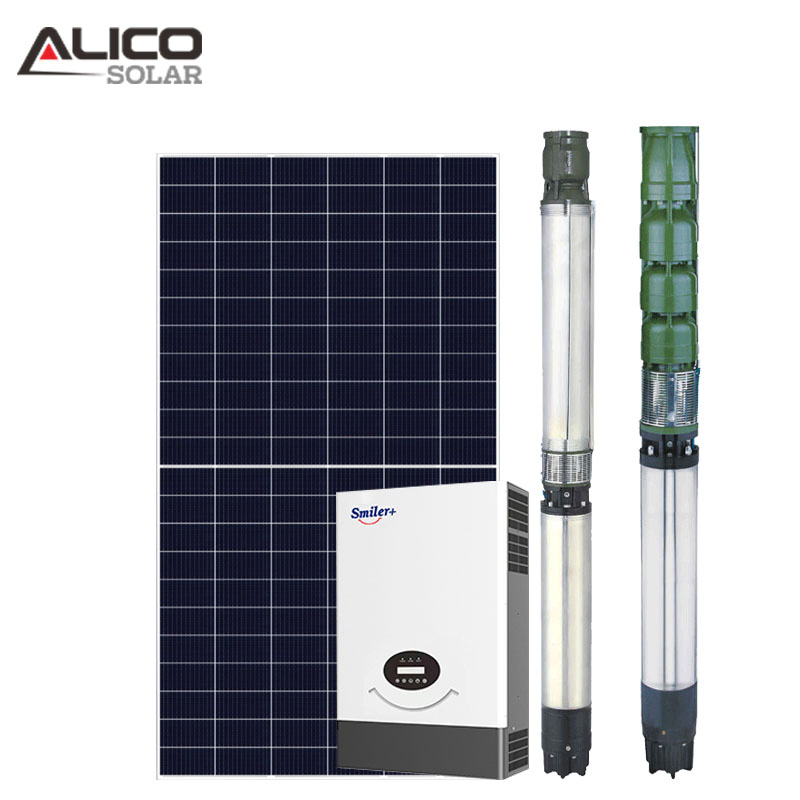

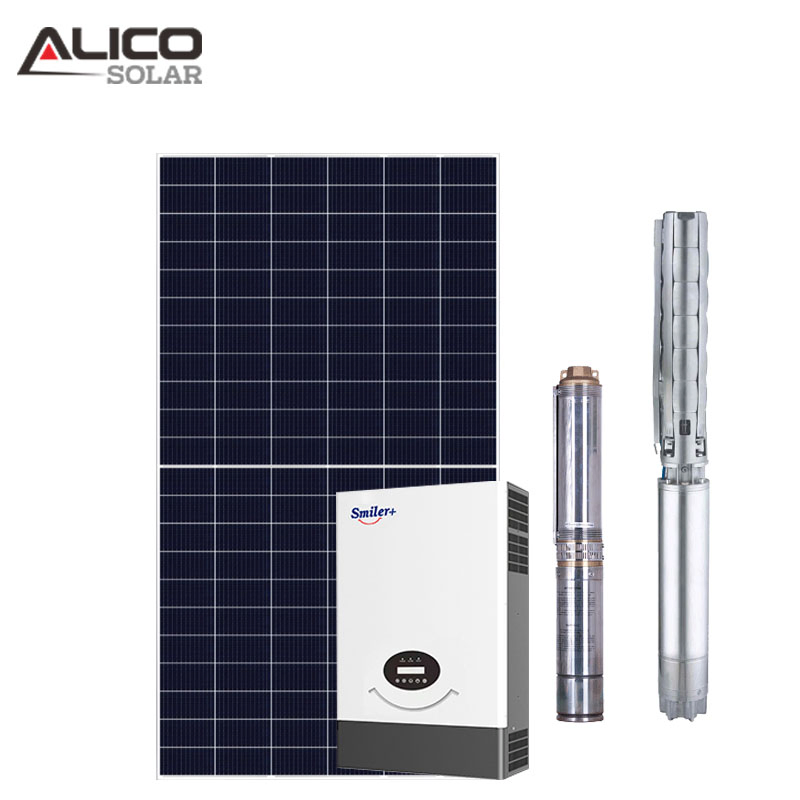

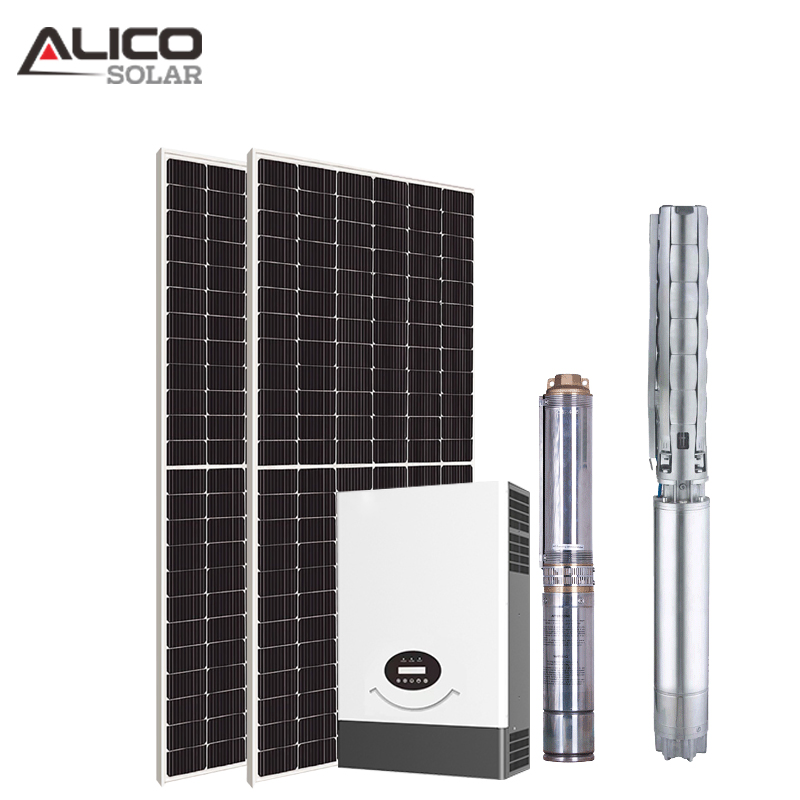

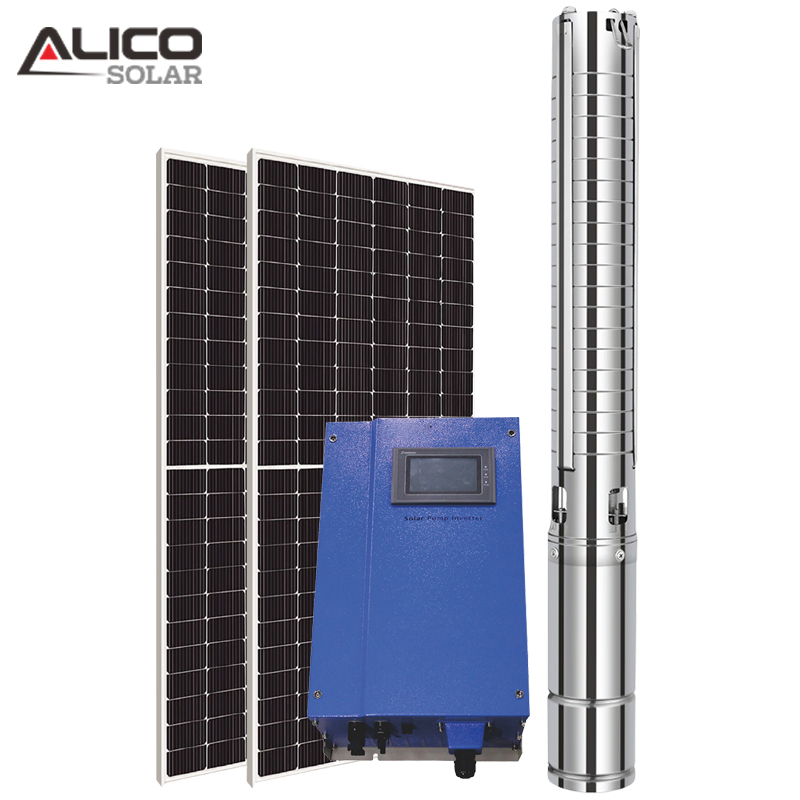

Low Price DC Submersible Power Agriculture in Pakistan Battery Solar Pump Water

i

Basic Information

Model NO.

pump

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount

System Type

Home Solar Power System

Industry

Air Conditioning Pump

Theory

Centrifugal Pump

HS Code

8501610000

Capacity

1.2 Gw/Year

P

Product Description

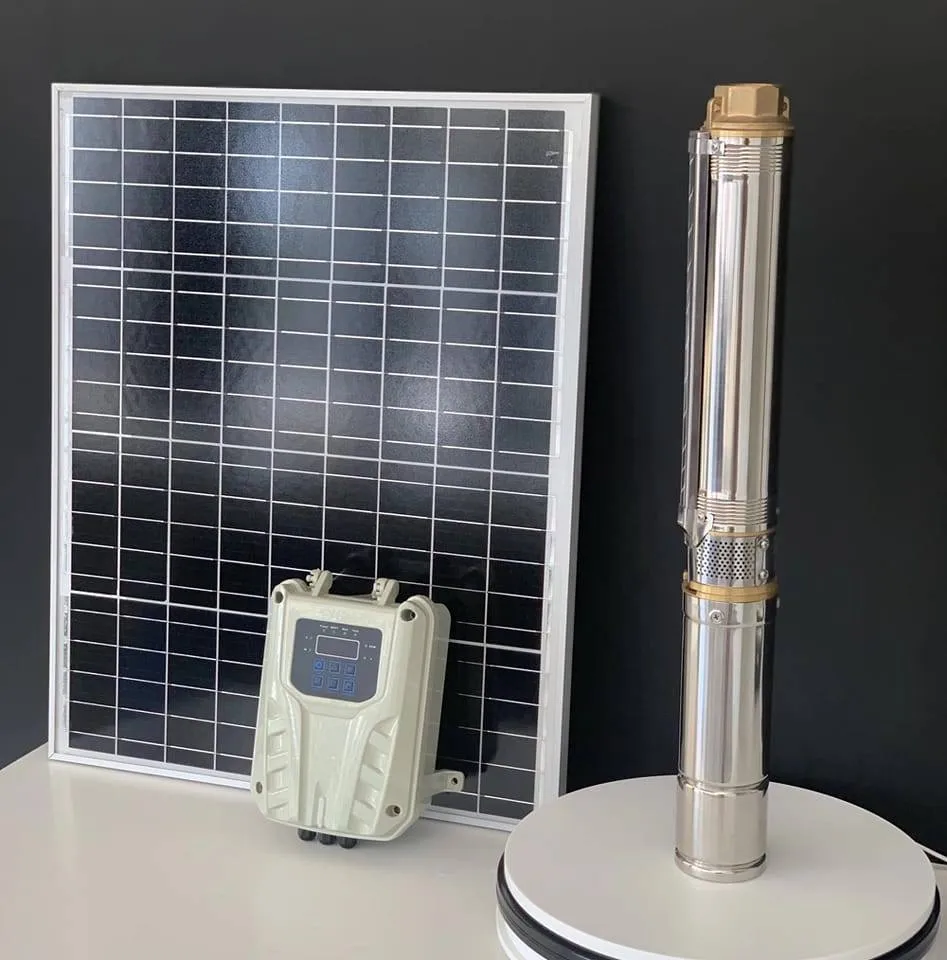

DC AC Solar Pump system for Farm & Agricultural Irrigation. High-efficiency water solutions powered by clean solar energy.

Model Name	Voltage (V)	Power (W)	Max Flow (m³/h)	Max Head (M)	Outlet (in)
JS3-0.9-32	24	100	0.9	32	3/4"
JS3-1.8-80	24	210	1.8	80	3/4"
JC3-4.2-54	48	600	4.2	54	1"
JS4-4.0-100	72	1000	4	100	1"
JCS4-25-96	288	4000	25	96	2"
JCS6-70-33	288V	4000	70	33	4"

S

30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1

Main Applications

AGRICULTURAL IRRIGATION
ANIMAL HUSBANDRY
DESERTIFICATION CONTROL
DOMESTIC WATER SUPPLY

T

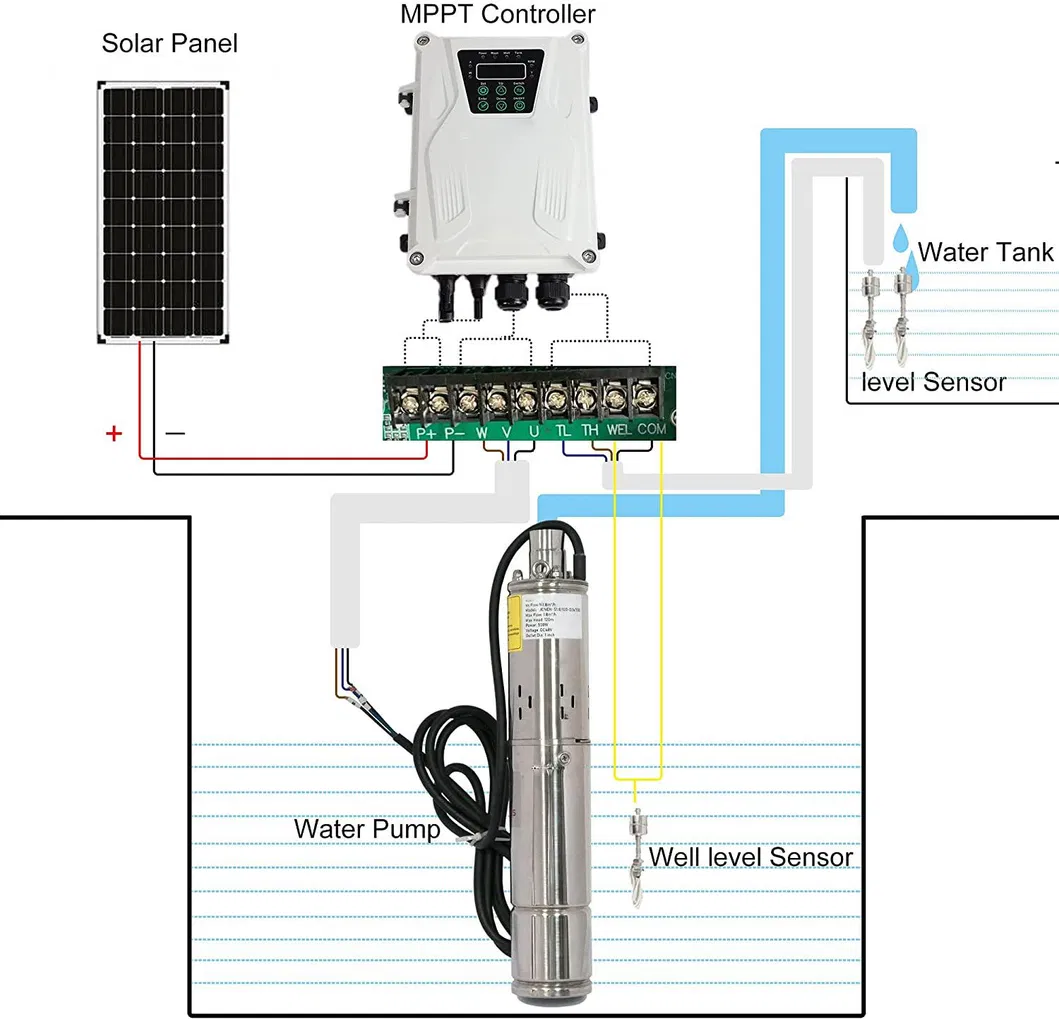

Technical Components

Mono Solar Panels: 290W Peak Power, High efficiency output for reliable pump operation.

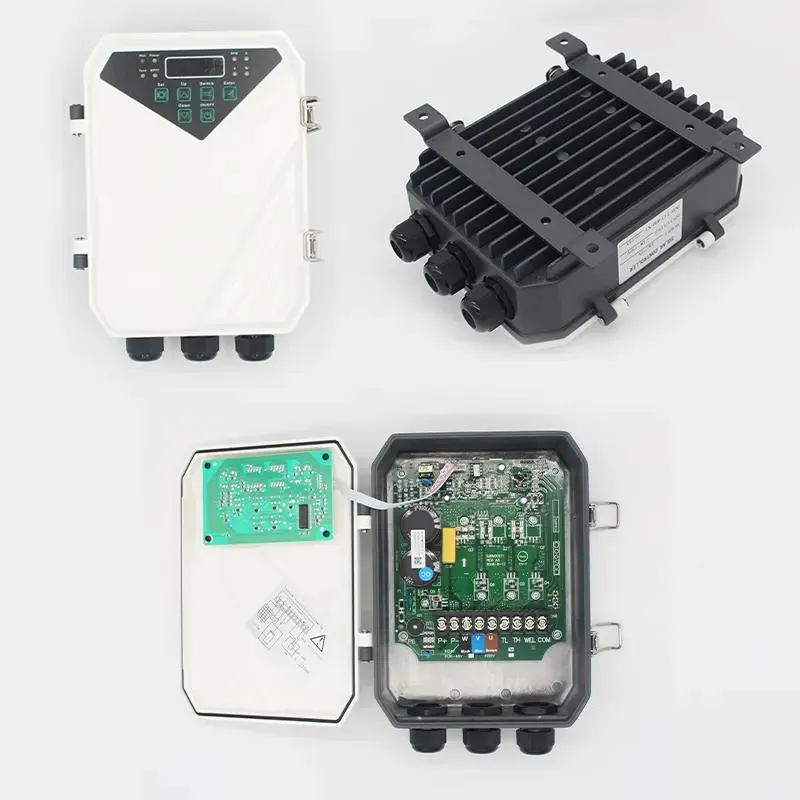

Pump Controller: Max DC Input 8.5KW, MPPT Range 90-520V, with optional Wifi/GPRS.

Submersible Pump: Stainless steel 304 body, AC/DC options available.

V

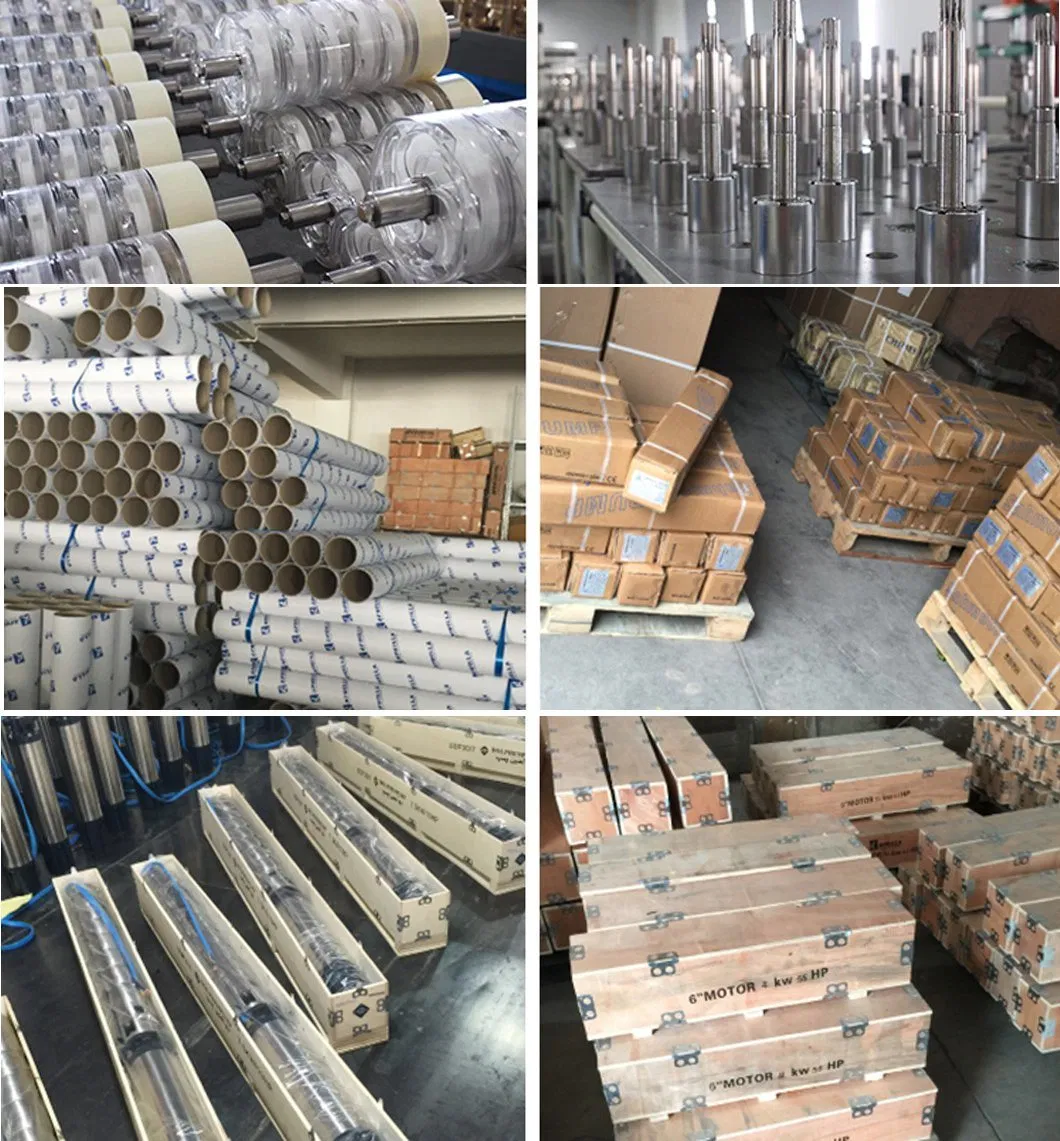

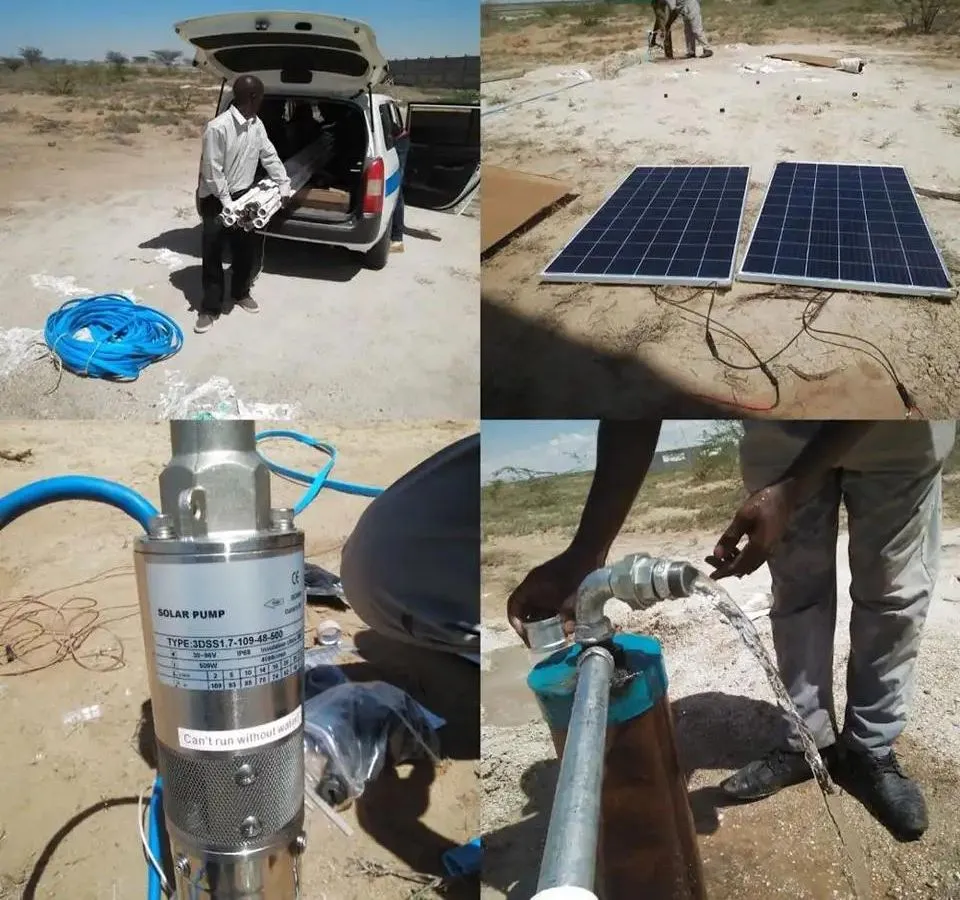

Projects & Packaging

?

Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all of our inverters provide true pure sine wave output, which is as good as or better than the public power grid.

What's the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters have a low repair rate, long lifespan, and protect sensitive appliances without harmonic pollution. Modified sine waves can negatively impact inductive loads like refrigerators and pumps.

What appliances can your inverters load?

Our inverters can be used for household, office, and agricultural appliances, including inductive loads like water pumps and air conditioners.

Do I need a power inverter for a solar system?

It is not absolutely required if you only use DC battery power, but you need one if you want to use normal AC appliances (220V or 230V).

What is the difference between 12, 24, and 48 Volt inverters?

This refers to the input voltage from the battery bank. Higher voltages allow for smaller wires between the solar array and the battery bank due to lower current.

What should I do if a product is faulty?

You can provide a picture or video of the issue, and we will analyze it and provide the necessary spare parts for resolution.
