Basic Info.
Work Environment
Common Heat Pump
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Power Source
Electric/Solar, /Air
Heating Capacity
4kw/6kw/8kw/10kw/12kw

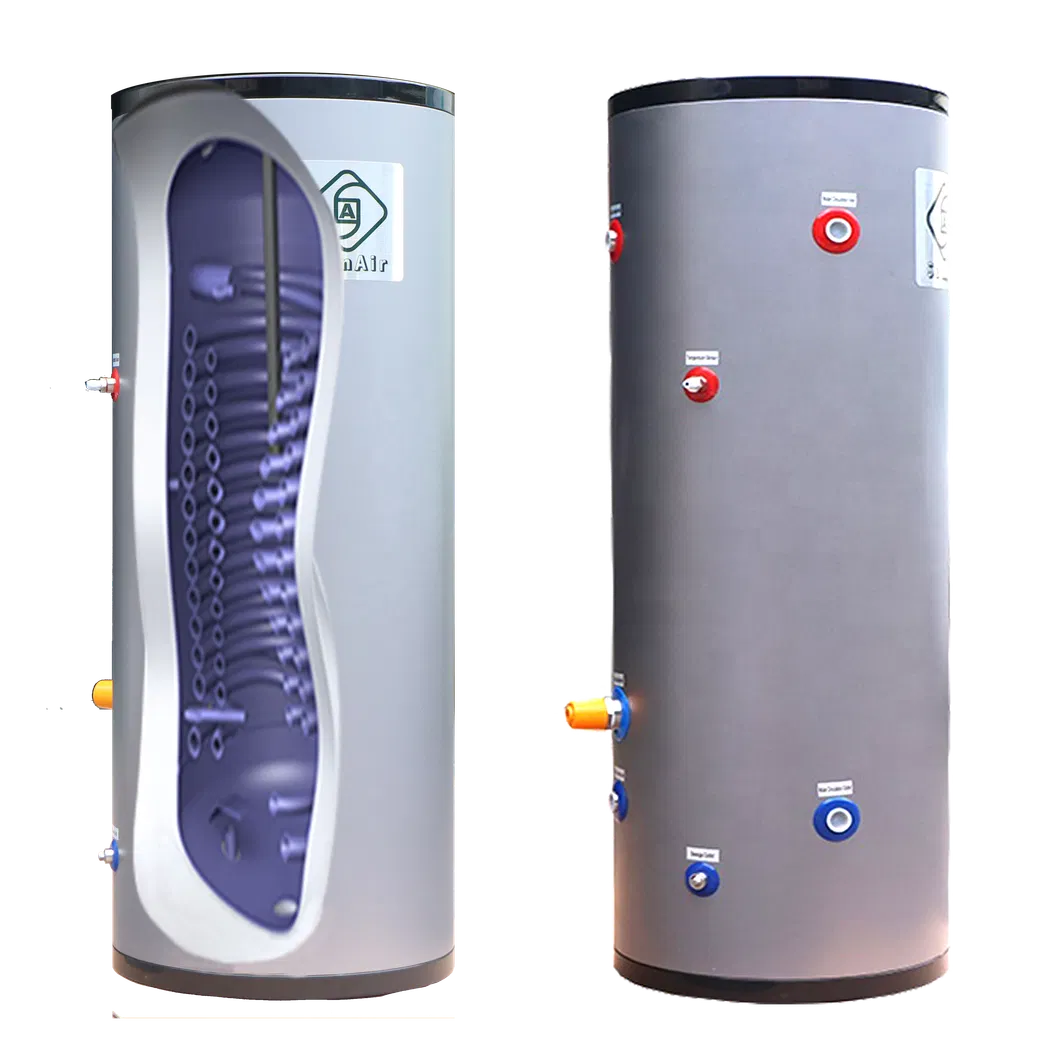

Water Tank Size
100L/150L/200L/250L/300L/400L/500L
Production Capacity
12000/Year
Product Description

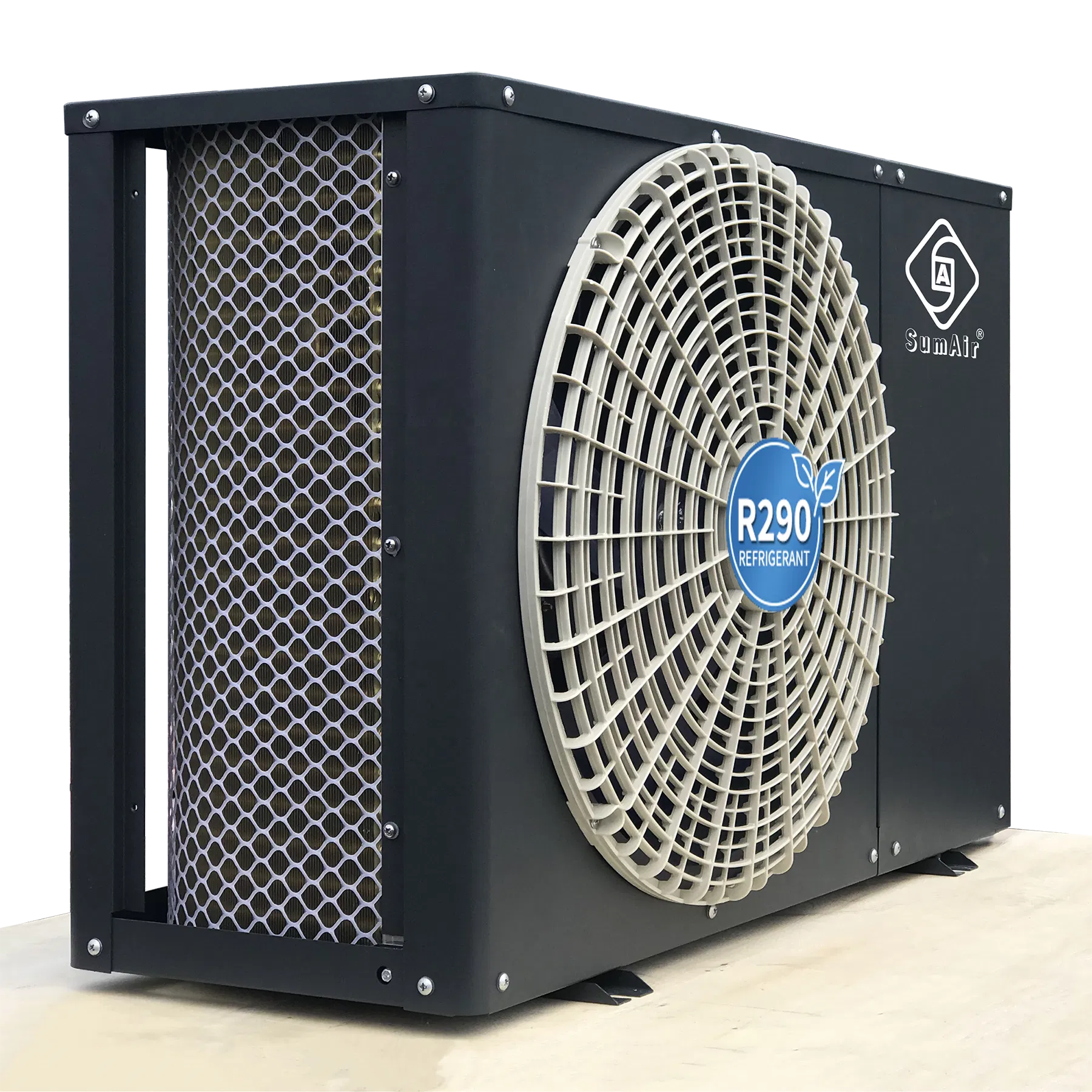

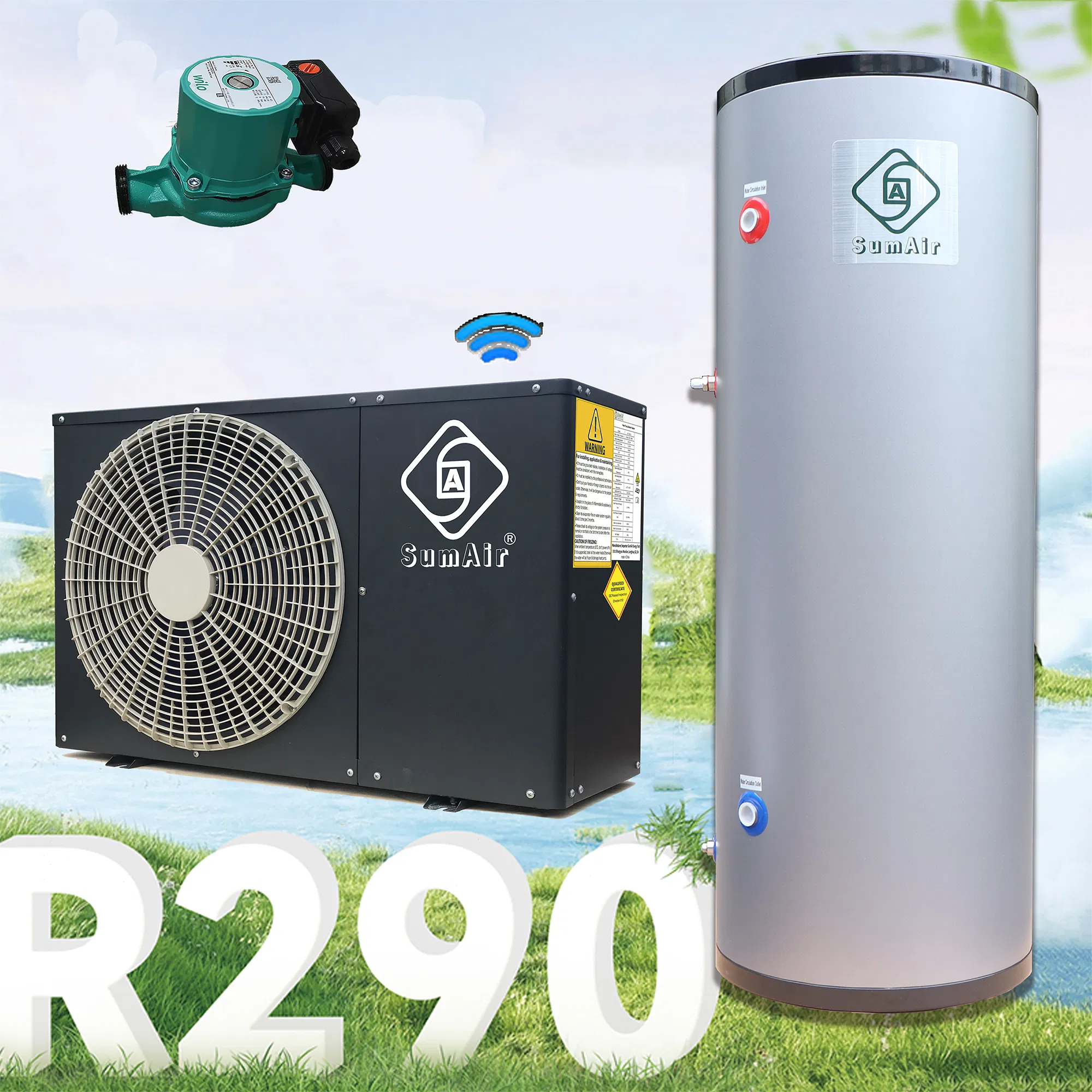

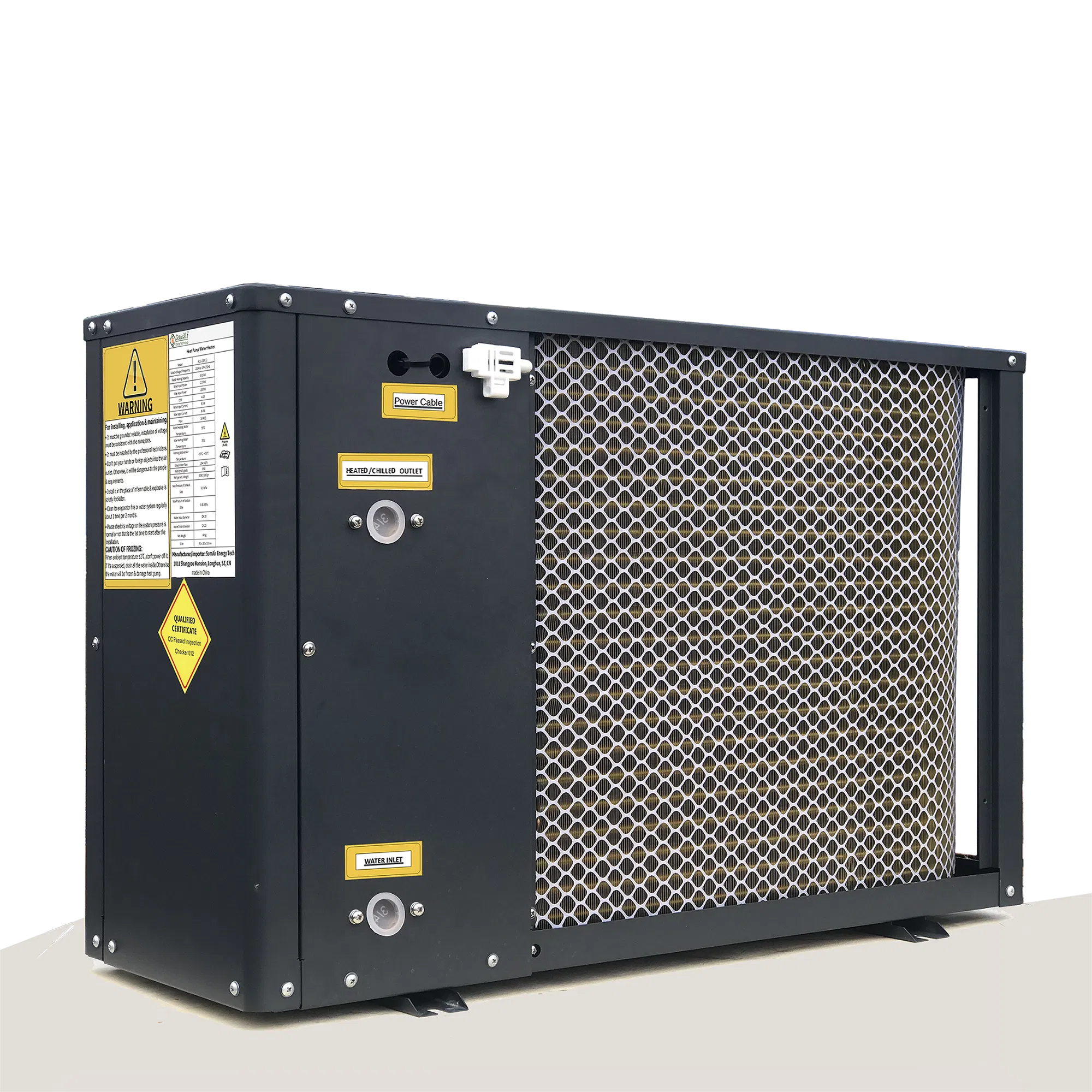

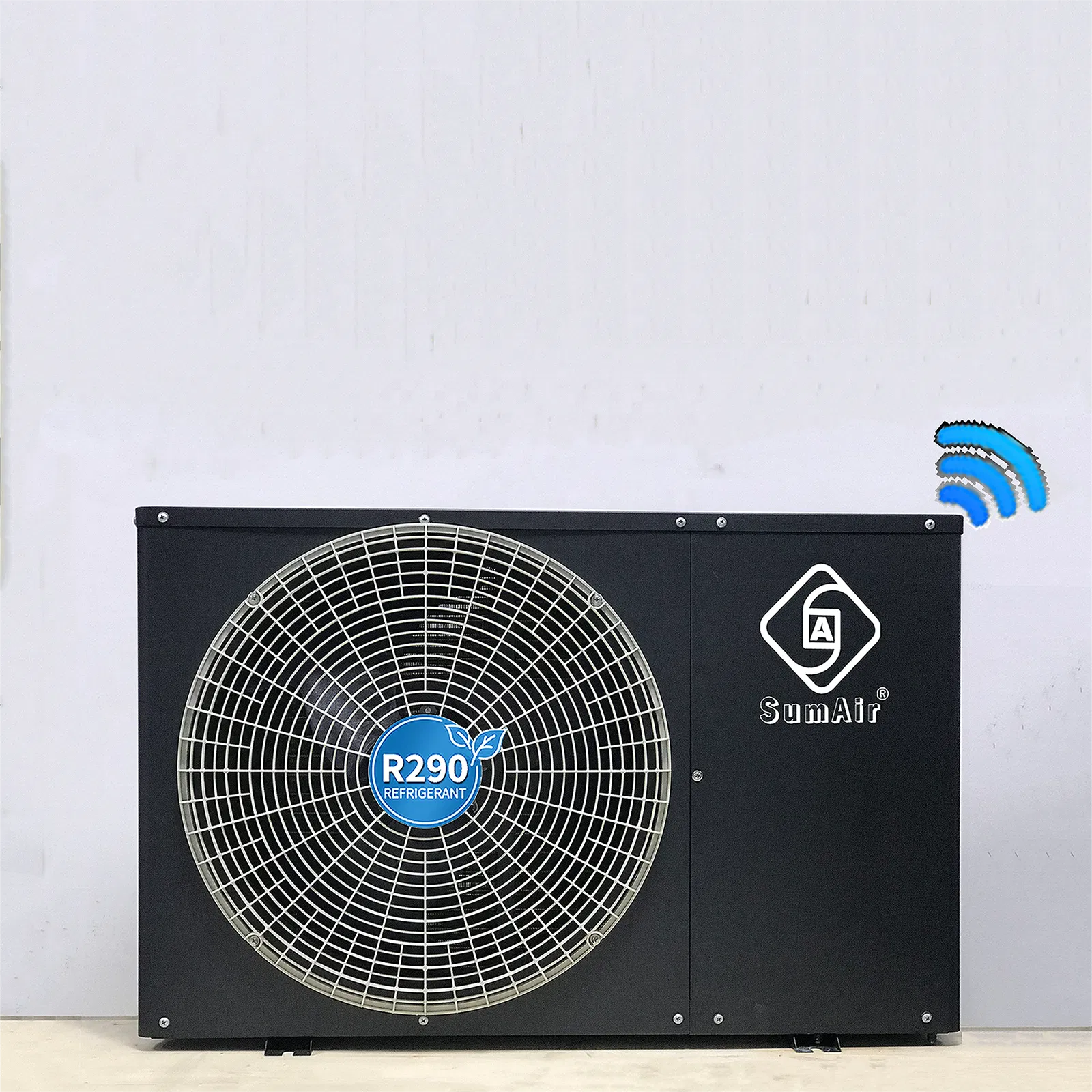

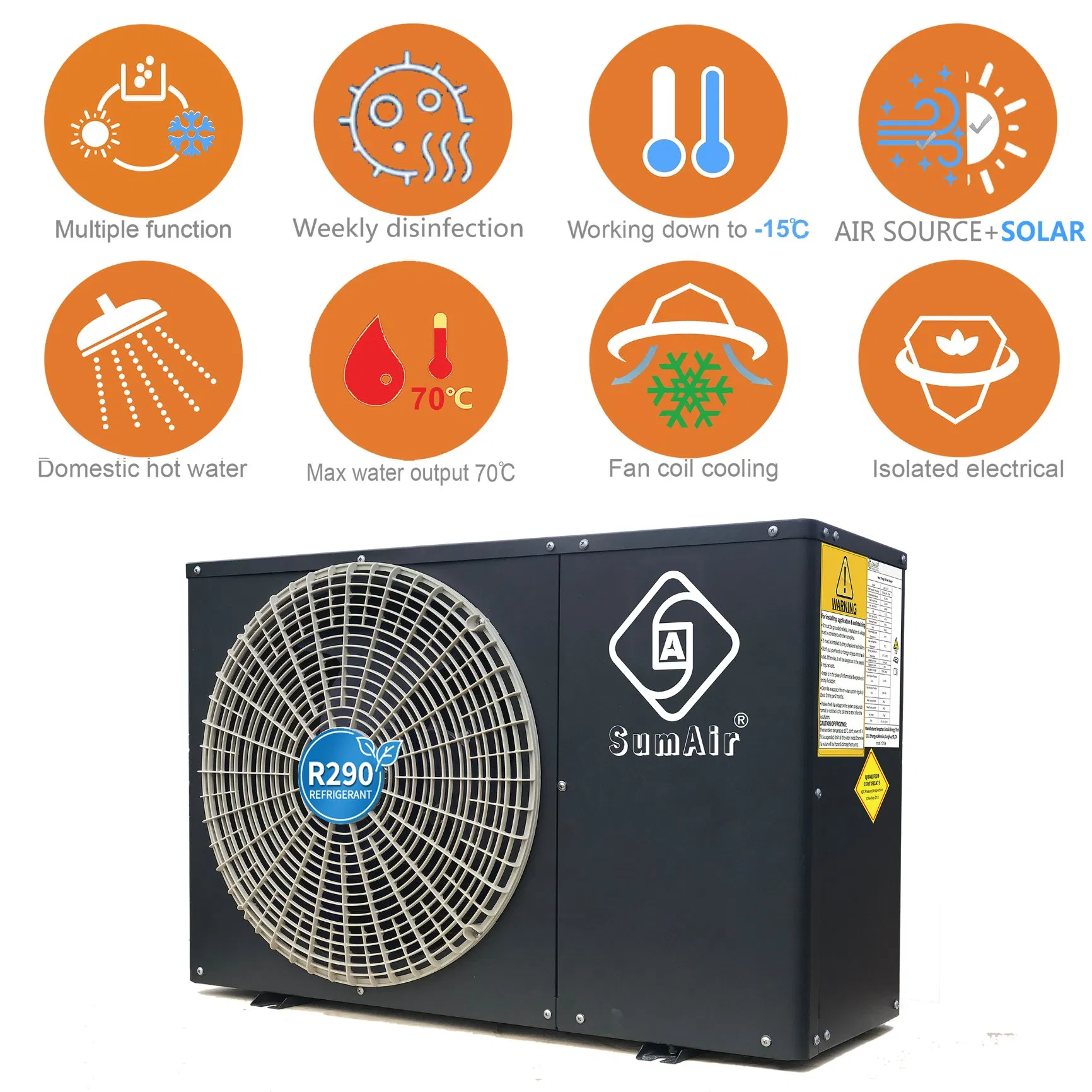

Factory Supply -15dg CE CB R290 70Dg A++ Air to Domestic Hot Water Heater Thermal Pump 4 6 8 10 12kw Hybrid Solar Coil Heating Chilling Cylinder Tank Gayser
- Top SCOP in cold, ENERGY SAVING in homoeothermy, GMCC Rotary compressor and ECO R290 refrigerant gas for max heating/cooling capacity.
- Easily 70 max hot water outlet, fully satisfying weekly/period disinfection requirements.
- Advanced Operate System with ultra-intelligent design; superior heat dissipation circuit board for 3x longer service life.
- Supports domestic hot water heating or water chilled for fan coil cooling, integrating air source and solar panel systems.
- Multistage mute fan motor and Aerodynamic ROHS fan blades for ultra-low noise and reliable air flow.
- High-tech shock-absorption and double-layer rubber damping for compressor noise reduction.
- High-accurate automatic silver welding copper piping for easy maintenance and key part exchange.
- Classic EU outlook with dark blue matte frosted housing or OEM customized designs.
- Portable compact design with patented golden ratio geometric dome chassis to resist snow and dust.

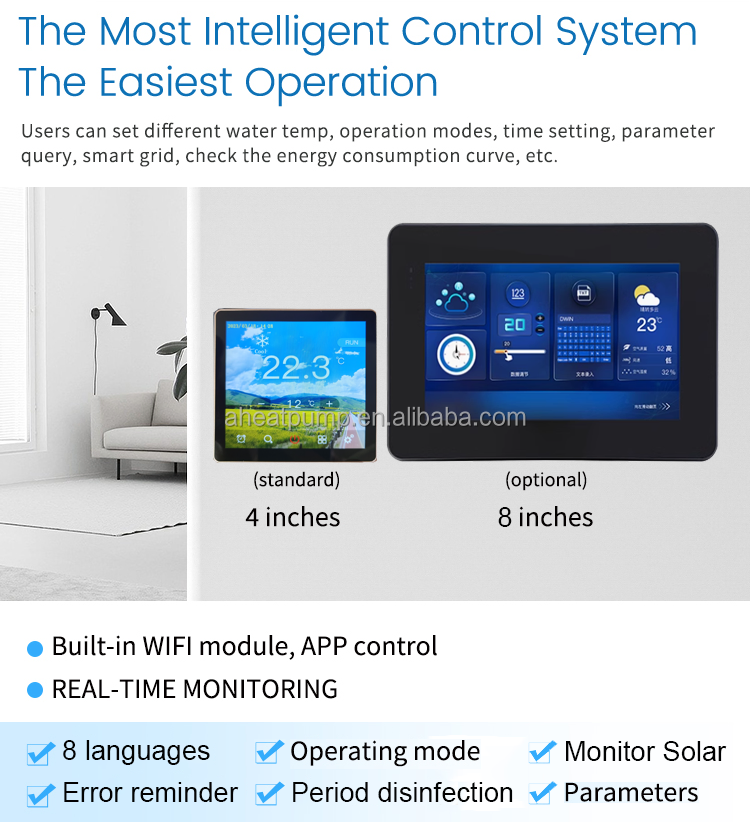

- WIFI remote control via APP with optional 4-inch or 8-inch Touch Screen LCD panels.
- Wilo/DAB/Shimge water circulation pump integration for simplified installation.
Technical Parameters
| A20ºC/W55ºC |
Input power |
kW |
4.11 |
1.60 |
2.19 |
2.92 |
| Heating capacity |
kW |
4.51 |
6.53 |
8.9 |
11.9 |
| COP |
4.08 |
4.08 |
4.07 |
4.08 |
| A7ºC/W35ºC |
Input power |
kW |
0.98 |
1.42 |
1.93 |
2.58 |
| Heating capacity |
kW |
3.52 |
5.1 |
6.94 |
9.28 |
| COP |
3.60 |
3.59 |
3.60 |
3.60 |
| Max outlet water temp |
70ºC |
| Compressor |
GMCC/Panasonic |
| Internal water pump |
WILO/SIMHOO (6M Head) |
| Refrigerant |
R290 |
| Unit Size (mm) |
760*260*480 |
760*260*480 |
760*260*480 |
1080*390*650 |

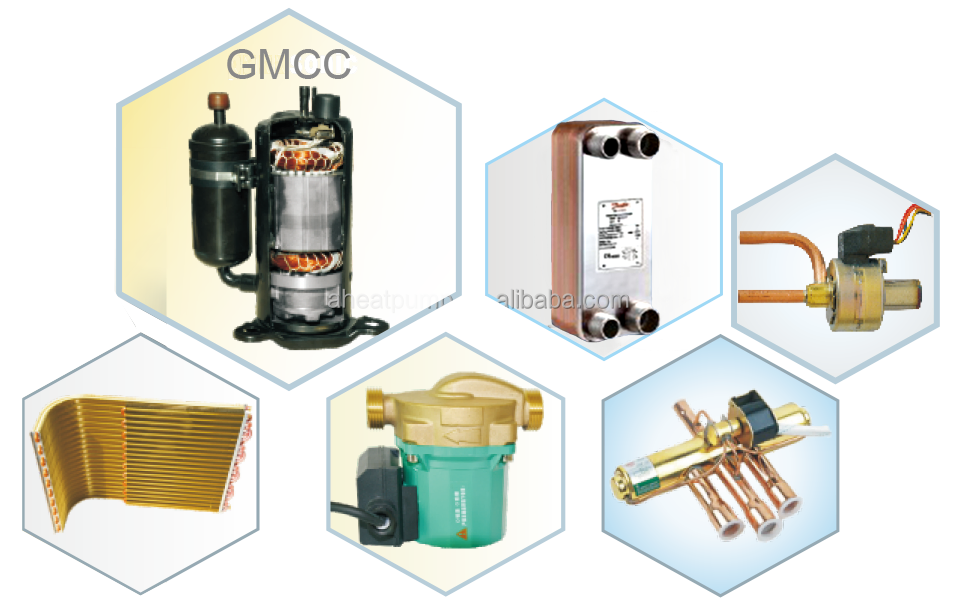

Key Components & Design
Certificates & Performance

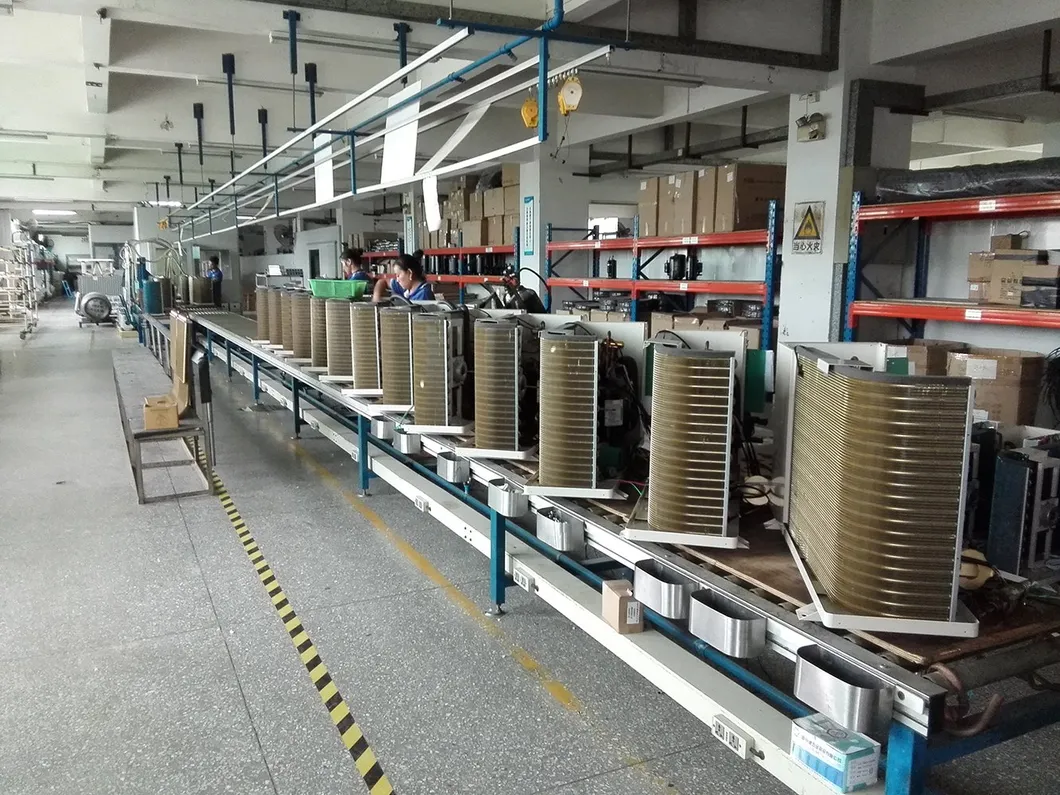

Production & Applications

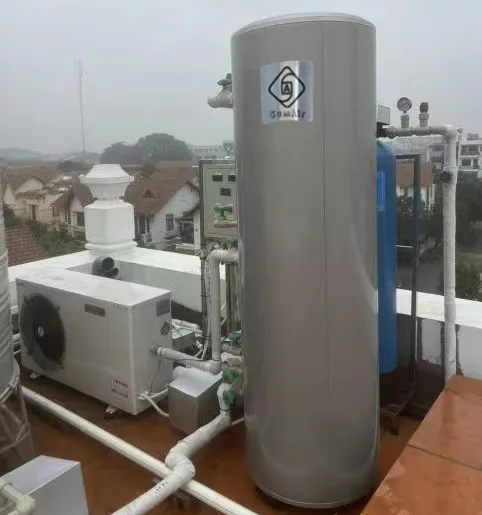

Hybrid System Integration

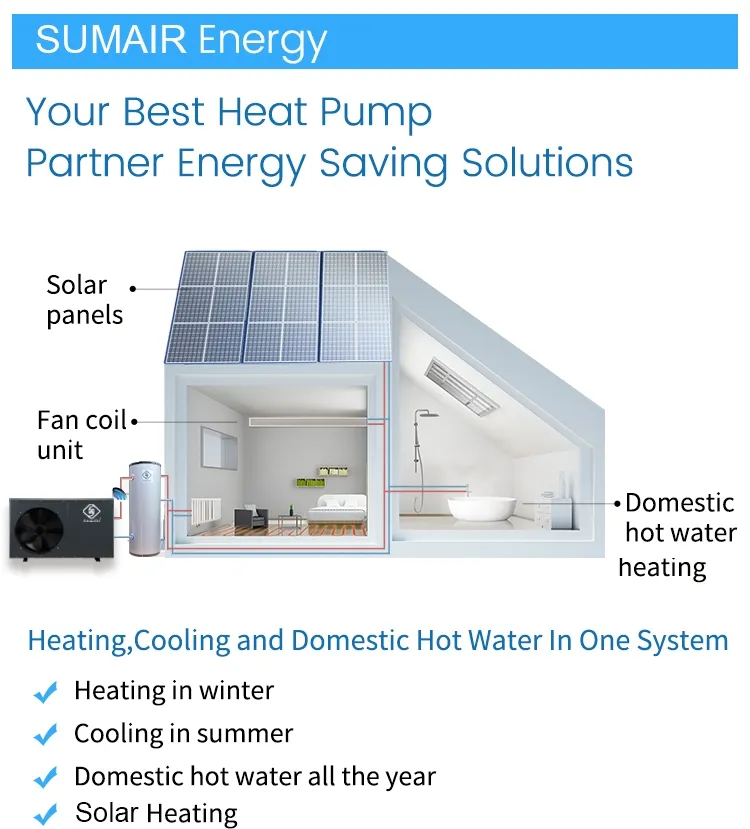

Air Source Heat Pump + Solar Collector Panel Heating System
Frequently Asked Questions
What is the maximum outlet water temperature of this heat pump?
This R290 heat pump can easily reach a maximum outlet water temperature of 70°C, making it ideal for daily hot water needs and weekly disinfection to ensure hygiene.
Is the R290 refrigerant eco-friendly?
Yes, the R290 refrigerant gas is known for its extremely low Global Warming Potential (GWP) and Ozone Depletion Potential (ODP), making it one of the most eco-friendly and efficient refrigerants available.
Can this system work with solar panels?
Absolutely. The system is designed to integrate with solar panel heating systems. The intelligent controller monitors both ambient temperature and solar energy to switch between them automatically.
Does the unit support remote operation via mobile phone?
Yes, the unit comes with built-in WIFI and APP support, allowing you to control and monitor your heating and cooling settings from any distance.
What kind of noise levels should I expect?
The unit features a multistage mute fan motor and high-tech shock absorption structures for the compressor, resulting in ultra-low noise levels of approximately 45-48 dB at a 1-meter distance.
In what climates can this heat pump operate?
This unit is designed for versatility and can operate efficiently in cold environments down to -15°C, providing reliable heating capacity even in winter seasons.
