| Model NO. | KV90-PV |
|---|---|
| Switch Mode | High Carrier Frequency PWM Control |
| Main Circuit Type | Voltage |
| Voltage of Power Supply | Low Voltage Variable-Frequency Drive |
| Link of Transformation | AC-DC-AC Variable-Frequency Drive |

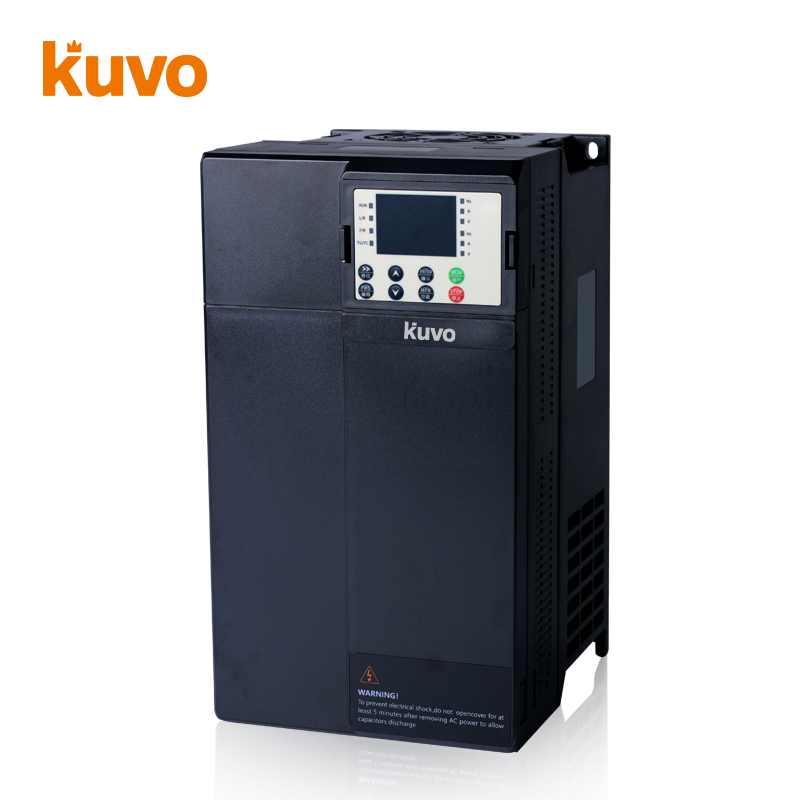

| Function | Solar Pump Inverter |
| Output Frequency | 0-400Hz |
| Protection Level | IP20 |
| Installation Method | Wall-Mounted, Cabinet Installation |
| HS Code | 85044090 |
| Package Size | 240.00cm * 108.00cm * 168.00cm |
|---|---|
| Package Gross Weight | 16.800kg |
| Transport Package | Carton |

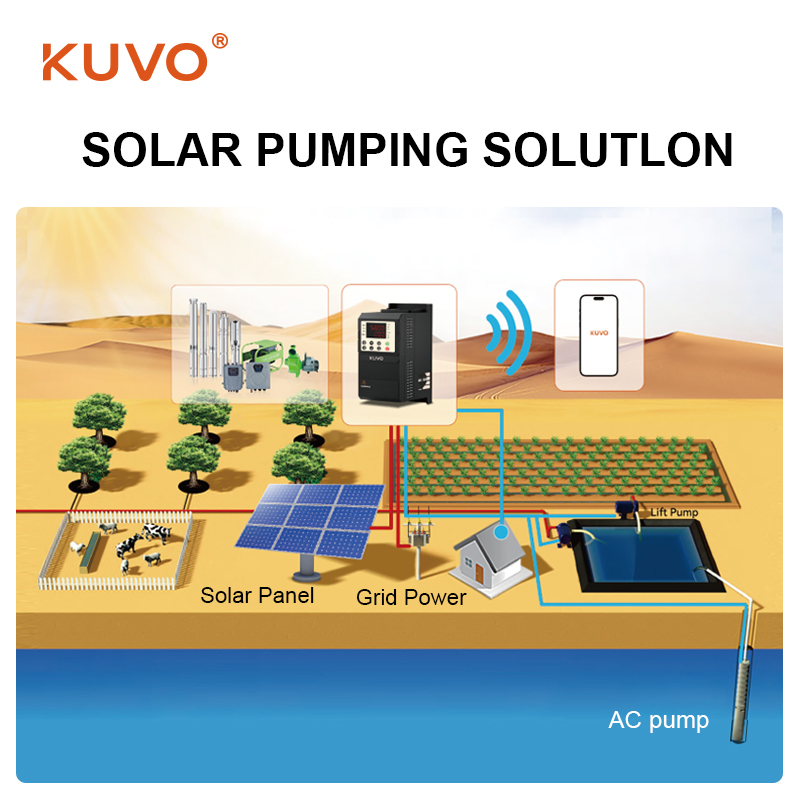

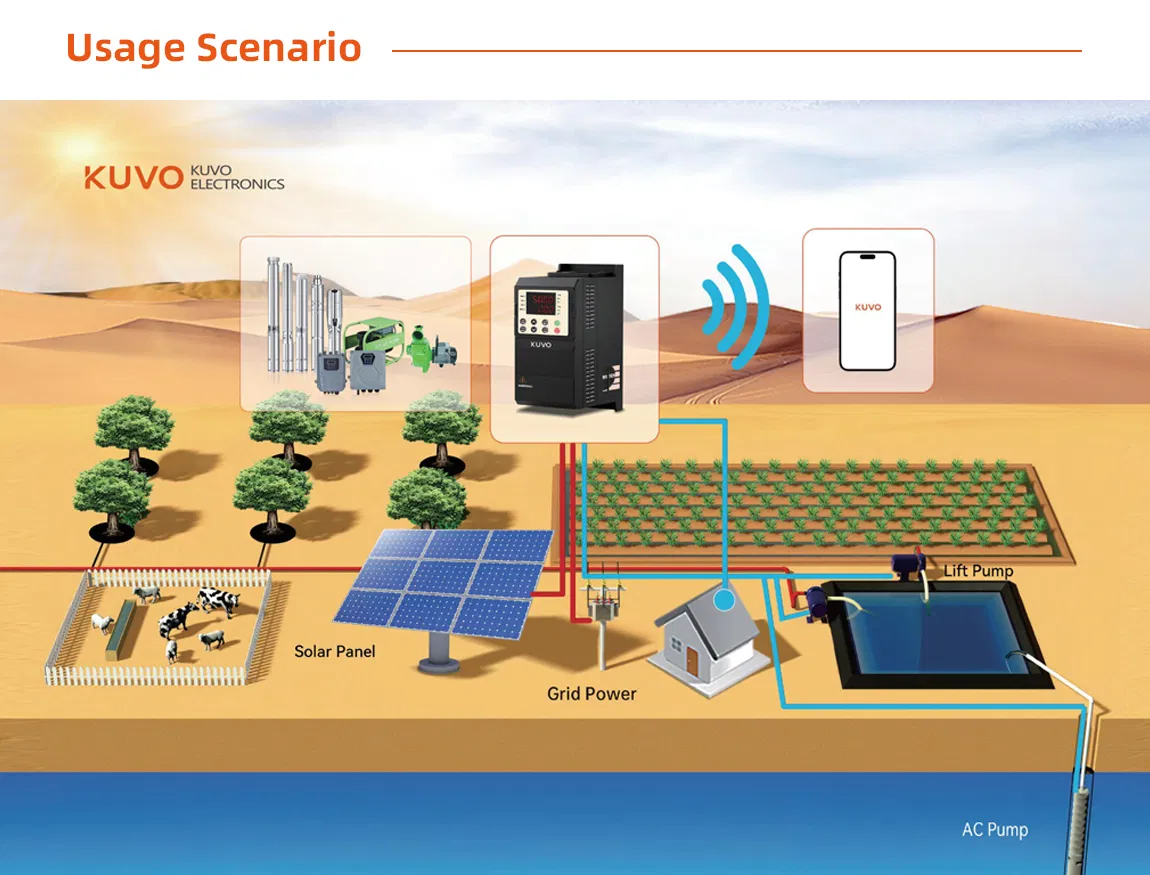

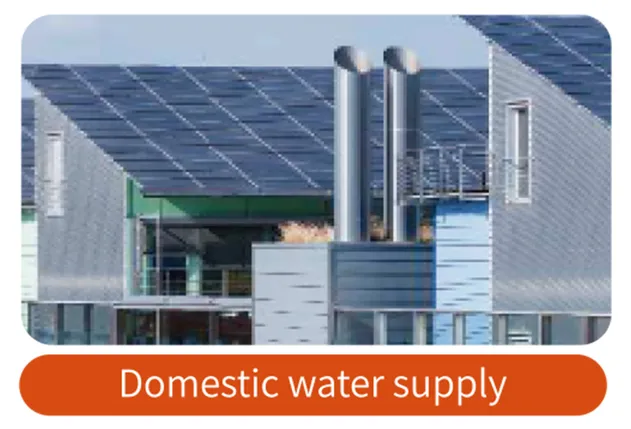

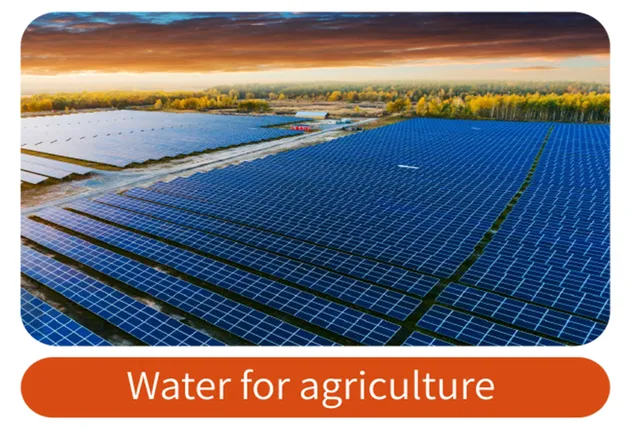

Systems mainly use solar power. With a high-quality solar setup and water storage, you'll have sufficient supply. The system can also operate on grid electricity or generator power if necessary.
Integrating water storage allows you to manage peak demand during specific seasons and ensures water availability overnight without relying on external power sources.
The controller acts as the brain of the system, monitoring various inputs and making real-time adjustments to maximize water output efficiency.
Compatible with both submersible and surface pumps. Submersible pumps can reach depths of 1500 feet (450m), while surface pumps handle flows up to 265 US GPM.

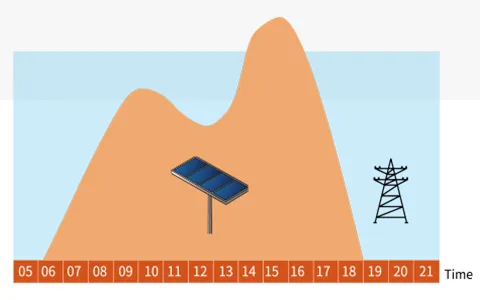

· 24/7 Operation
Hybrid AC/DC input (solar/grid) with 900VDC max input for continuous operation.
· Maximum Energy Efficiency
High-Efficiency MPPT algorithm ensures a cost-effective solution and high return on investment.
· Enhanced Durability
Multiple protections: Over-voltage, Under-voltage, Short-circuit, and Over-temperature.
· Wide Applicability
Multiple control modes: Constant pressure, liquid level, flow, and broad pump compatibility.
| PV Input Parameters | |||
| Input voltage range | 150-450V | 60-450V | 350-900V |
| Recommended Voc | 300-380V | 175-380V | 620-750V |
| Optimum MPPT voltage | 345V | 345V | 575V |
| Max MPPT efficiency | Up to 99% | ||
| AC Input & Output | |||
| AC Input Range | 1PH 220-240V(±10%) | 3PH 380V-480V(±10%) | |
| Output Voltage | 0-230V | 0-480V | |
| Output Power Range | 0.75-4kW | 0.75-185kW | |
| Control Performance & System | |

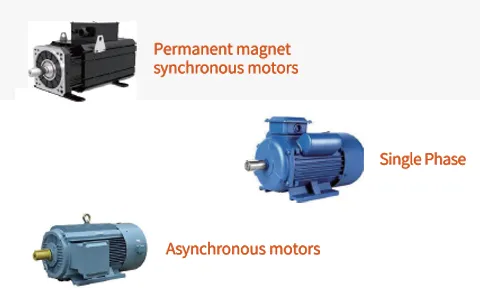

| Motor type | Single phase, Asynchronous, Permanent magnet synchronous motors |
| Control mode | V/F, Open-Loop Vector, Closed-Loop Vector Control |
| Overload capacity | 150% for 60s, 180% for 10s, 200% for 0.5s |
| Protection class | IP20 |
| Operating Temp | -10℃ to +50℃ (Derating above 40℃) |
| Cooling | Forced air cooling |
