The cables are manufactured and tested in accordance with IEC 60502 — Power Cables with Extruded Insulation and their accessories for rated voltages from 1 kV (Um 1.2 kV) up to 30 kV (Um 36 kV). XLPE insulated cables can also be supplied according to other recognized national and international standards or customized specifications.

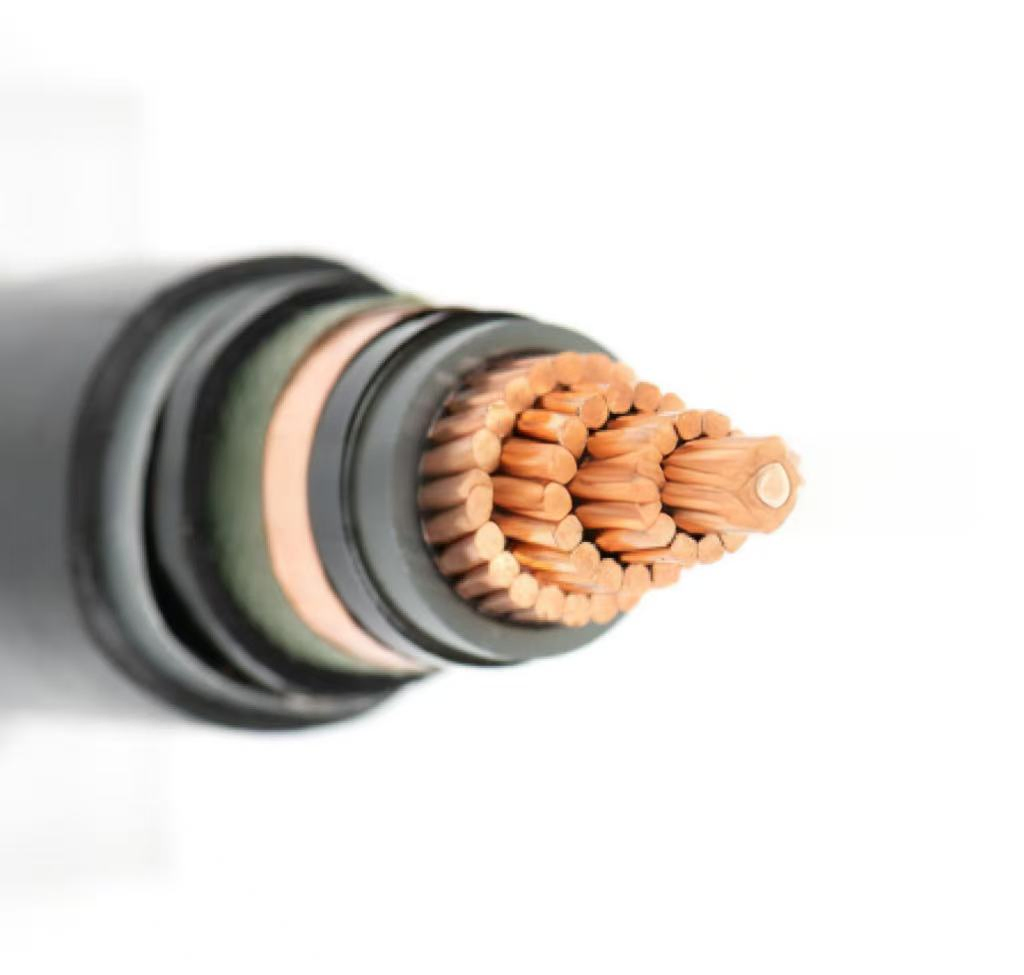

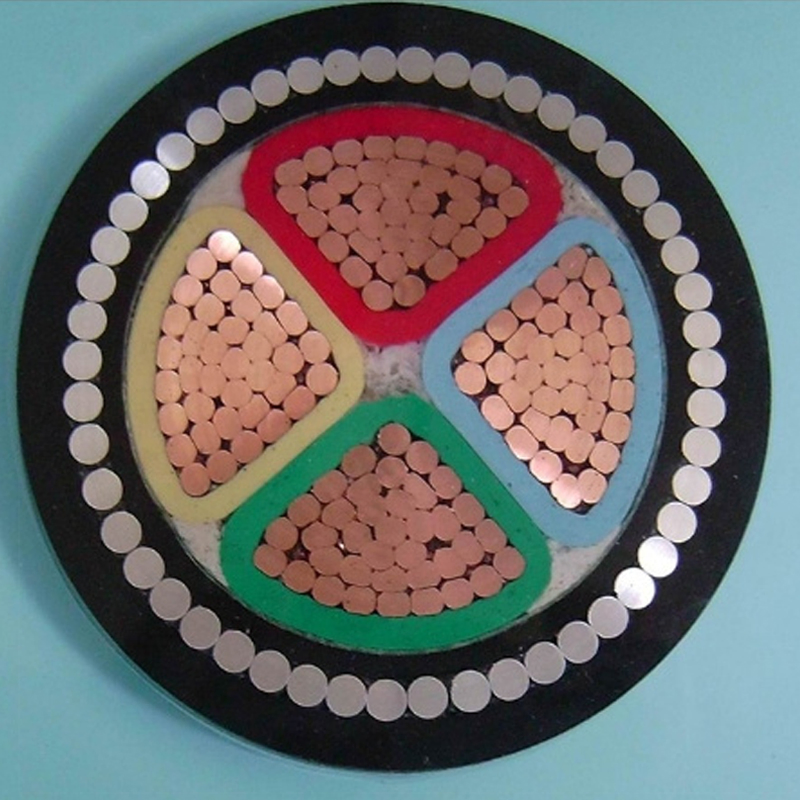

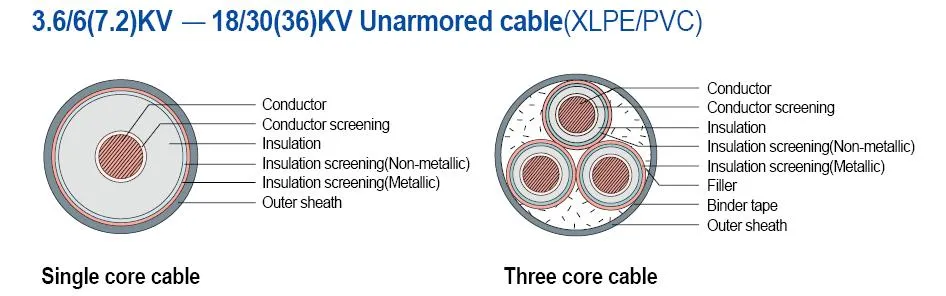

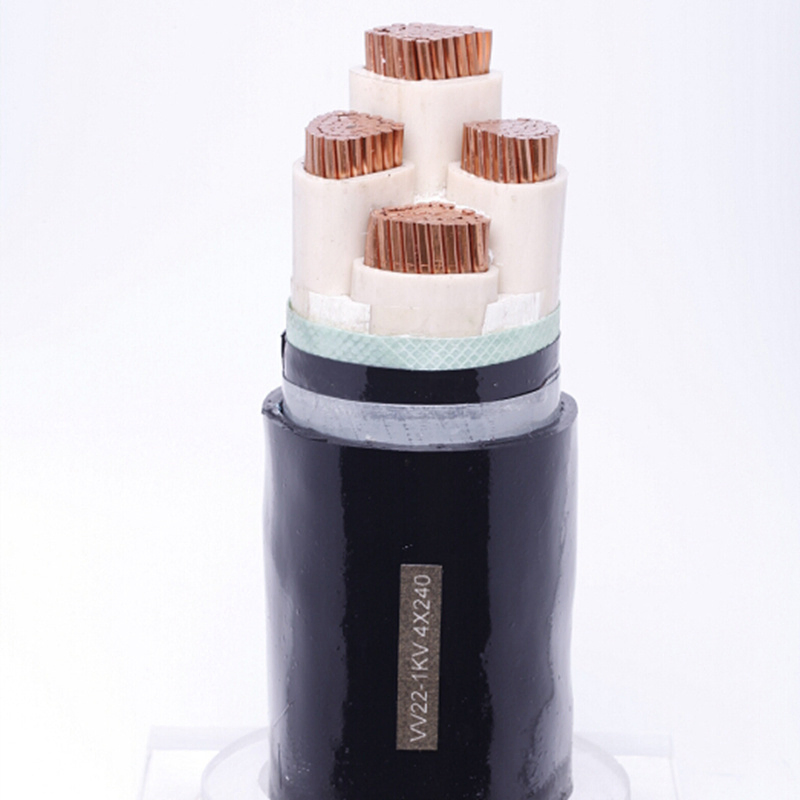

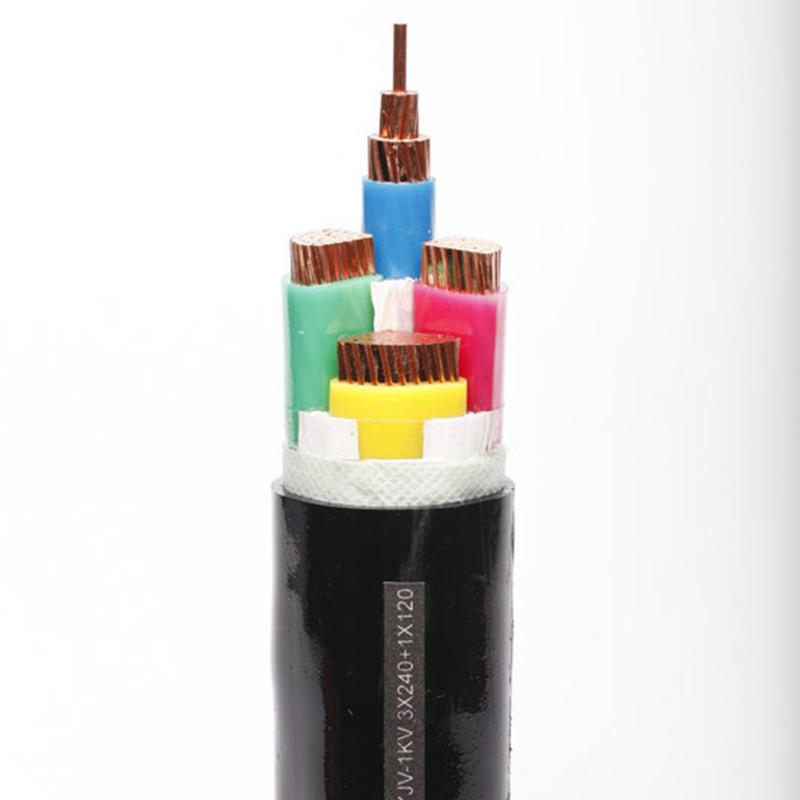

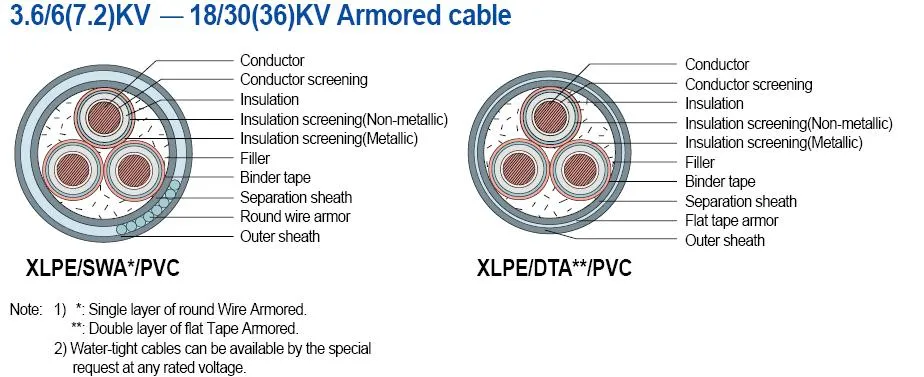

• Conductor: Class 2 of compacted circular or circular standard conductors of copper or aluminium.
• Conductor Screen: Non-metallic semi-conducting tape or extruded compound for voltages above 1.8/3kV.
• Insulation: Extruded cross-linked polyethylene (XLPE).
• Insulation Screen: Non-metallic semi-conducting part combined with a metallic layer (copper tape/wire).
• Inner Covering: PVC layer applied under the armor.
• Metallic Armor: Single layer of round wires or double tapes of galvanized steel or aluminum.
• Outer Sheath: Extruded PVC (ST2), PE, or fire-retardant materials available.

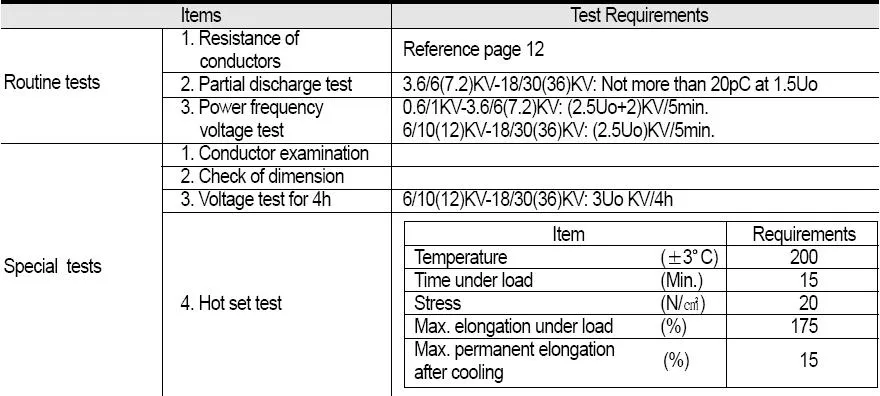

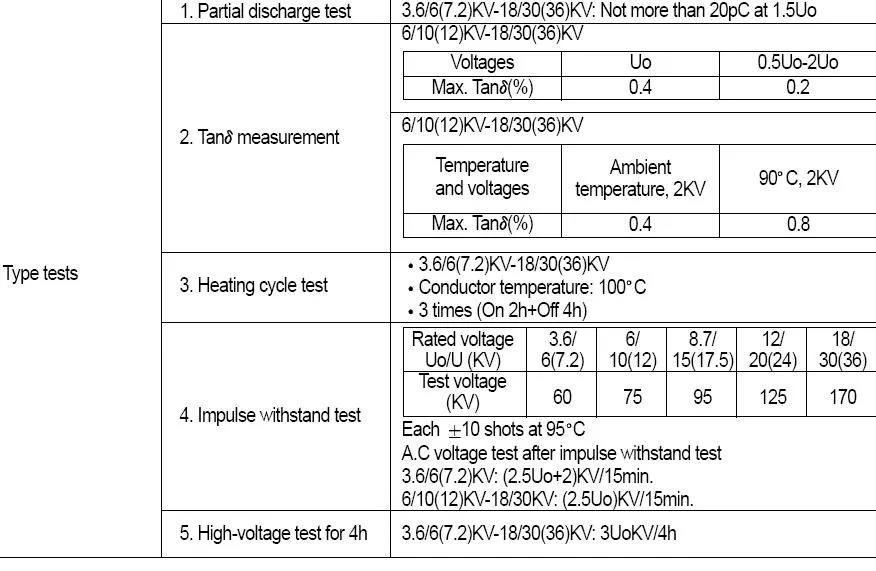

The finished cables meet all the appropriate test requirements specified in IEC60502.
