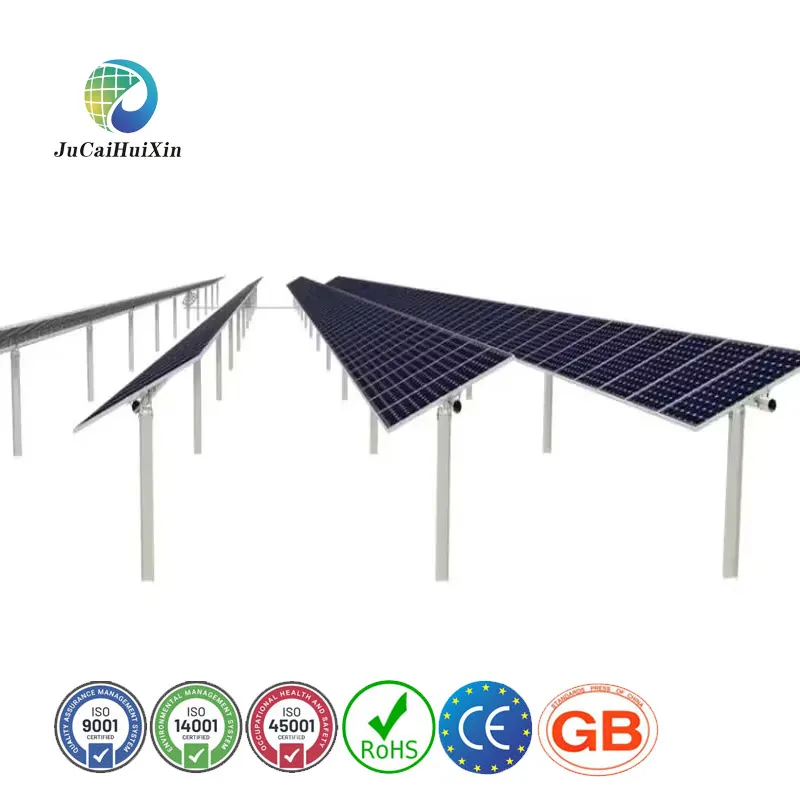

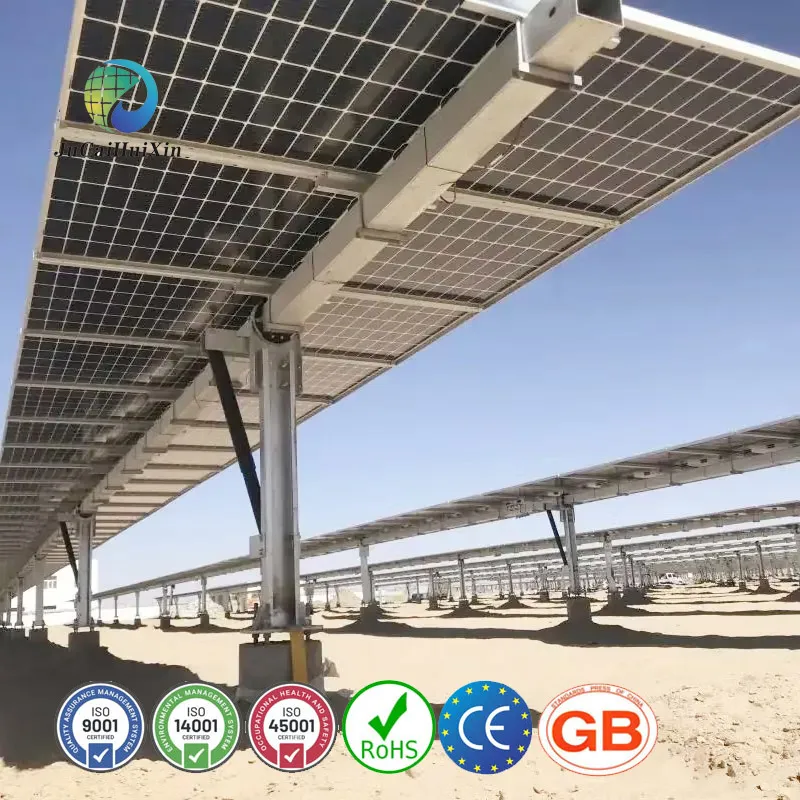

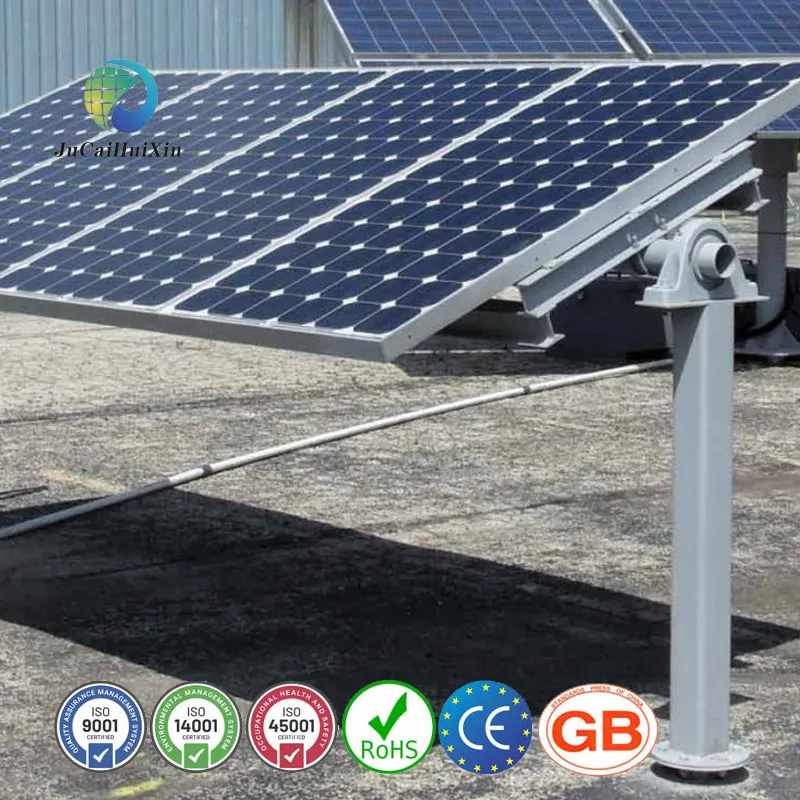

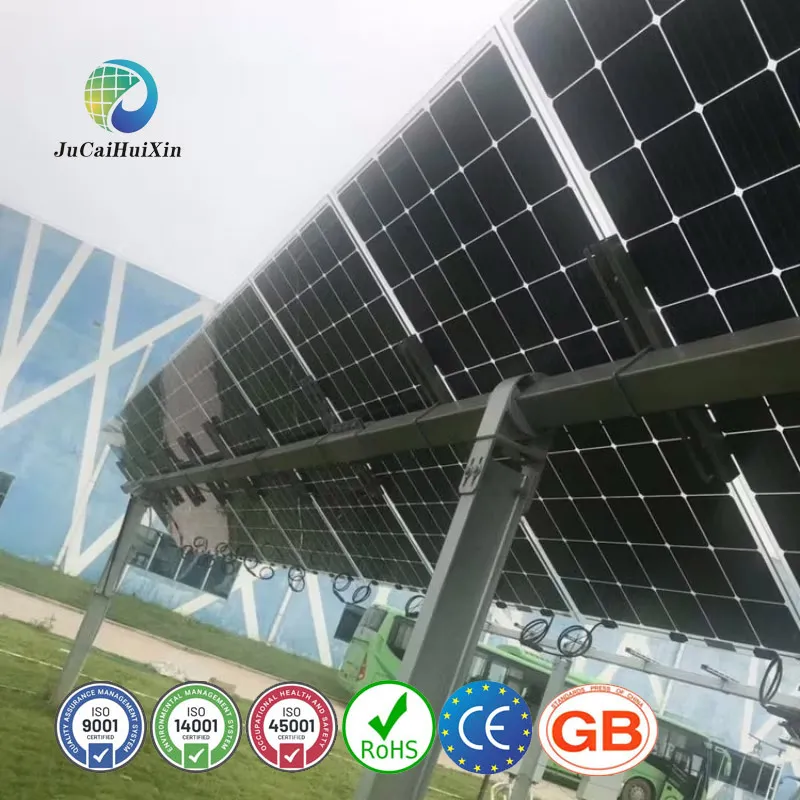

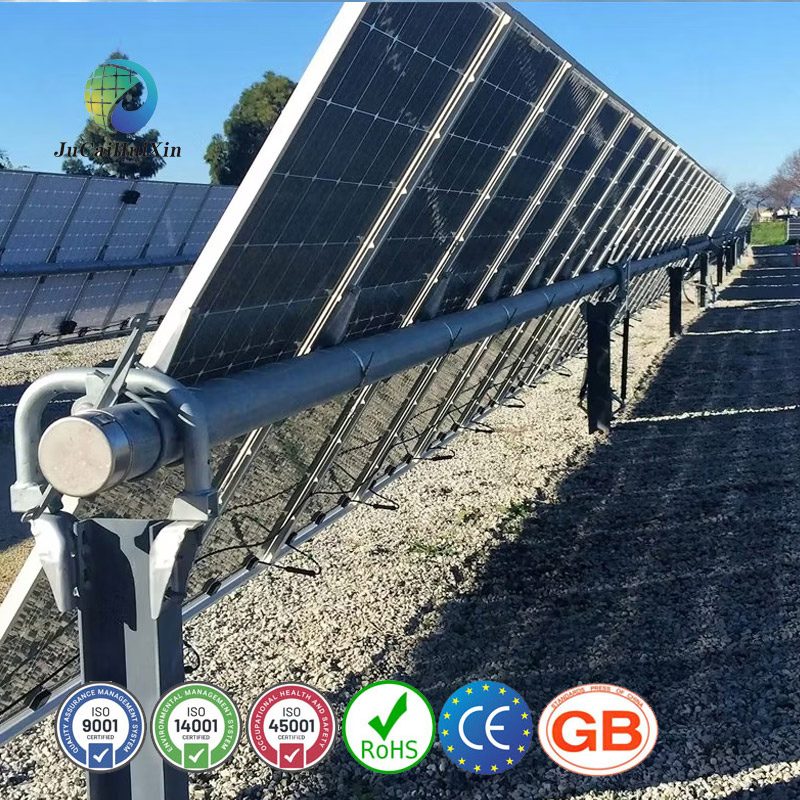

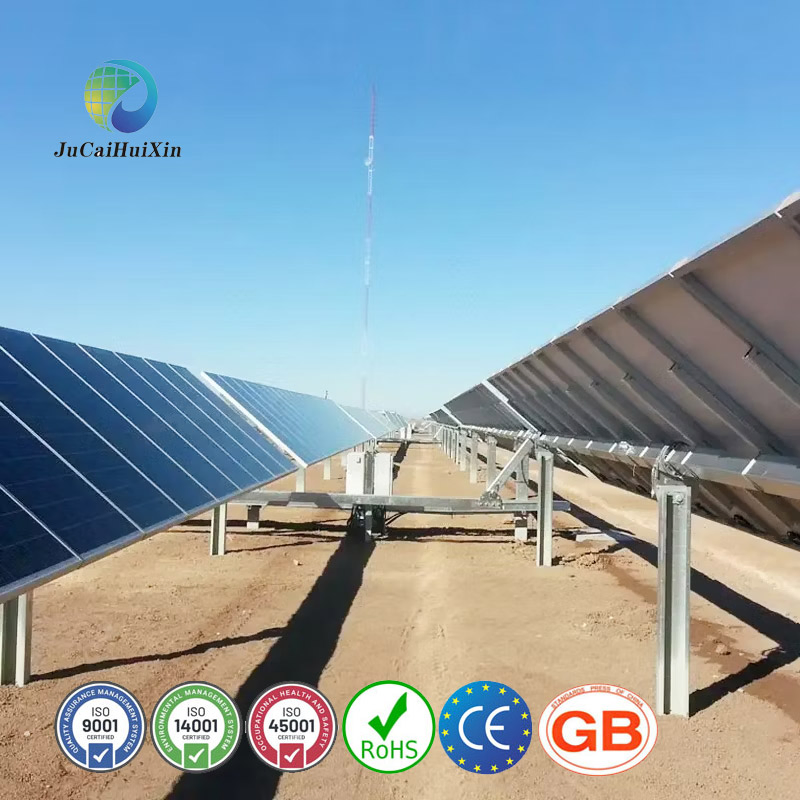

The OEM HDG Steel Bracket Solar Tracking System is a customizable, heavy-duty solar mounting solution engineered for high-efficiency energy generation and long-term durability. Featuring a hot-dip galvanized (HDG) steel frame and automated single-axis tracking technology, this system adjusts solar panels to follow the sun's east-west trajectory, increasing energy output by 18%-30% compared to fixed mounts.
| Technical Parameter | Specification Details |
|---|---|
| System type | Independent Drive |
| NO.of Panel | 2-10 Piece(≤23 sq.m.) |
| Power Consumption | 5.0Kwh/set/year |
| Max. wind speed in running | 24 m/s |
| Max. wind speed in flat | 40 m/s |
| Azimuth angle tracking range | ±45ºC |
| Control model | Time + GPS Control |
| Tracking accuracy | 0.1°-2°(Adjustable) |
1. Site Preparation: Level ground, mark anchor points, and pre-install helical piles or concrete foundations.

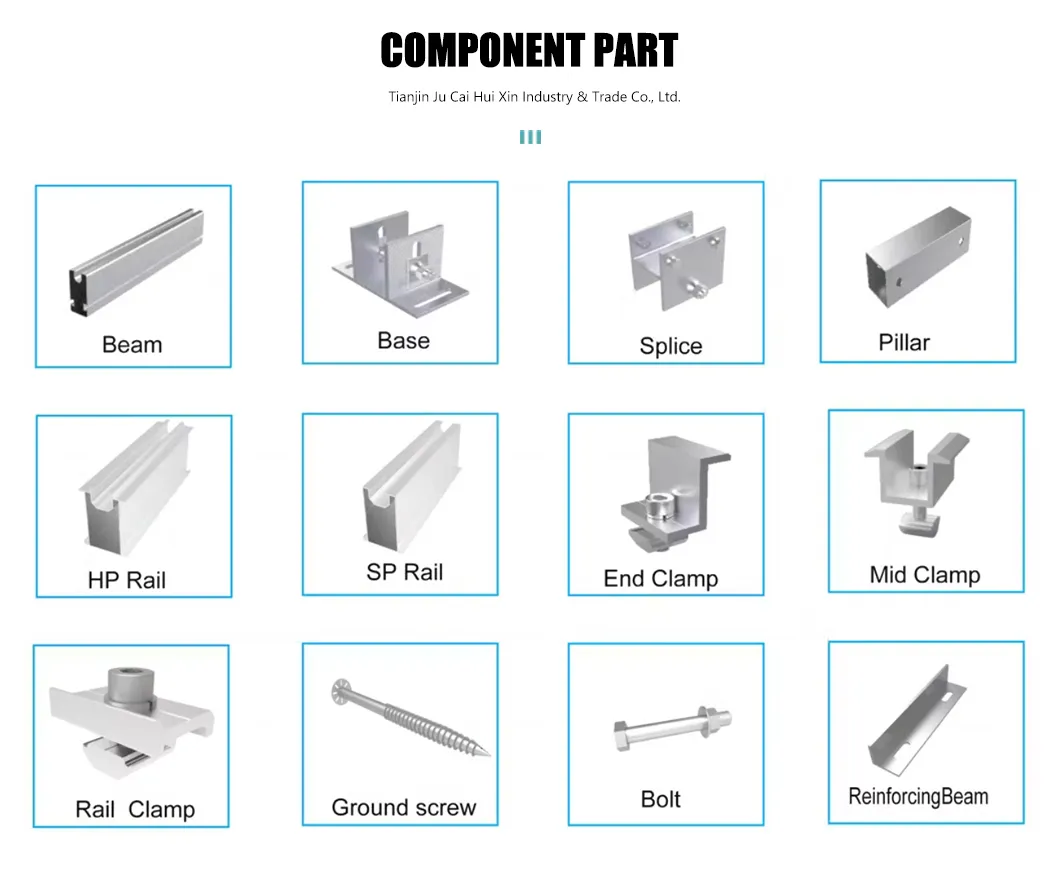

2. Frame Assembly: Bolt HDG steel beams into tracking rows using pre-drilled adjustment points.

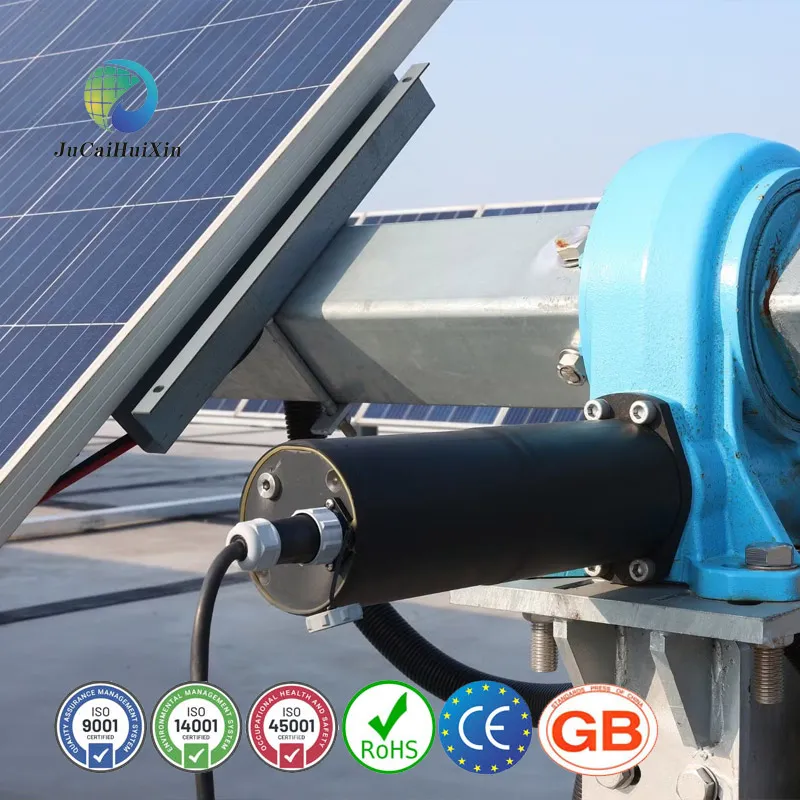

3. Drive System Integration: Attach solar-powered motors, connect control units, and align sensors.
4. Panel Mounting: Secure panels (up to 2.4m x 1.3m) to tracking rails with anti-theft clamps.
5. Calibration: Program tracking angles via PLC interface or mobile app.
