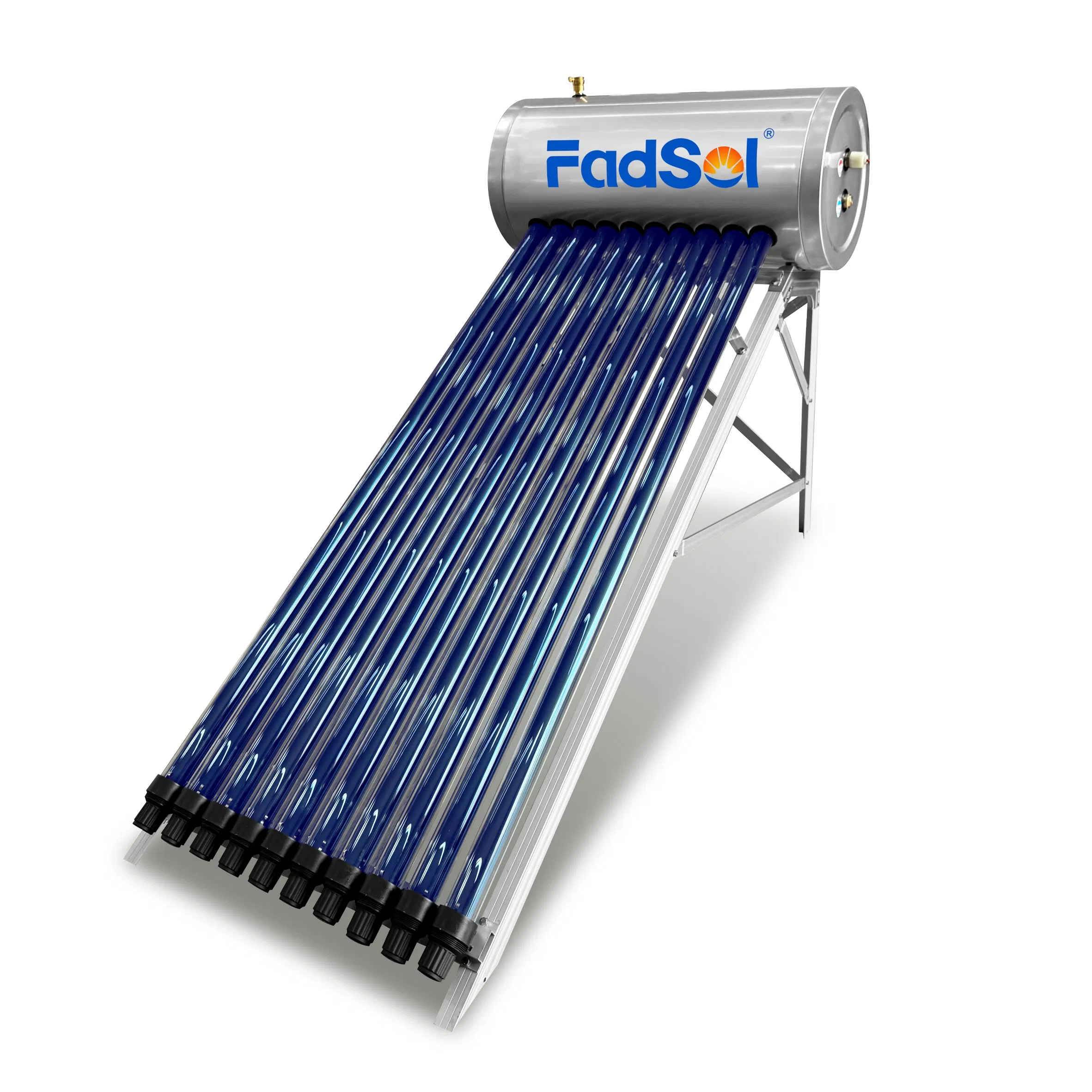

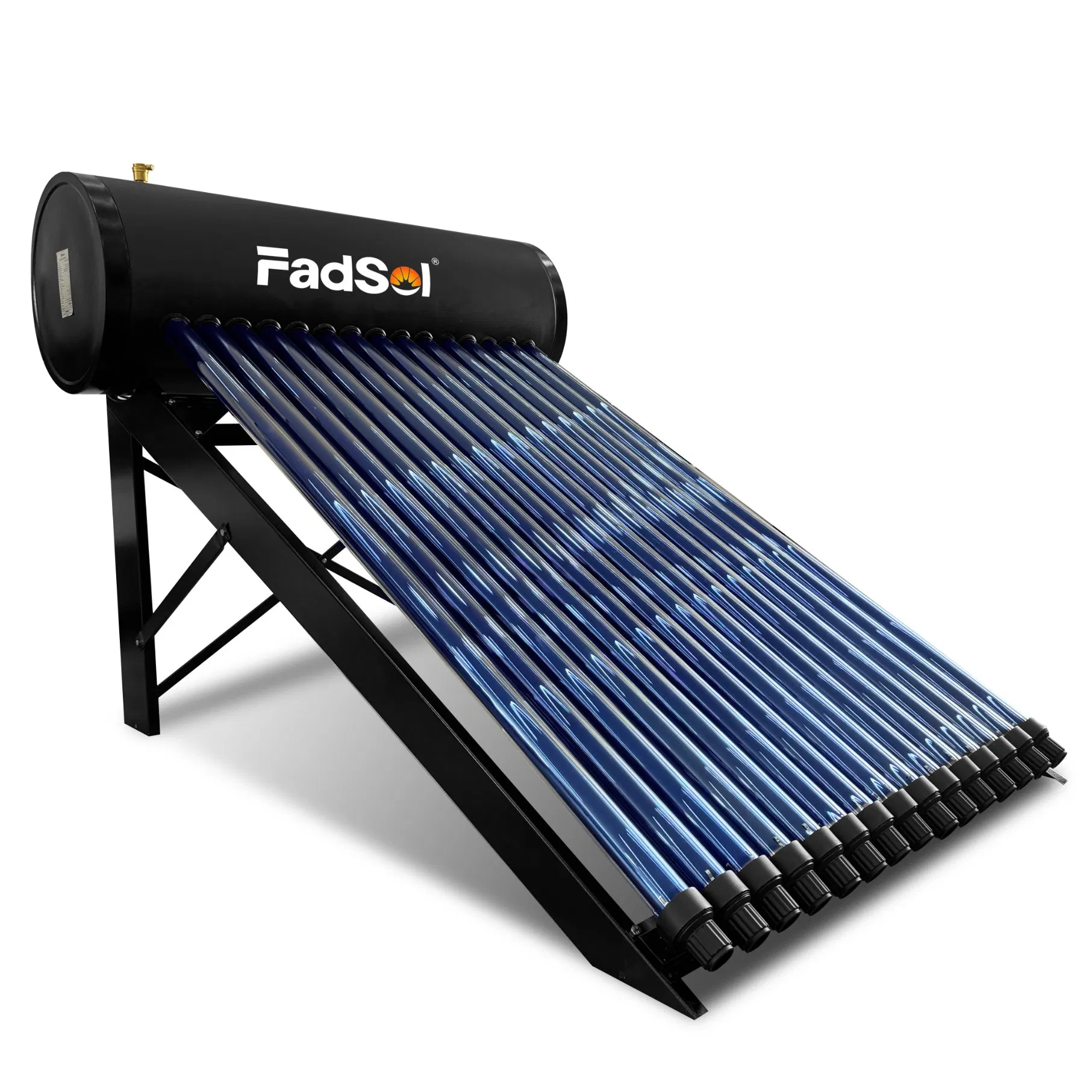

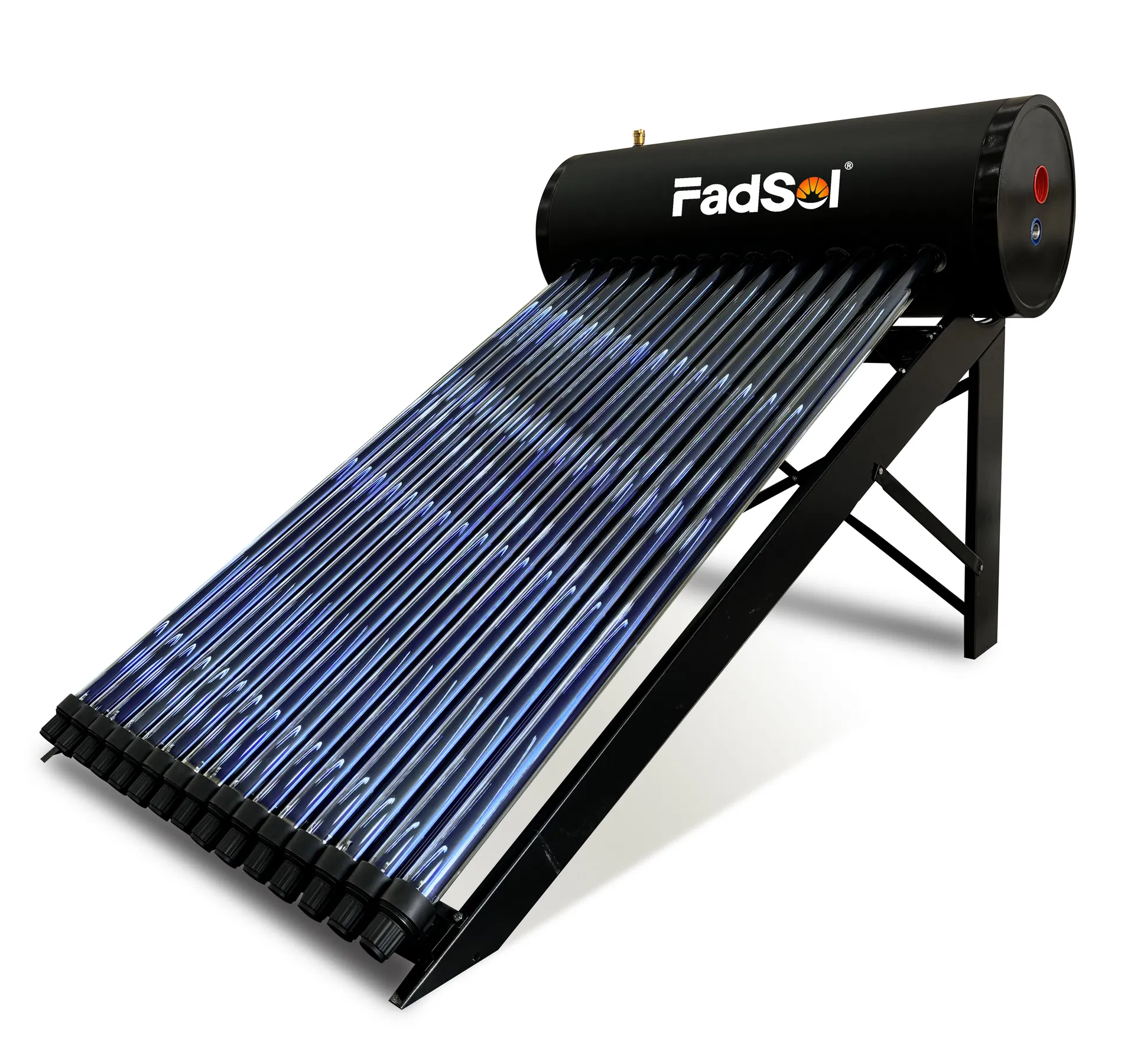

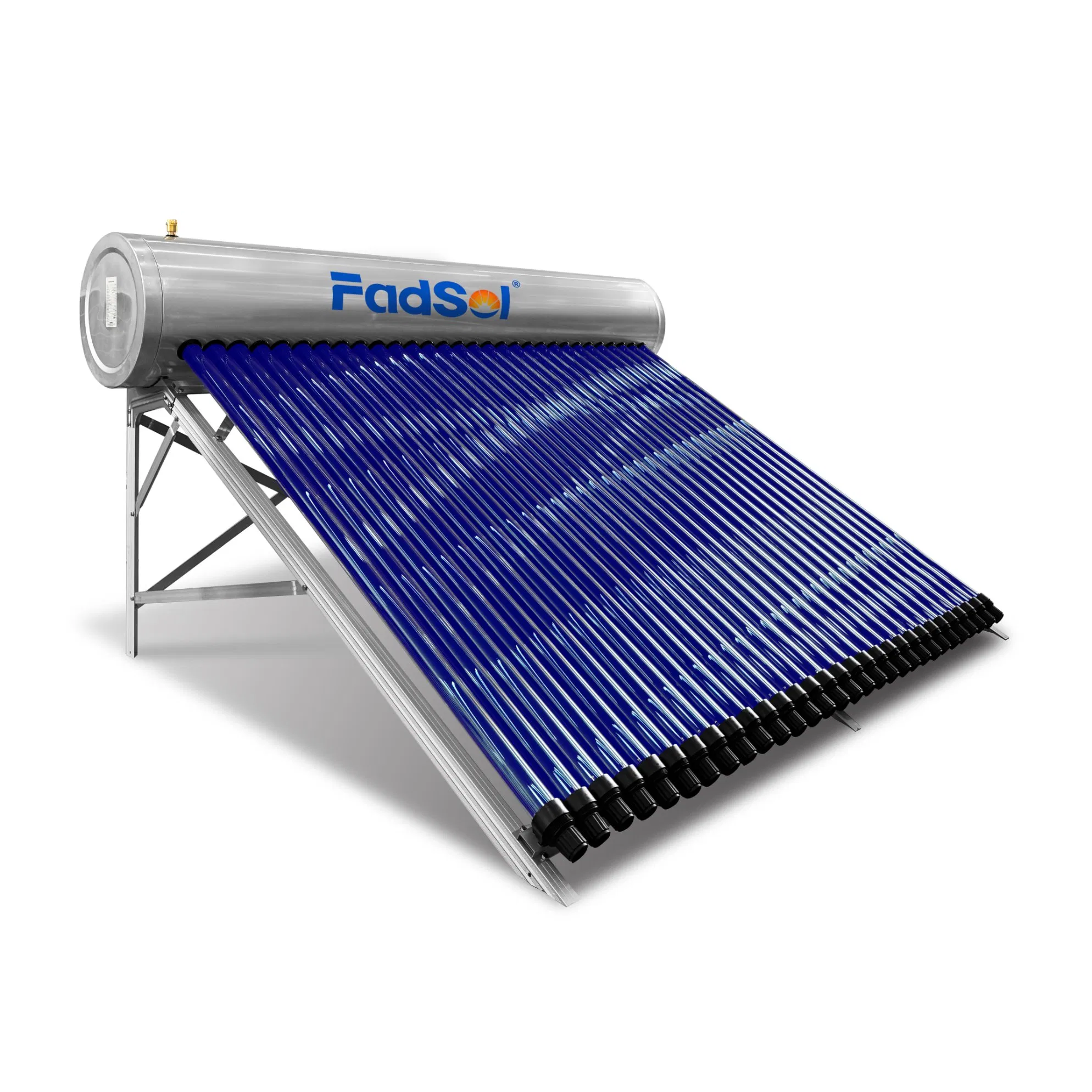

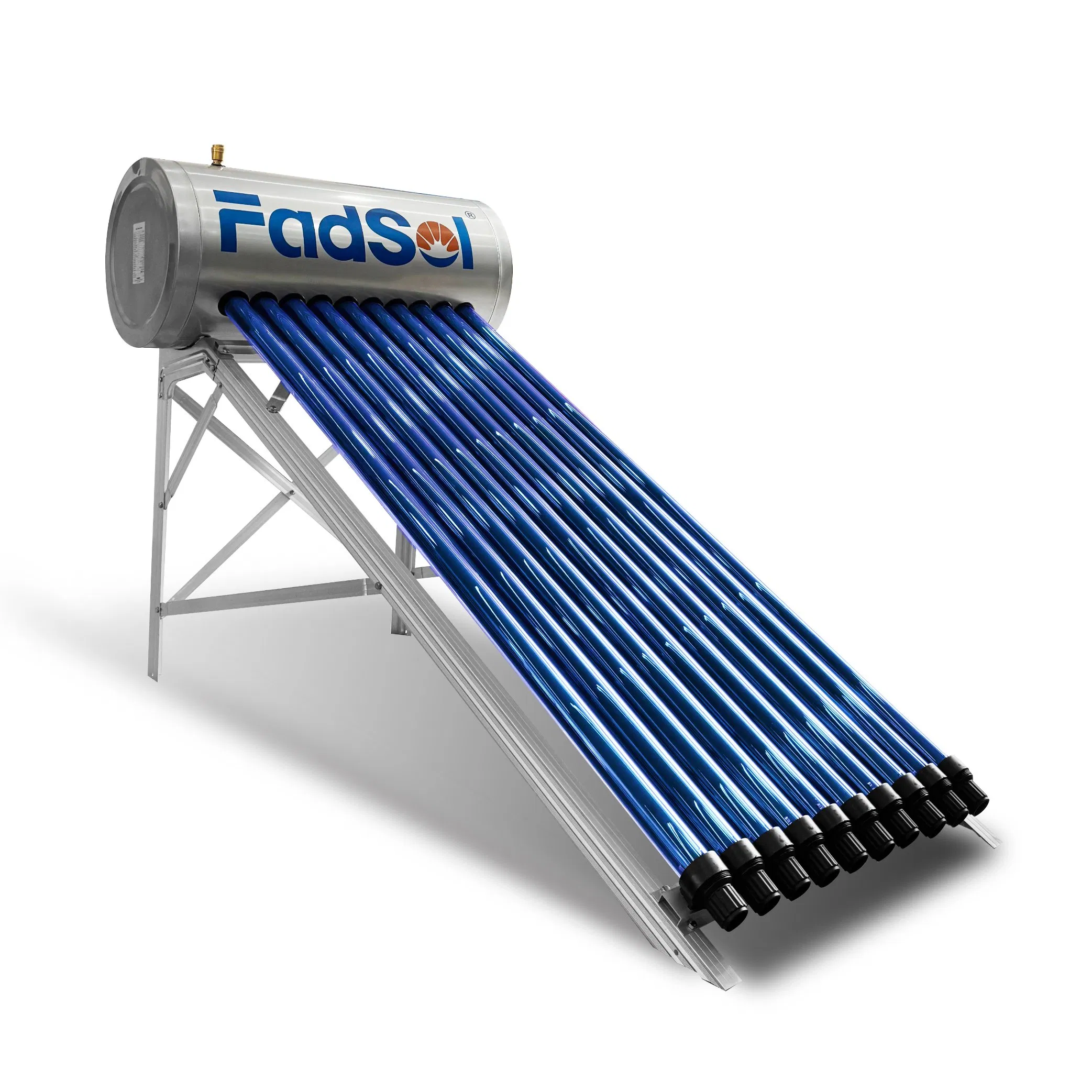

| Model | FD-IP-15 | FD-IP-18 | FD-IP-20 | FD-IP-24 | FD-IP-30 |
|---|---|---|---|---|---|
| WATER TANK SYSTEM | |||||
| Tank capacity (Liter) | 150 | 180 | 200 | 240 | 300 |
| Inner tank material | 1.2—1.5 mm thickness SUS304 2B Stainless Steel | ||||
| External tank material | 0.4—0.5 mm thickness SUS304 2B Stainless Steel | ||||
| Insulation layer | 55mm thickness polyurethane foam (42kg/m3) | ||||

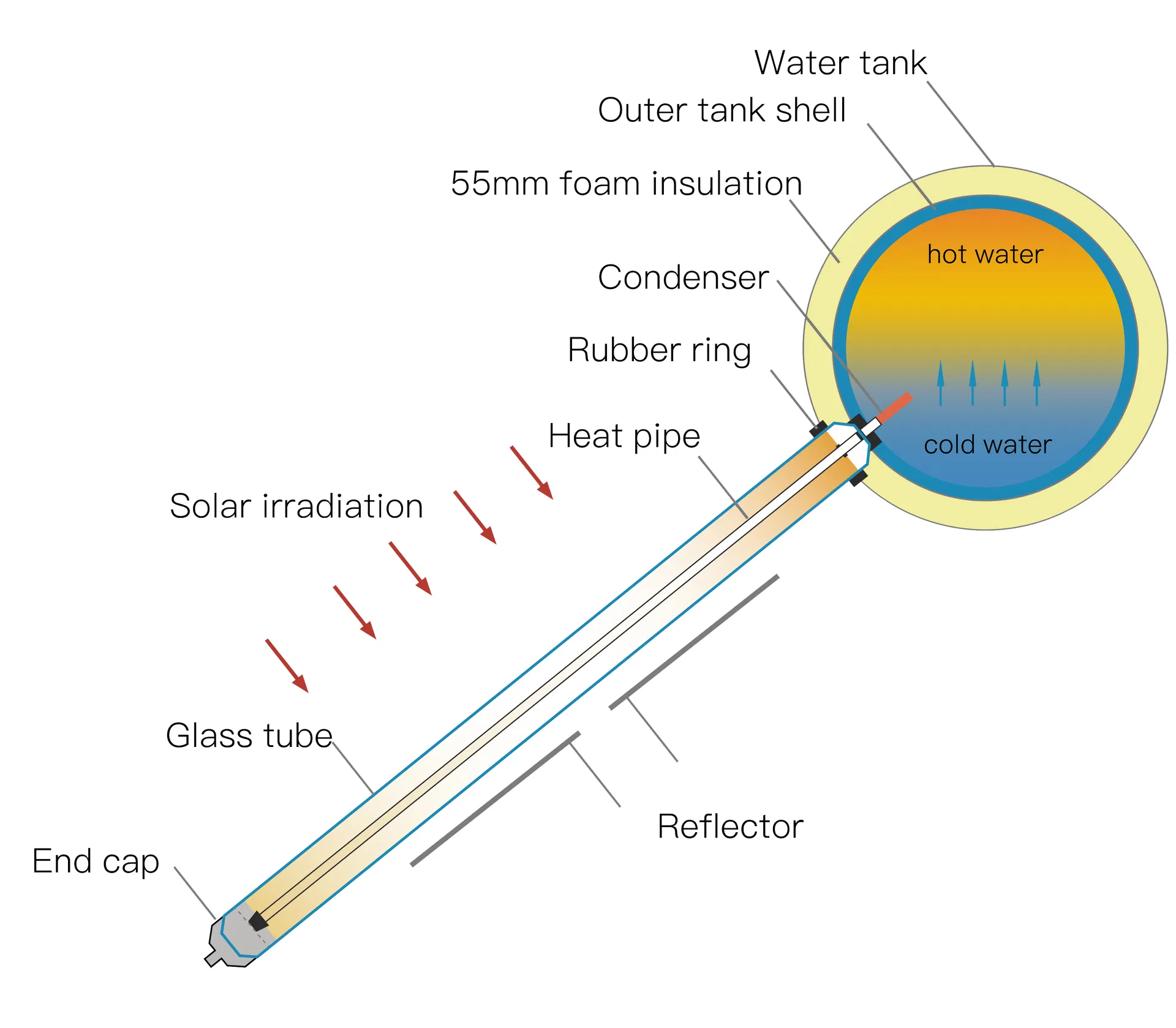

| VACUUM TUBES & HEAT PIPES | |||||
| Heat pipe material | TU1 copper (Condenser Φ14mm, body Φ8mm) | ||||
| Tube Size | 58mm outer diameter * 1800mm Length | ||||
| Absorb Ratio | > 95% (AM 1.5) | ||||

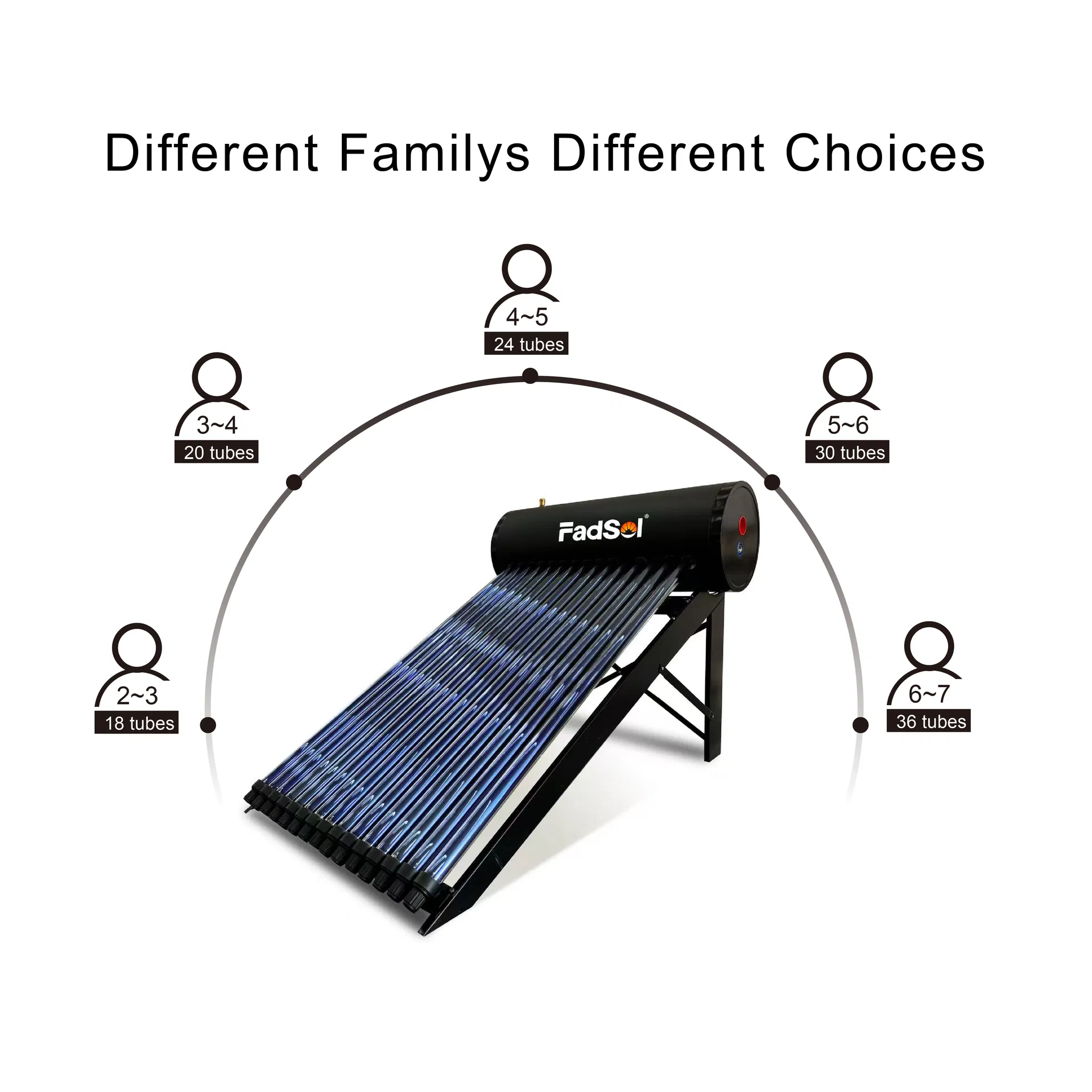

| Tube quantity | 15 | 18 | 20 | 24 | 30 |
| BRACKET SYSTEM | |||||
| Bracket Material | 1.2mm SUS201 Stainless Steel (Black) - Suitable for pitched & flat roofs | ||||
| Copper coil length (M) | 18 | 22 | 25 | 30 | 35 |

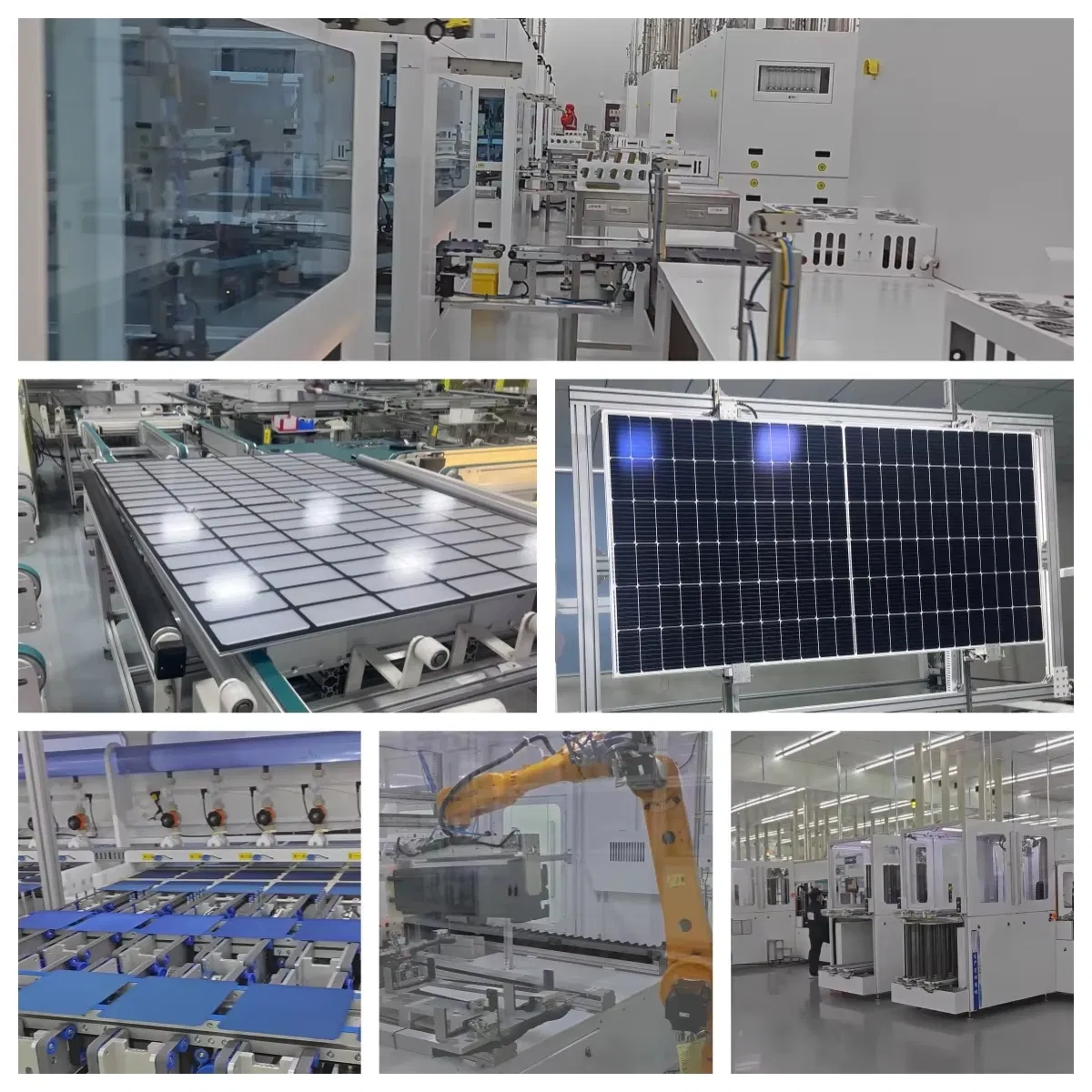

Solar Panel & Water Heater Manufacturing
We are one of the most professional manufacturers specializing in energy conservation and environment-friendly solar solutions. Our product range includes solar air conditioners, solar freezers, and solar generator systems. Through years of development, we have become an outstanding leader in the solar energy industry.
Our mission is to provide the most cost-effective solar products and best services to our global business partners. Since 2009, we have been committed to excellence and cordially welcome international cooperation.
