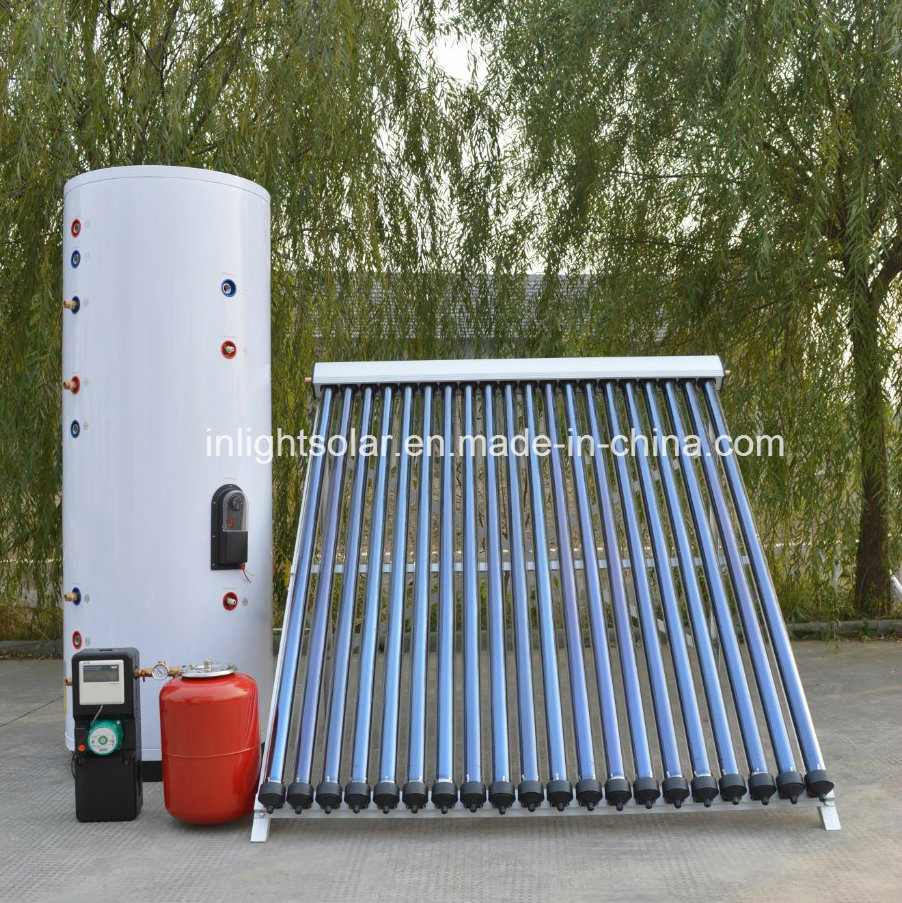

Pump Circulation Split Pressure Type Solar Hot Water System

1 / 5

Pump Circulation Split Pressure Type Solar Hot Water System

Customization:	Available
Max. Capacity:	1000L
Structure:	Separate Type

Send Inquiry

Product Description

Basic Specifications

Model NO.

ILS1-5830H1-304/300-106/12

Pressure

Pressurized

Interior Material

Stainless Steel

Collector Components

Heat Pipe Vacuum Tube

Certification

CE, ISO9001, CCC

Water Tank Capacity

300L

Anti-Freezing

-40 Centigrade

Working Pressure

12bar

Origin

China

Production Capacity

7000 Sets/Month

Main Features

⚡ High Efficiency

Energy saving with high heating efficiency and quick start capabilities.

❄️ Anti-Freezing

Equipped with intelligent control and anti-freezing functions for cold climates.

🛡️ Durable Life

Beautiful appearance with a service lifespan of over 15 to 30 years.

System Components

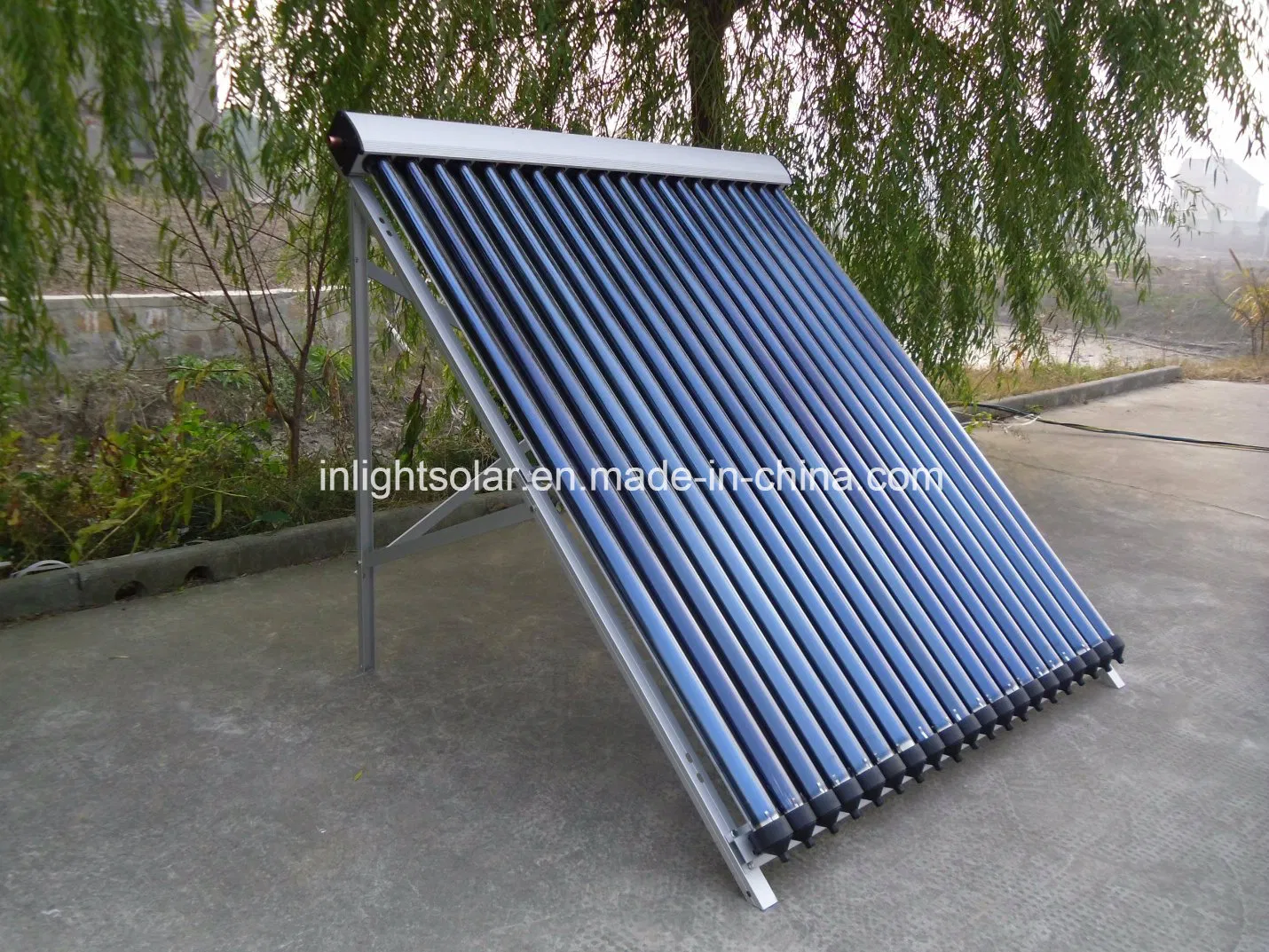

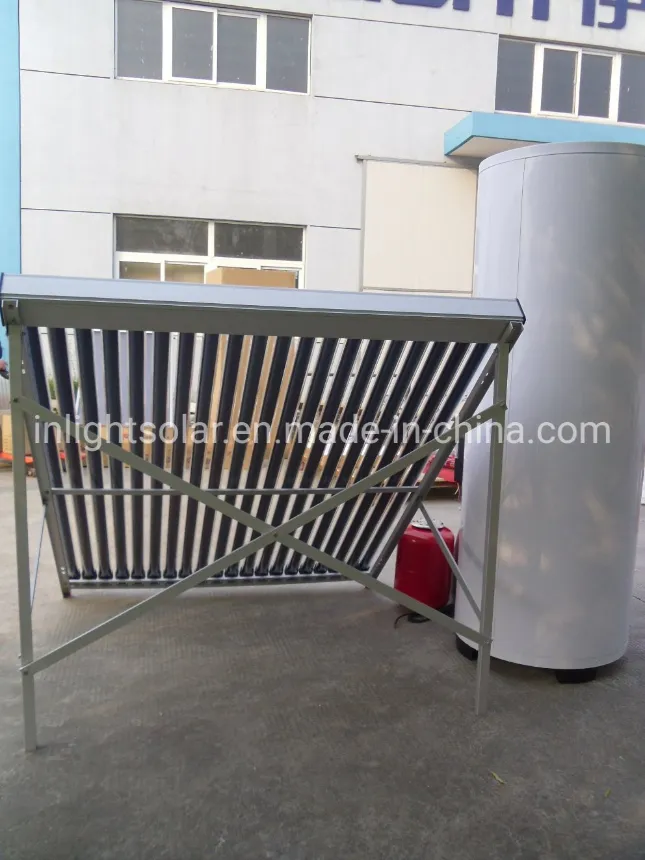

Heat Pipe Solar Collector: Utilizes thermal collection with super heat exchanging efficiency. The closed loop design ensures that no water flows into the vacuum tubes, allowing the system to work even if a tube is withdrawn.

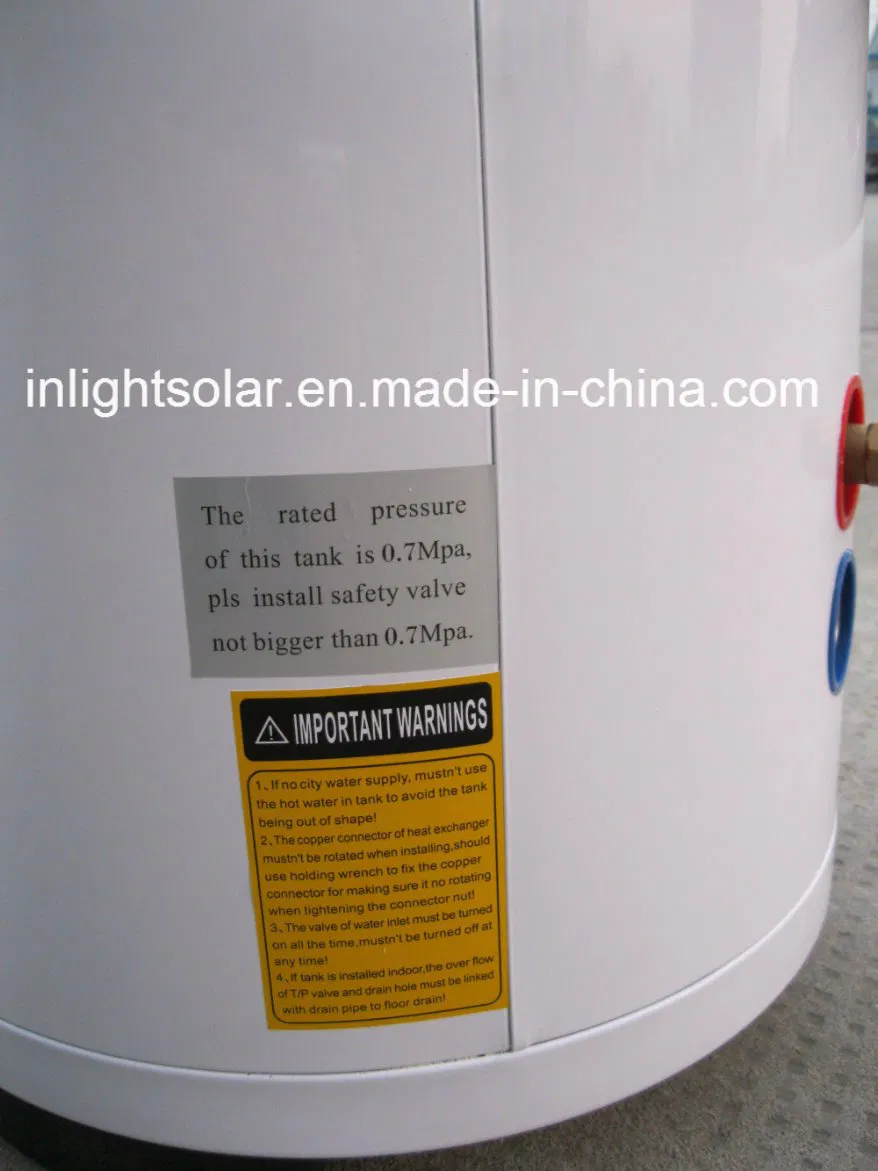

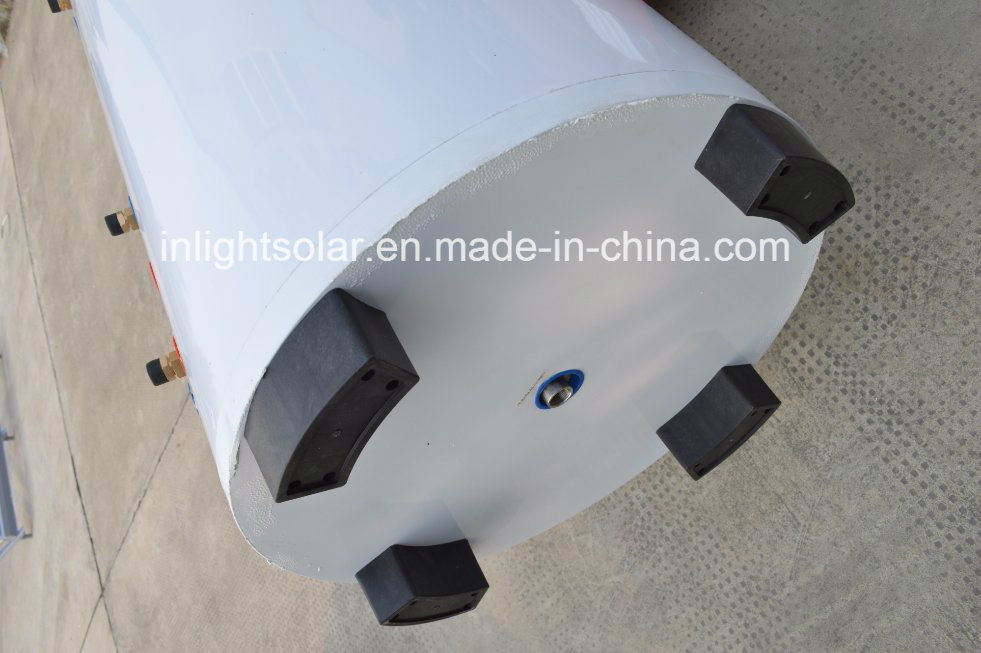

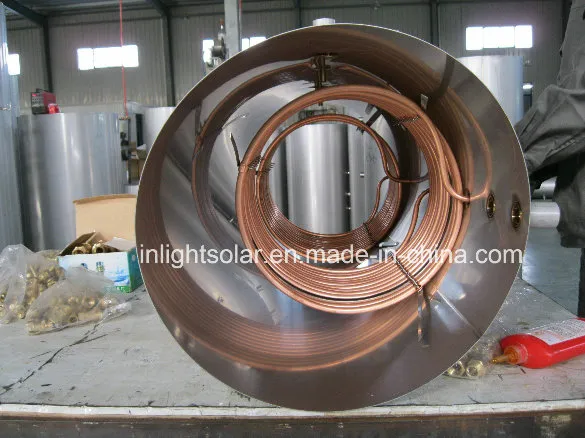

Pressurized Water Tank: Features food-grade SUS304-2B stainless steel for clean, drinkable water. The insulation layer uses high-density polyurethane integrated-foaming to maintain constant water temperature.

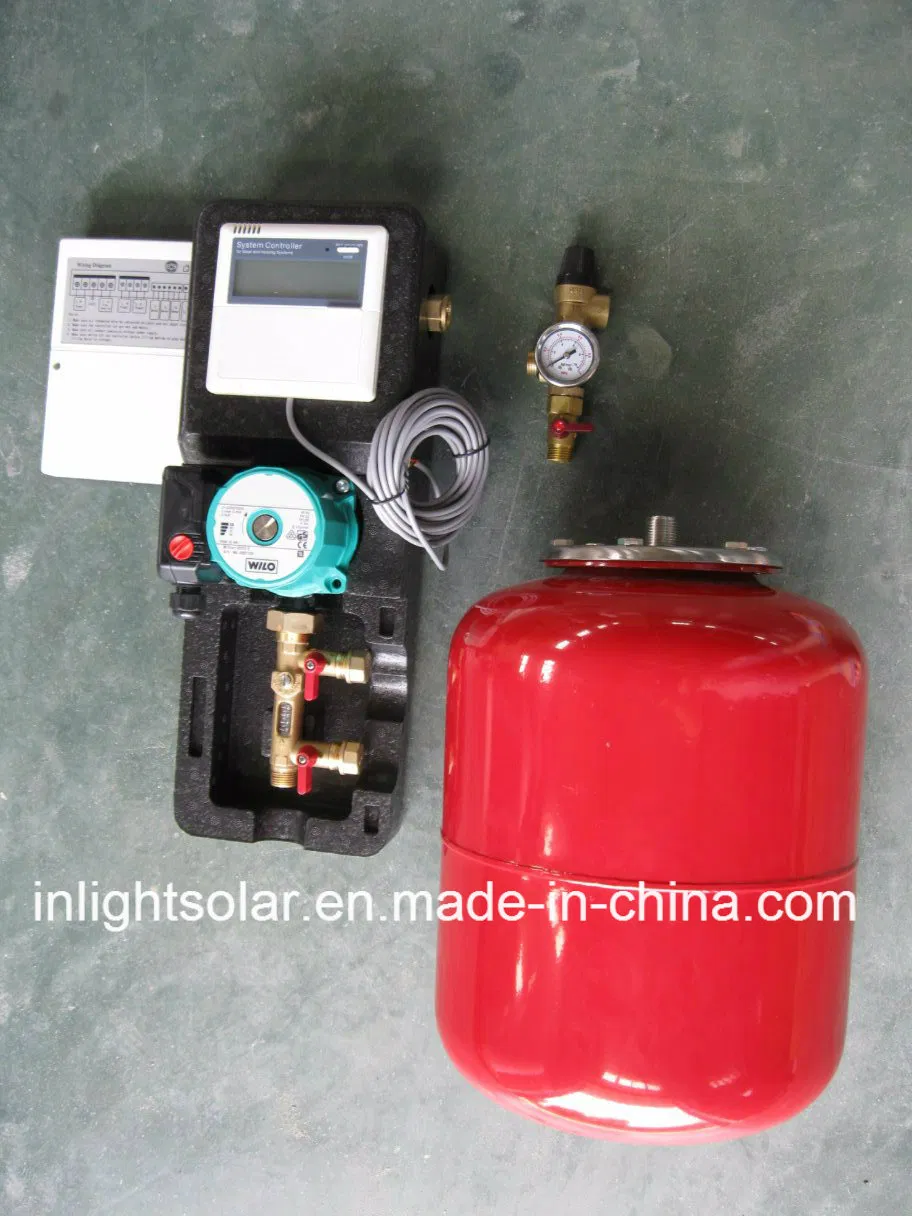

Workstation System: Includes an intelligent controller, circulating pump, flow meter, relief valve, pressure gauge, and expansion vessel.

Category	Specification	Details
Solar Collector	Tube Specs	Φ 58× 1800mm, Borosilicate glass, red copper heat pipe
	Tube Quantity	12 / 15 / 18 / 20 / 24 / 25 / 30 pcs
	Manifold	Copper flow passage, PU insulation, Aluminium alloy shell
Water Tank	Capacity Range	100L to 500L options

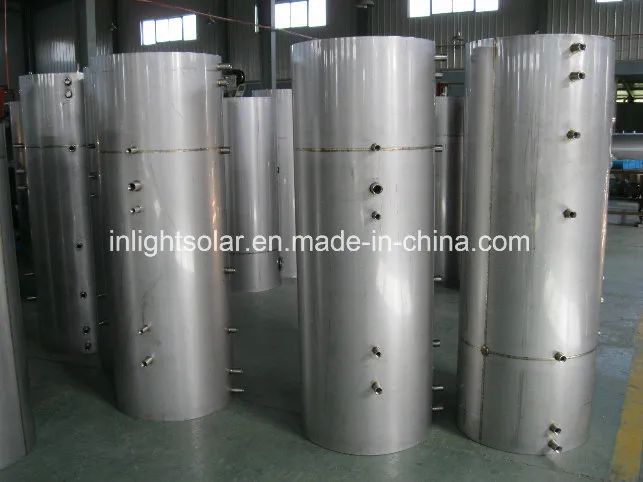

	Inner Tank	Food-grade SUS304-2B (1.2-2.0mm thickness)
	Insulation	High-density 50mm PU foam
Performance	Working Pressure	≥ 6 bar; Hail Resistance: Φ 25mm

Frequently Asked Questions

How does the heat pipe system handle freezing temperatures?

The system is designed with advanced anti-freezing functions and can operate reliably in environments as cold as -40 degrees Centigrade.

Can the system continue to work if a vacuum tube is broken?

Yes. Because it is a closed collector loop and no water flows directly into the glass tubes, the system remains functional even if one or several tubes are removed or damaged.

Is the water from the tank safe to drink?

Absolutely. The inner tank is constructed from thickened food-grade SUS304-2B stainless steel, which ensures the water remains clean and drinkable.

What happens on rainy or snowy days when there is no sun?

The system includes an auxiliary electrical heater that automatically provides heat during poor weather conditions to ensure a continuous supply of hot water.

What is the expected lifespan of this solar hot water system?

The system is built with high-quality materials like red copper and stainless steel, providing a lifespan of over 15 years for the main unit and up to 30 years for the inner tank.

Is the system resistant to extreme weather like hail?

Yes, the borosilicate glass tubes are tested for hail resistance against impacts from hail up to 25mm in diameter.
