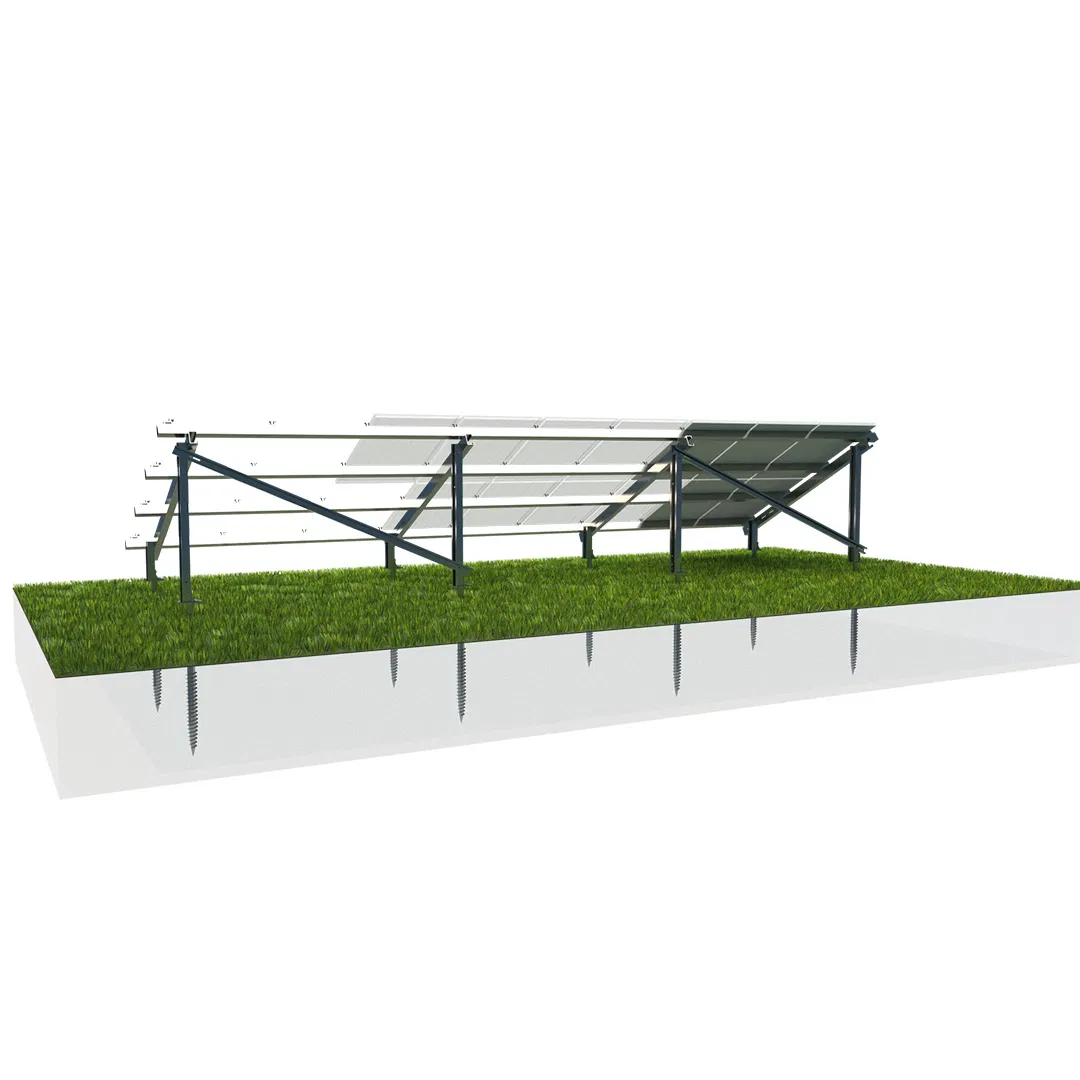

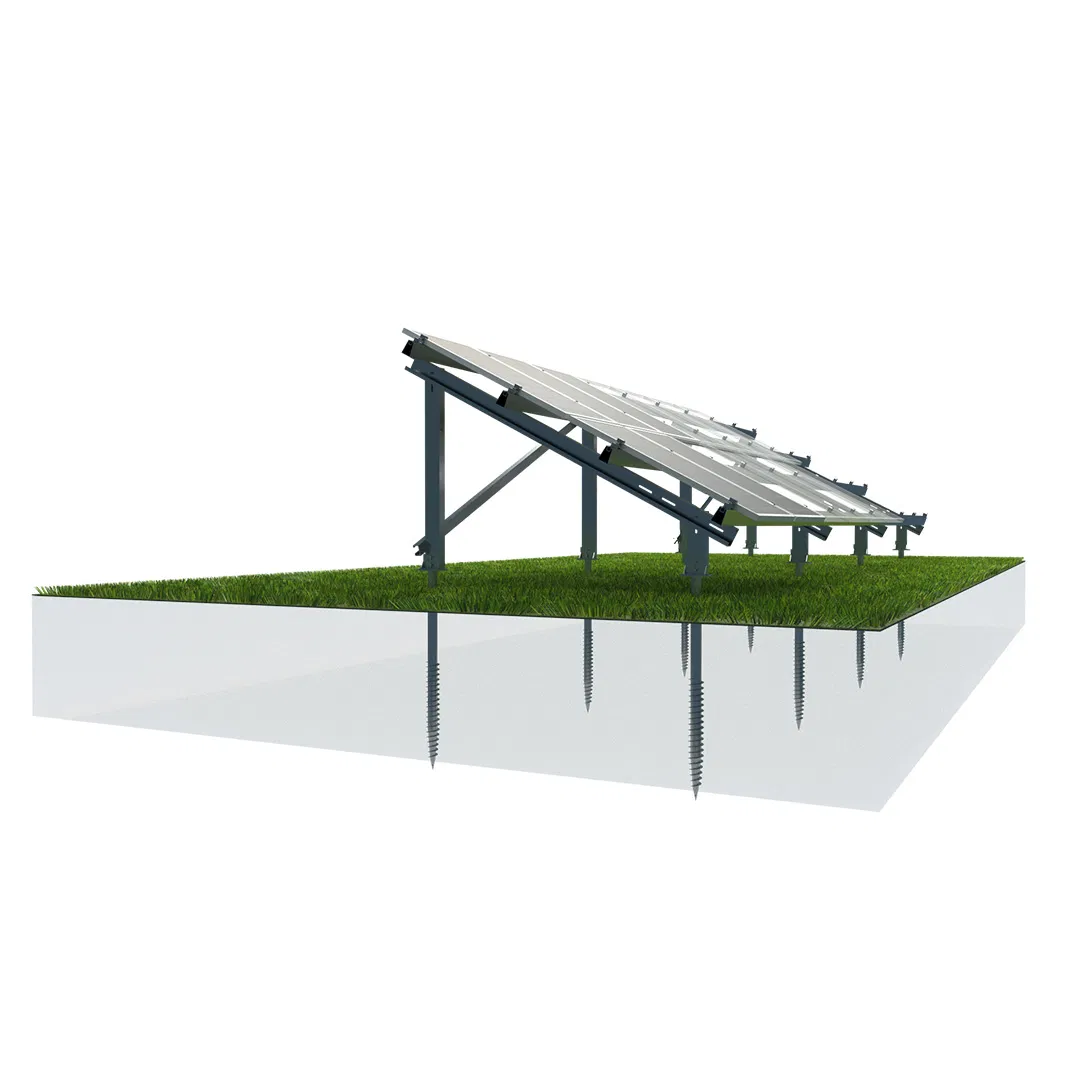

PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
1 / 5
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm
PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Material
Steel
Type
Roof Bracket
Standard
DIN, ASTM/ASME, JIS, En, ISO, as, GB
Finishing
Zinc, HDG, Sandblasting
Certificate
ISO 9001:2015
Delivery Time
7-30 days
Installation Site
Flat Roof, Ground
Wind Load
60m/S
Snow Load
1.6kN/M2
Panel Layout
Portrait or Landscape
Production Capacity
500 ton/Month
HS Code
7318159090
📦 Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Gross Weight
10.000kg
Transport Package
20-25kg/Cartons + 900kg/Pallets
📌 Product Description

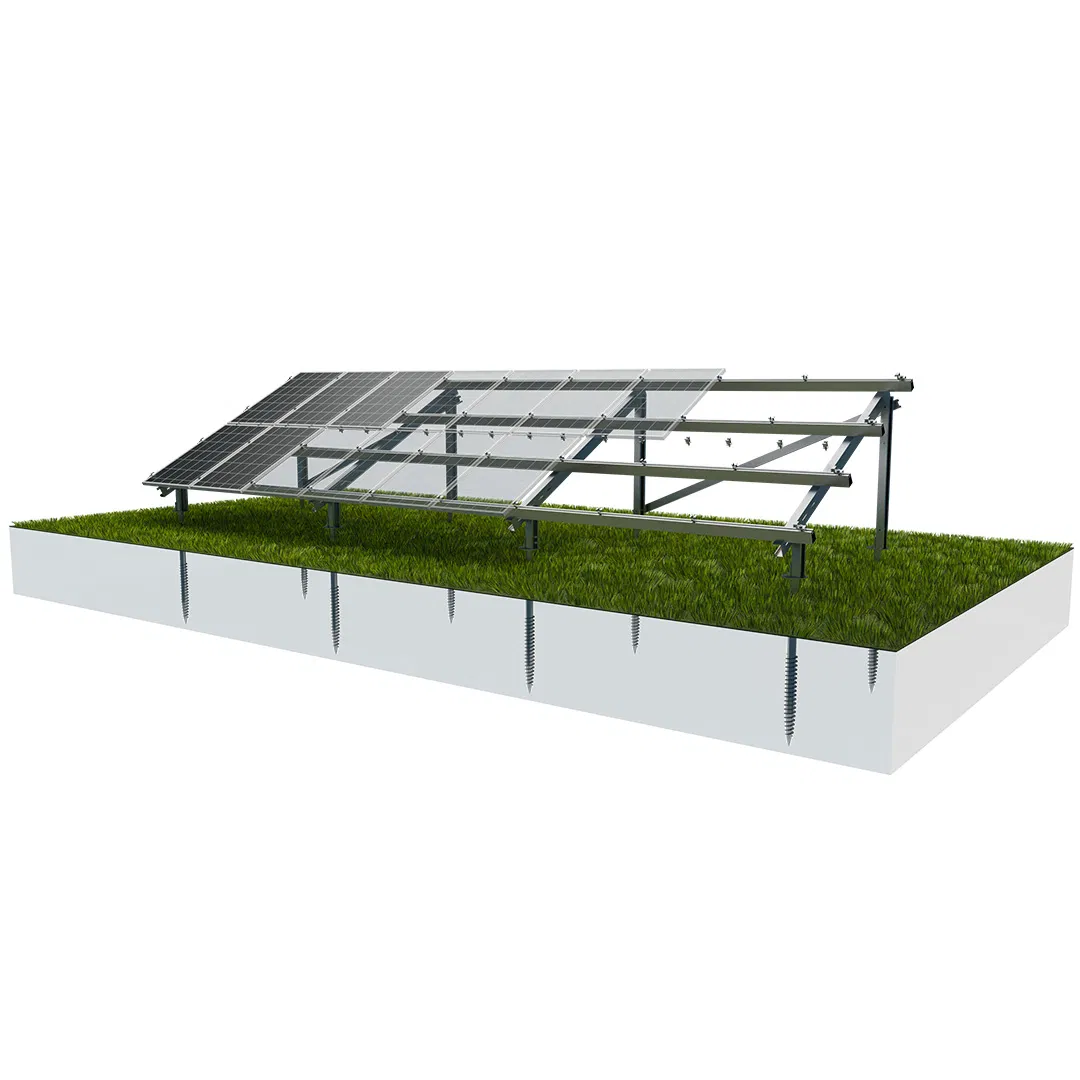

PV Solar energy power plant Structure Mounting system for Farm

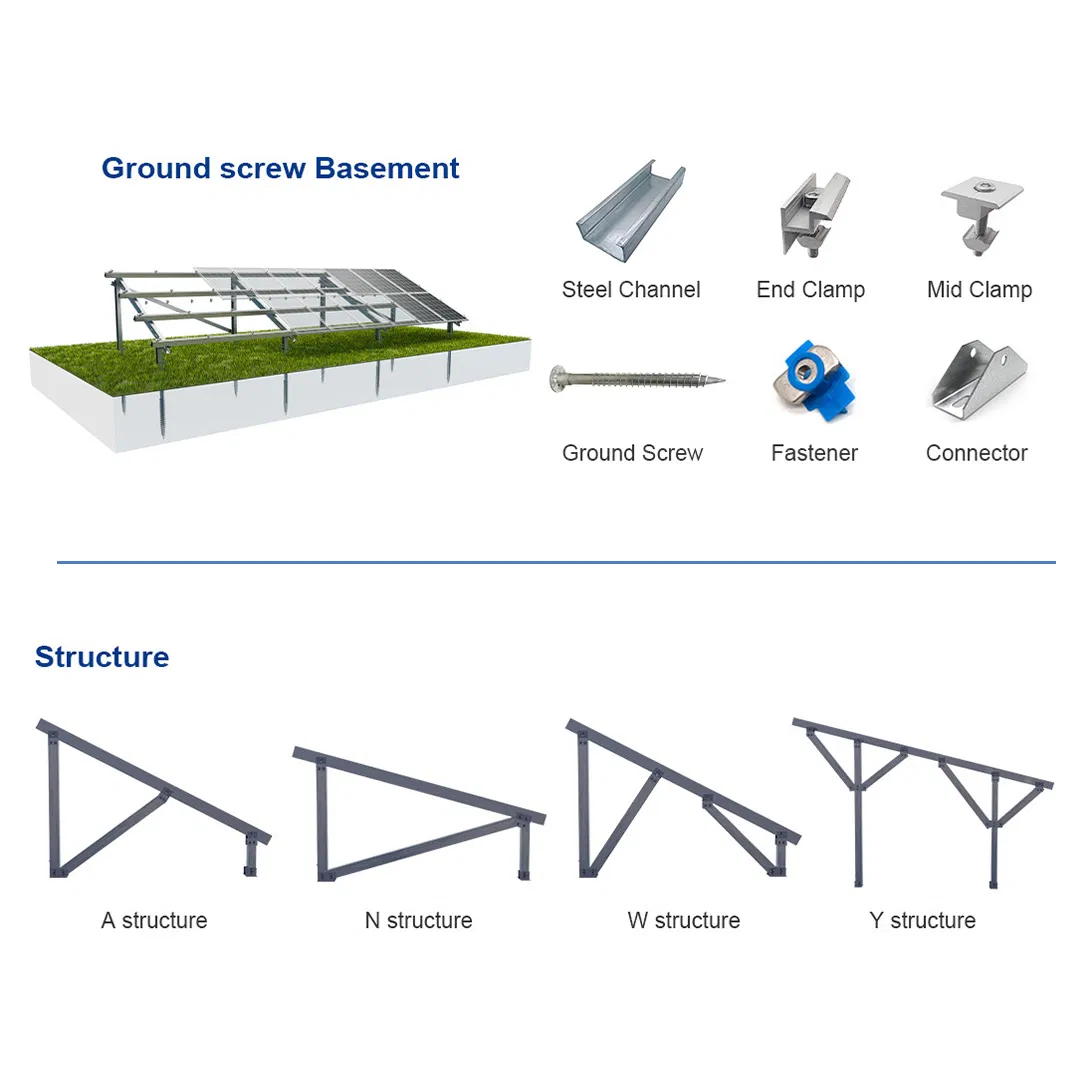

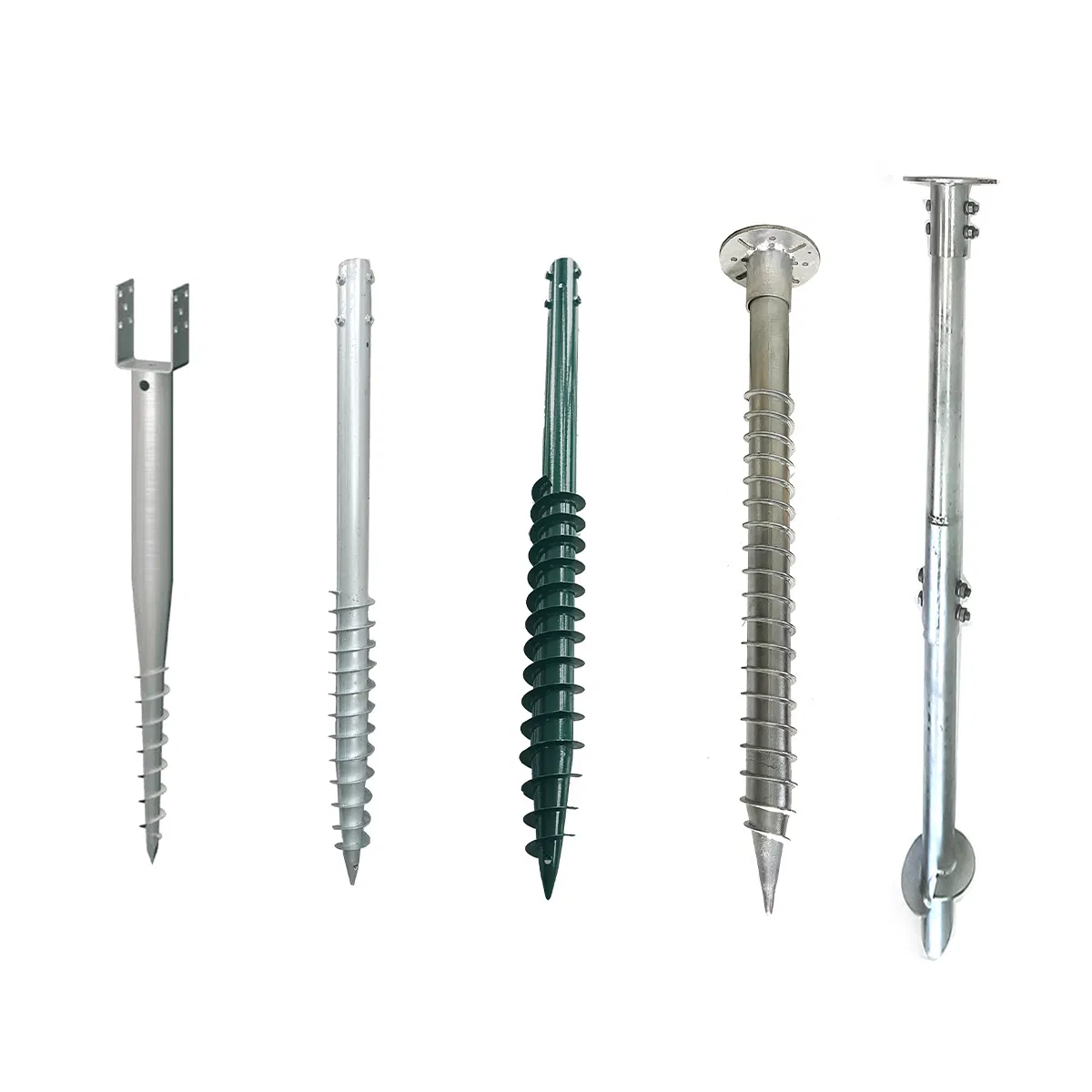

A ground screw (also known as a helical pile or screw pile) is a type of foundation used in solar mounting systems. It is a steel shaft with one or more helical blades that is drilled into the ground to provide a stable foundation for solar panels and related structures.

Technical Parameters Design Standards & Materials
System Name Solar Ground Mounting System Design Standard AS/NZS 1170, DIN 1055, JIS C8955:2017
Tilt Angle 5-10° Building Codes IBC 2009, CBC 2010
Wind Load 60m/s Hook Material SUS304
Snow Load 1.6KN/M² Fastener SUS304
Module Type Framed Components AL6005-T5 (Anodized)
Warranty 10-year warranty
Solar Mounting System Main
⭐ Our Services
⚙
Professional Manufacturer: Fasteners designed and manufactured according to buyer specifications and performance.
✔
Quality Guaranteed: Durability testing and critical technical design to enhance fastener lifetime.
💲
Cost Effective: Competitive prices with professional factory supply.
💡
10 Years Experience: Perfect fastening solutions with a wide range of parts selection.
✏
Customized Fasteners: Services tailored to samples and drawings offered.
Mounting System Detail 1

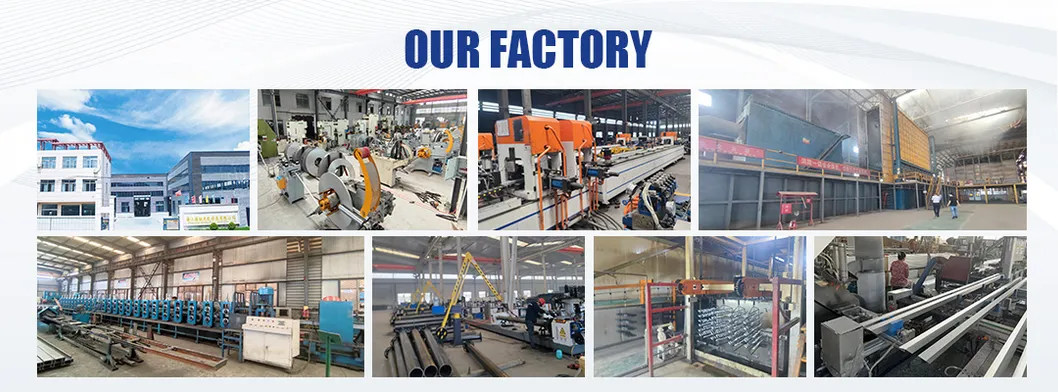

Mounting System Detail 2
Mounting System Detail 3
Mounting System Detail 4
Mounting System Detail 5
❓ Frequently Asked Questions
What is the primary use of a ground screw in solar mounting?
A ground screw acts as a stable foundation, drilled into the earth to secure solar panel structures without the need for concrete pouring.
What materials are used for the mounting brackets?
The systems primarily use high-grade Steel, SUS304 stainless steel fasteners, and AL6005-T5 anodized aluminum for durability and corrosion resistance.
Can this system withstand extreme weather conditions?
Yes, it is designed to handle a wind load of up to 60m/s and a snow load of 1.6kN/M², complying with international building codes like IBC 2009.
Is the system compatible with both portrait and landscape layouts?
Absolutely. The mounting structure is flexible and can accommodate both portrait and landscape solar panel orientations.
What is the typical delivery time for an order?
Standard delivery times range from 7 to 30 days, depending on the order volume and specific customization requirements.
Does the product come with a warranty?
Yes, the solar mounting system includes a 10-year warranty, ensuring long-term reliability and performance.
