Product Description

Basic Information

Model NO.	Solar mounting Support beam and purlin
Material	Steel
Type	Tracking Bracket
Service Life	25-30 Years Product Lifespan
Certificates	ISO9001/14001/45001, RoHS, CE, etc.
Adjustable Angle	10°~50° Degree
Wind Load	60 M/S
Snow Load	1.4 kN/M2
Surface Treatment	HDG, Zinc Al Mg, Pre-Gal, Powder Coating, Baking
Material Type	Hot DIP Galvanized and Zinc Al Mg Coating
Production Capacity	25,000 Ton/Month

DesertPro™ Ground Mount Solar Structure System

Sand-Proof & 60°C Heat Resistant | ISO9001 Certified Steel

22,000 Tons Capacity	10+ Years Experience	25-Year Warranty

Engineered for Extreme Conditions

⚡ 200 km/h wind resistance
🌡️ 0.5mm/year corrosion rate at 60°C
🔧 30% faster installation
🏜️ Sand-proof spherical bearings

Parameter	Standard Configuration	Custom Options
Material	SPA-H Weathering Steel (3.0mm)	Q355BNH, S350GD+ZM275 (Zn-Al-Mg)
Wind Resistance	160 km/h	200+ km/h (Reinforced)
Max. Span Length	8.5 meters	Up to 12 meters (truss design)

DesertPro™ Engineering Solutions

Common Desert Challenges

1 Sand infiltration causing bearing failure

2 Thermal expansion deforming steel at 50°C+

3 Corrosion acceleration at high humidity

4 Foundation issues on sandy soil

Our Technical Solutions

1 Dual-sealed spherical bearings (99.5% sand proof)

2 Pre-calculated expansion joints up to 70°C

3 Zn-Al-Mg coating for 20-year protection

4 Helical pile system for sandy soil

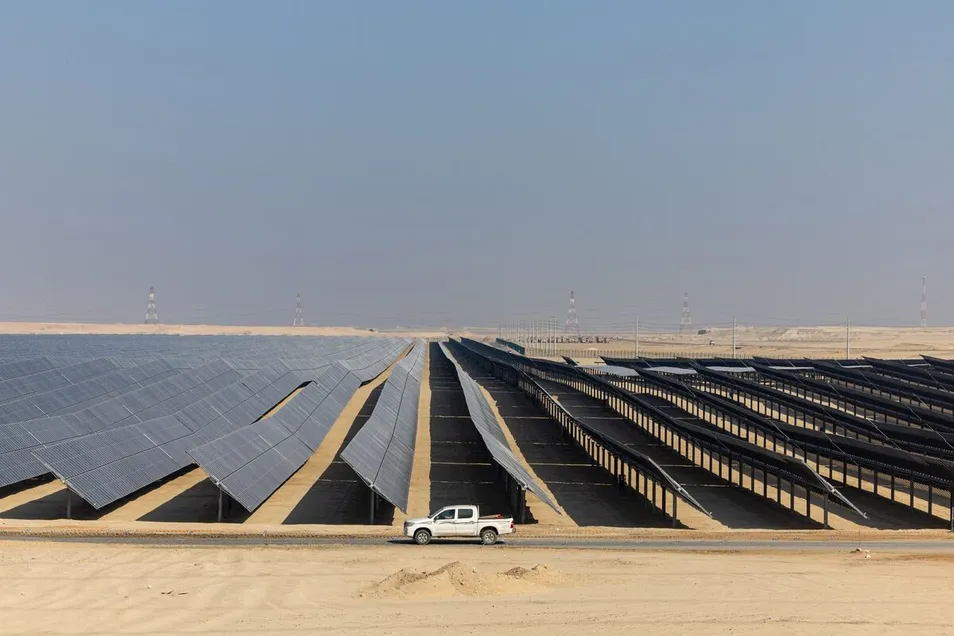

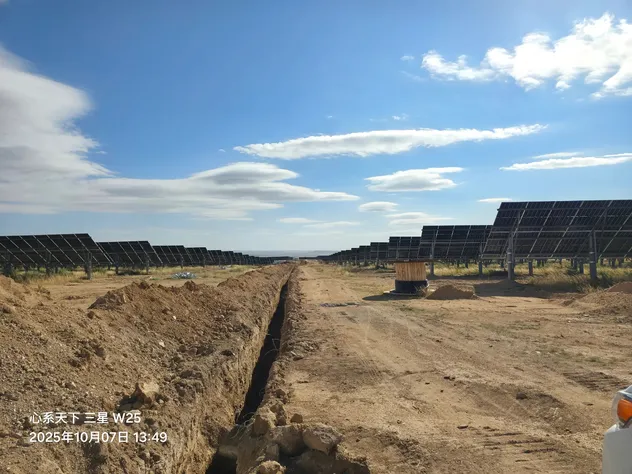

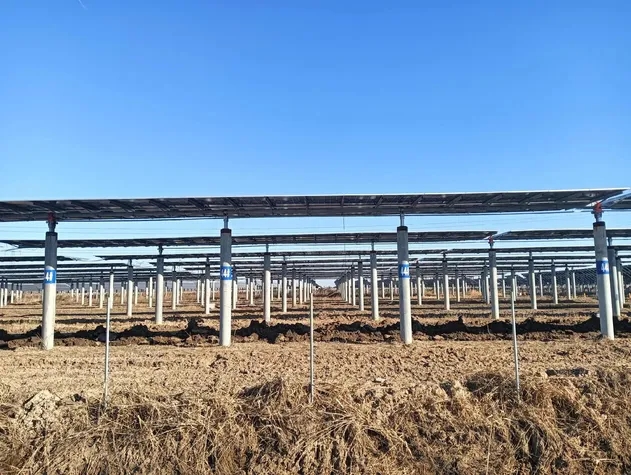

Proven Performance in Extreme Conditions

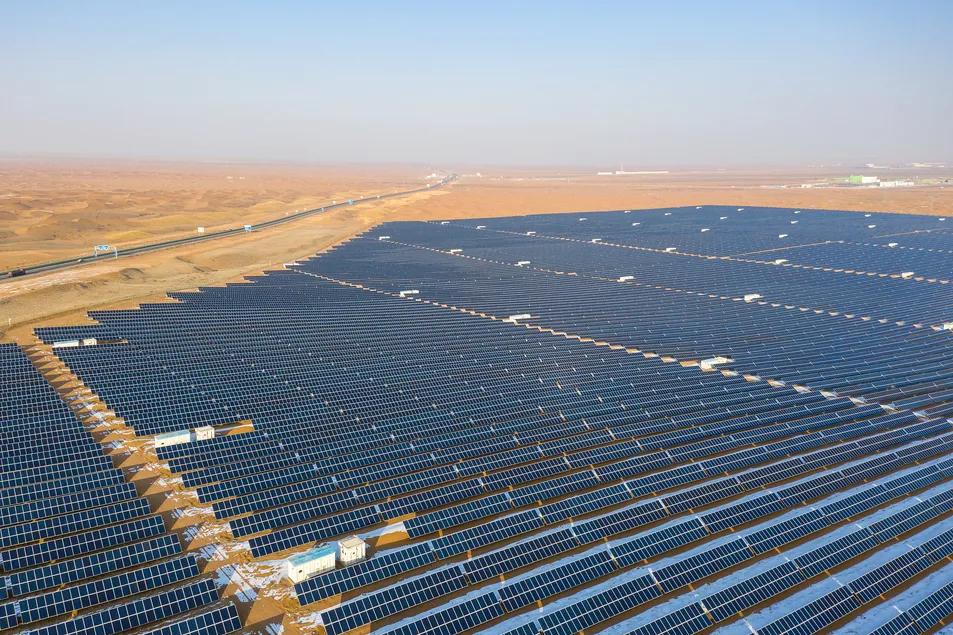

100MW Ground Mount Project

Challenge: 52°C temperatures, frequent sandstorms.

Result: 28 months operational with zero structural failures.

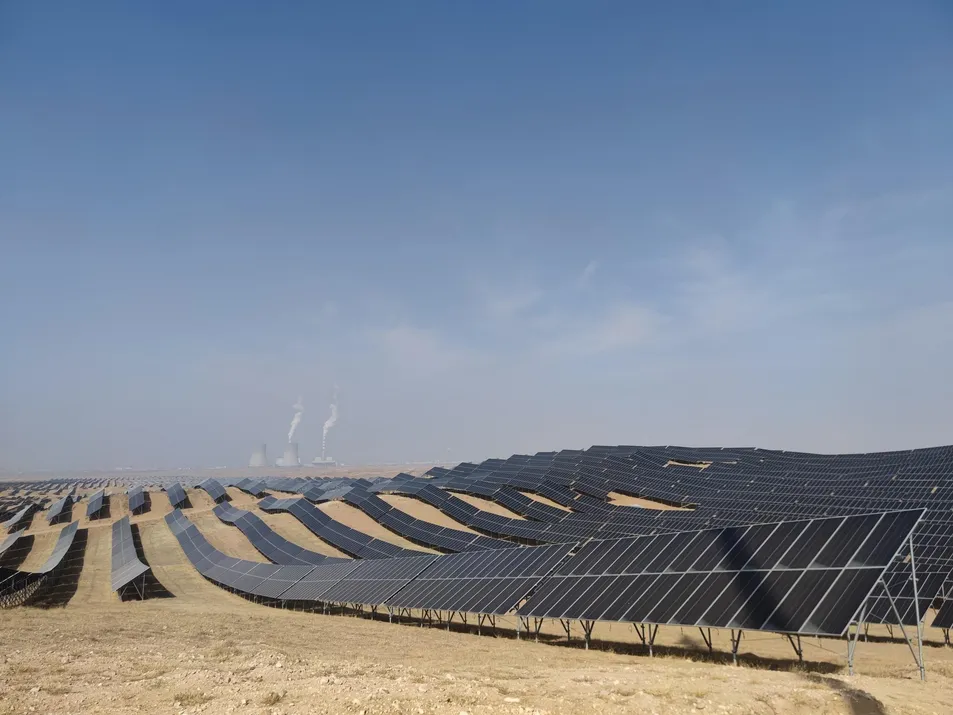

50MW Desert Installation

Challenge: Coastal salinity + desert heat.

Result: 22% less maintenance cost vs. previous systems.

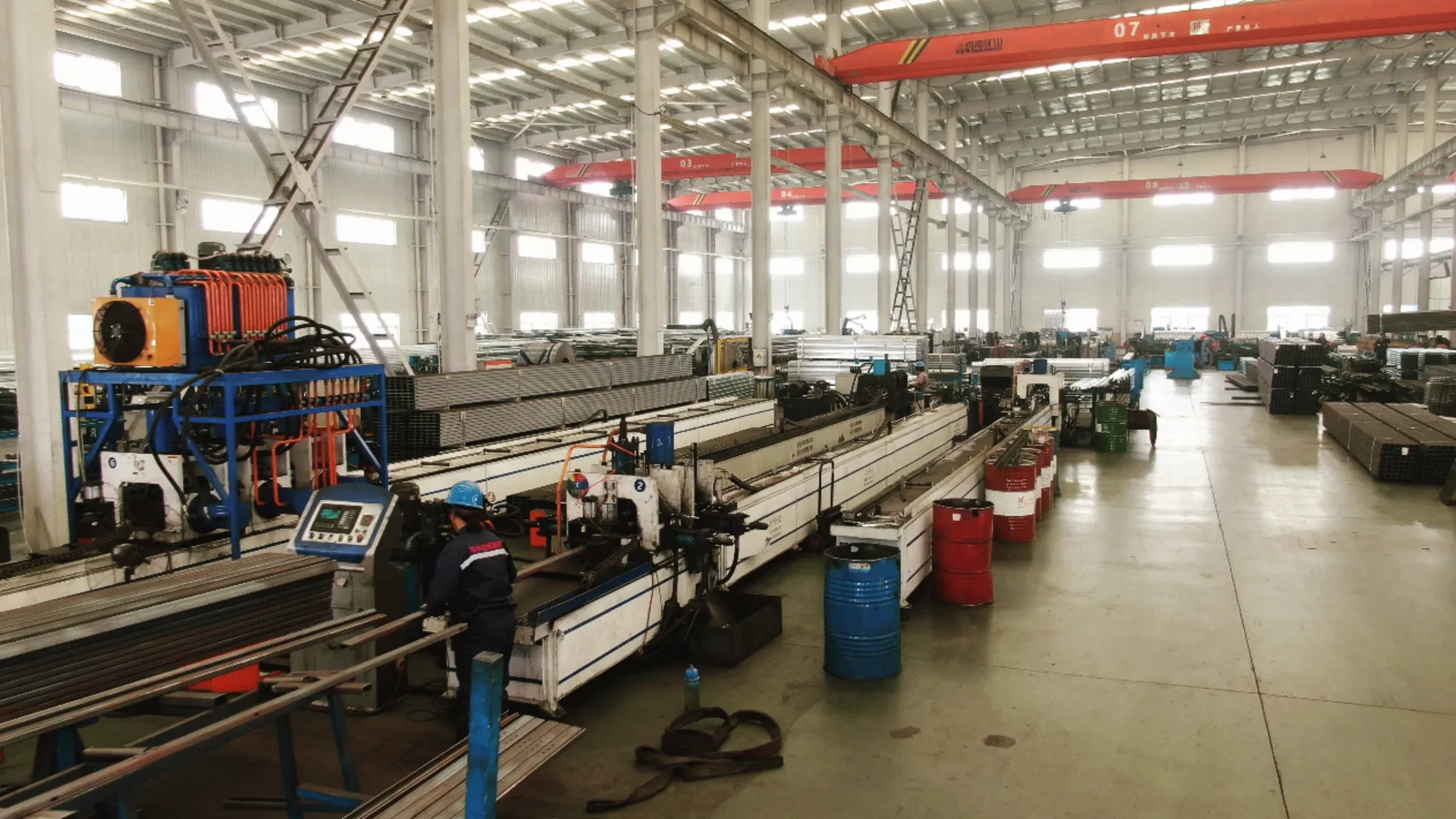

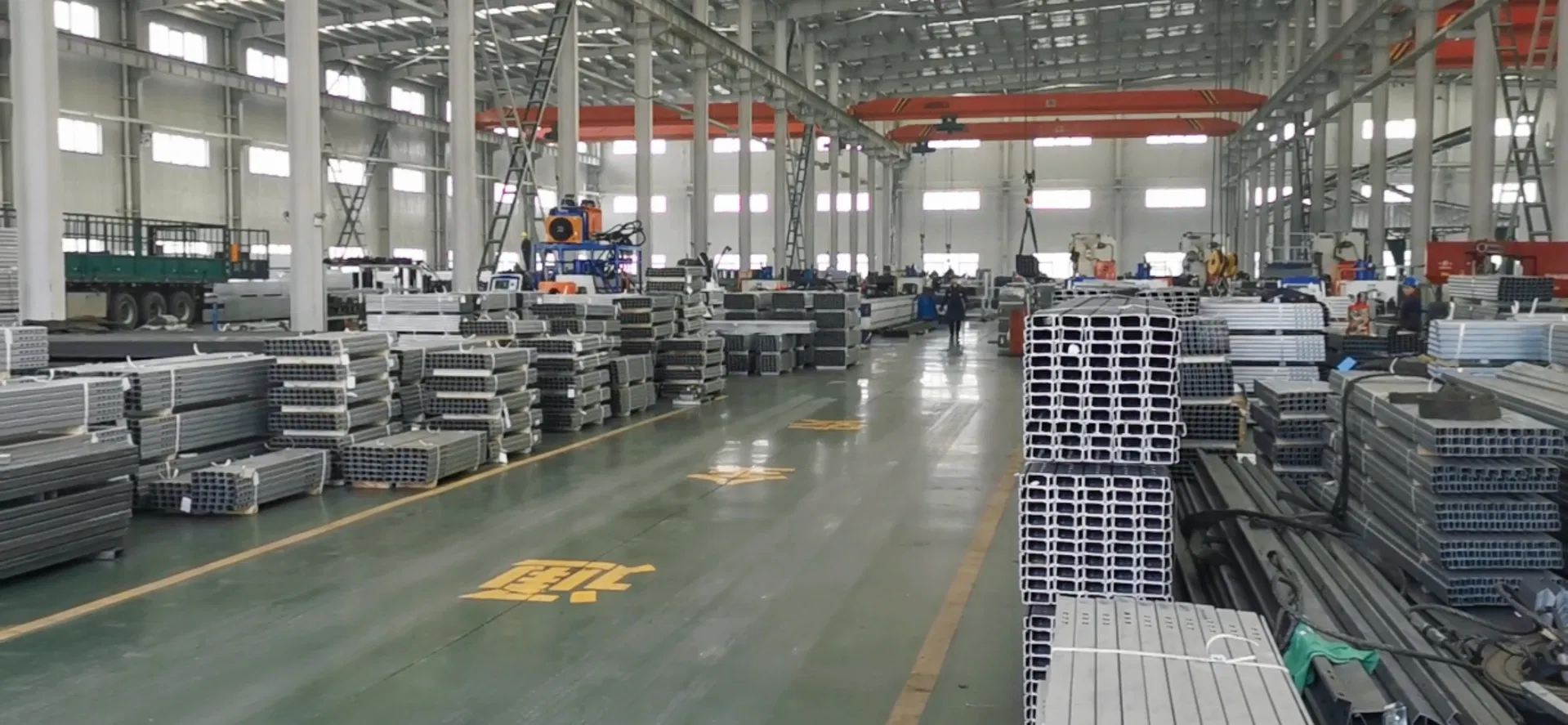

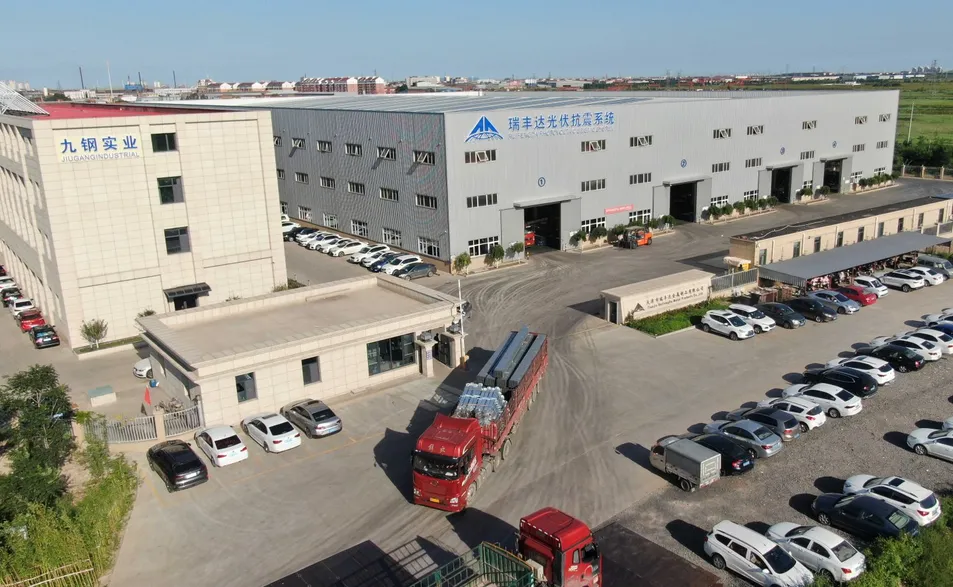

Factory Direct Manufacturing

• Vertical Integration: From steel coil to finished product under one roof.

• Advanced Production: 6 automated lines with 98.5% precision.

• Quality Control: 12 inspection points, full component testing.

• Logistics Expertise: 40ft container optimization reduces cost by 15%.

Frequently Asked Questions

What is the maximum wind speed this system can withstand?

The system is standardly rated for 160 km/h but can be reinforced to withstand wind loads exceeding 200 km/h, as tested in extreme desert environments.

How does the system prevent damage from sand?

We utilize dual-sealed spherical bearings with PTFE coating, which prevents 99.5% of sand ingress, ensuring smooth operation even during heavy sandstorms.

What kind of corrosion protection is provided?

We recommend Zn-Al-Mg (Zinc-Aluminum-Magnesium) coated steel, which offers superior protection in high-salinity and high-temperature zones, significantly outperforming standard galvanization.

Is the system compatible with different soil types?

Yes, we offer specific foundation solutions including helical piles and customized concrete foundations specifically engineered for sandy or loose soil conditions.

What is the expected lifespan of the mounting structure?

The structural system is designed for a service life of 25 to 30 years, supported by comprehensive material warranties and structural engineering certifications.
