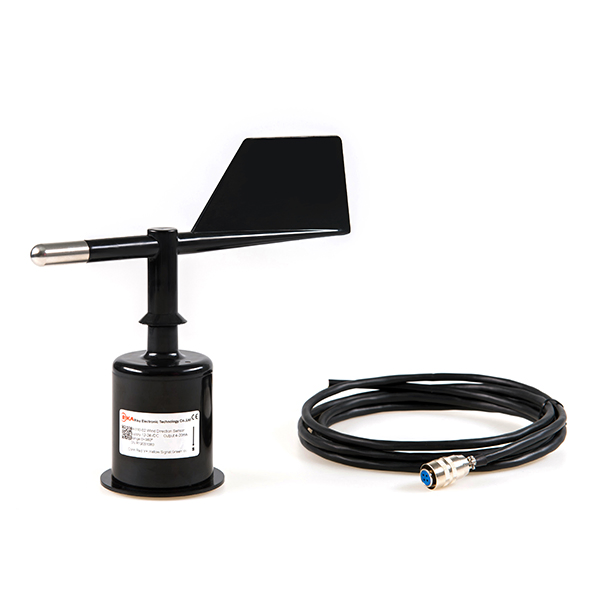

Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor
Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor
Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor
Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor
1 / 4
Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor
Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor
Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor
Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor

Rika Rk110-02 RS485 4-20mA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.
RK110-02
Application
Anemometer
Display
Pointer
Detection Method
Contact
Connection Type
Wire
Pressure Resistance
With Pressure Resistance
Shakeproof
Shakeproof
Waterproof
Waterproof
Material
Carbon Fibre
Range
0-360°
Output
4-20mA, 0-5V, RS485
Supply Voltage
5V, 12V, 24V
Accuracy
3°
Ingress Protection
IP55 / IP65

Product Description

RK110-02 RS485 4-20MA Solar Energy Tracking System Weather Monitoring Wind Direction Indicator Sensor

The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti-lightning strike, and offers excellent performance.

Key Features
  • Low starting threshold
  • Great dynamic characteristics
  • Overall carbon fiber material
  • Strong corrosion resistant ability
  • Light structure
  • Various output signals optional
  • Easy Installation
Main Applications
  • Weather monitoring stations
  • Ports
  • Solar and wind power generation
  • Mobile weather monitoring vehicles
  • Remote airports & helipads

Technical Specifications

Output 4-20mA 0-5V RS485
Supply Voltage 5V, 12V-24V 5V, 12V, 24V 5V, 12V-24V
Range 0~360°
Accuracy ±3°
Resolution 1°
Starting Threshold <0.5m/s
Ingress Protection IP65
Main Material Carbon fiber
Weight 195g (unpacked)

Detailed Photos

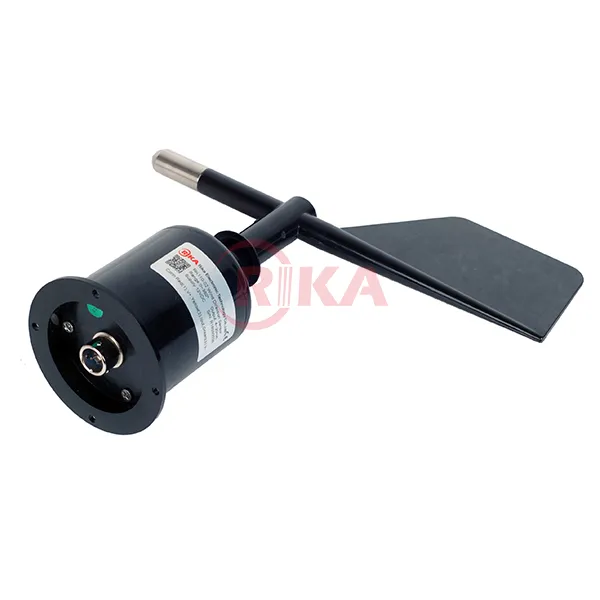

Wind Direction Sensor Photo 1

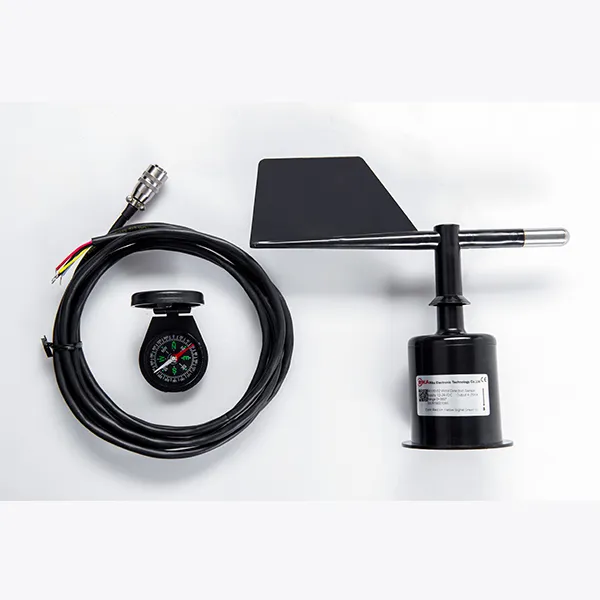

Wind Direction Sensor Photo 2
Wind Direction Sensor Photo 3
Wind Direction Sensor Photo 4
Wind Direction Sensor Photo 5
Wind Direction Sensor Photo 6
Wind Direction Sensor Photo 7

Frequently Asked Questions

1. What is the measurement range of the RK110-02 sensor? The sensor features a full 0 to 360° wind direction measurement range with a resolution of 1°.
2. What materials are used in the construction? The sensor is primarily constructed from high-quality carbon fiber, ensuring it is lightweight, strong, and highly corrosion-resistant.
3. What output signals are available for this wind direction indicator? It supports multiple output options including 4-20mA, 0-5V, and RS485 digital signals to suit various monitoring systems.
4. Is the sensor suitable for harsh environments? Yes, it has an IP65 ingress protection rating and can operate in temperatures ranging from -40°C to +50°C, making it ideal for outdoor weather stations.
5. What is the starting threshold for wind detection? The RK110-02 has a very low starting threshold of less than 0.5m/s, allowing it to detect even light breezes accurately.
6. What are the typical applications for this sensor? Common applications include weather monitoring stations, ports, solar and wind power generation facilities, mobile weather vehicles, and remote helipads.
