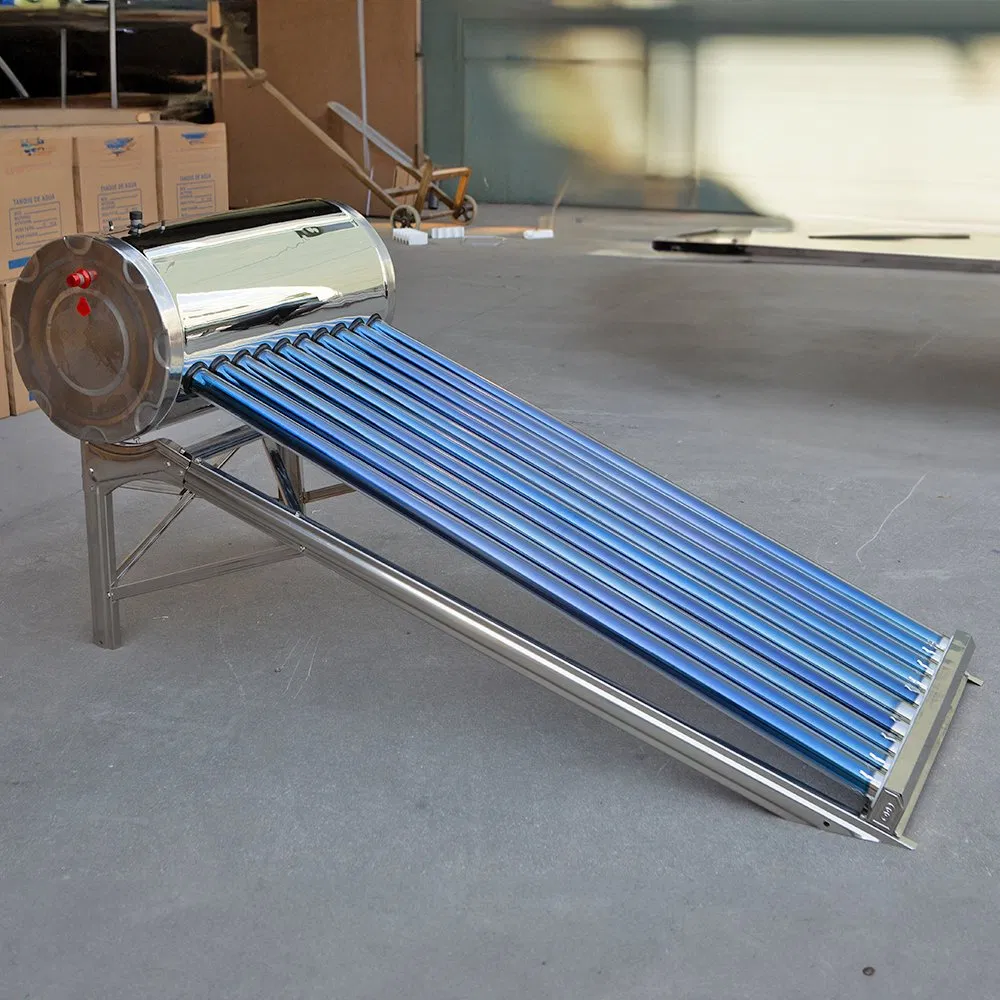

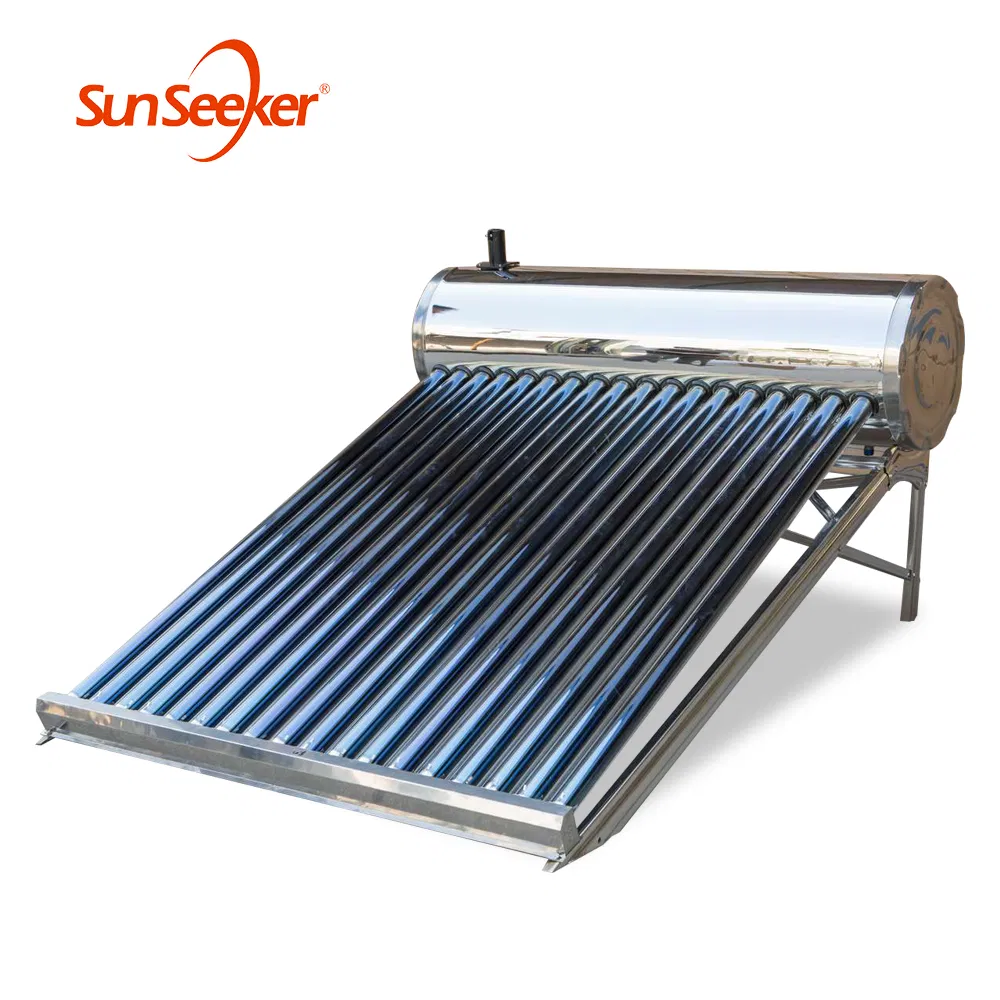

100L 150L 200L Rooftop Non-Pressur Solar Water Heater

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
ZY-1B-5815
Max. Capacity
>200L
Structure
Compact Type
Pressure
Unpressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Certification
CE, ISO9001
Inner Tank
Food Grade Stainless Steel SUS304-2b
Insulation
Polyurathane 50mm
Vacuum Tube
58mm/1800mm
Application
Outdoor, Hotel, Household, Bath/Wash/Swimming Pool
Frame
201 Stainless Steel
📦

Packaging & Delivery

Package Size
192.00cm * 75.00cm * 48.00cm
Gross Weight
65.000kg
📷

Product Description

Solar Water Heater Overview
Solar Water Heater Details
Technical View

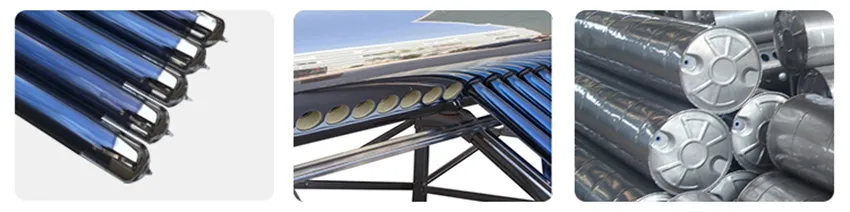

Component View
⚙️

Technical Specifications

Material / Component Specification Details
Material of inner tank0.31mm-0.5mm thickness, food grade SS304
Material of outer tank0.31mm thickness, SS201
Insulating layer50mm thickness, 45kg/m3 high density polyurethane

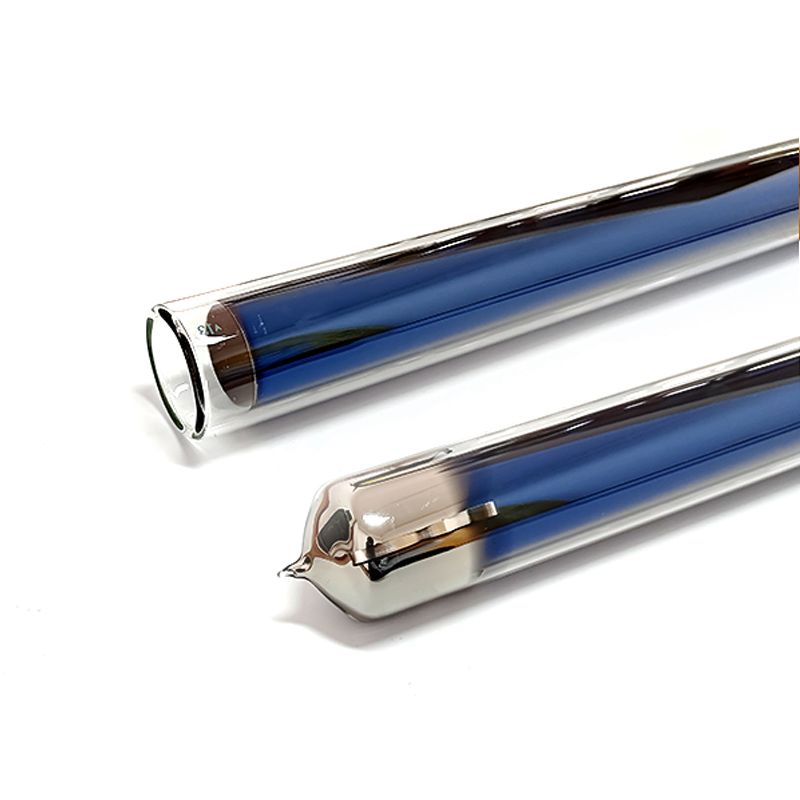

Solar collector tube3.3 Borosilicate glass with Cu-SS-ALN/ANL coating
Thickness of glass tube1.6mm / 1.8mm / 2.0mm / 2.2mm

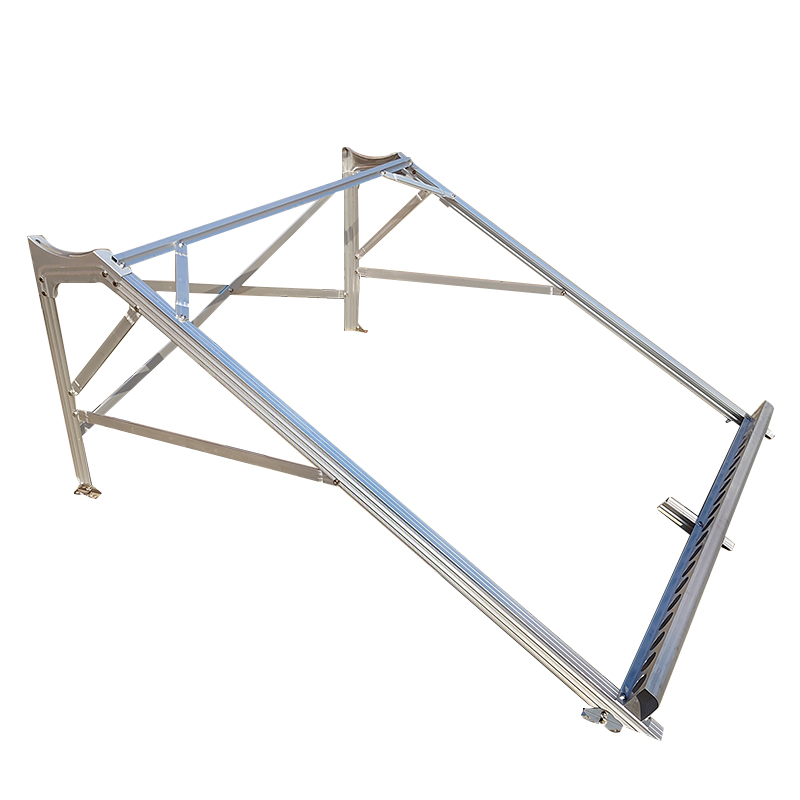

Bracket (frame)1.2mm / 1.5mm galvanized steel
Tank capacityFrom 80L to 400L
📊

Model Comparison

Item No. Tube QTY Tube Size Capacity Application
ZY-1B-58101058x1800mm100L3 People
ZY-1B-58121258x1800mm120L3-4 People
ZY-1B-58151558x1800mm150L4 People
ZY-1B-58202058x1800mm200L5-6 People
ZY-1B-58303058x1800mm300L7 People
ZY-1B-58505058x1800mm500L8-9 People

Our Services

Packing: Standard export carton with foam or wooden box for samples.
Shipping: 7 days for samples; 7-10 days for 20/40ft containers.
Warranty: 5 years guarantee for the whole solar water heater set.
Supply Ability: 6000 sets per month.
Lifetime: Designed for more than 20 years of operation.
Production Line
Quality Control

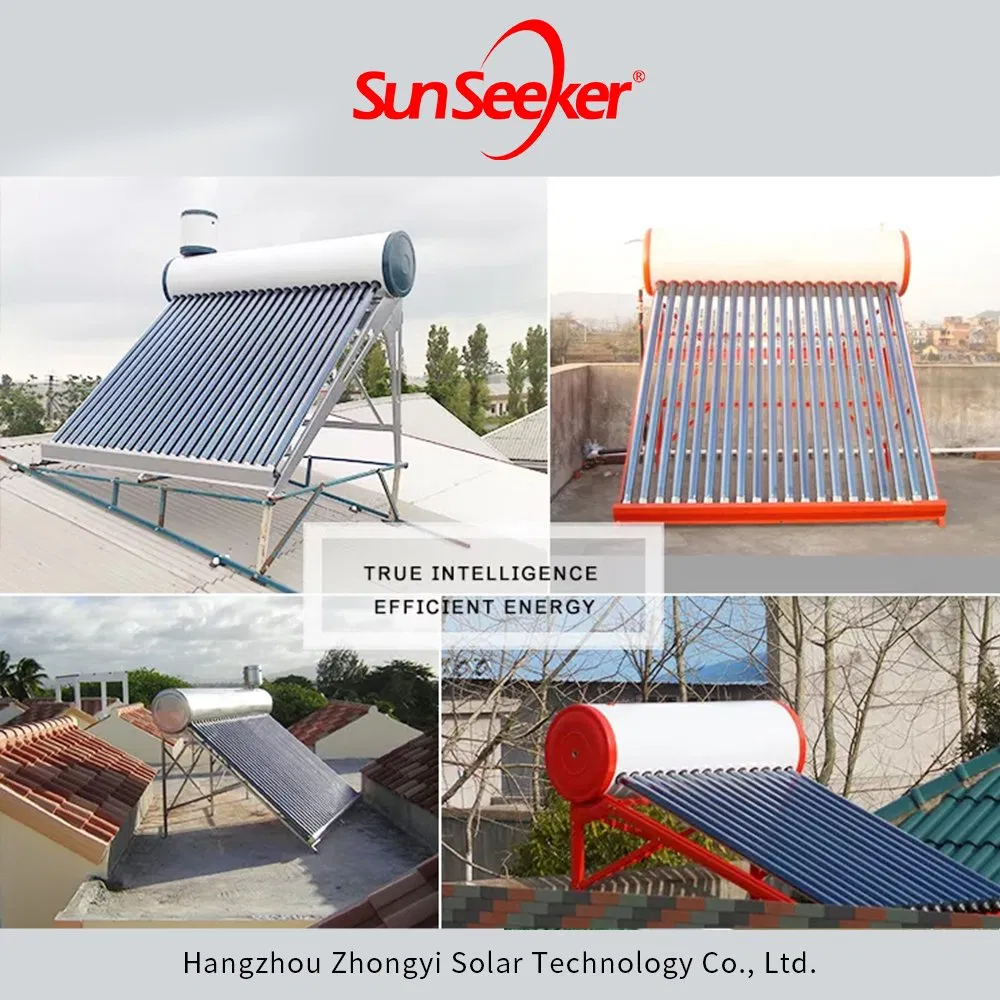

Installation
Structure Detail
Tank Detail
Tube Detail
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a specialized manufacturer of solar water heaters.
Which payment methods do you accept?
We accept Paypal, Alipay, T/T, L/C, and D/P.
What is the Minimum Order Quantity (MOQ)?
For trial or sample orders, 1 piece is available.
What is your standard delivery time?
Typically 7-10 working days after receipt of signed PI and down payment.
How are the products packaged for safety?
Generally, we use standard export packaging with plastic foam inside and durable cartons outside.
Do you provide additional accessories?
Yes, we offer accessories such as support frames, controllers, silicon seals, and rubber seals at competitive prices.
