Product Description

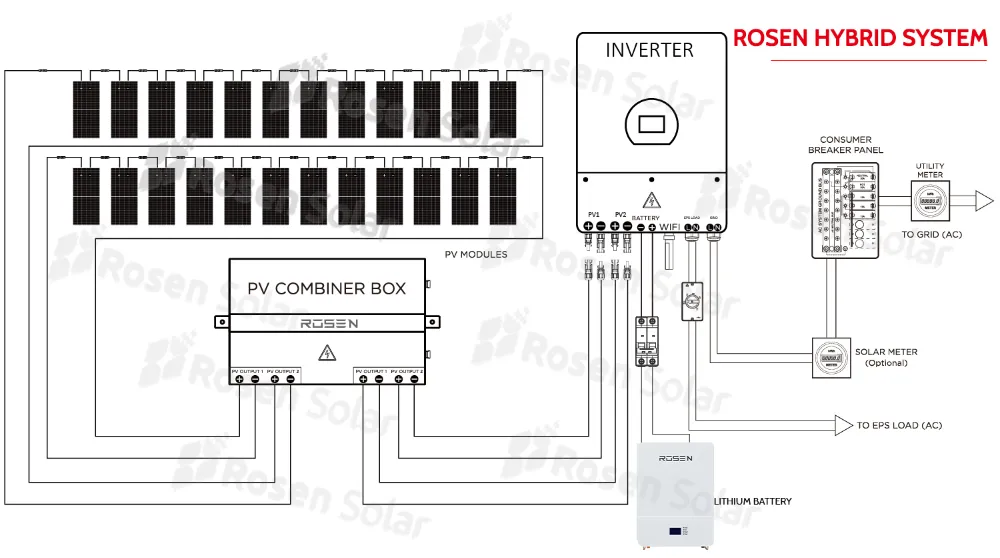

System Configuration
| Item |
5KW |
10KW |
15KW |
| Half Cell Solar Panel |
12 pieces |
24 pieces |
36 pieces |
| PV Combiner Box |
1 inputs 1output |
2 inputs 2outputs |
3 inputs 3 outputs |
| Hybrid Off Grid Inverter |
5kw |
10kw |
15kw |
| WIFI Module Monitor |
1 set |
1 set |
1 set |
| Solar Battery |
GEL/Lithium Powerwall with BMS |
GEL/Lithium Powerwall with BMS |
GEL/Lithium Powerwall with BMS |
| PV Cable |
6mm2 |
6mm2 |
6mm2 |
| Mounting Bracket |
Tile Roof/Ground |
Tile Roof/Ground |
Tile Roof/Ground |
| MC4 Connector |
12pcs |
24pcs |
36pcs |
| Installation Tool Box |
1set |
1set |
1set |
| Installation Manual |
Yes |
Yes |
Yes |

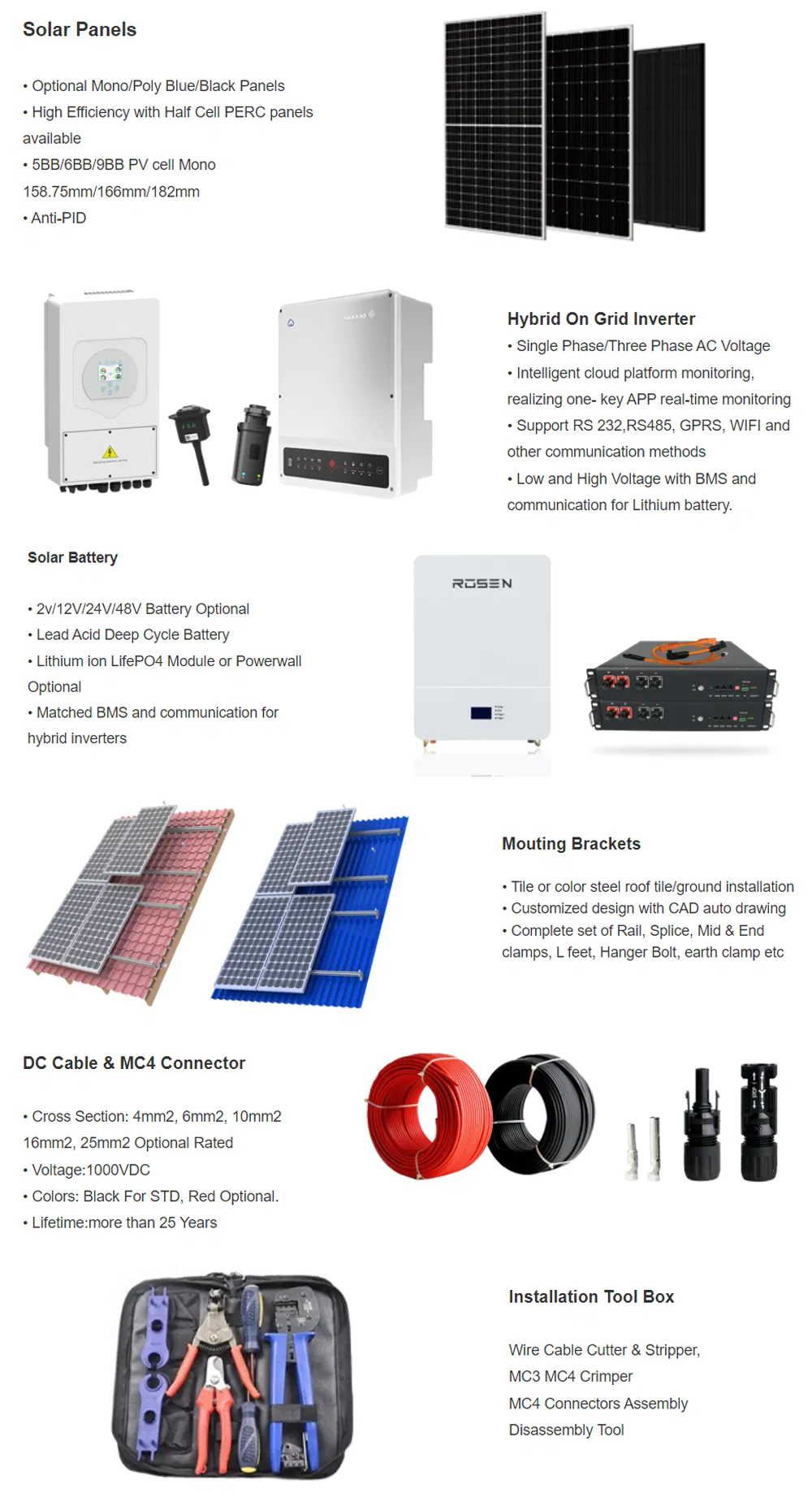

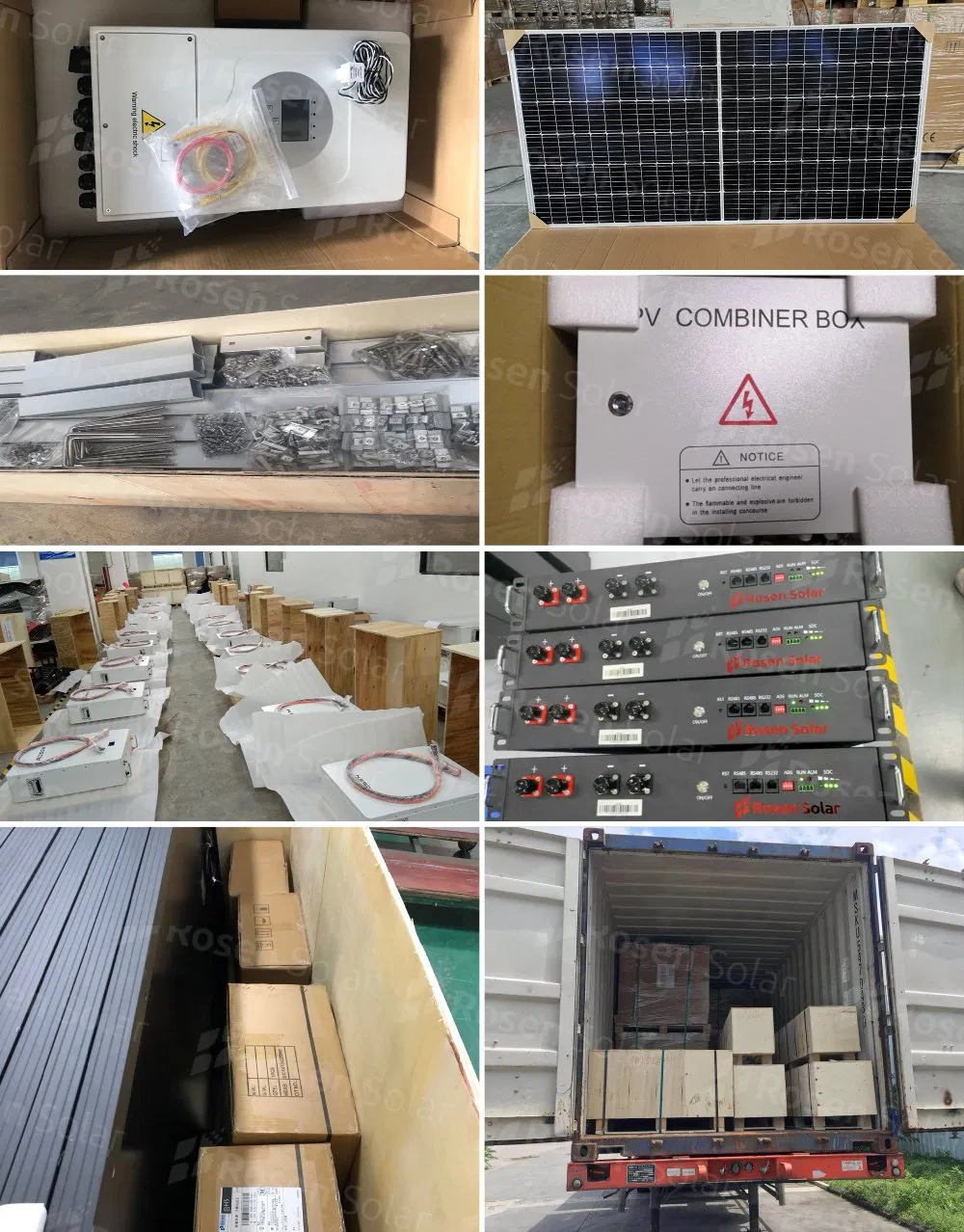

Technical Specification & Delivery

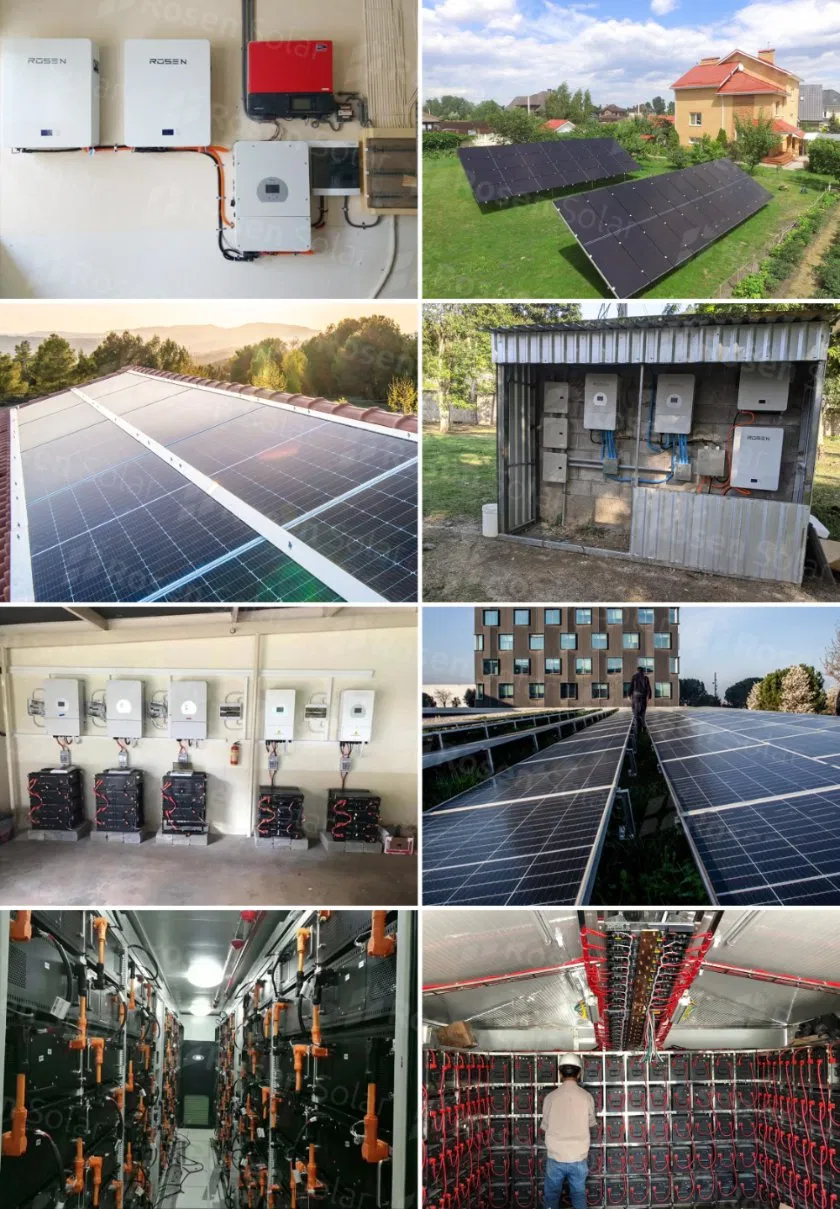

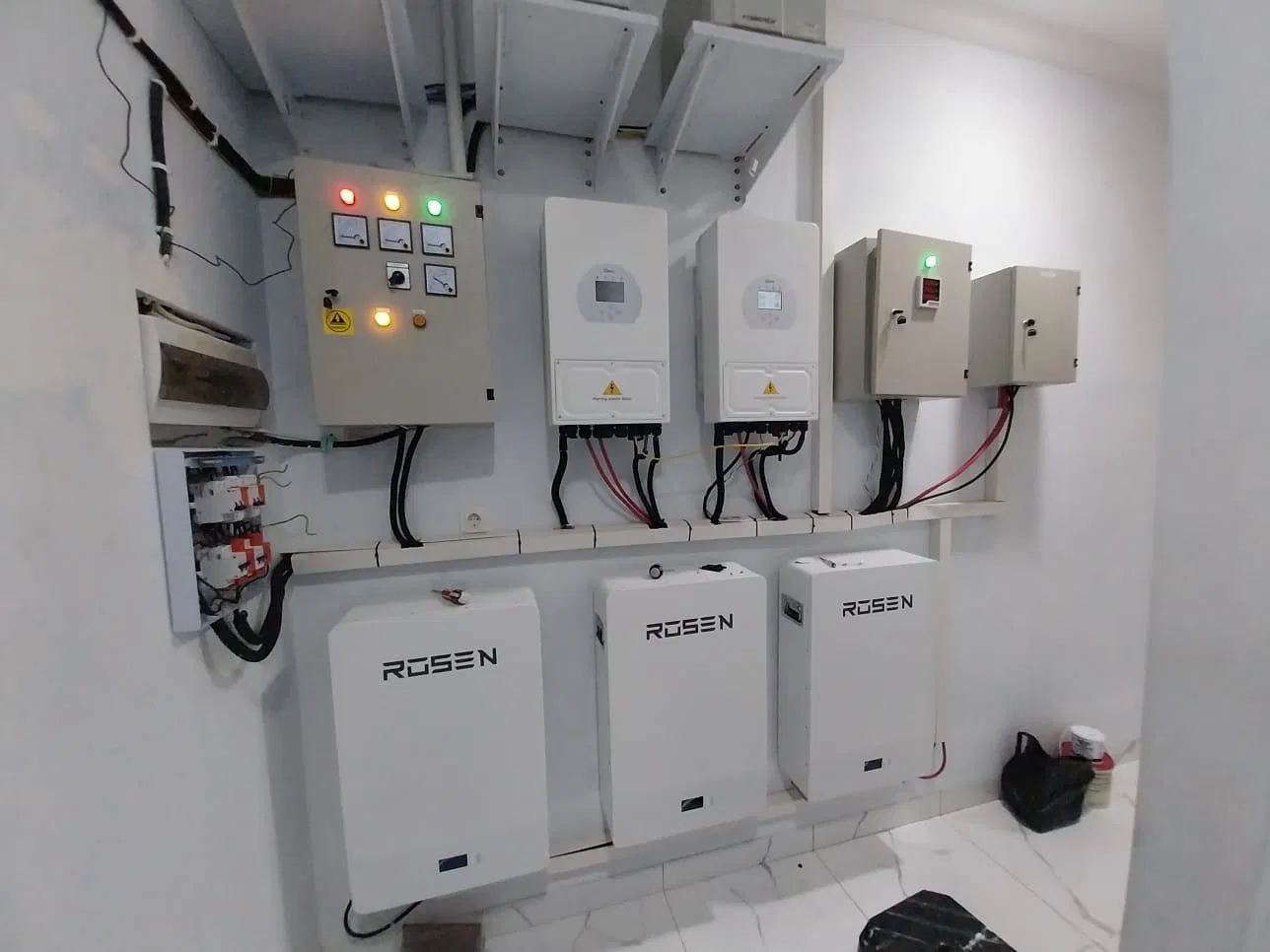

Project Experience

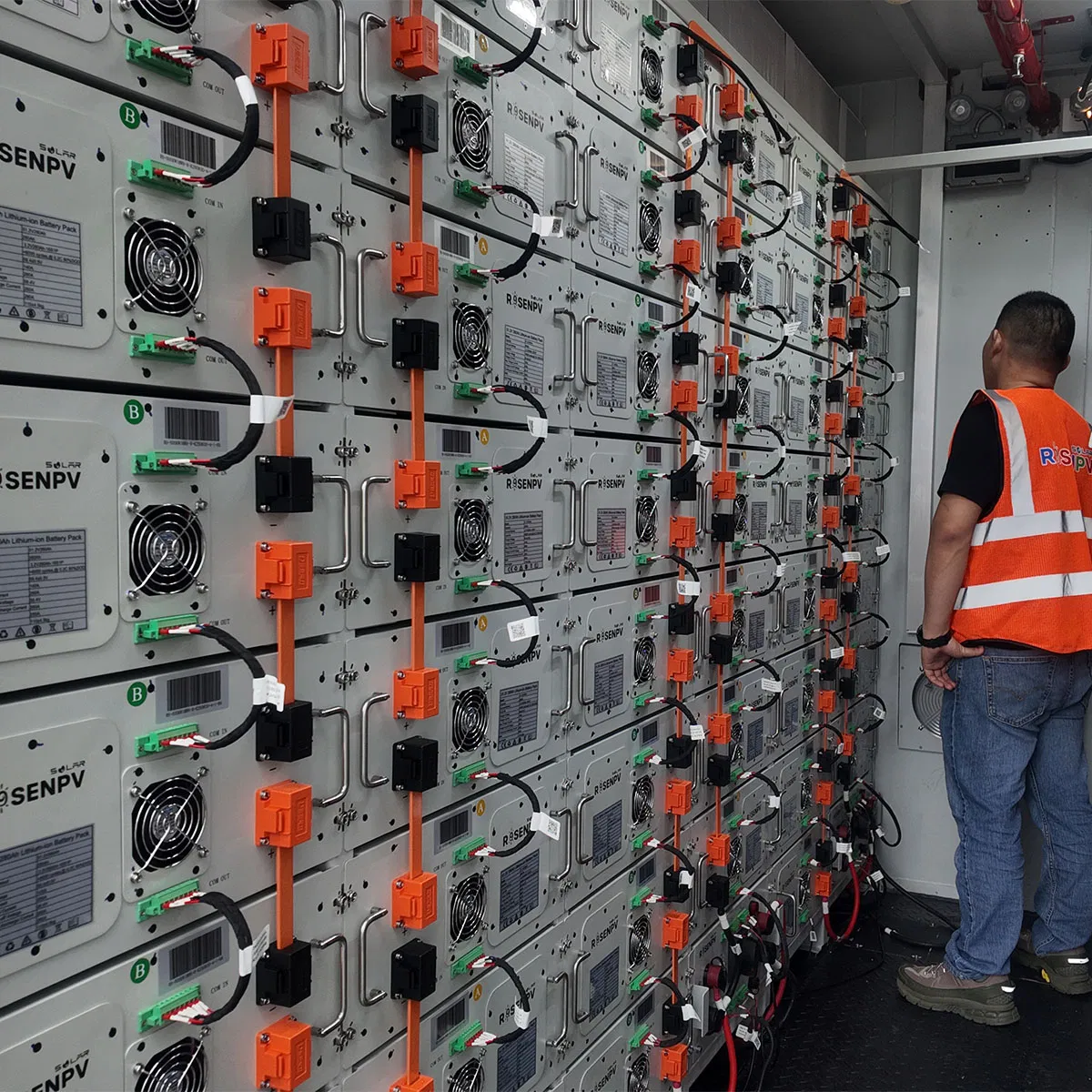

Lithium battery projects are installed for home and commercial solar projects. Home projects are more used with power wall types 48Vdc or 51.2Vdc 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah etc whose communication protocols are compatible with hybrid solar storage inverters 3kw, 5kw, 8kw, 10kw, 12kw etc. DOD more than 6000cycles for long life usage. Commercial projects BESS are more for factories like 100kw, 150kw, 200kw, 250kw, 300kw, 500kw, 1MW, 2MW, 5MW, 10MW etc, with containerized design and EMS programmable. Lithium battery warranty is up to 10years, and MSDS/UN38.3 certificates are listed for safety installation.
Frequently Asked Questions
What applications is this 10KW hybrid solar system suitable for?
The system is versatile and designed for Home, Industrial, Commercial use, as well as Agricultural Irrigation.
What types of batteries are compatible with the system?
The system supports AGM, Gel, and Lithium batteries, providing flexibility based on your energy storage needs.
Can I monitor the system remotely?
Yes, the system includes a WiFi/GPRS device for real-time monitoring of your solar energy production and usage.
What certifications does the system have for safety and quality?
The system is fully certified with ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, and Jet.
What is the lifespan and warranty for the lithium batteries?
Our lithium batteries offer more than 6000 cycles for long-life usage and come with a warranty of up to 10 years.
Is the system compatible with different regional voltages?
Yes, it supports multiple output voltages including EU standards (380/400/480V) and US standards (240/480V).
