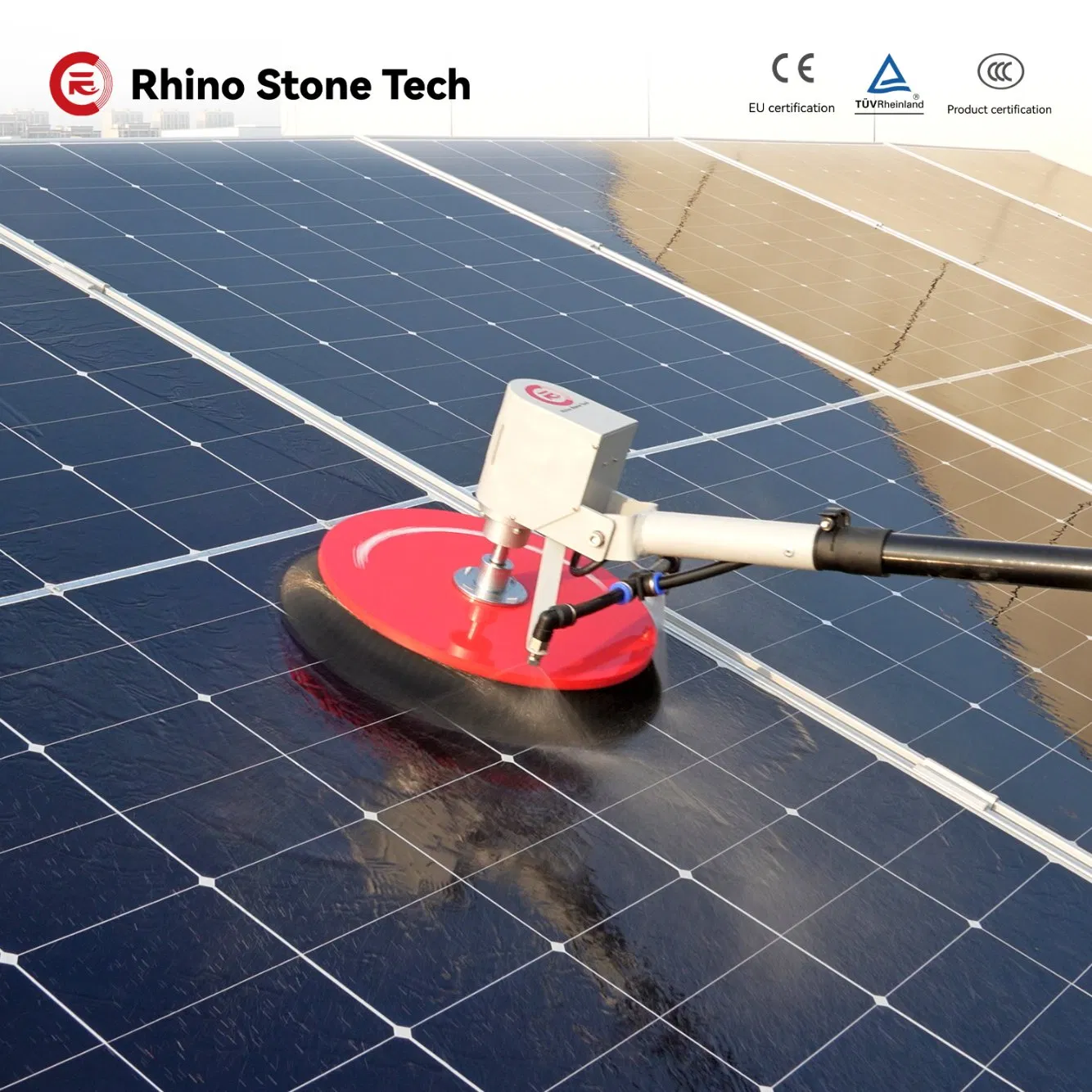

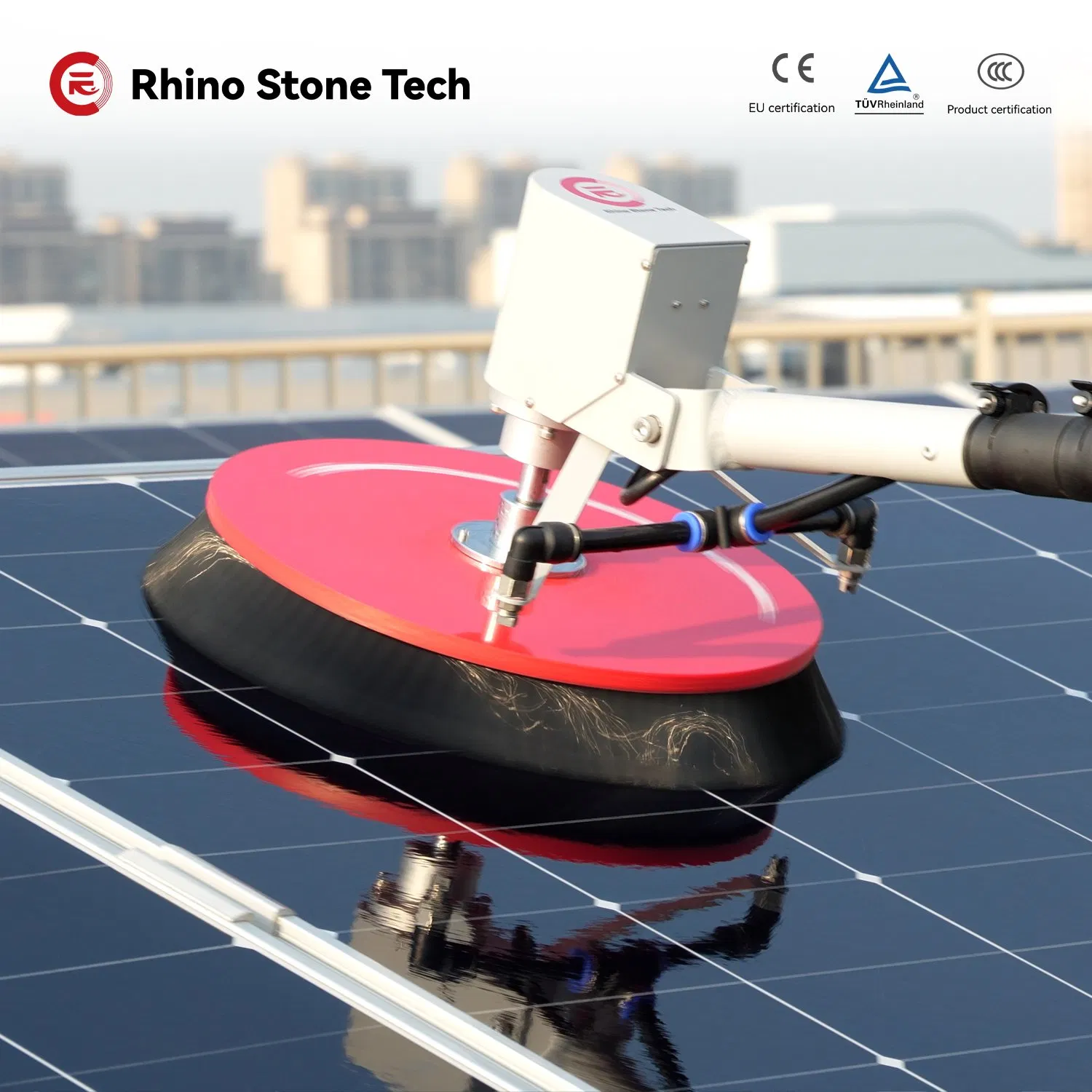

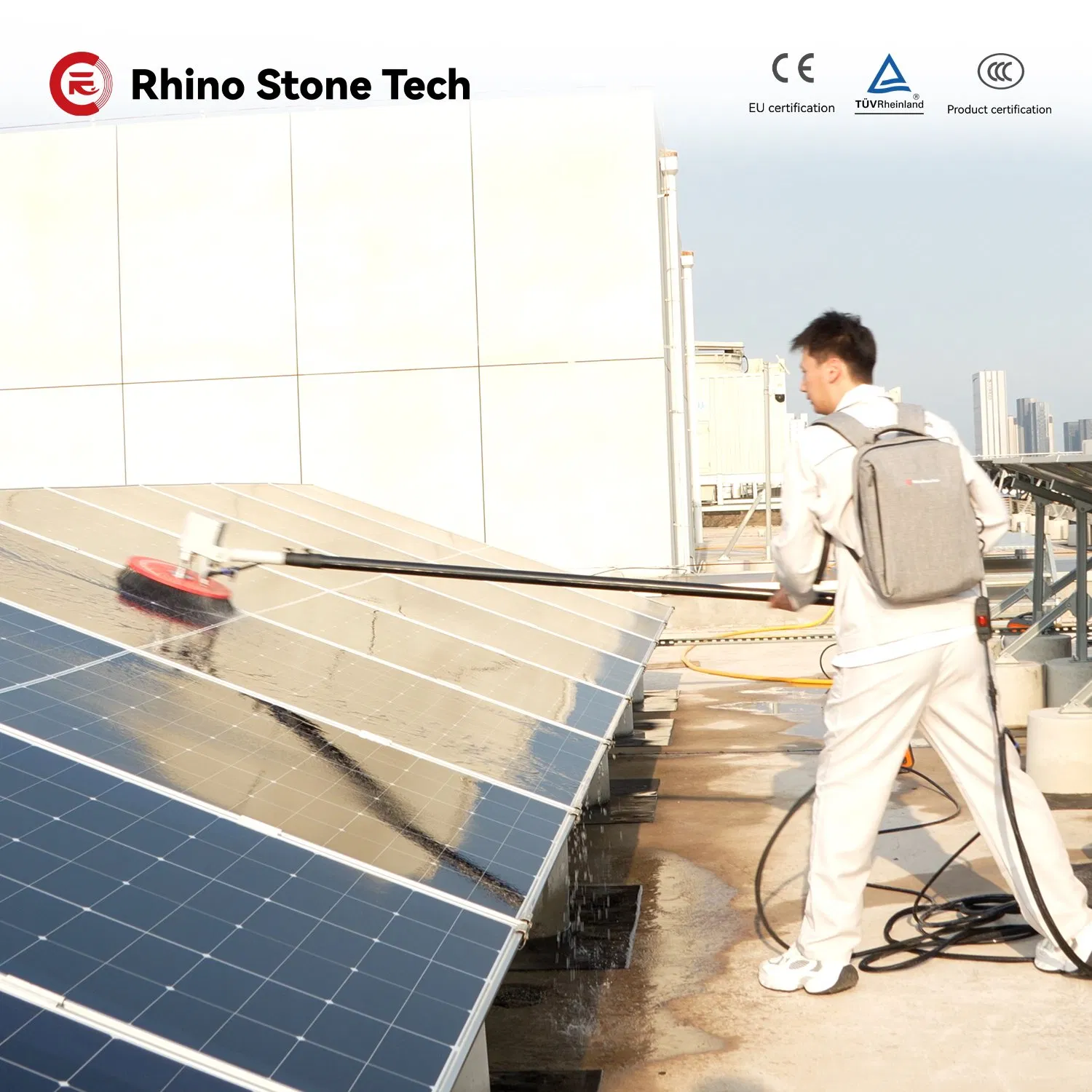

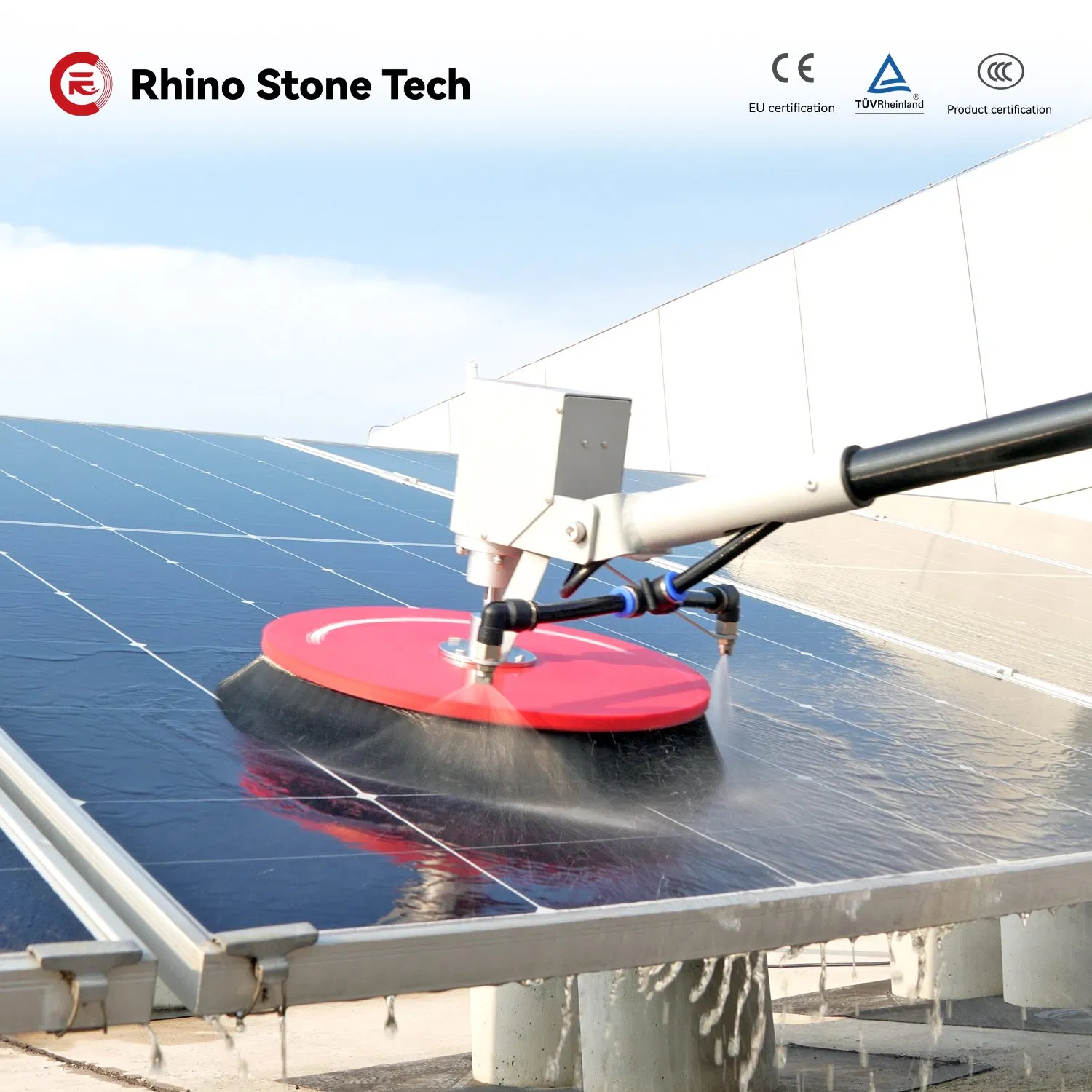

Rotating Solar Panel Cleaning Brush for Residential Photovoltaic Panels Washing Machine Dry / Wet Cleaning with 3.6m 5.4m 7.5m Carbon Fiber Handle

Customization: Available
After-sales Service: 1 Year
Automation: Semi-automatic

Product Description

Basic Specifications

Model NO.
RHINO700-EH1
Clean Type
Hand-Held Power-Driven
Cleaning Process
Dry / Wet Cleaning
Fuel
Electric
Rated Power
150W
Motor Speed
360 Rpm
Cleaning Width
340mm
Working Voltage
DC24V
Rod Material
Carbon Fiber / Aluminum Alloy
Origin
China

Product Description

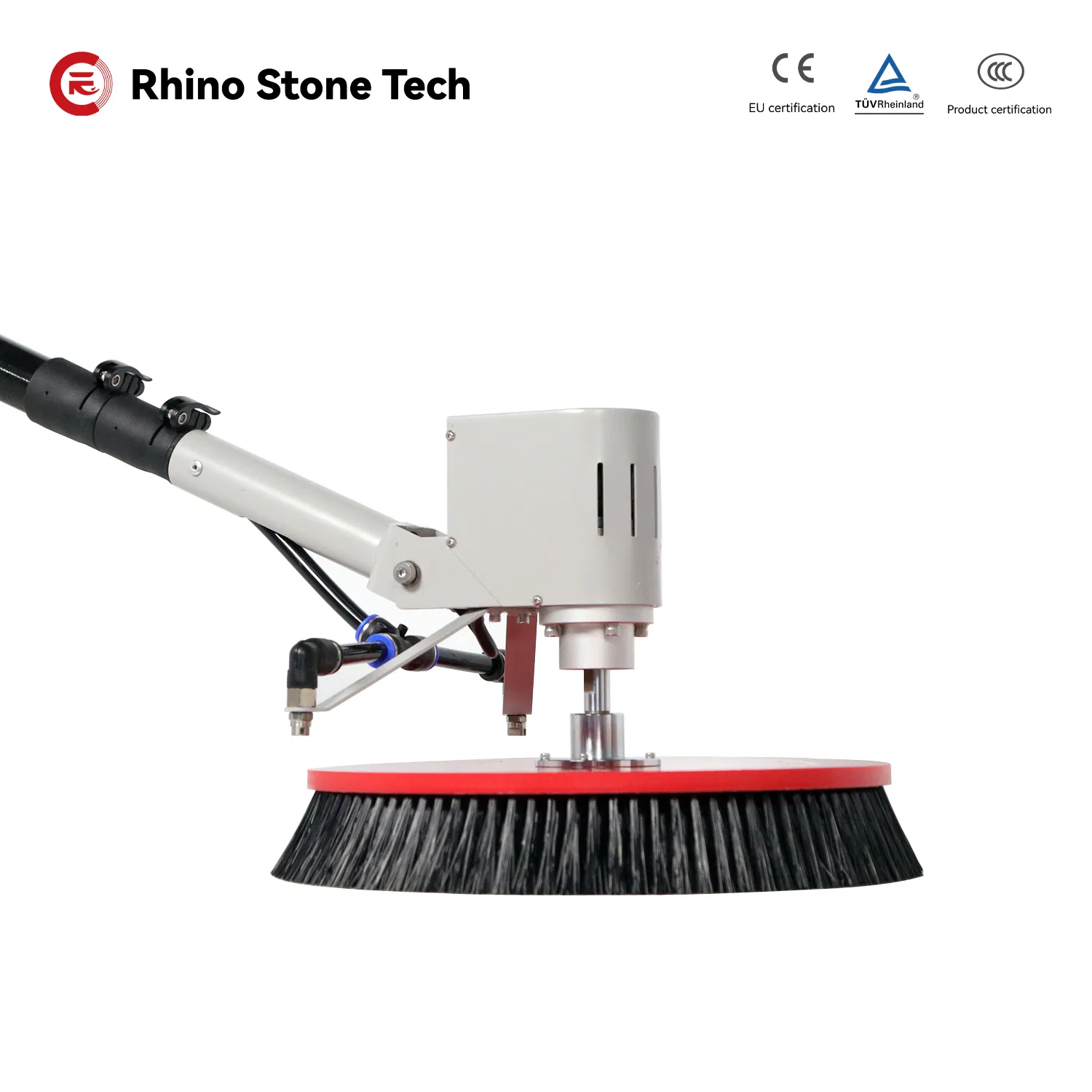

Single Disc Solar Panel Cleaning Brush RHINO700-EH1

Designed with the concept of "Convenient & Safe and Panel-Friendly", the RHINO700-EH1 is engineered for high-frequency dry and wet solar cleaning. It effectively removes stubborn stains across multiple scenarios. The single disc brush head paired with an adjustable 12m telescopic rod allows for flexible, long-term operation by a single person. This lightweight design incorporates multiple safety protections and powerful performance to maximize cleaning efficiency.

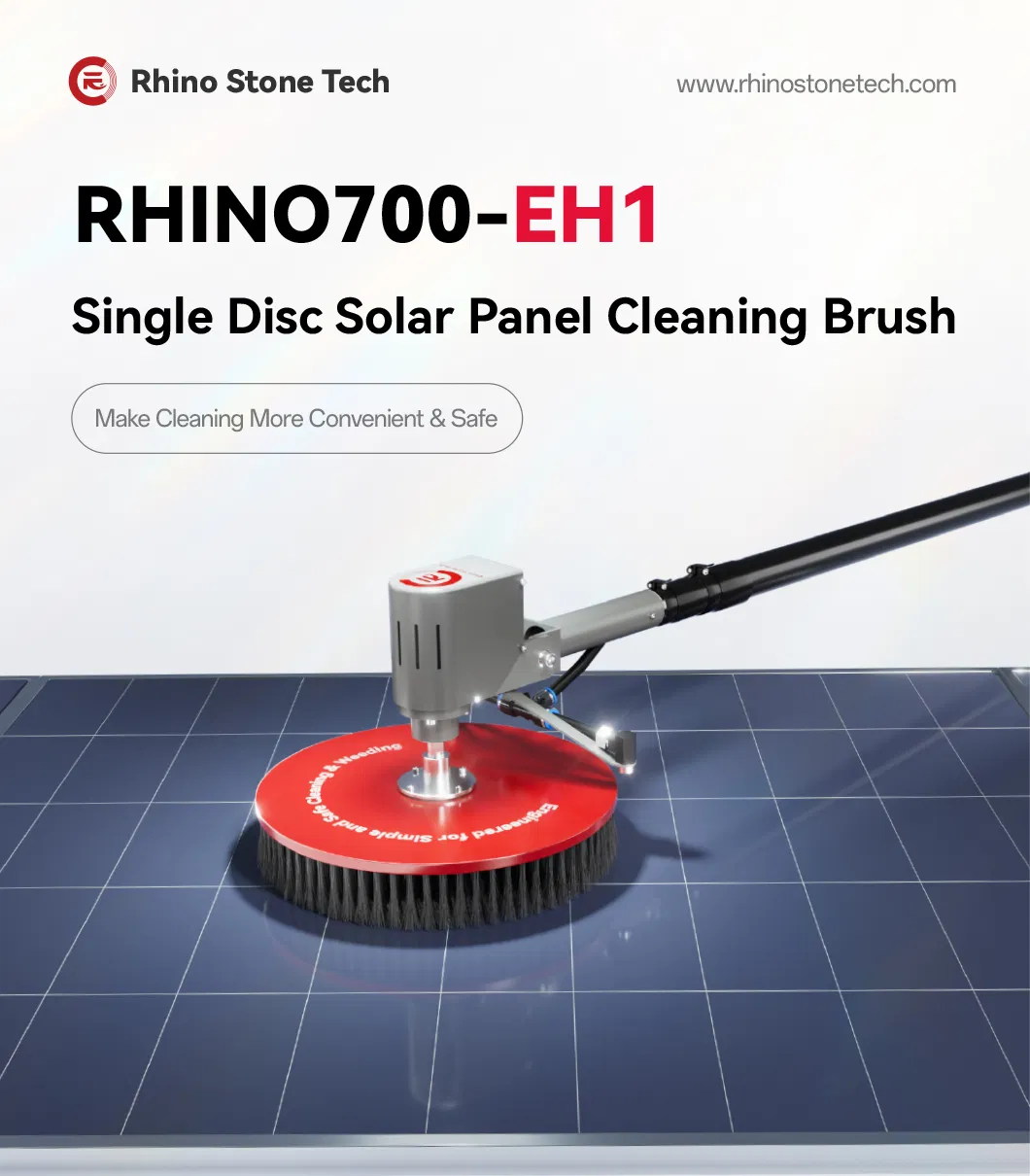

Solar Cleaning Brush

Creative Highlights

Advantages
  • Lightweight Design: Smaller size and lighter weight make operation labor-saving and flexible.
  • Unique Pipeline Integration: Built-in technology avoids entanglement and extends service life by protecting against UV rays.
  • Ultra Long Battery Life: 30AH lithium battery provides up to 6 hours of endurance; supports continuous mains power operation.
  • Zero Panel Damage: Polymer bristles adapt to both dry and wet modes, ensuring efficient cleaning without scratching panels.
  • Carbon Fiber Material: High-quality anti-static carbon fiber rod with precision aluminum alloy buckles for structural stability.

Technical Information

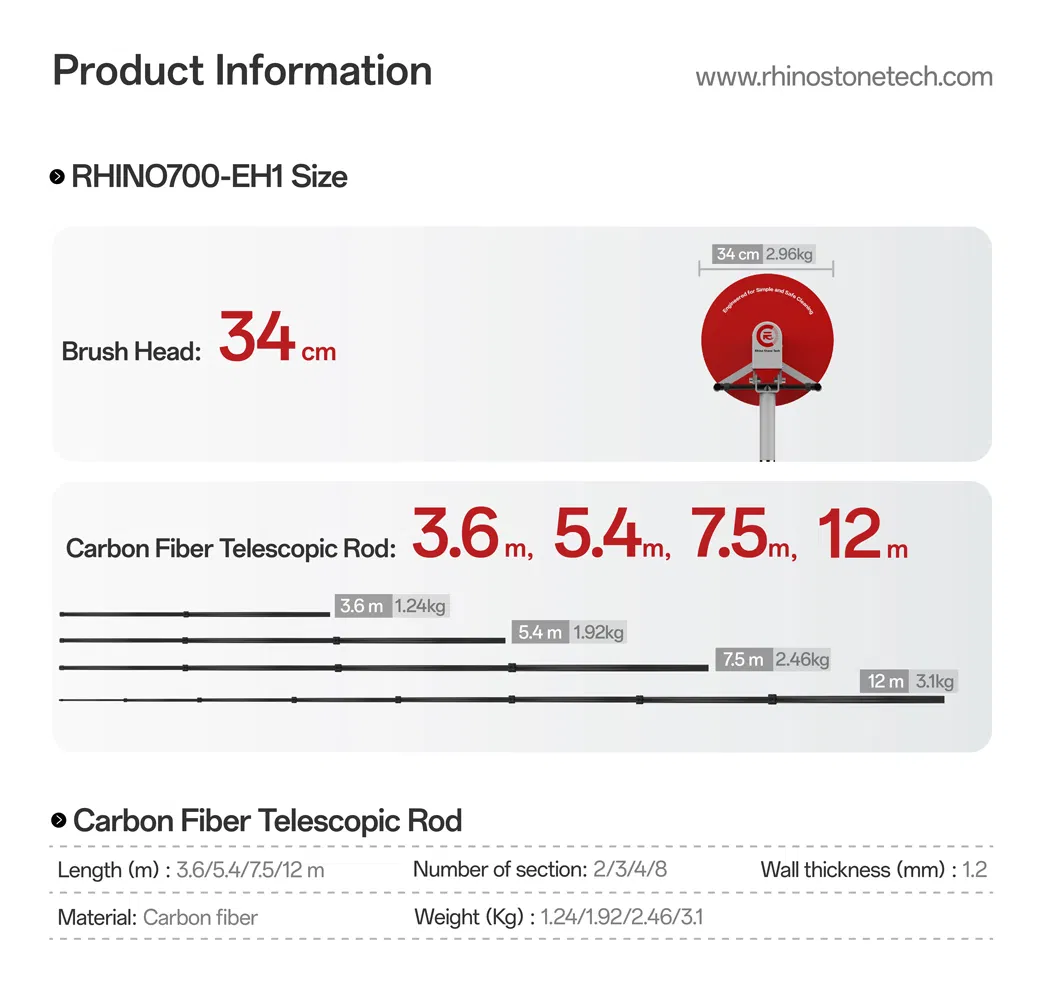

Technical Specs 1

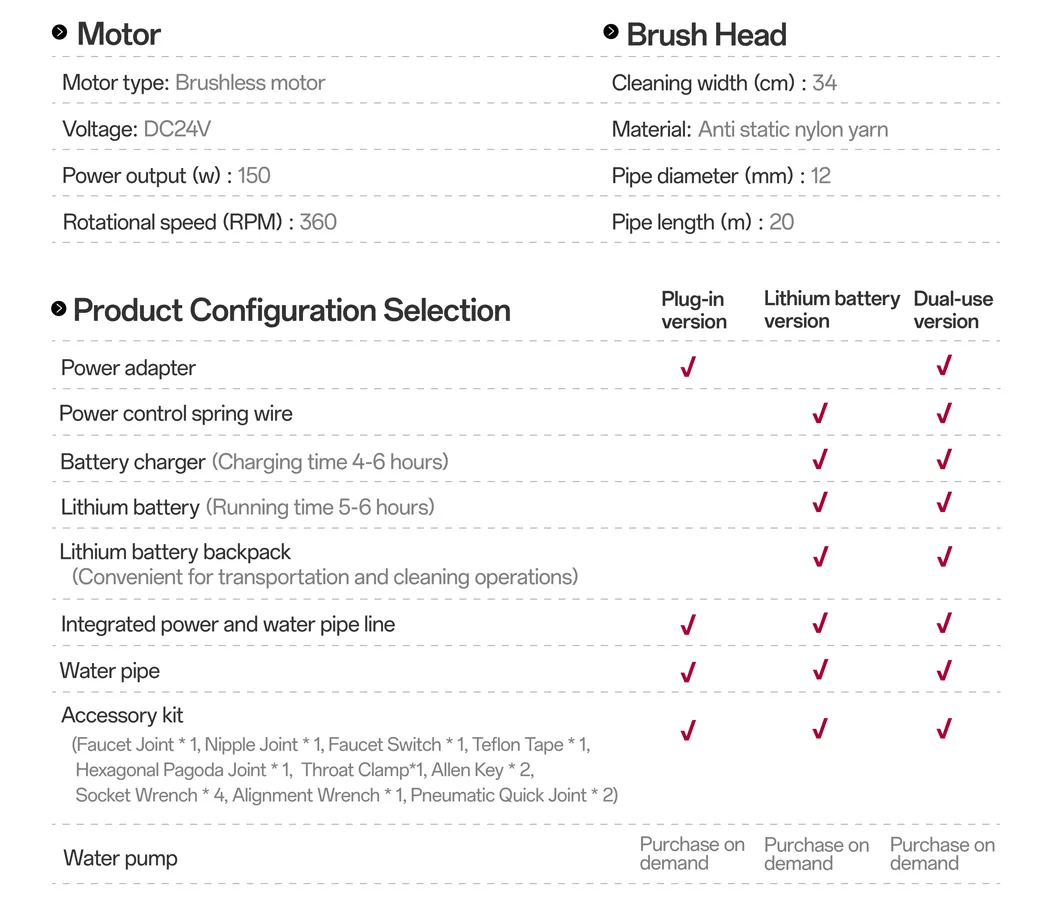

Technical Specs 2
Parameter Item Plug-in Version Lithium Battery Version Dual-use Version
Power Supply AC95V~264V; DC24V Lithium Battery AC/DC or Lithium Battery
Motor Type Brushless Motor (360RPM / DC 24V)
Rod Material Carbon Fiber (1.2mm Wall Thickness)
Rod Lengths 3.6m (2 sections) / 5.4m (3) / 7.5m (4) / 12m (8)
Cleaning Width 340mm
Running Time Continuous 5~6 Hours Flexible

Packaging & Shipping

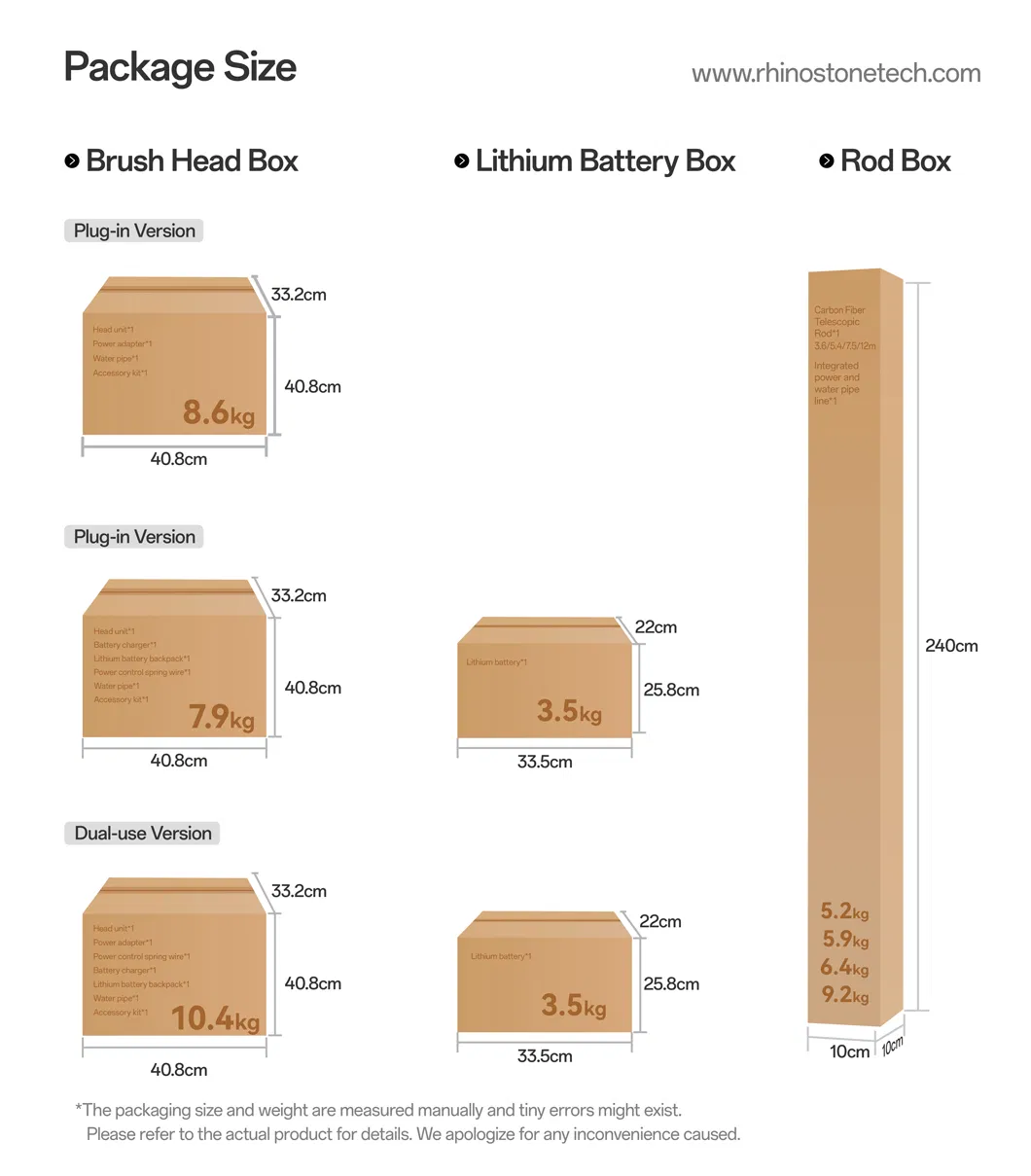

Packaging 1

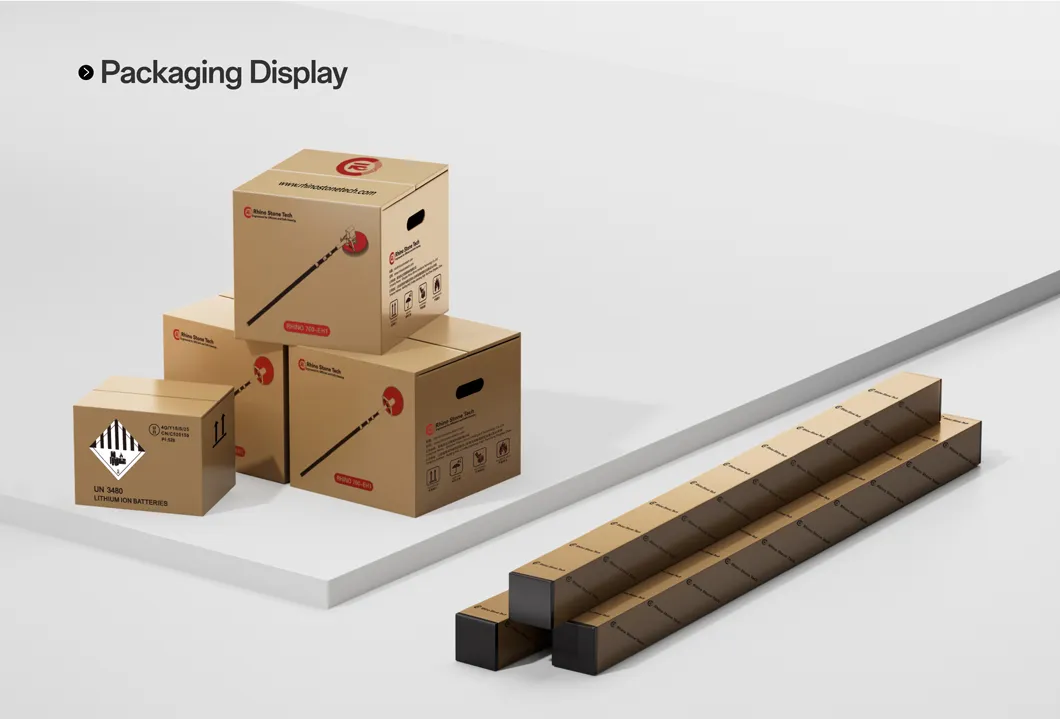

Packaging 2

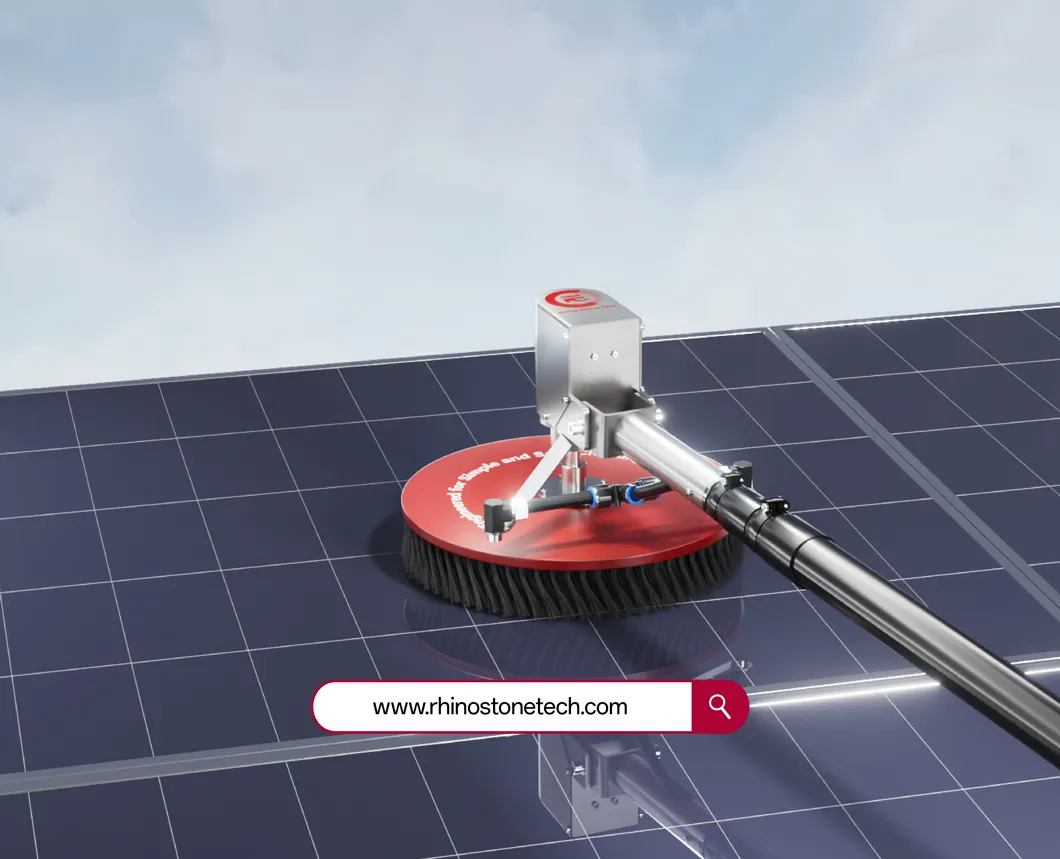

Shipping

Package Size: 240.00cm * 10.00cm * 10.00cm

Gross Weight: 25.000kg

Lead Time: 15-20 days depending on order volume.

Applicable Environments

Environments

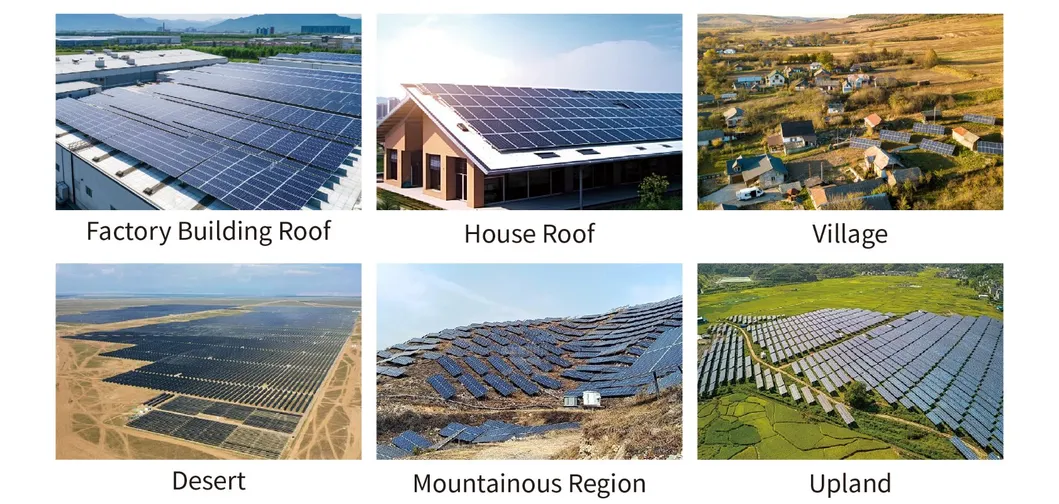

Suitable for various photovoltaic installations including: rooftop, ground, desert, and floating solar systems.

Also ideal for cleaning smooth surfaces such as: wooden decks, and commercial/industrial flooring.

Why Choose Us

Quality Control

Rapid Response: Prompt and detailed responses to all inquiries.

Expert Technical Support: Tailored solutions and expert assistance for technical challenges.

Competitive Pricing: Transparent and reasonable pricing with multiple solution options.

Quality Assurance: Multi-stage testing to guarantee reliability in challenging environments.

Frequently Asked Questions

Can I request samples for testing?
Absolutely! Sample orders are welcome. We encourage you to test our products' performance before committing to a larger order.
What is the warranty policy for the cleaning brush?
All products come with a comprehensive 12-month warranty. Our support team is ready to assist should any issues arise.
How long does the battery last on a single charge?
The lithium battery version provides 5 to 6 hours of continuous running time, with a charging time of approximately 4 to 6 hours.
What are the available delivery timelines?
Sample orders are dispatched quickly. For mass production, the typical lead time is 10-20 days, depending on the order size.
What payment methods are accepted?
We accept a variety of payment methods including T/T, Western Union, and PayPal for your convenience.
Is the brush suitable for dry cleaning in desert areas?
Yes, the RHINO700-EH1 is specifically designed for both dry and wet cleaning modes, making it perfect for desert environments where water may be scarce.
