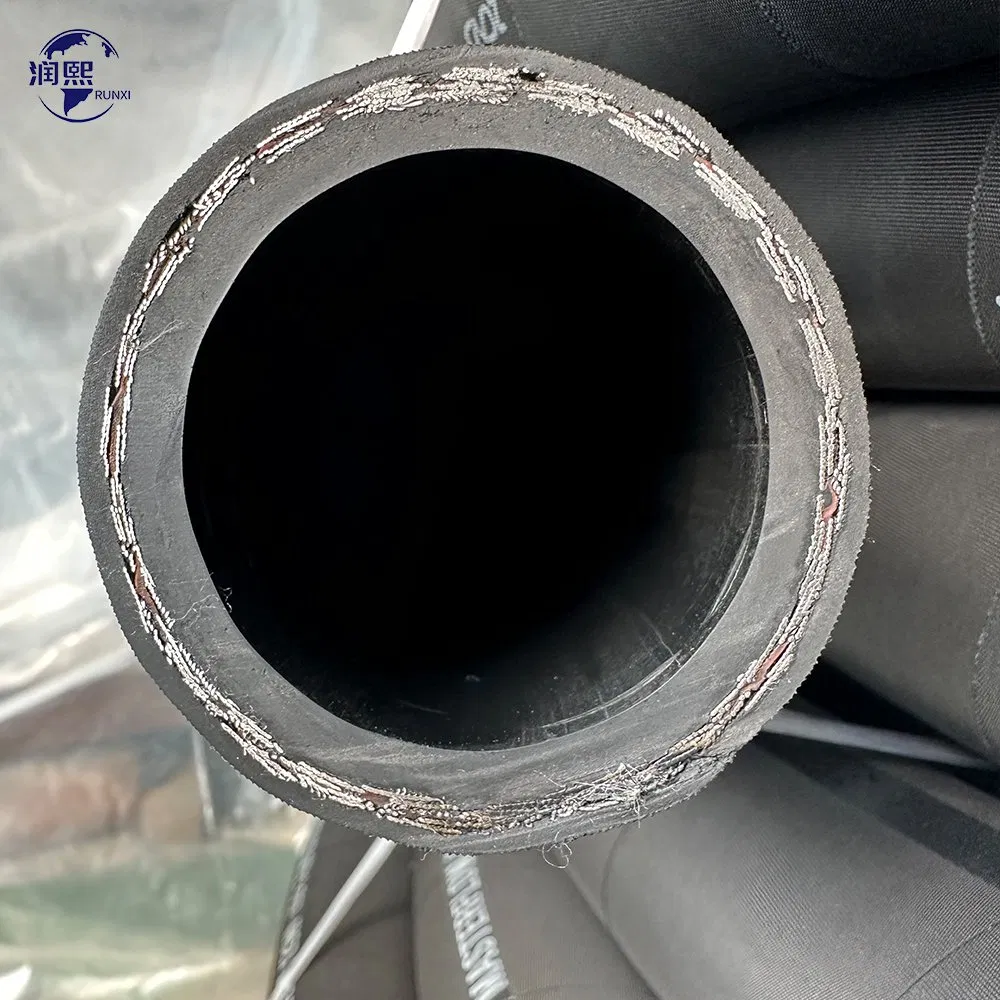

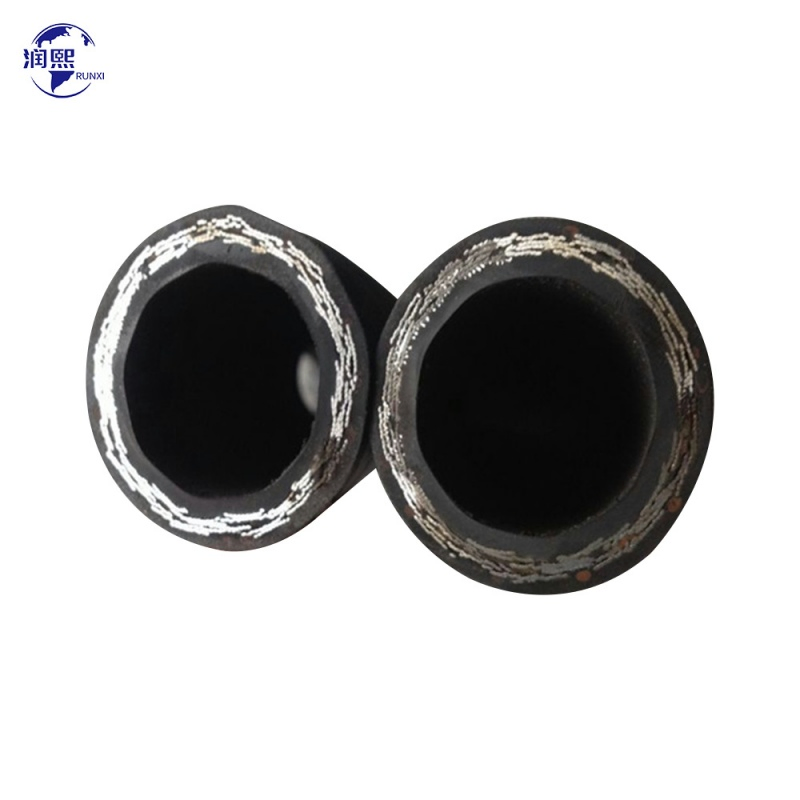

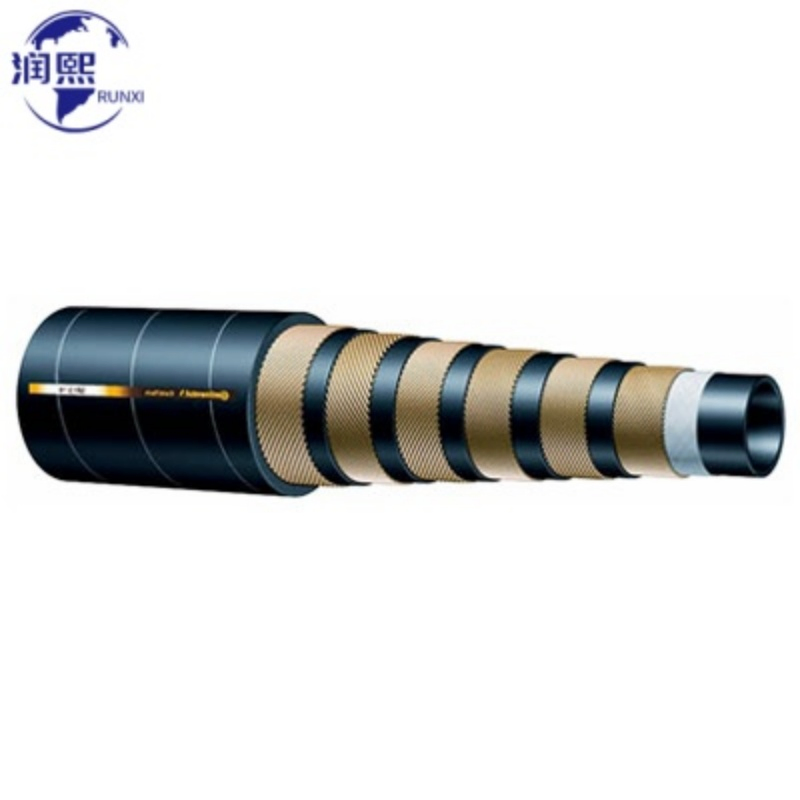

High pressure hose is constructed with an internal rubber layer, middle rubber, 2, 4, or 6 layers of wire-wood reinforcement, and an external rubber cover.
| SAE 100R2AT / EN853 2SN SIZE CHART | ||||||
|---|---|---|---|---|---|---|
| Part No. | SIZE (inch) | I.D (mm) | O.D (mm) | W.P (bar) | B.P (bar) | WEIGHT (g/m) |
| P04-2SN | 1/4″ | 6.4 | 14.5 | 400 | 1600 | 380 |
| P05-2SN | 5/16″ | 8 | 16.7 | 350 | 1400 | 435 |
| P06-2SN | 3/8″ | 9.5 | 19.2 | 330 | 1320 | 550 |
| P08-2SN | 1/2″ | 12.7 | 21.8 | 275 | 1100 | 640 |
| P10-2SN | 5/8″ | 16 | 25.4 | 250 | 1000 | 750 |
| P12-2SN | 3/4″ | 19 | 29.9 | 215 | 850 | 925 |
| P16-2SN | 1″ | 25.4 | 37.8 | 165 | 650 | 1290 |
| P20-2SN | 1 1/4″ | 31.8 | 46.4 | 125 | 500 | 1895 |
| P24-2SN | 1 1/2″ | 38.1 | 52.7 | 90 | 360 | 2120 |
| P32-2SN | 2″ | 50.8 | 65.4 | 80 | 320 | 2765 |
Hydraulic hoses are used in a variety of applications across industries such as construction, agriculture, mining, oil and gas, and transportation. Their features and capabilities make them indispensable in many industrial systems.
Our products are exported to more than 30 countries, including Russia, USA, UK, Korea, Vietnam, Iraq, Singapore, Indonesia, and Japan. We have obtained high praise from clients worldwide due to the excellent quality and competitive price.

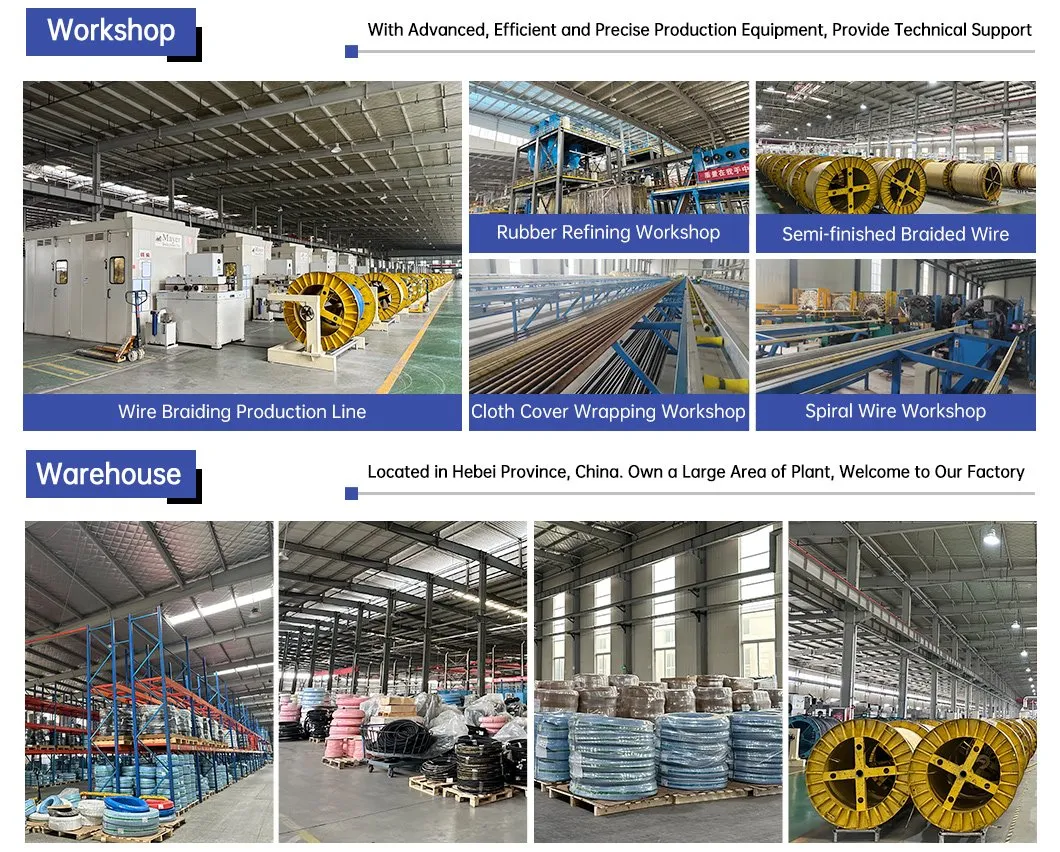

We are a technology-based enterprise specialized in the R&D and marketing of multiple rubber products, including Telecom towers, High pressure hoses, Hydraulic hoses, SAE & DIN series, Drilling Rotary hoses, and more.
Delivery time typically ranges from 3-5 days per container depending on order quantity. After finishing the hose processing, we pack the goods using woven bags and plastic film. Special packing is available upon request.
