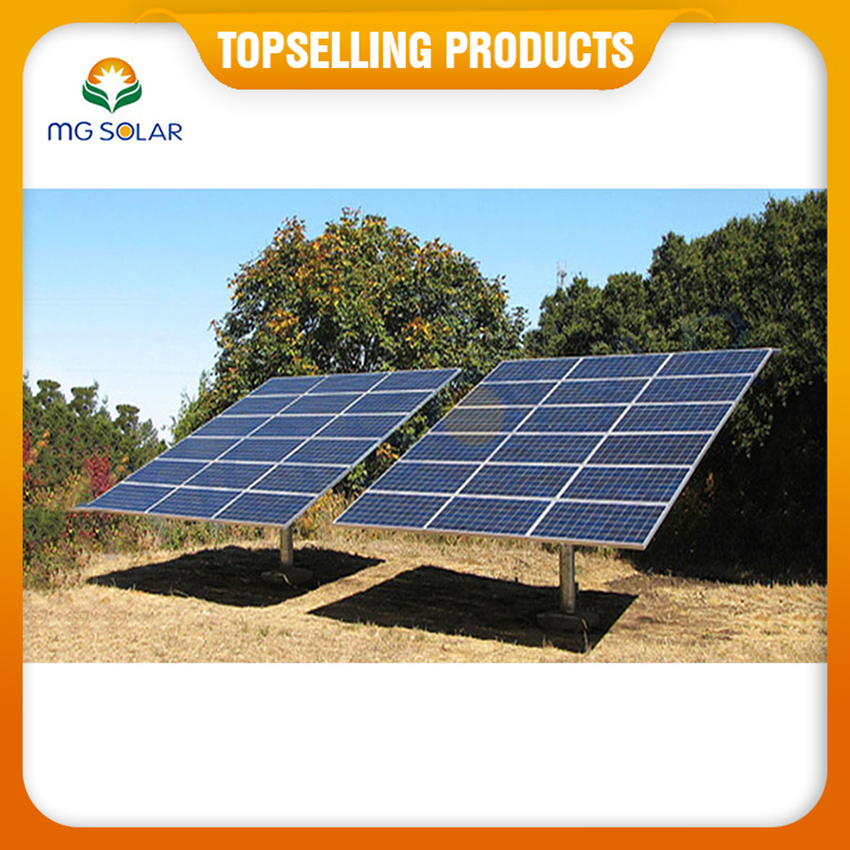

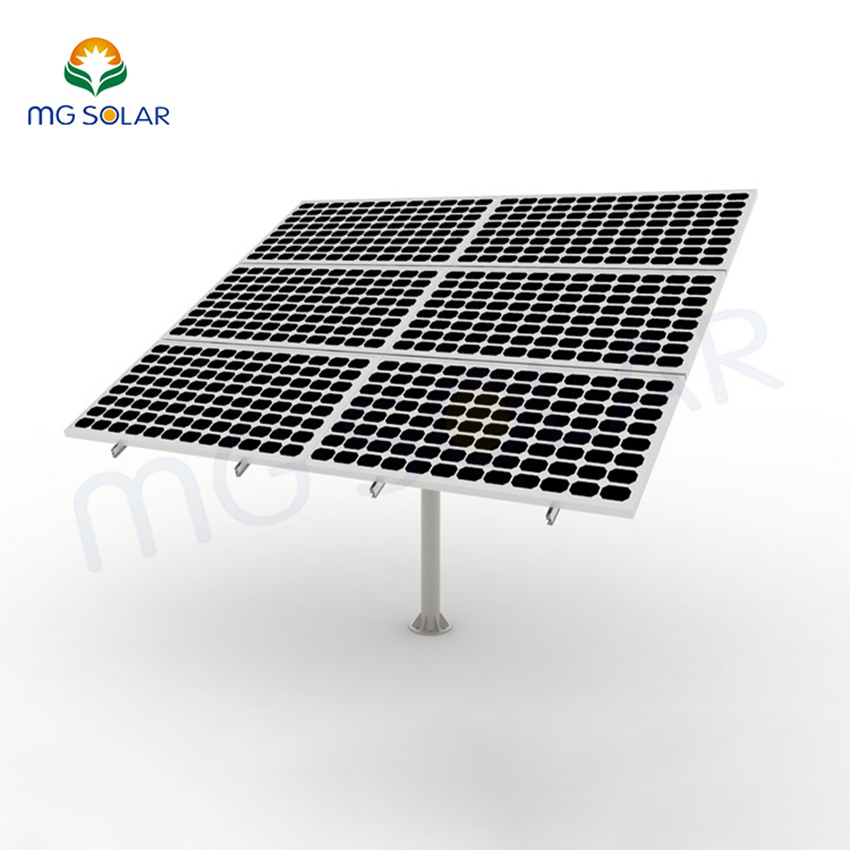

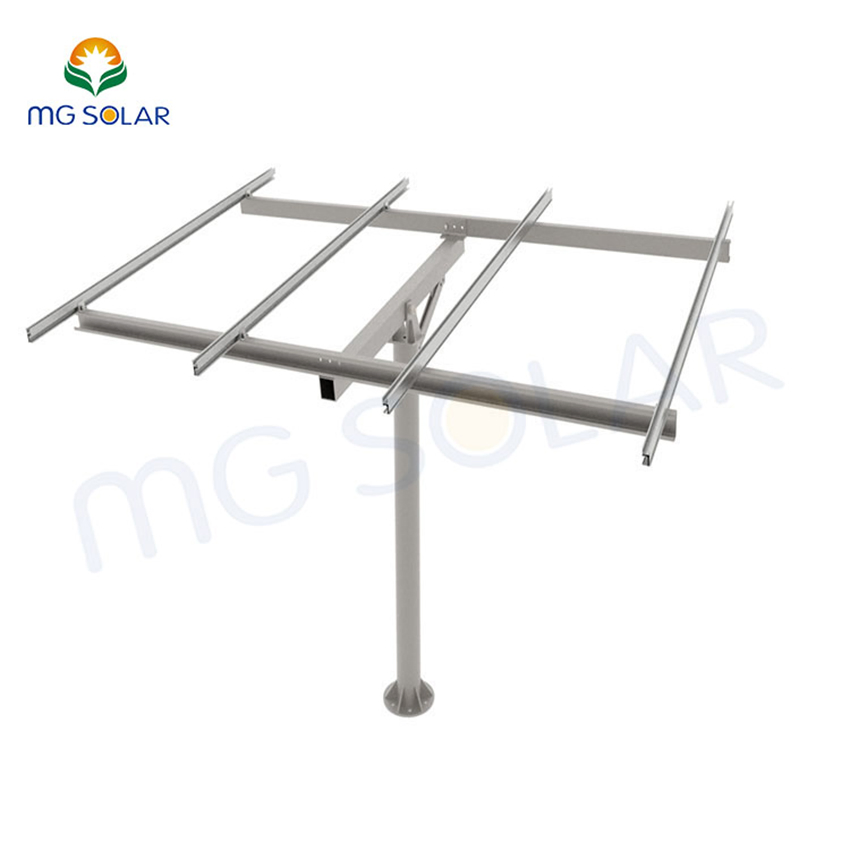

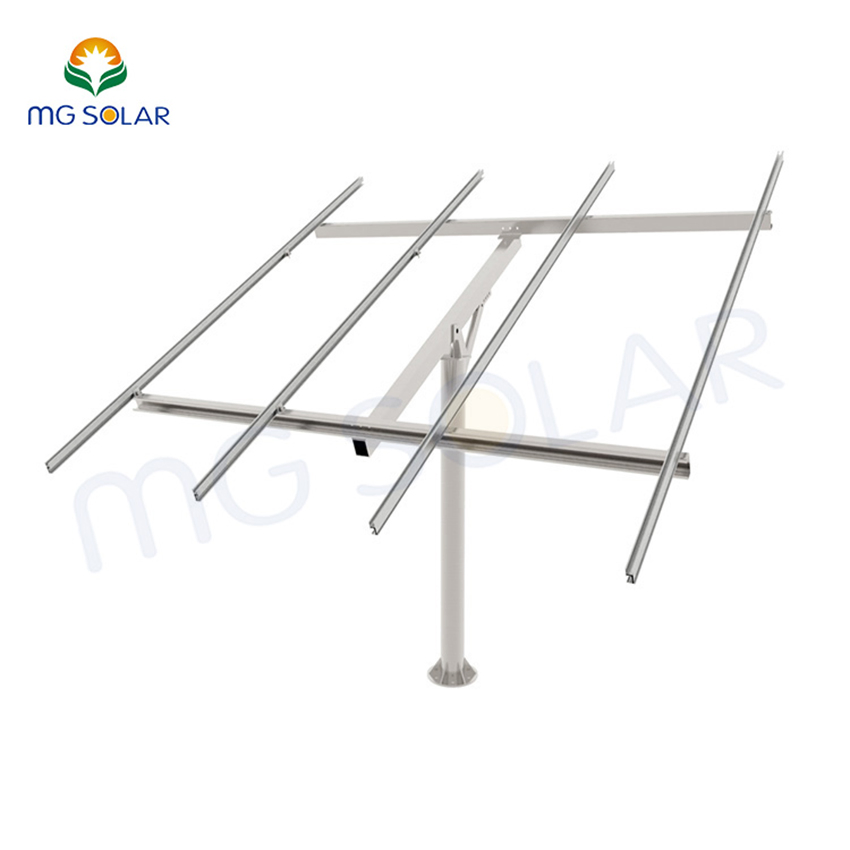

Single Pole Solar Panel Ground Pile Module Structure Mounting System

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Specifications

Model NO.
Pole Ground Mounting System
Certification
ISO, CE
Material
AL6005-T5 & Q235
Tilt Angle
5° ~ 60°
Max Wind Speed
60 M/S
Max Snow Load
1.4kn/M²
Standard
TUV & AS-NZS 1170
Warranty
10 Years
Single Pole Solar Panel Ground Pile
☀️

Product Description

Solar Panel Pole Ground Mounting System is a highly efficient and reliable solar panel ground mounting system that allows solar panels to be mounted firmly on the ground. The system is made of high quality materials and is corrosion resistant, windproof, shockproof and durable. It is suitable for the installation needs of various sites. The system also features adjustable mounting angles and heights to allow the solar panels to achieve optimal sunlight angles and increase power conversion efficiency.

Rails are made from 6005-T5 Aluminum, other parts from galvanized steel.
Suitable for various regions, including low-cost concrete and high wind/heavy snow areas.
Simple and fast installation: Parts are highly pre-assembled at the factory.
Compatible with concrete foundations for maximum stability.
Technical Parameters Details
MaterialAL6005-T5 & Q235
Tilt Angle5° ~ 60°
Max Wind Speed60 m/s
Max Snow Load1.4 KN/m²
StandardTUV & AS-NZS 1170

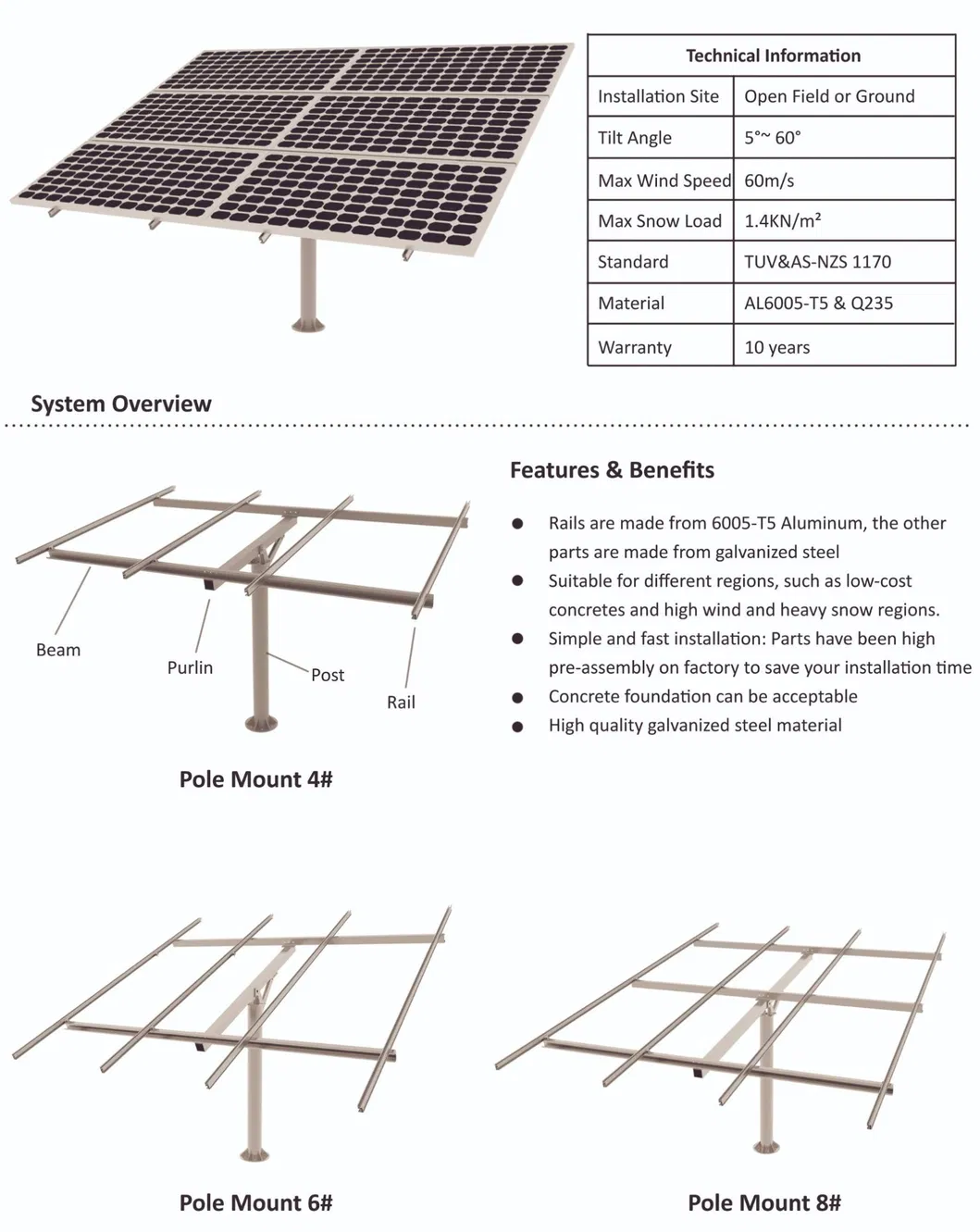

Structure Detail
🏗️

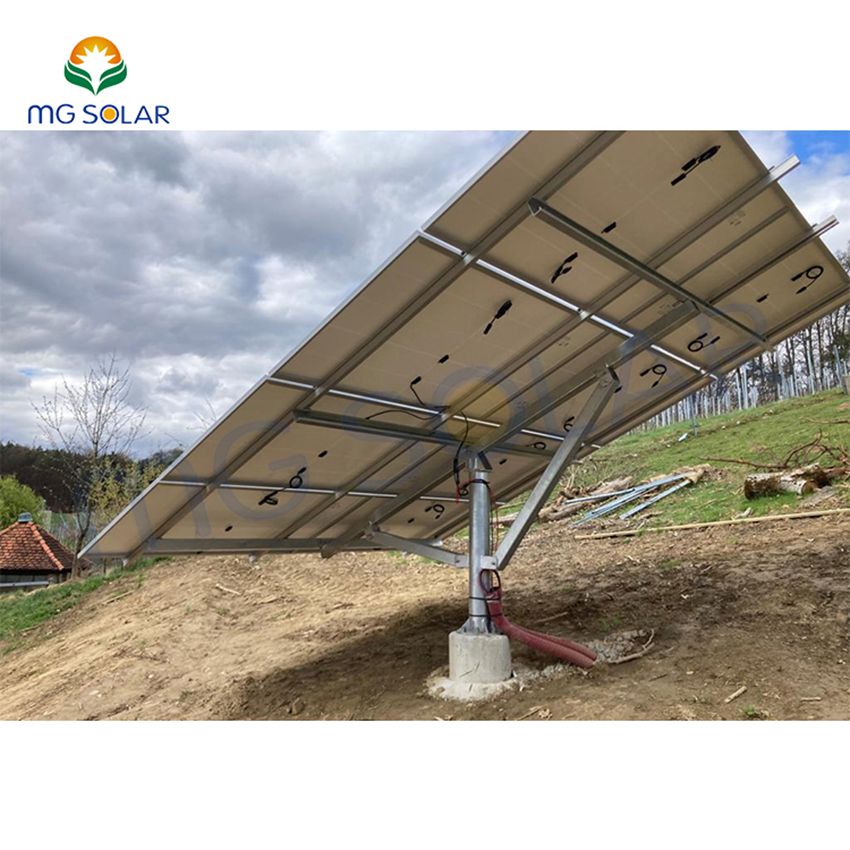

Project Reference

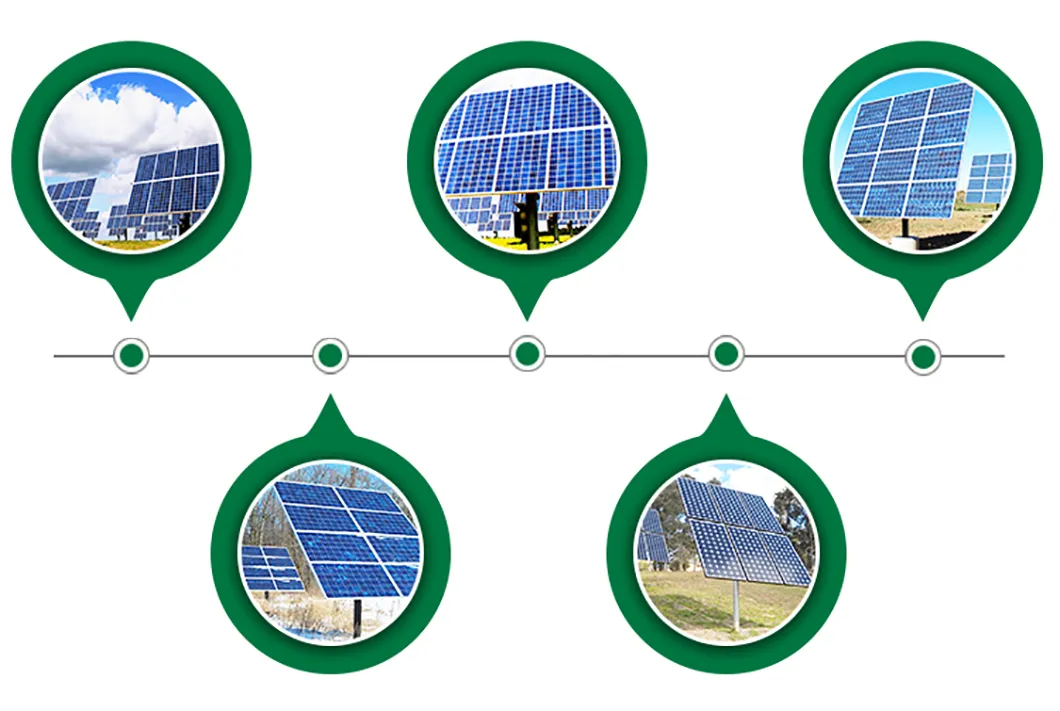

Project 1 Project 2 Project 3
Separator
🏭

Production & Equipment

Equipped with 12 sets of punching machines, 3 sets of aluminum alloy cutting machines, 2 sets of automatic drilling/tapping machines, and 3 roll forming production lines. Monthly production of aluminum alloy solar mounting reaches up to 30 MW. The facility specializes in the development, manufacturing, and marketing of advanced solar panel racking solutions.

Equipment 1 Equipment 2 Equipment 3
Separator

Frequently Asked Questions

What information is needed for a project quote?
We need panel dimensions (L*W*T), tilt angle, panel layout (rows/columns), max wind/snow load, ground clearance, foundation type, and preferred material.
What materials are used in the mounting system?
The rails are typically made from AL6005-T5 Aluminum, while other structural components are made from high-quality galvanized steel for maximum durability.
Is the system compatible with different foundations?
Yes, the system supports both ground screw pile foundations and concrete foundations depending on your site requirements.
Can the mounting angle be customized?
Absolutely. The tilt angle is adjustable between 5° and 60° to optimize sunlight exposure for your specific geographic location.
Is the installation process complicated?
No, the parts are highly pre-assembled at our factory to minimize onsite labor and significantly reduce installation time.
What standards do these systems comply with?
Our products are designed and tested according to international standards, including TUV and AS-NZS 1170.

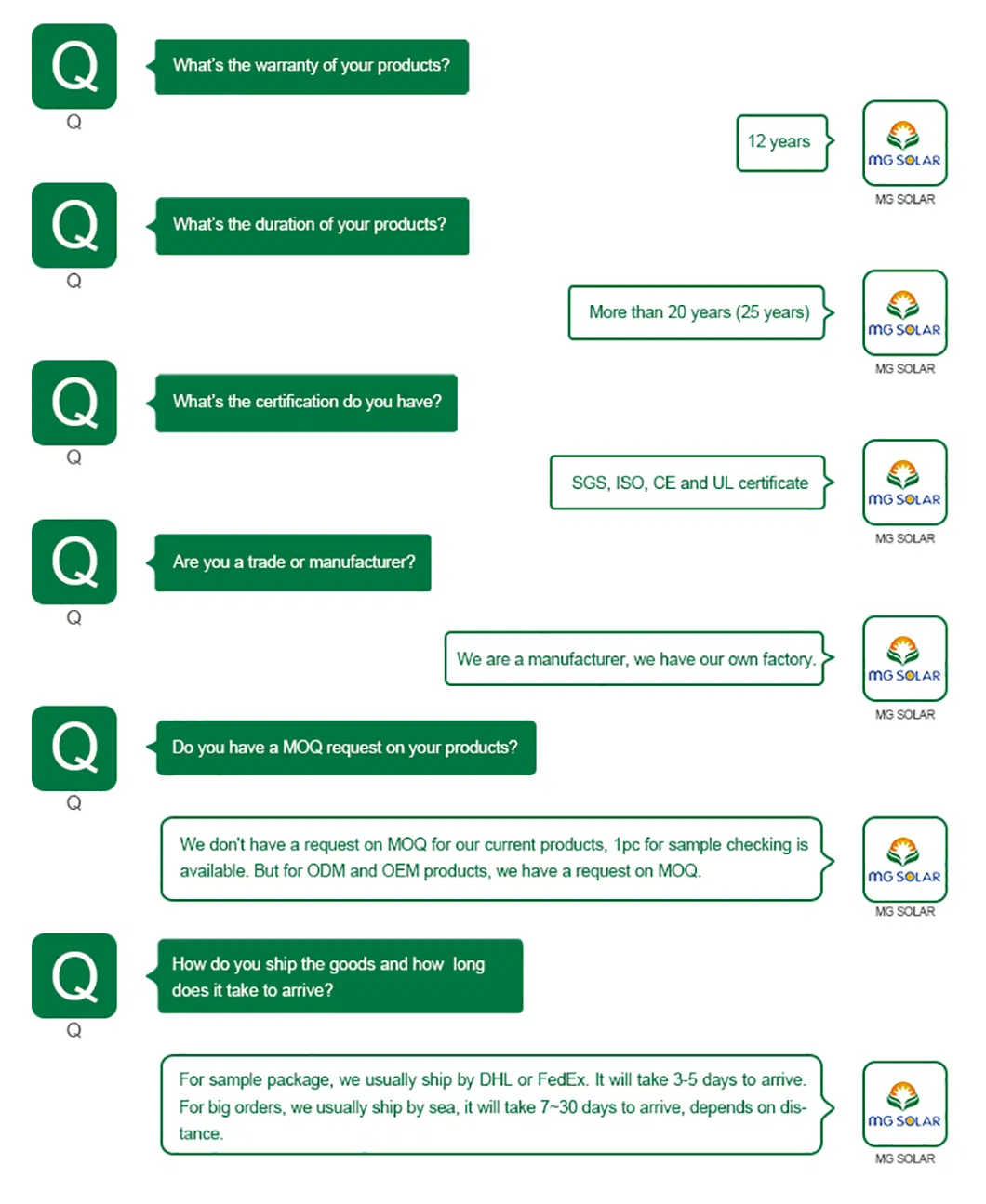

FAQ Summary
