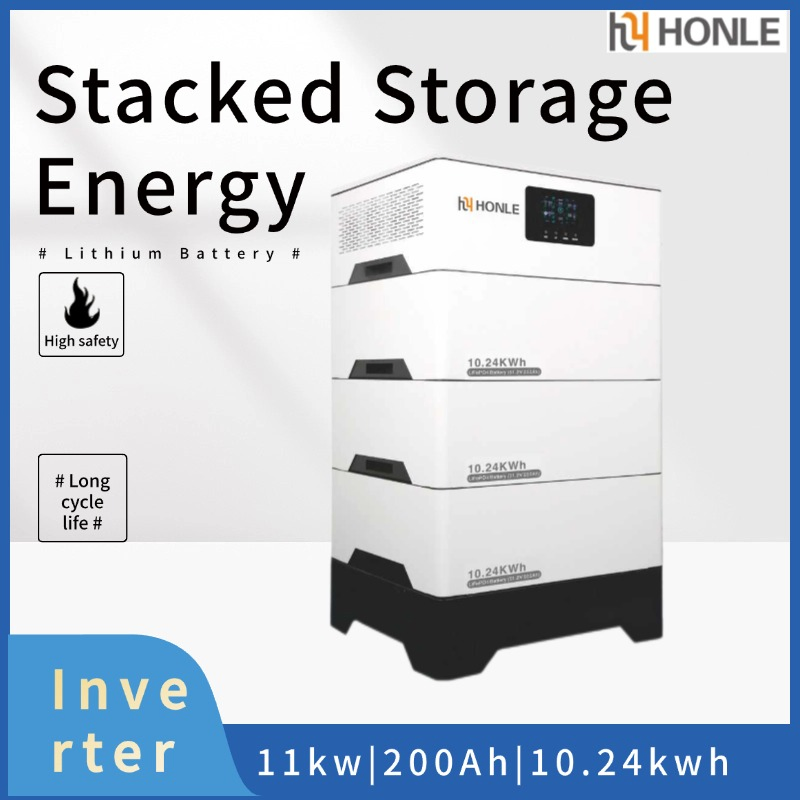

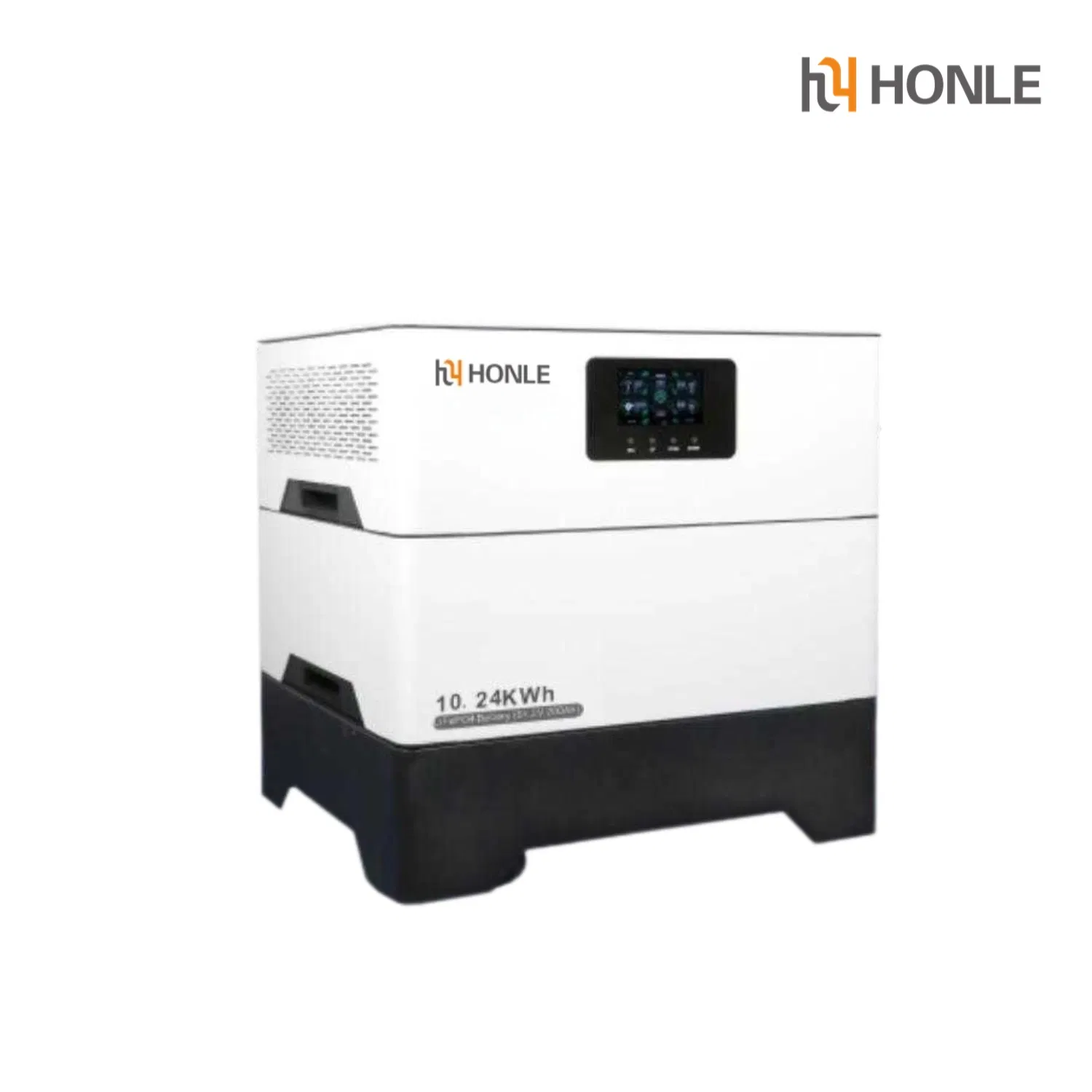

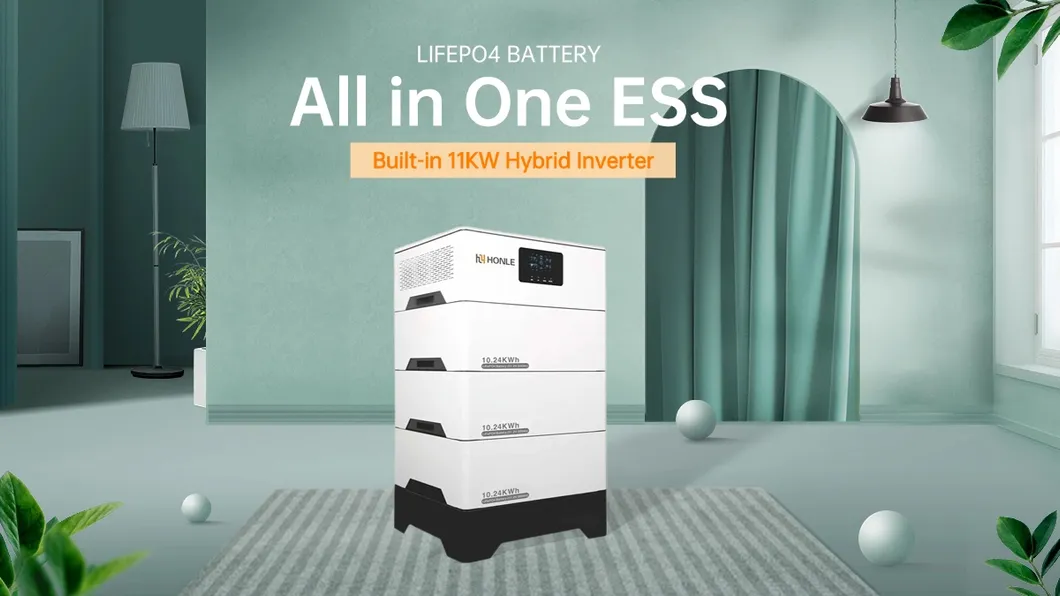

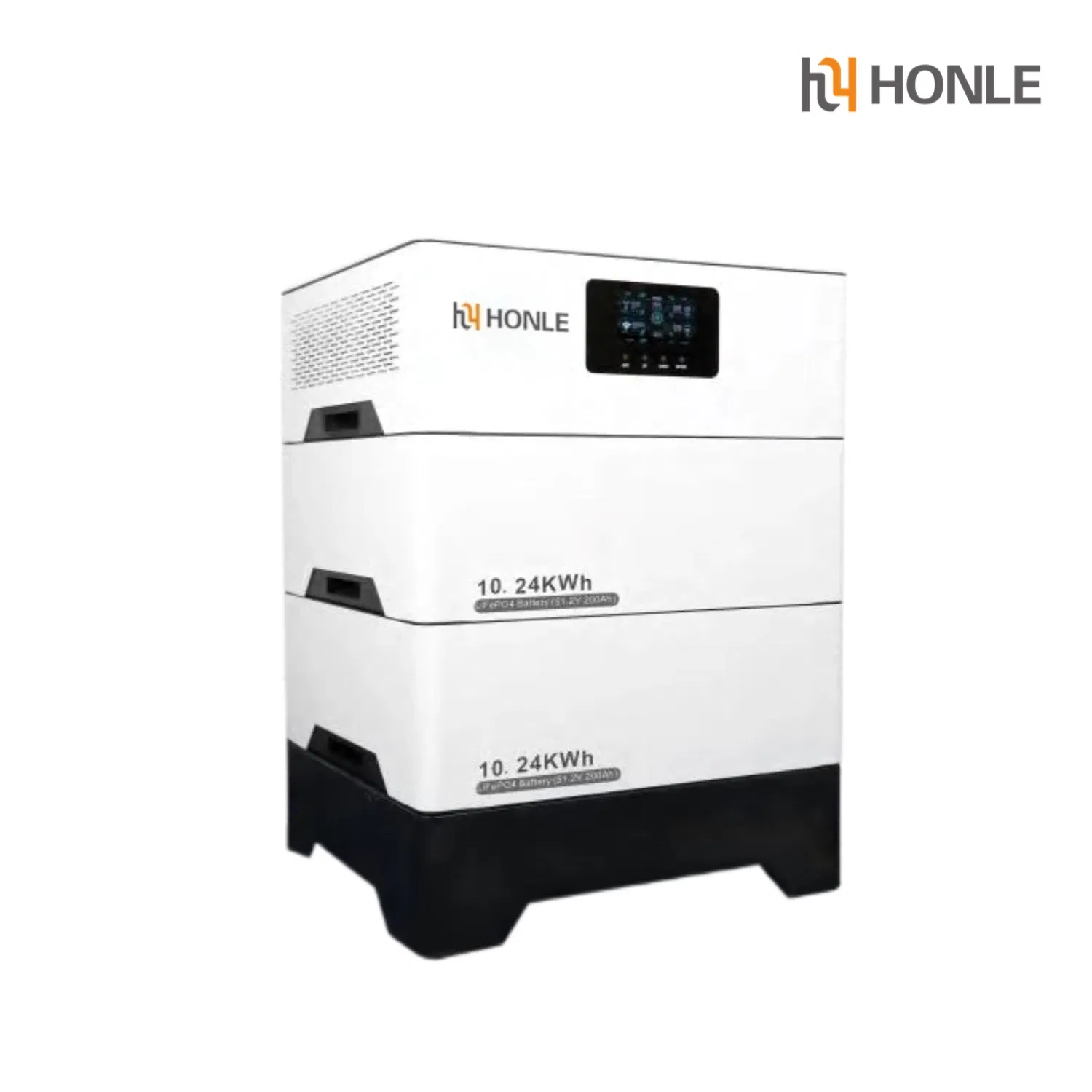

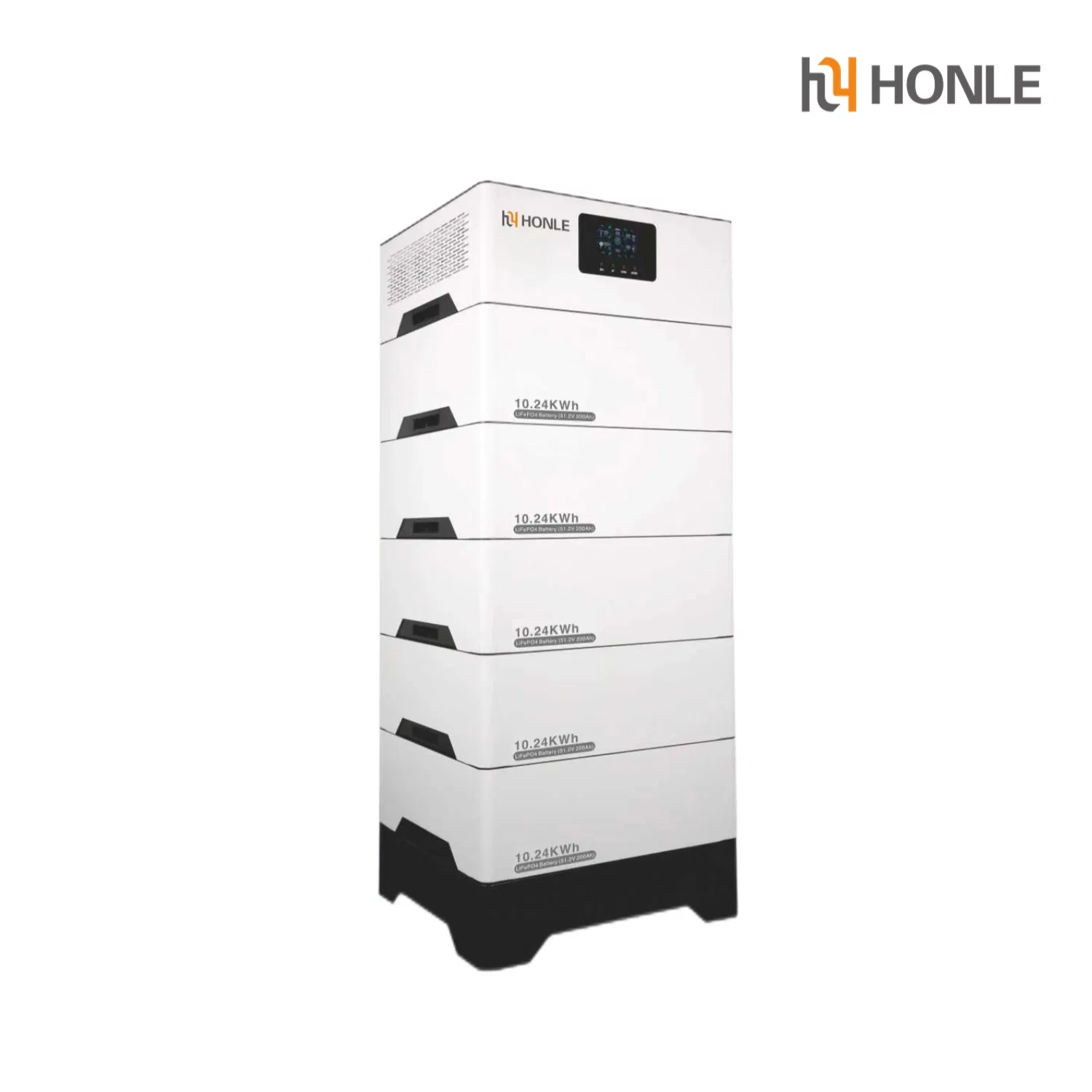

All-in-One Stacked Energy Storage System
Built-in LiFePO4 Battery
Large capacity, 6000+ cycles, high safety standards.
Intelligent Communication
Supports smart monitoring and multiple protocols.

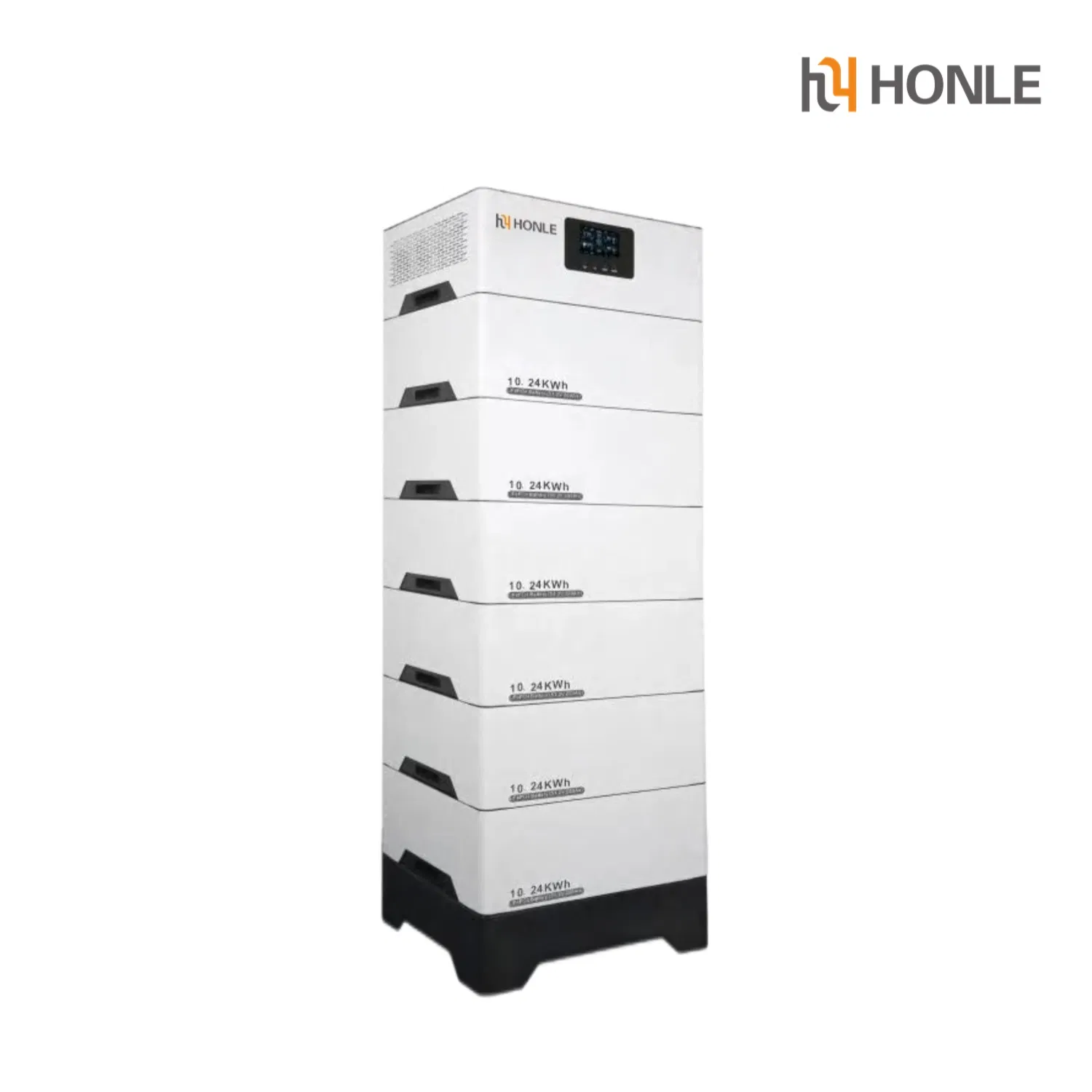

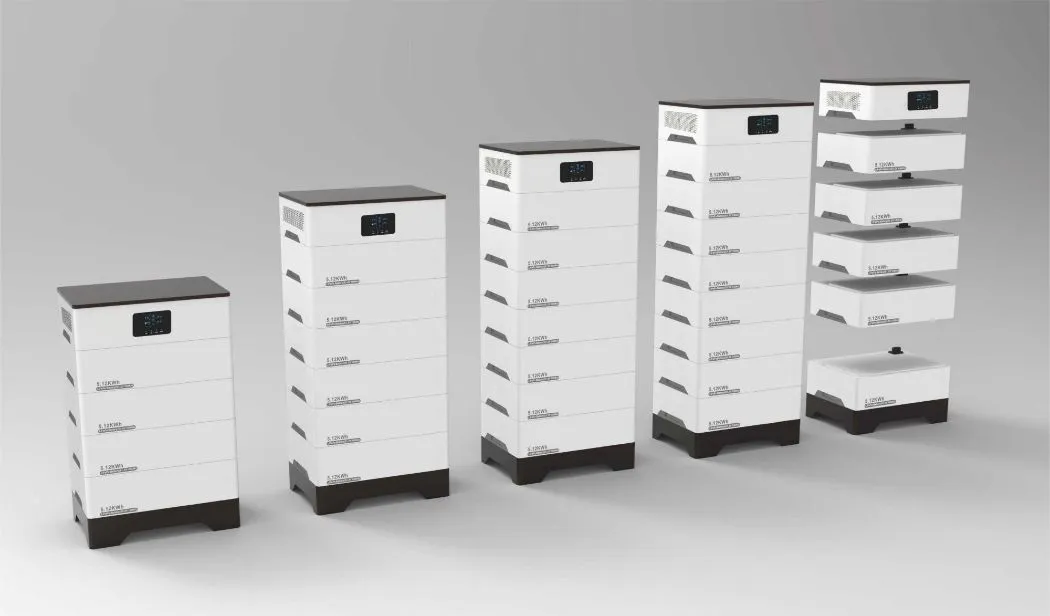

Scalable Design
Parallel capacity expansion to meet higher power demands.
| 11KW Hybrid Inverter System | |
|---|---|
| Input Specifications | |
| AC Voltage Range | 90~280VAC OR 170~280VAC |
| PV Voltage Range | 360~500VDC (MPPT 90~450VDC) |
| Output Specifications | |
| Output Power Rating | 11000W |
| Peak Power | 22000VA |
| Output Voltage | 220/230/240VAC ±5% |
| Wave Form | Pure Sine Wave |
| Battery & Charging | |
| Rated Voltage | 48VDC |
| Max Solar Input Power | 11000W |
| Max Charging Current | 150A |
| Battery Model | YQD-512200-LFOESS | YQD-512400-LFOESS |
|---|---|---|
| Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacity | 200Ah | 400Ah |
| Battery Energy | 10.24KWh | 28.48KWH |
| Max Continuous Discharge | 200A | 200A |
| Cycle Life | > 6000 Cycles | |
| Warranty | 5 Years | |

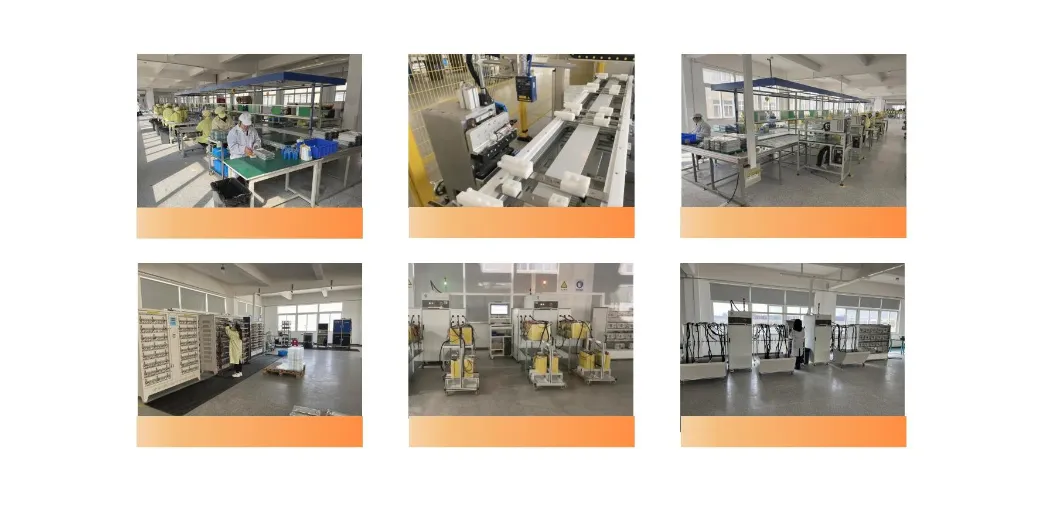

Equipped with the latest technology and high-level testing machinery, our production lines ensure that every battery unit meets strict international quality standards.
