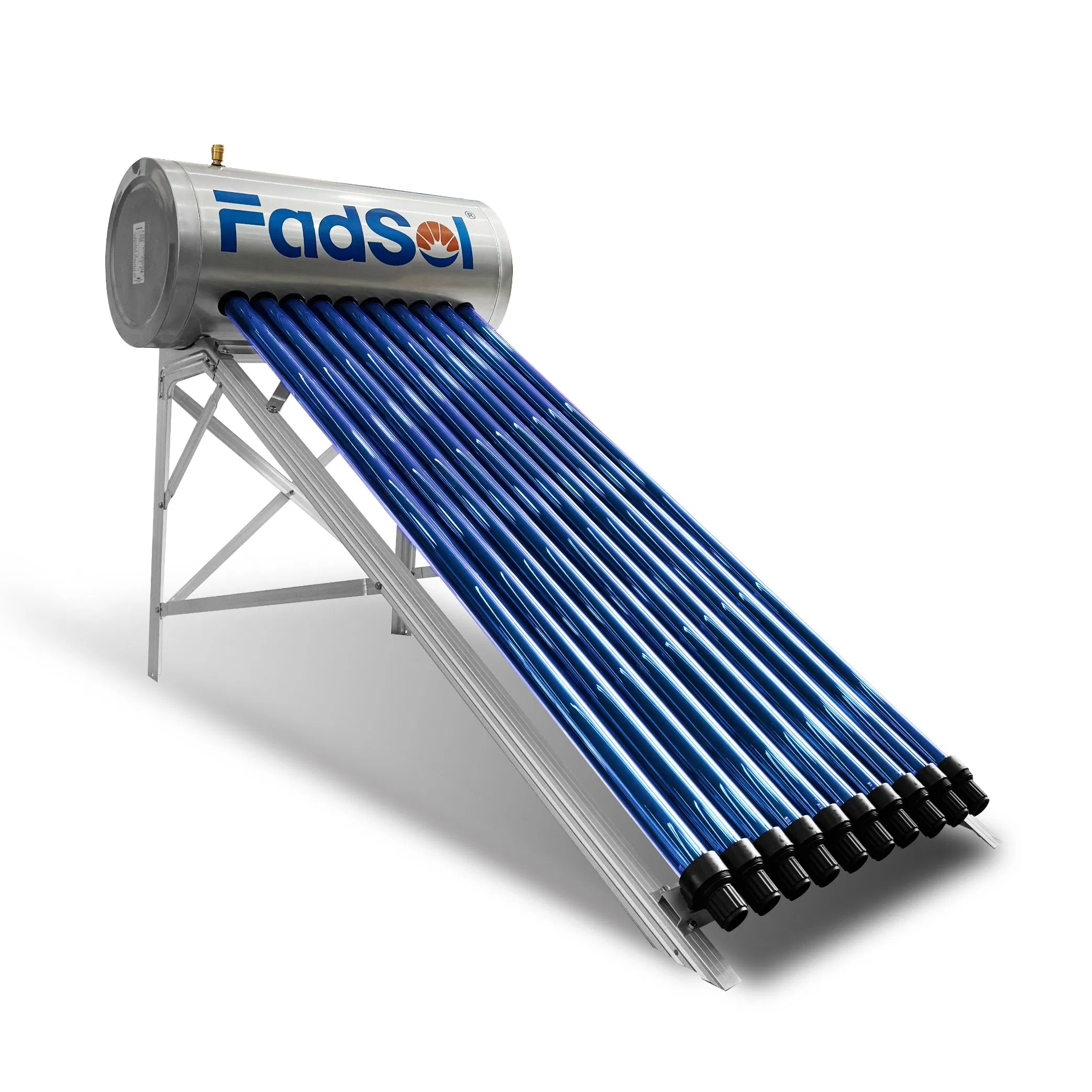

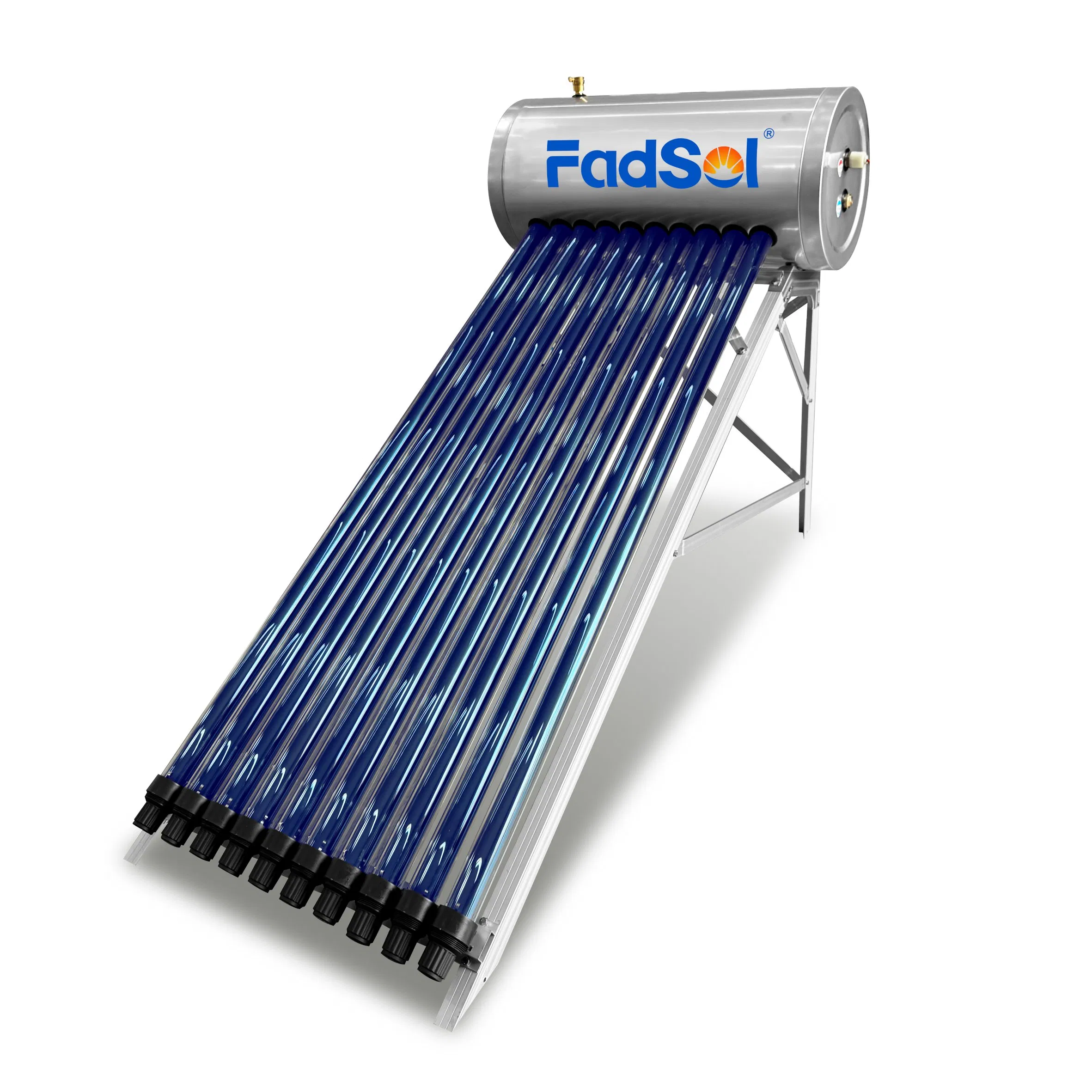

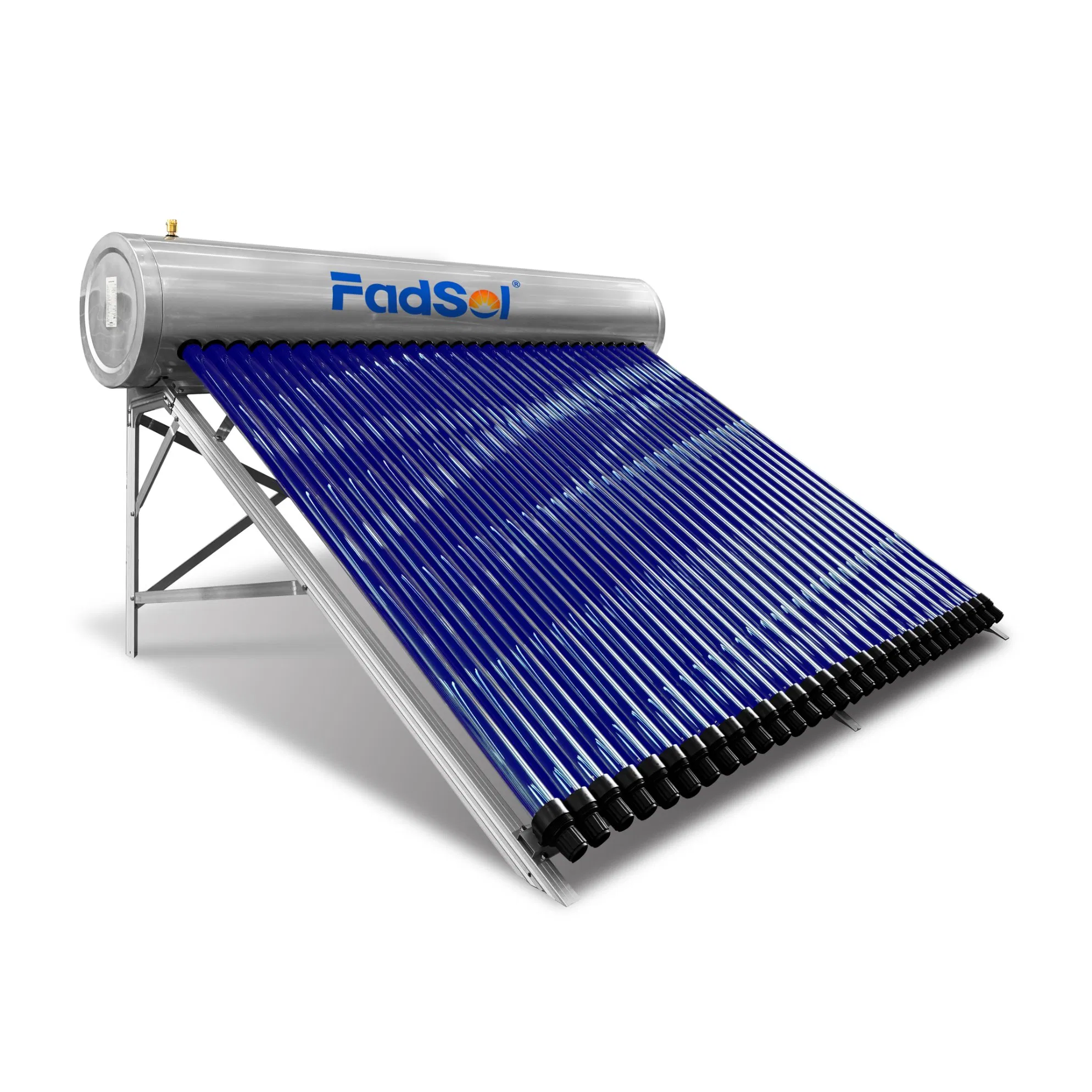

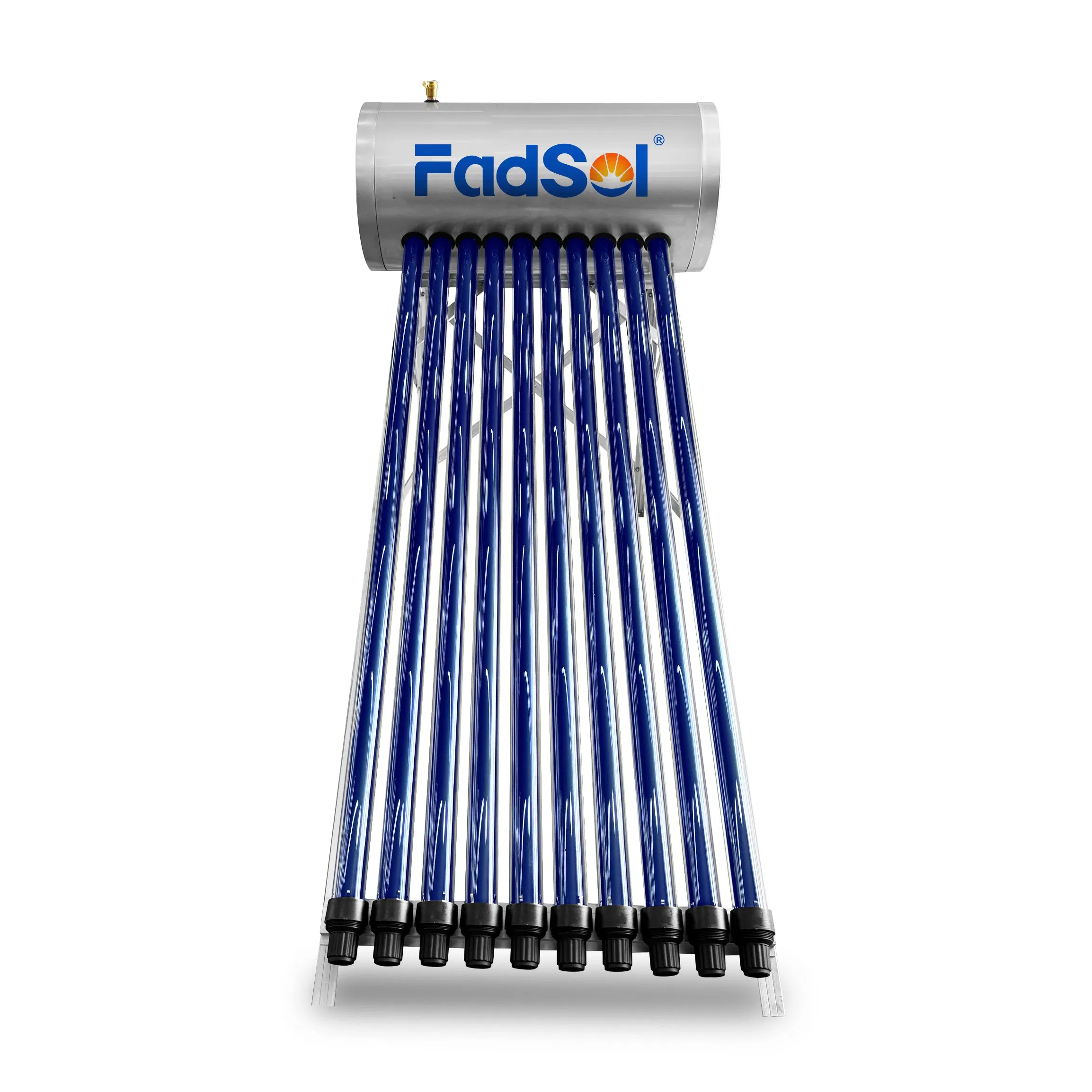

Solar Keymark Certificated Vacuum Solar Water Heater 150L Integrated Pressurized Solar Water Heater System for Home Home Hotel or Commercial

Basic Info.

Model NO.FD-IP-24

Max. Capacity>200L

StructureCompact Type

PressurePressurized

Interior MaterialStainless Steel

Collector ComponentsGlass Vacuum Tube

CertificationCE, Solar Keymark

Transport PackageWooden Case

Product Description

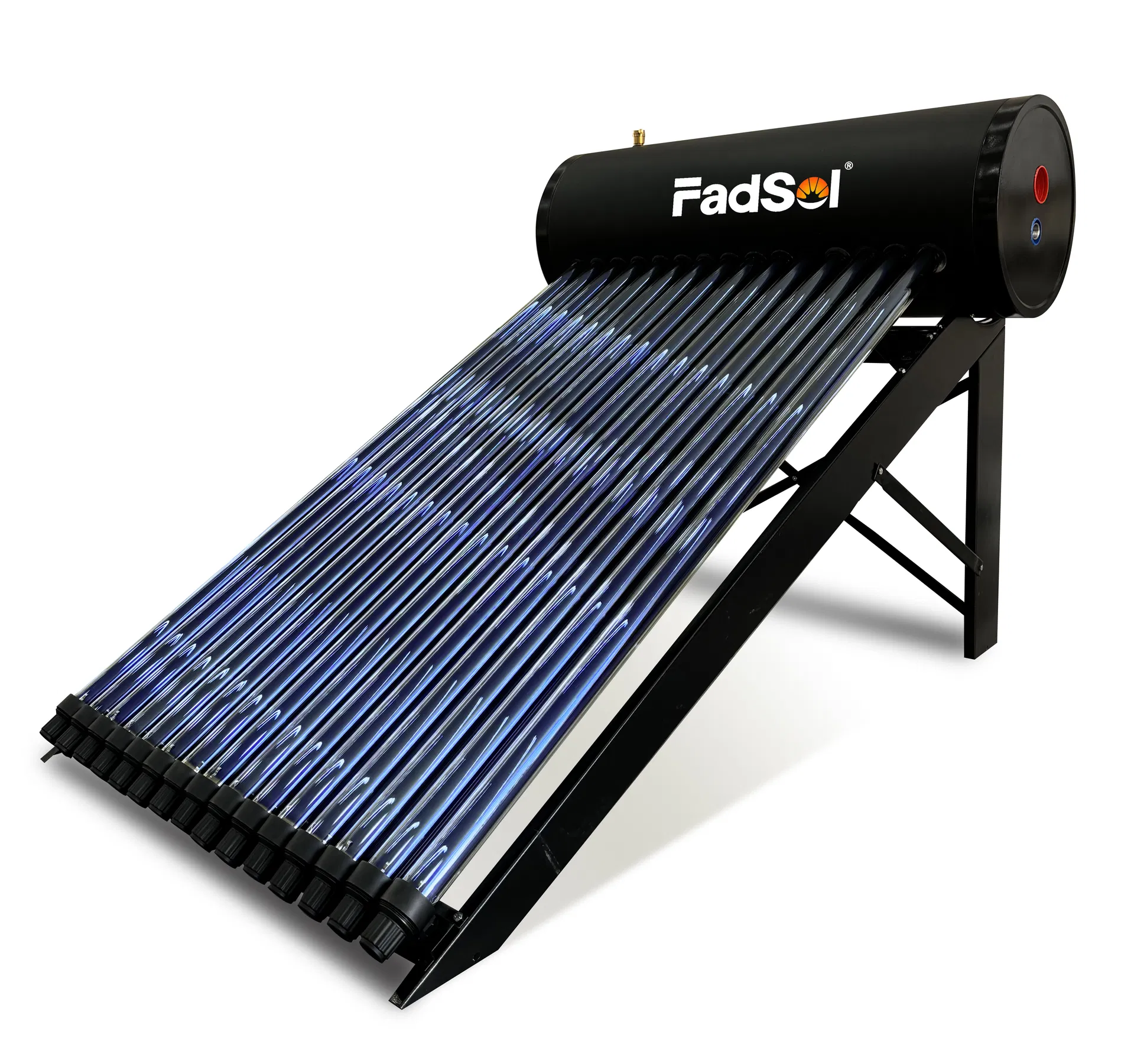

Integrated Pressurized Solar Water Heater System

Why choose us

Specification

Model	FD-IP-15	FD-IP-18	FD-IP-20	FD-IP-24	FD-IP-30
Water Tank
Tank capacity (Liter)	150	180	200	240	300
Inner tank material	1.2—1.5 mm thickness SUS304 2B Stainless Steel
External tank material	0.4—0.5 mm thickness SUS304 2B Stainless Steel
Insulation layer	55mm thickness polyurethane foam
Vacuum Tubes
Heat pipe material	TU1 copper
Tube Size	58mm outer diameter * 1800mm Length
Absorb Ratio	0.93-0.96 > 95% (AM 1.5)
Bracket
Bracket Material	1.2mm Thickness SUS201 Stainless Steel (black) suitable for both pitched and flat roof

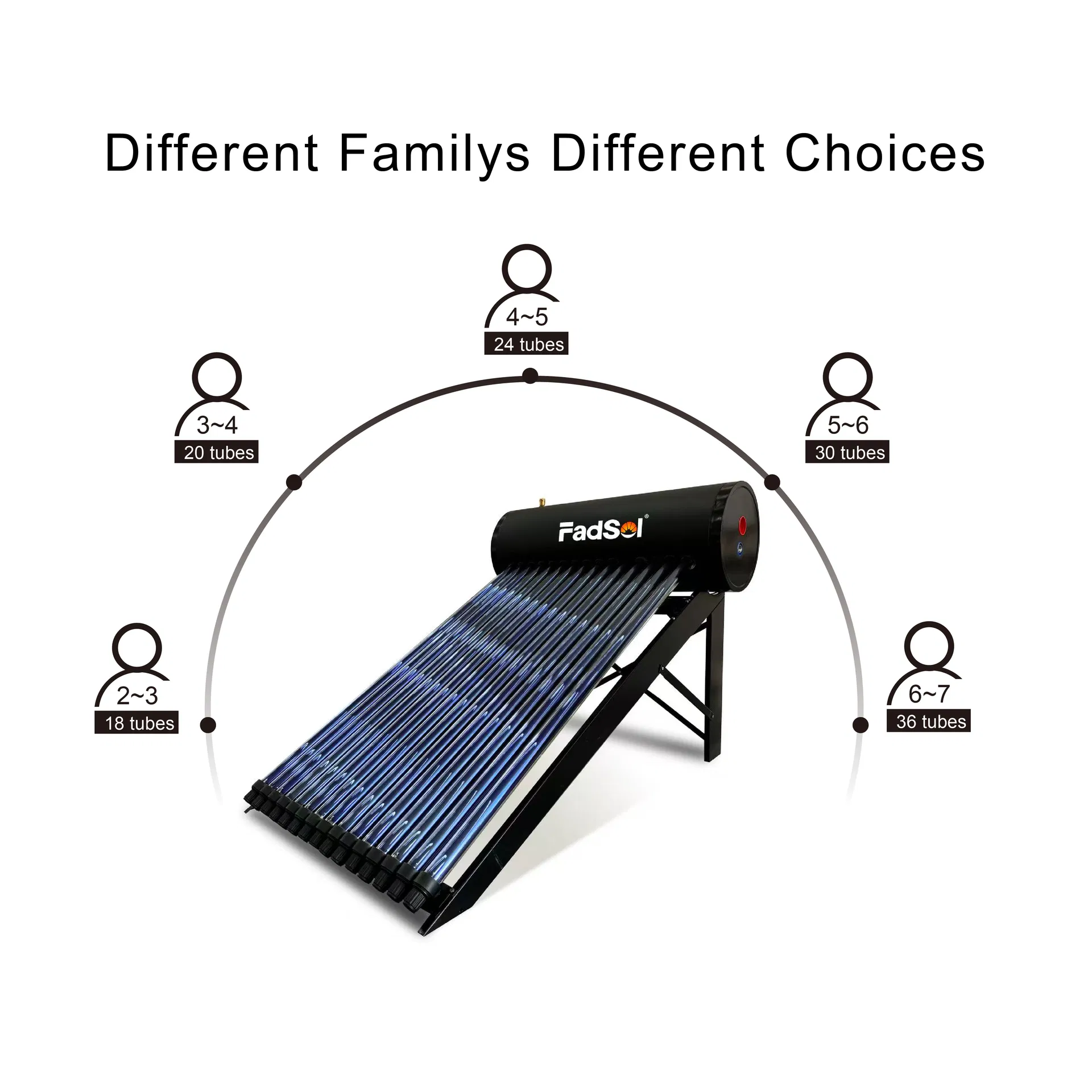

Tube quantity	15	18	20	24	30

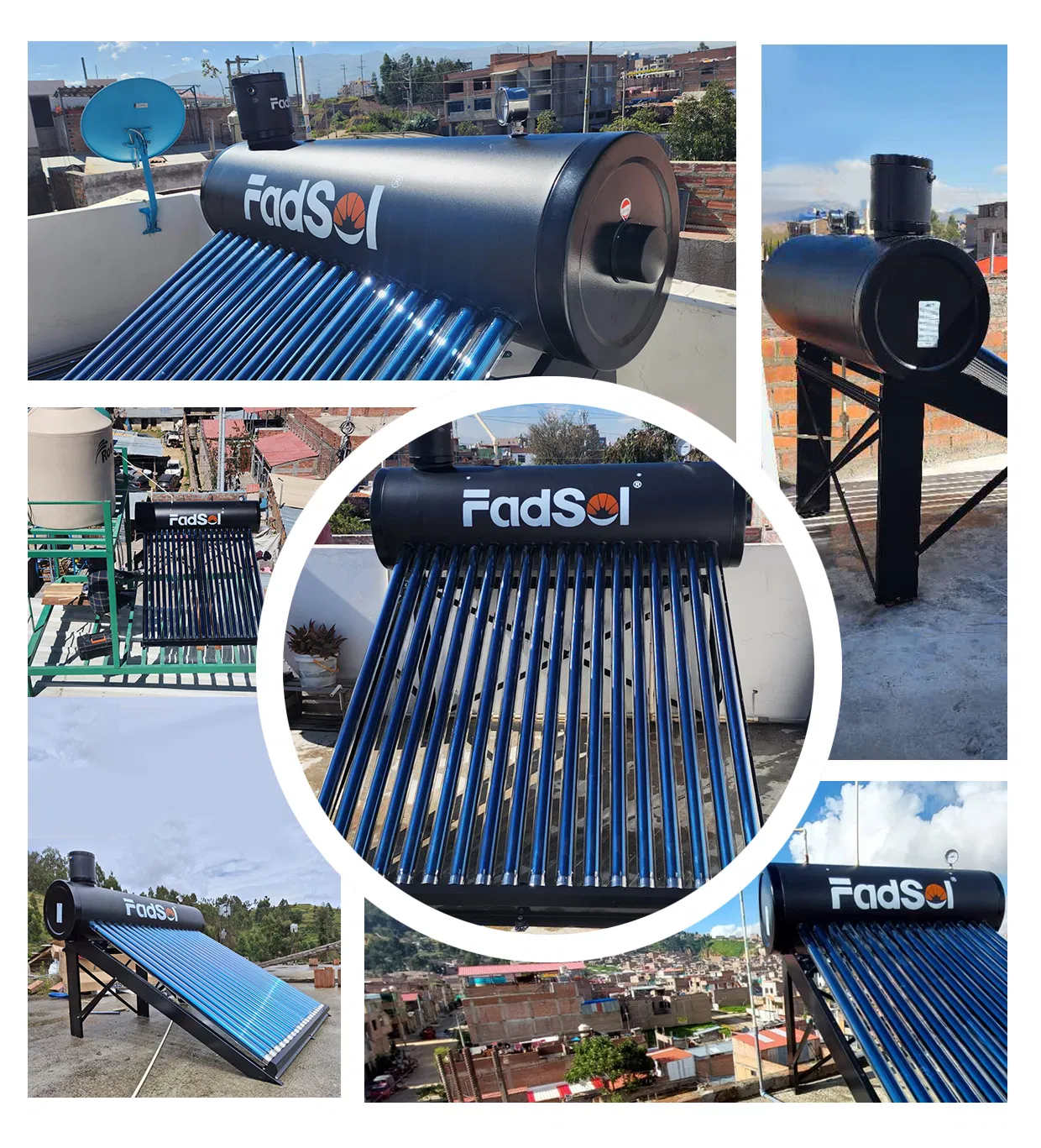

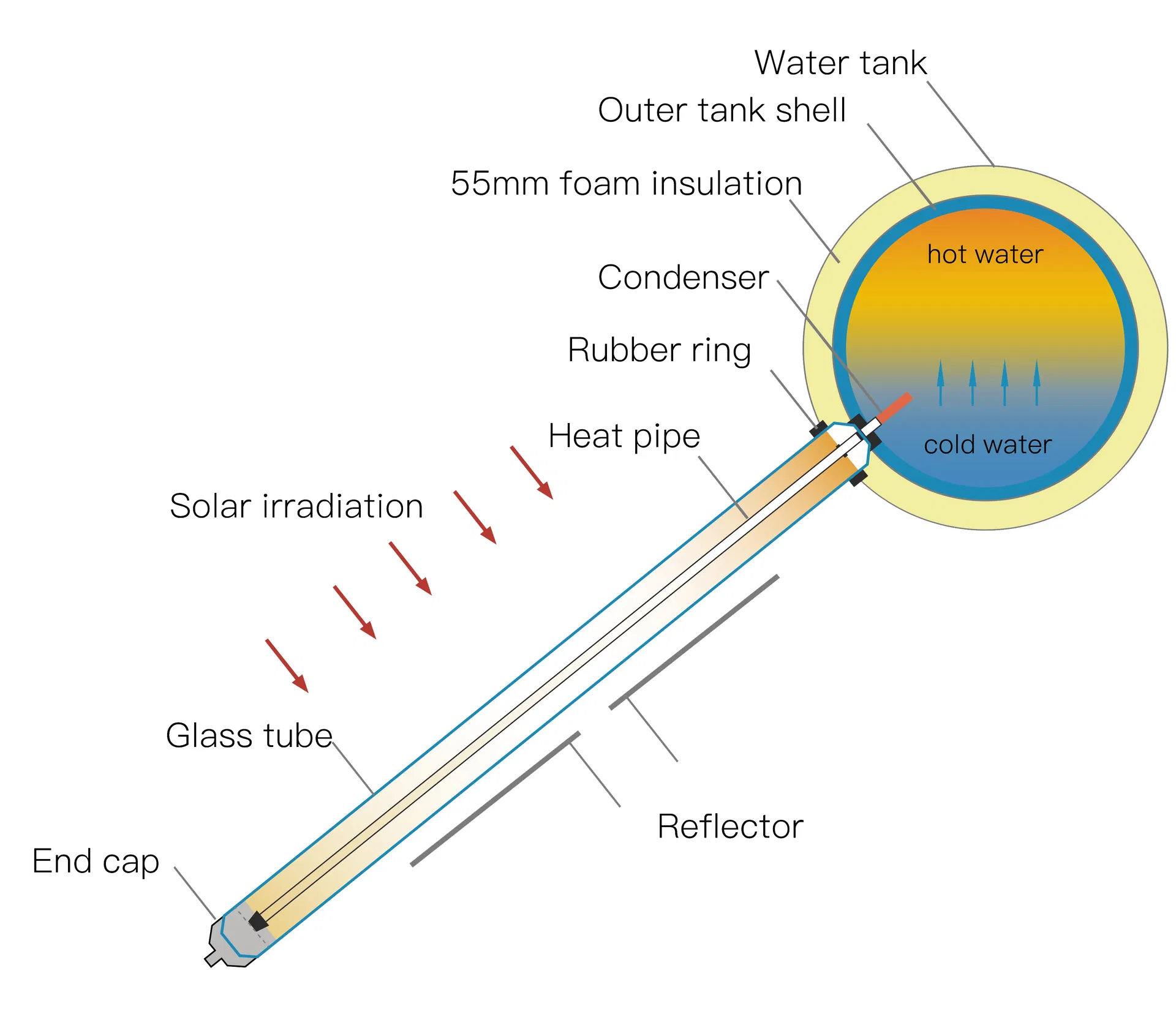

How It Works

1

The vacuum tube collector absorbs heat energy to heat the water in the heat storage tank.

2

When using hot water, cold water flows through the inlet; the copper coil absorbs the heat and transfers it to the cold water, raising the temperature continuously.

3

The outlet water temperature remains close to the tank temperature (diff ≤ 3°C), allowing for high-pressure hot water usage.

Product Line

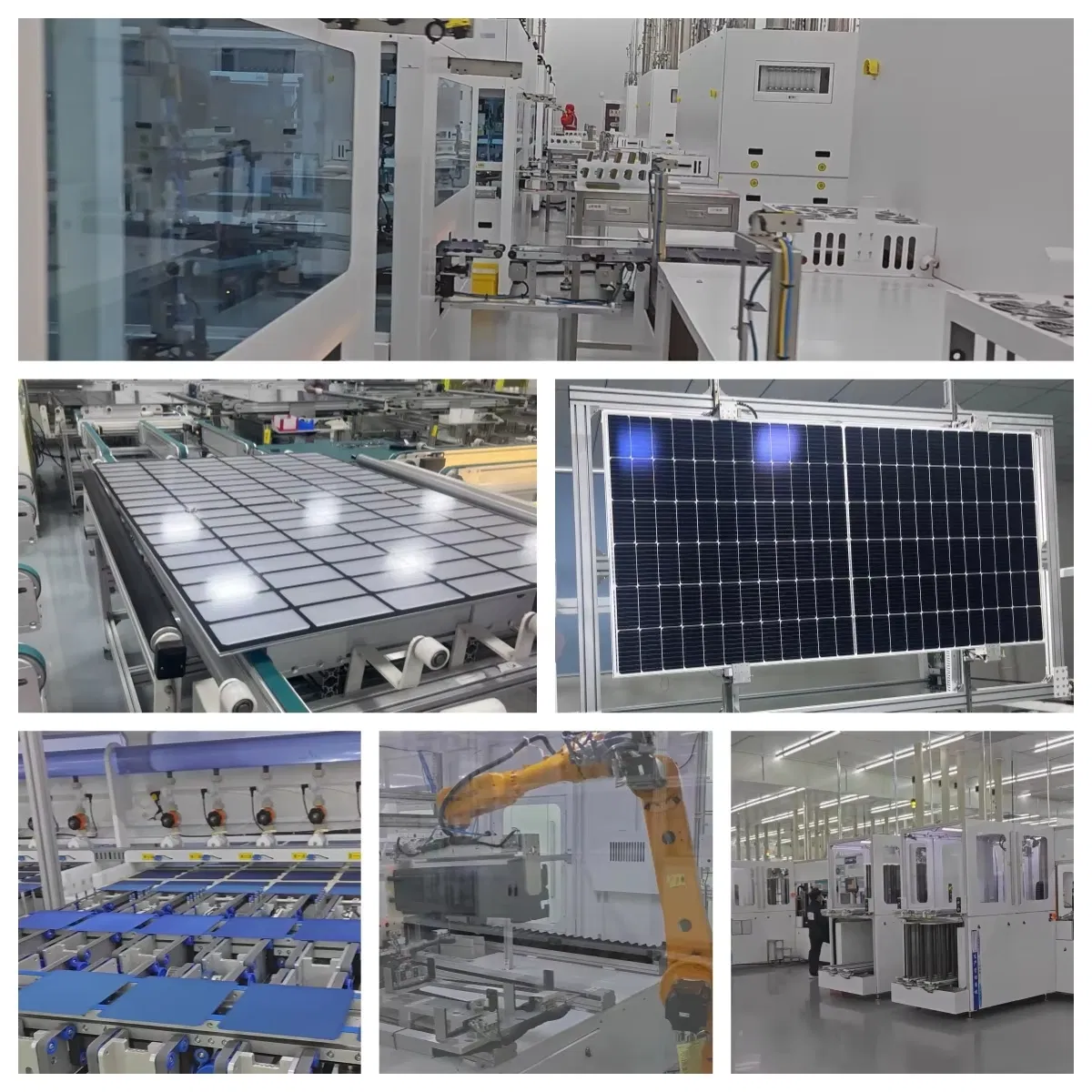

Solar Panel Production Line

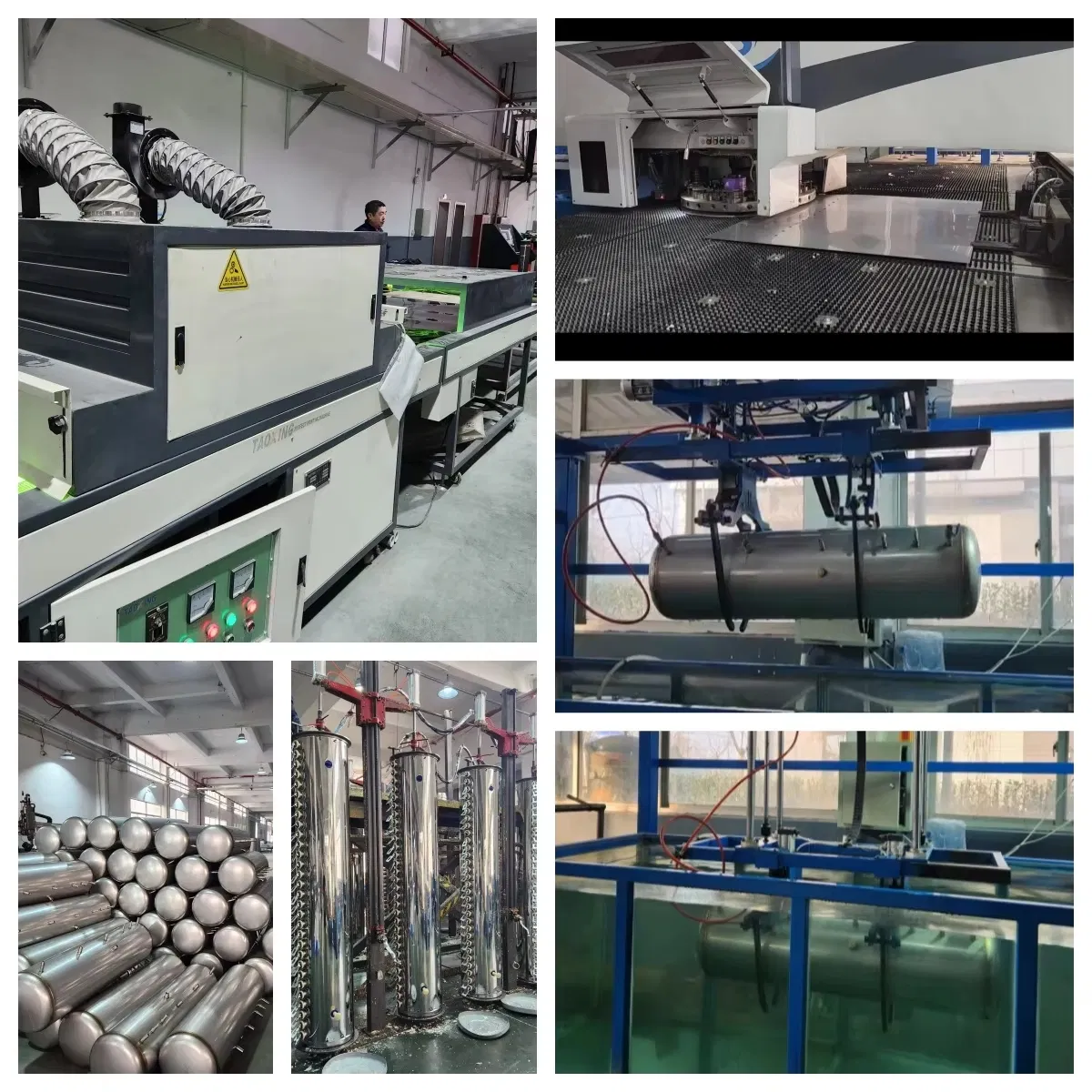

Solar Water Heater Production Line

Packing & Delivery

About Us

We are a professional manufacturer specializing in energy conservation and environment-friendly solar solutions. Through several years of development, we have become an outstanding provider in the solar energy industry. Our vision is focused on providing the most cost-effective solar products and best services to our business partners globally.

FAQ

Is your company a trading company or a factory?

We are a professional solar water heater manufacturer with rich experience and complete R&D, production, sales, and service supply. You are welcome to visit our facility.

What are your main products?

Our main products include Solar Power Systems, Solar LED Lights, Solar Air Conditioners, Solar Water Heaters, Solar Water Pumps, and Solar Freezers & Fridges.

How can I obtain a price list?

Please send us an inquiry with the item names and your detailed requirements. We will send the latest price list to you as soon as possible.

Can I use my own forwarder for transportation?

Yes, if you have your own forwarder in China, you can arrange for them to ship the products for you, saving on freight costs paid to us.

What is the guarantee period?

Our standard guarantee time is 7 years for the primary solar water heating systems.

Do you offer OEM services?

Yes, we provide OEM and ODM services to meet the specific branding and technical requirements of our international clients.
