Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
1 / 5
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations
Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations

Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System for Wall/Floor/Balcony Installations

Customization: Available
Certification: ISO, TUV, CE
Application: Home
Send Inquiry

Product Description

Basic Information
Material
Zinc Aluminum Magnesium
Type
Balcony Solar Mount
Surface
Zinc Aluminum Magnesium + Spray
Installation Type
Balcony / Wall / Flat Roof
Rated Output
220V-240V / 50Hz
Adjustable Angle
10-30 Degrees
Production Capacity
500 ton / Month
HS Code
7318159090
Product Overview

Solar Multi-Use 2-Panel PV Balcony Bracket Mounting System is an integrated plug-and-play home solar power system. It is designed for ordinary users, emphasizing DIY installation and adaptability to various scenarios.

Solar Mounting System Overview

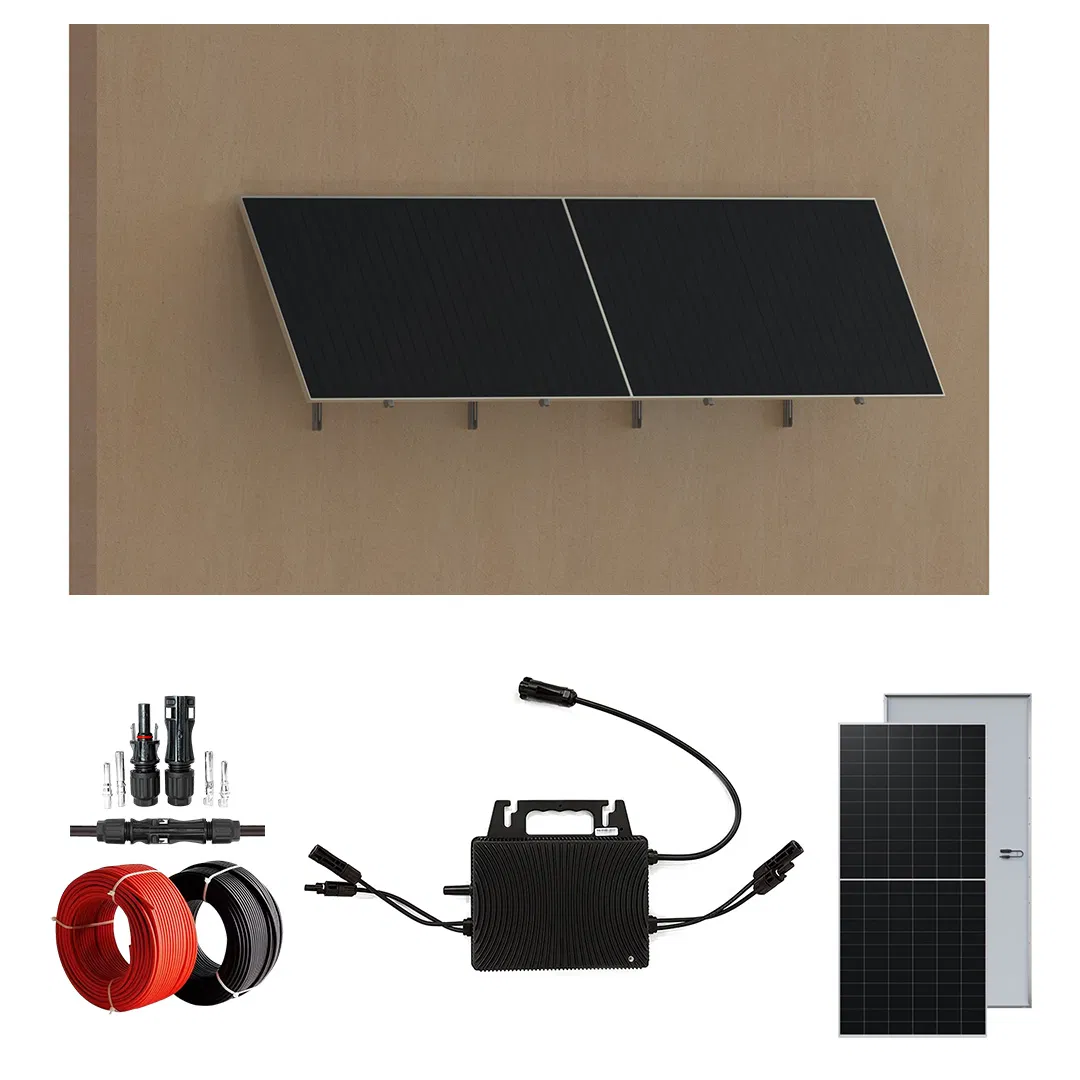

  • Core Components: Includes balcony bracket, micro-inverter, and high-efficiency solar panels.
  • Versatile Scenarios: Ideal for balconies, gardens, walls, and flat roofs.
  • Plug-and-Play: Designed for easy DIY setup without complex electrical work.
  • Grid Connection: Requires connection to the mains electricity (national power grid).
  • Universal Design: Configurable to different user needs and installation environments.
Technical Specifications
ITEM 1-Panel System 2-Panel System 4-Panel System
Installation Type Balcony / Wall / Flat Roof
Solar Panel Power 620W 450W * 2 620W * 4
Array Mode Horizontal
Micro-inverter Power 500W 800W 2000W
Output Voltage 220V-240V / 50Hz
Bracket Material Zinc Aluminum Magnesium Steel + Spray
Adjustable Angle 10-30 Degrees
8-Hour Output 3.47~4.46kWh 5.04~6.48kWh 13.89~17.86kWh
Detailed Photos

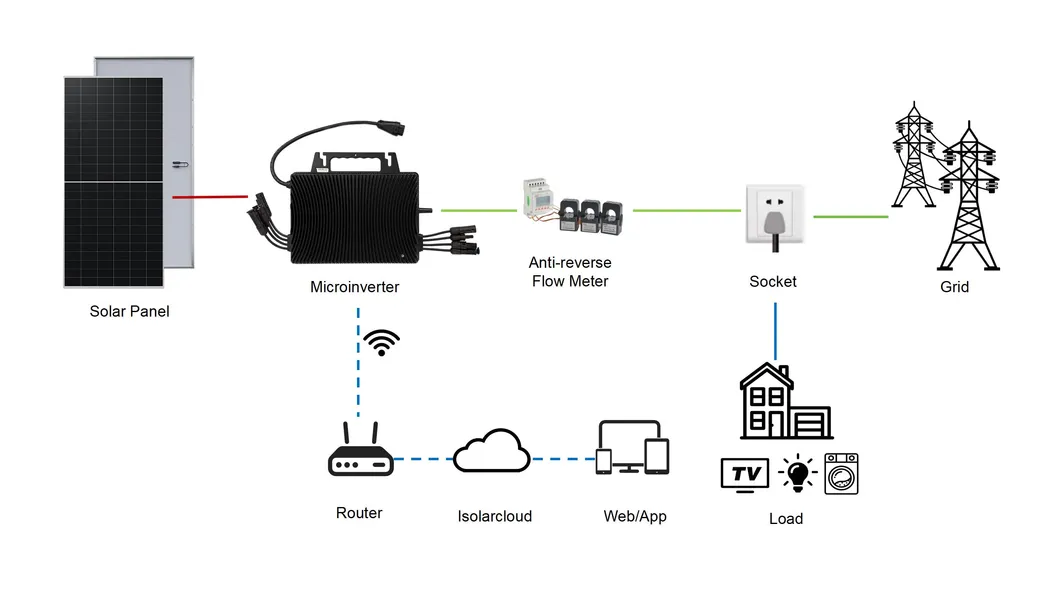

Detailed View 1

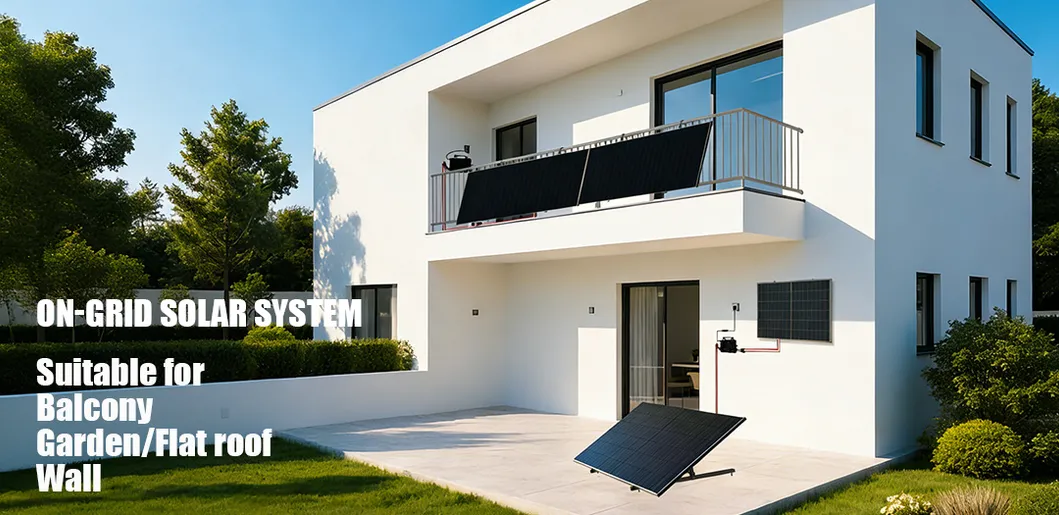

Detailed View 2

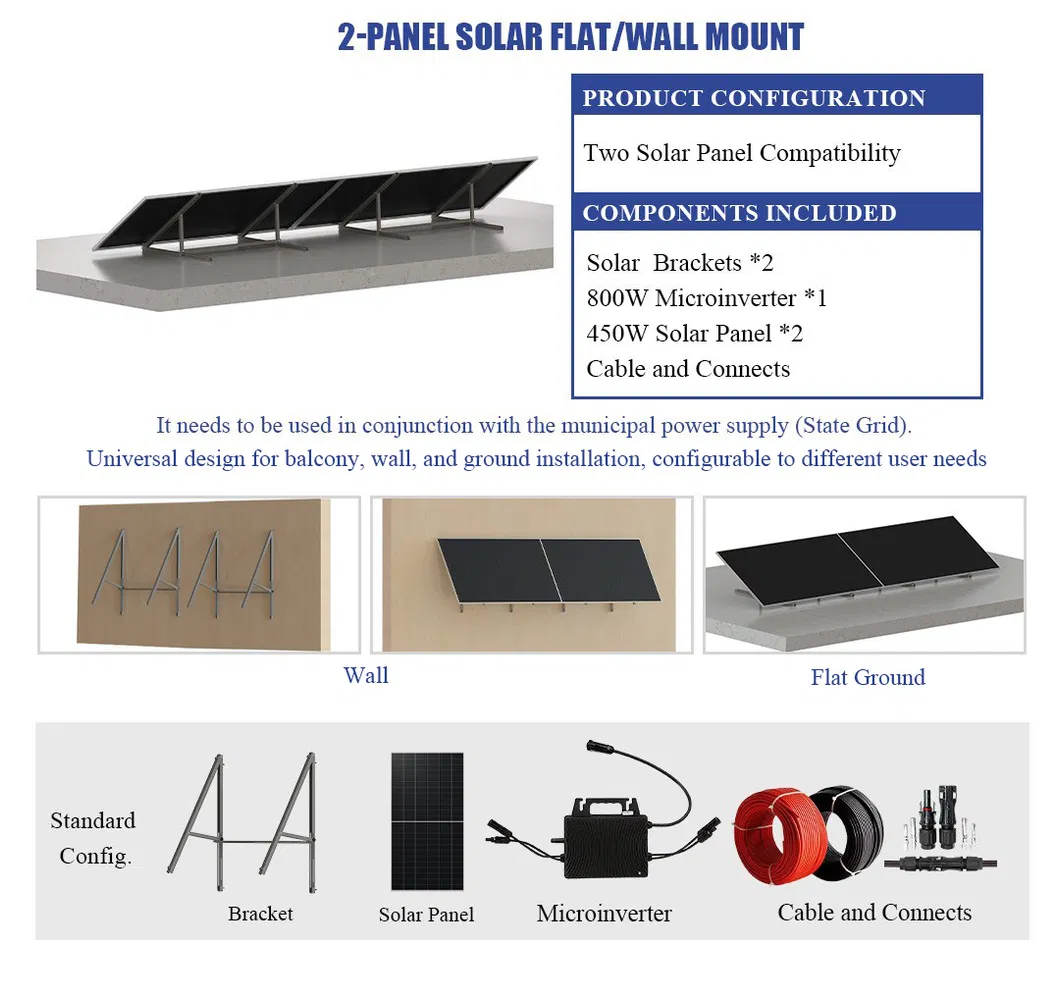

Detailed View 3
Installation View 1
Installation View 2
Component View 1
Component View 2
Component View 3
Frequently Asked Questions
What is included in a balcony solar panel system?
The system is a plug-and-play solution consisting of a specialized mounting bracket, a micro-inverter, and solar panels. It is designed for easy DIY installation.
Where can this mounting system be installed?
It features a universal design suitable for balconies, exterior walls, flat roofs, gardens, or ground installations, depending on your space availability.
Does the system need to be connected to the grid?
Yes, this balcony solar mount system requires a connection to the mains electricity (national power grid) to function correctly.
What material is used for the brackets?
The brackets are made of high-quality Zinc Aluminum Magnesium Steel with a protective spray coating for enhanced durability and weather resistance.
Is the angle of the solar panels adjustable?
Yes, the system allows for an adjustable angle between 10 and 30 degrees to optimize sunlight absorption throughout the day.
What is the typical power output for a 2-panel system?
A standard 2-panel system can produce approximately 5.04 to 6.48 kWh over an 8-hour period, depending on sunlight conditions.
