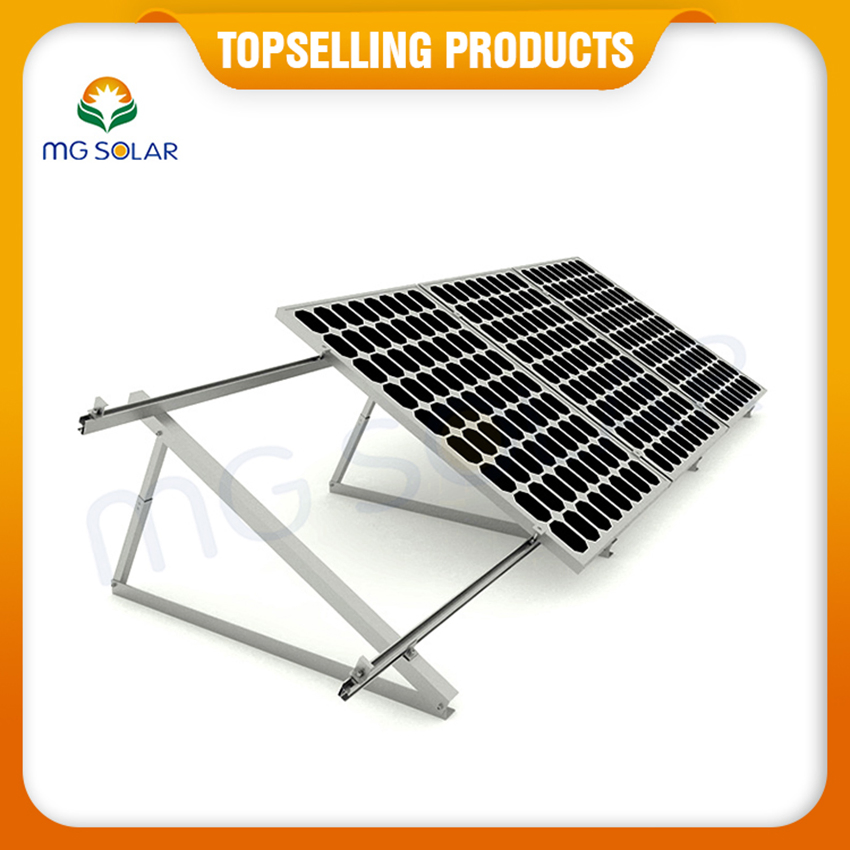

Solar Panel Flat Roof Mounting Solar Flat Roof Rack Mounting System

i

Basic Information

Model NO.

Flat Roof Mount System2

Certification

ISO, CE

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Installation Site

Flat Roof or Pitched Roof

Max Wind Speed

<60m / S

Fixed Angle

5 degrees ~ 60 degrees

★

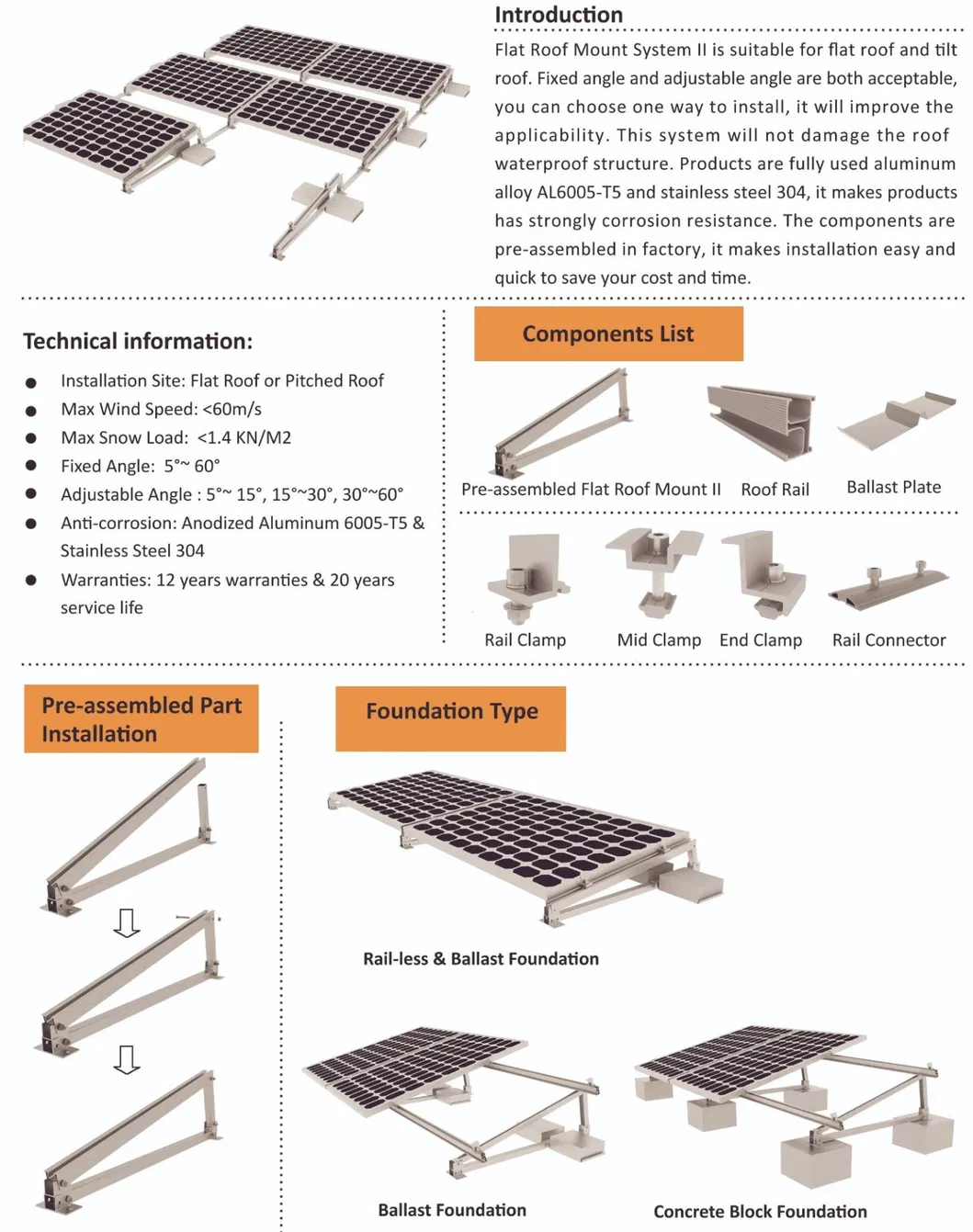

Product Description

Best design solar flat roof rack mounting system

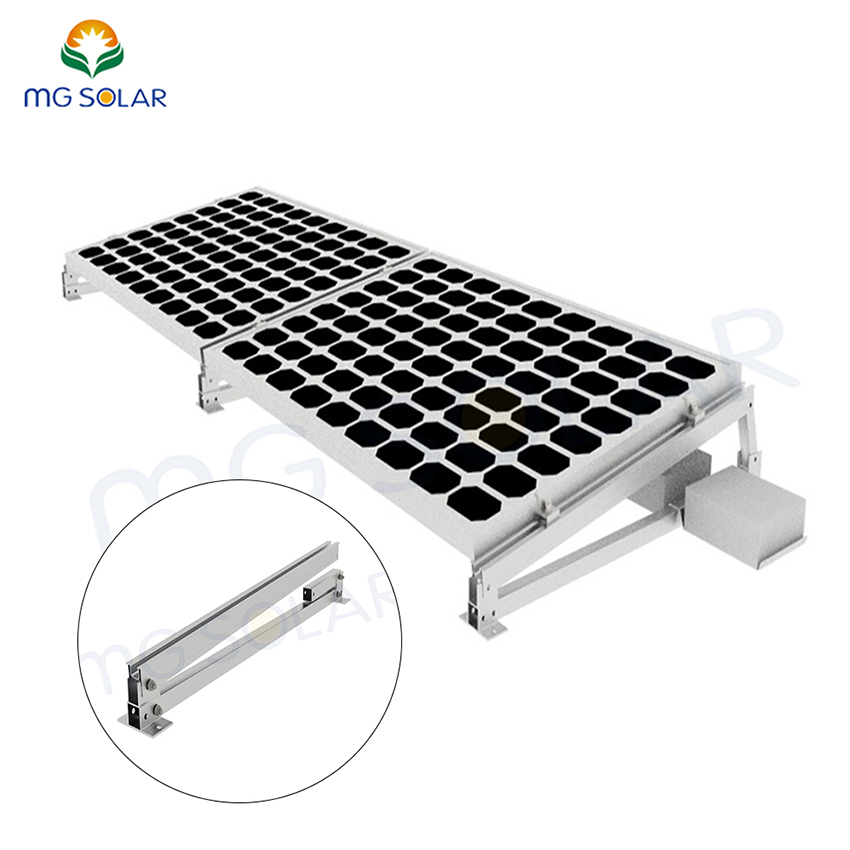

Flat Roof Mount System II is suitable for flat roofs and tilt roofs. Fixed angle and adjustable angle options are both available, allowing you to choose the best installation method to improve applicability. This system is designed not to damage the roof's waterproof structure.

Our products utilize high-quality aluminum alloy AL6005-T5 and stainless steel 304, ensuring strong corrosion resistance. Components are pre-assembled in the factory, making installation easy and quick to save on labor costs and time.

Key Features

Simple and cost-effective installation

Premium Aluminum 6005-T5 Material

Integrated waterproof rubber gasket

Compatible with various flat roof types

⚙

Technical Specifications

Material	Aluminum 6005-T5 & Stainless Steel 304
Max Wind Speed	<60 m/s
Max Snow Load	<1.4 kn/m2
Install Site	Flat Roof or Pitched Roof
Adjustable Angle	5°~ 15°, 15°~30°, 30°~60°
Anti-corrosion	Anodized Aluminum 6005-T5
Warranties	12 years warranty & 20 years service life

✔

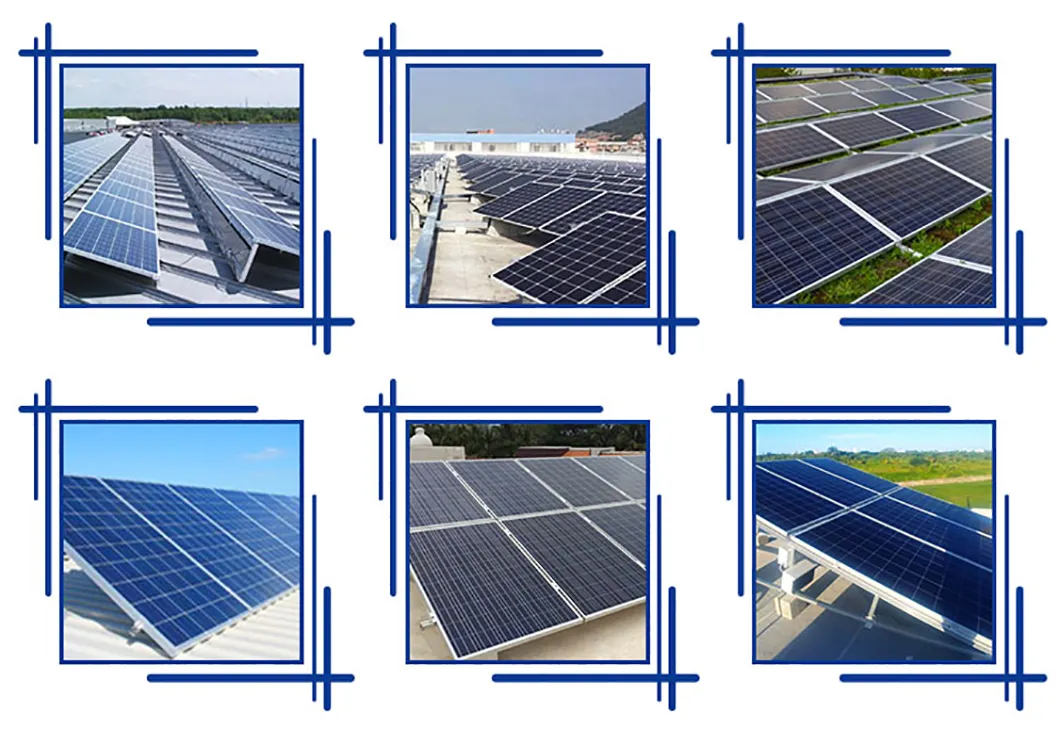

Project Reference

⚒

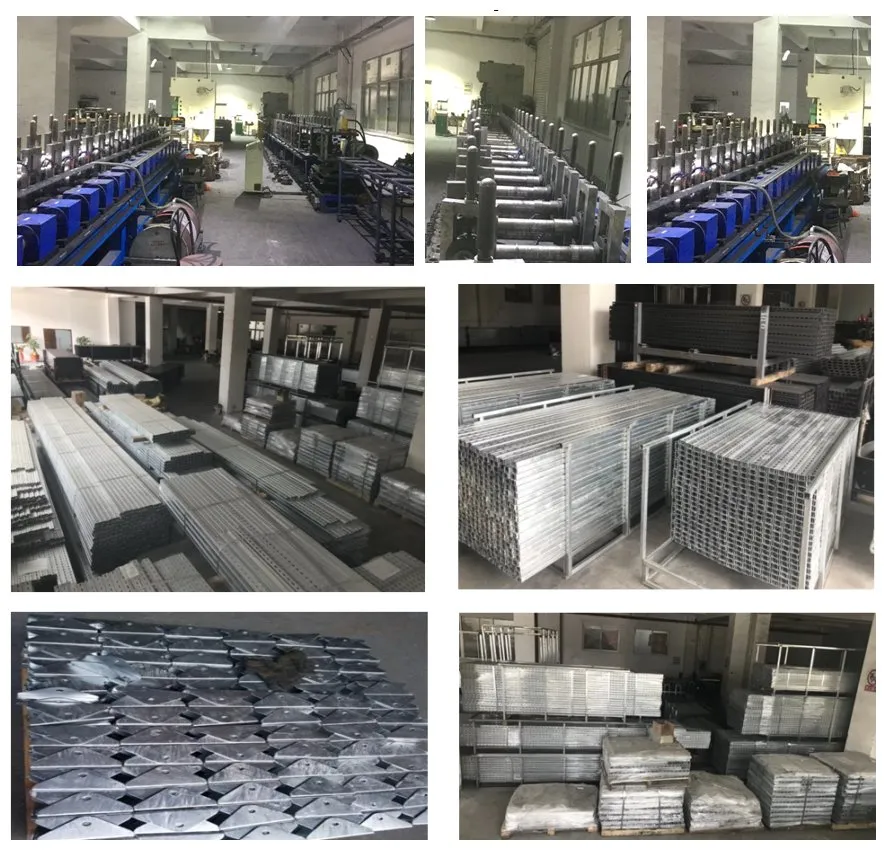

Production Capacity

Our facility is equipped with high-tech development and manufacturing capabilities for solar PV racking solutions. We provide roof and ground mounting solutions for residential, industrial, and commercial projects, focusing on steady, reliable, and cost-efficient mounting systems.

Advanced Equipment:

12 sets of punching machines
3 sets of aluminum alloy cutting machines
2 sets of automatic drilling and tapping machines
3 roll forming production lines
Monthly production up to 30 MW

To provide an exact solution for your Flat Roof Solar Racking System, please provide:

Dimension of solar panel (Length x Width x Thickness)
Desired tilt angle
Panel layout/array (Number of panels in row/column)
Max Wind speed at project site
Max Snow load at project site

?

Frequently Asked Questions

Can I have a free sample?

Yes, if you need standard samples from our showroom, they are free (courier freight not included). For customized samples, a charge will apply. We welcome quality testing.

What is the lead time for orders?

Samples typically take 1-2 days. Mass production usually requires 7-15 days depending on the total order quantity.

Is there a Minimum Order Quantity (MOQ)?

We do not have an MOQ for our current standard products; 1pc for checking is available. However, for ODM and OEM customized products, an MOQ will be requested.

How are the goods shipped and how long does it take?

Samples are usually shipped via DHL or FedEx (3-5 days). Large orders are shipped by sea, taking between 7 to 30 days depending on the destination distance.

What is your after-sales service policy?

We take full responsibility for all customer feedback. We respond to complaints immediately (within 3 hours) and are committed to helping customers solve any technical or installation issues.

Are your mounting systems compatible with all roof types?

Our system is highly versatile and designed specifically for both flat roofs and pitched roofs without damaging the waterproof integrity of the structure.
