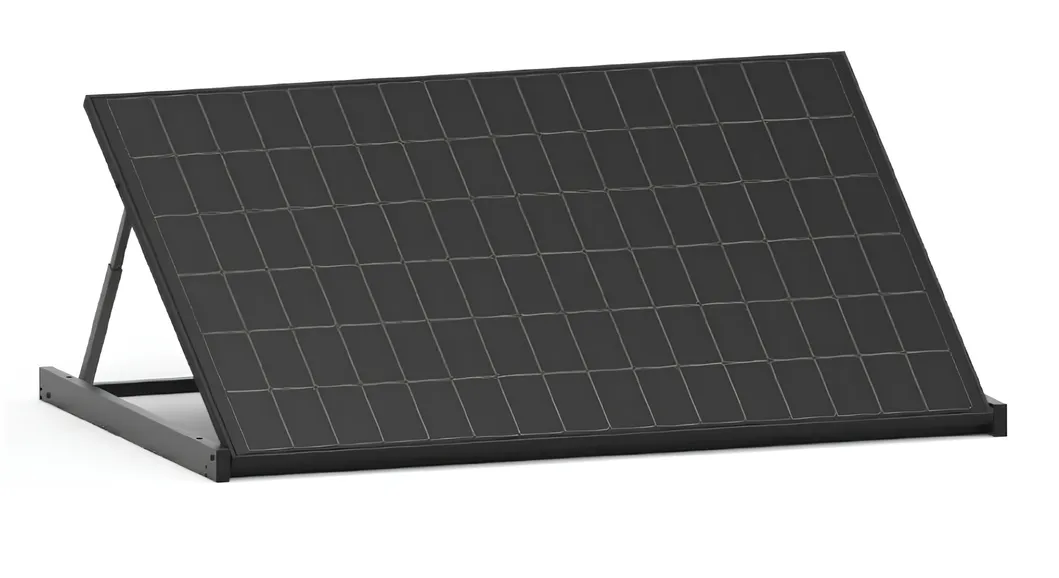

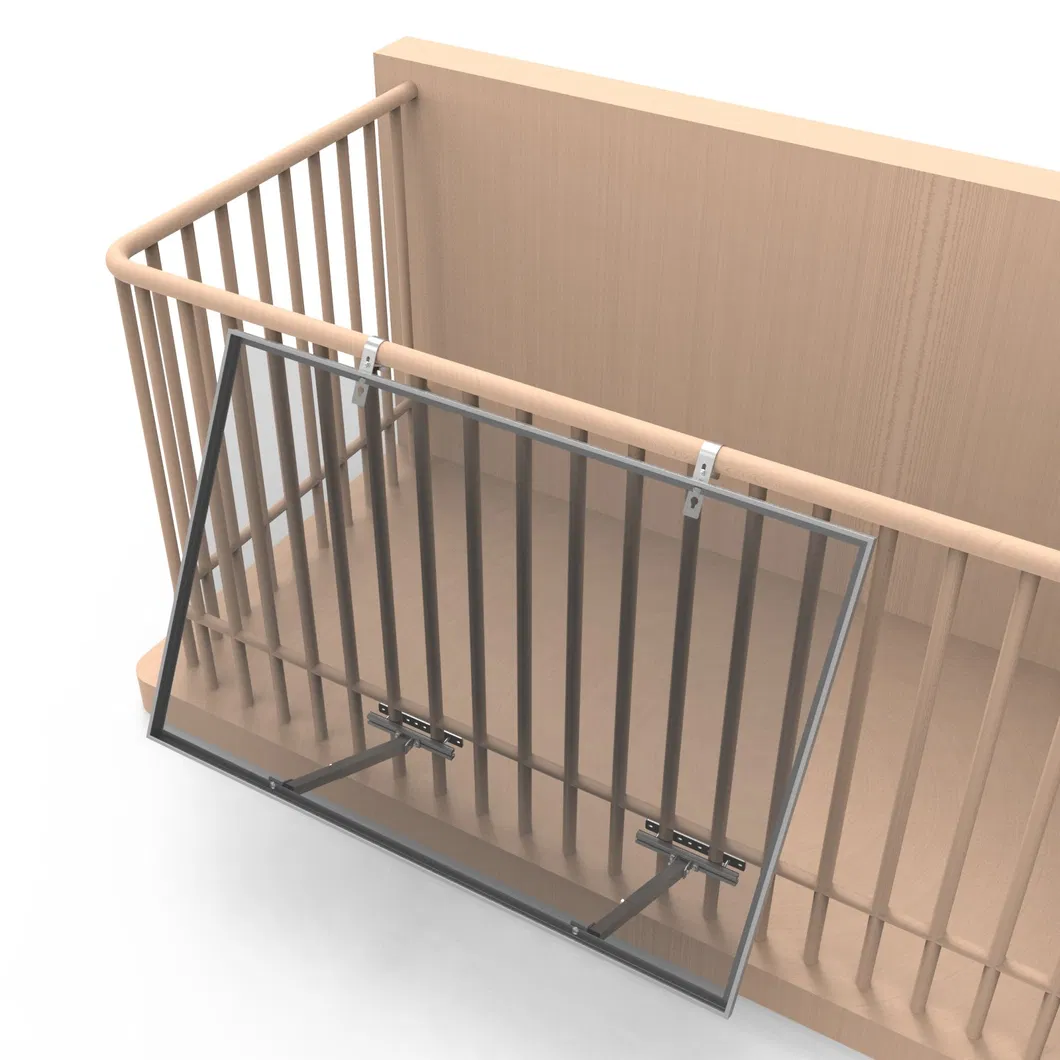

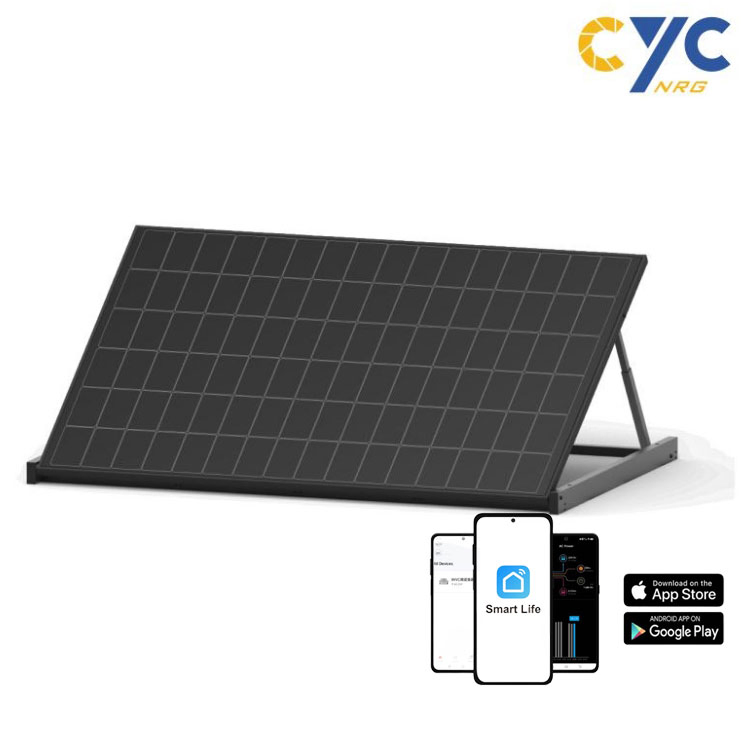

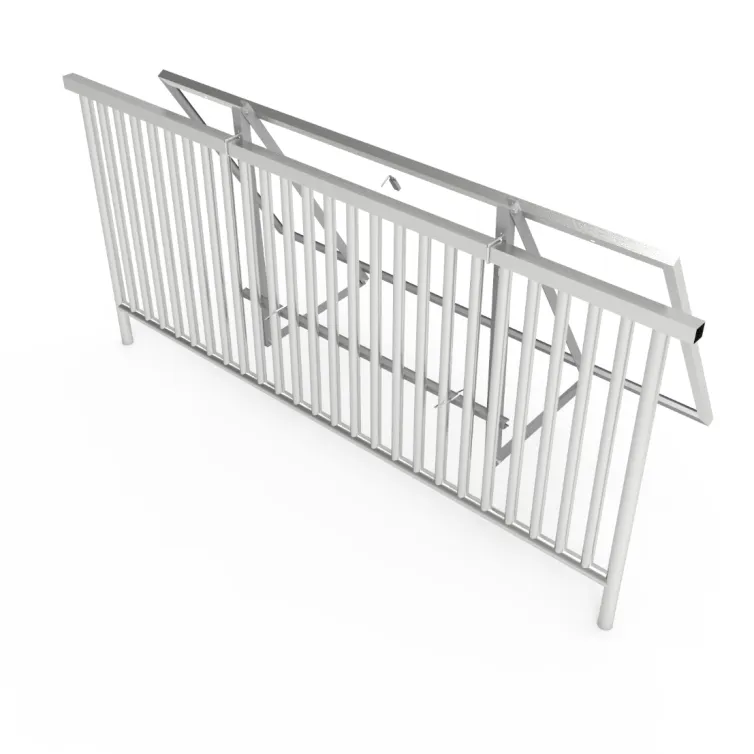

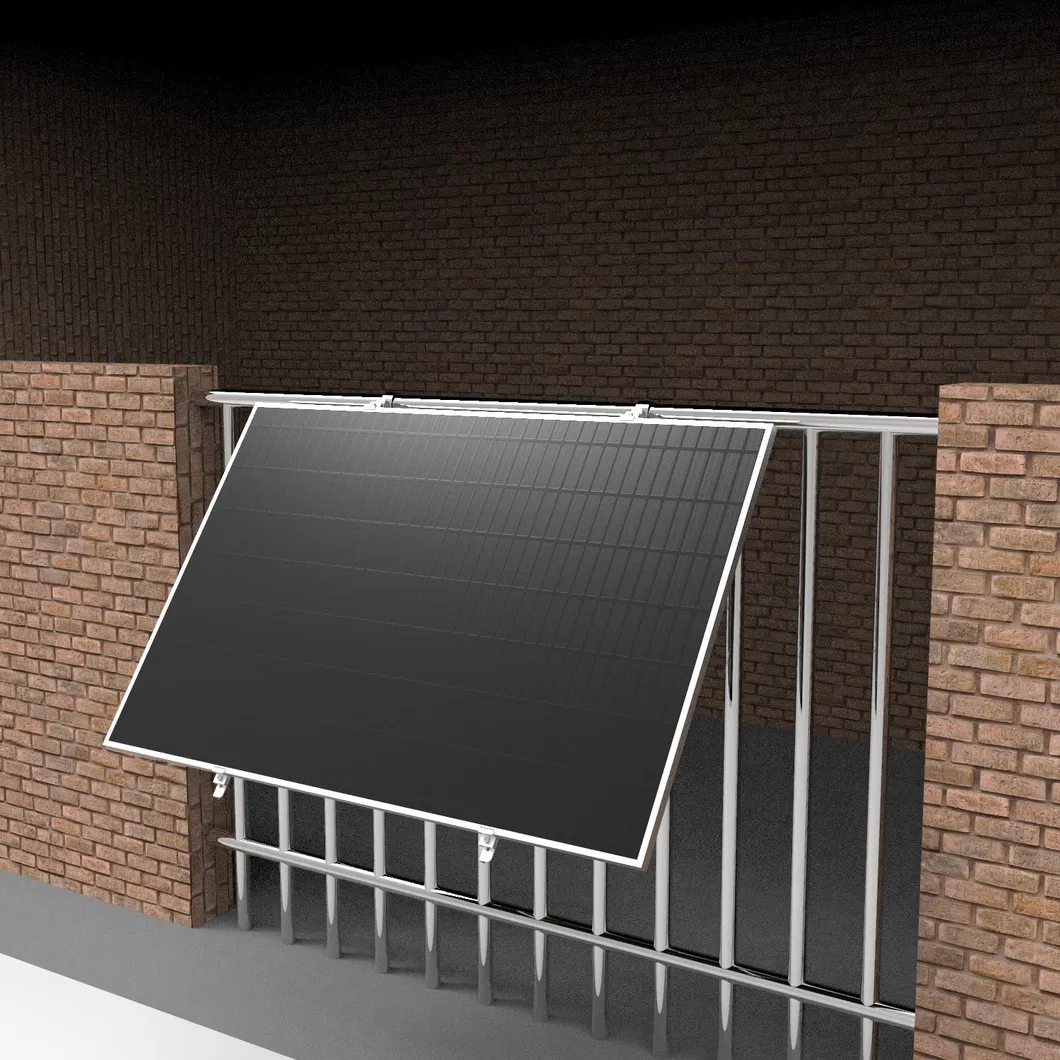

A Balcony Photovoltaic System is a support structure designed to mount solar panels on a balcony, capturing solar energy for home use in limited spaces. This system usually includes PV panels, adjustable brackets, a micro inverter, and AC cables. It is an ideal solution for urban dwellers seeking green energy.
| Location | Roof, Balcony, Outdoor |
|---|---|
| Module Type | 410W MBB MONO |
| Material | AL6005-T5 (Aluminum Alloy) |
| Warranty | 15 Years (20+ Years Duration) |
| Dimensions | 1722 x 1134 x 30 mm |
| Weight | 21.5kg |
| Operating Temp | -40ºC to +85°C |

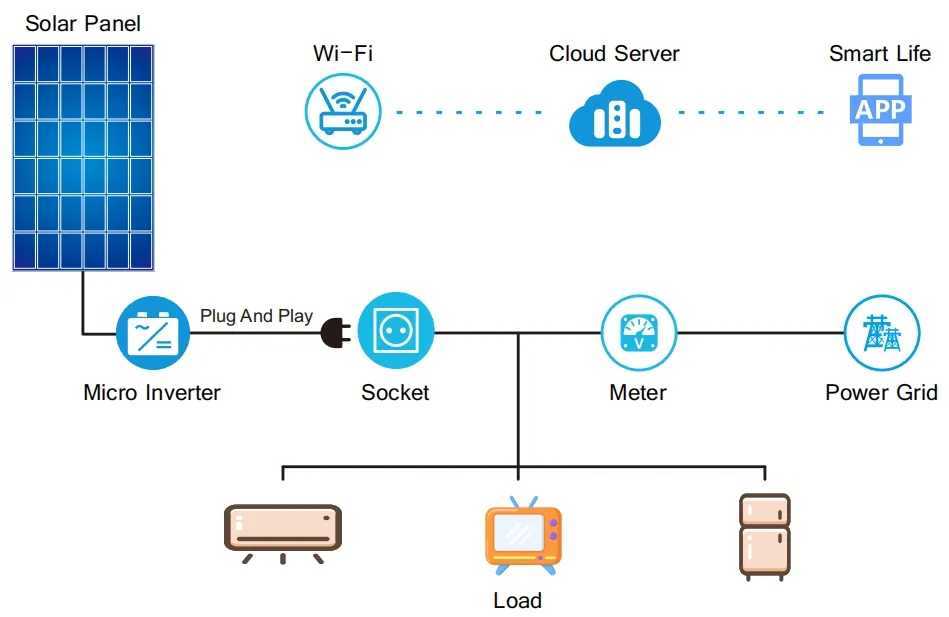

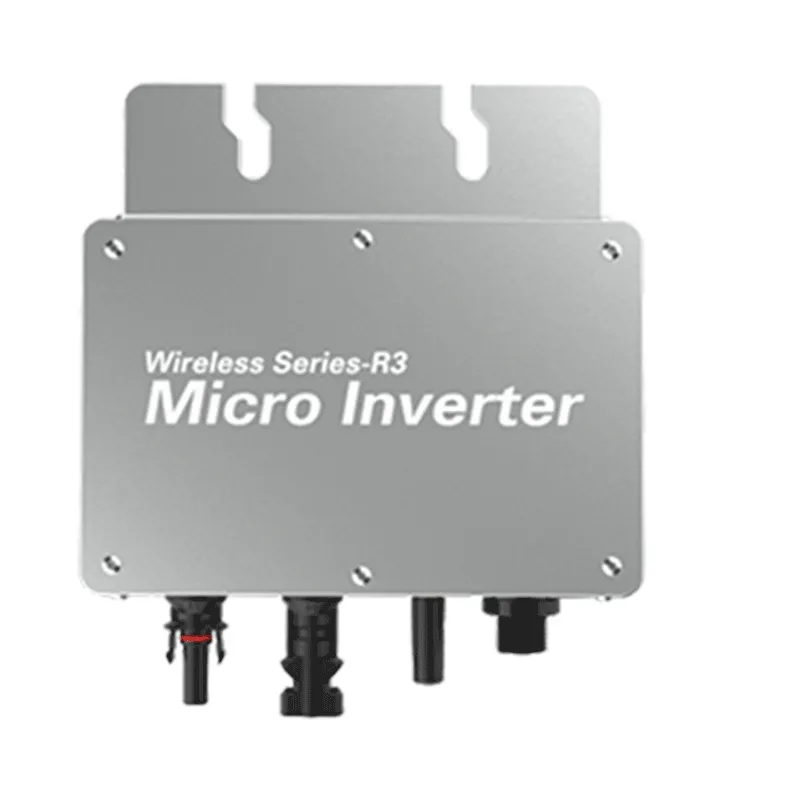

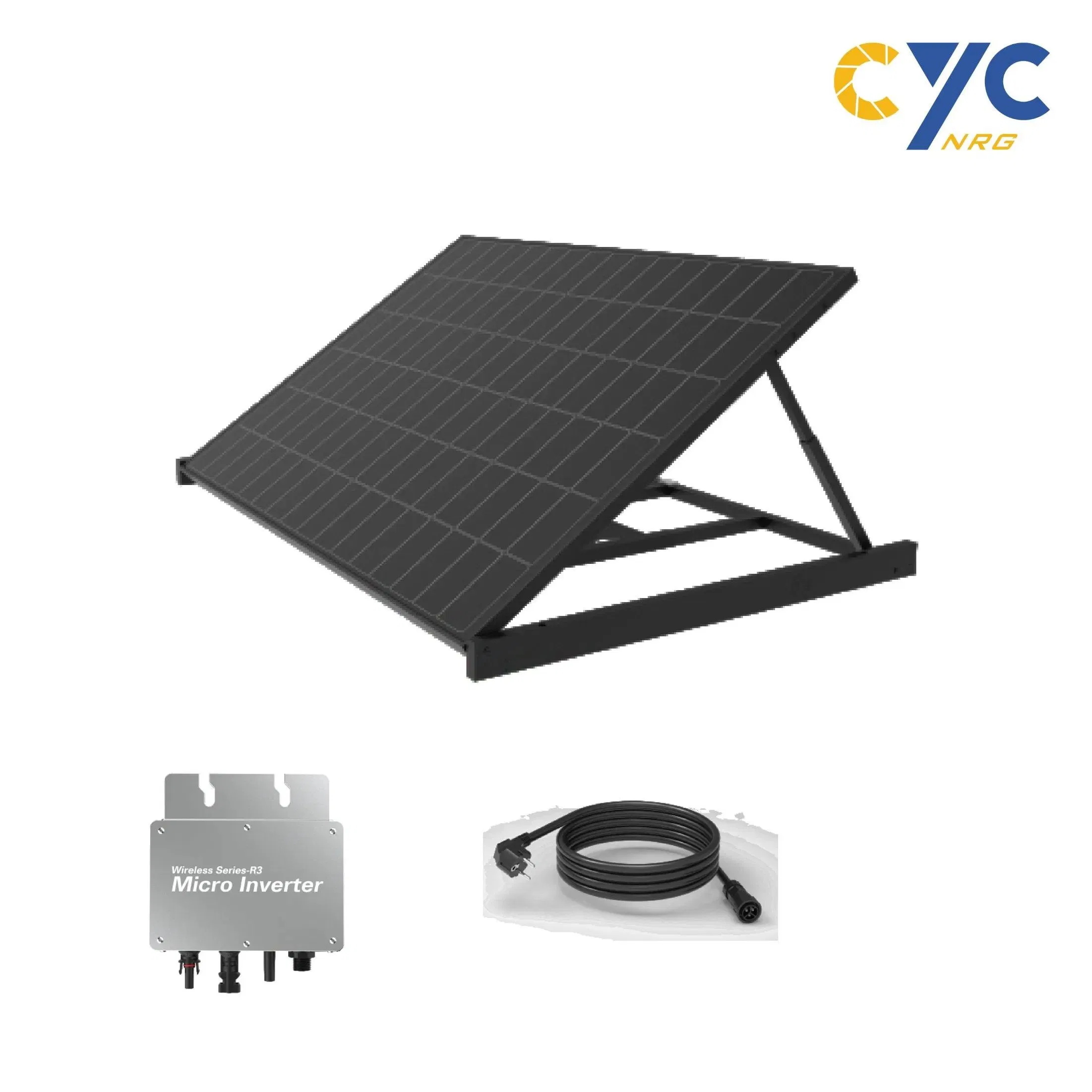

The system integrates solar panels, micro inverters, and cables. Once terminals are connected, it automatically enters intelligent power supply mode. Remote monitoring is available via App when within Wi-Fi coverage.

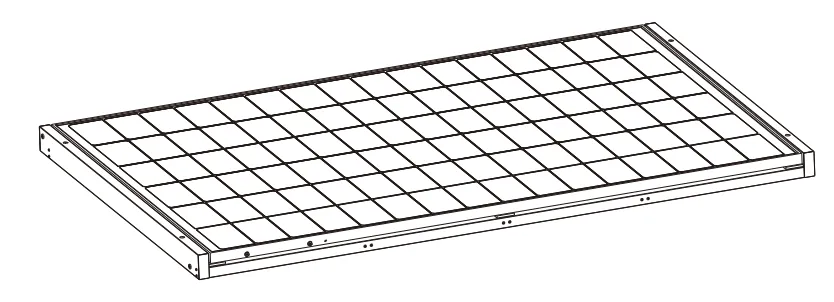

Lift the solar system out of the box and place it on flat ground.

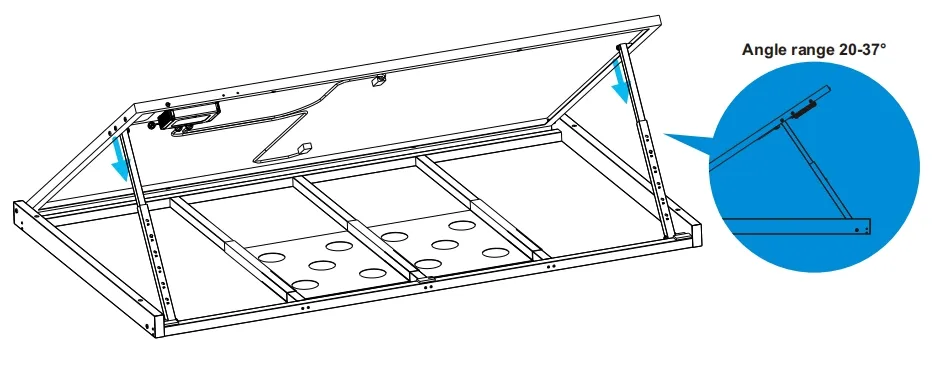

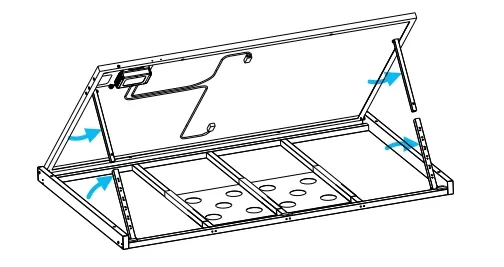

Lift one end of the panel to form an angle and expand the support arms at both ends.
Adjust to the appropriate angle. Use heavy objects like sandbags on the base to increase stability.

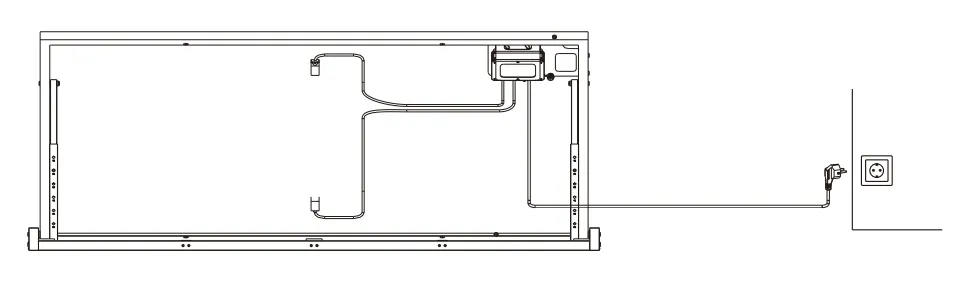

Plug the AC cable into the household socket to connect to the local grid.
