Rated Current
2A; 63A; 100A; 200A; 300A
Rated Power
7kw - 240kw Options
Protection Grade
IP54 / IP65 Universal Outdoor
Charging Type
AC, DC, AC&DC Integrated
Efficiency
≥93% (AC); ≥95% (DC)
Power Factor
≥0.95 (Rated Load)
- Flexible Expansion & Wide Compatibility
- Certified Safety & Rock-Solid Reliability
- Effortless Operation & Low-Maintenance Design
- Consistently Stable Performance for Efficient Charging

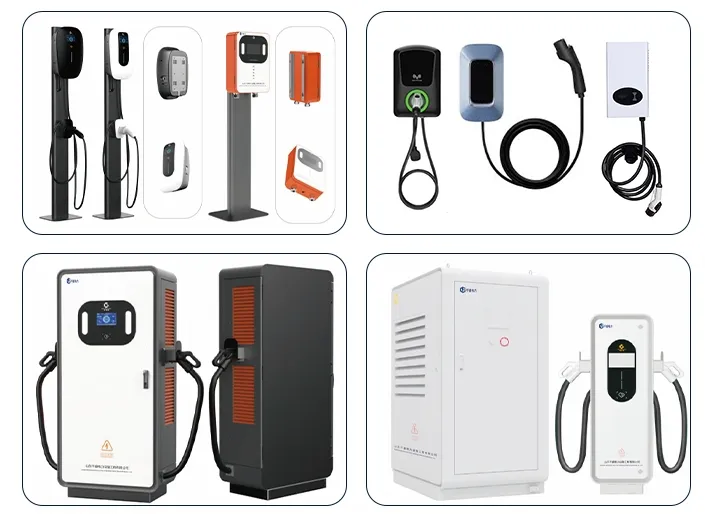

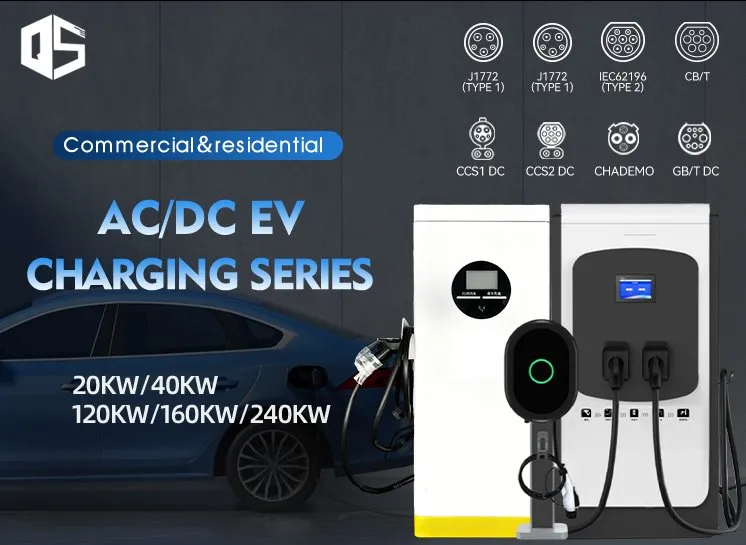

Our charging pile series includes multiple models with two options: wall-mounted and floor-standing, to meet different installation needs. All models feature stylish designs, stable frameworks, and complete functionality. Modular power configuration makes them easy to maintain and suitable for residential and commercial use.
📋
Technical Specification
| Power Options | 20KW / 40KW / 120KW / 160KW / 240KW |
|---|
| Input Rating | 110V / 220V / 380V ±15% |
|---|
| Working Frequency | 50/60Hz ±10% |
|---|
| Output Voltage | 200V ~ 1000V |
|---|
| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
|---|
| Display | 7" LCD Touch Screen |
|---|
| Network | 4G / Ethernet (OCPP1.6J/2.0) |
|---|
| Protection | IP55 / IP65 |
|---|

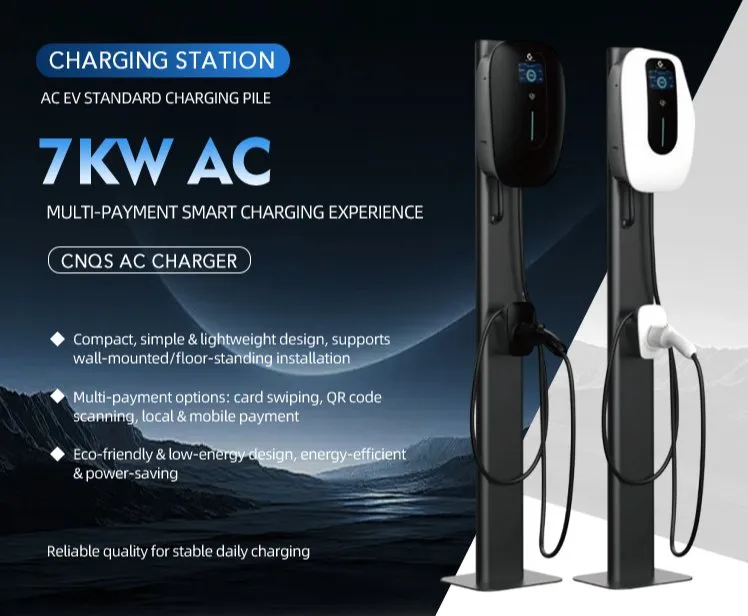

7KW AC Charger

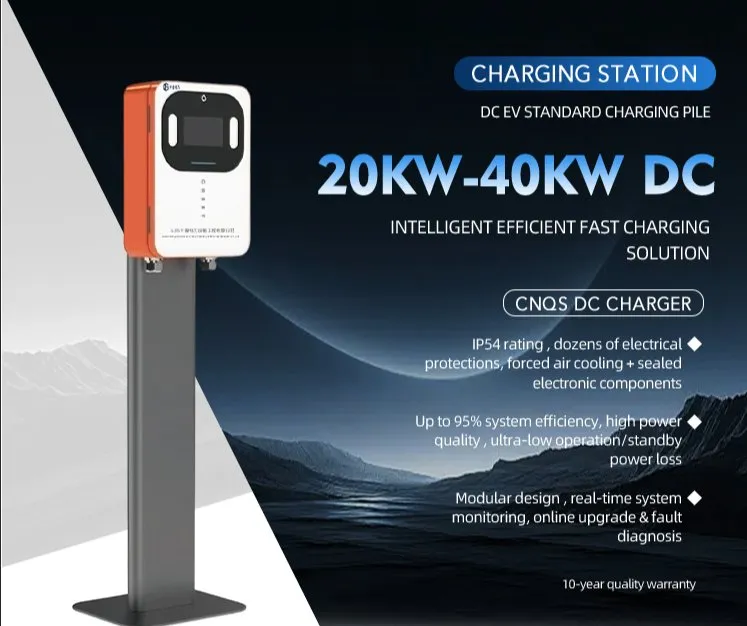

20KW-40KW DC Charger

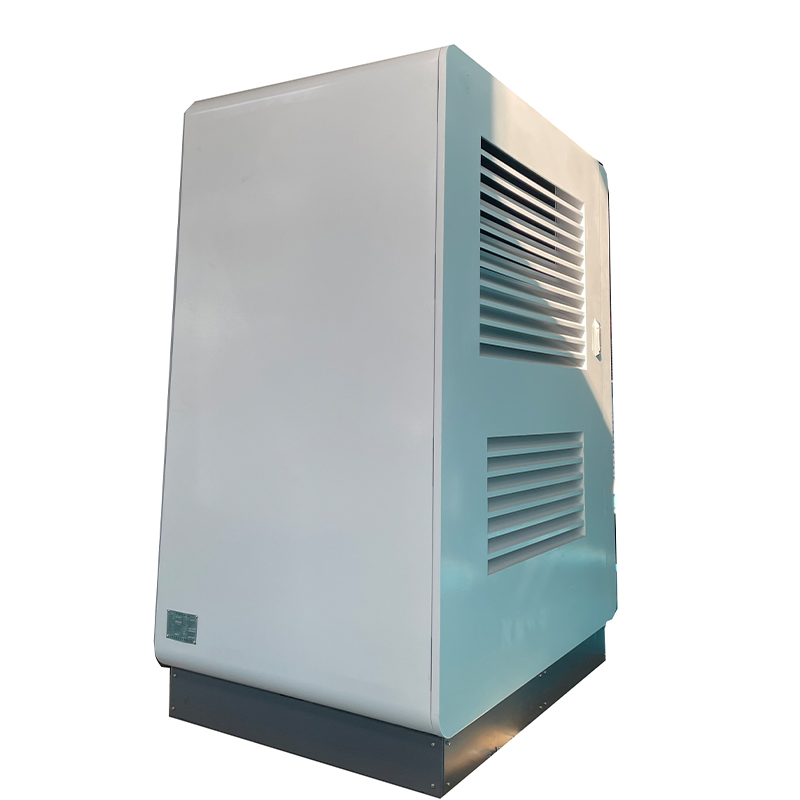

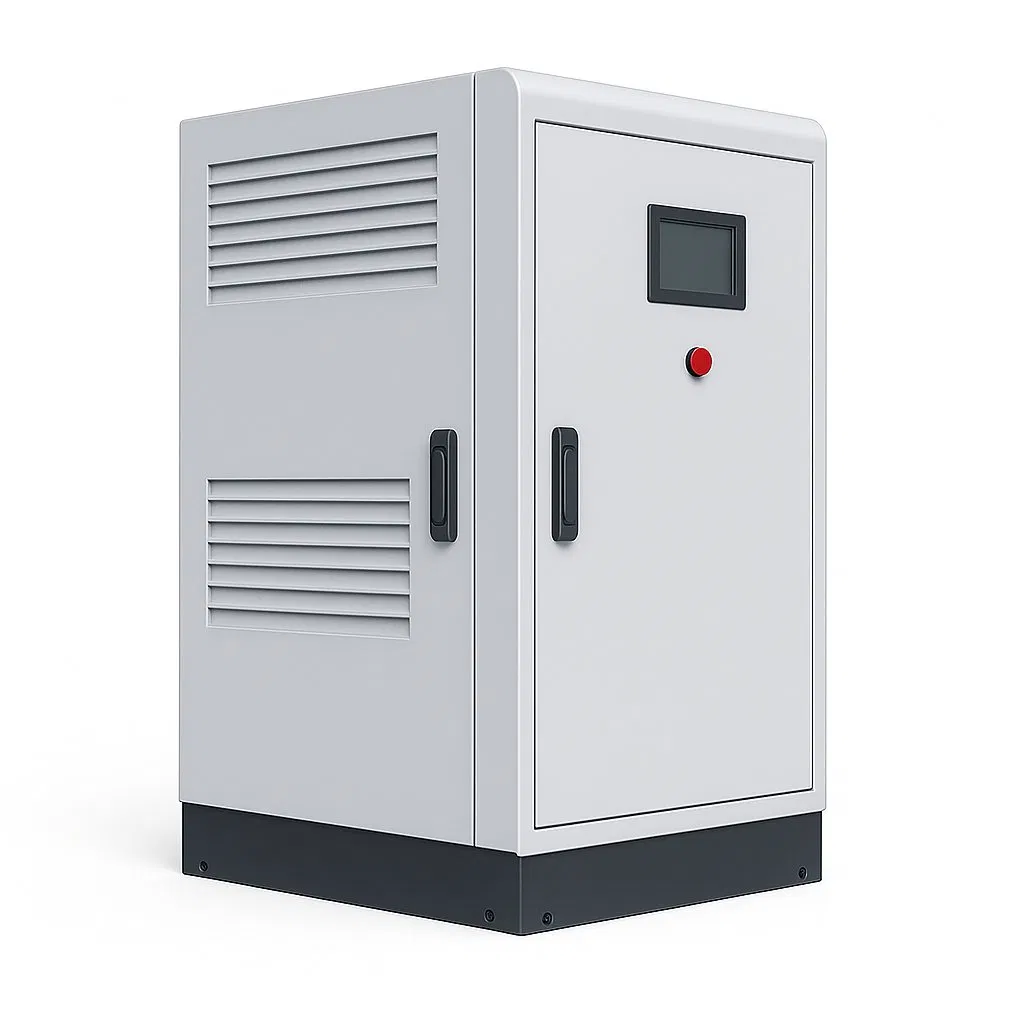

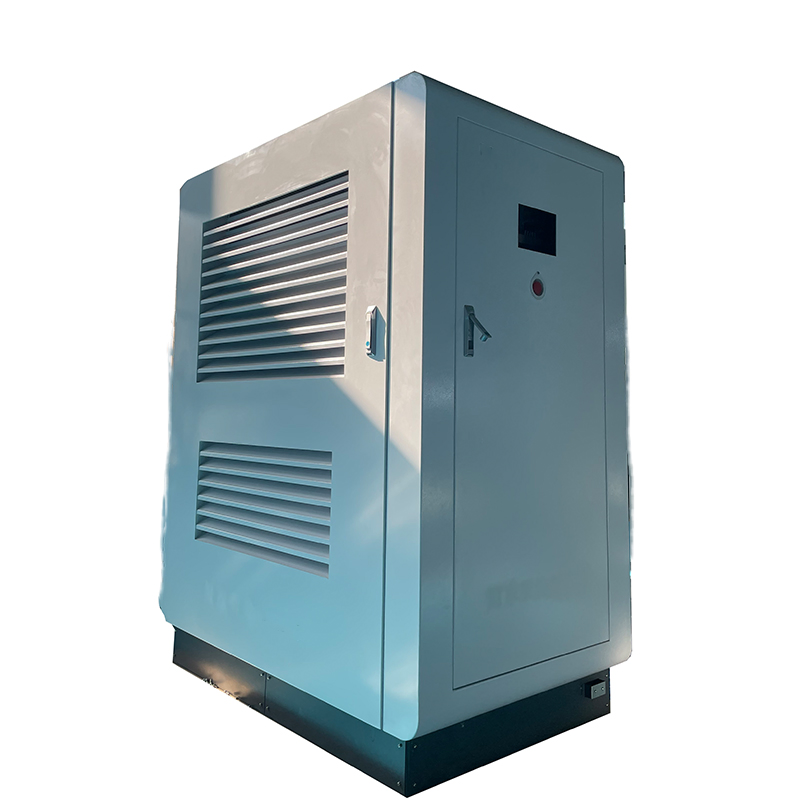

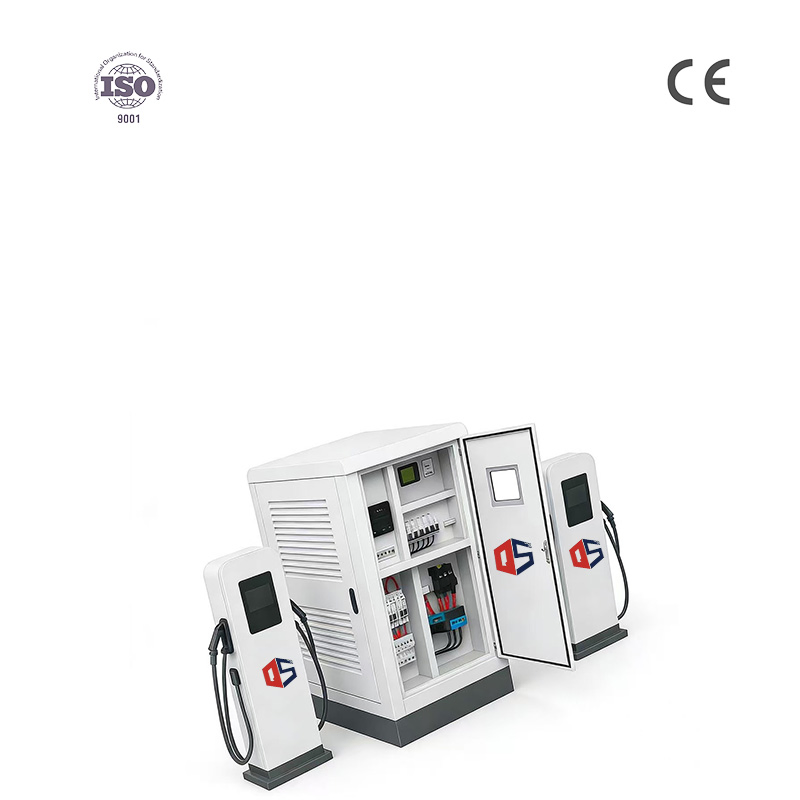

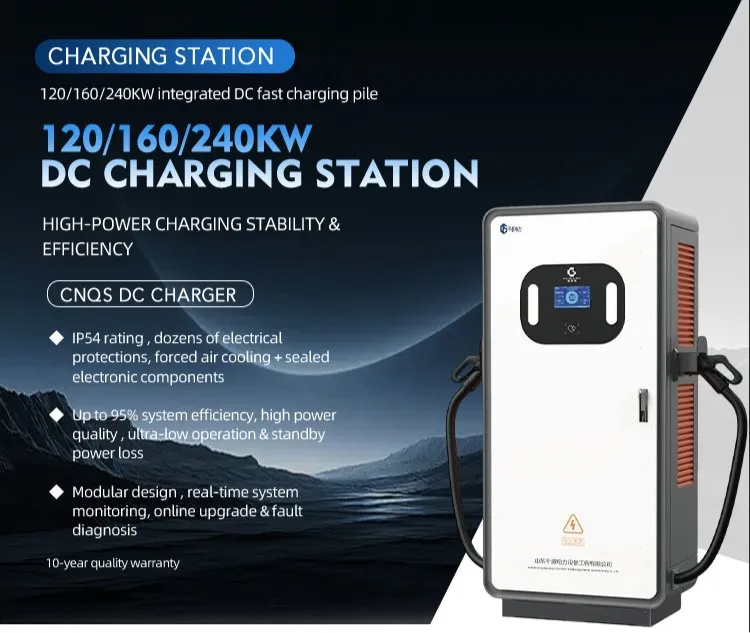

120KW-240KW DC Station
Model Highlights:
- 7KW AC: Global certifications (CE/UL/PSE/KC), 100% compliance rate, supports V2G protocols.
- 20KW-40KW DC: 80% replenishment in 30 mins, IP65 dustproof/waterproof, wide temperature adaptation (-30℃ to 60℃).

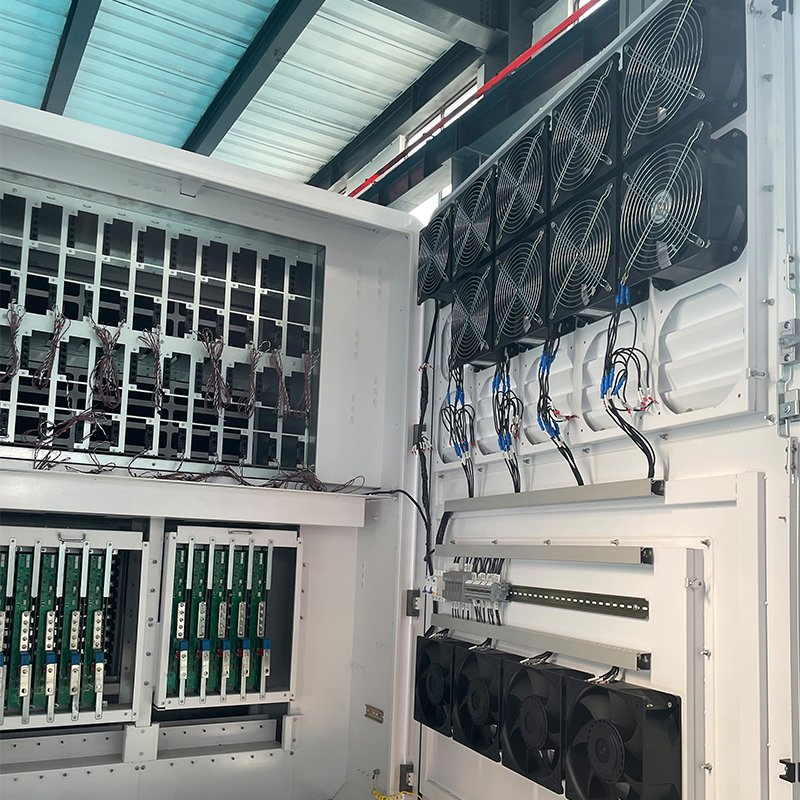

- 120-240KW DC: Dual-gun simultaneous charging, ultra-fast 15-minute 80% charge (240kW), modular maintenance.
⚙
Product Features & Details

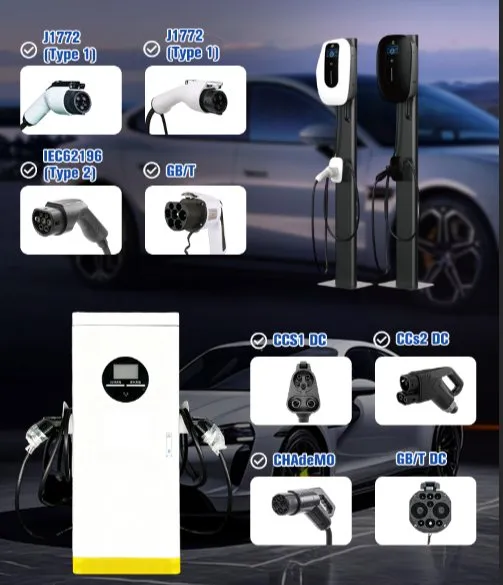

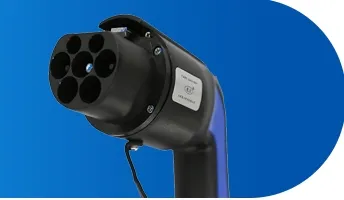

- Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

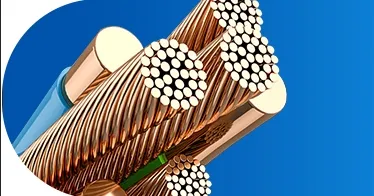

- Thickened high-temperature resistant special cables for outdoor durability.
- Customizable cable lengths with self-locking anti-drop connectors.
Package Type
Heavy-duty Wooden Box
Dimensions
120cm * 45cm * 155cm (Standard)

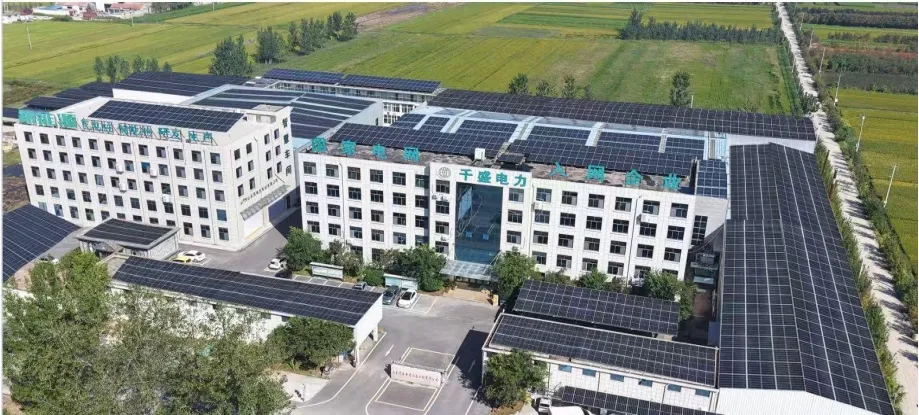

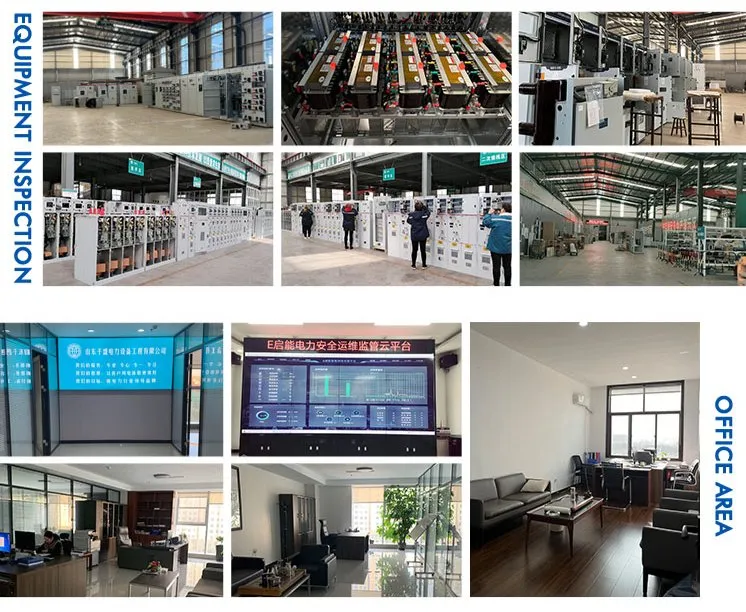

We are an experienced power equipment manufacturer with over 20 years of expertise, serving global markets with reliable power distribution and new energy solutions. Our facilities cover over 16,000 square meters, operating under ISO9001:2000, CCC, and CQC certifications. We specialize in standardized and customized solutions including transformers, energy storage, and EV charging systems.
?
Frequently Asked Questions
What situations are not covered by the warranty?
Warranty excludes human-induced damage, unauthorized disassembly, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events such as fire or earthquakes.
Is regular maintenance service provided?
Yes, we provide free annual inspections including safety testing, mechanical tightening, and software updates. Quarterly maintenance packages are also available for commercial operators to ensure 99% uptime.
Does the service comply with local data security regulations?
Our systems are fully compliant with EU GDPR and international security standards. Maintenance data is encrypted and stored locally to protect user privacy according to regional law.
Can the warranty period be extended?
Yes, we offer paid extensions: up to 2 additional years for residential models and 1-3 years for commercial chargers, covering the main unit and core power modules.
Is after-sales service universal across regions?
Our global service network covers Europe, America, Asia-Pacific, and the Middle East. Unified standard services are available locally using your equipment serial number and warranty certificate.
What is the typical lifespan of these charging piles?
With proper maintenance and regular software updates, our charging piles are designed for a service life of 8 to 10 years in diverse climatic environments.
