1HP, 2HP, 3HP, 5HP Solar Powered Submersible Deep Well Farm Use DC Solar Water Pump System

📋

Basic Information

Model NO.

pump

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Keywords

Solar Pump System

Name

96V 1kw Solar Pump Control Panel

System Type

Home Solar Power System

Theory

Centrifugal Pump

Origin

China

HS Code

8501610000

🚀

Product Description

DC AC Solar Pump system for Farm. High quality products designed for drinking water supply, livestock watering, and irrigation applications without pollution.

Solar Powered Submersible Deep Well Pump

MODEL	VOLTAGE (V)	RATE POWER (W)	MAX FLOW (m3/h)	MAX HEAD (M)	OUTLET (in)	DIAMETER (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-1.3-50	24	120	1.3	50	3/4"	76
JS3-1.8-80	24	210	1.8	80	3/4"	76
JS3-2.1-120	48	540	2.1	120	3/4"	76
JC3-3.2-115	72	1000	3.2	115	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JC4-10.0-45	72	1000	10	45	2"	100
JCS4-25-96	288	4000	25	96	2"	100
JCS6-50-45	288V	4000	50	45	4"	150
JQB-2.2-35	36	210	2.2	35	1"*1"	SURFACE

📊

30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1

🌍

Wide Applications

🌾 AGRICULTURAL IRRIGATION

🐄 ANIMAL HUSBANDRY

🏜️ DESERTIFICATION CONTROL

Solar pump systems are specially designed to use solar power directly. No grid infrastructure is required for site selection. Optional grid backup can meet day and night running requirements.

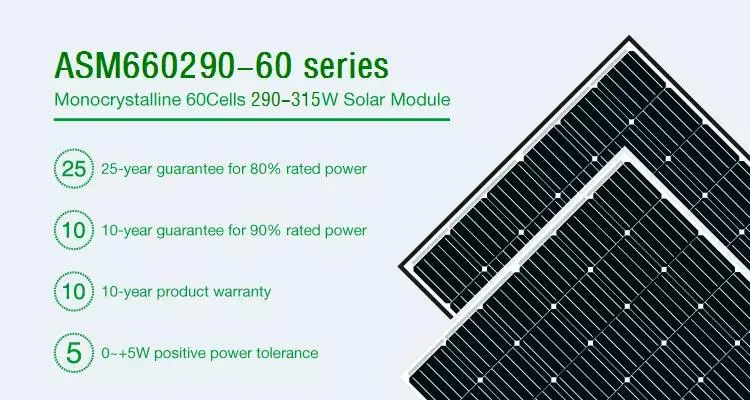

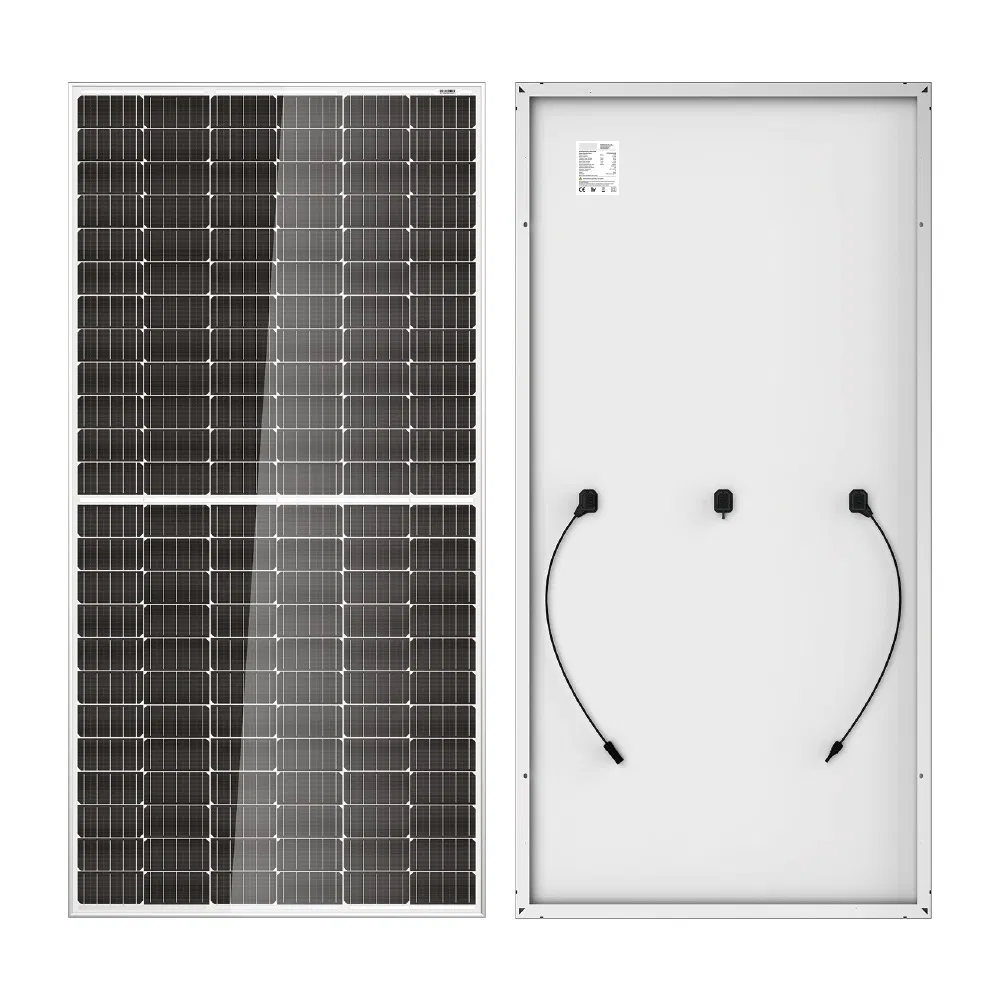

Mono Solar Panels

Peak Power Watts: 290W
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

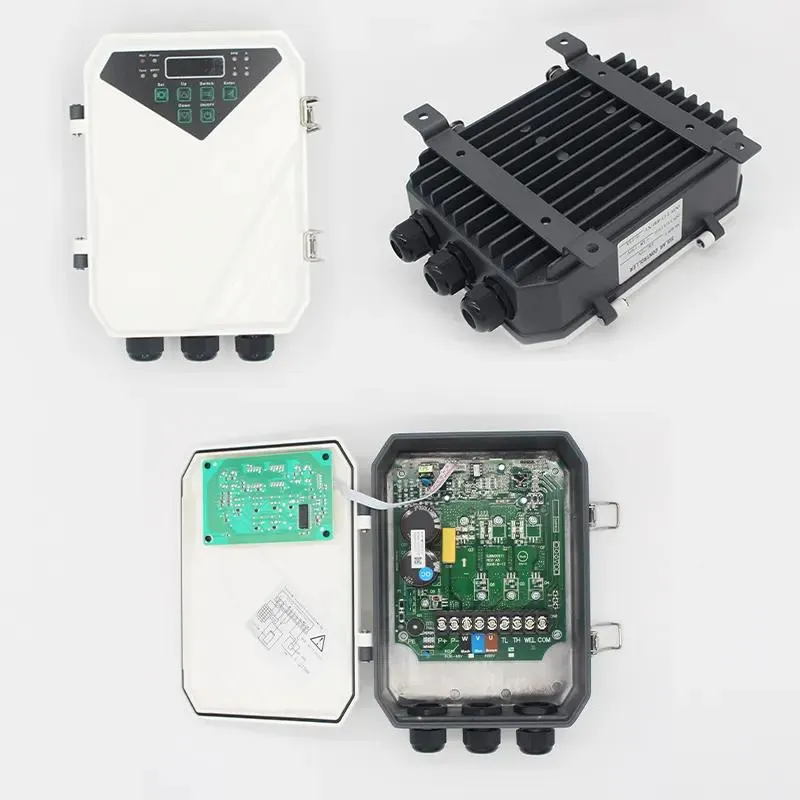

Pump Controller

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Warranty: 5-10 Years
Optional: Wifi, Lan & GPRS

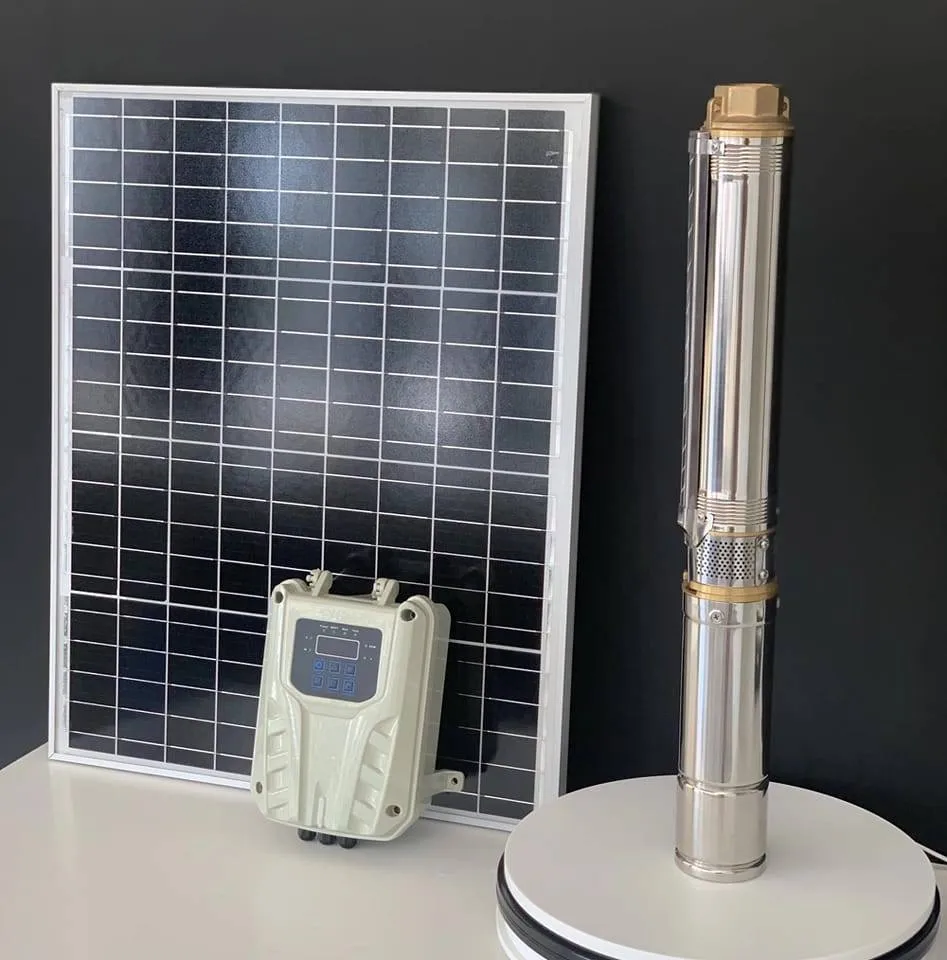

Submersible Deep Well Pump

Motor type: BLDC / AC-DC Option
Material: 304/316 Stainless Steel
Diameter: 1-6 inch
Impeller: Centrifugal or Helical
Horsepower: 0.3-5HP

🏗️

Projects & Packaging

❓

Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all are true pure sine wave output, which is just as good as the public power grid, ensuring long lifespan and protection for your appliances.

What appliances can your inverters load?

Our inverters can be used for household, office, and agricultural appliances, including inductive loads like refrigerators, air conditioners, and water pumps.

How do I choose the right inverter for my pump?

The general rule is: Power of solar panel = Power of pump X 1.3. Our technical team can recommend the specific model based on your daily water discharge requirements.

What's the difference between 12V, 24V, and 48V inverters?

This refers to the input voltage from the battery bank. Higher voltages allow for lower current, enabling the use of smaller wires between your solar array and battery bank.

What happens if a component is faulty?

If any product is faulty, you can provide pictures or video for analysis. We supply replacement parts like PCB boards for after-sale service.

Do I absolutely need a power inverter for a solar pump?

For standard AC pumps, yes. While you can run some DC systems directly, an inverter is required if you want to use normal AC appliances or manage power efficiently from a solar array.
