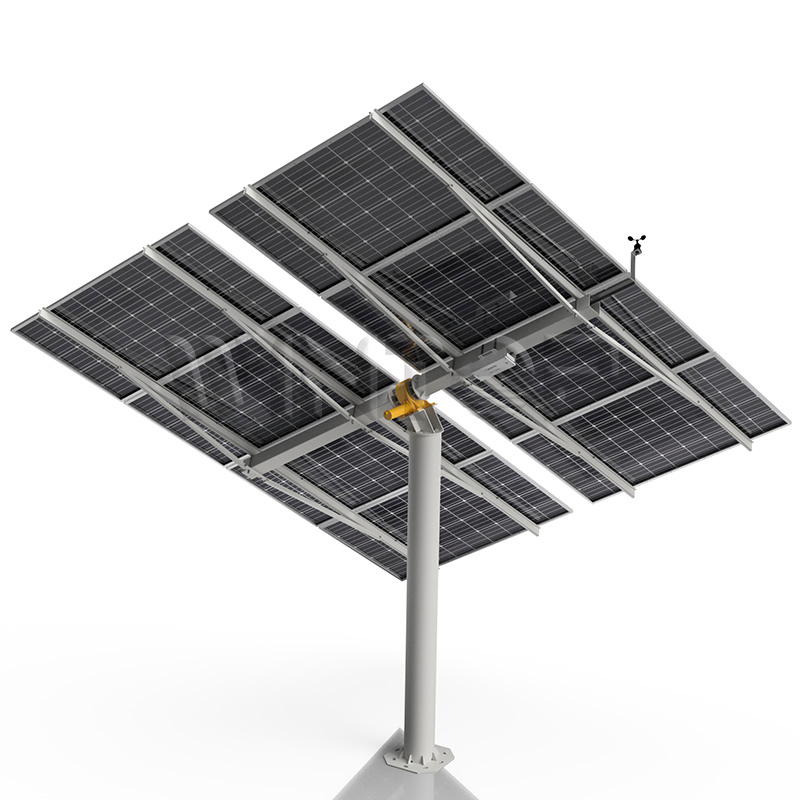

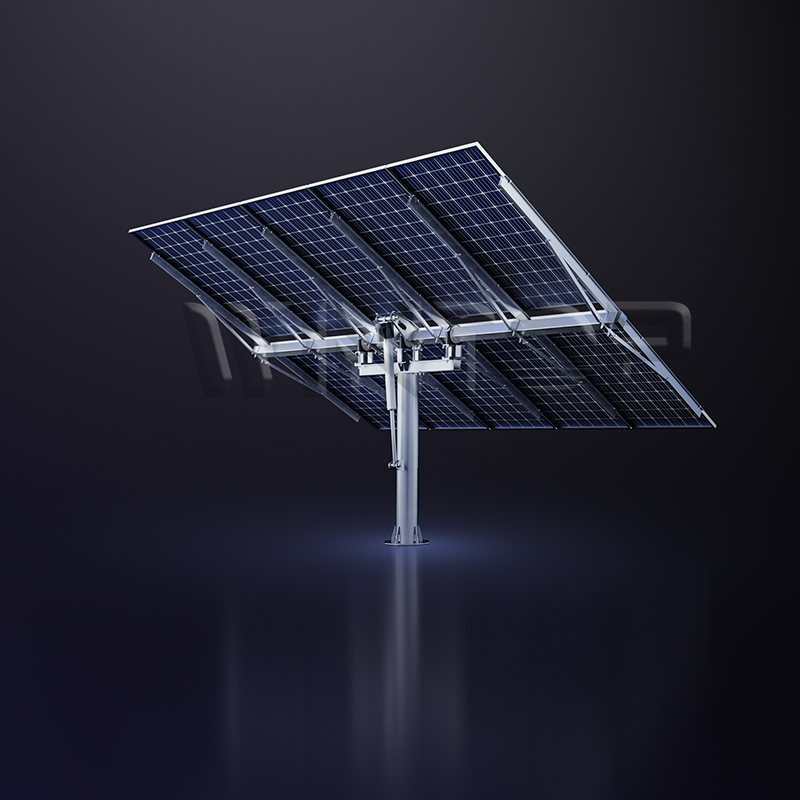

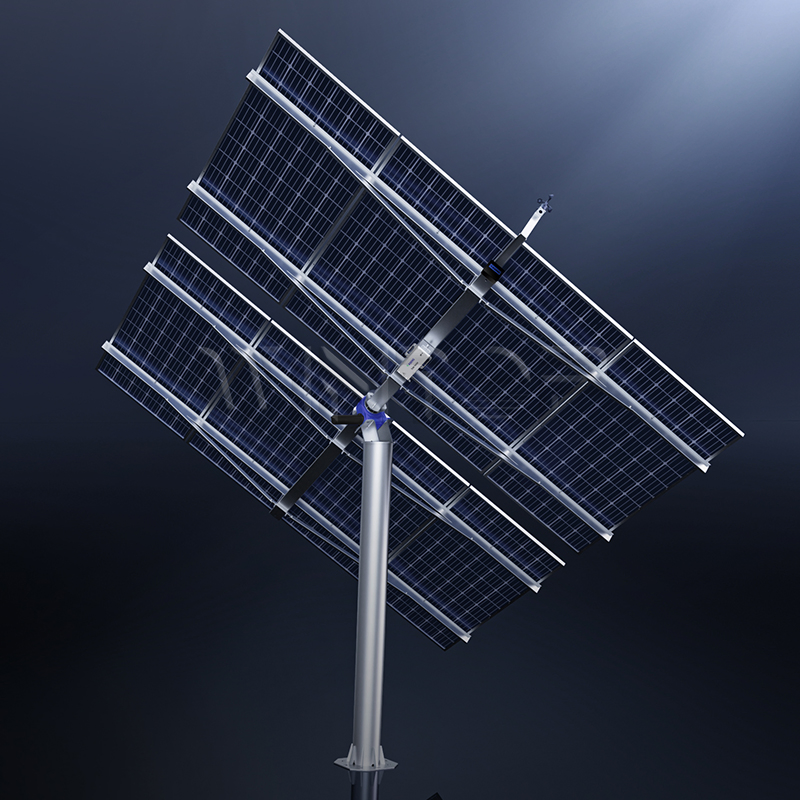

Single Axis Solar Tracker with Slew Drive
The solar tracking system is designed to optimize sunlight usage during solar thermal and photovoltaic power generation, significantly improving photoelectric conversion efficiency. This multi-drive double portrait horizontal single-axis tracker utilizes a multi-actuator drive mode, ensuring stability, reliability, and ease of operation for various large-scale solar power stations.

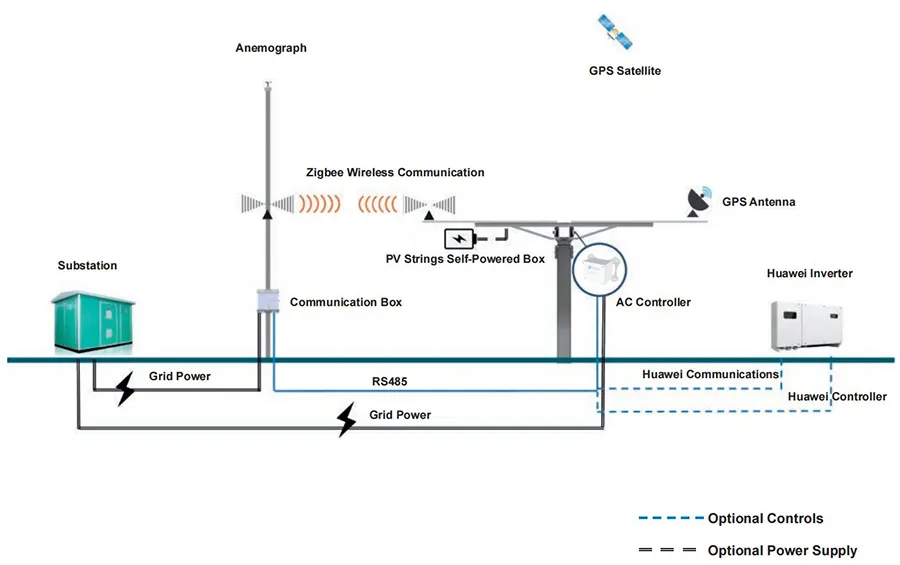

Electrical Principle
| PV-Modules & Structure | |
|---|---|
| PV-Modules Supported | Fully fit for 210 module |
| System Type | One portrait horizontal single-axis tracker |
| Max Capacity per Row | 72kWp (Estimated with 600W Modules) |
| Tracking Range / Accuracy | ±60° / ±1° |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |
| Electrical & Drive | |

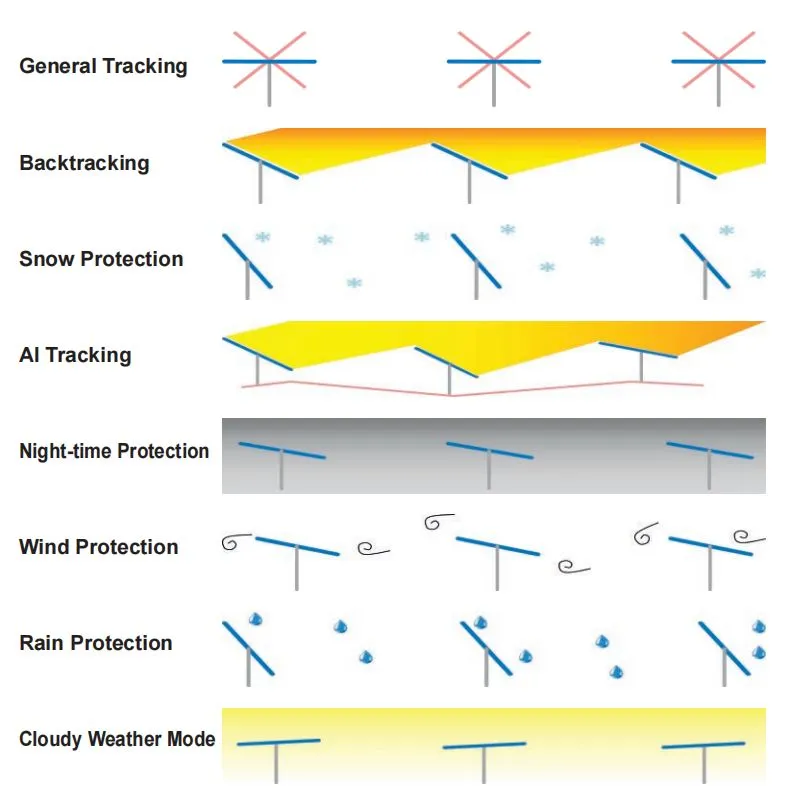

| Tracking Method | Astronomical algorithm + closed-loop control (AI) |
| Drive Method | Slew Drive / 24V DC Motor |
| Signal Transmission | Wire (RS485) or wireless (Zigbee) |
| Protection & Environment | |

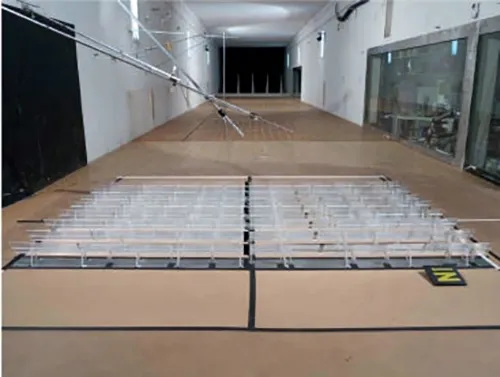

| Wind Protection | ≥18m/s |
| Operating Temp | -30°C ~ +60°C |

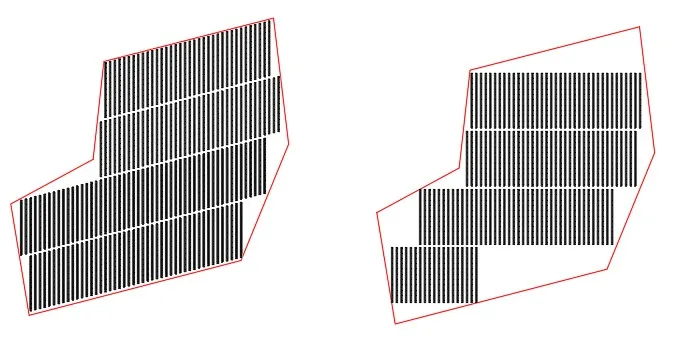

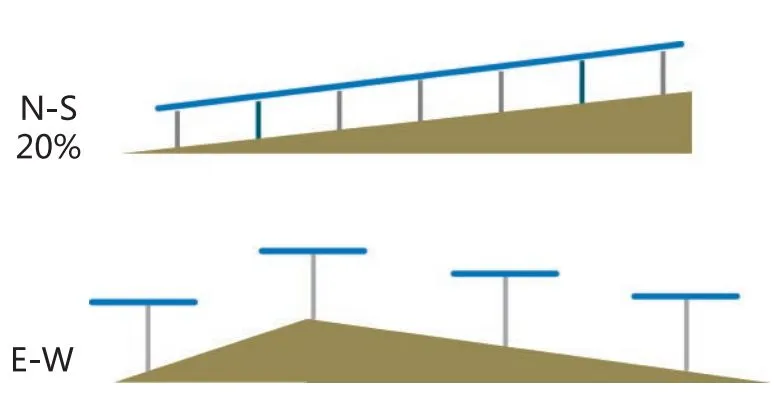

| Slope Tolerance | North-south 10%~20%, East-west no limits |

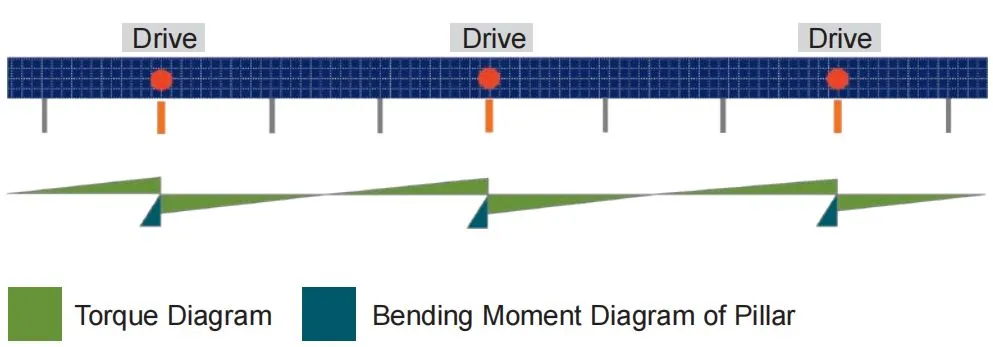

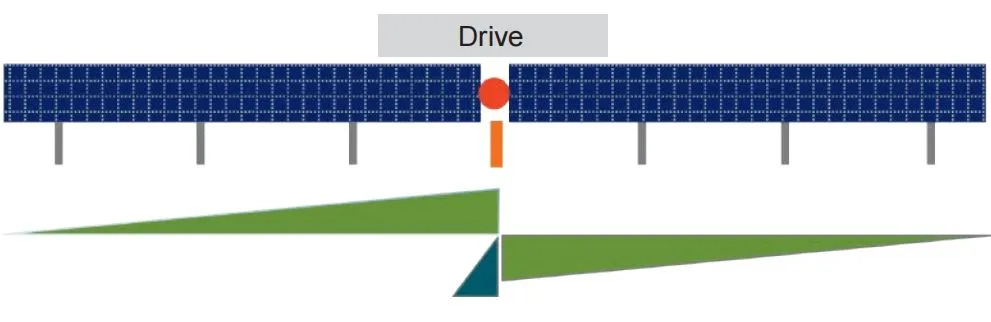

Our Multi-drive tracking system offers significantly improved stability compared to traditional systems:
