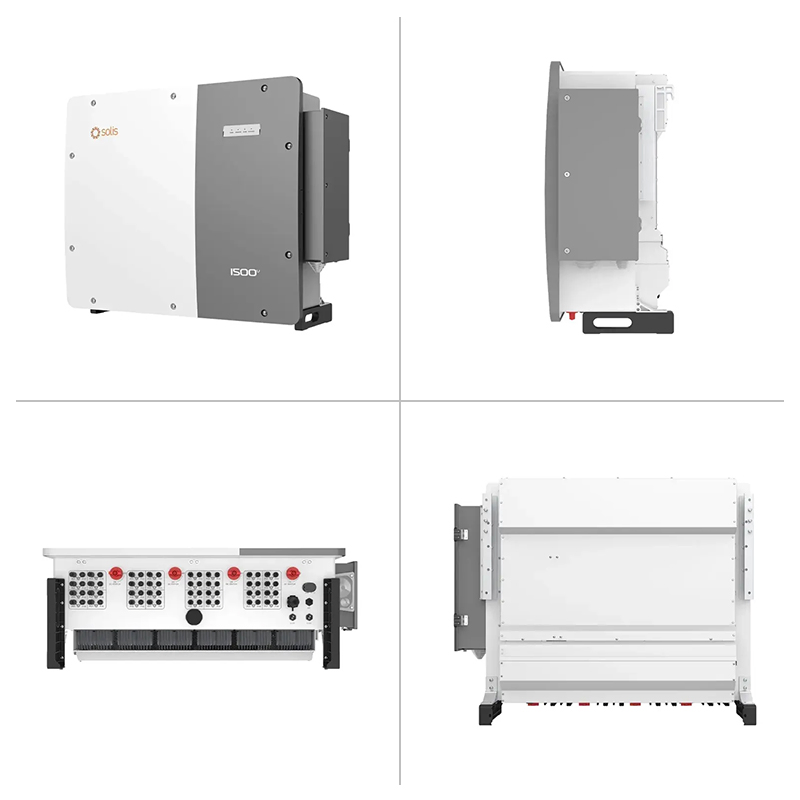

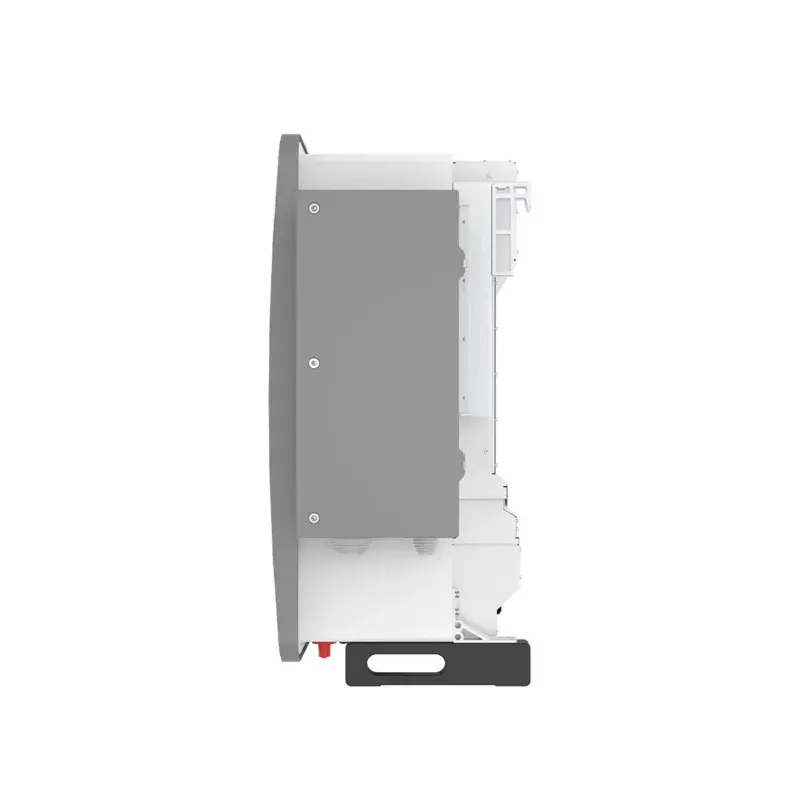

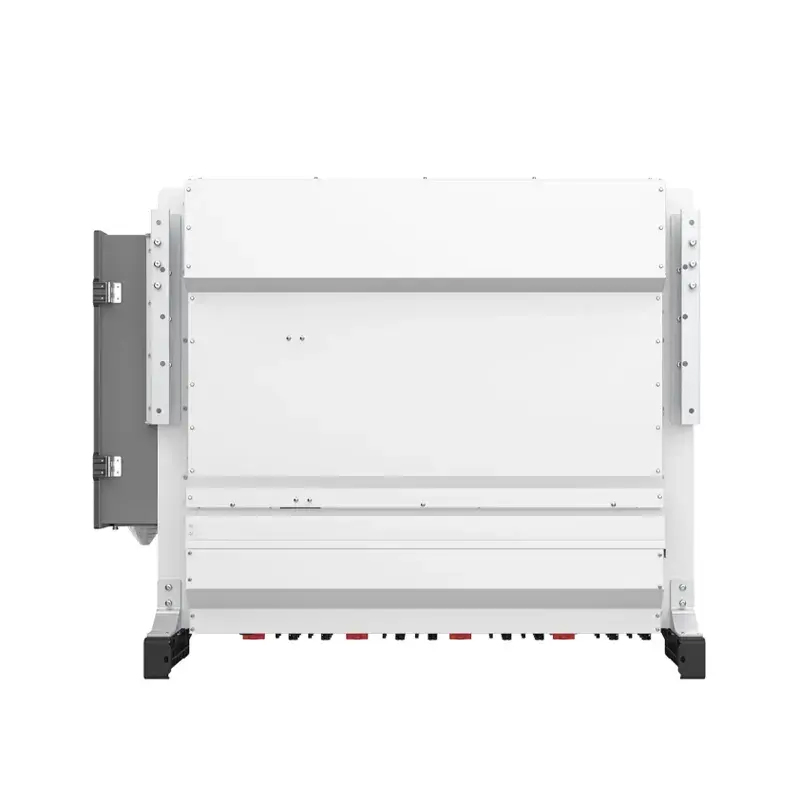

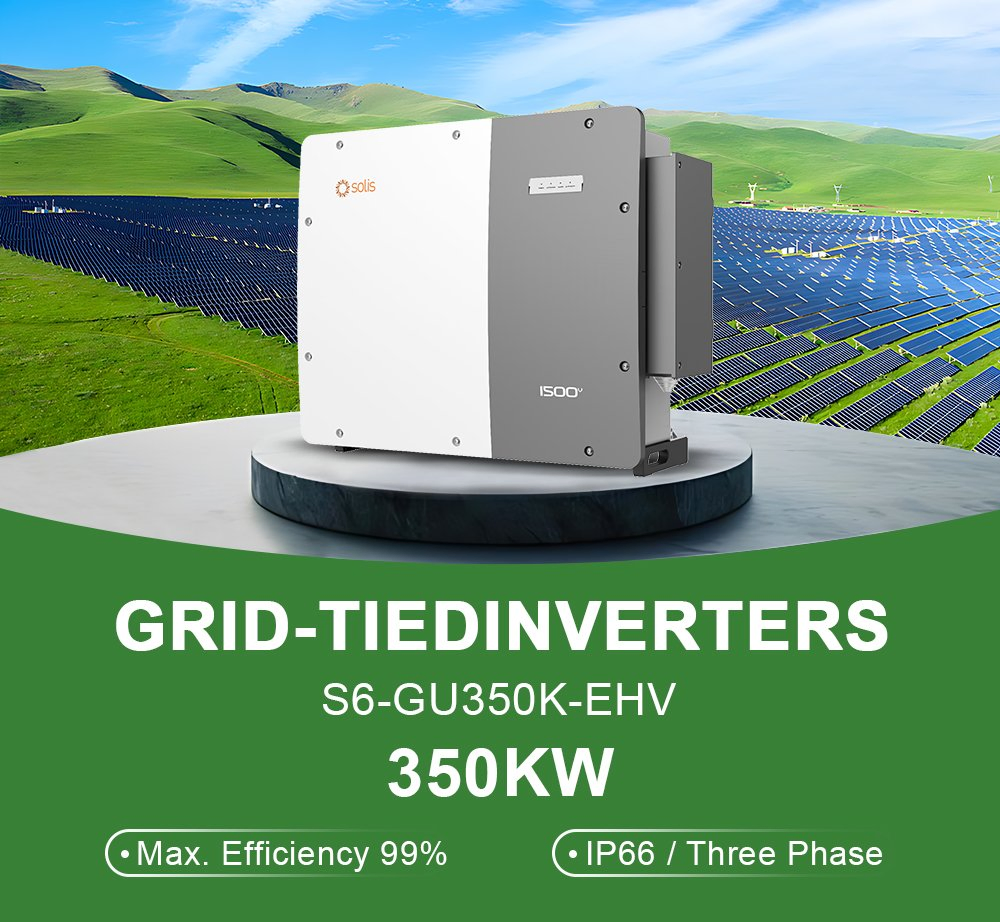

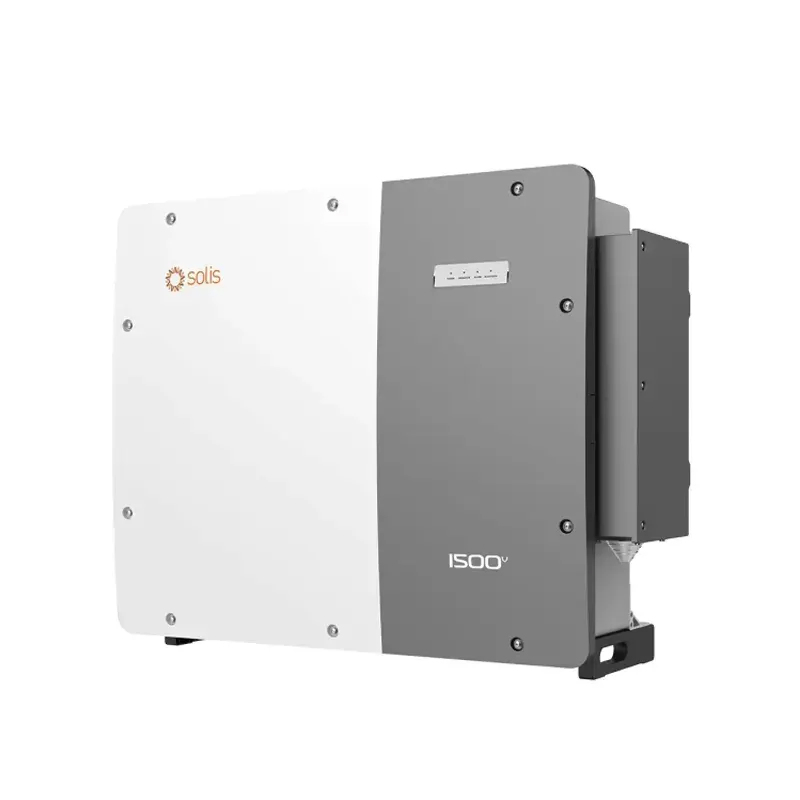

Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
1 / 5
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems

Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

📊

Basic Information

Model NO.
S6-GU350K-EHV
Nature of Source
Active Inverter
Phase
Three
Output Power
350kw
Certification
CE, TUV
Brand
Solis
Type
DC/AC Inverters
Power Source
Solar Power
Efficiency
99.0%
Input Voltage
1080VDC
Output Frequency
50 Hz/60 Hz
Application
Commercial & Utility-Scale
🔍

Product Description

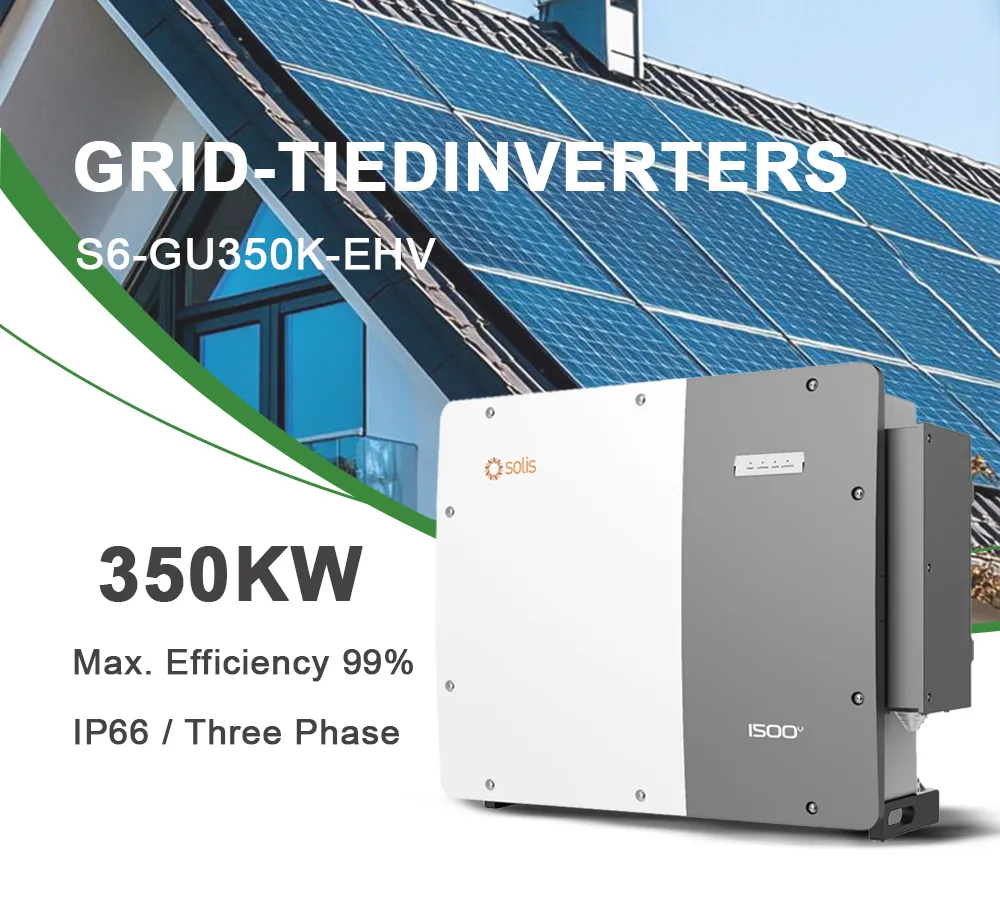

Solis Solar Inverter 350kw

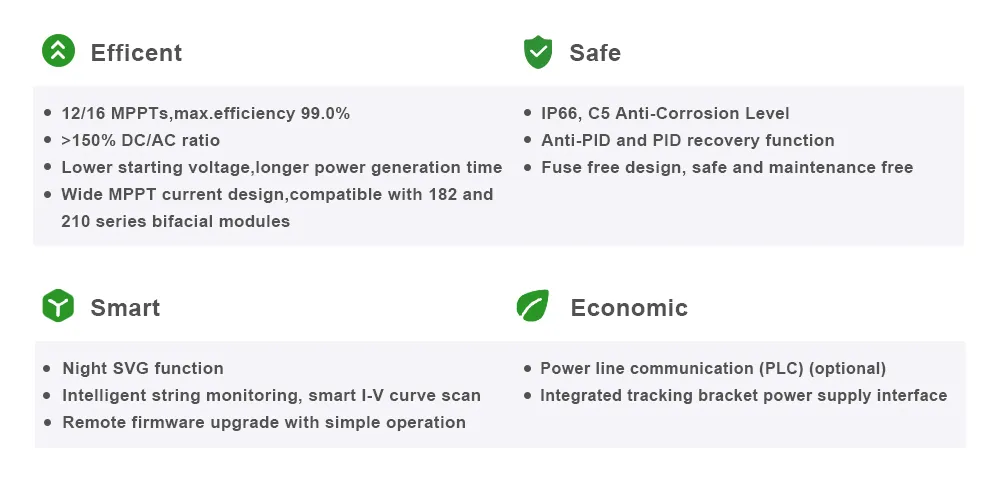

Product Parameters Overview
📋

Technical Parameters

Parameter Item 350K-M12 350K-M16
Max. input voltage1500 V
Rated voltage1080 V
MPPT voltage range480 - 1500 V
Max. input current12 × 40 A16 × 30 A
MPPT number1216
Rated output power350 kW
Rated grid voltage3/PE, 800 V
Max. efficiency99.0%
Ingress protectionIP66
Dimensions (W×H×D)1175 × 945.5 × 446 mm
⚙️

System Workflow

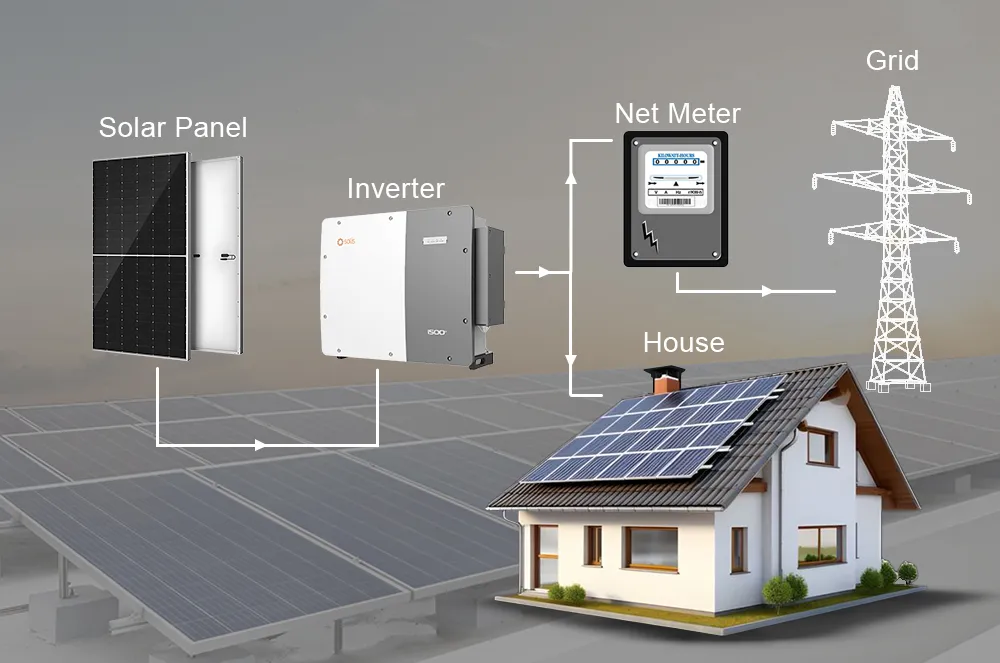

How it works
🏗️

Project Case

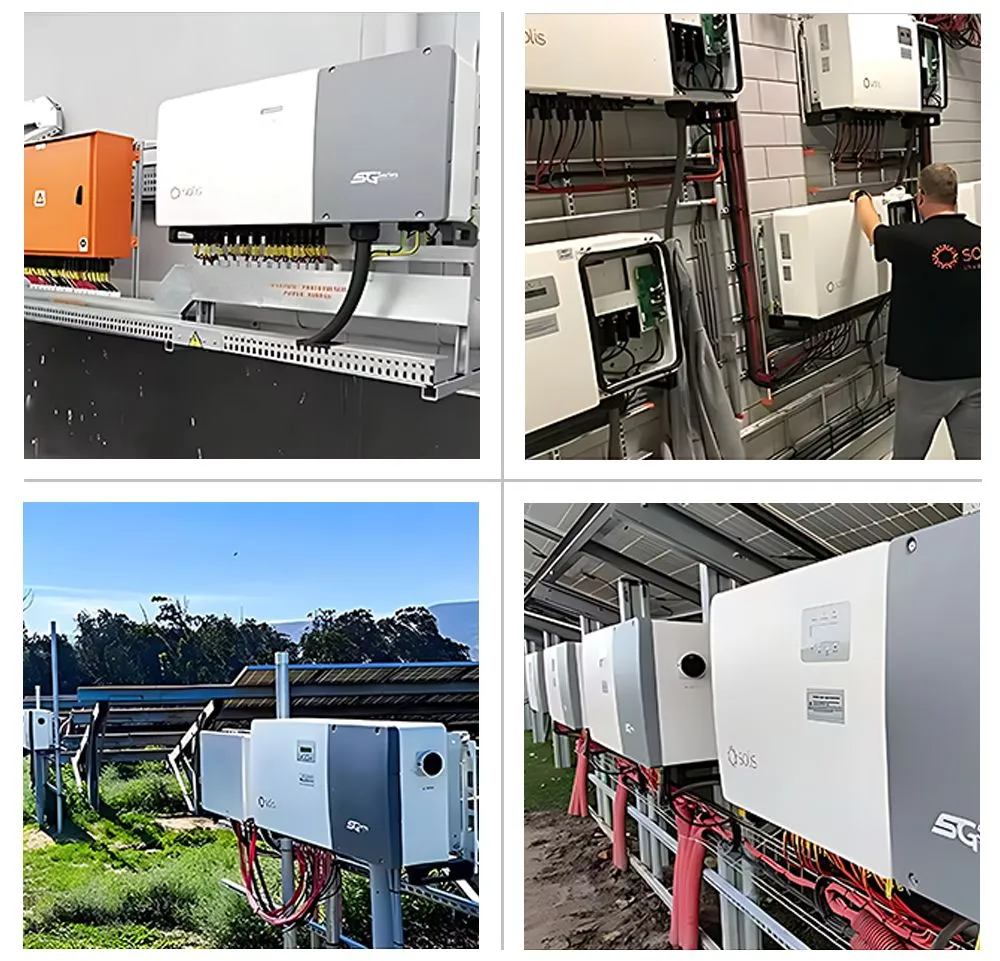

Project Case Display
📦

Packaging & Shipping

Packaging 1
Packaging 2
🏭

Production & Certifications

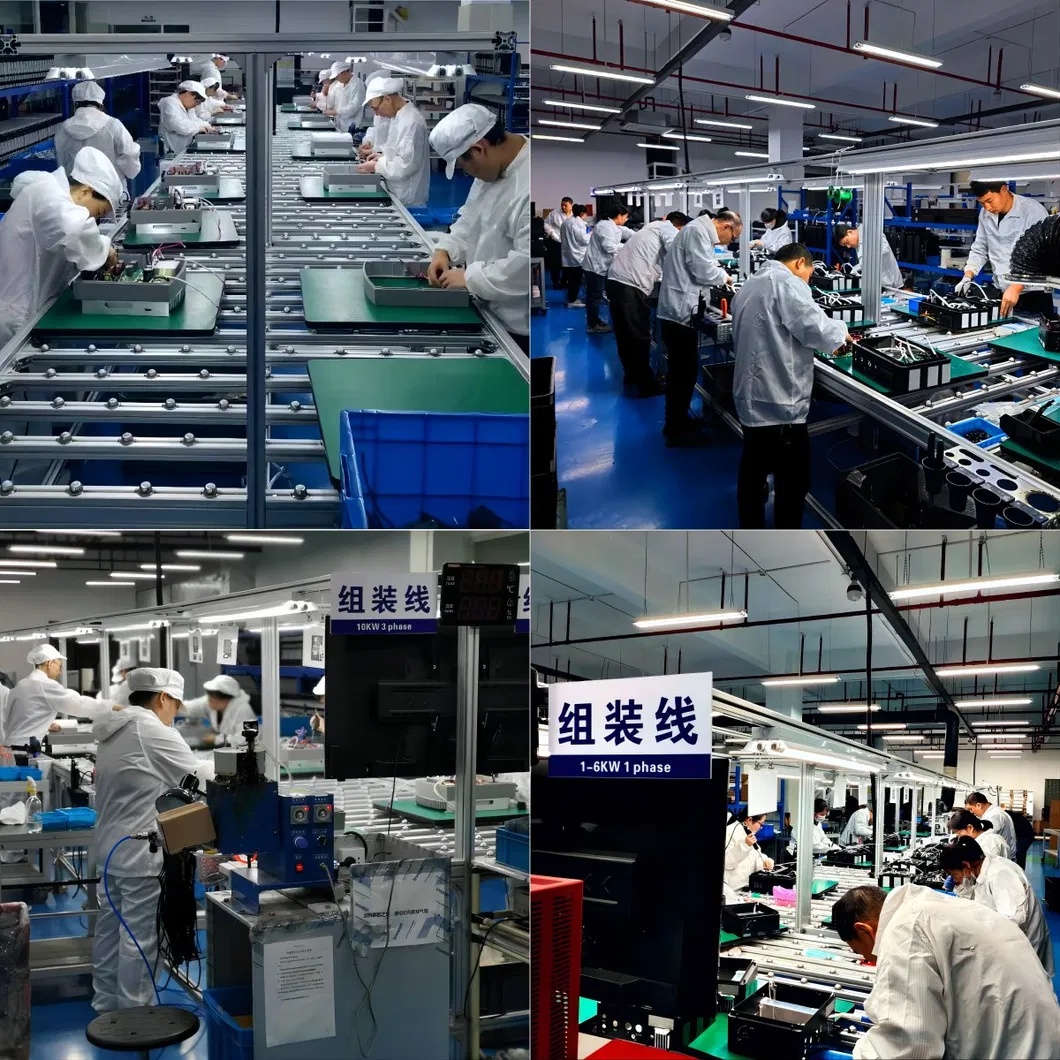

Production Process
Certifications
Factory Environment
❓

Frequently Asked Questions

Q: What is the maximum efficiency of the 350kW inverter?
A: The inverter reaches a maximum efficiency of 99.0%, with an EU efficiency of 98.7%, ensuring minimal energy loss.
Q: What is the protection rating for outdoor installation?
A: It features an IP66 ingress protection rating, making it highly resistant to dust and high-pressure water jets, ideal for harsh environments.
Q: Does the system support night-time SVG functions?
A: Yes, the inverter includes an integrated night-time SVG (Static Var Generator) function to improve power quality.
Q: What is the MPPT configuration for the 350K model?
A: Depending on the model (M12 or M16), it offers 12 or 16 MPPTs with multiple input strings to optimize solar harvest from different angles.
Q: What are the main certifications for this product?
A: The product is certified by CE, TUV, and complies with standards such as EN50549, AS4777.2, IEC62109, and more.
Q: How is the cooling system designed?
A: It utilizes an intelligent fan-cooling concept to maintain optimal operating temperatures even in high ambient conditions up to 60°C.
