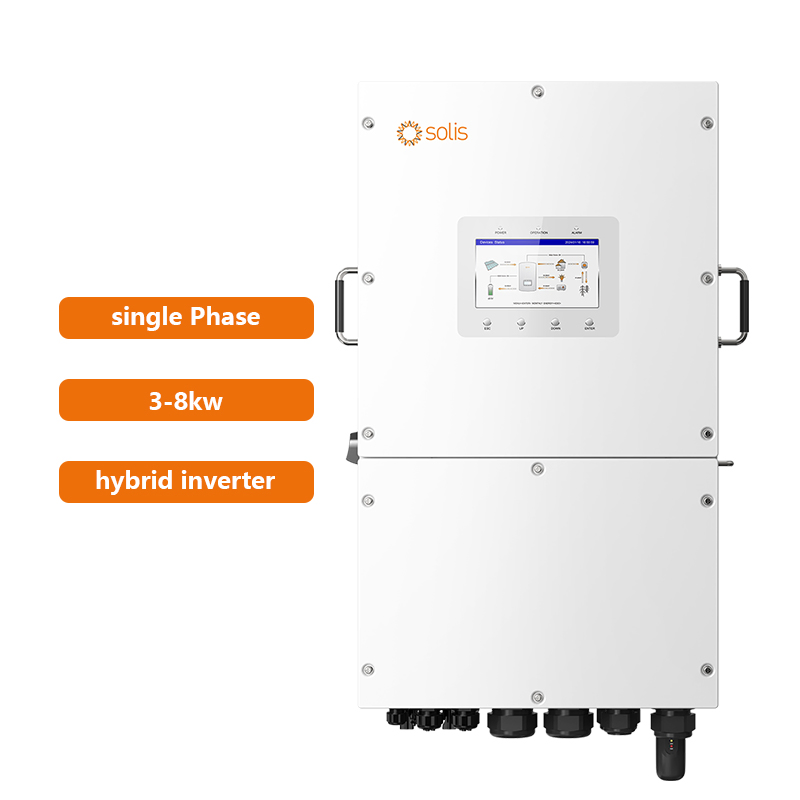

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
S6-EH1P(3-8)K-L-PLUS
Nature of Source
Active Inverter
Phase
Single
Output Power
3-8kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Input Voltage
500V
Output Voltage
220V/230V
Communication
RS485, Can, Optional: Wi-Fi, GPRS, LAN
Protection
IP66
Battery Type
Lead Acid / Lithium
Dimensions
335 * 560 * 227 mm
Product Description
Hybrid Solar Inverter S6-EH1P(3-8)K-L-PLUS
Single Phase Low Voltage Energy Storage Inverter available in 3kw, 3.6kw, 5kw, 6kw, and 8kw variants.
Hybrid Inverter Overview

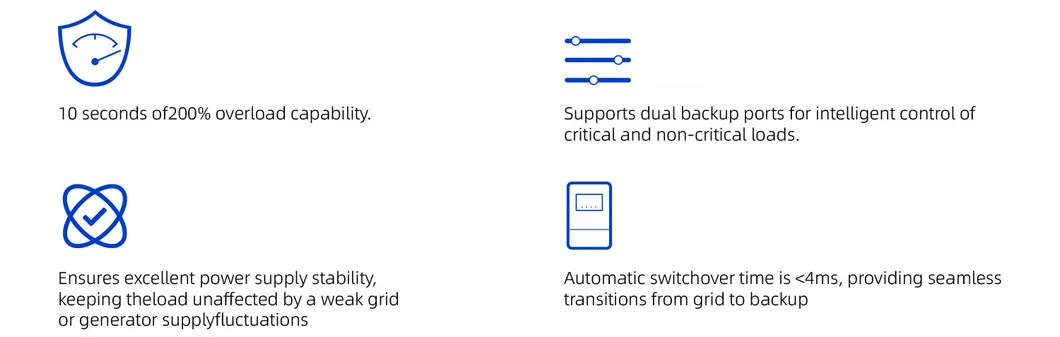

Inverter Features
Technical Parameters
Models 3K 3.6K 5K 6K 8K
Input DC (PV side)
Max. PV array size 6 kW 7.2 kW 10 kW 12 kW 16 kW
Max. input voltage 500 V
MPPT voltage range 90-435 V
Battery
Battery type Li-ion / Lead-acid
Max. charge/discharge power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Output AC (Grid side)
Rated output power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Rated grid voltage 220 V / 230 V
Efficiency
Max. efficiency 97.5%
EU efficiency 96.5%

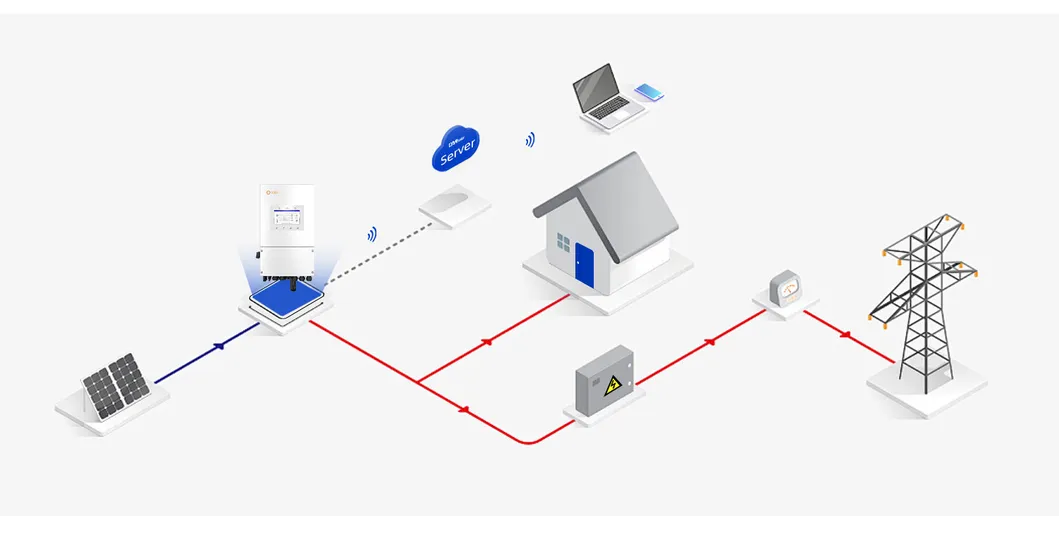

Basic System Architecture
System Architecture
Packaging & Shipping

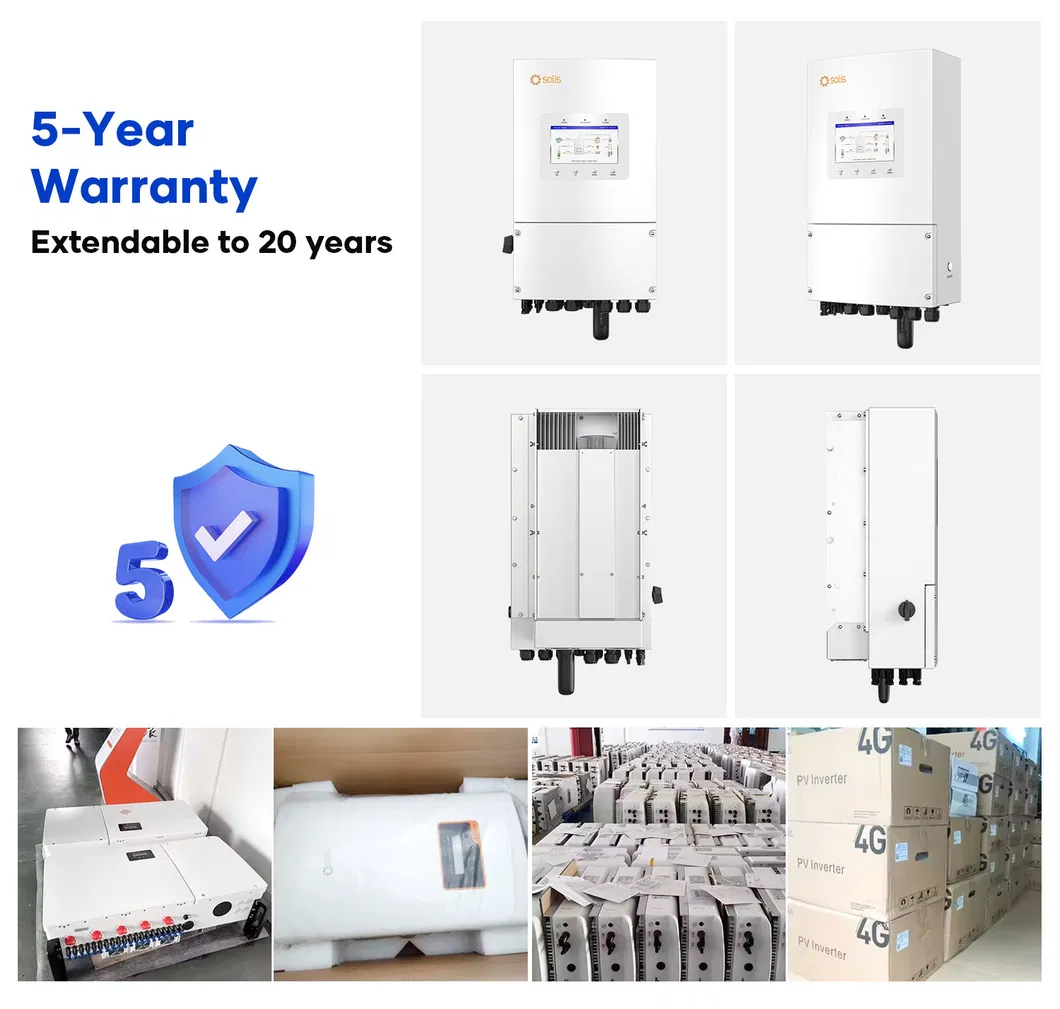

Packaging Details
Project Cases

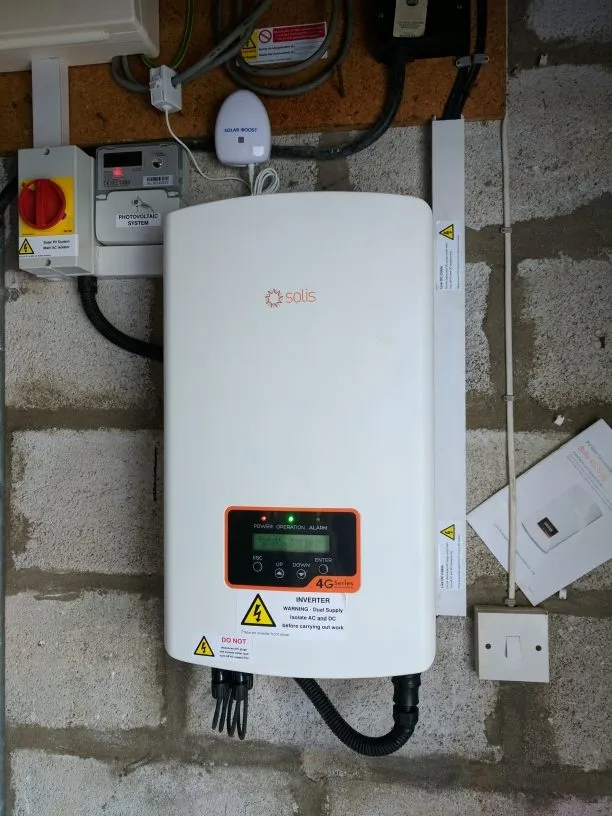

Project Case 1

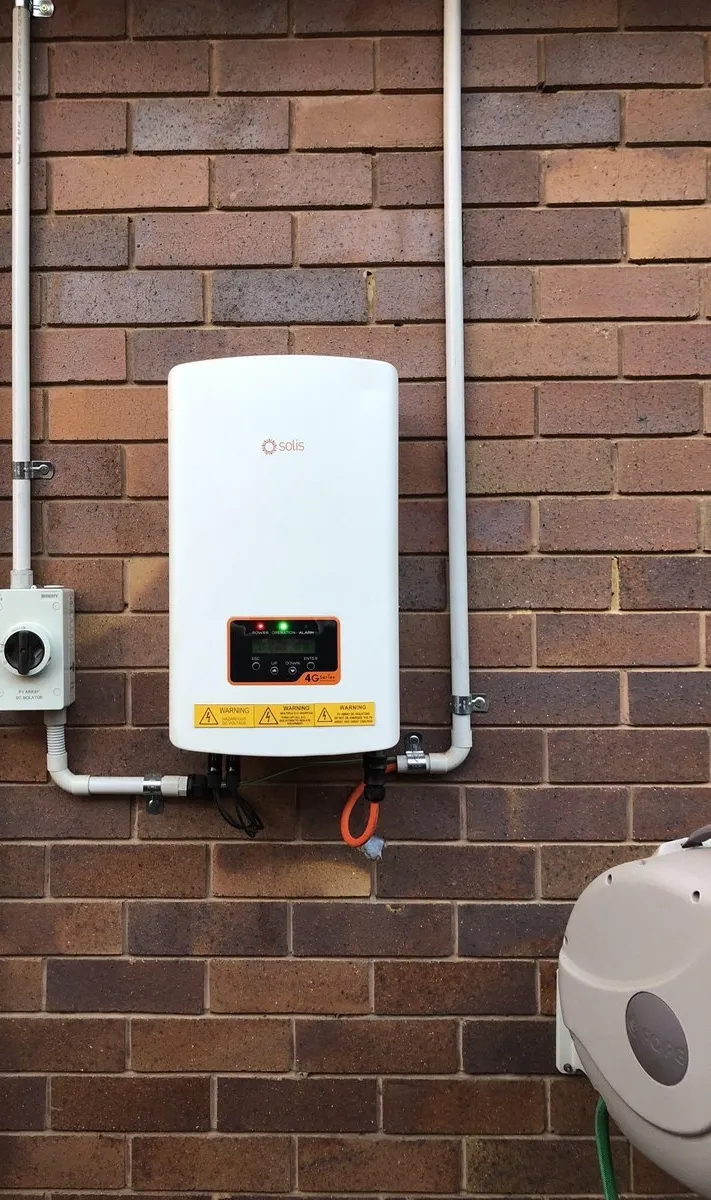

Project Case 2

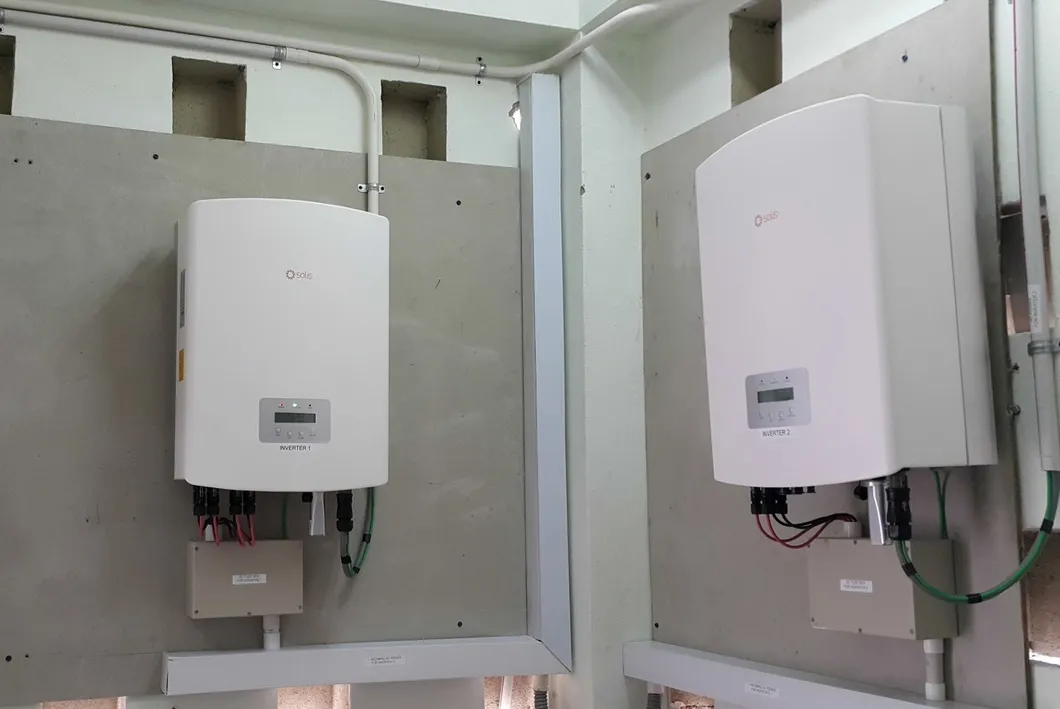

Project Case 3

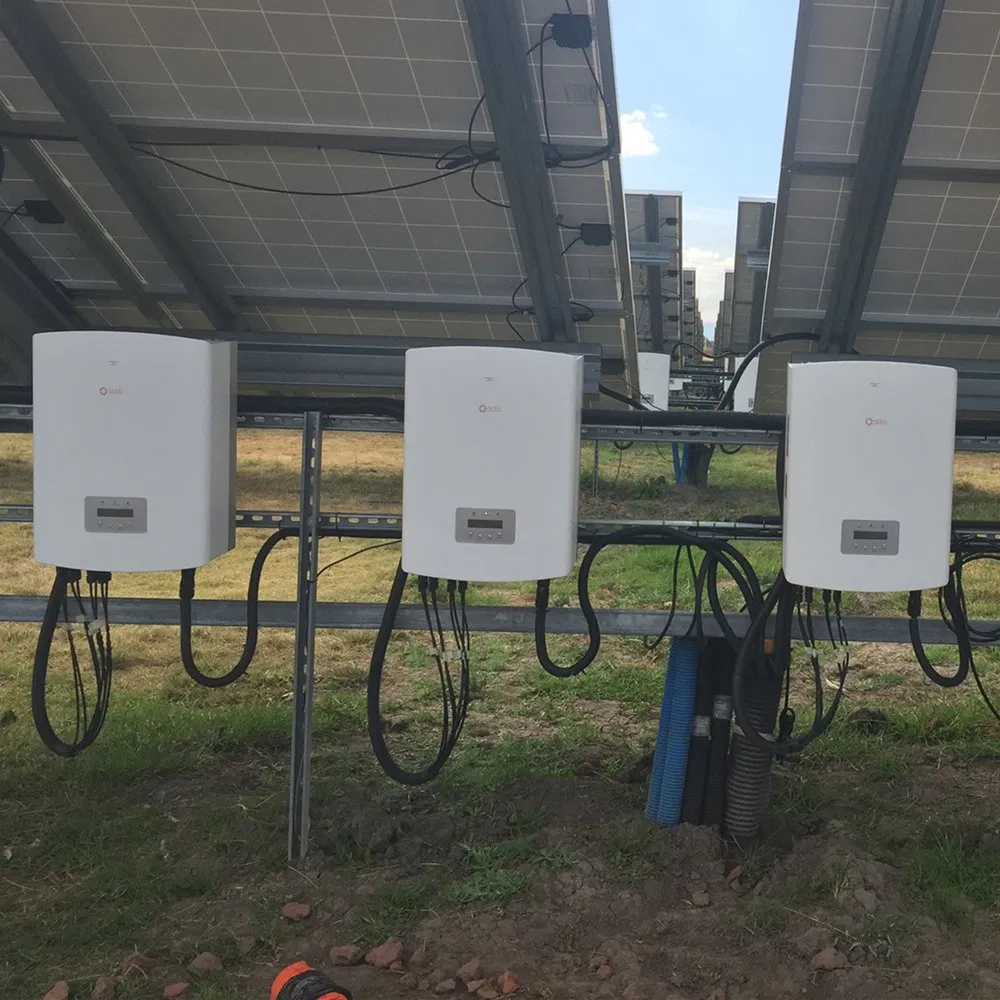

Project Case 4

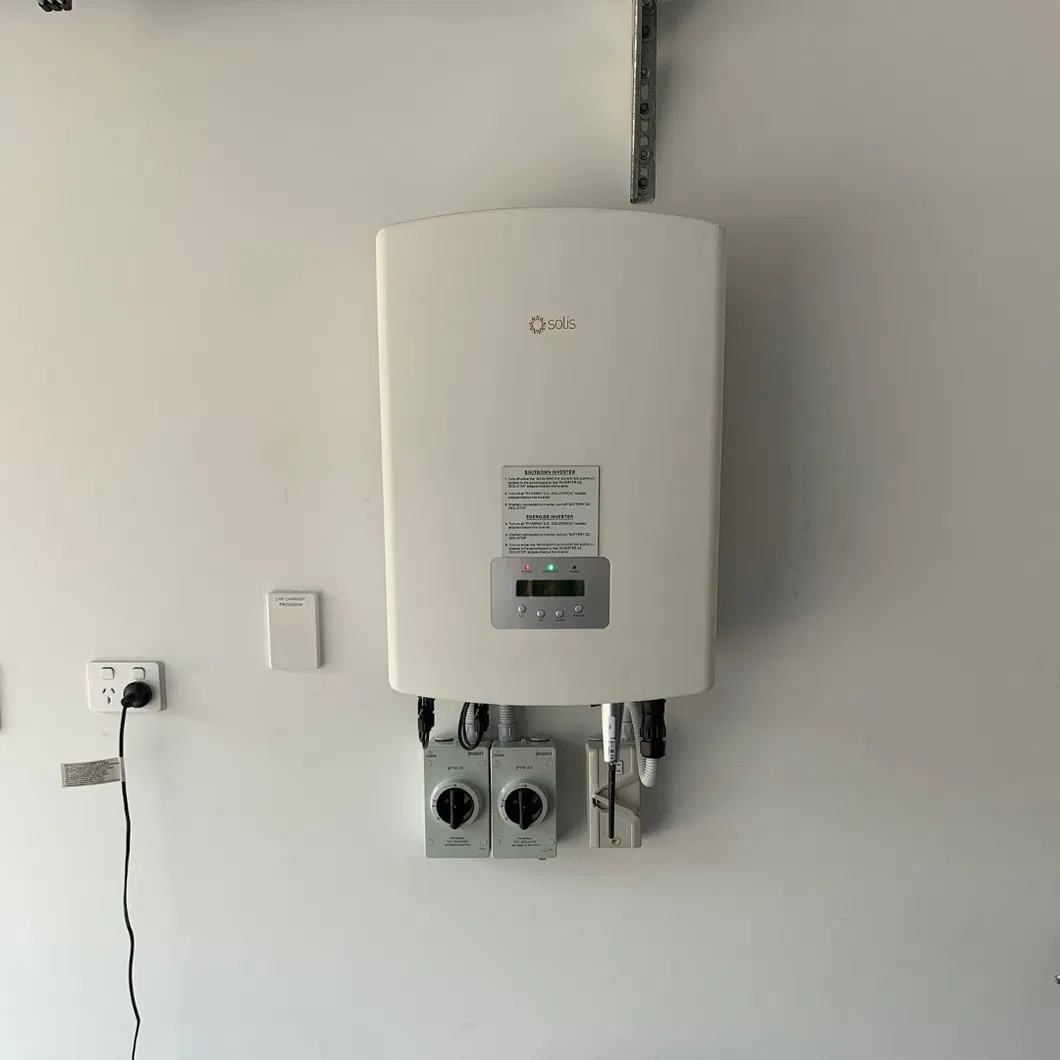

Project Case 5
Frequently Asked Questions
What battery types are compatible with this hybrid inverter?
The S6-EH1P series is compatible with both Lithium-ion and Lead-acid batteries, providing flexibility for different energy storage needs.
What is the maximum efficiency of the system?
The inverter achieves a maximum efficiency of 97.5%, with an EU efficiency rating of 96.5%, ensuring minimal energy loss during conversion.
How fast does the inverter switch to back-up power during an outage?
The back-up switch time is less than 4ms, providing an almost instantaneous transition to ensure your critical loads remain powered.
Is the inverter suitable for outdoor installation?
Yes, the inverter features an IP66 ingress protection rating, making it highly resistant to dust and powerful water jets, suitable for various environmental conditions.
What monitoring options are available?
The system supports RS485 and CAN communication as standard. Optional modules are available for Wi-Fi, GPRS, and LAN connectivity, allowing for remote monitoring via App.
What is the operating temperature range?
The inverter is designed to operate reliably in a wide temperature range from -40°C to +60°C.
