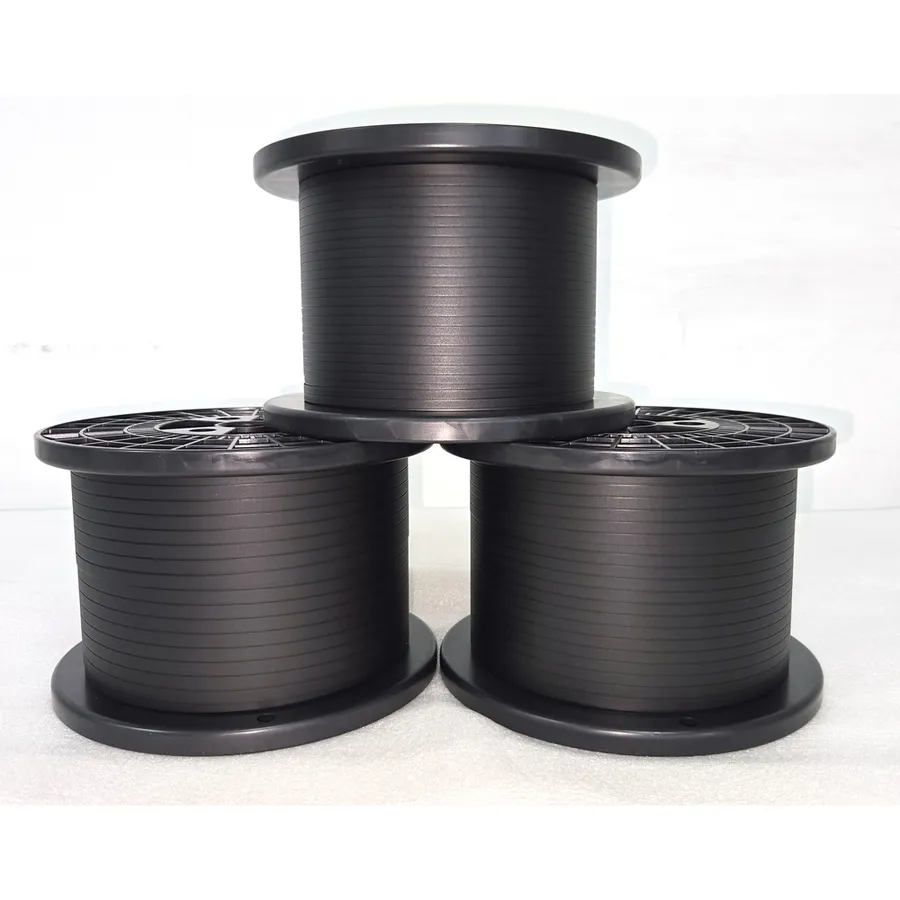

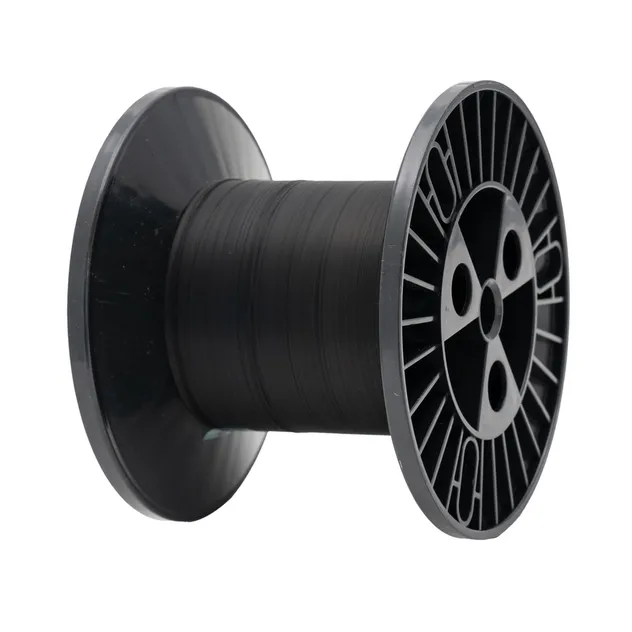

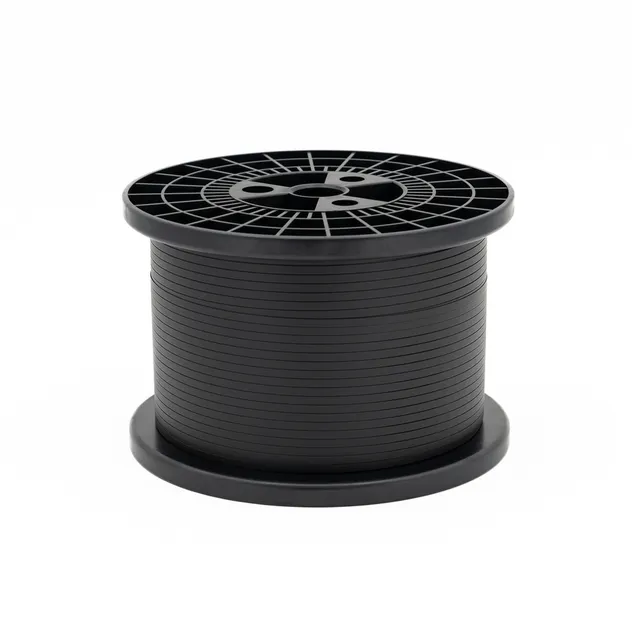

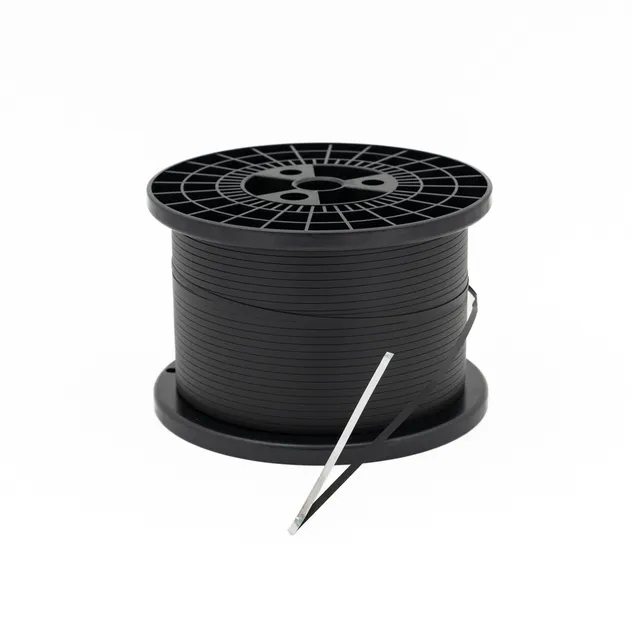

This critical photovoltaic module component connects solar cells. Crafted with a special black material, it offers a uniform, aesthetically pleasing look over traditional ribbons. Typically composed of a conductor and insulating layer, the high-purity copper conductor ensures optimal conductivity while the insulating layer safeguards against leakage. The black insulation not only excels in insulation but also enhances the module's all-black design.

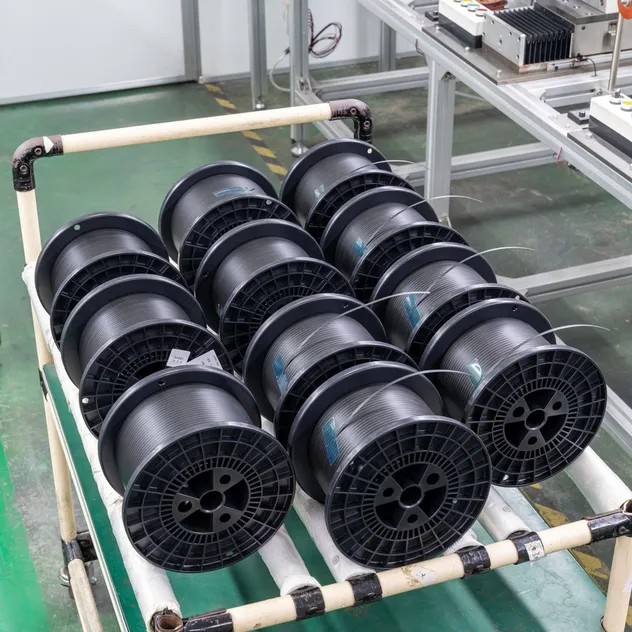

The all-black appearance of black PV busbars is ideal for building-integrated photovoltaics (BIPV), seamlessly blending with architectural styles.

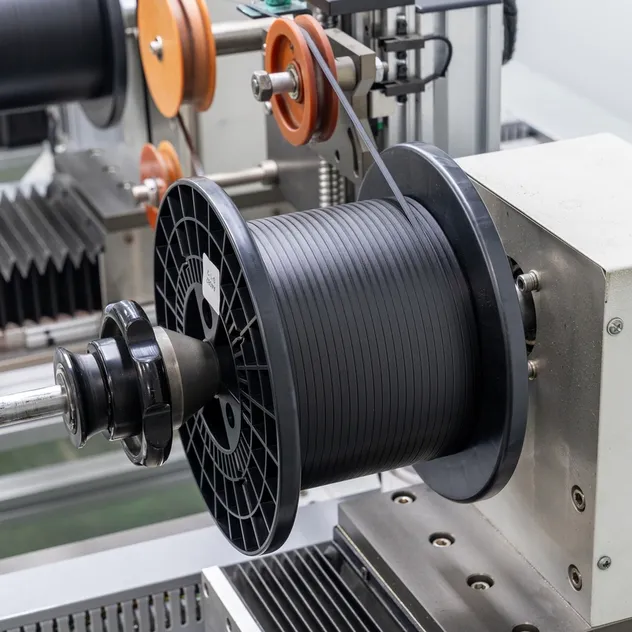

Ensures superior electrical conductivity, efficiently conducting solar cell currents and minimizing energy loss.

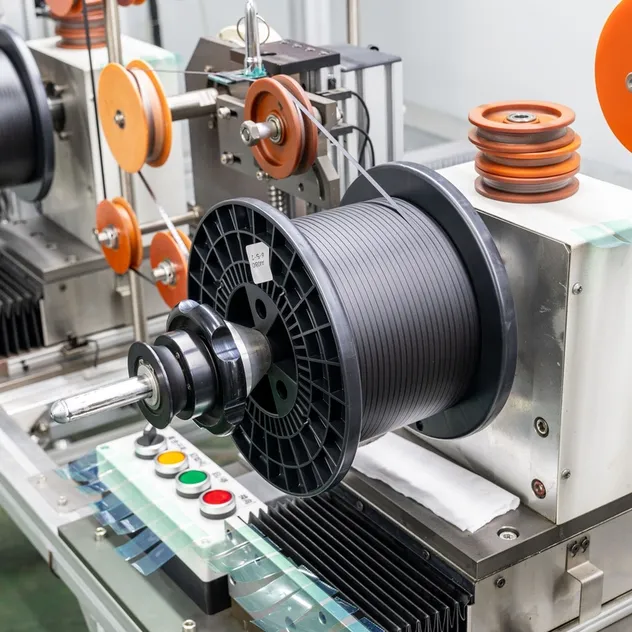

Specially treated for UV, moisture, and corrosion resistance, ensuring long-term stability in harsh environments.
| Core Specifications | |
|---|---|
| Material Grade | TU1 |
| Composition | Cu ≥ 99.97% |
| 20°C Resistivity | ≤ 0.01725 Ω.mm2/m |
| Elongation | ≥ 25% |
| Bending Strength | ≤ 4.0mm/m |
| Tensile Strength | ≥ 170Mpa |
| Yield Strength | 75-125Mpa |
| Material | Cu + Sn + Pb |
| Product Name | Available Sizes (mm) | ||||
|---|---|---|---|---|---|
| PV Black Ribbon | 0.15 * 4 | 0.2 * 4 | 0.25 * 4 | 0.3 * 4 | 0.35 * 4 |
| 0.15 * 5 | 0.2 * 5 | 0.25 * 5 | 0.3 * 5 | 0.35 * 5 | |
| 0.15 * 6 | 0.2 * 6 | 0.25 * 6 | 0.3 * 6 | 0.35 * 6 | |
| 0.15 * 7 | 0.2 * 7 | 0.25 * 7 | 0.3 * 7 | 0.35 * 7 | |
| 0.15 * 8 | 0.2 * 8 | 0.25 * 8 | 0.3 * 8 | 0.35 * 8 | |
BIPV Integration: Black busbar ribbons allow modules to seamlessly integrate into buildings, becoming part of roofs and walls.
Landscape Projects: Ideal for parks and scenic areas where environmental harmony is prioritized.
Market Differentiation: Provides a distinct pure black look, creating a visible advantage in a crowded market.
Green Building: Enhances compatibility with sustainable architectural concepts and energy conservation.
