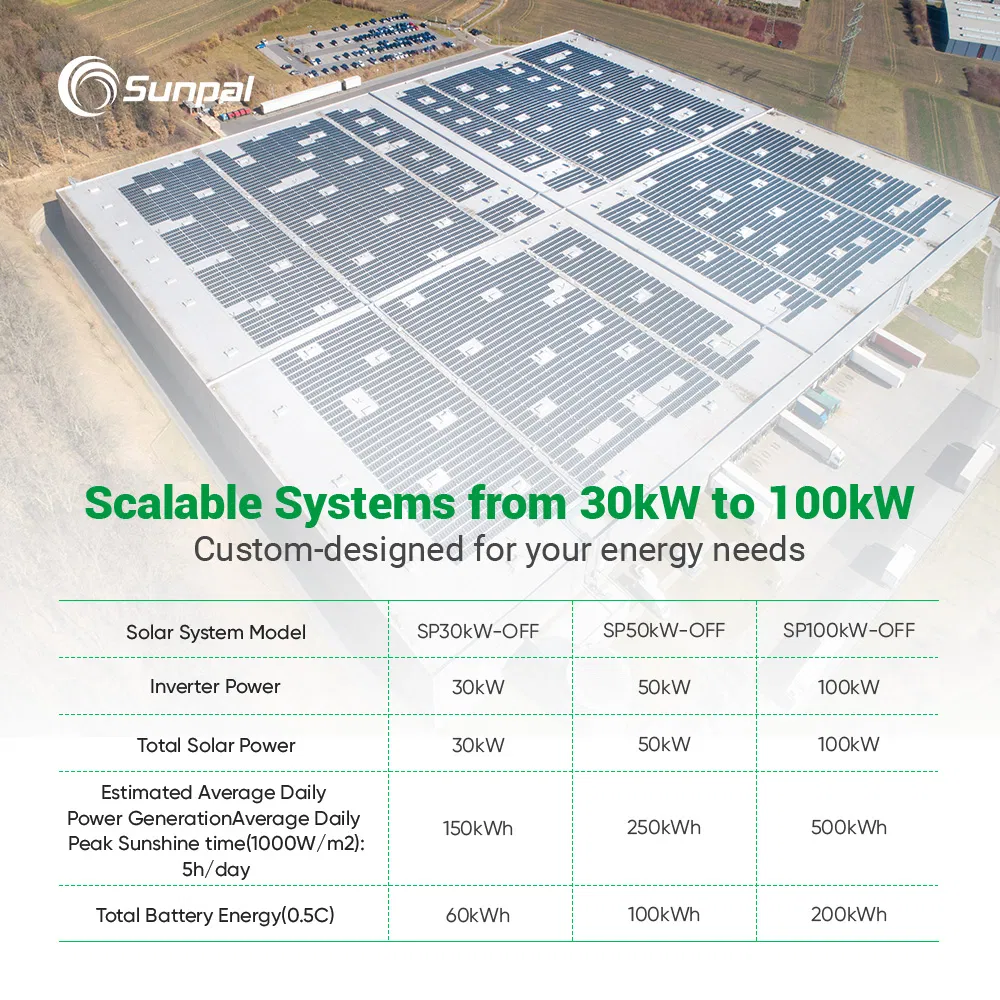

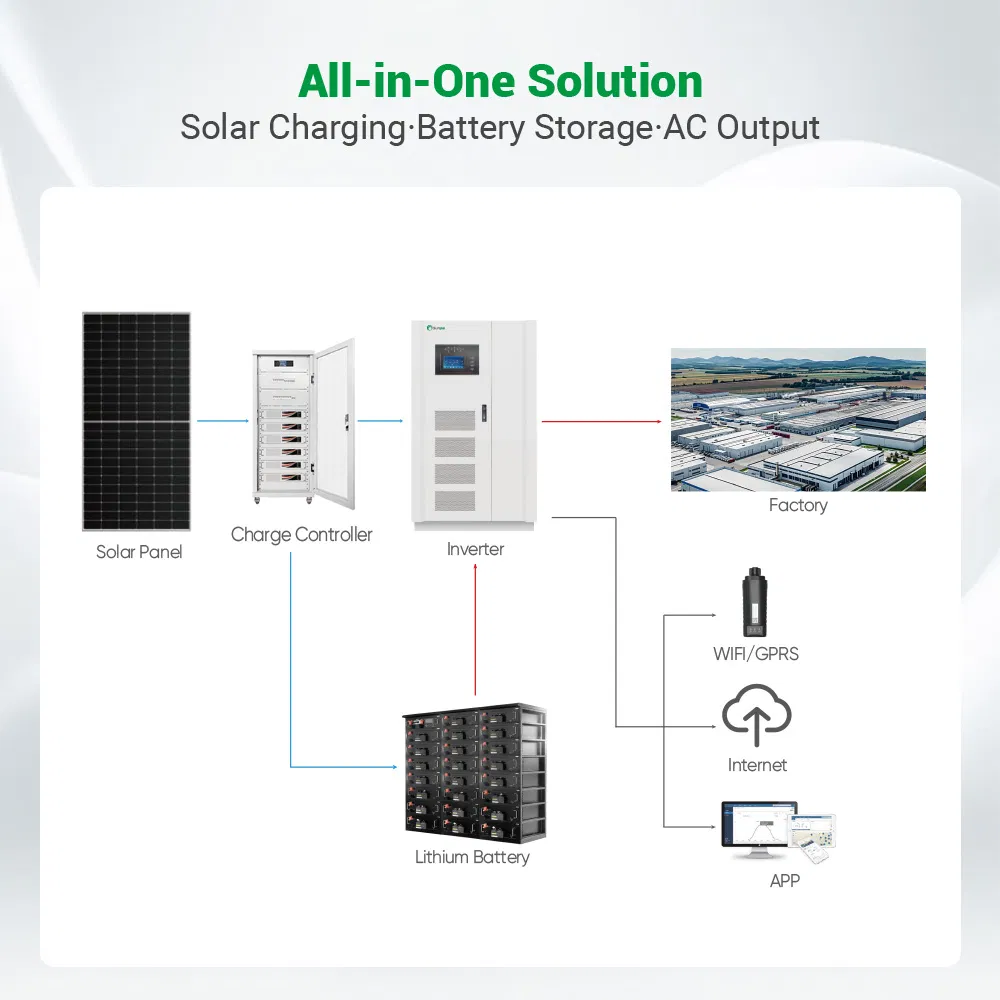

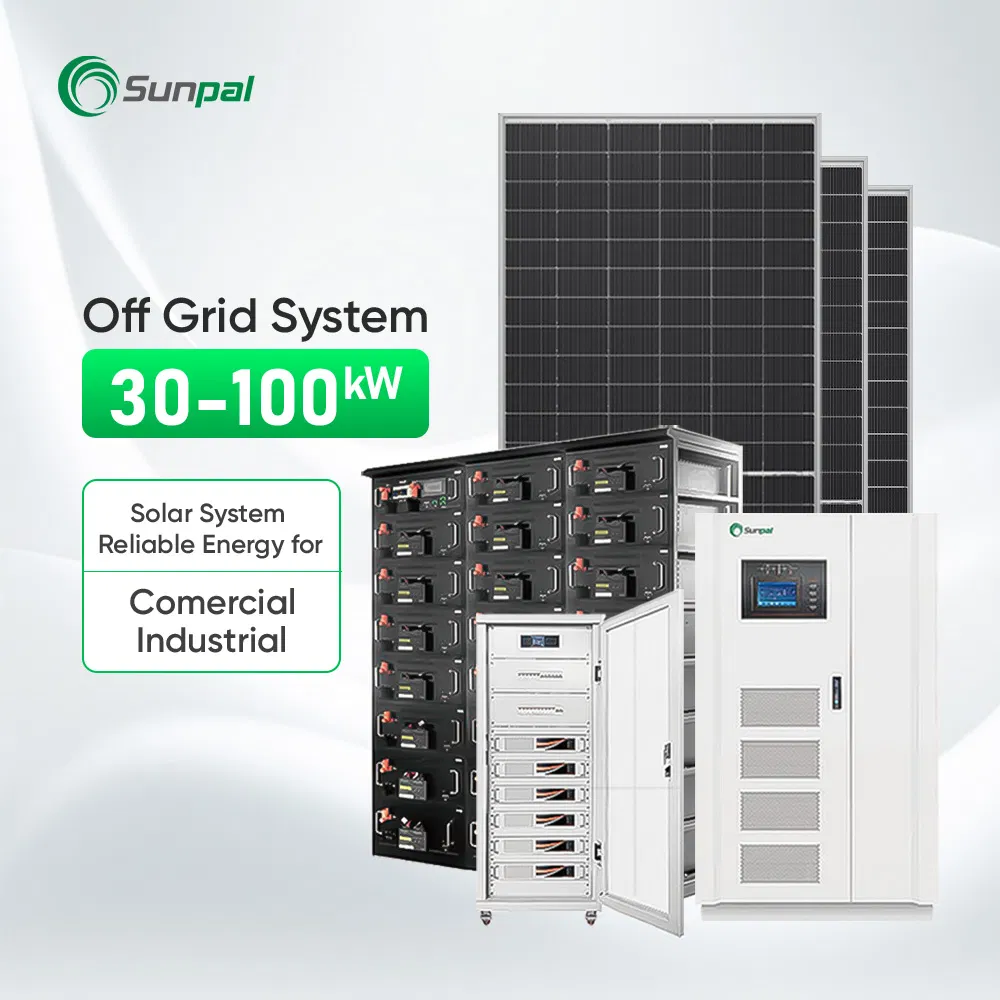

Our 30kW to 100kW Off-Grid Solar Power System is designed for commercial and industrial applications in remote areas, microgrids, or facilities seeking full energy independence. This fully integrated system includes solar panels, high-capacity lithium battery storage, an intelligent off-grid inverter, and an advanced energy management system (EMS) - all engineered for 24/7 operation, even in harsh environments.
| Configuration | 30KW | 50KW | 60KW | 80KW | 100KW |
|---|---|---|---|---|---|
| 580W Mono Solar Panel | 60 Piece | 90 Piece | 108 Piece | 144 Piece | 180 Piece |
| MPPT Controller | DC360V 100A | DC360V 150A | DC360V 200A | DC360V 200A | 2*DC360V 150A |
| Off Grid Inverter | 30KVA | 50KVA | 60KVA | 80KVA | 100KVA |
| 360V Battery | 360V 200AH | 360V 300AH | 360V 300AH | 360V 400AH | 360V 600AH |
| DC Cable 4mm² | 900m | 900m | 1200m | 1200m | 1800m |

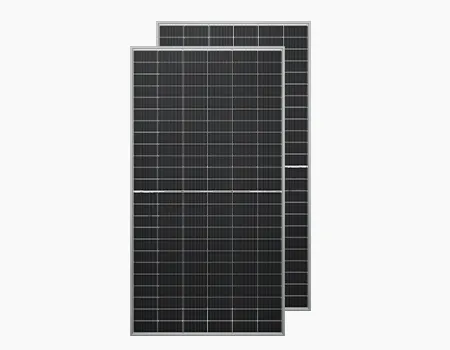

Peak Power: 580W | Efficiency: High Output | Dimensions: 2279*1134*30mm | Weight: 27.5 kg. Optimized for maximum absorption from both sides.

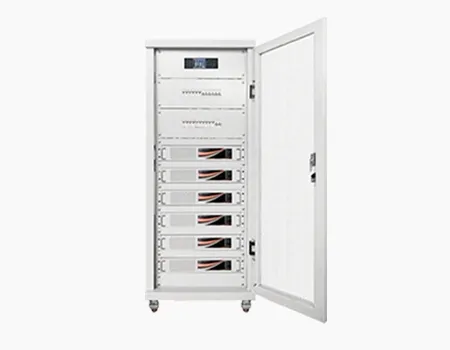

Rated Voltage: 360VDC | Max Current: 100-200A | MPPT Range: 420-720VDC. Features LCD+LED display and optional RS485 communication.

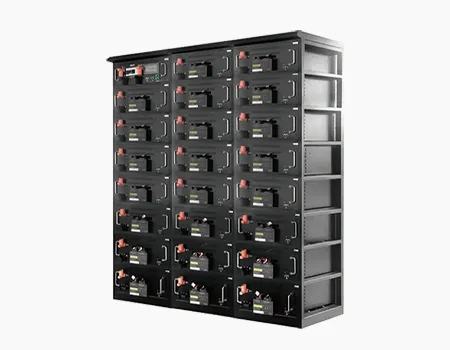

Capacity: 50-500KWH | Nominal Voltage: 360Vdc | Depth of Discharge: 80%. Long-life storage for reliable off-grid power.

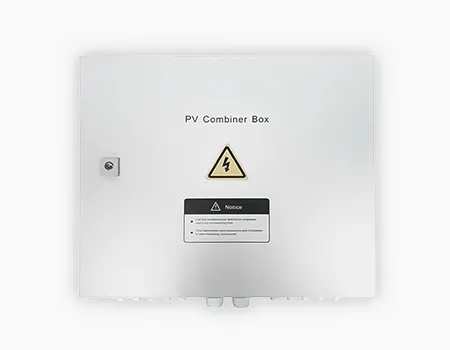

Includes DC/AC Disconnects, Battery Disconnect, and PV Combiner. IP65 protection for outdoor durability.

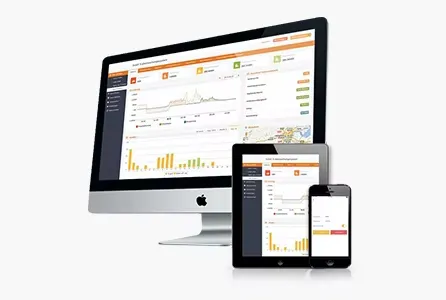

One-click installation and registration. Real-time data storage, traceable logs, and full lifecycle security management.

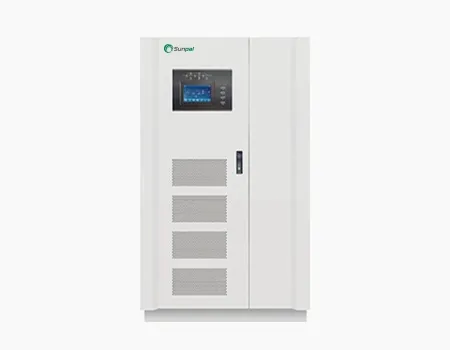

30-100KVA output power. High precision AC output (±1%) with Mains Bypass option and RS485/GPRS communication.

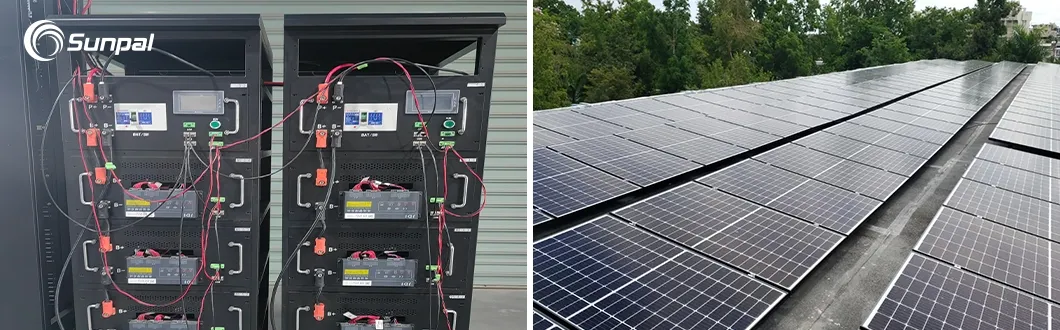

Ghana: 50kW System for Poultry Farm (54KW PV + 50KW Inverter + 120kWh Battery)

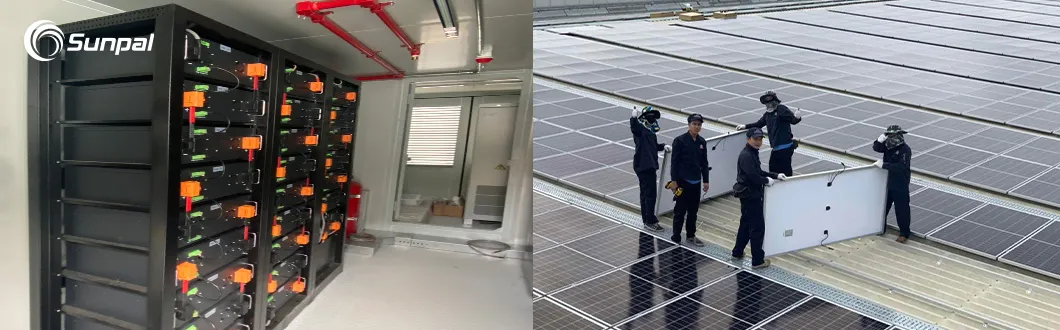

Philippines: 100kW System for School Complex (100KW PV + 100KW Inverter + 200kWh Battery)

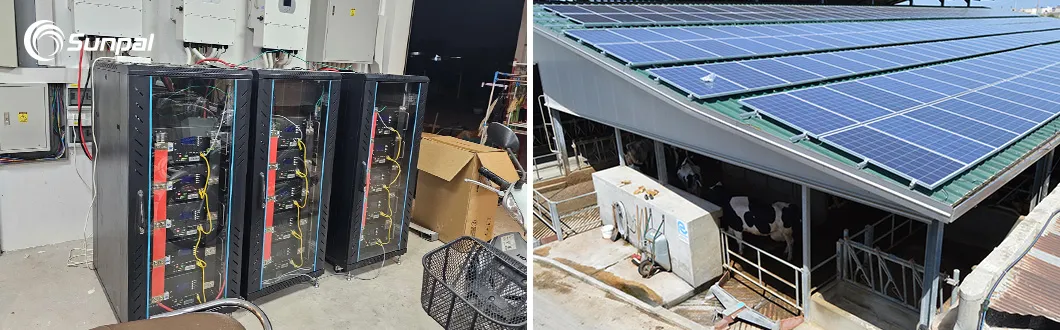

South Africa: 30kW System for Factory Warehouse (33KW PV + 30KW Inverter + 60kWh Battery)
With 15 years of experience in the solar energy field, we have evolved into an integrated PV company manufacturing high-efficiency solar cells and PV modules. Our expertise spans one-stop solar system solutions, covering the entire PV industry chain.
