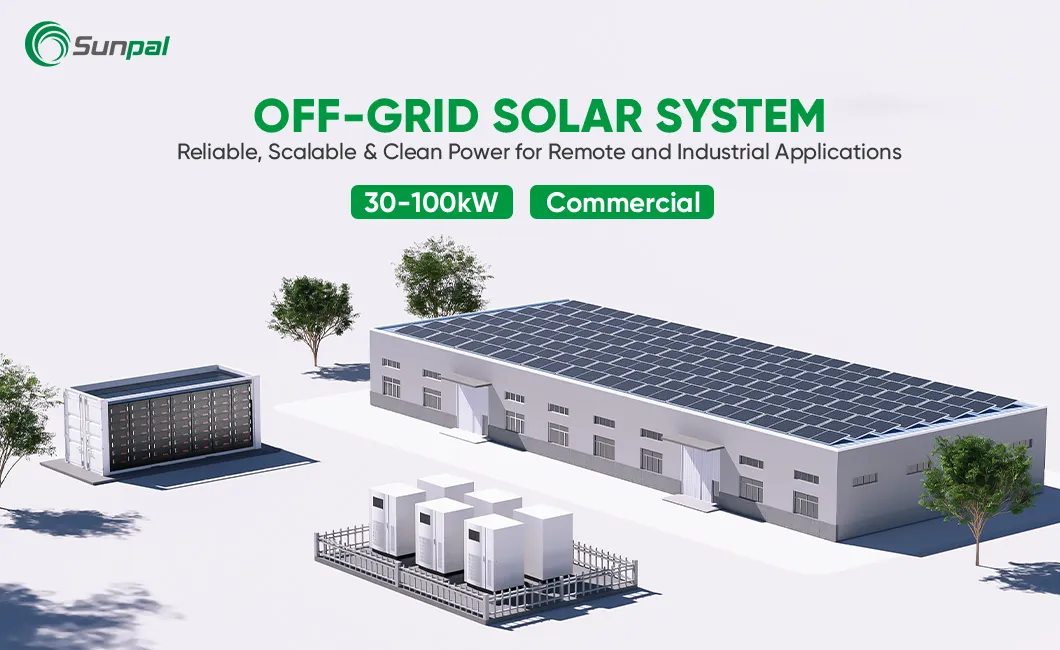

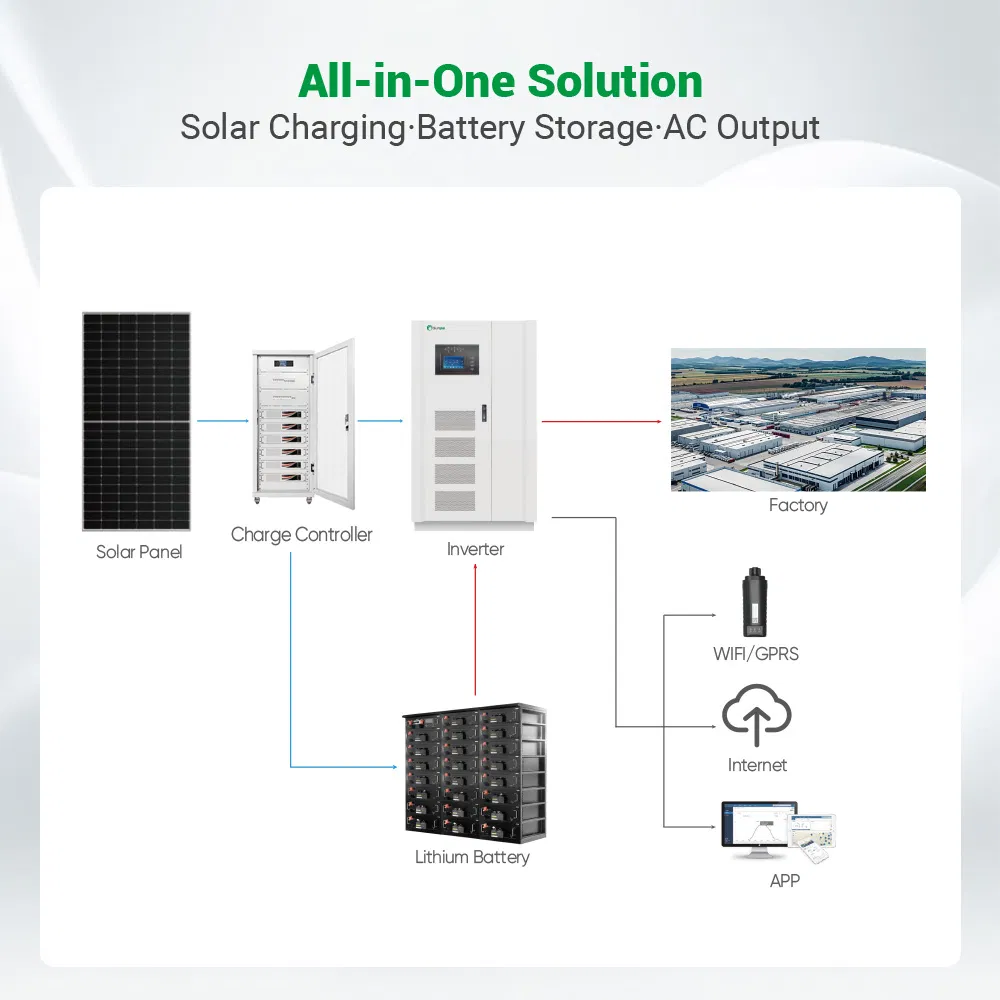

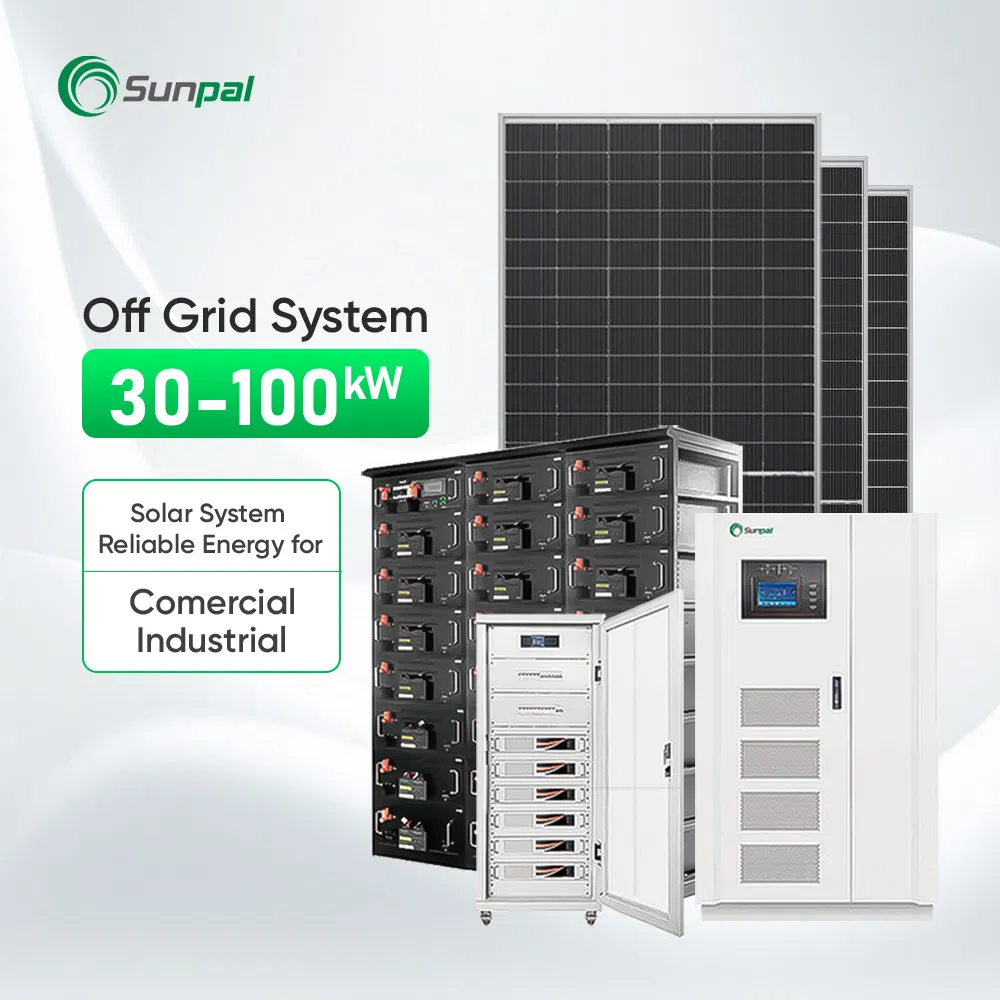

Our 30kW to 100kW Off-Grid Solar Power System is designed for commercial and industrial applications in remote areas, microgrids, or facilities seeking full energy independence. This fully integrated system includes solar panels, high-capacity lithium battery storage, an intelligent off-grid inverter, and an advanced energy management system (EMS).

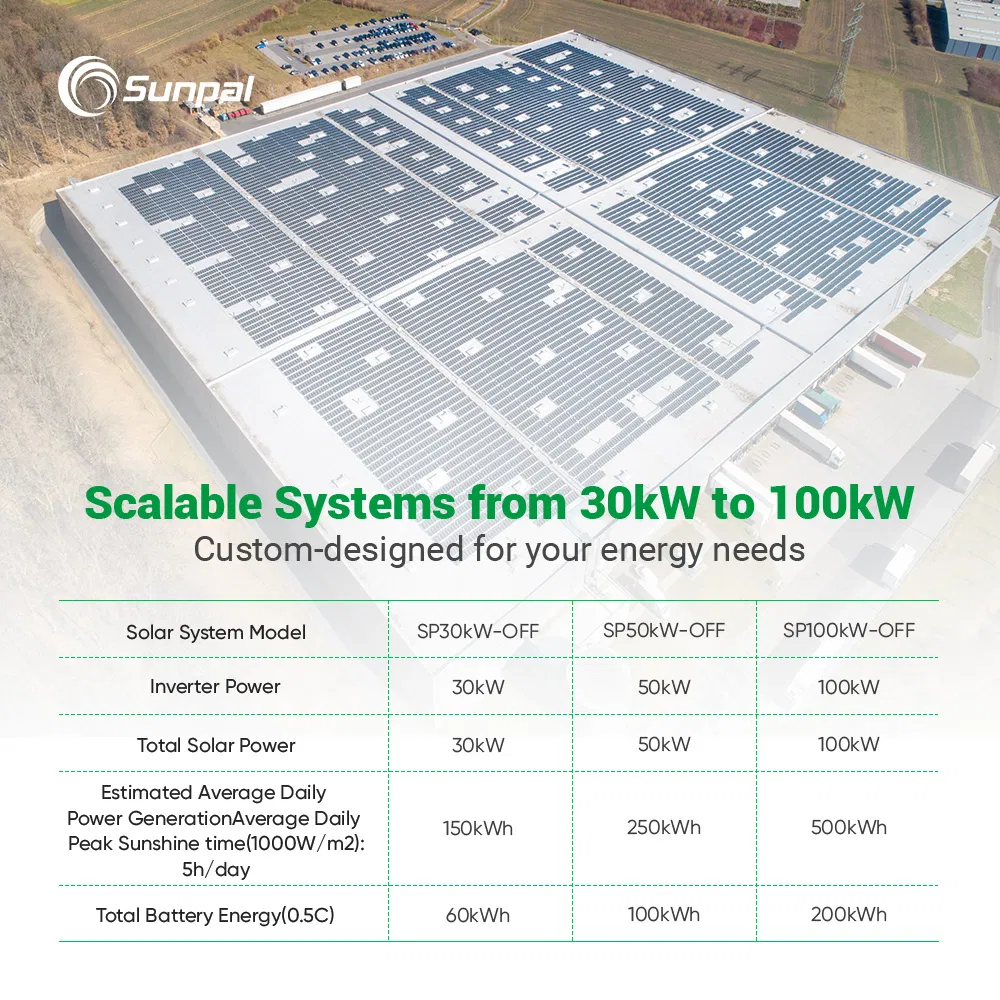

30kW / 50kW / 100kW (Customizable)
Scalable Lithium packs (50kWh-500kWh+)
8 hours to 3 days backup without sunlight
Real-time monitoring & load optimization
| Configuration | SP30-100KW3-OFF | ||||
|---|---|---|---|---|---|
| 580W Mono Solar Panel | 60 Piece | 90 Piece | 108 Piece | 144 Piece | 180 Piece |

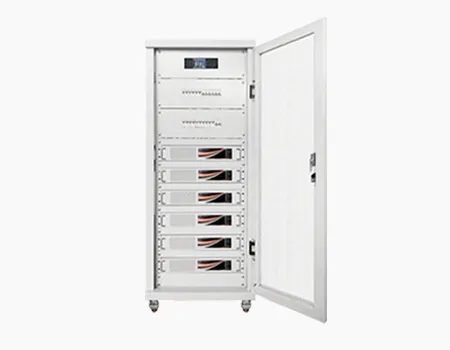

| MPPT Controller | DC360V 100A | DC360V 150A | DC360V 200A | DC360V 200A | 2*DC360V 150A |
| Off Grid Inverter | 30KVA | 50KVA | 60KVA | 80KVA | 100KVA |
| 360V Battery | 360*200AH | 360*300AH | 360*300AH | 360*400AH | 360*600AH |

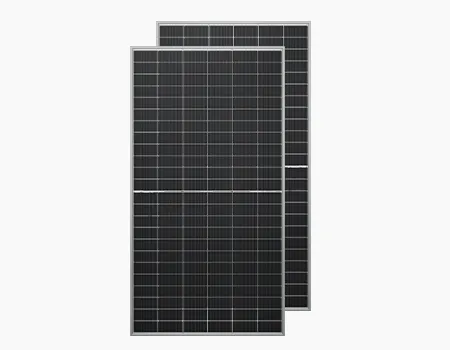

Peak Power: 580W (SP580M-72H)
Max Power Voltage: 43.09V
Dimensions: 2279*1134*30mm
Weight: 27.5 kg
Rated Voltage: 360VDC
Max Charging Current: 100/150/200A
MPPT Range: 420-720VDC
Display: LCD+LED

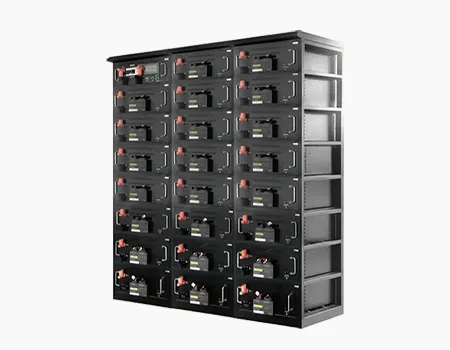

Capacity: 50-500KWH
Nominal Voltage: 360Vdc
Capacity Options: 100/200/300AH
Depth of Discharge: 80%
Includes DC/AC Disconnects and PV Combiner.

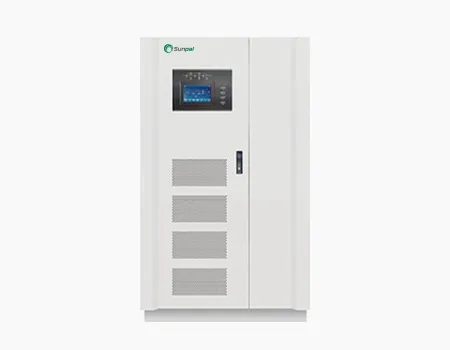

Inverter Output: 30-100KVA
Protection Degree: IP65/IP66
Supports RS485/GPRS Monitoring

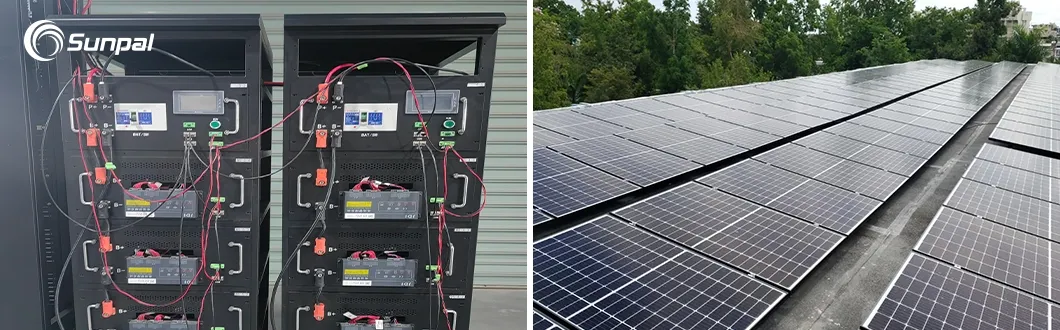

Ghana: 50kW for Poultry Farm

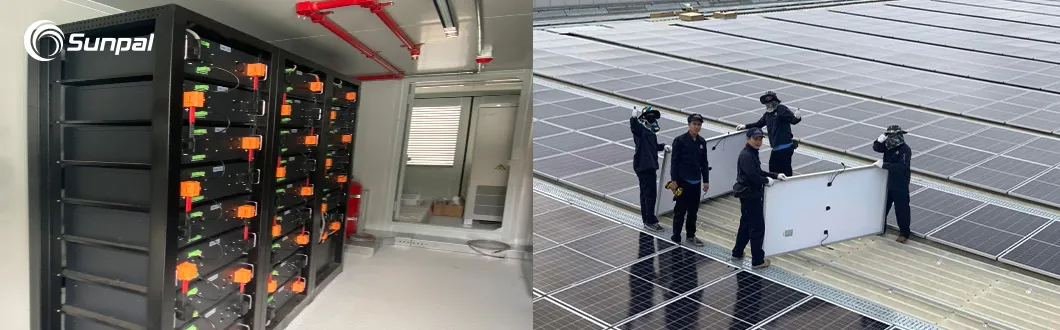

Philippines: 100kW for School Complex

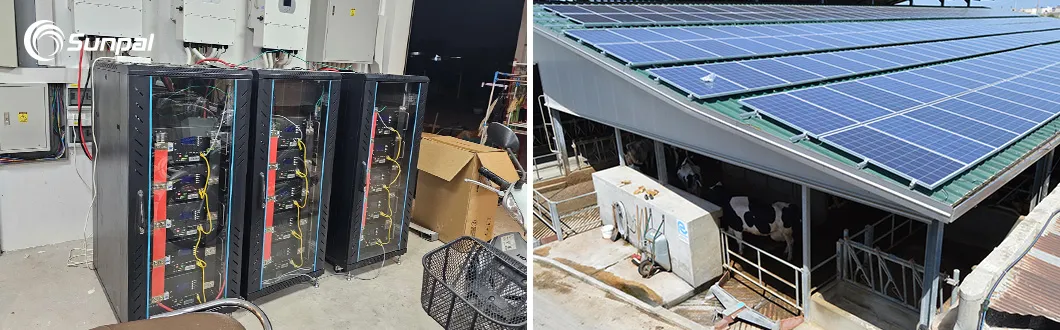

South Africa: 30kW for Factory Warehouse
With around 15 years of experience in the solar energy field since 2008, our integrated PV facility manufactures high-efficiency solar cells and modules. We provide expertise in one-stop solar system solutions, covering solar cells (166mm to 210mm), panels (PERC, Topcon, HJT), and complete PV solution consulting.
