Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
1 / 5
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid
Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid

Sunpal Complete Solar Power System 100kWh 70kW 50kW 20 kW Solar Energy Battery System Off Grid

Customization: Available
Application: Mine Off-Grid Power Supply
Installation: Cabinet Floor-Mounted
Send Inquiry

Product Description

⚙️ Basic Information
ModelOff Grid Commercial System
Power Configuration100kW-250kW
Cooling MethodAir Cooling System
Solar Panel TypeMonocrystalline Silicon
Controller TypeMPPT
Battery TypeLithium Ion
Output Voltage230V/400V, 127V/220V, 277V/480V
MonitoringApp Available for PC and Phone
CertificationCE/TUV
☀️ Product Description

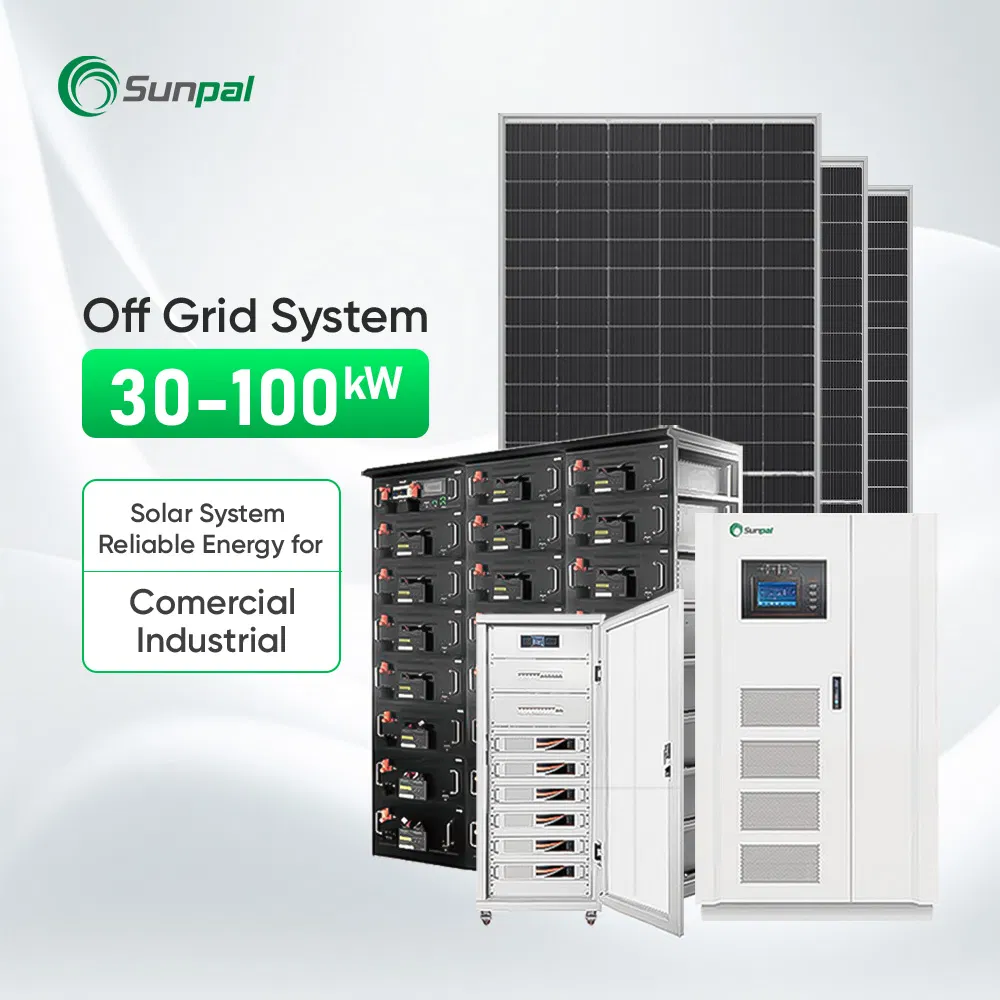

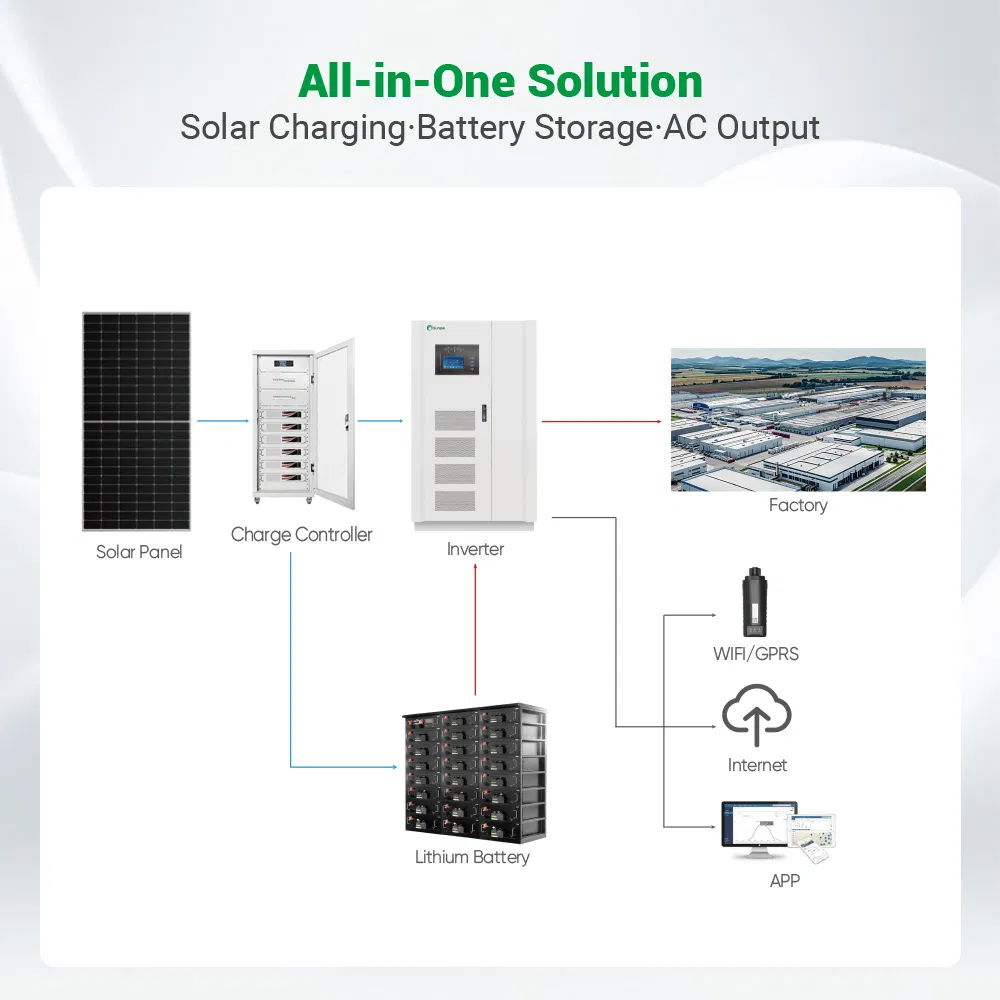

Complete Solar Power System
Our 30kW to 100kW Off-Grid Solar Power System is designed for commercial and industrial applications in remote areas, microgrids, or facilities seeking full energy independence. This fully integrated system includes solar panels, high-capacity lithium battery storage, an intelligent off-grid inverter, and an advanced energy management system (EMS) - all engineered for 24/7 operation.
⚡ Power Range30kW / 50kW / 100kW (customizable)
🔋 Energy StorageScalable lithium battery packs (50kWh-500kWh+)
🔄 CompatibilityWorks with diesel genset, wind, or hydro backup
📱 Smart EMSReal-time monitoring, remote control, load optimization

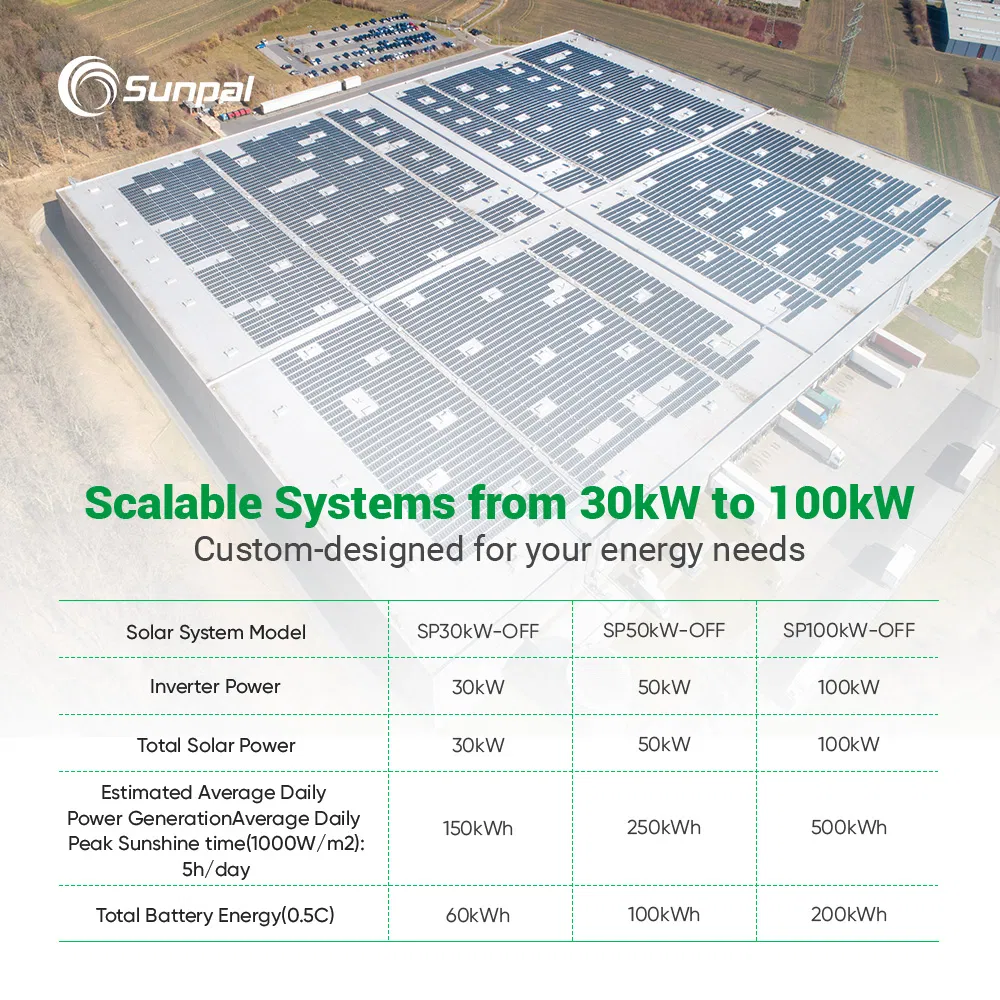

📊 Technical Configurations
Component 30KW 50KW 60KW 80KW 100KW
580W Mono Panels 60 Pcs 90 Pcs 108 Pcs 144 Pcs 180 Pcs
MPPT Controller 360V 100A 360V 150A 360V 200A 360V 200A 2*150A
Off Grid Inverter 30KVA 50KVA 60KVA 80KVA 100KVA
Lithium Battery 360V 200AH 360V 300AH 360V 300AH 360V 400AH 360V 600AH
🛠️ Key System Components

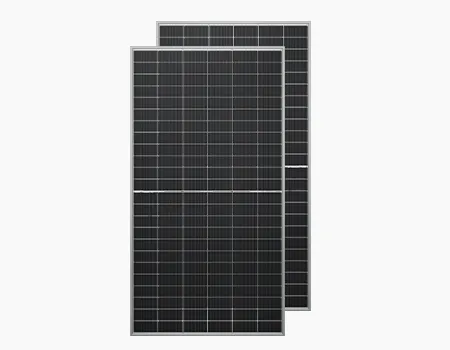

Topcon Bifacial Solar Panels

Topcon Bifacial Solar Panels
580W Peak Power, High Efficiency

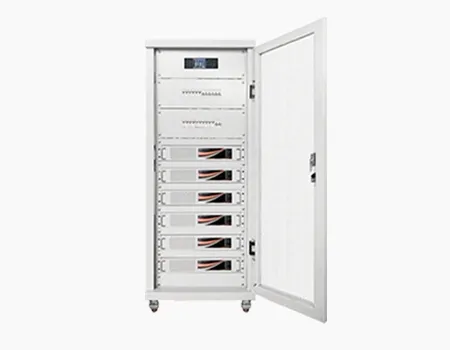

MPPT Controller

High Efficiency MPPT Controller
360V Rated, LCD+LED Display

Lithium Battery

Deep Cycle Lithium Battery
50-500KWH Scalable Capacity

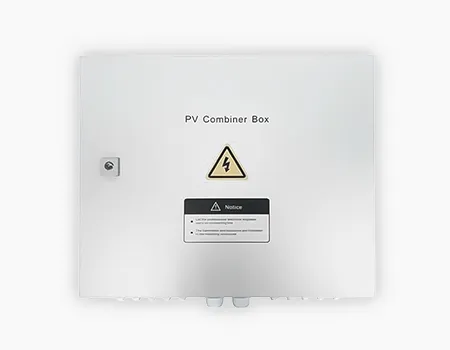

Disconnect Box

Main Disconnect Box
IP65 Protection, AC/DC Disconnect

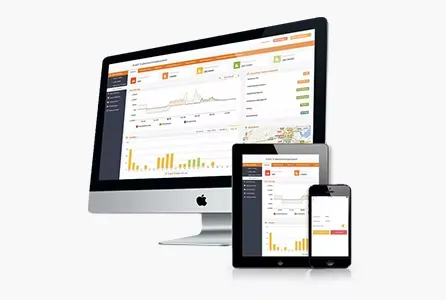

Monitoring System

Monitoring System
Real-time Data Security & Reliability

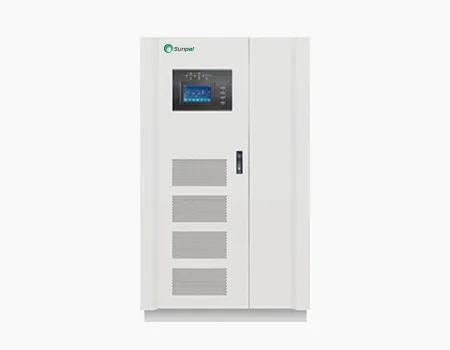

Off Grid Inverter

Pure Sine Wave Inverter
30KVA-100KVA Options

🌍 Global Applications

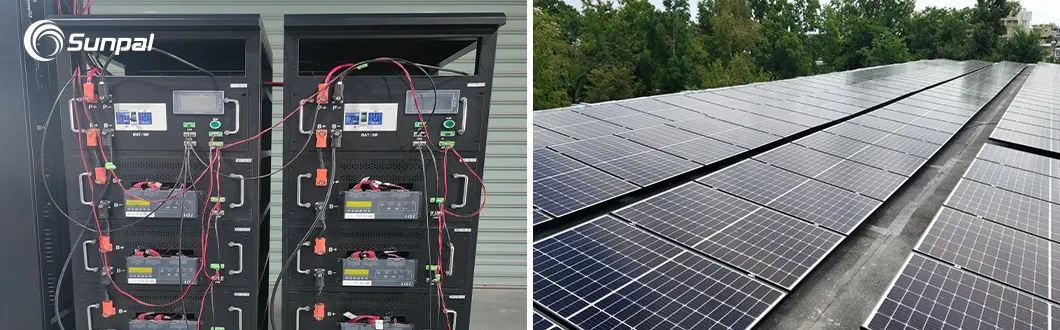

Ghana Poultry Farm

Ghana: 50kW for Poultry Farm

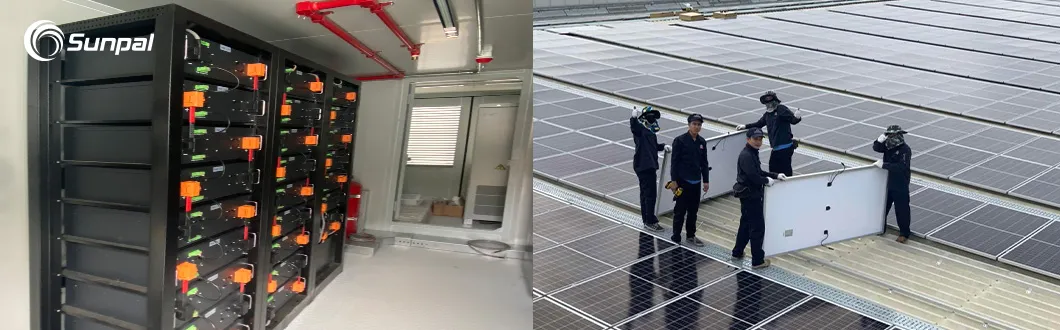

Philippines School

Philippines: 100kW for School Complex

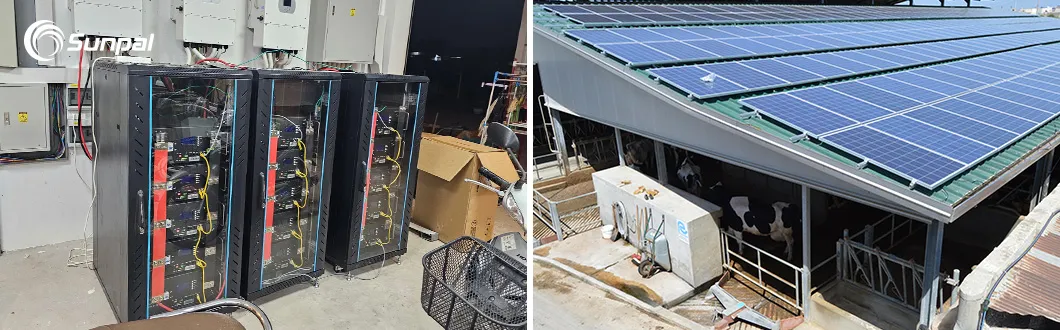

South Africa Factory

South Africa: 30kW for Factory Warehouse

🏭 Manufacturing Excellence

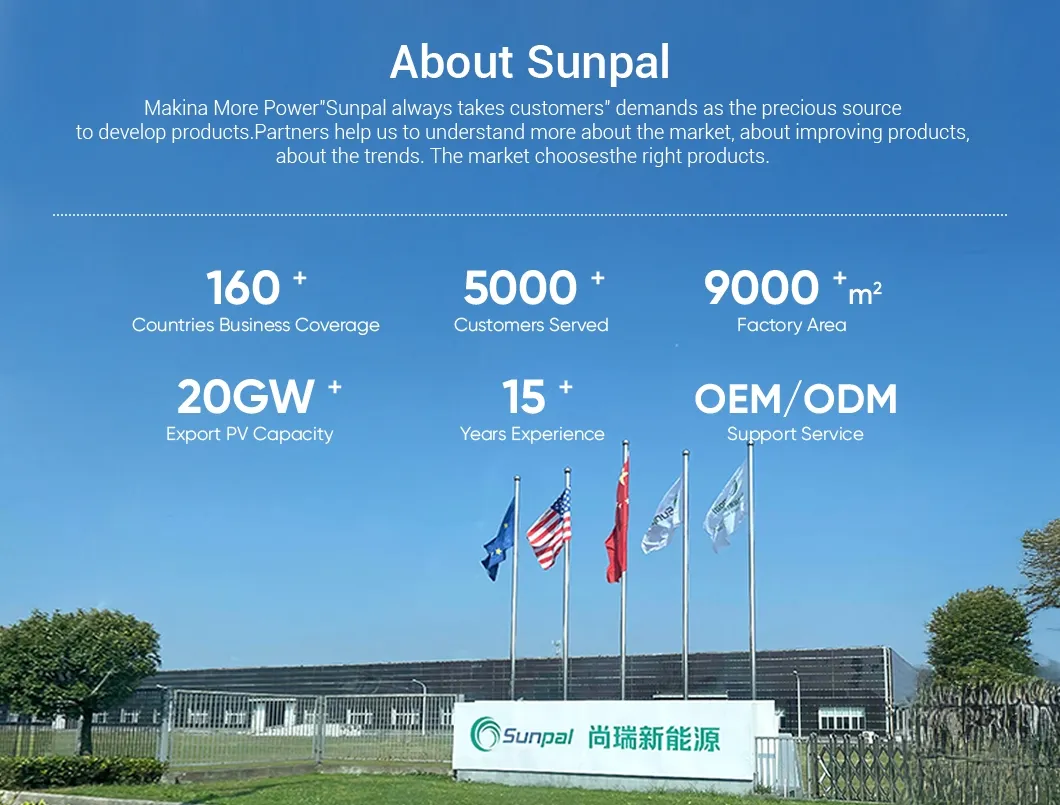

Factory Overview
Established in 2008, our facility integrates the entire PV industry chain. We manufacture high-efficiency solar cells (166mm to 210mm) and comprehensive PV modules including PERC, Topcon, and HJT technologies. We provide one-stop solutions from consulting and design to procurement and maintenance.
Production Line
Quality Control
❓ Frequently Asked Questions
How long can the system provide power without sunlight?
The system is designed with scalable lithium battery storage that can support between 8 hours to 3 days of autonomy depending on the configuration and load requirements.
Is the system compatible with other power sources?
Yes, the intelligent off-grid inverter supports seamless integration with diesel generators, wind turbines, or hydro power as secondary backup sources.
What is the lifespan of the lithium battery packs?
Our high-quality deep-cycle lithium batteries typically offer a lifespan of 10-15 years with proper maintenance and standard depth of discharge (80% DoD).
Can I monitor the system remotely?
Yes, the system includes a Smart EMS with an App available for both PC and mobile phones, allowing for real-time monitoring and load optimization from anywhere.
What kind of maintenance does the commercial solar system require?
The system requires minimal maintenance. We recommend regular cleaning of the solar panels and occasional checks of the connection cables and the cooling system to ensure optimal performance.
