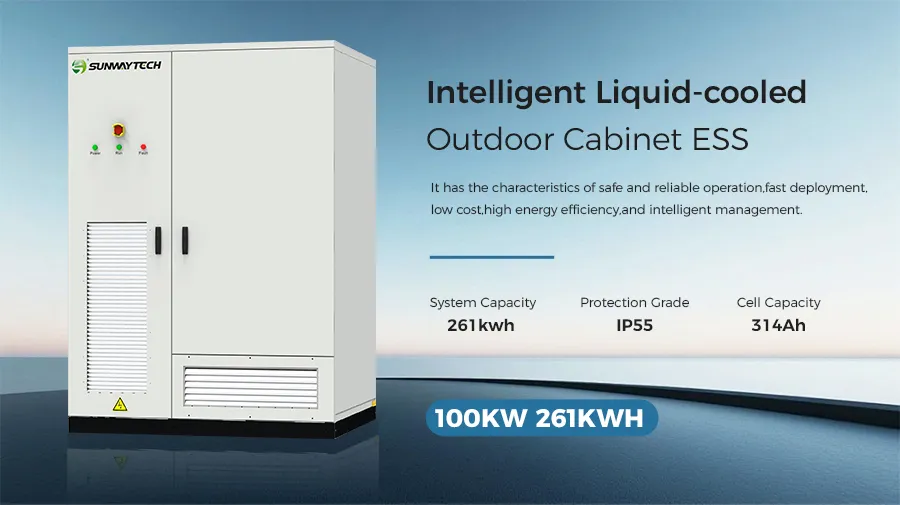

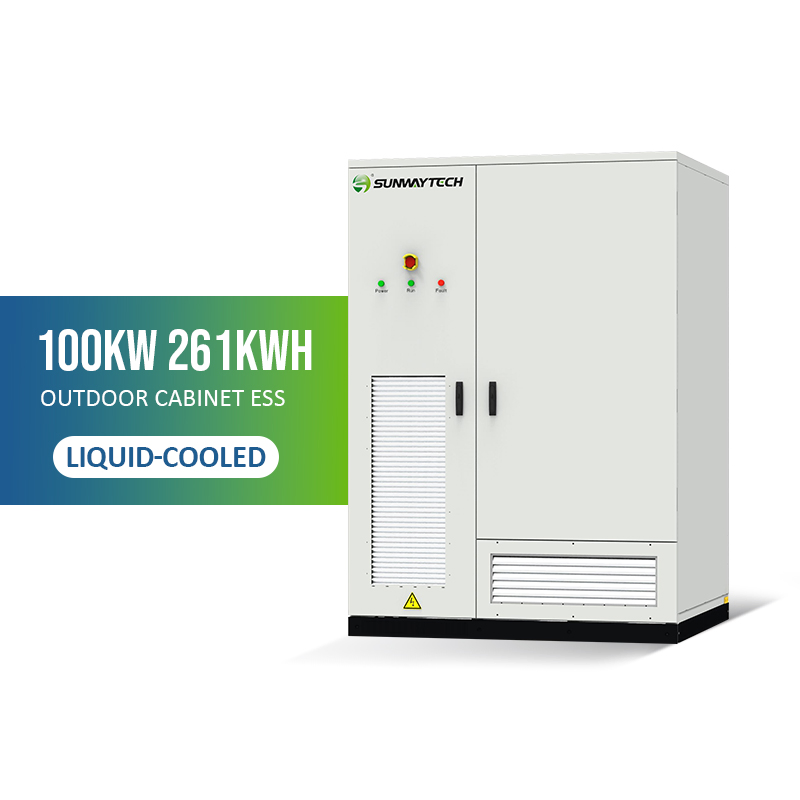

This product is designed for high-efficiency energy storage. The system can be configured according to specific energy needs to provide an exclusive solution for various power requirements.
Remarks:

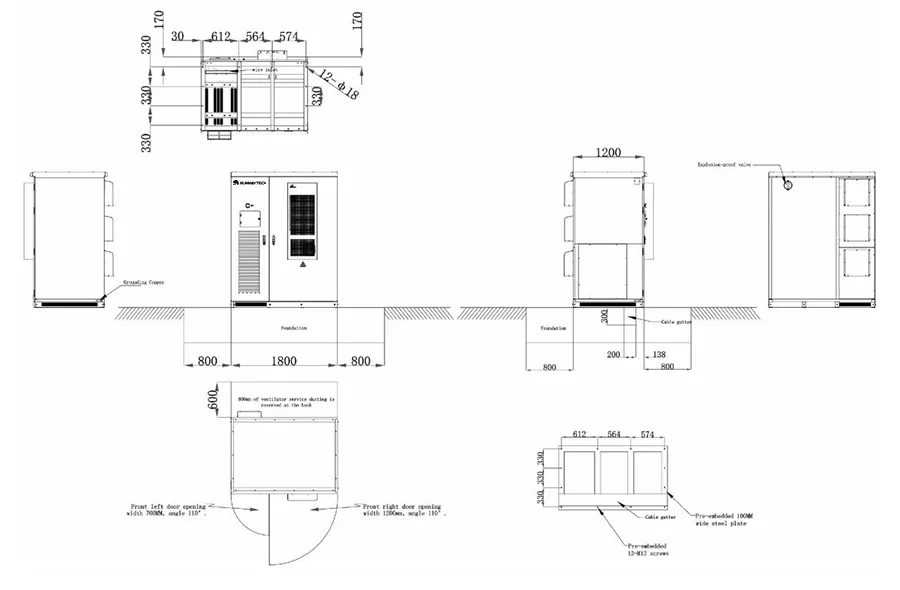

1. Different mounting structures are available for various roof materials.
2. The entire system can be designed as per specific requests.
| Battery Parameters | |
|---|---|
| Battery Rated Capacity | 261kWh |
| Battery Rated Voltage | 832V |
| Battery Type | Lithium iron phosphate battery (LFP) |
| Cell Capacity | 314Ah |
| Max. Charging/Discharging Power | 0.5P |
| Photovoltaic Parameters | |
| Rated Power | 100kW |
| PV Voltage Range | 250~500V (MPPT) |
| MPPT Quantity | 2 |
| AC Parameters | |
| Rated AC Power | 125kw |
| Rated AC Voltage | 400V, 3W+N+PE |
| Protection Level | IP55 |
| Cooling Mode | Intelligent liquid-cooled |

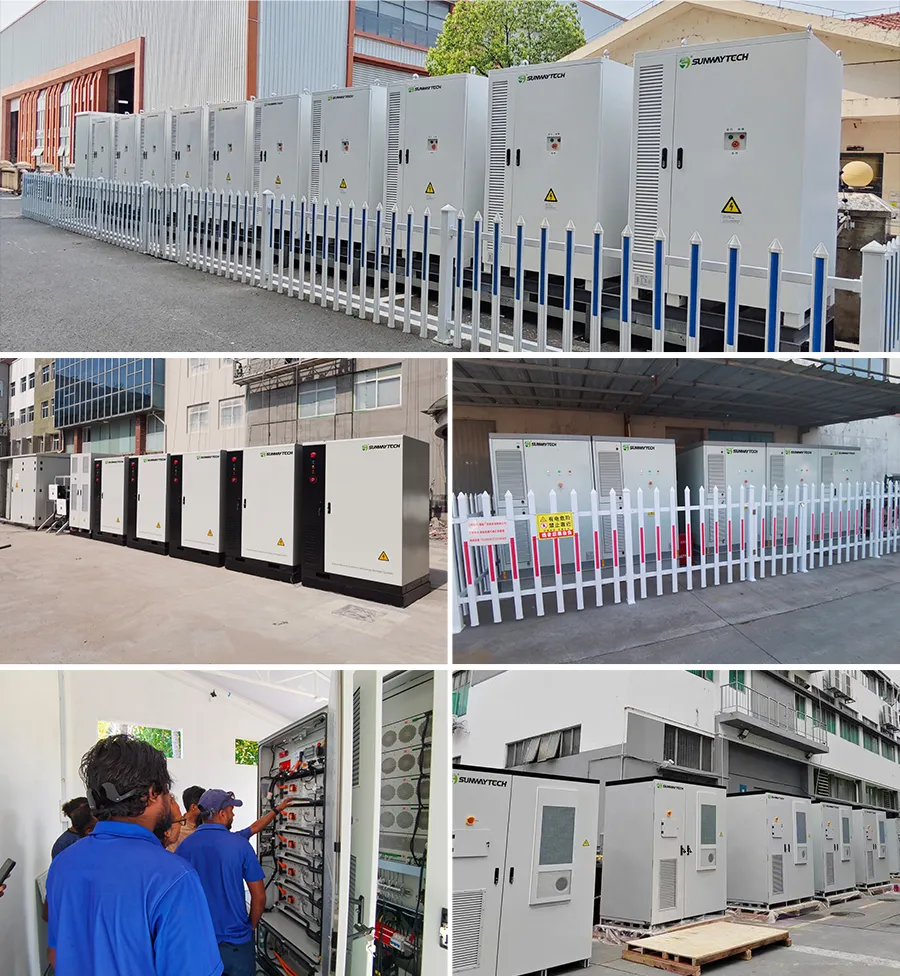

Schools, factories, gas stations, and other commercial buildings with high energy demands can maximize energy use, achieve energy independence, and reduce grid power demand through solar PV and battery storage. These solutions help commercial and industrial facilities save on electricity bills and reduce environmental impact.

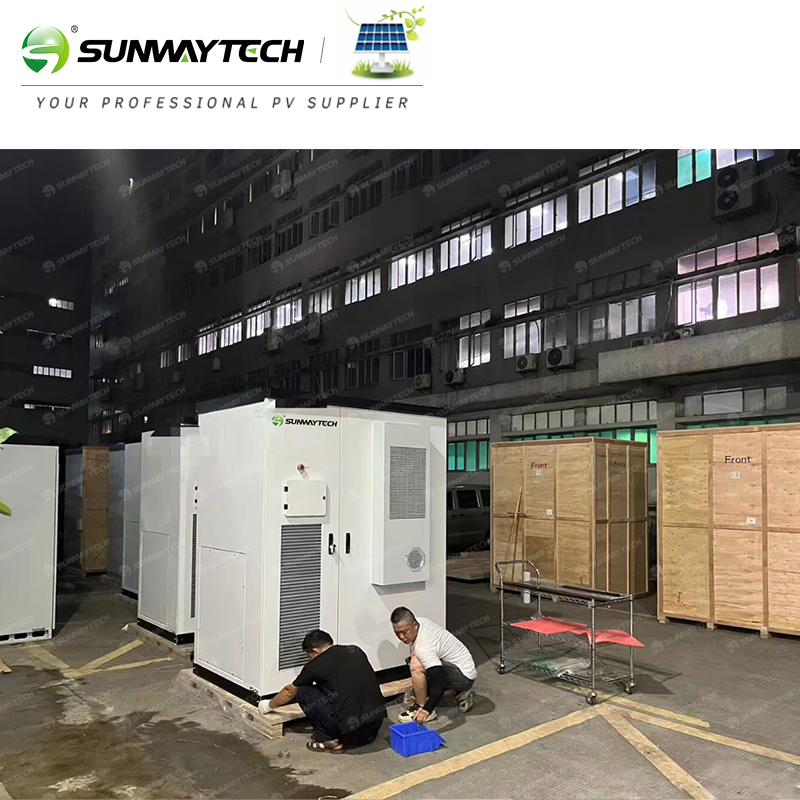

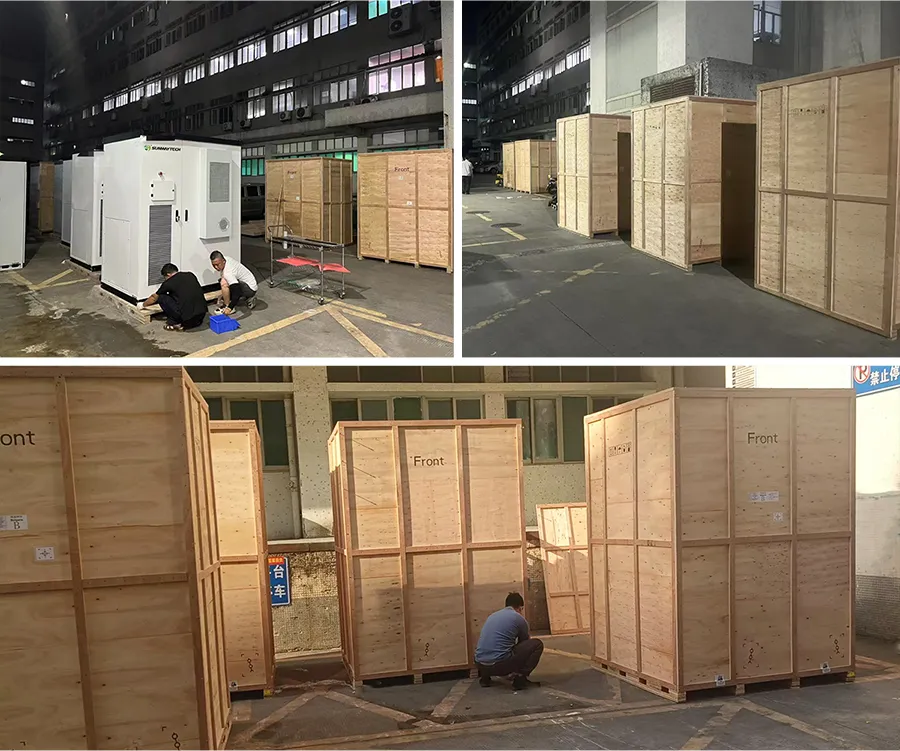

Wooden box packaging enables high-strength stacking, simple operation, and high cost-effectiveness. Extra-large and extra-long sizes can be easily assembled. The system can be loaded and unloaded from the front and transported flat or in kits to the assembly site.
