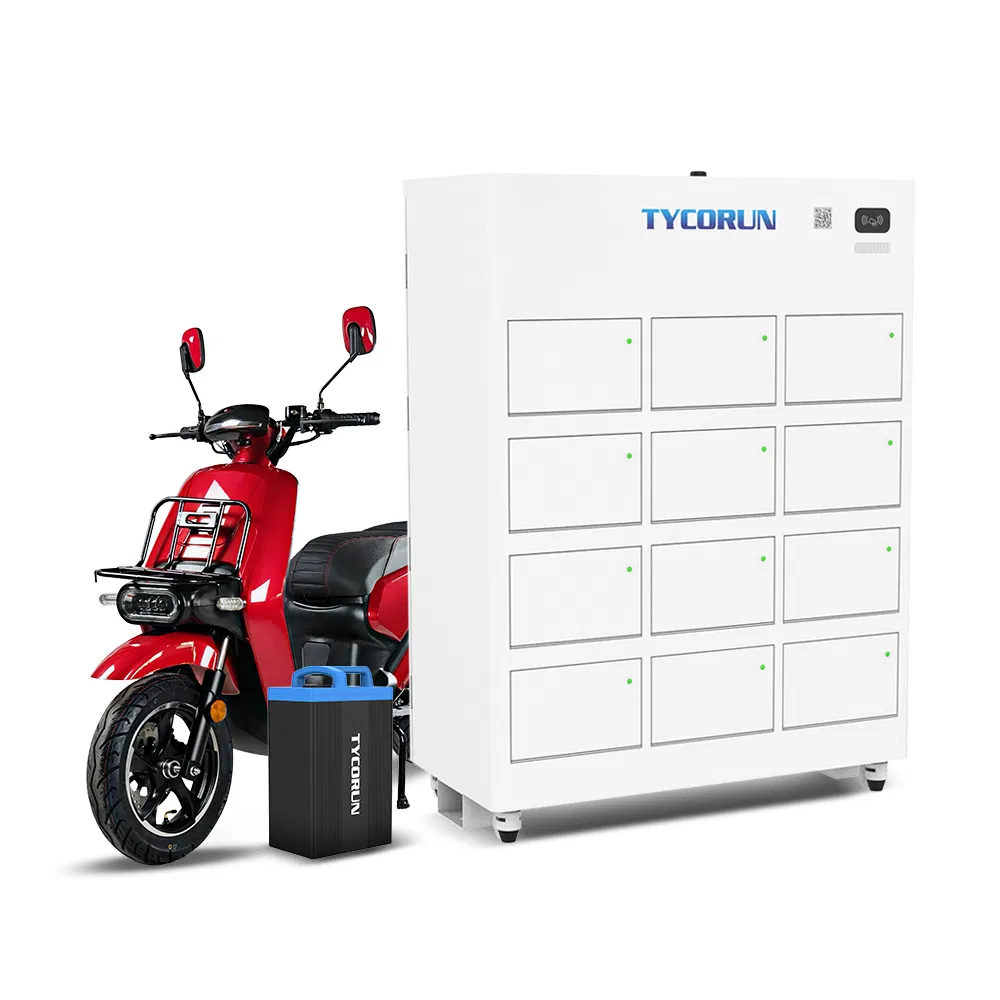

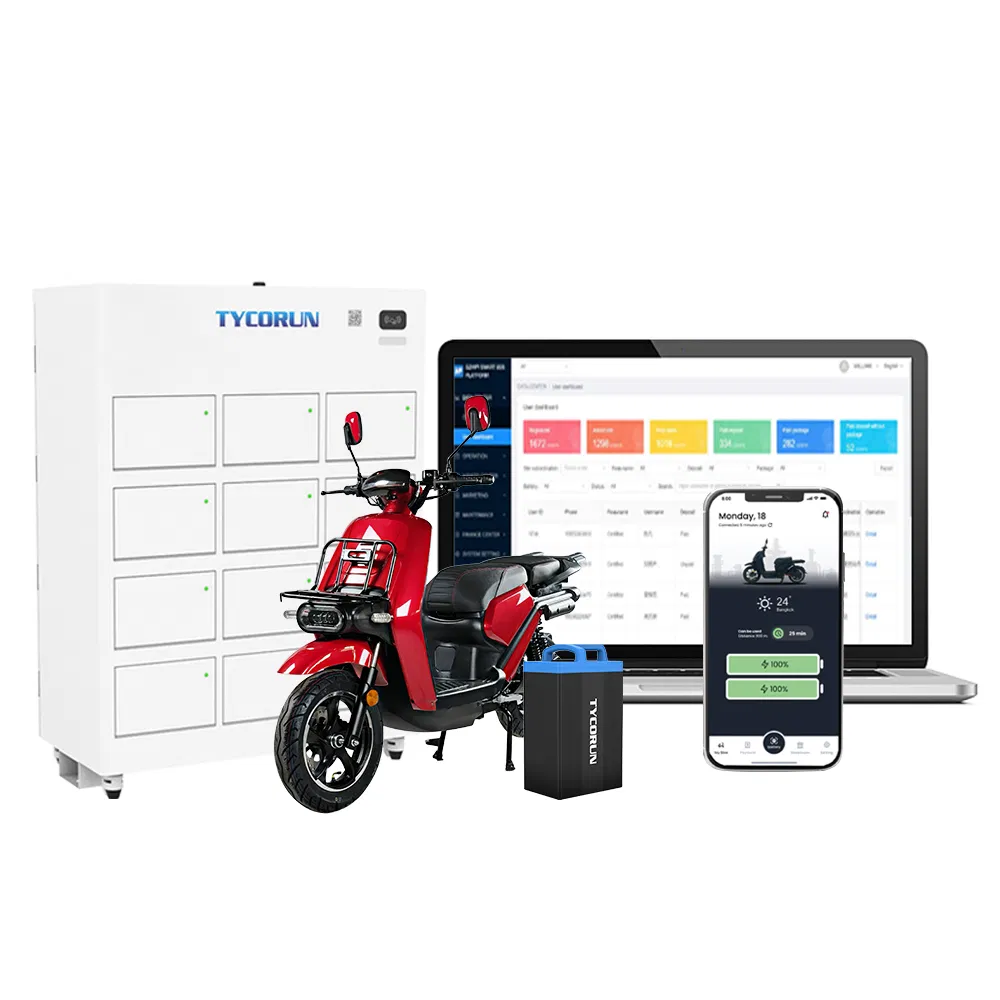

Battery Swapping Station Swap Cabinets Chargers Power Digital Batteries LFP With App Energy Storage Station
The battery can be controlled remotely and turned off according to the actual situation.
A positioning system monitors internal voltage, current, temperature, and SOC.
Realize battery rental sales with flexible monthly or daily charging settings.
Simple operation: insert the battery, and the cabinet automatically ejects a qualified one.
• Meets requirements for electric vehicle battery packs.

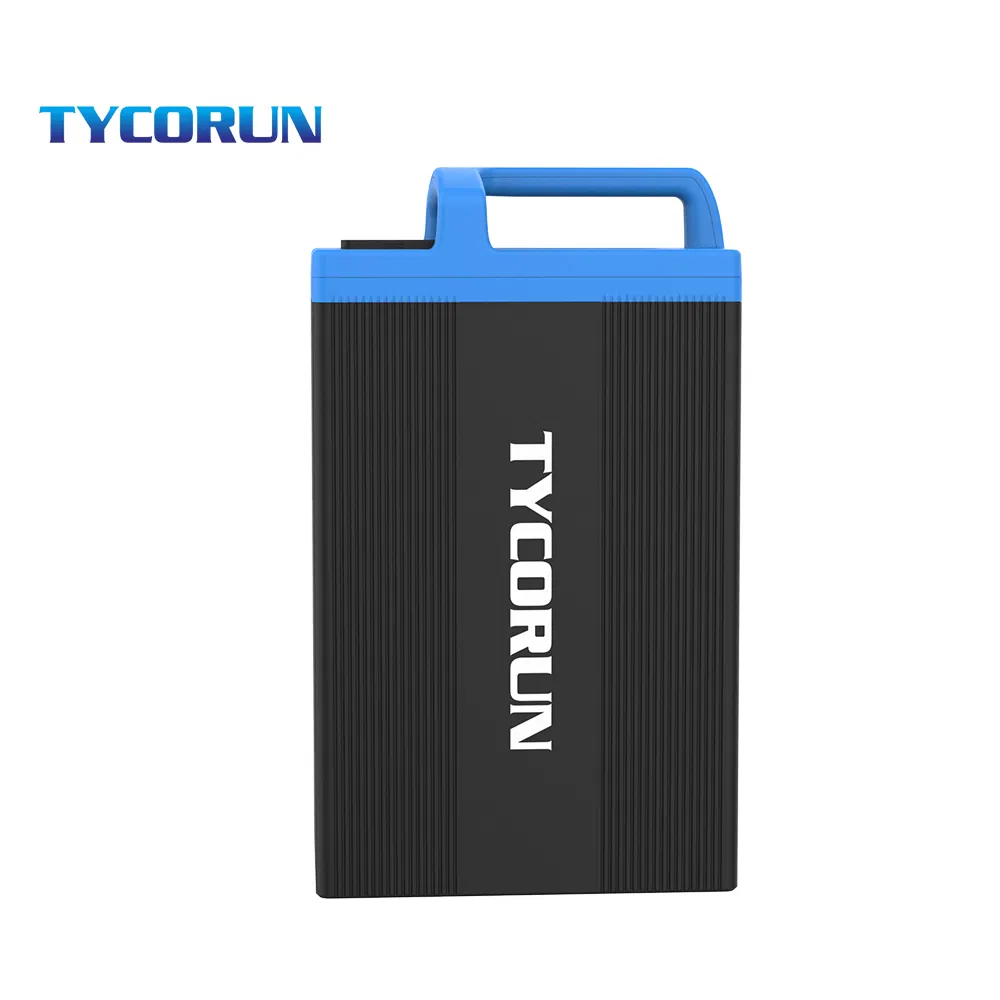

• BMS management mode with strict safety protection and fault diagnosis.
• Direct temperature and voltage sampling by the BMS.
| Project | Specifications |
|---|---|
| Typical capacity | 34.8Ah (standard test) |
| Energy | About 2Kwh |
| Nominal voltage | 60V |
| Charge cut-off voltage | 67.2V |
| Discharge cut-off voltage | 44V |
| Maximum charging current | ≤15A |
| Maximum continuous discharge | ≤90A |
| Product Size | 160*205*365mm |
| Cycle life | ≥1000 times (Capacity ≥80%) |
| Protection Grade | IP65 |

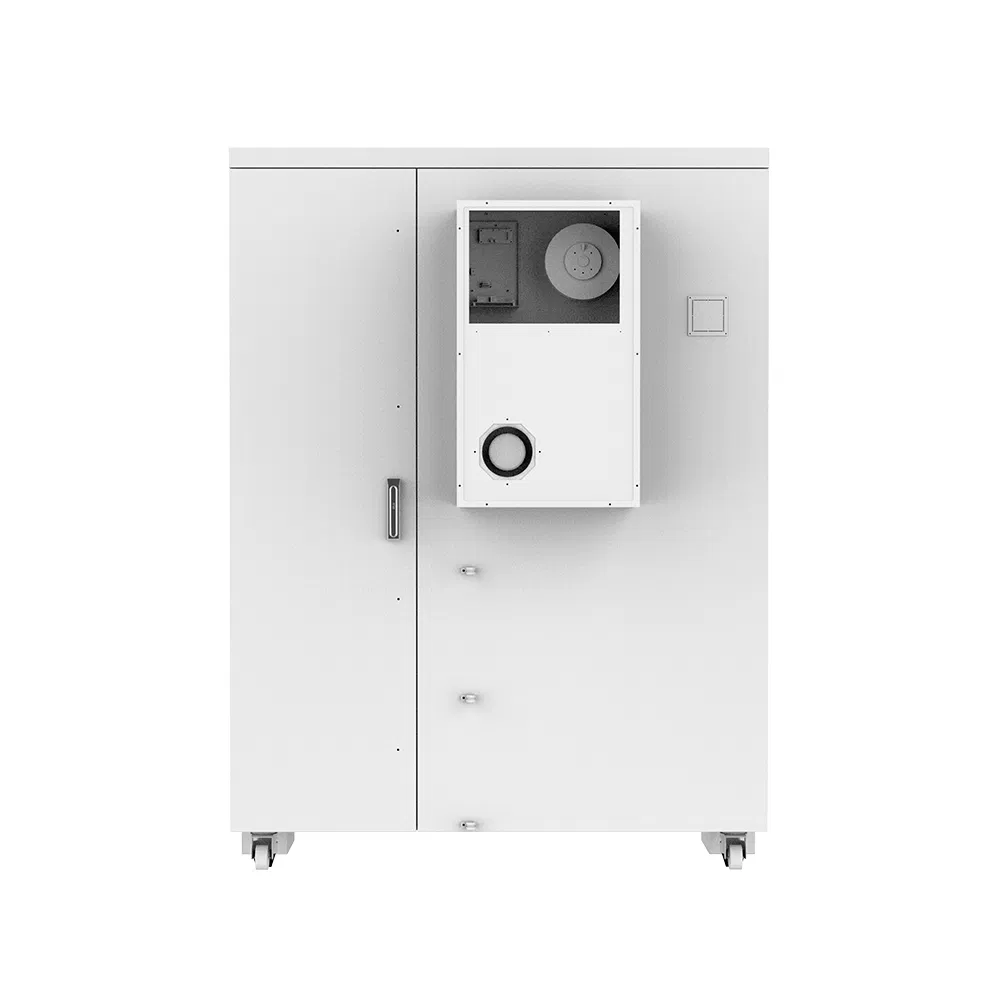

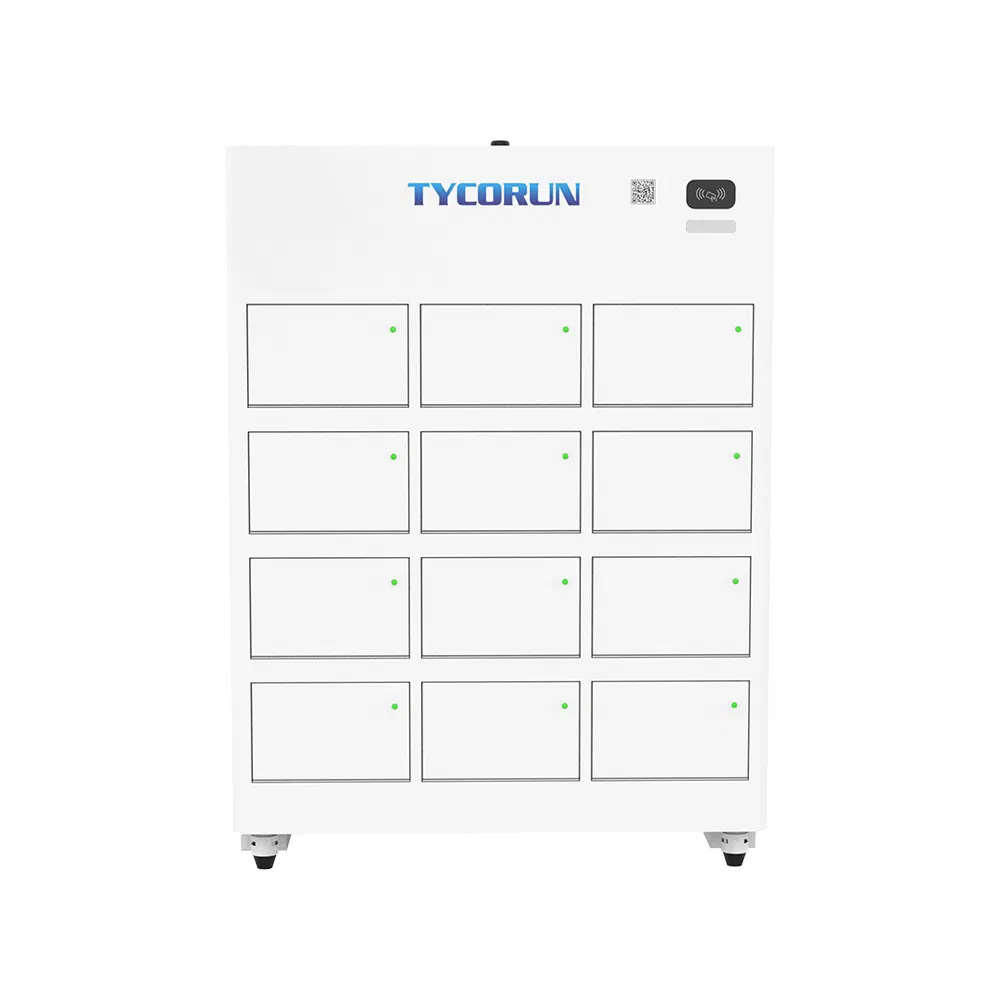

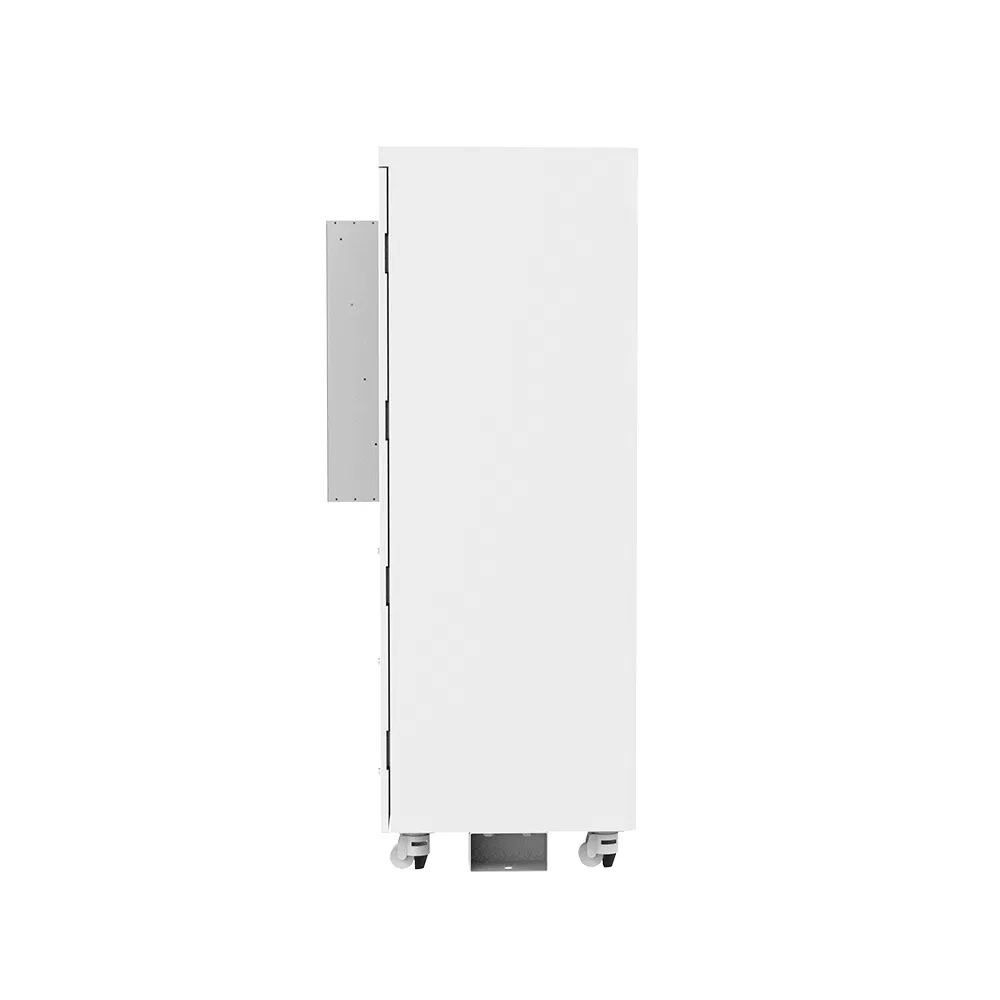

1.1 Specifications and dimensions: The main cabinet size is 2004mm*1550mm*1100mm, weighing approximately 350 kg. Includes ground-fixing holes and supporting angle steel sheets.
1.2 Power consumption: 12 slots with 12x 900W chargers. Max power consumption 12KW; standby <100W. Supports 48V and 60V lithium batteries.
1.3 System Components: Industrial computer, 21-inch touch display, leakage switch, automatic cooling, fire extinguisher, and 4G communication module.
