| Model NO. | Solar Water Pump System | Application | Home, Industrial, Commercial |
|---|---|---|---|
| Specification | Normal, Lithium Battery Pack | Name | 1HP DC Solar Panels Powered Submersible |
| Cycle Life | >2000 Cycles | Features | Deep Cycle Battery |
| Charge Temp | 0 ~50 °C | Discharge Temp | -20 ~55 °C |
| Material | Metal/ABS Case | OEM/ODM | Acceptable |
| Capacity | 30000PCS/Month | HS Code | 8507600090 |

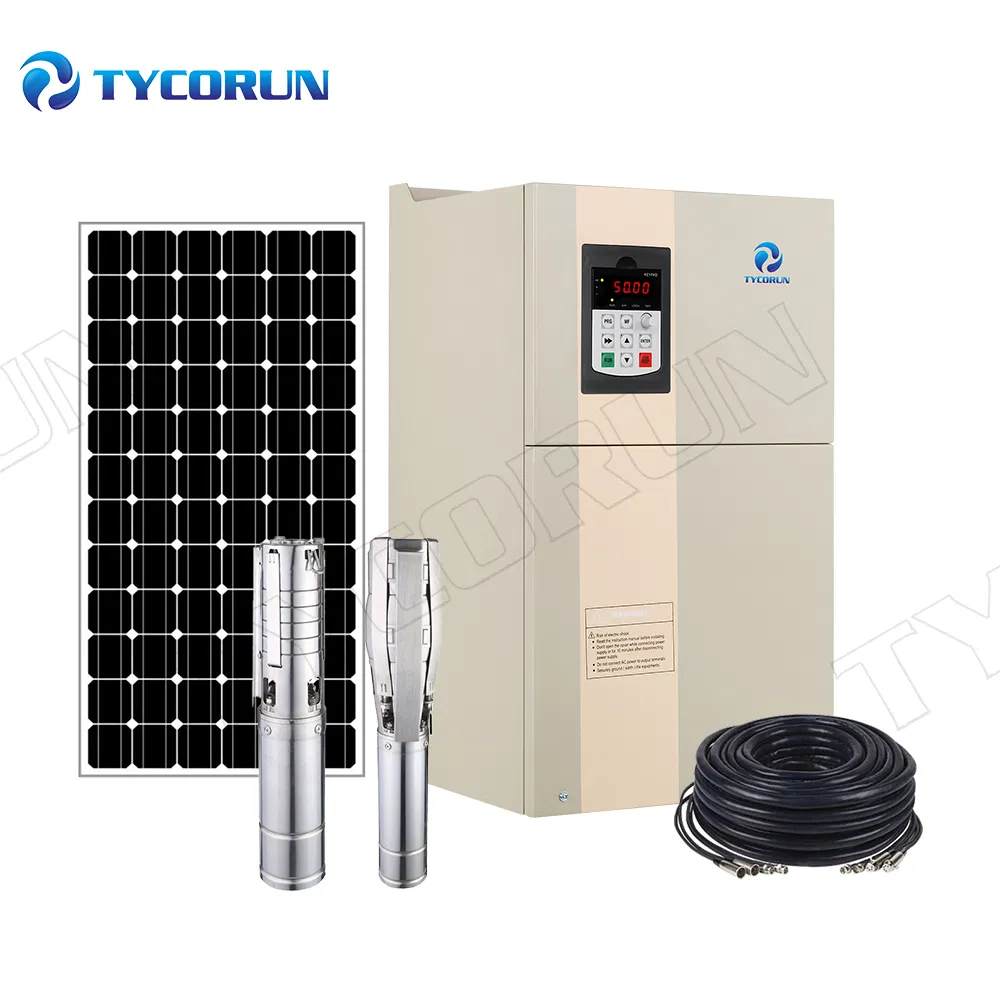

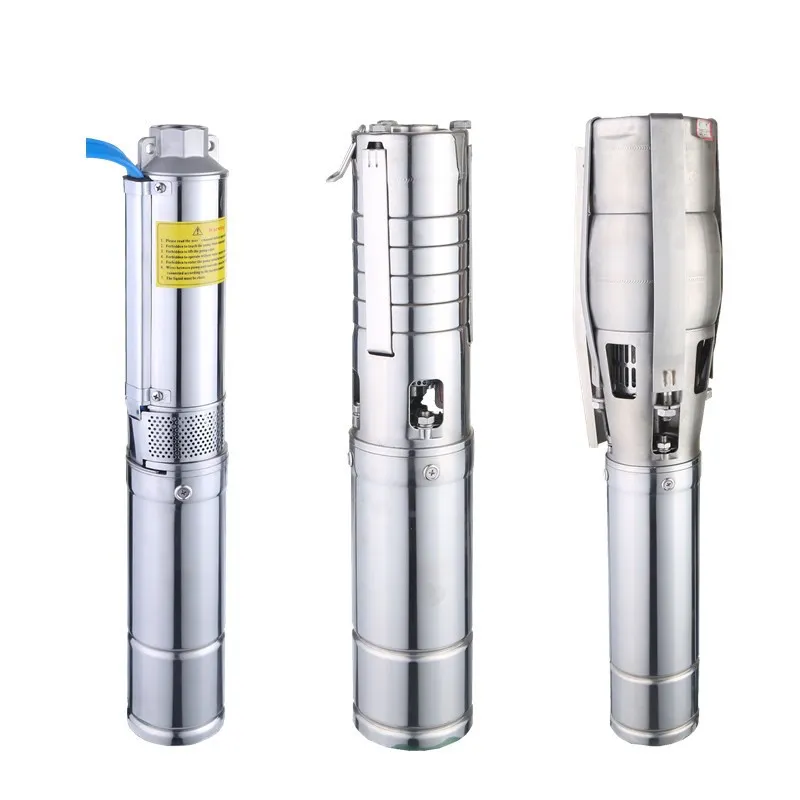

10-500m Max Head Submersible Solar Pump Solar Water Pumping System For Deep Well
| Component | Material / Specification |
|---|---|
| Pump body | Stainless steel 304 |
| Motor body | Stainless steel 304 |
| Mechanical seal | Ceramic graphite |
| Impeller | Stainless steel 304 |
| Outlet | Stainless steel 304 |
| Electric motor | 24V~110V |
| Insulation Class | B |
| Protection | IP ×8 |
| Diameter of Outlet | 1.25" |
| ITEM | Voltage | Power | Max Flow | Max Head |
|---|---|---|---|---|
| 3DPC3-25-24-200 | 24V | 200W | 3000L/H | 25M |
| 3DPC3-35-24-300 | 24V | 300W | 3000L/H | 35M |
| 3DPC3.5-47-48-400 | 48V | 400W | 3500L/H | 47M |
| 3DPC3.5-80-48-600 | 48V | 600W | 3500L/H | 80M |
| 3DPC3.5-95-72-750 | 72V | 750W | 3500L/H | 95M |
| 3DPC3.8-123-110-1100 | 110V | 1100W | 3800L/H | 123M |
| 3DPC3.8-180-110-1500 | 110V | 1500W | 3800L/H | 180M |

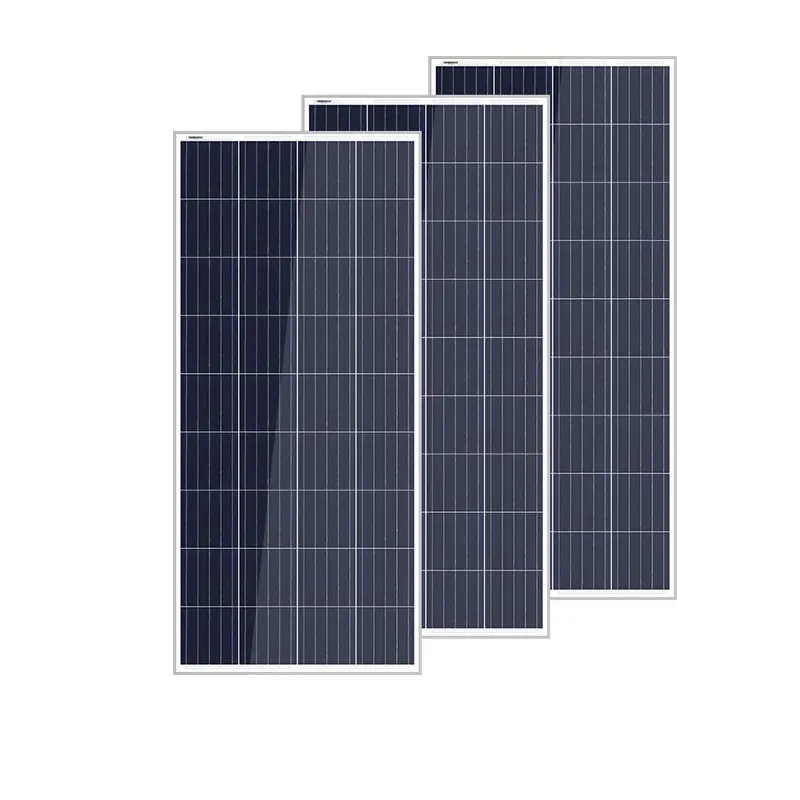

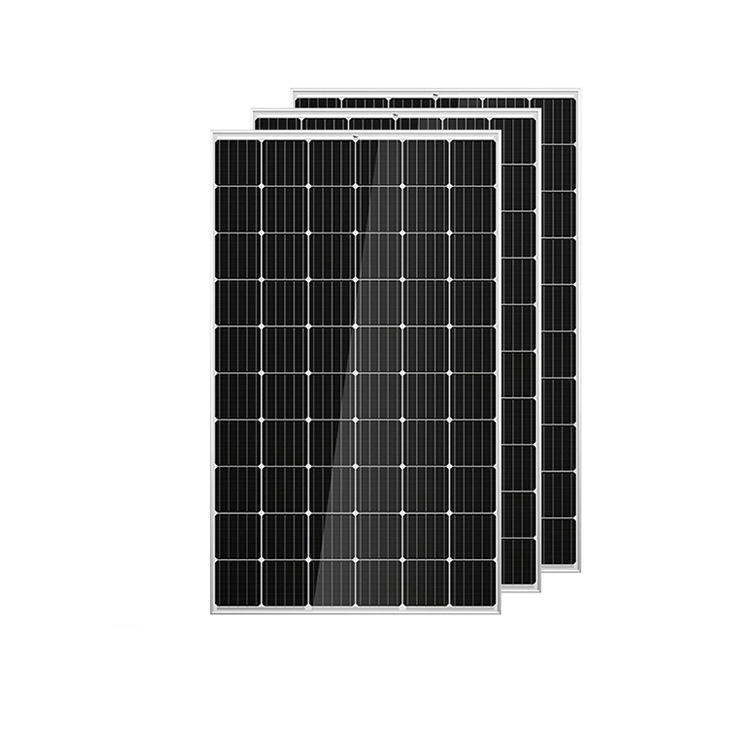

Highest conversion efficiency of 17% with anti-reflective and anti-soiling surface. PID resistant with high salt and ammonia resistance. Excellent mechanical load resistance.

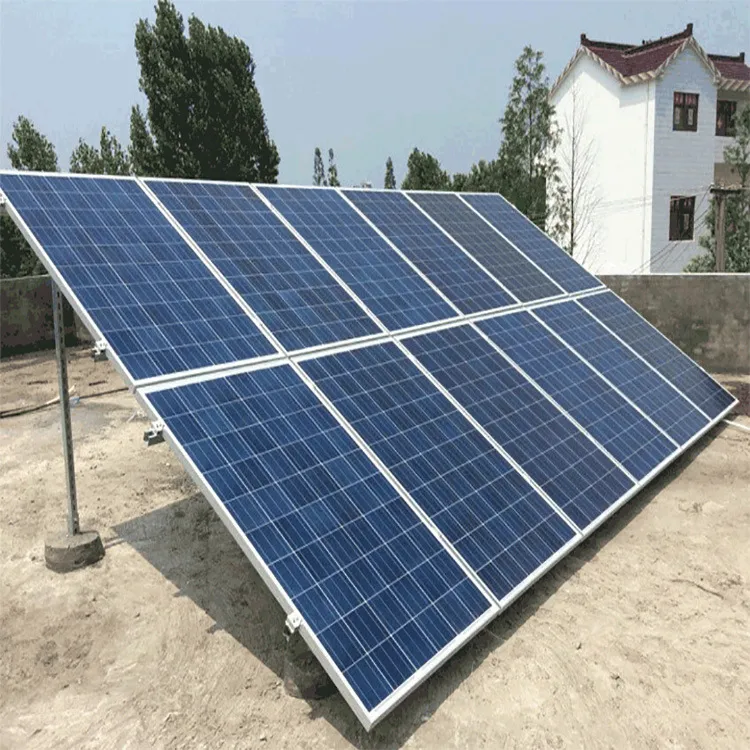

Versatile solutions including Pitched Roof, Flat Roof, Ground Mounting, Vertical Wall, and Car Parking structures. All aluminum high-durability structure.

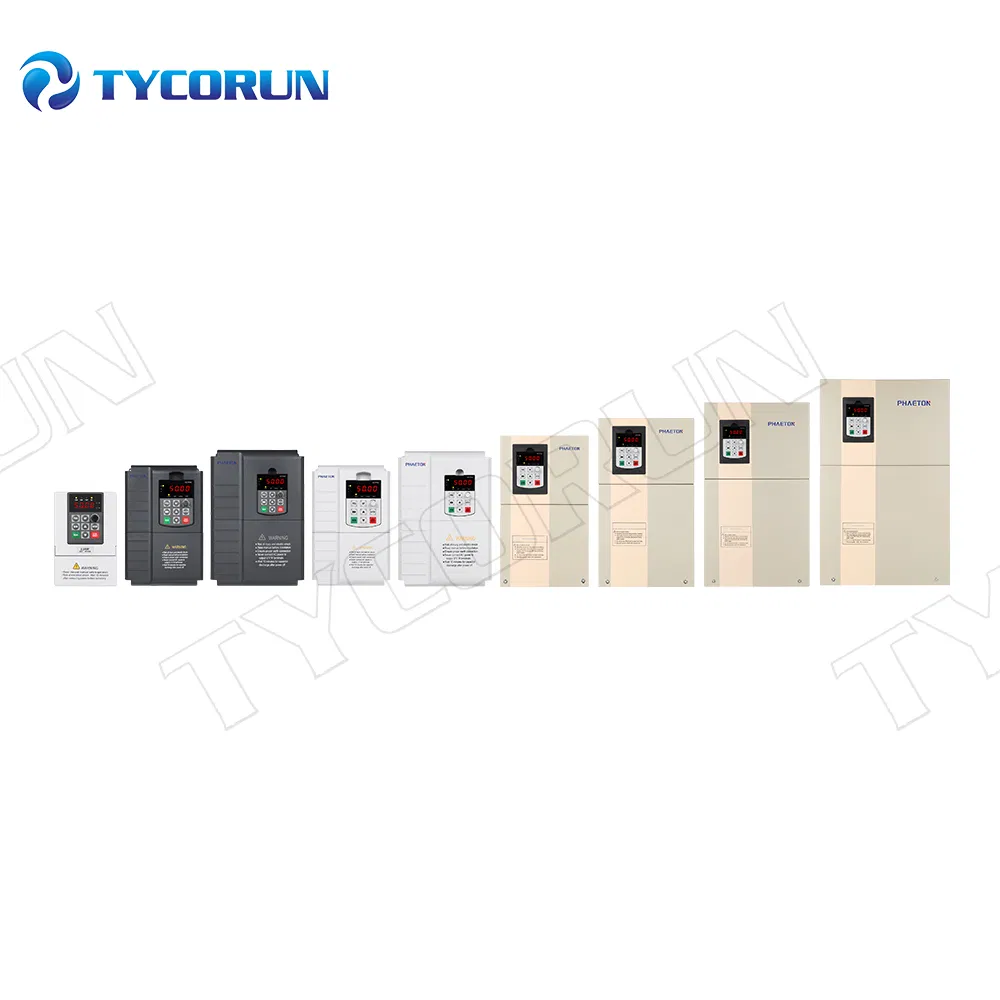

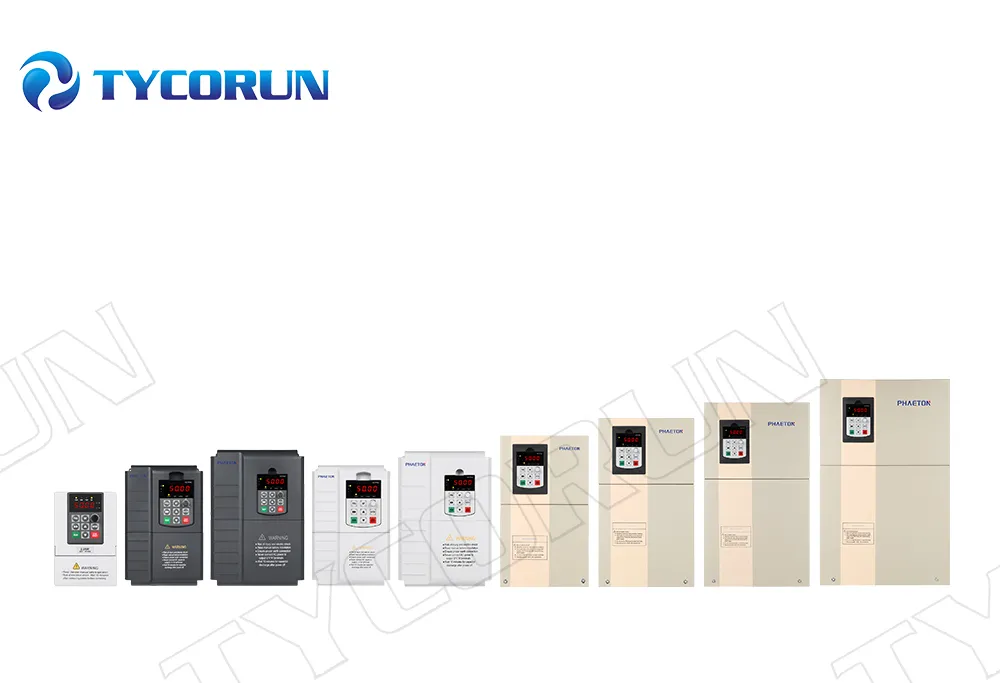

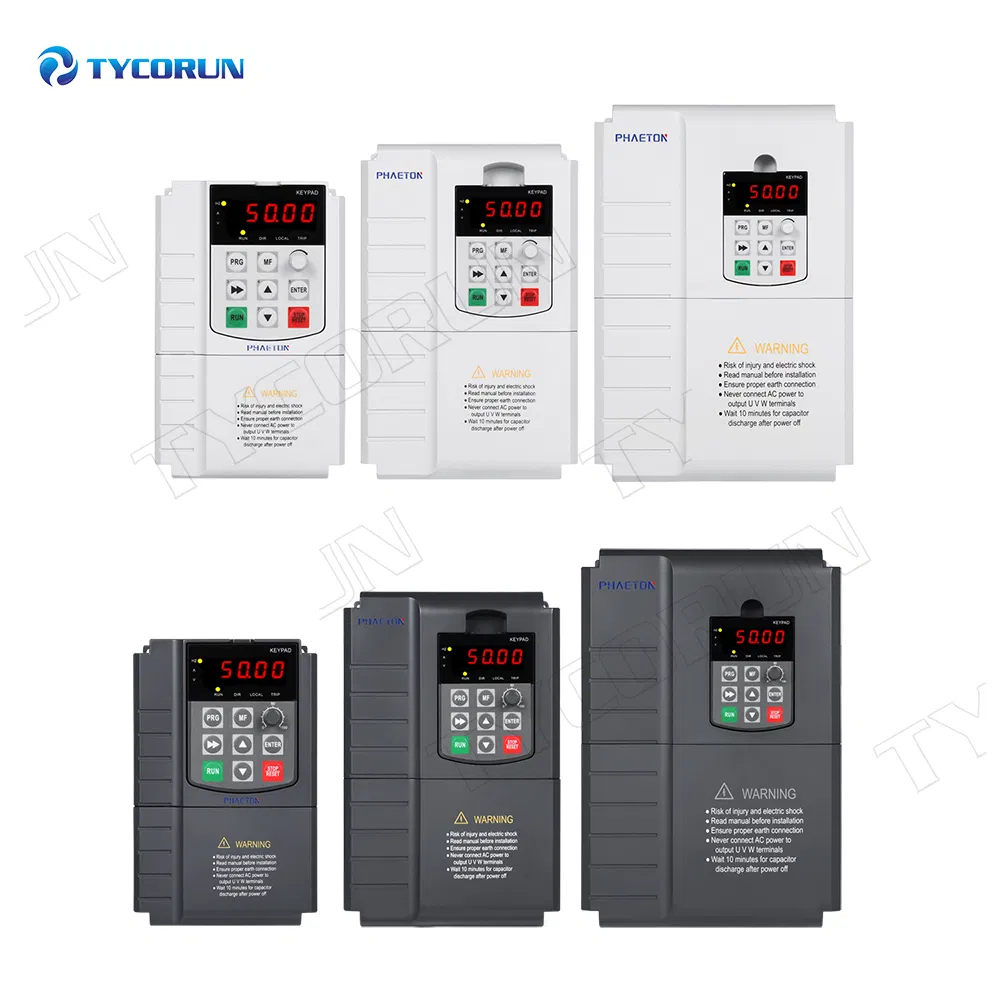

AC Inverters: 380/440VAC Three Phase. DC Inverters: 24V to 216VAC. All units feature Grid-Tie functionality. Includes Water Sensors, PV Cables, and Connectors.
