UL Certificated Flexible AC90 Steel-Clad Wire for Conduit Installations

1 / 5

UL Certificated Flexible AC90 Steel-Clad Wire for Conduit Installations

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

AC90

Insulation Material

XLPE

Sheath Material

Nylon

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

CSA

Armour

Aluminum Interlocking

Max Operating Temp

90℃

Rated Voltage

600V

Origin

China

Package Size

100cm * 100cm * 100cm

Gross Weight

5.000kg

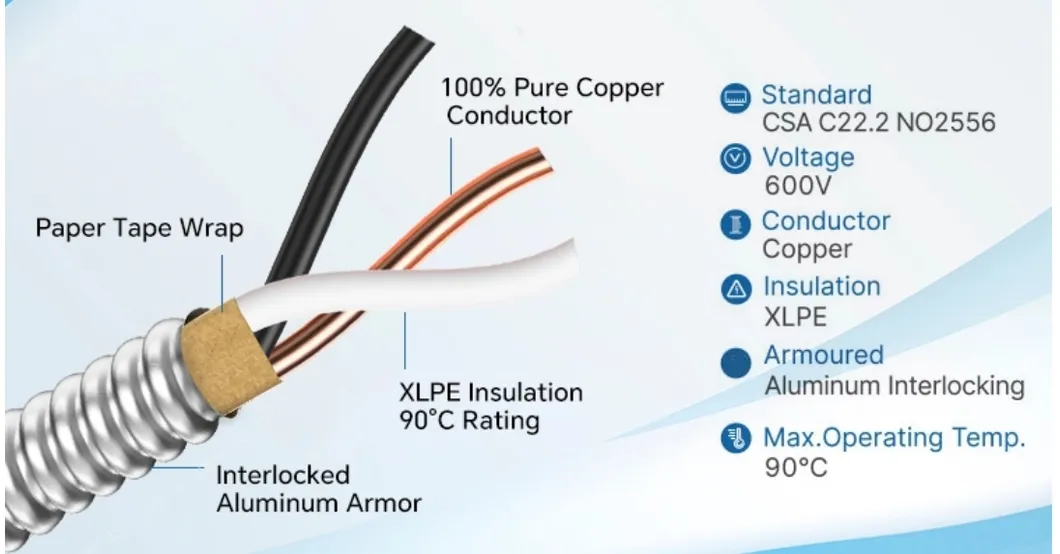

Product Overview

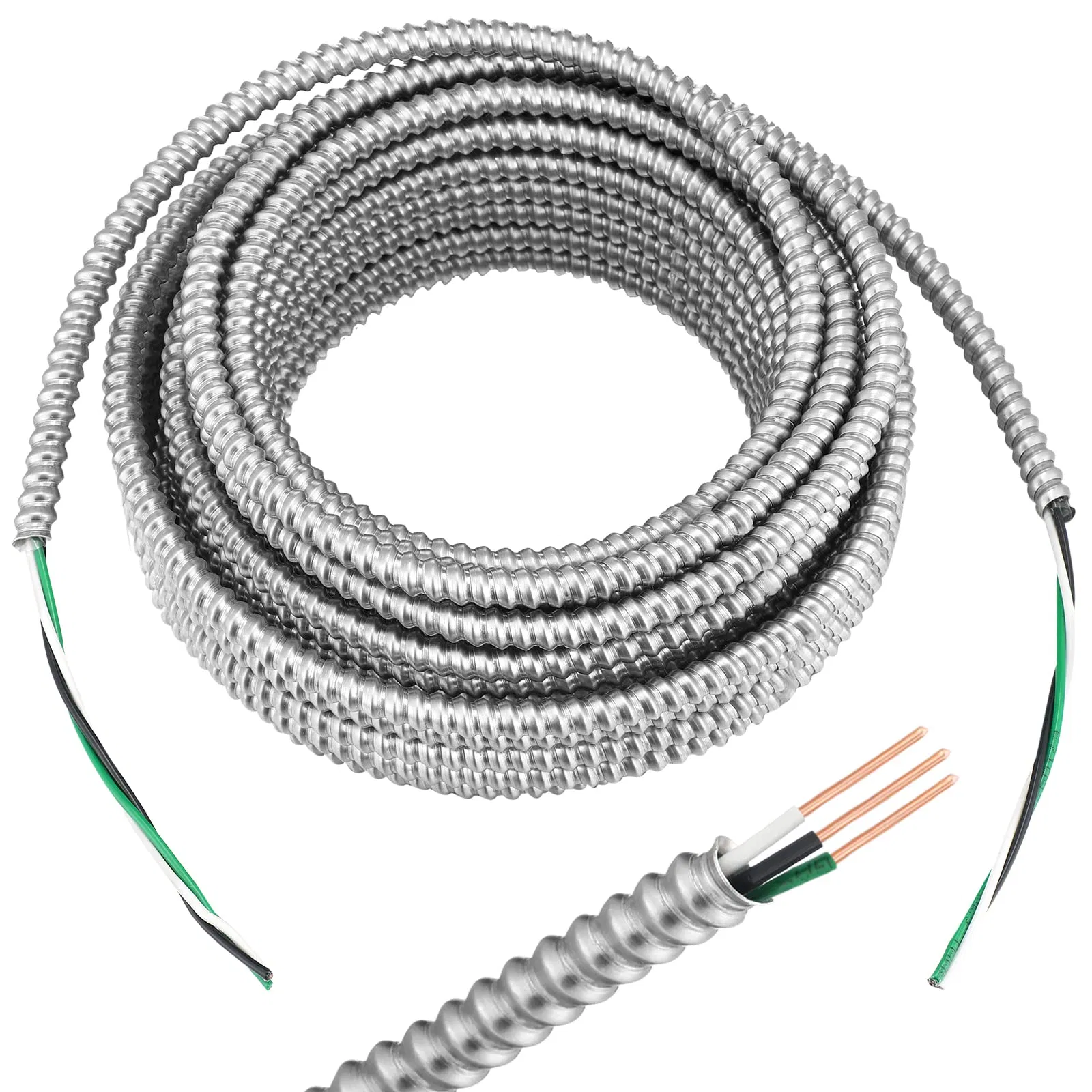

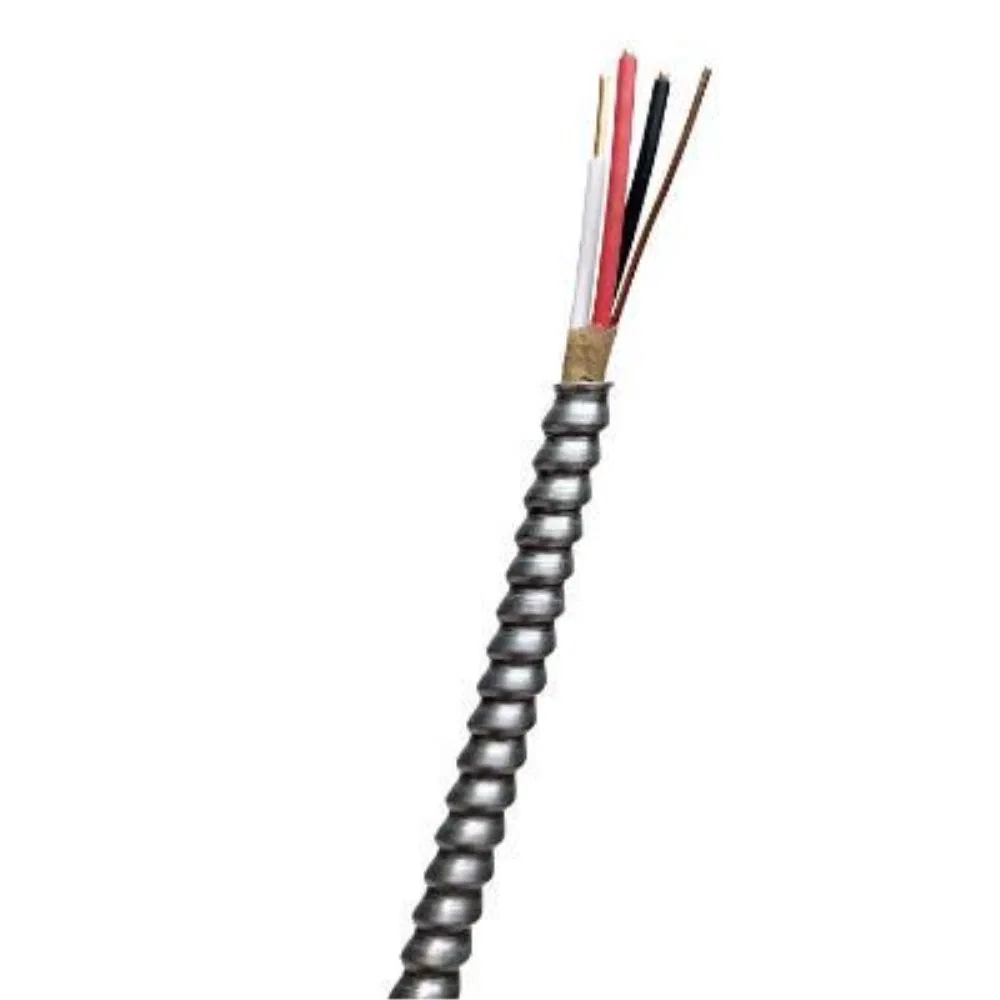

AC90 600V Armored Electrical Cable

Multi-Conductor Stranded AC90 Cable combines CSA/UL-certified safety with superior flexibility for demanding installations. Engineered with stranded copper conductors for maximum bendability and fatigue resistance, XLPE insulation (90°C rating), and rugged interlocked aluminum armor, it delivers reliable power in dry, damp, or wet locations.

Ideal for vibration-prone or tight-routing applications, this cable permits conduit elimination per CEC standards, reducing installation time by 30%+ versus traditional methods.

Primary Applications

⚙️ Industrial Machinery Wiring

Conveyor systems, CNC machines, pumps. Handles continuous vibration without conductor fatigue.

⛏️ Mining & Heavy Equipment

Excavators, crushers. Armor resists impact; stranded cores survive constant flexing.

🏢 Commercial Retrofits

Renovations in malls, hospitals, labs. Single-cable pull simplifies installation in tight spaces.

☀️ Renewable Energy

Inverter to transformer runs in solar/wind farms. Accommodates ground settlement.

💧 Outdoor & Control

Docks, irrigation systems. Aluminum armor prevents corrosion in wet environments.

❄️ HVAC Systems

Chillers and rooftop units. Resists metal fatigue from motor vibrations.

Key Advantages

Compliance: Fully compliant with CSA C22.2 No. 2556 and NEC Article 338 for branch circuits.
Thermal Performance: Rated for 90°C in dry environments with excellent short-term overload performance.
Rugged Protection: Aluminum interlocked armor is UV-resistant, moisture-resistant, and mechanically durable.
Pure Conductivity: 99.9% pure copper conductor with anti-oxidation design for 25+ years of service life.
Flame Resistance: XLPE insulation meets FT4 flame test compliance.
Cost Efficient: Self-grounding armor provides 300 kg/cm² crush resistance and eliminates the need for conduit.

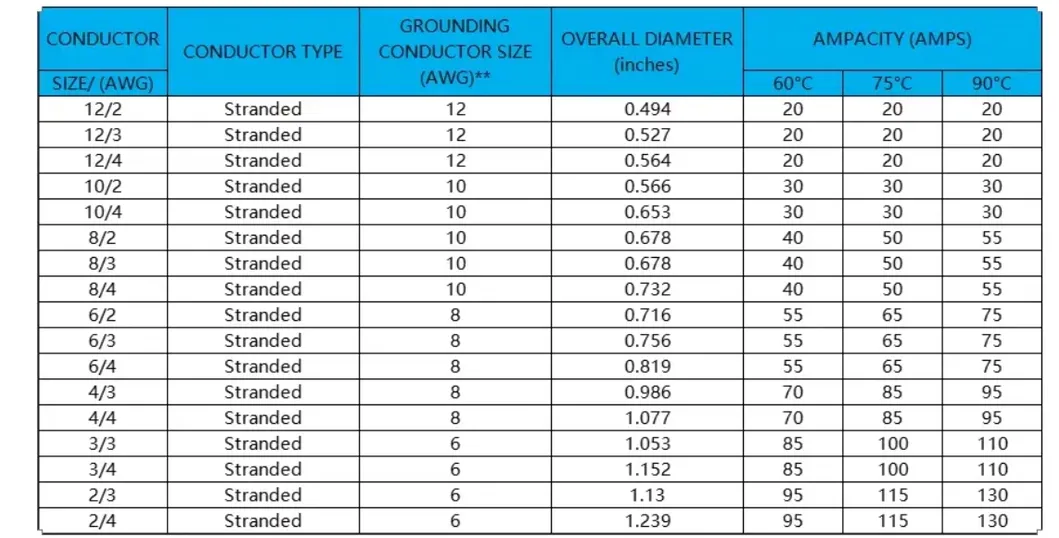

Size & Specifications Gallery

Frequently Asked Questions

What is the main advantage of using AC90 cable?

AC90 cable features an interlocking aluminum armor that provides excellent mechanical protection and eliminates the need for conduit in many installations, saving significantly on labor and material costs.

Can this cable be used in wet environments?

Yes, AC90 is designed with XLPE insulation and a corrosion-resistant aluminum armor, making it suitable for dry, damp, and wet locations as per CSA standards.

What does the 90°C rating signify?

It means the cable is designed to operate safely at a continuous conductor temperature of up to 90°C, providing higher current carrying capacity and better overload resistance.

Is AC90 cable suitable for high-vibration areas?

Absolutely. Because our AC90 uses stranded copper conductors, it is much more flexible and resistant to metal fatigue caused by continuous vibration compared to solid core cables.

Does AC90 require a separate grounding wire?

The aluminum interlocking armor itself is designed to be self-grounding in many applications, simplifying the installation process while maintaining safety.

What certifications does this AC90 cable hold?

Our AC90 cable is fully compliant with CSA C22.2 No. 2556 and NEC Article 338, ensuring it meets all safety requirements for North American industrial and commercial use.
