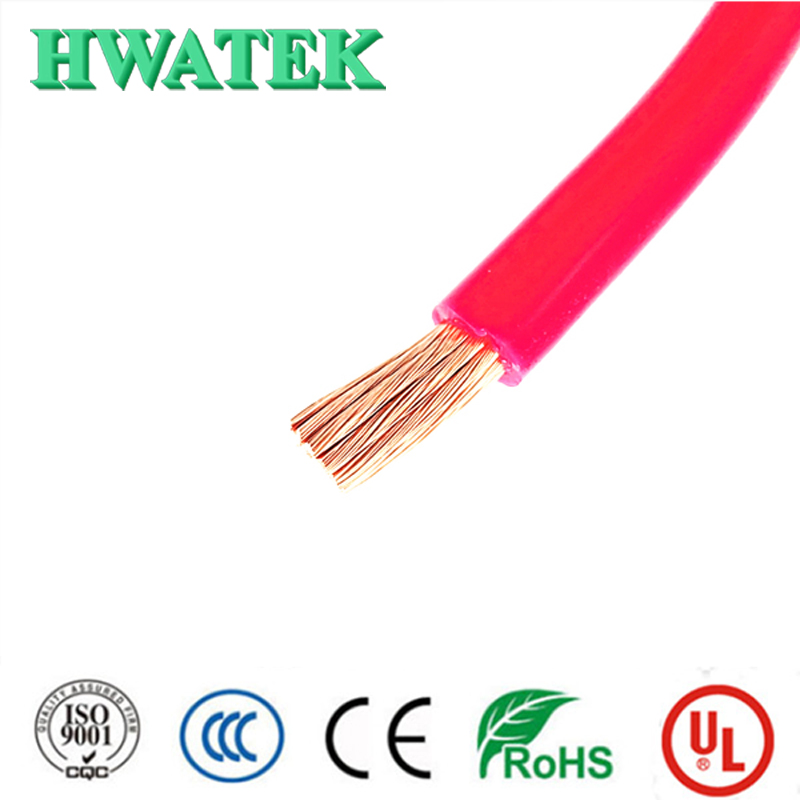

UL3132, 3133 Data Center Silicone Rubber (SR) Electric Flexible Power Wire Cable

1 / 5

UL3132, 3133 Data Center Silicone Rubber (SR) Electric Flexible Power Wire Cable

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

UL3132

Insulation

Silicone Rubber

Material Shape

Round Wire

Application

Flame Retardant

Certification

ISO9001, CE, CCC, RoHS, VDE

Color

Optional

Lead Time

2-8 Weeks

HS Code

8544492100

⚡

Product Description

UL3132, 3133 Data Center Silicone Rubber (SR) Electric Power Wire Cable

📊

Product Parameters

Construction Details		Mechanical & Electrical Performance
Conductor	Bare Copper Stranded	Rated Temperature	-40~150ºC
Cross Section	14AWG (41/0.254mm)	Voltage Rating	300V
Insulation Material	Silicone Rubber (Halogen Free)	Tensile Strength	≥ 3.45MPa
Insulation Thickness	0.51mm (Nom.)	Elongation	≥ 100%
Outer Diameter	3.60±0.20mm	DC Resistance	8.62Ω/km (at 20ºC)
Flame Rating	VW-1	Min. Bend Radius	5 × OD

📸

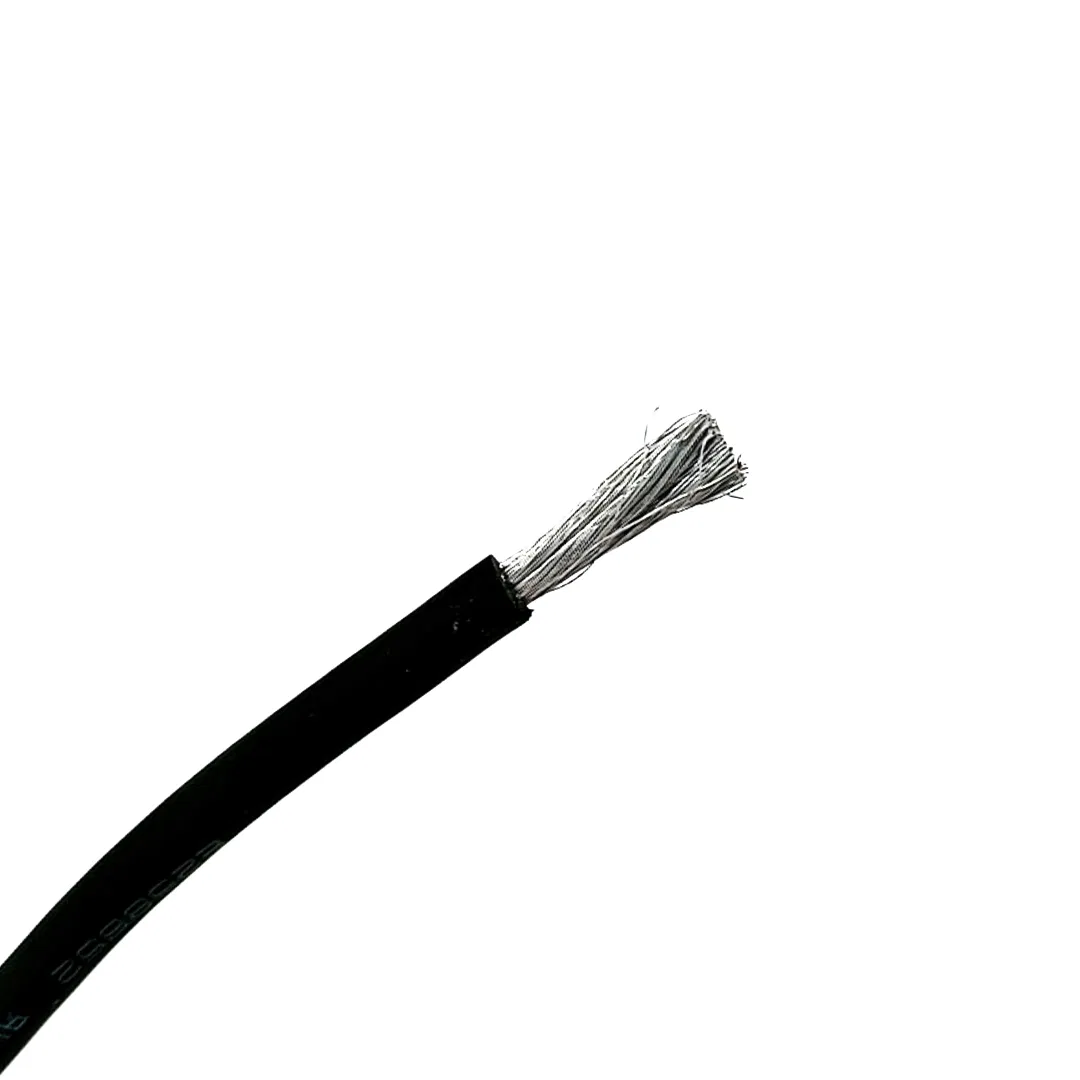

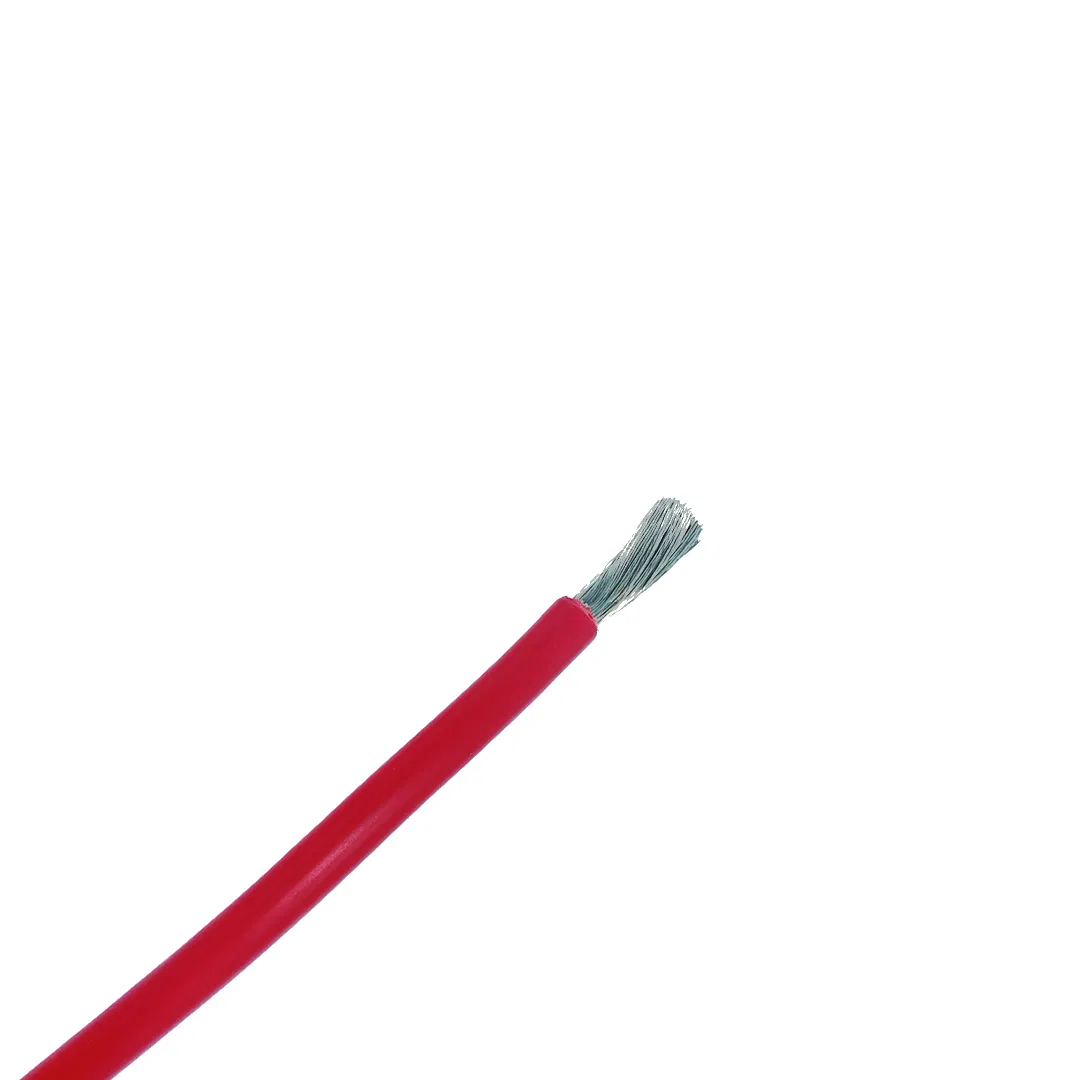

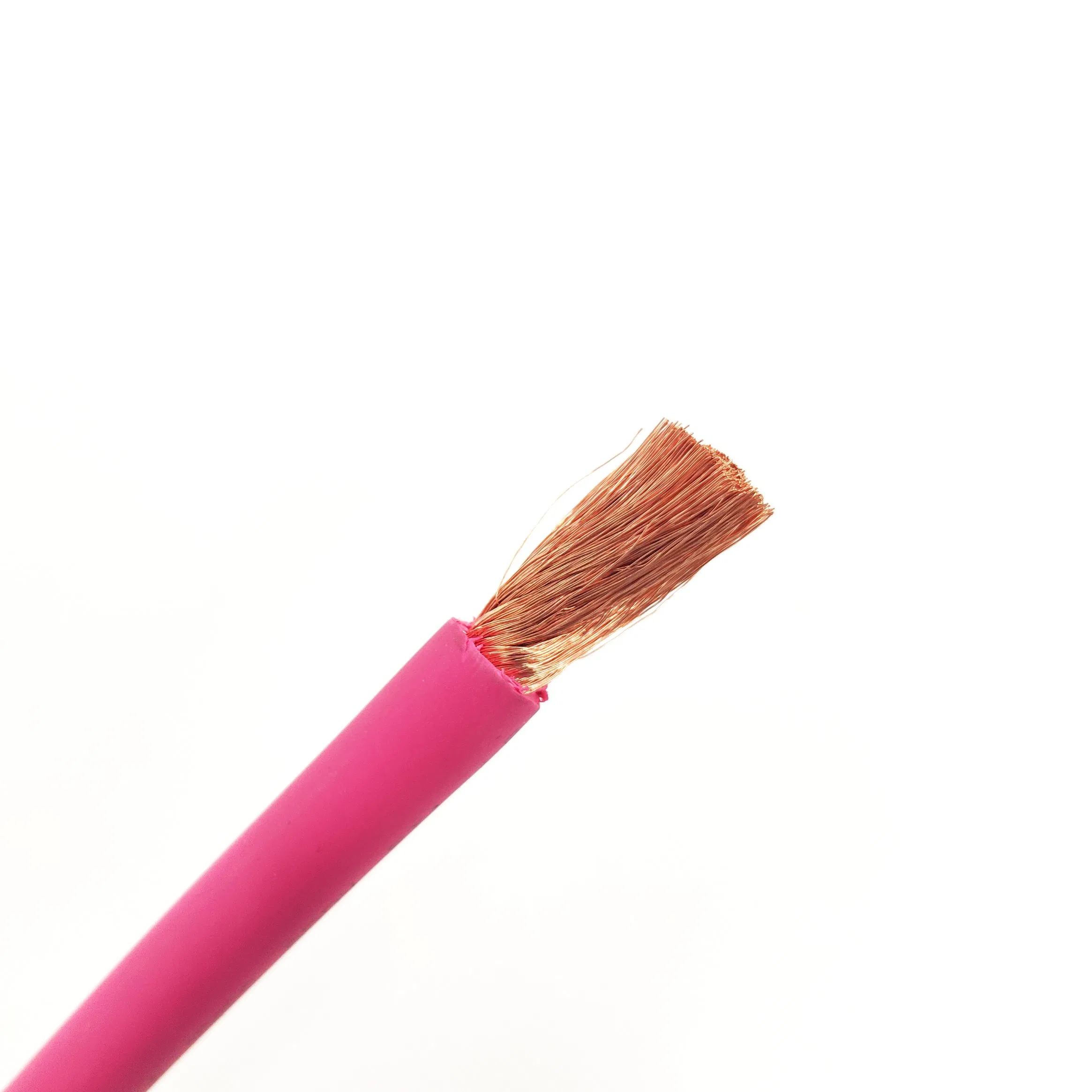

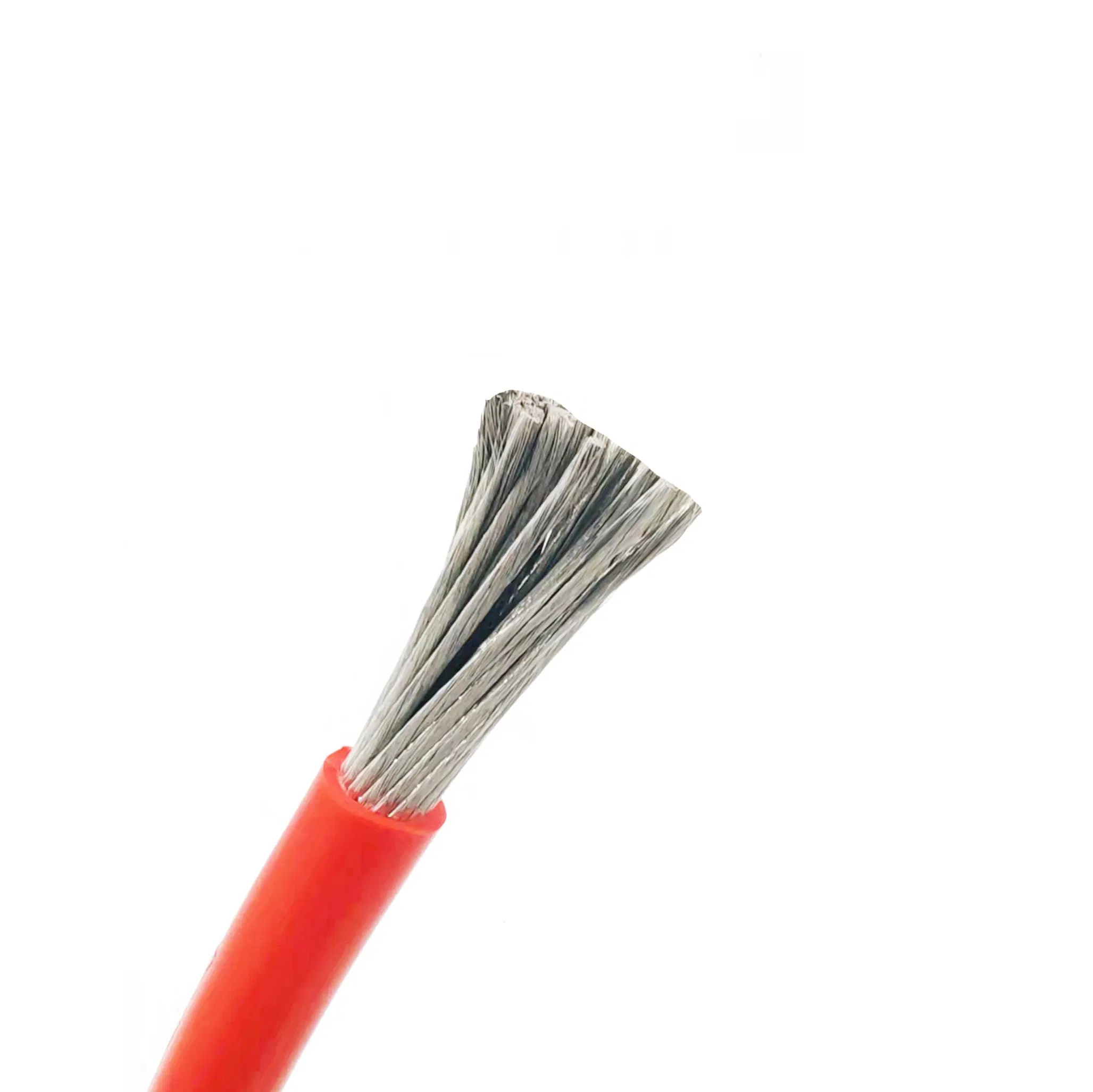

Detailed Photos

🛡️

Manufacturing Competence

✔ Specialized in industrial control, communication, medical, and green energy EV cables.

✔ Materials: PVC, SR-PVC, XL-PVC, XLPE, FRPE, TPE, FEP, Silicone Rubber.

✔ Temperature range from -40 to 200 Degree Celsius.

✔ Voltage range from 30V to 1200V DC.

✔ Quality Systems: ISO9001, IATF16949, ISO13485.

✔ Over 300 different UL Style approvals.

📜

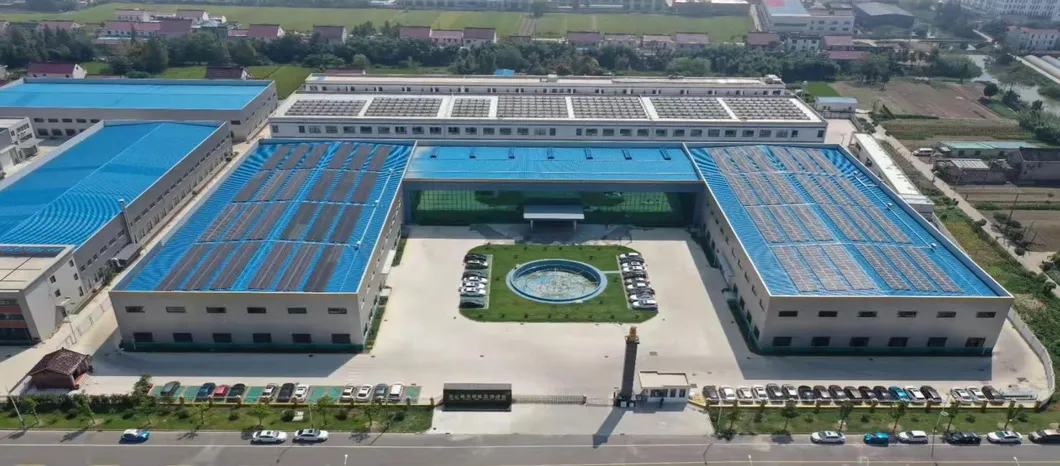

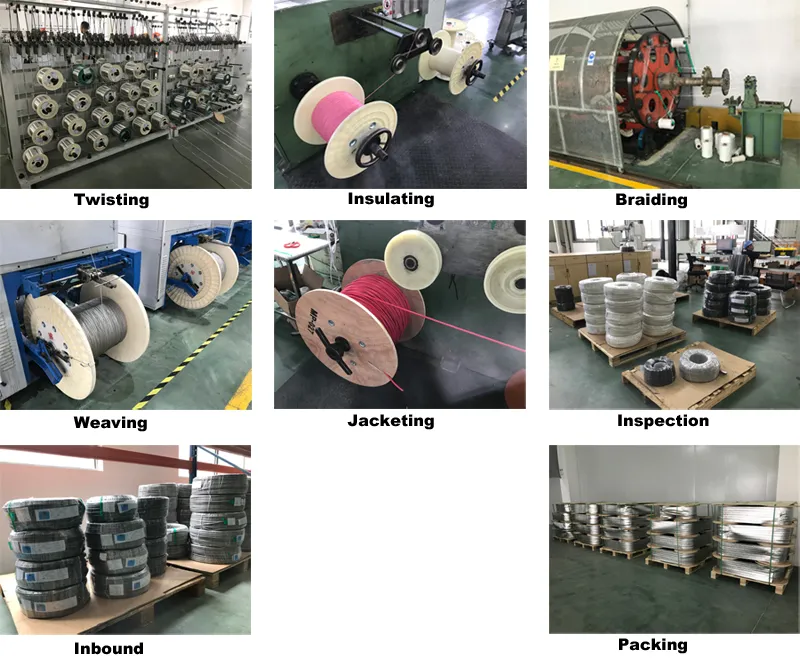

Certifications & Production

📦

Packaging & Shipping

Frequently Asked Questions

Q1: What types of wires and cables do you supply?

We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and green energy cables.

Q2: What international certifications do your products have?

Our products are certified by UL, CE, 3C, Dekra, CQC, TUV, RoHS, REACH, and ETL.

Q3: Can we request samples before placing a formal order?

Yes, we are happy to arrange samples for your evaluation and testing prior to ordering.

Q4: What is the standard lead time for production?

Normally, orders are completed within 2-3 weeks. During peak seasons, the lead time may extend to 5-6 weeks.

Q5: How do you ensure the quality of your cables?

We maintain strict quality control with pre-production samples before mass production and a final inspection before every shipment.

Q6: Do you support custom cable manufacturing?

Yes, we provide both OEM and ODM services, supporting custom-made cables and drop-in equivalents for various brands.
