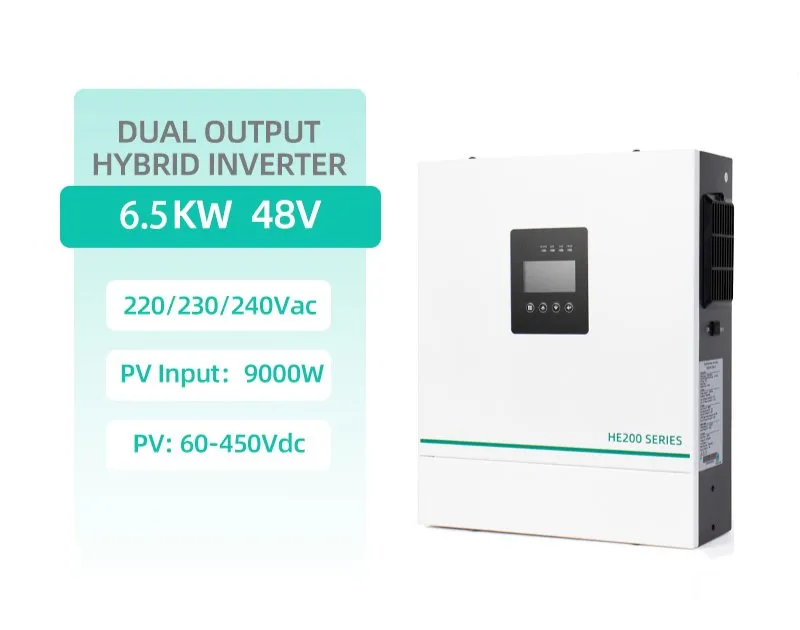

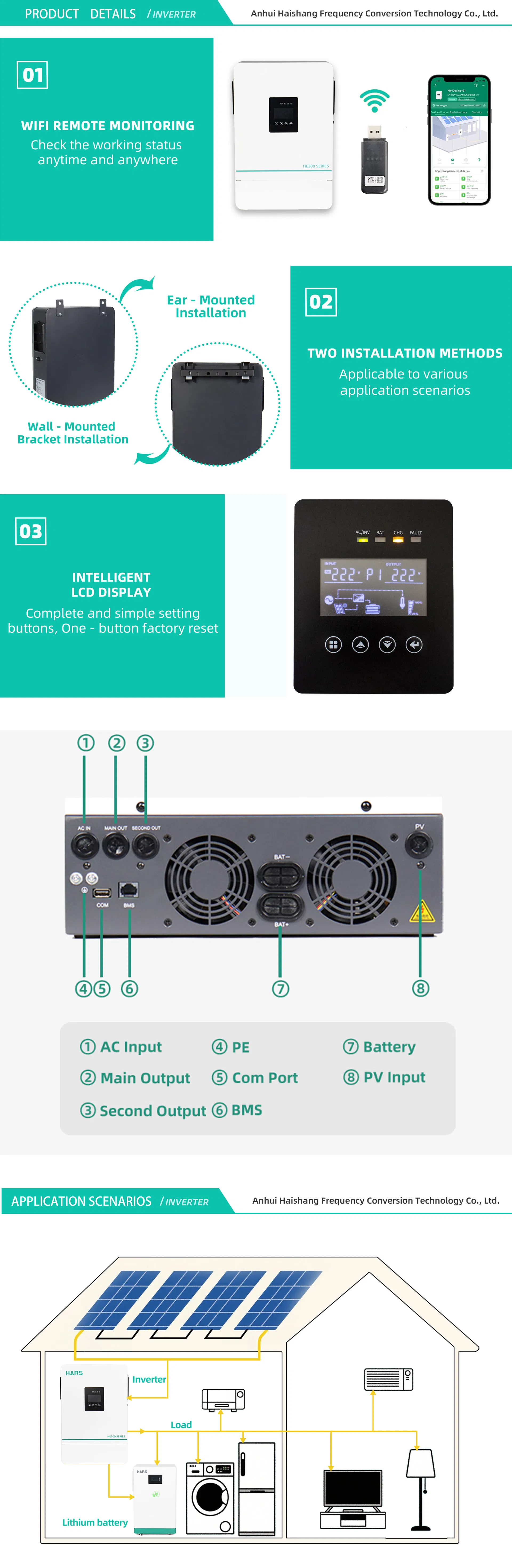

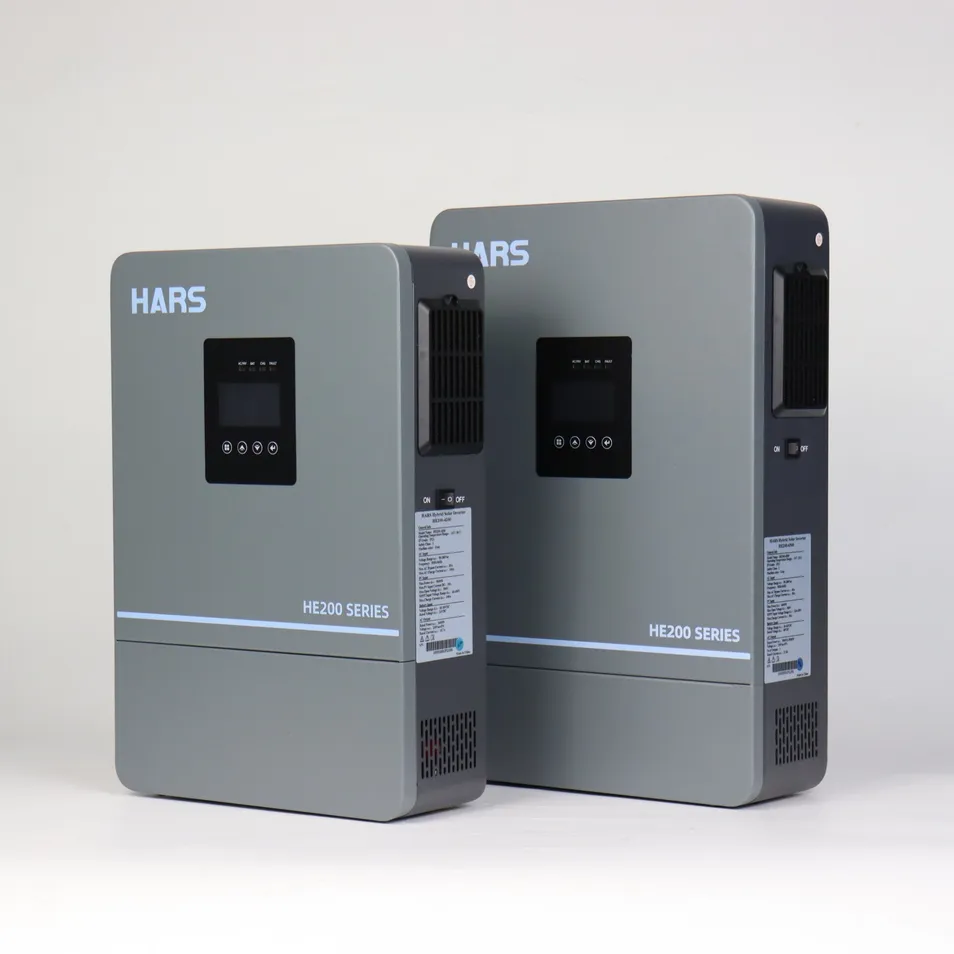

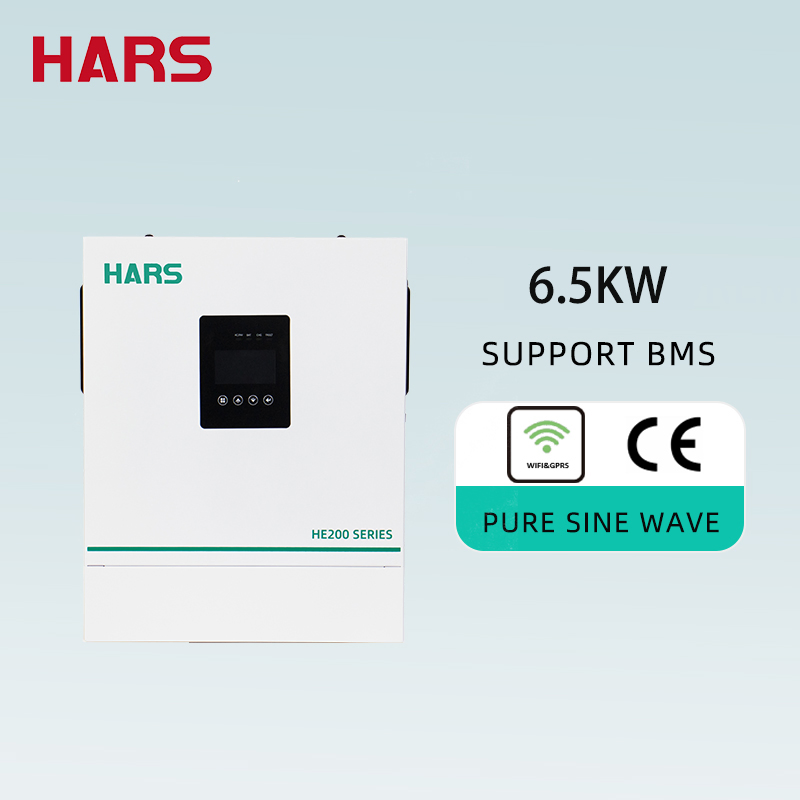

HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts portable size, supports uninterruptible power supply switching, has the function of setting battery charging voltage and current, multiple power input and output priority settings. Output AC voltage and frequency can be set, suitable for different power grid environments, and has a mobile phone APP for online data monitoring.
| Inverter Output (HE200-7200-F) | |
|---|---|
| Rated Output Power | 6500W |
| Rated Output Voltage | 230Vac±5% (single phase) |
| Rated Output Current | 27A |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Battery Type | Lead acid/Gel/lithium battery |
| Rated Battery Voltage | 48V |
| Max PV Input Power | 9000W |
| Max PV Charging Current | 120A |
| Max PV Charging Efficiency | 99.5% |
| PV & AC Input Details | |
|---|---|
| MPPT Number | 1 |
| Max Open Circuit Voltage | 500Vdc |
| Input Voltage Range | 60~450V |
| AC Input Voltage Range | 90~280Vac |
| Max AC Bypass Current | 50A |
| Protection Level | IP21 |
| Cooling Method | Intelligent air cooling |
| Dimensions | 395*332.4*116.2(mm) |
We are a high-tech enterprise integrating R&D, production, sales and technical services. The proportion of automated production is as high as 80%, and the product inventory is sufficient, ensuring reliable delivery times. We provide ODM, OEM and other services with strong technical support across our specialized production facilities.
