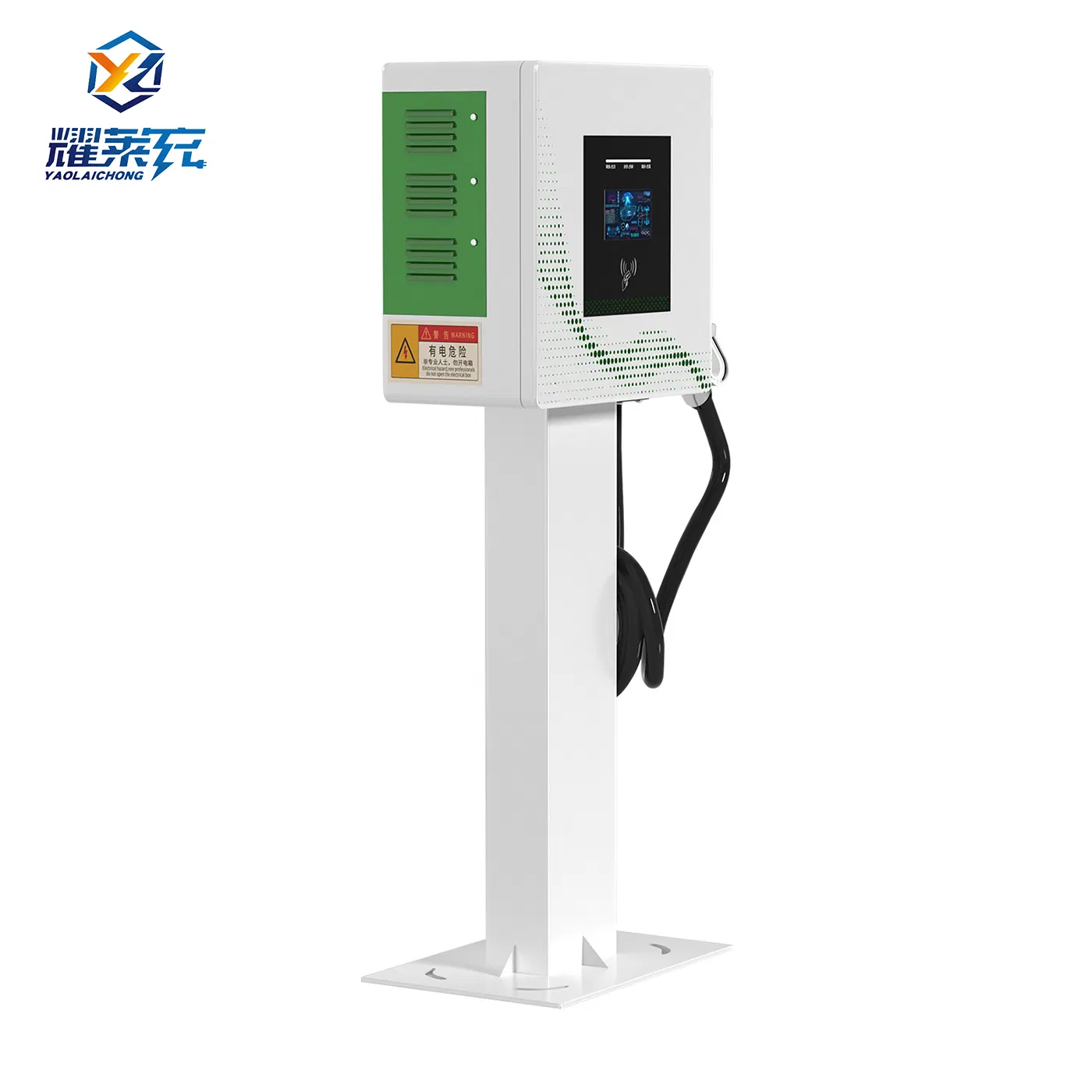

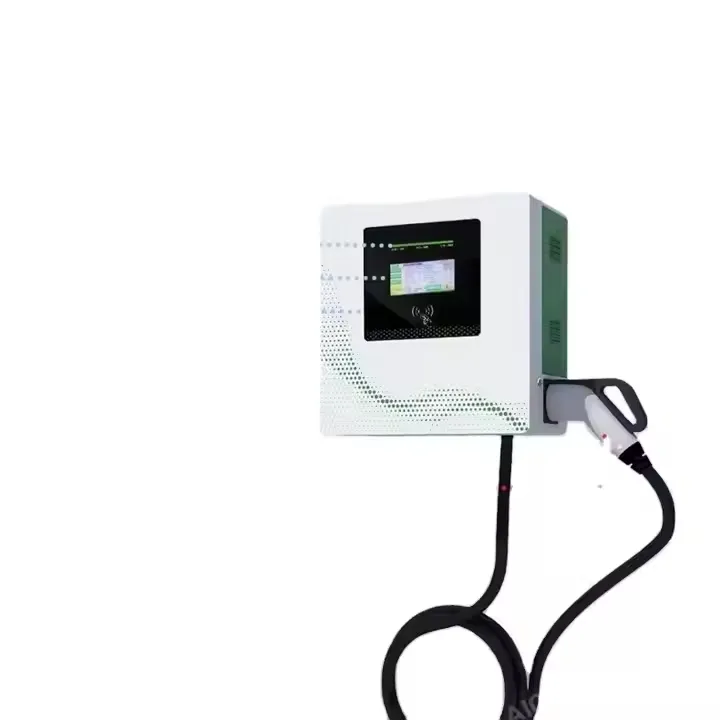

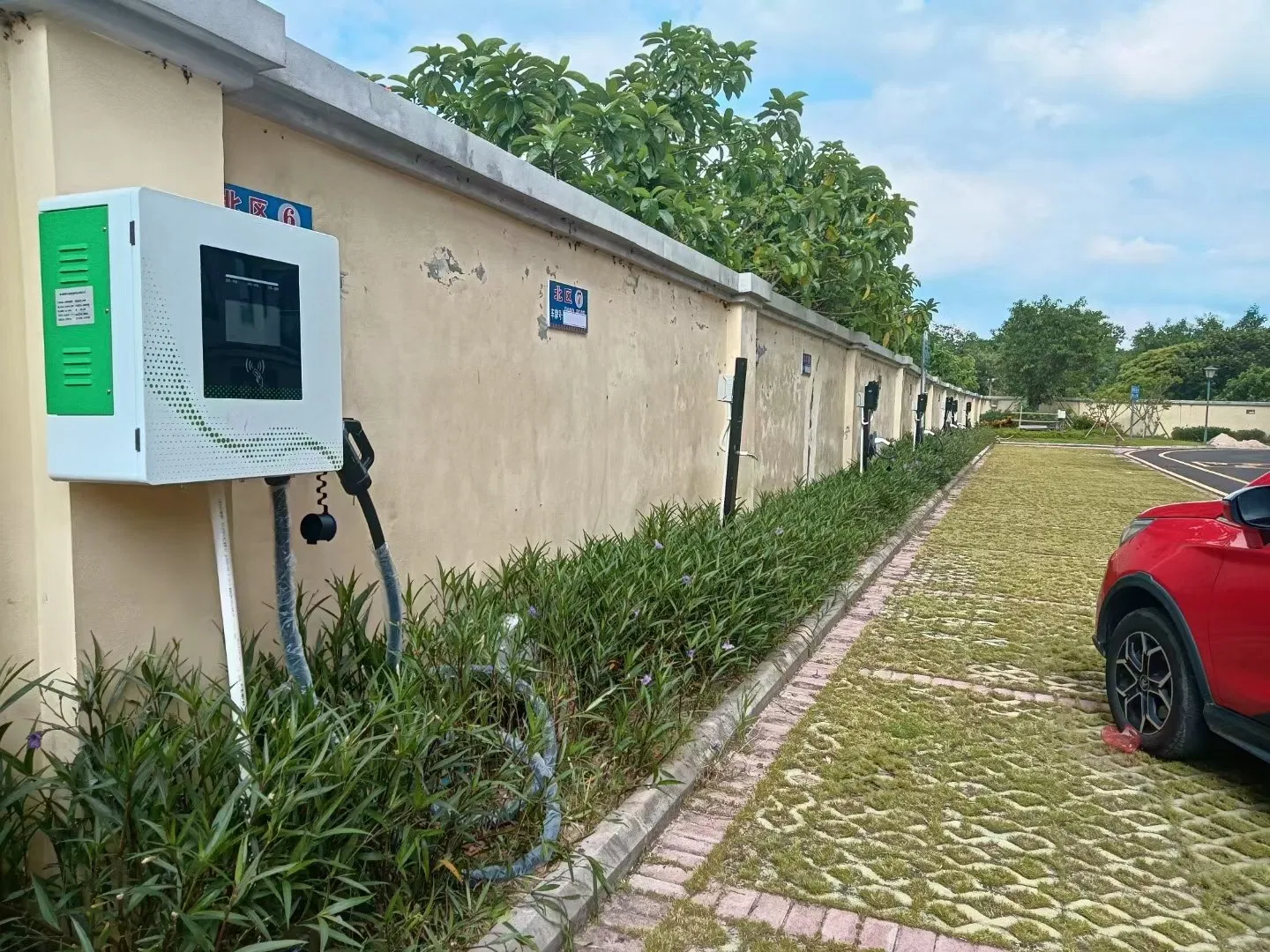

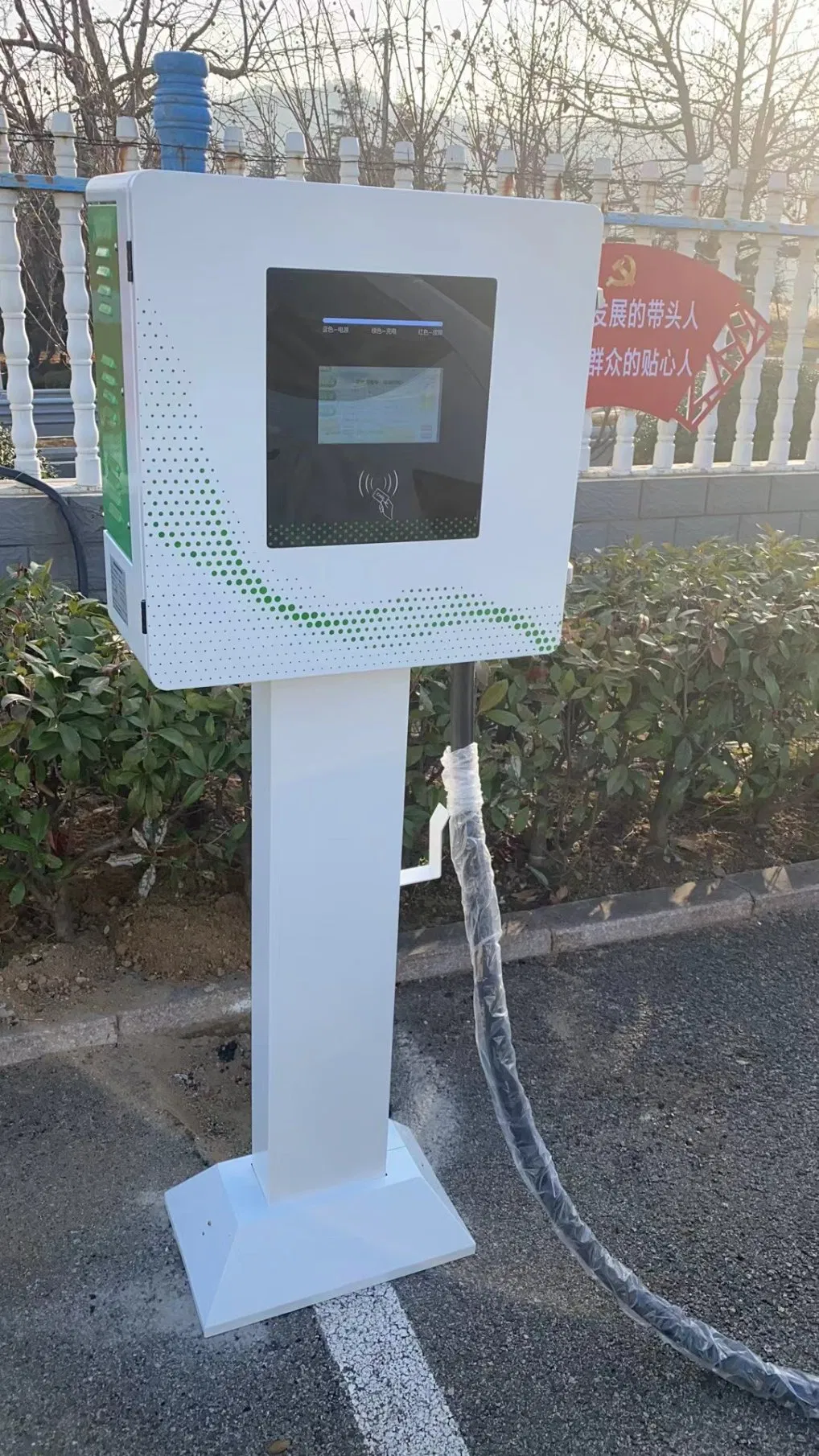

This integrated DC charging pile uses a new generation of constant power DC charging modules. High current output effectively reduces charging time, providing a premium experience for electric vehicle users.
Features: IP54 protection level (waterproof, dustproof, lightning-proof), intelligent power distribution, and sleek customizable appearance.
Suitable Models: Family cars, SUVs, vans, buses, trucks, mud trucks, and special engineering vehicles.
Fast Charging: Achieve significant charge within 20-30 minutes for compatible battery systems.

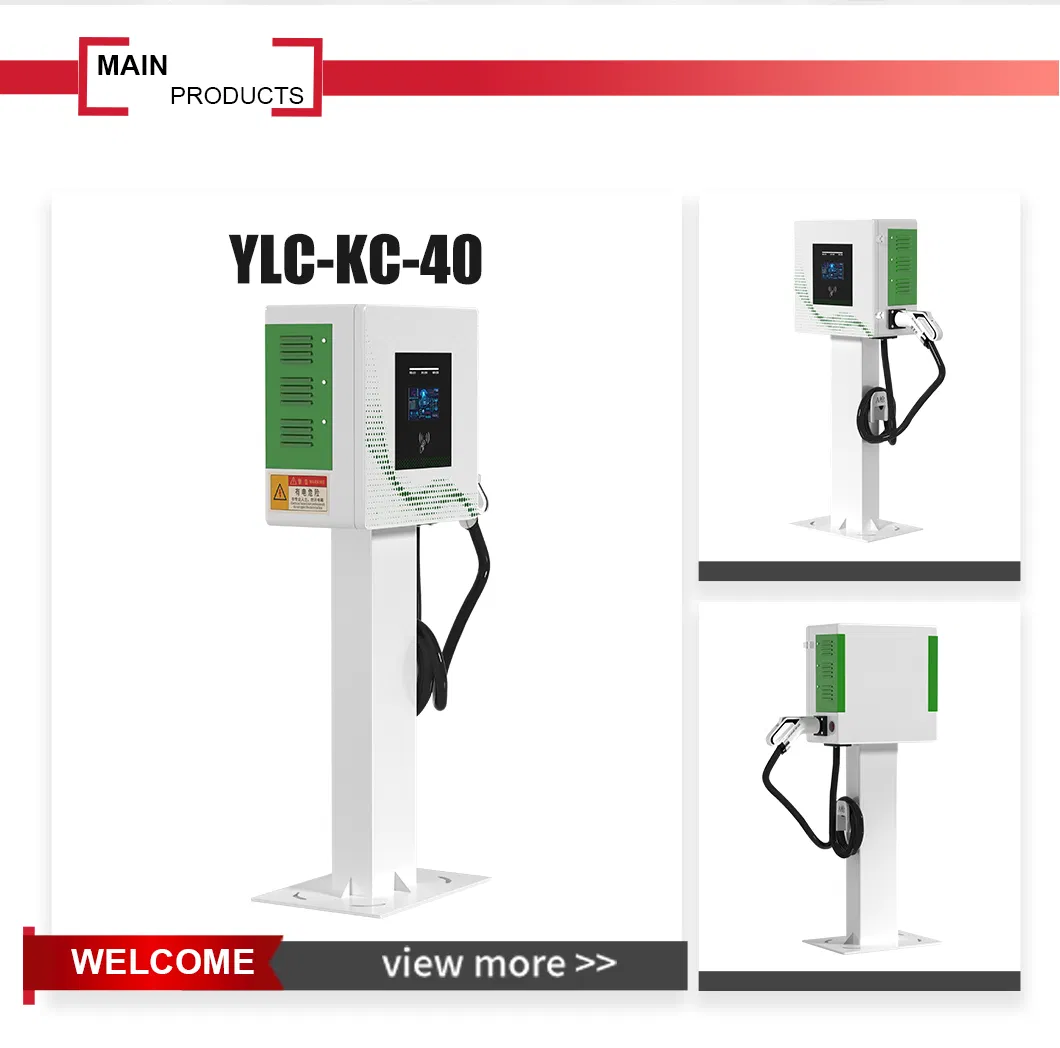

| Product Model | YLC-KC-20 | YLC-KC-30 | YLC-KC-40 |
|---|---|---|---|
| Rated Power | 20KW | 30KW | 40KW |
| User Interface | 7-inch LCD color display touch screen | ||
| Equipment Size | 550 * 550 * 280 mm | ||
| Input Voltage | AC380V ± 20% | ||
| Output Voltage | 200-750V (Constant Power) | ||
| Max Output Current | 0-63A | 0-75A | 0-100A |
| Cable Length | 5 Meters | ||
| Efficiency | ≥ 94% | ||
| Payment Method | RFID / QR Code / Mobile App |
| Safety Functions | Temperature detection, overvoltage/undervoltage protection, overload & short circuit protection, grounding protection, insulation monitoring, emergency stop. |
| Working Temperature | -25℃ to +50℃ |
| Cooling Method | Forced air cooling |
| MTBF | 100,000 Hours |
A: Our chargers support various standards including GBT, CCS1, CCS2, and CHAdeMO, making them suitable for most electric vehicles like family cars, SUVs, vans, buses, and specialized trucks.
A: Depending on the battery capacity and state of charge, the 20kW-40kW DC fast chargers can typically provide a substantial charge in 20-30 minutes, or a full charge within 2-4 hours.
A: Yes, it is rated at IP54 protection level, ensuring it is waterproof, dustproof, and lightning-proof, making it durable for various outdoor environments.
A: The system supports RFID cards, QR Code payments (via OCPP 1.6j), and can optionally be equipped with POS terminal for credit card payments.
A: Safety features include gun temperature detection, overvoltage, undervoltage, overload, short circuit, grounding, overtemperature, and emergency stop protection.
A: Yes, our chargers use a new generation of constant power modules, ensuring high efficiency (≥94%) and consistent performance across a wide voltage range.
