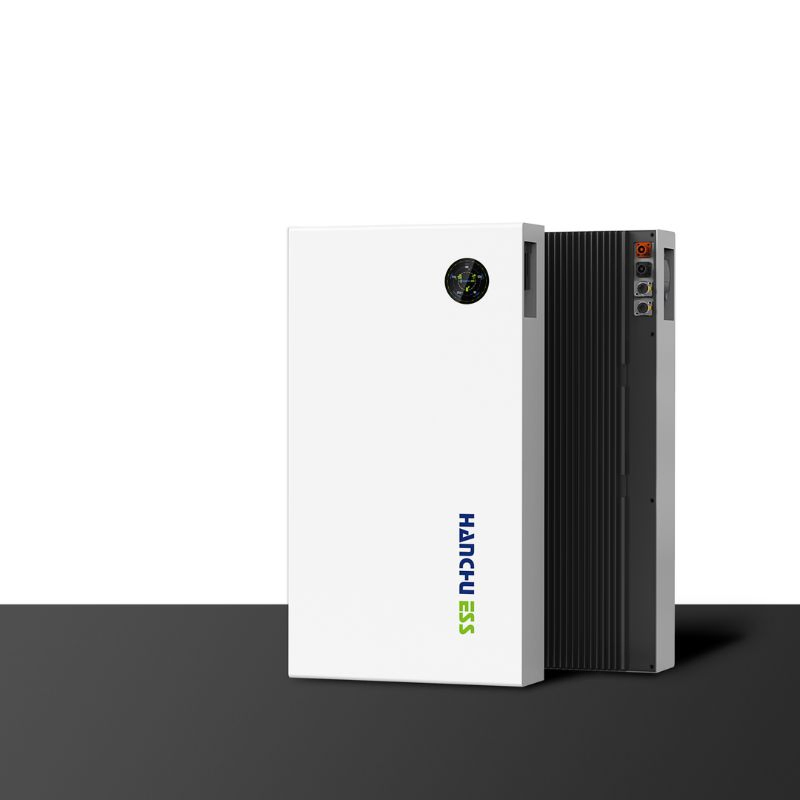

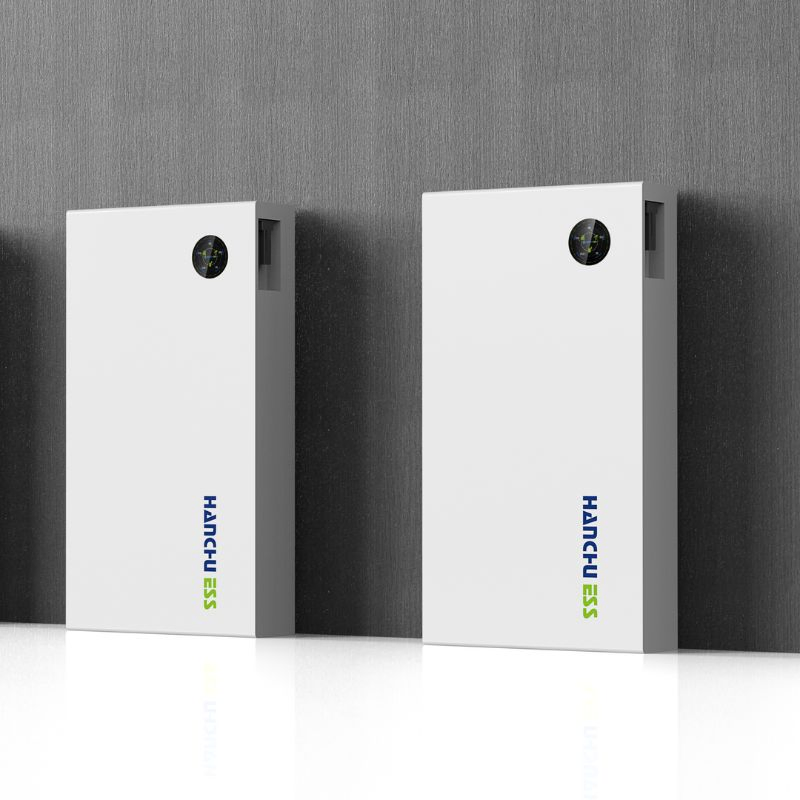

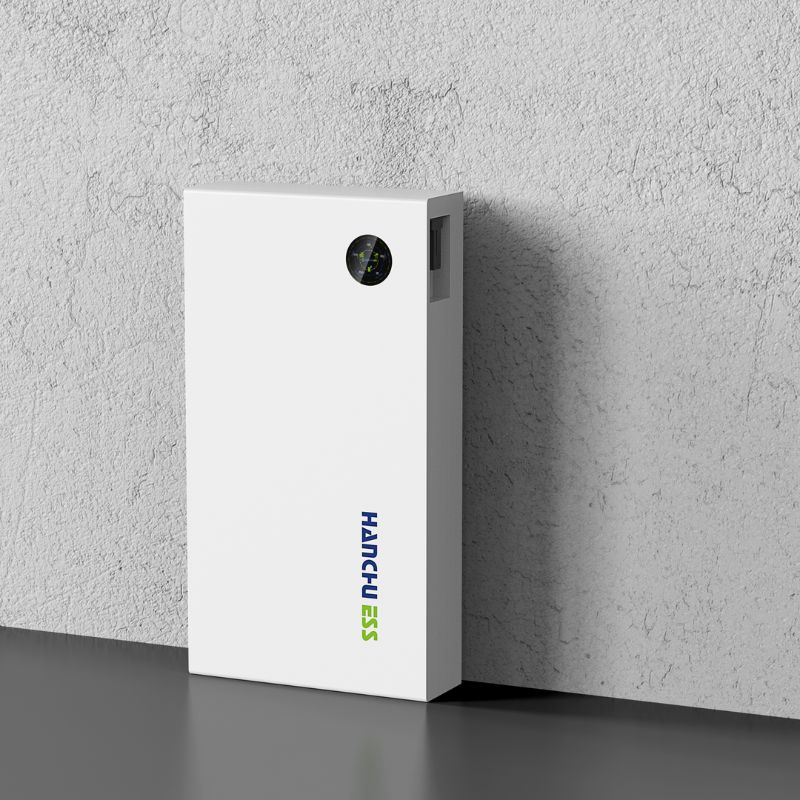

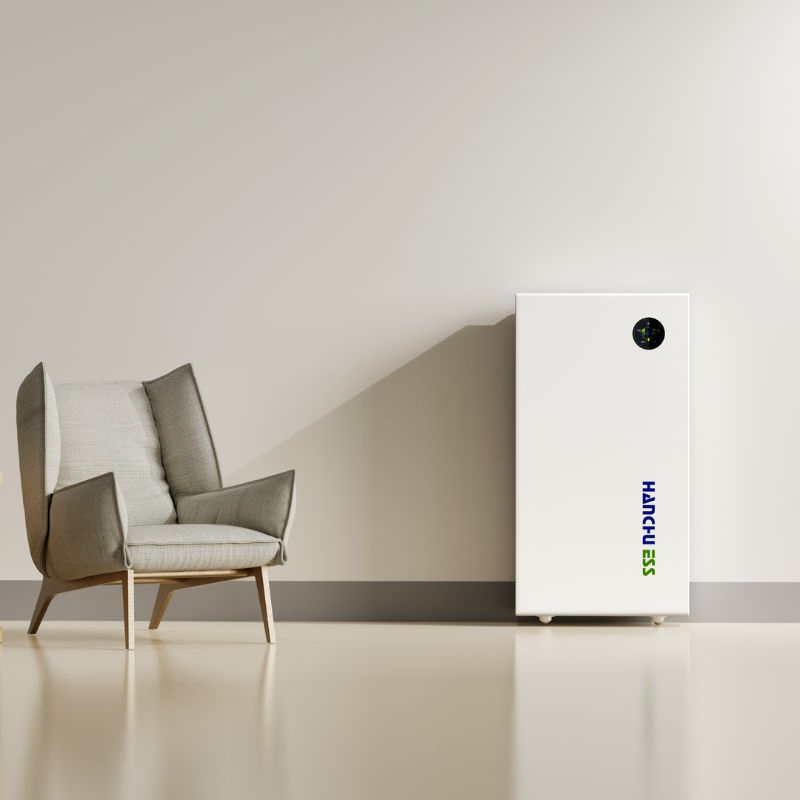

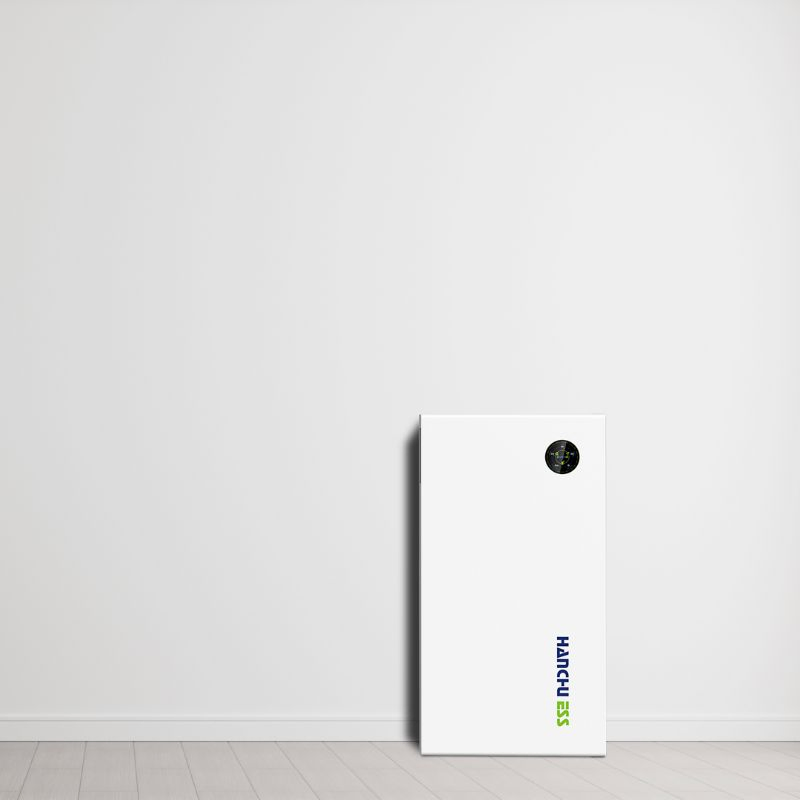

Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
1 / 5
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring

Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring

Customization: Available
Type: Lithium Metal Battery
Cathode Material: LFP
Send Inquiry

Product Description

📋

Basic Information

Model NO.
HOME-ESS-LV-9.4K
Rechargeable
Yes
Size
Medium
Nominal Voltage
51.2V
Operating Voltage
43.2–57.6V
Dimensions
430 × 150 × 800 mm
Weight
72 Kg
Origin
China
🔋

Product Description

Solar Storage Battery
🖼️

Products Display

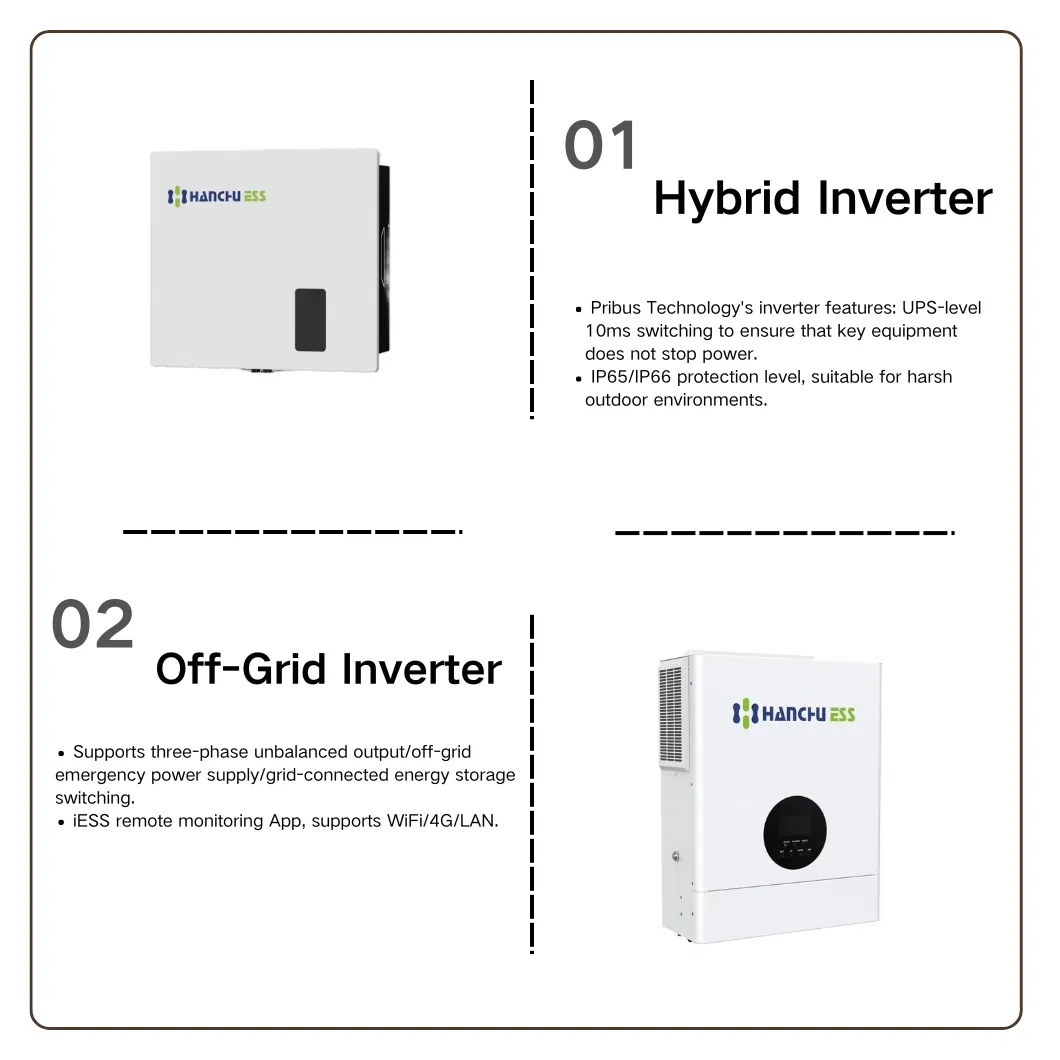

Display 1

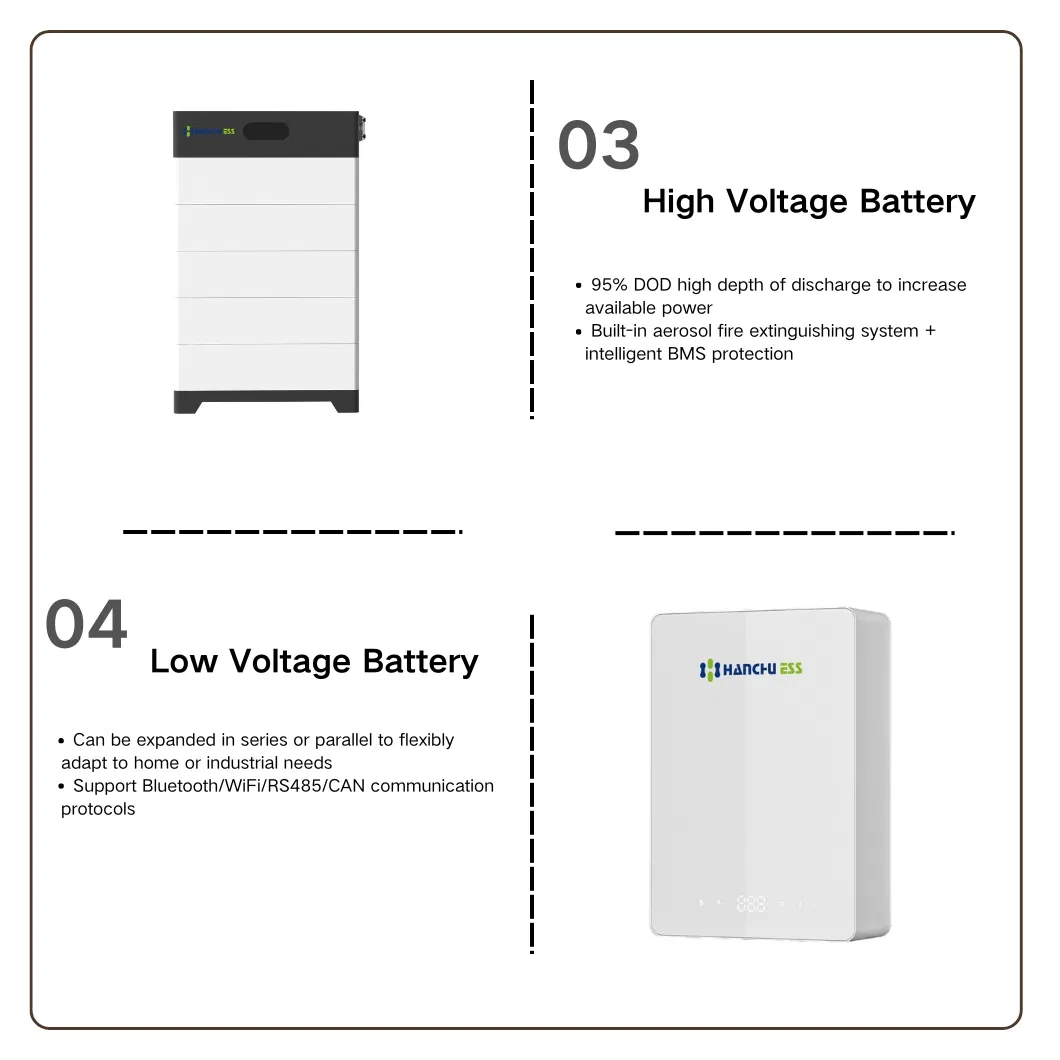

Display 2
Display 3
📊

Technical Specification

ModelHOME-ESS-LV-9.4K
Nominal Energy9.4 kWh
Nominal Voltage51.2V
Capacity184Ah
Rated Current100A (Charge/Discharge)
Cell TypeBlade LFP
Parallel CapacityUp to 16 units
CommunicationCAN / RS485 / WiFi / Bluetooth
Ingress ProtectionIP65
Warranty10 Years
Special FeaturesSmart BMS, Aerosol fire protection, IOT cloud platform
🏭

Manufacturing & Certifications

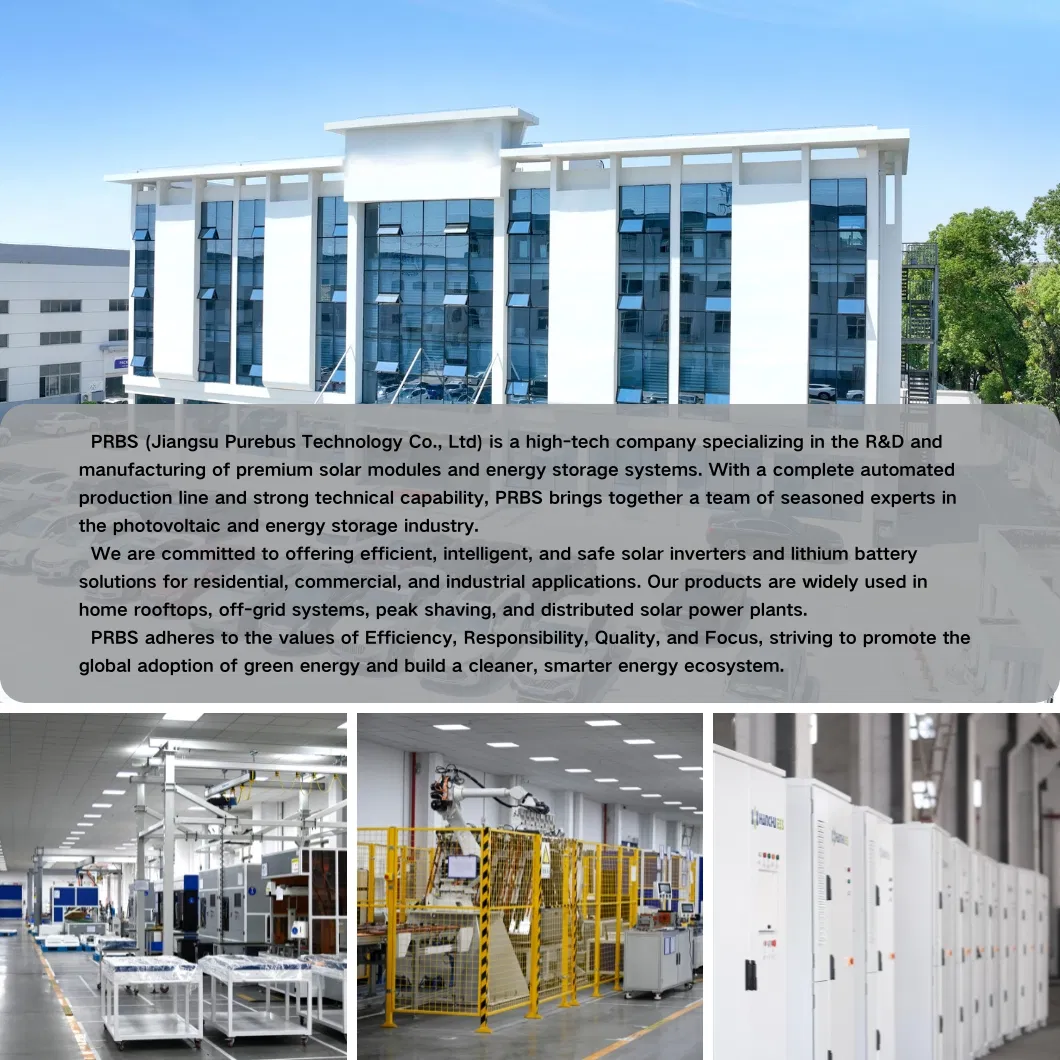

Factory Overview Certifications
📦

Packaging & Shipping

Packaging details
❓

Frequently Asked Questions

Do these energy systems comply with international standards?
Yes. All systems meet relevant IEC, CE, and UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection and fire safety.
Can you provide customized configurations?
Yes. Custom options include battery capacity (up to 280Ah/module), nominal voltage (LV 51.2V or HV 135-750V), and communication protocols like CAN, RS485, and Wi-Fi.
What is the typical lead time for delivery?
Standard products are typically shipped within 7-10 working days. For customized orders, the lead time is usually between 20-30 days depending on requirements.
Are your systems compatible with different inverter brands?
Yes. Our energy storage systems support open protocols (CAN/RS485) and can be seamlessly integrated with a wide range of popular inverter brands.
Do you support third-party quality inspections?
Absolutely. We welcome inspections from agencies like SGS or TUV. Full test reports and compliance certificates are provided prior to shipment.
What kind of maintenance is required for the IP65 units?
The units are designed for natural convection cooling and are rated IP65, meaning they require minimal maintenance. The Smart BMS monitors health status automatically via the cloud.
