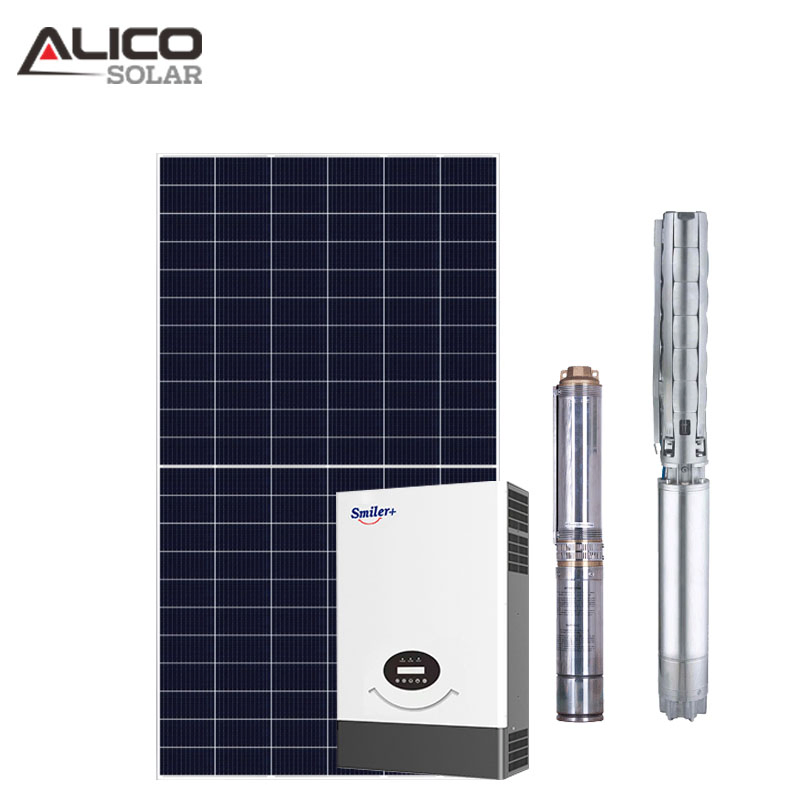

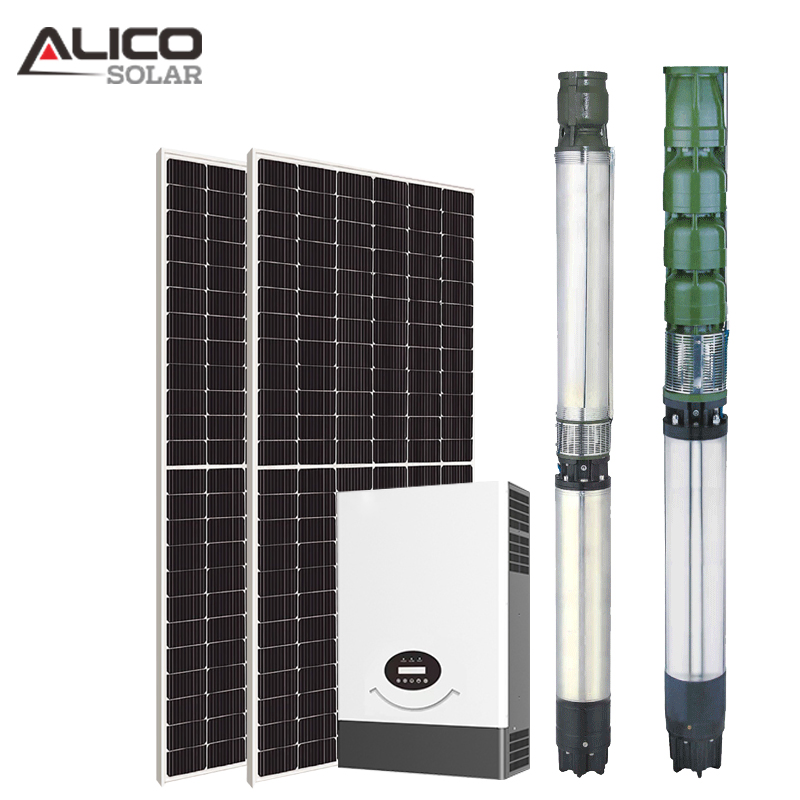

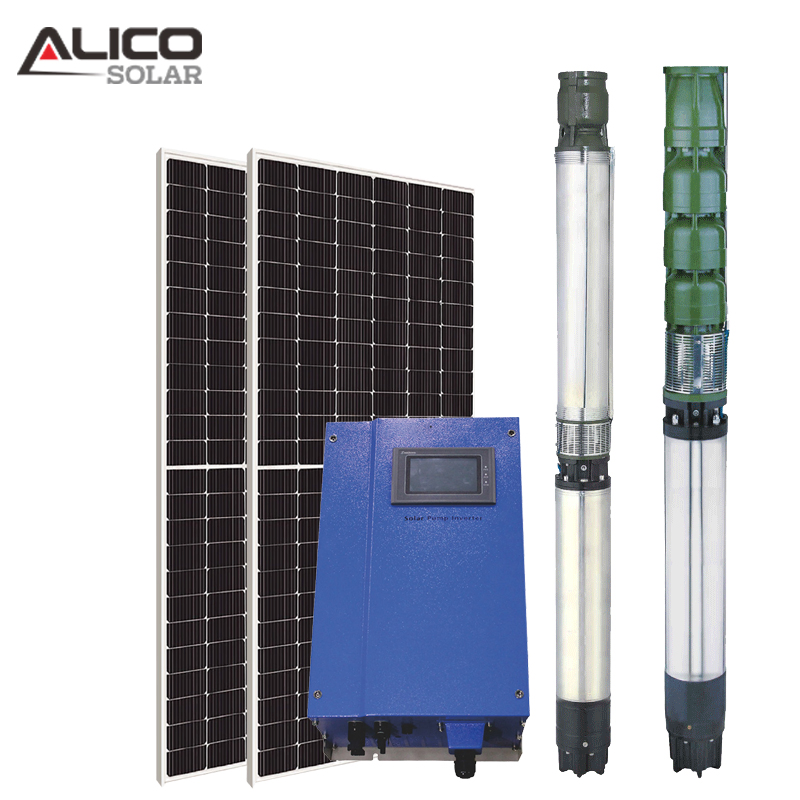

Wholesale Deep Well Submersible Solar DC/AC Pump System with Inverter MPPT Controller Kits

Basic Information

Model NO.pump system

ConditionNew

CertificationISO, CB, CE

ApplicationIndustrial, Commercial

System TypeHome Solar Power System

Solar Inverteroff-Grid Inverter

MPPTMPPT Solar Pump Inverter 0.75 Kw

Production Capacity1.2 Gw/Year

Product Description

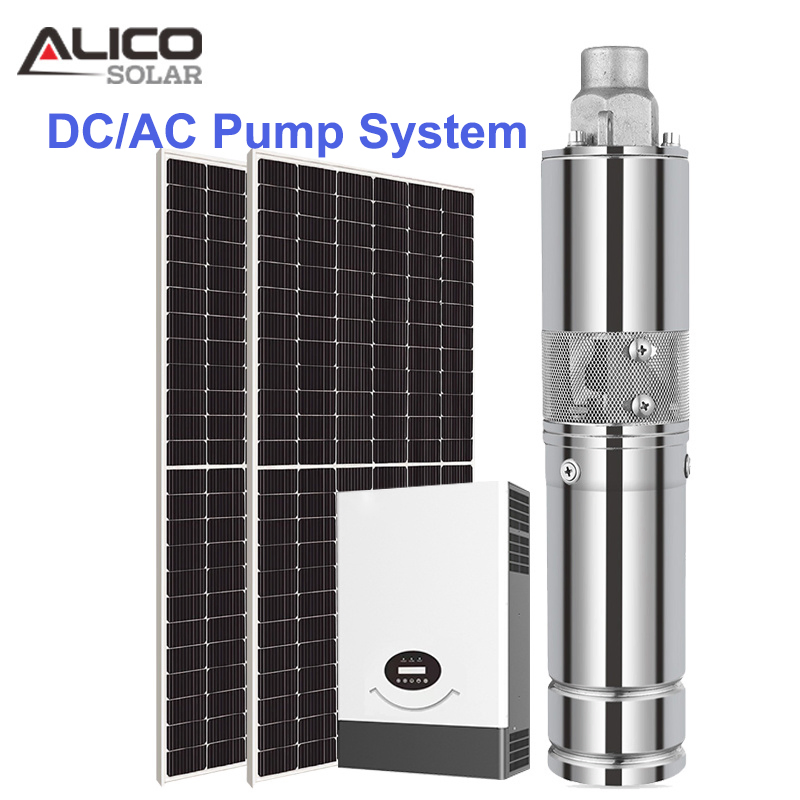

DC AC Solar Pump System for Farm Irrigation

Model	Voltage (V)	Rate Power (W)	Max Flow (m³/h)	Max Head (M)	Outlet Size (in)	Diameter (mm)
JS3-0.9-32	24	100	0.9	32	3/4"	76
JS3-1.8-100	24	270	1.8	100	3/4"	76
JC3-4.2-54	48	600	4.2	54	1"	76
JS4-4.0-100	72	1000	4	100	1"	100
JC4-14.0-33	72	1000	14	33	2"	100
JCS4-25-96	288	4000	25	96	2"	100
JCS6-70-33	288V	4000	70	33	4"	150
JQB-2.2-35	36	210	2.2	35	1"*1"	Surface

30HP Solar Water Pump System Parameters

Item Name	Description	Unit	Quantity
Solar panel	260W / 31.2V poly	pc	136
Mounting structure	Q235 material, Hot-dip zinc	set	1
PV cables	4mm2, 400m	set	1
Pump inverter	Model 30000H	pc	1
Water pump	30HP	pc	1
Pump cables	3*16mm2, 200m	set	1

Wide Range of Applications

AGRICULTURAL IRRIGATION
ANIMAL HUSBANDRY
DESERTIFICATION CONTROL
DOMESTIC WATER SUPPLY

Solar pump systems are high-quality products designed for drinking water supply, livestock watering, and irrigation applications without pollution. No grid infrastructure is required, making them ideal for remote site selection.

Component Specifications

Mono Solar Panels

Peak Power: 290W
Max Power Voltage: 32.2V
Max Power Current: 9.02A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

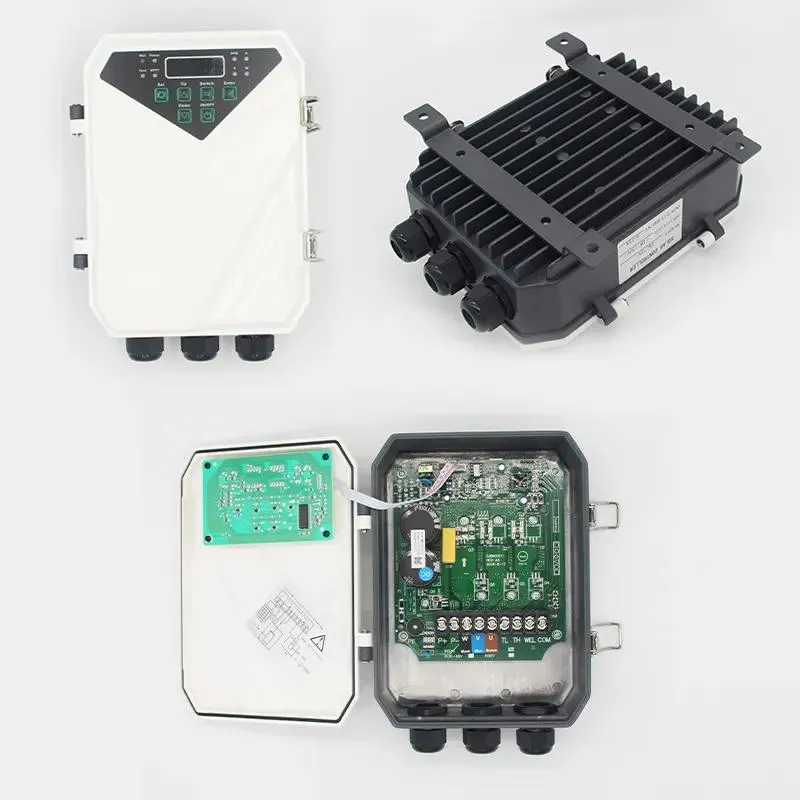

Pump Controller (MPPT)

Max DC Input Power: 8.5KW
Max Input Voltage: 600V
MPPT Voltage Range: 90-520V
Warranty: 5-10 Years
Optional: Wifi/GPRS Monitoring

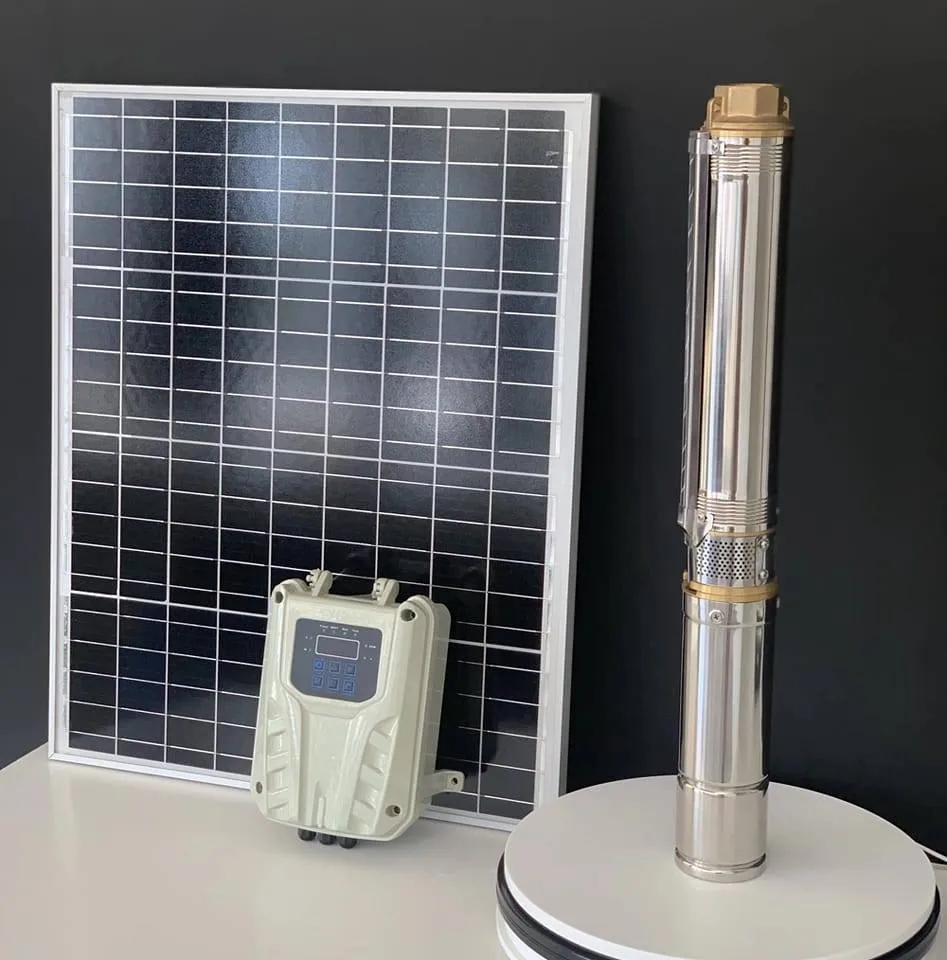

Submersible Pump Details

Material: 304/316 Stainless Steel
Motor Type: BLDC (Brushless DC)
Diameter: 1-6 inch
Horsepower: 0.3-5HP
Application: Deep well pumping

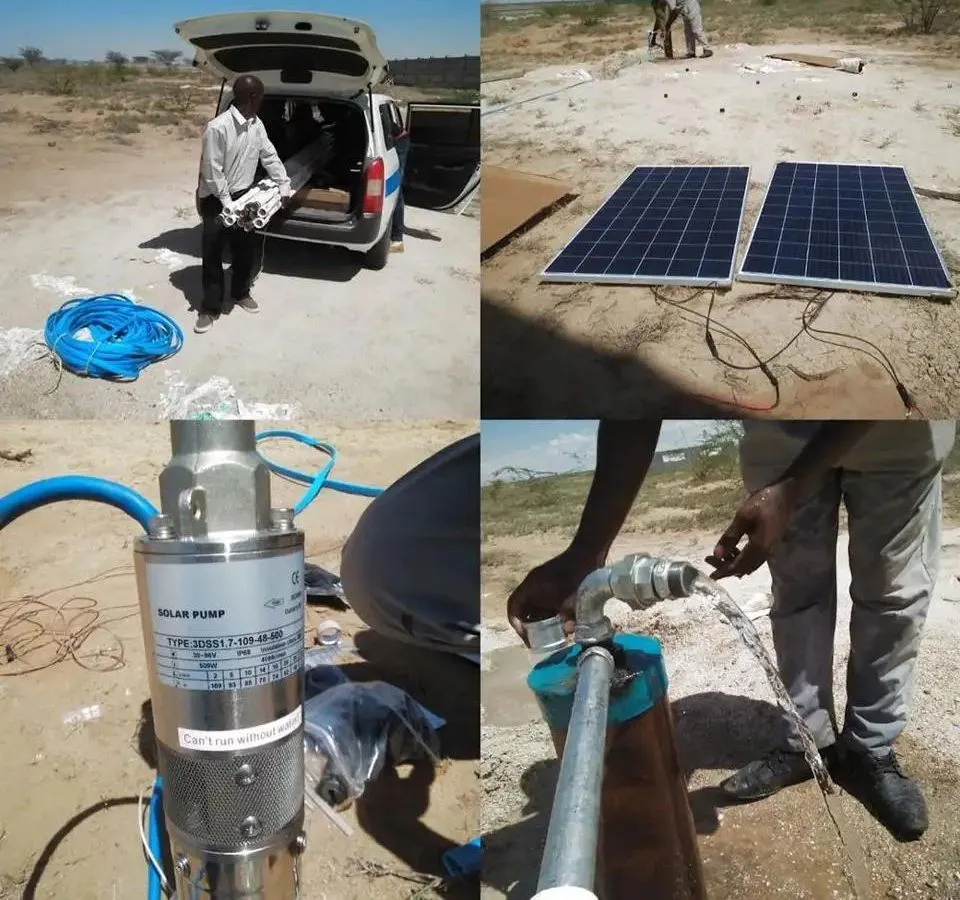

Projects & Packaging

Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all our inverters provide true pure sine wave output, which is essential for protecting sensitive electronic appliances.

What's the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters are as good as the public power grid, offering long lifespan and no harmonic pollution. Modified sine wave inverters can negatively impact inductive loads like refrigerators and air conditioners.

What appliances can these inverters load?

Our inverters can be used for household, office, and agricultural appliances, including inductive loads like water pumps, air conditioners, and refrigerators.

How do I choose the right solar pump?

Selection depends on your daily water requirement (liters/day), the depth of the borehole (for submersible pumps), and the horizontal/vertical distance to the destination tank.

Do I need a power inverter for a solar system?

While not strictly required if you only use DC power, an inverter is necessary if you want to run normal AC appliances (220V/230V) commonly found in homes and farms.

What is the warranty and support for faulty products?

If a product is faulty, we provide technical consultation and can supply spare parts like PCB boards for after-sales service.
