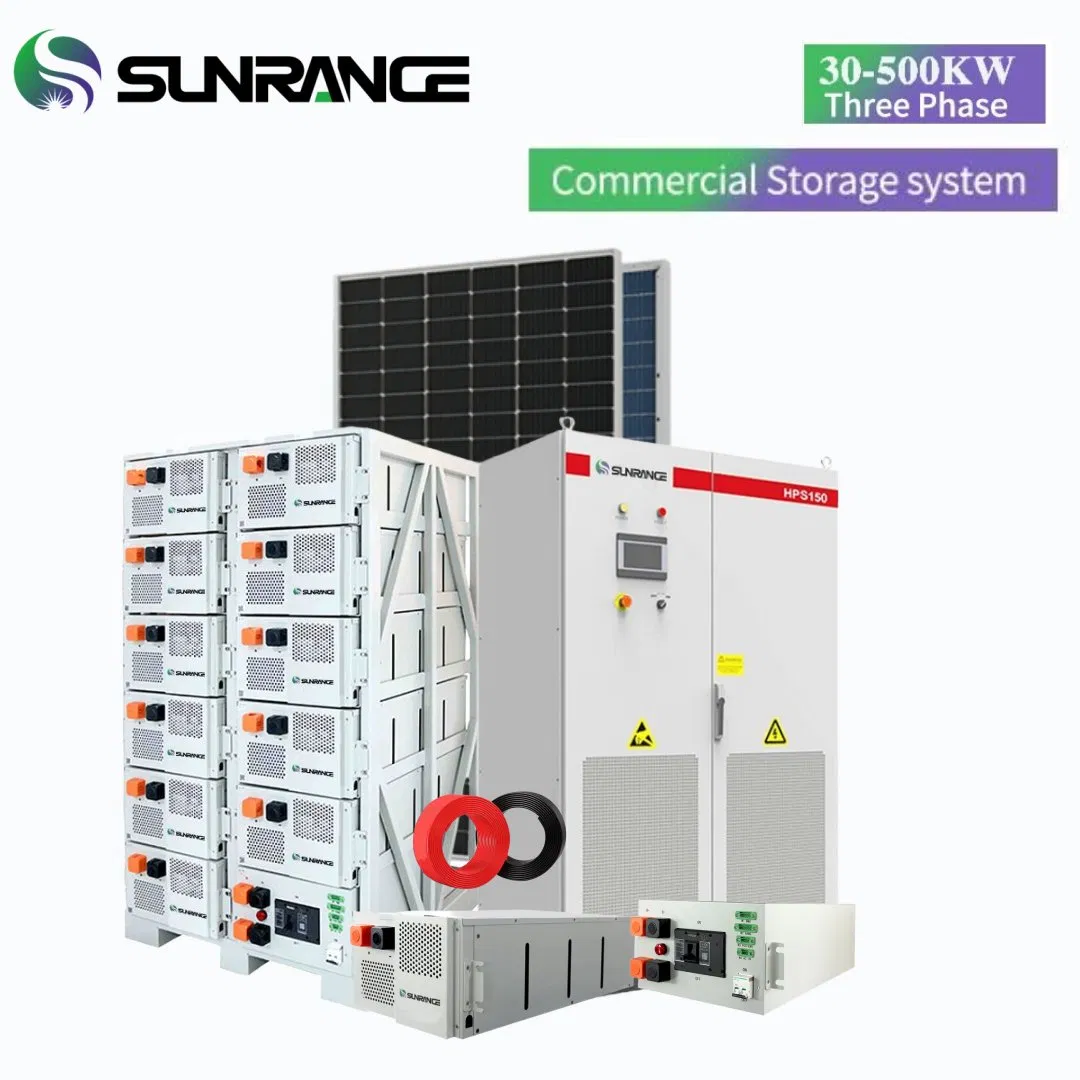

Wholesale 30kw 50kw 100kw Hybrid Solar Energy System 200kw 500kw for Commercial Project Energy Storage Solar Power System

1 / 5

Wholesale 30kw 50kw 100kw Hybrid Solar Energy System 200kw 500kw for Commercial Project Energy Storage Solar Power System

Customization:	Available
After-sales Service:	Technical Guidance
Warranty:	5-10 Years

Send Inquiry

Product Description

Basic Information

Model NO.

SR-30/50/100/150/250/500KW-HY

Condition

New

Certification

ISO, CB, CE

Application

Commercial

Type

Commercial Solar Energy Storage System

Battery

Gel/ LiFePO4 Battery

System Type

Hybrid Solar PV System

Solar Panel

Monocrystalline 400-700W

Origin

China

Product Description

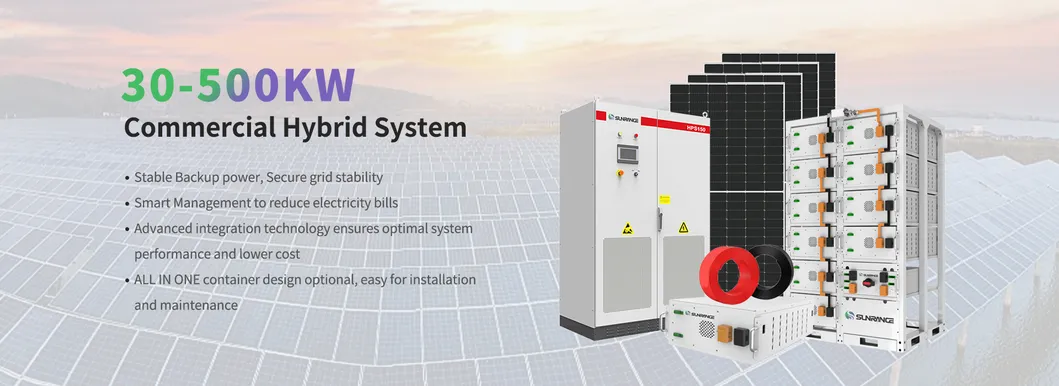

ENERGY STORAGE SYSTEM

⭐ Higher Power Output In Off-Grid

⭐ Support Diesel Generator Access

⭐ Pre-Wired & Easy Installation

⭐ One Stop Shop Proposal

⭐ Indoor Or Outdoor Options

⭐ 30KW To 500KW Scalable

Model No.	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Solar Panel Qty	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Total PV Power	34.8KW	52.2KW	104.4KW	156.6KW	261KW	522KW
Battery Capacity	40.96KWH	100.352KWH	202.752KWH	304.128KWH	473.088KWH	946.176KWH

Key Components

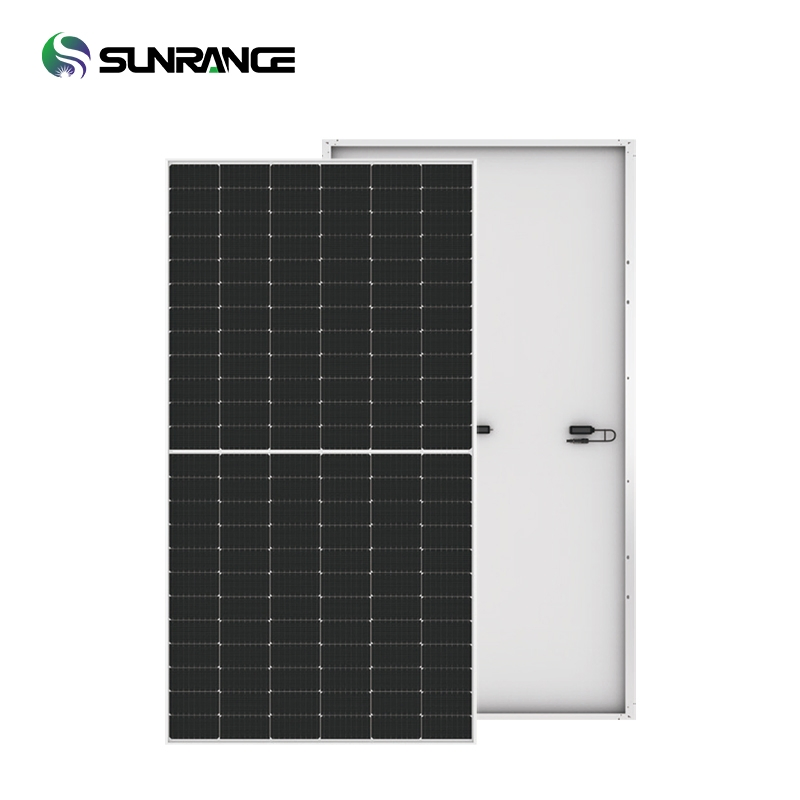

N-Type Topcon Solar Panel

Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Module Efficiency: 22.44%

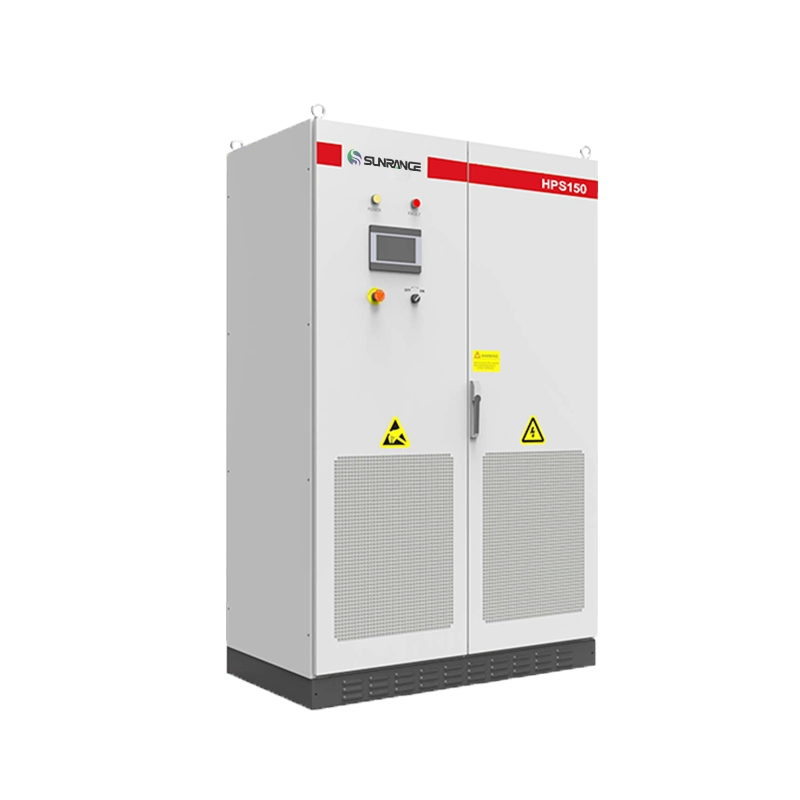

All-in-one Hybrid Inverter

Support PV, battery, DG, grid, and load connections.
Seamless switch within 6ms.
Dynamic power distribution.
Easily expandable capacity.

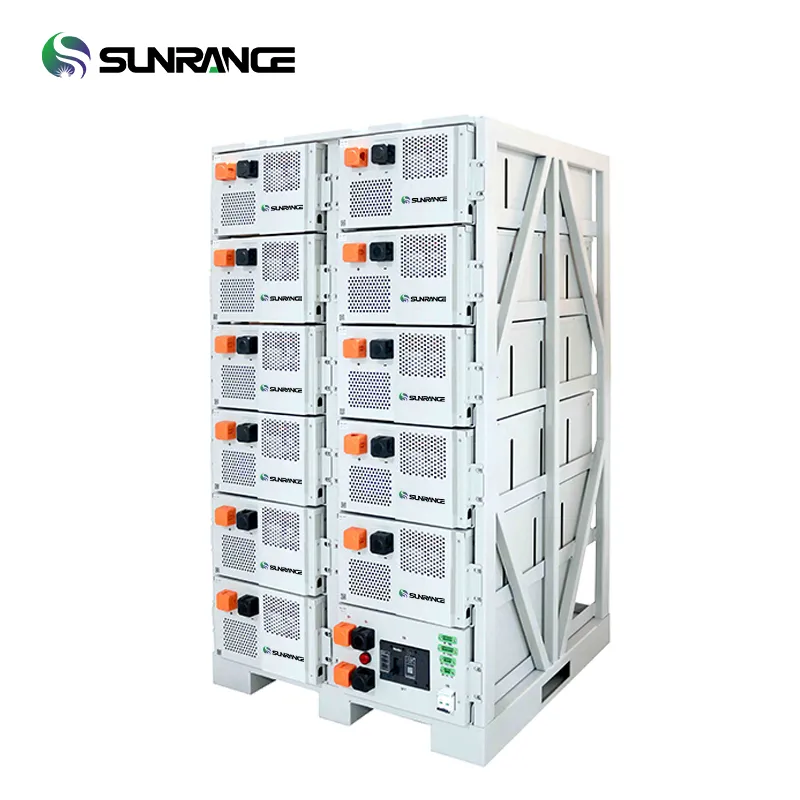

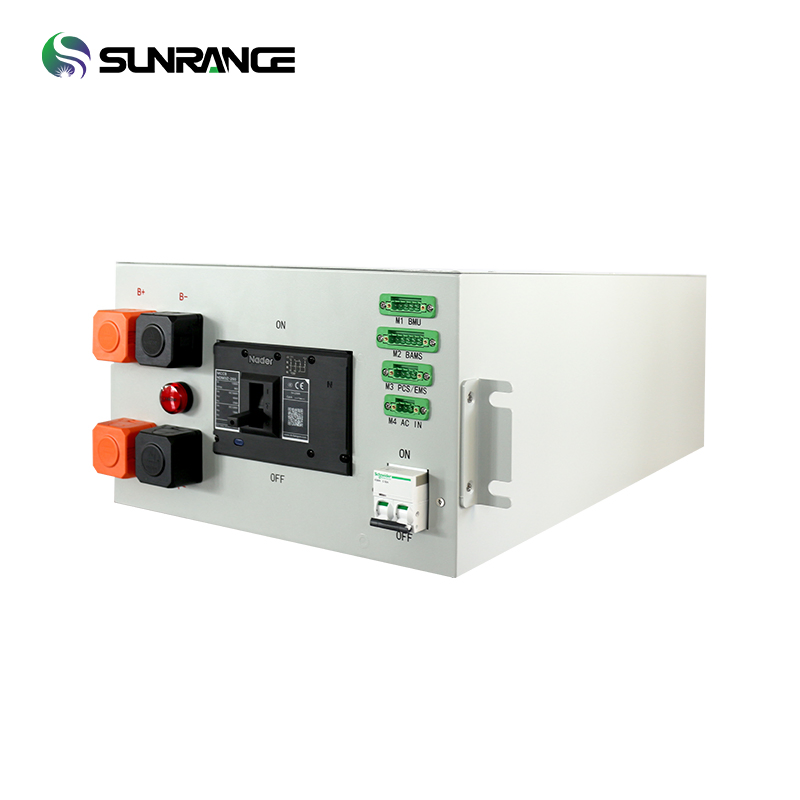

Solar Battery Packs

Rack mounted LiFePO4 Lithium Ion.
Deep Cycle: 6000+ times, up to 90% DOD.
High discharge performance.
Maintenance-free design.

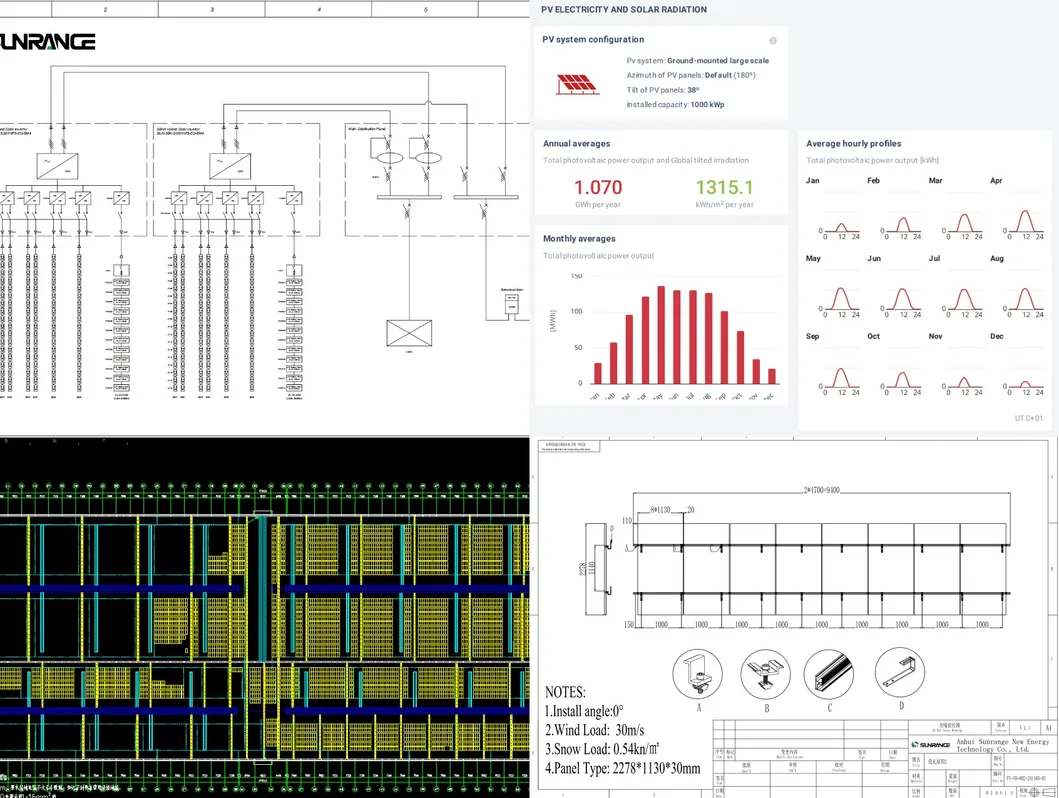

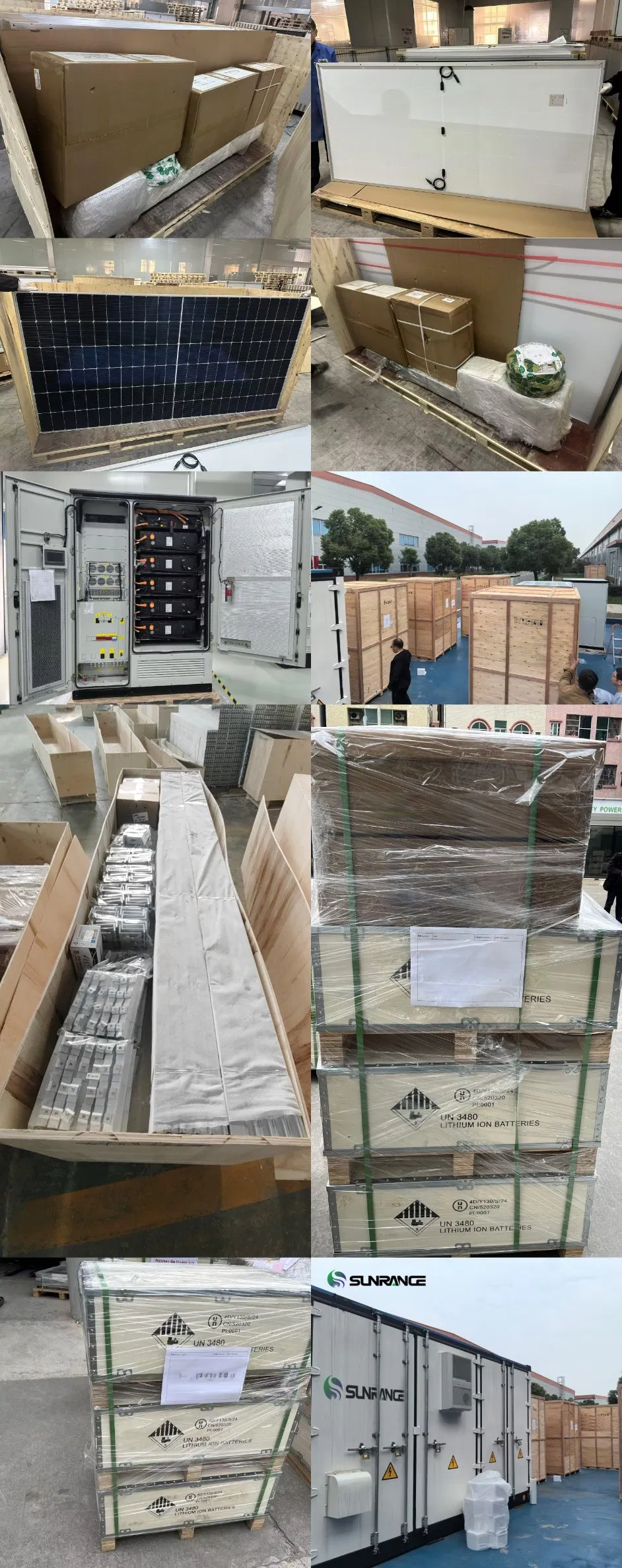

Technical Support & Logistics

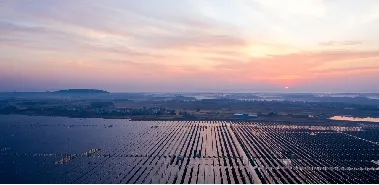

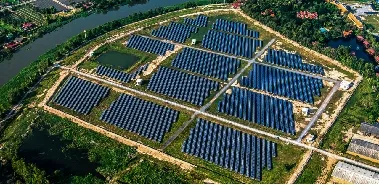

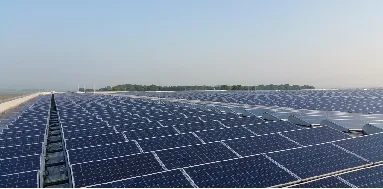

Global Project Cases

Certifications

Frequently Asked Questions

Q: How much power solar energy systems can you provide?

A: We provide home solar systems from 5-30KW, and commercial/industrial systems ranging from 30KW to over 1MW.

Q: Can you offer On-Grid and Off-Grid solar power systems?

A: Yes, we provide On-Grid, Off-Grid, and Hybrid solar power systems to meet different energy needs.

Q: Is the system compatible with diesel generators?

A: Yes, our hybrid systems are designed to support diesel generator access for seamless backup power.

Q: What certificates do your products carry?

A: Our products are certified by CE, IEC, CEC, ISO, INMETRO, and SGS, ensuring international quality standards.

Q: What is your warranty and after-sales policy?

A: System components are guaranteed for 10 years, while solar panels come with a 25-30 year performance warranty.

Q: Do you provide technical support for installation?

A: Yes, we offer complete technical support, including pre-wired systems for easy installation and online monitoring setup.
