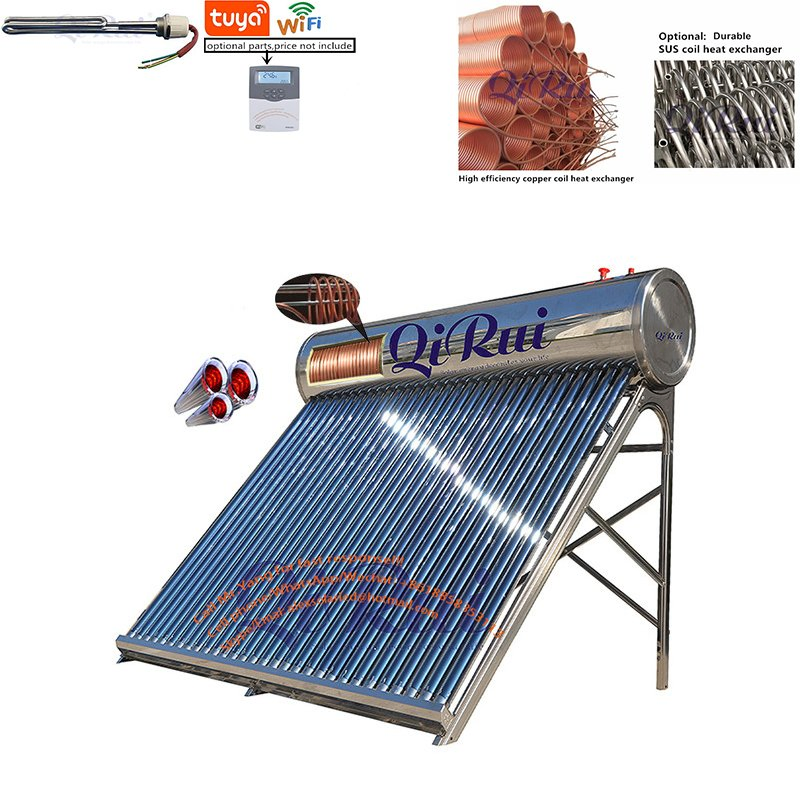

Factory Wholesale 150L 200L 300L Best Price Pressurized Solar Hot Water Heater System

📊 Overview & Basic Info

StructureCompact Type

PressurePressurized

Interior MaterialStainless Steel

Collector ComponentsGlass Vacuum Tube

Heat Preservation72 hours

Outer Tank MaterialColor Steel, Stainless Steel

Inner Tank MaterialSUS304 or SUS316

Specification50L to 500L

CertificationCE, ISO9001, CCC

HS Code8419120000

💡 Product Highlights

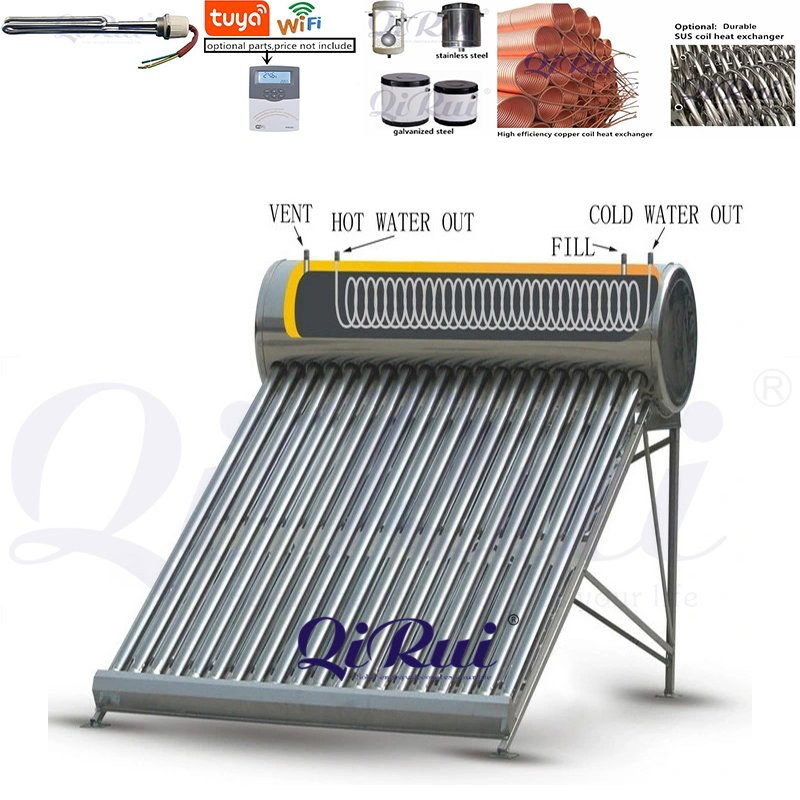

150L - 500L Vacuum Tube Solar Water Heater with All Stainless Steel Coil

Free brand/LOGO print based on volume
1% free spare parts included
Fast delivery: 12 days after deposit
High pressure hot water solution, cheap and reliable
Simple structure, easy to assemble and install
Strong resistance to wind, snow, and hailstone
Fresh water: uses heat exchanger, not stored water

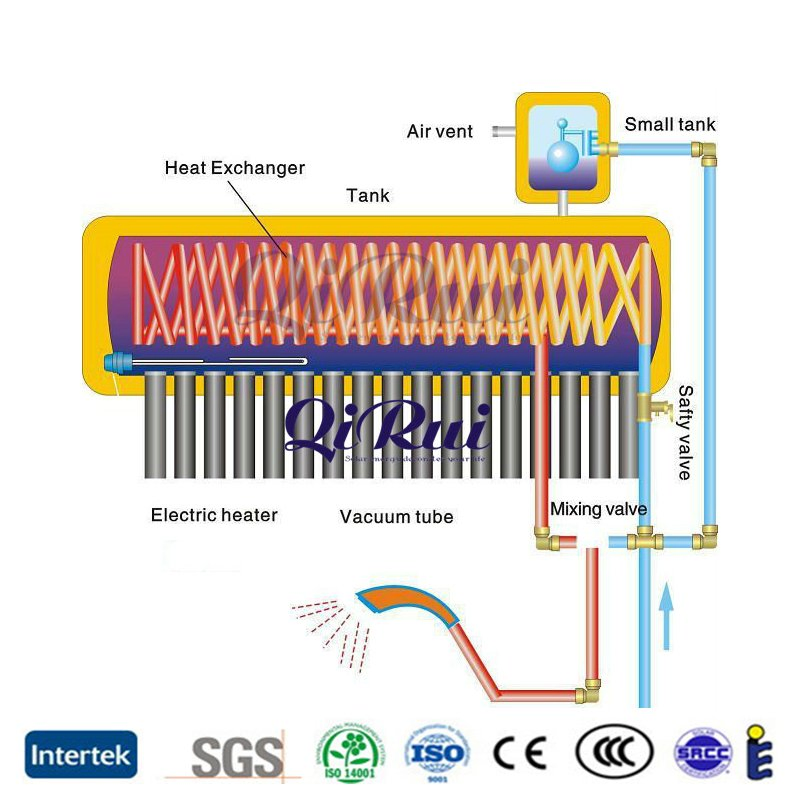

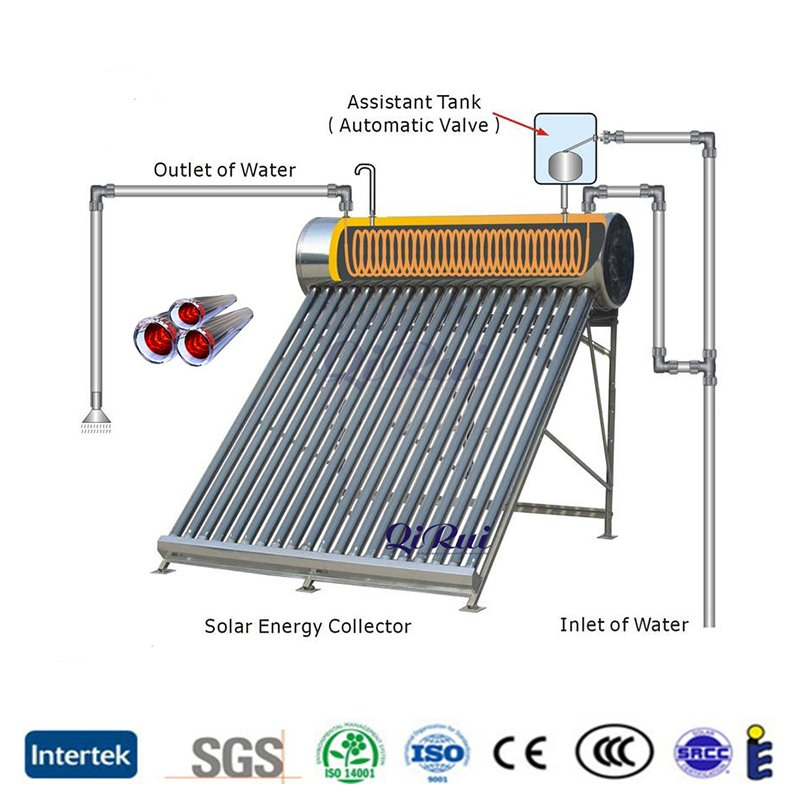

⚙️ Work Principle

Operating Mechanism:

Vacuum tube absorbs heat energy to heat water in the storage tank.
Copper coil acts as a heat exchanger inside the tank.
The water tank acts as a thermal source.
Water flowing through the copper coil absorbs heat from the tank water.

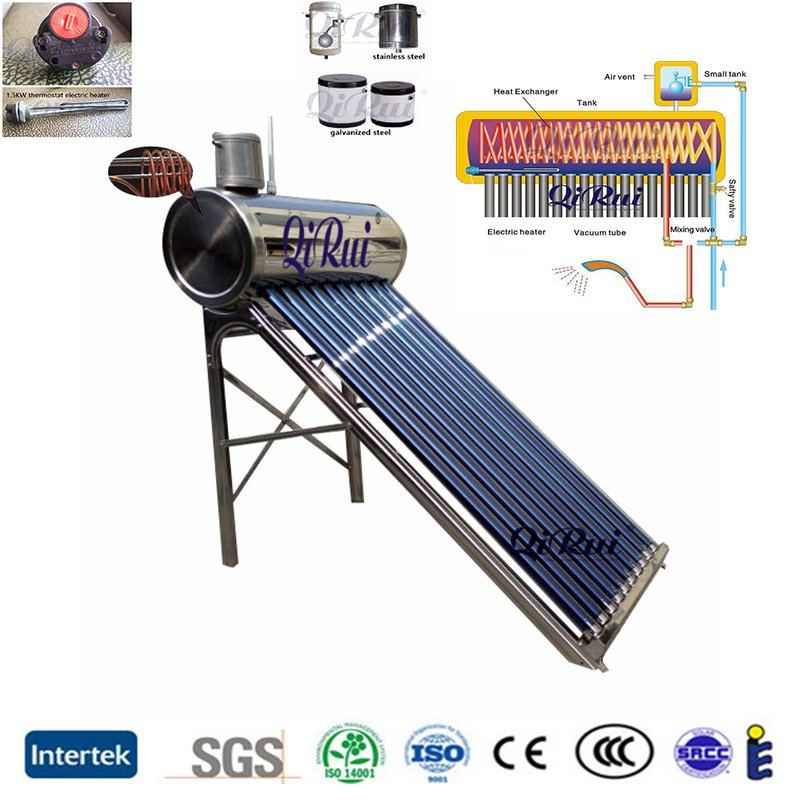

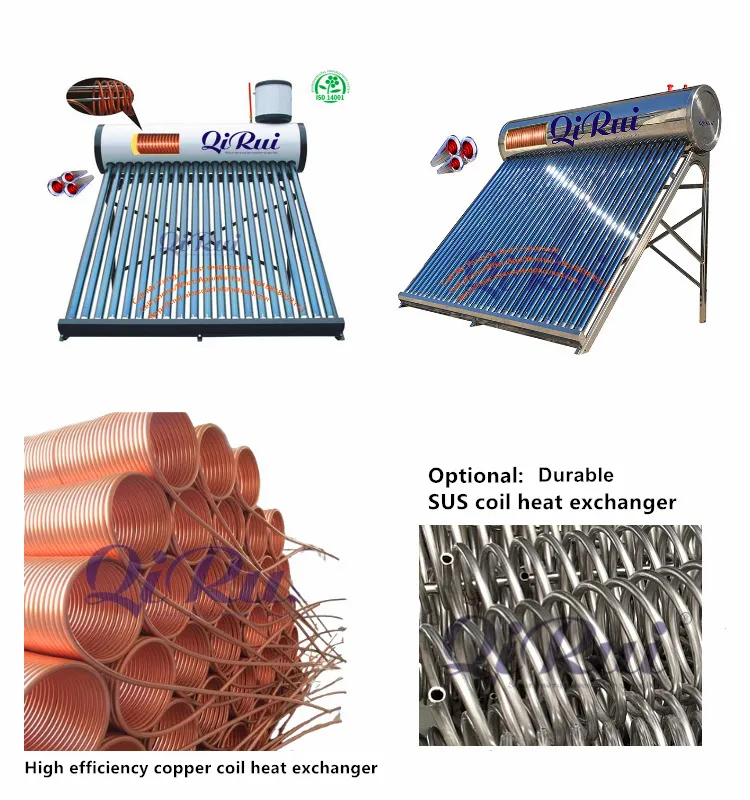

📸 Detailed Photos

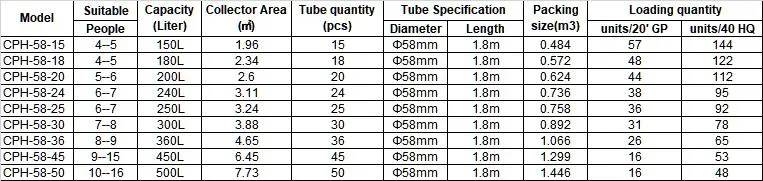

📋 Technical Parameters

Feature	Details
Capacity	150 Liter - 500 Liter
Heat Exchanger	Copper coil or stainless steel coil
Outer Tank Material	0.4mm Galvanized Steel / SUS201 / SUS304-BA
Inner Tank Material	0.4mm SUS304-2B or SUS316 Stainless Steel
Insulating Layer	50/55mm High-density Polyurethane
Max Pressure	0.6 Mpa / 87psi / 6bar
Glass Tube	3.3 Borosilicate Glass (1.6mm thickness)
Welding	Automatic Argon Arc Welding

🏠 Installation Instructions

Suitable for both Flat Roof and Pitched Roof applications.

🛠️ Our Service

Fast delivery: 40ft container quantity delivered in 7 days.
Experienced sales assistance for quick confirmation of all questions.
Rich experience in different global markets; customized designs are welcome.
Consolidated loading: Assistant to load other goods with solar heaters in one container.
Professional installation guides and training.

❓ Frequently Asked Questions

Q1: Is solar water heating a viable alternative to gas or electricity?

Solar should be seen as a supplement. While it can provide 60%-70% of a household's hot water needs annually, a backup system is advised for days with little sunlight. The system can be automated to guarantee hot water regardless of sunlight levels.

Q2: How long will it take to recoup the investment?

Depending on your location and usage, costs can often be recouped in 4-5 years through reduced utility bills. These systems are highly affordable compared to traditional high-pressure heaters.

Q3: Can these solar collectors be used in cold conditions?

Yes, collectors can operate in temperatures as low as -30°C. While performance reduces in extreme cold, significant heat output is still achieved in mild sub-zero conditions.

Q4: What happens if one of the tubes is broken?

Tubes are very strong, but if one breaks, it can be replaced easily and inexpensively. The system can still operate with broken tubes, though efficiency will decrease.

Q5: Will water be heated on a cloudy day?

Yes. Heat output is reduced on overcast days, but the system still provides heating. On heavily clouded or rainy days, electric or gas boosting may be required to maintain desired temperatures.

Q6: How do I protect the system during subzero temperatures?

Freeze protection can be implemented via a controller. When temperatures drop below 5°C, the pump can periodically circulate water to warm the collector. In extremely cold regions, a closed-loop glycol mix may be used.
