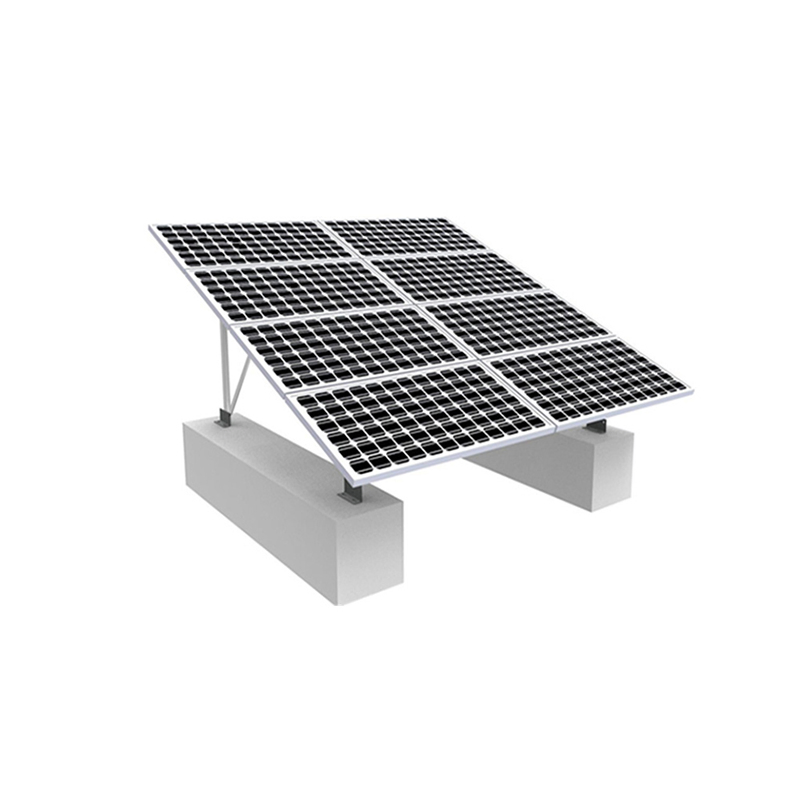

Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
1 / 5
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System
Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System

Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
SF-M03
Certification
ISO, TUV, CE
Application
Commercial
Material
Concrete
Type
Ground Bracket
Product Name
Solar Panel Ground Mounting Structure
Installation Site
Open Field
Color
Silver
Tilt Angle
0-45deg
Surface Treatment
Aluminum Anodized
Capacity
300,000,000 Set/Sets Per Month
Origin
China
☀️

Product Description

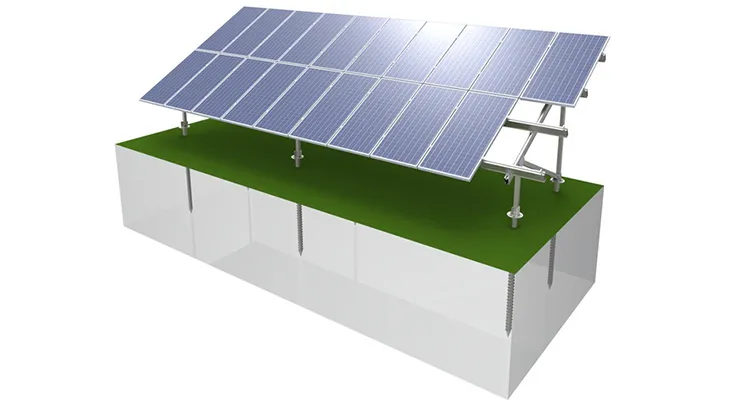

Solar Ground Mounting System

Solar Ground Mounting

The Ground Screw Mounting Structure is widely applied for large solar farms, featuring fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design ensures exceptional stability for withstanding static loads.

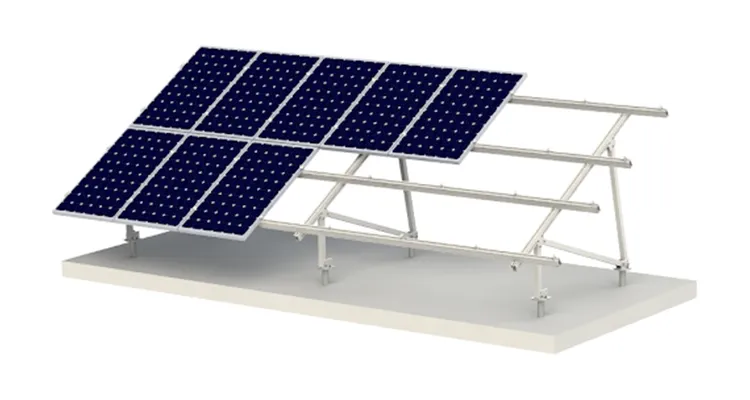

Mounting Advantage

Key Advantages:

  • Superior anti-corrosion and anti-rust properties.
  • Ensures simple and fast installation processes.
  • Significantly reduces labor costs.

Technical Data:

  • Installation site: Open field ground mount
  • Foundation: Ground screw & Concrete
  • Mount tilt angle: 0-45 Degree
  • Main components: AL6005-T5
  • Accessories: Stainless steel fastening
  • Duration: More than 25 years service life

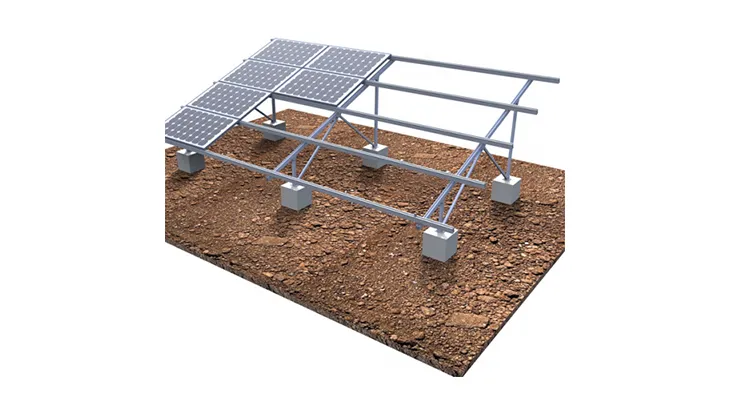

Technical Data
⚙️

Technical Details

Installation SiteOpen field
Wind LoadUp to 60m/s
Snow Load1.4kn/m2
Tile Angle0-45 deg
StandardsAS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
MaterialAnodized AL6005-T5, HDG steel Q235B, SUS304
Warranty10 Years Warranty and 25 Years Service Life

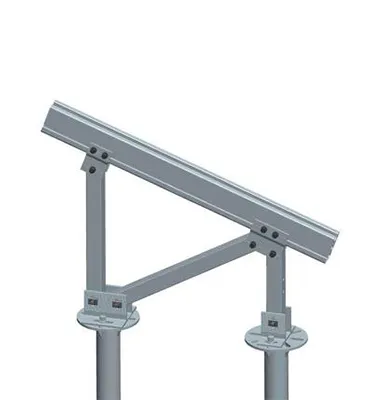

Screw Piles

Screw Piles

  • High traction and pressure values.
  • Installation by mini-digger machine with rotating head support.

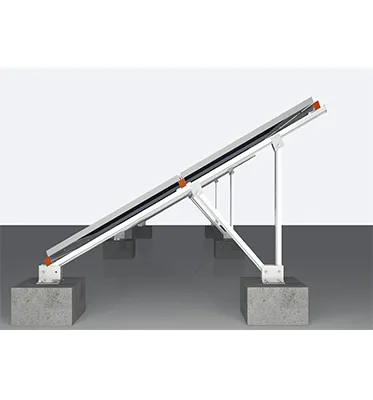

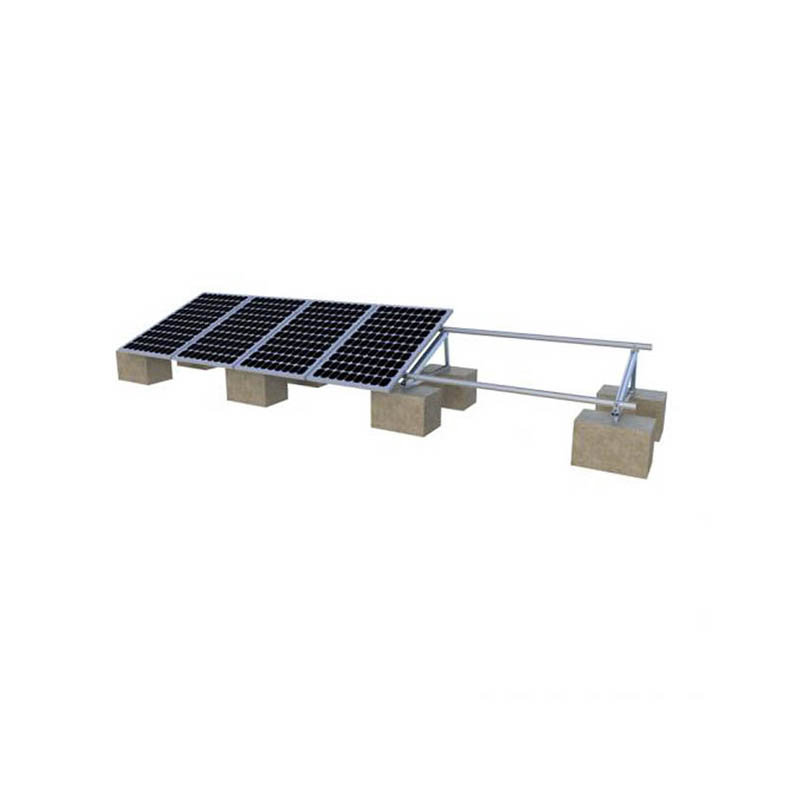

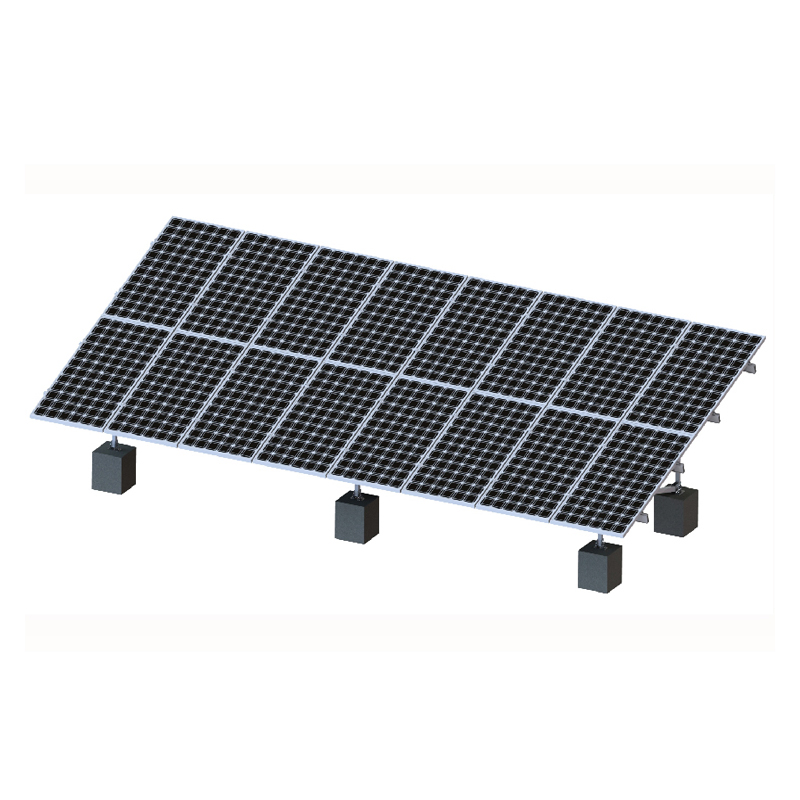

Concrete Base

  • Best suited where ground excavation is not permitted.
  • The size is adjusted based on the static requirements and location.
Concrete Base
🏗️

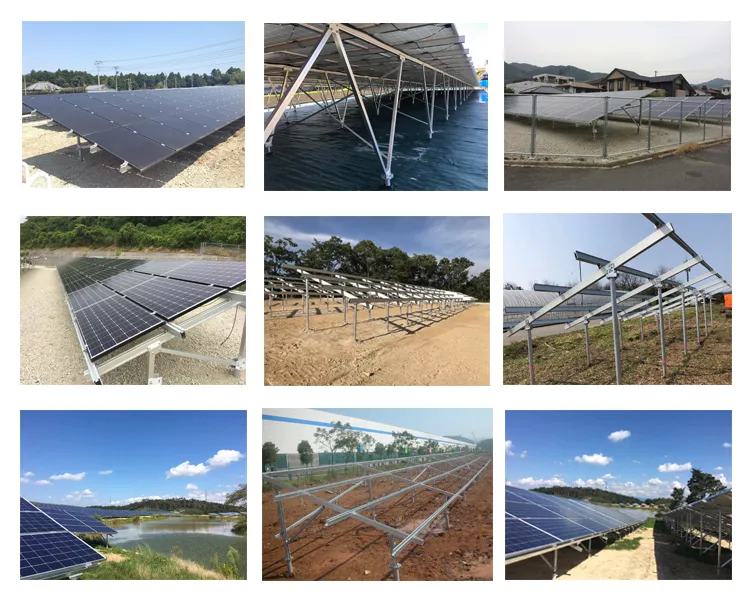

Project Showcase

Project Image
📦

Packaging & Shipping

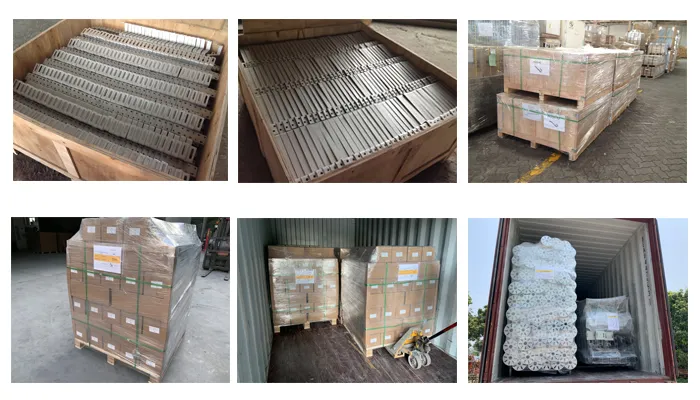

Packaging
🖼️

Exhibition & Certifications

Exhibition
Certifications
❓

Frequently Asked Questions

What materials are used in the ground mounting structure?
The system primarily uses Anodized Aluminum AL6005-T5 and Stainless Steel SUS304 for fasteners, ensuring high durability and corrosion resistance.
What is the expected service life of this system?
The structure is designed for a service life of more than 25 years, backed by a 10-year warranty.
Can the mounting system withstand extreme weather conditions?
Yes, it is engineered to withstand wind loads of up to 60m/s and snow loads of up to 1.4kn/m2, complying with international standards like AS/NZS1170.
What types of foundations can be used?
The system supports both ground screw foundations and concrete bases, making it adaptable to various soil conditions and site requirements.
Is the tilt angle adjustable?
The system supports a tilt angle range of 0 to 45 degrees to optimize solar energy absorption based on the specific location.
Is the installation process complicated?
No, the structure is designed for quick and simple installation, which helps in reducing overall labor costs and project timelines.
