Suitable for Home, Commercial, and Industrial applications. Systems can be customized: 1kW / 2kW / 3kW / 5kW / 10kW / 12kW / 16kW / 20kW / 24kW / 30kW / 50kW / 80kW / 100kW / 120kW / 150kW / 200kW.

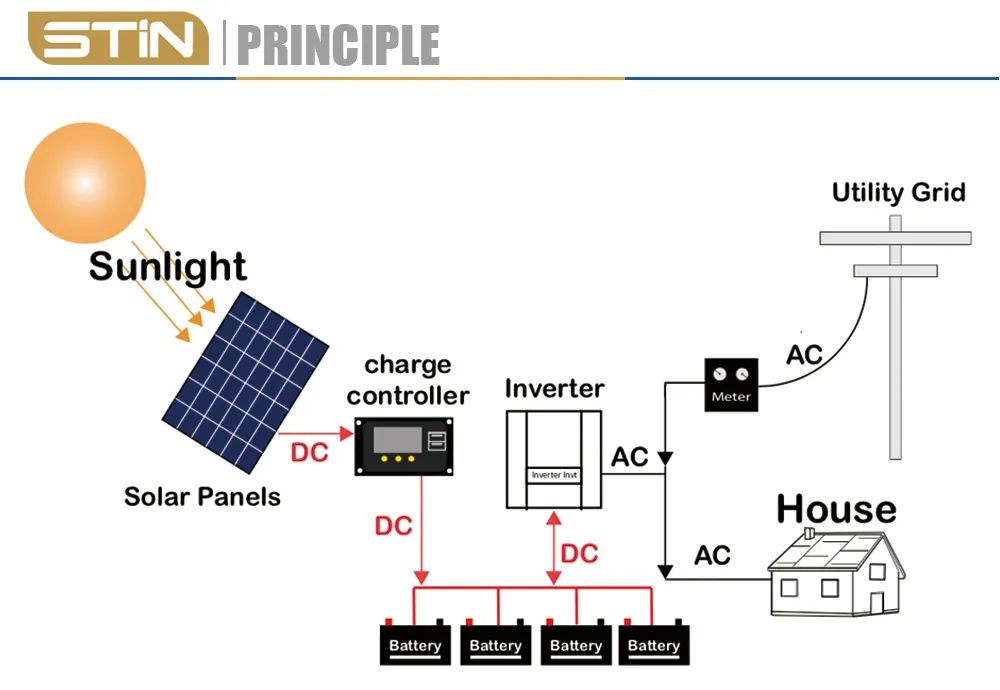

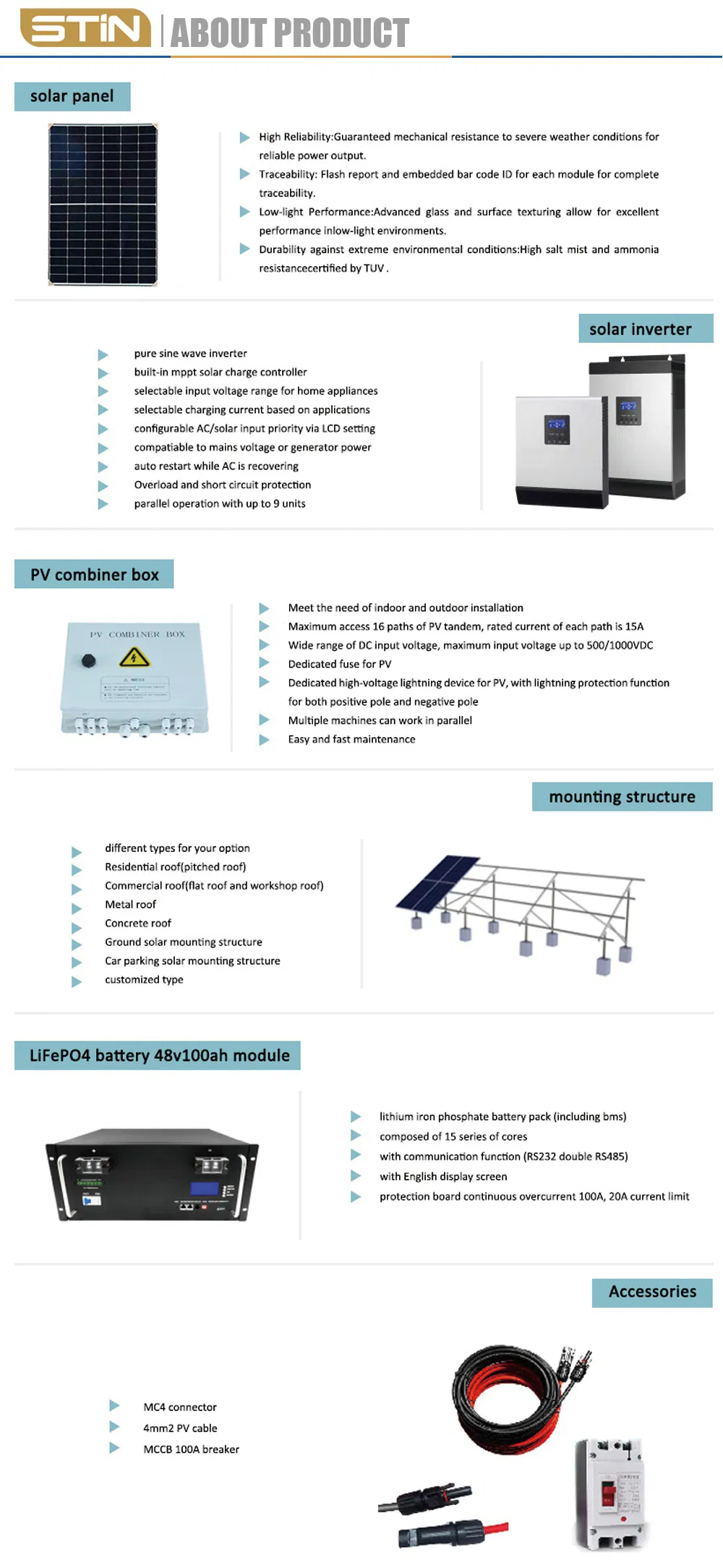

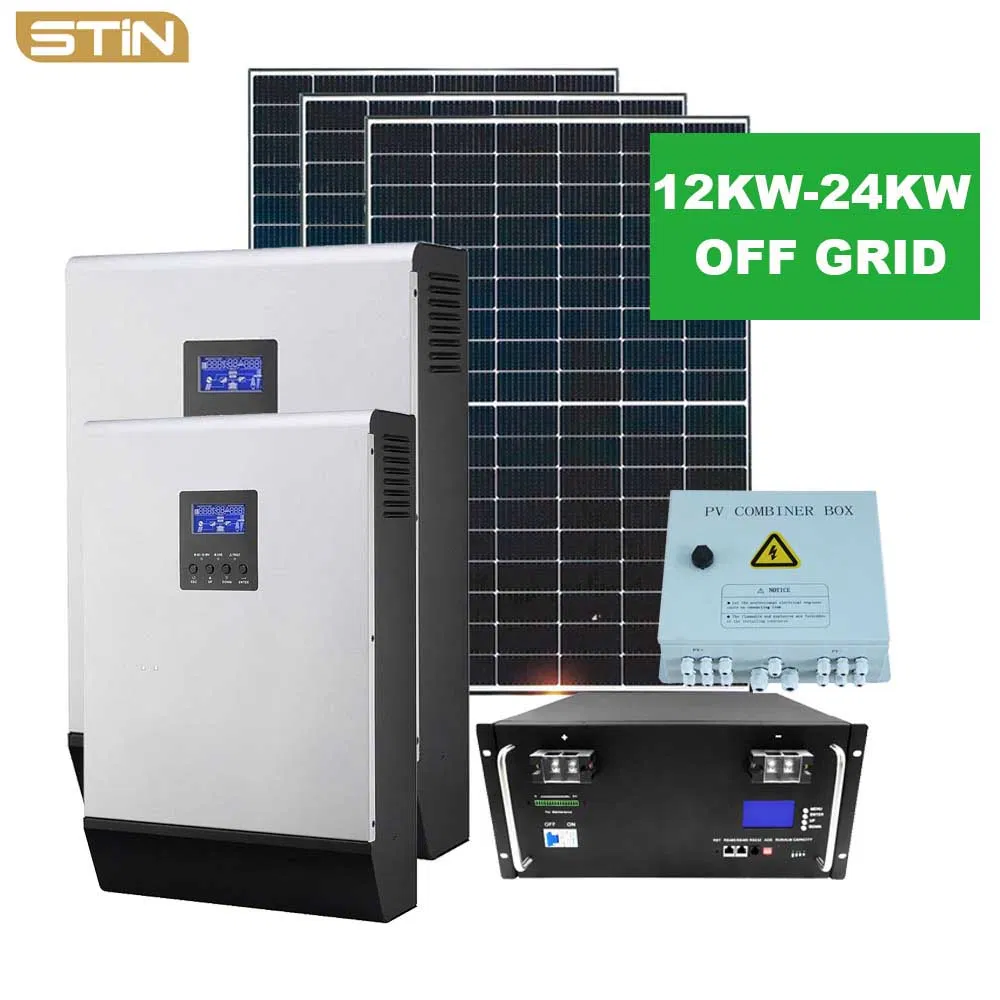

System Components: Solar panels, connector, inverter, batteries, and mounting system.
| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| STIN-12000W Off-Grid Photovoltaic System (48VDC) | ||||
| 1 | Solar panel | STIN-mono 410W | 27 PCS | 3pcs in string, 9 strings parallel |

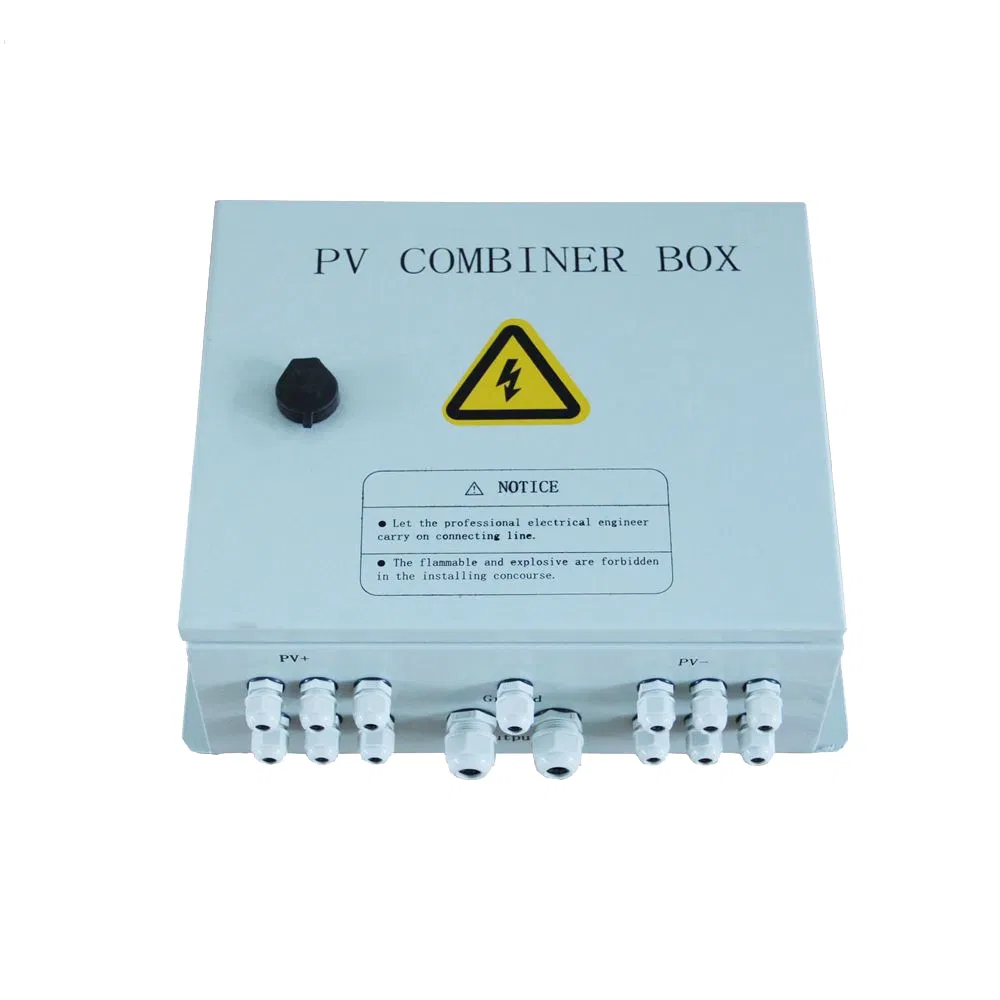

| 2 | PV combiner box | 3 inputs, 1 output | 3 SETS | - |

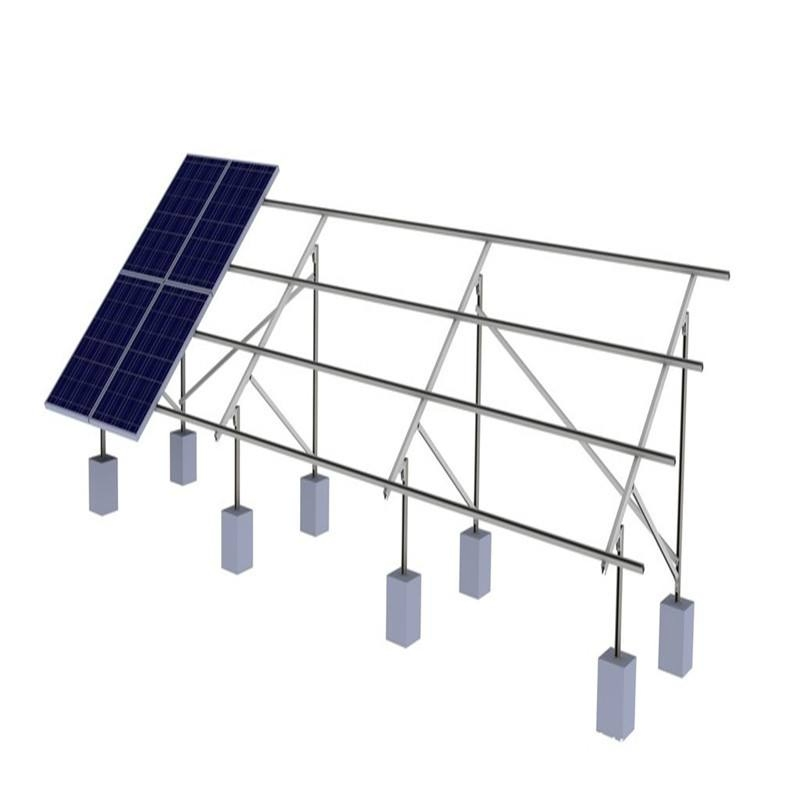

| 3 | Bracket | C-shaped steel | 1 SET | Hot-dip zinc |

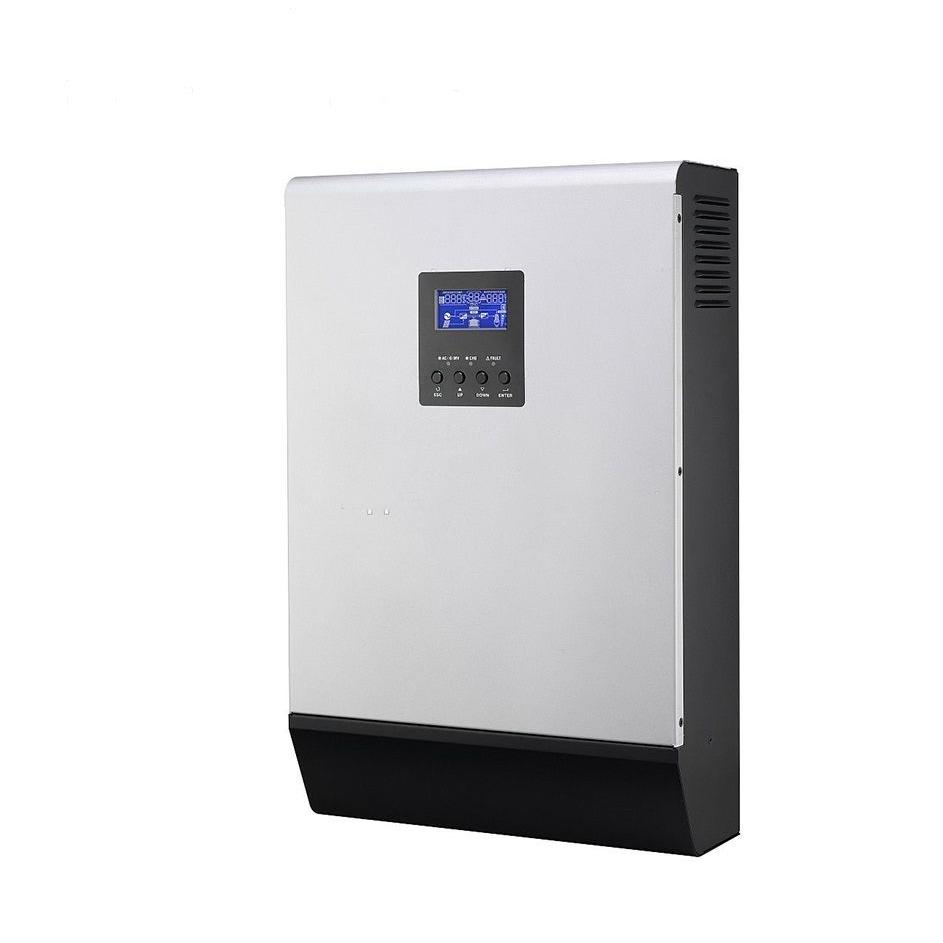

| 4 | Inverter w/ MPPT | STIN-4000W | 3 PCS | Built-in 60A MPPT, Pure Sine Wave |

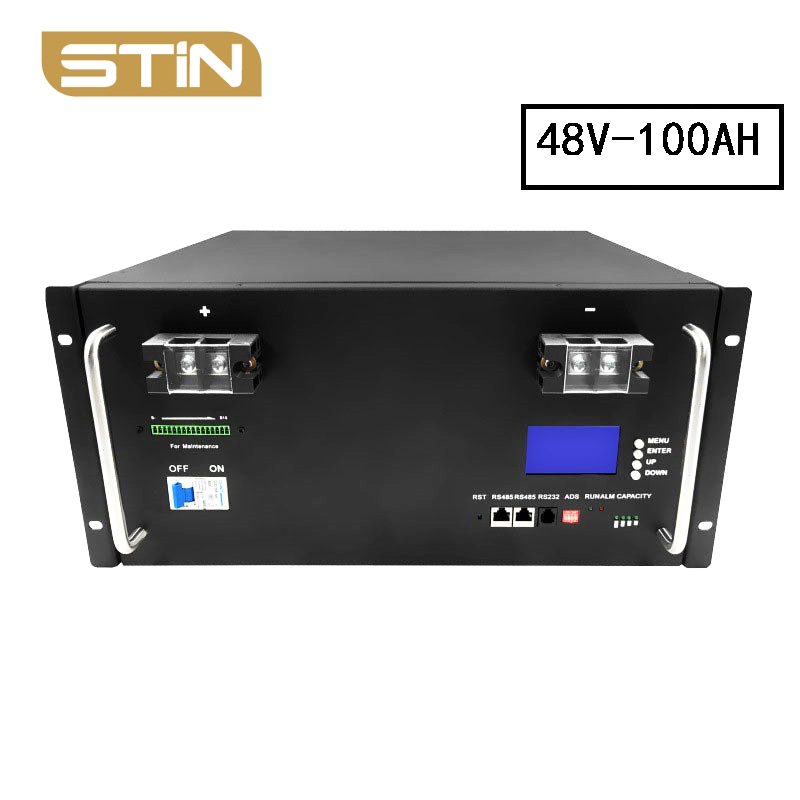

| 5 | LiFePo4 battery | STIN 48V-100AH | 6 PCS | - |
| STIN-16000W Off-Grid Photovoltaic System (48VDC) | ||||
| 1 | Solar panel | STIN-mono 410W | 36 PCS | 3pcs in string, 12 strings parallel |
| 2 | PV combiner box | 3 inputs, 1 output | 4 SETS | - |
| 4 | Inverter w/ MPPT | STIN-4000W | 4 PCS | Parallel connection |
| 5 | LiFePo4 battery | STIN 48V-100AH | 8 PCS | - |
| STIN-20000W Off-Grid Photovoltaic System (48VDC) | ||||
| 1 | Solar panel | STIN-mono 410W | 45 PCS | 3pcs in string, 15 strings parallel |
| 4 | Inverter w/ MPPT | STIN-4000W | 5 PCS | Parallel connection |
| 5 | LiFePo4 battery | STIN 48V-100AH | 10 PCS | - |
| STIN-24000W Off-Grid Photovoltaic System (48VDC) | ||||
| 1 | Solar panel | STIN-mono 410W | 54 PCS | 3pcs in string, 18 strings parallel |
| 4 | Inverter w/ MPPT | STIN-4000W | 6 PCS | Parallel connection |
| 5 | LiFePo4 battery | STIN 48V-100AH | 12 PCS | - |
Our company is a Total Solution provider based on clean sustainable solar energy. We focus on product development, production, system integration, sales, and service. Our product range includes solar panels, turn-key completed on-grid, off-grid and hybrid solar systems, solar inverters, solar air conditioners, solar charge controllers, and lithium-ion batteries.
We aim to develop, manufacture, and deliver the most reliable and cost-effective solar energy solutions to every corner of the world. With an excellent cooperation team, we are committed to product design, quality control, and rigorous inspection.
