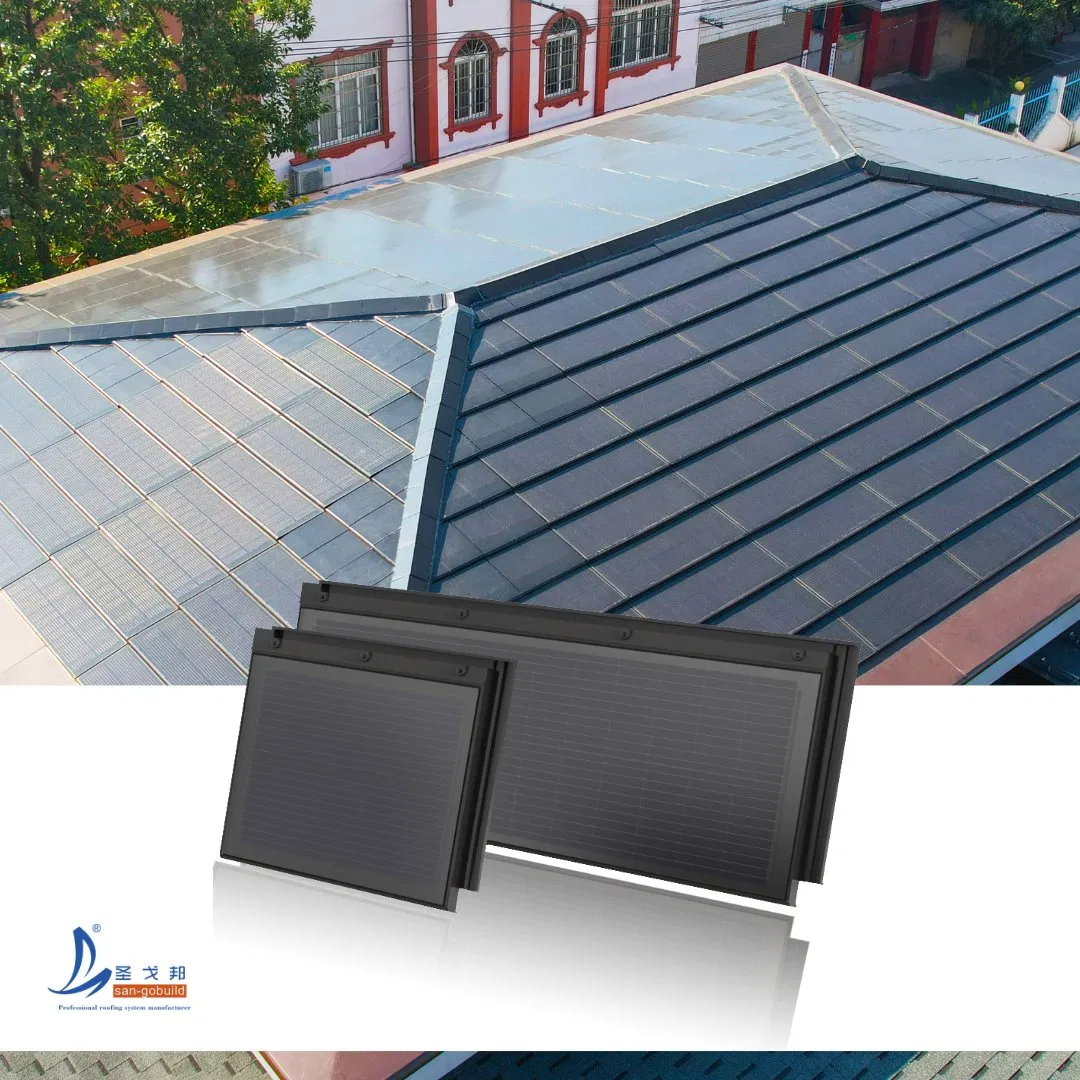

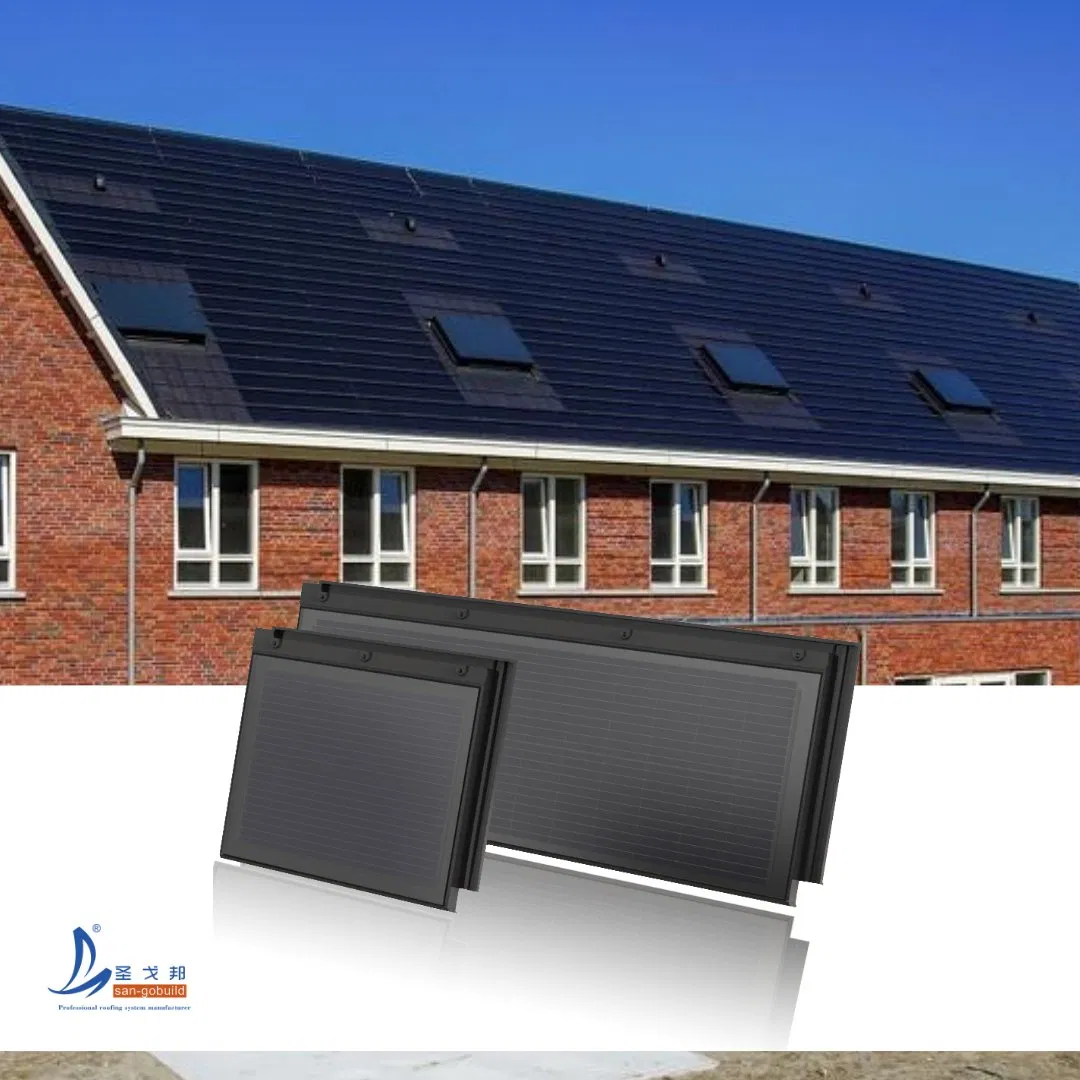

Wonergy Solardachziegel BIPV Solar Power Roof System Solar Roof Tile

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Basic Information
Model NO. SOLAR ROOF
Number of Cells 36pcs
Application Light Industry
Material Monocrystalline Silicon
Tile Size 1260*480 mm
Cell Size 182*91mm
Power Density 180 W/M2
Glass Tempered/3.2mm
Junction Box IP67
Certifications TUV, CE, IEC 61215, IEC 61730
Production Capacity 800,000,000W/Month
Specifications
PHYSICAL FEATURES
MODEL JS87DG TILE SIZE 1260*480 MM
TILE WEIGHT 16.5 KG GLASS TEMPERED/3.2MM
CELL SIZE 182*91MM(5*12) JUNCTION BOX ≥ IP67
ELECTRICAL PERFORMANCE (STC)
CELL TYPE MONOCRYSTALLINE CELL EFFICIENCY 23.10%
MAX POWER 90W/PC MODULE EFFICIENCY 18.40%
VOLTAGE 13.7V CURRENT 6.35A
RATING FEATURES
COLOR BLACK + CUSTOMIZABLE LOAD CLASS 2400 PA
FIRE-PROOF CLASS CLASS A HAIL-RESISTANT 25MM/23M/S
Benefits & Visuals

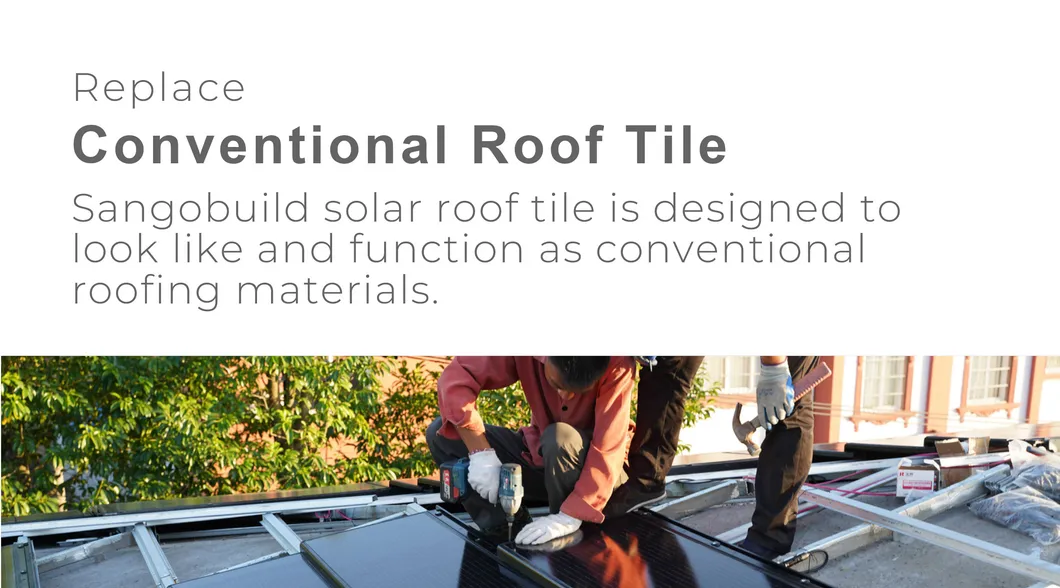

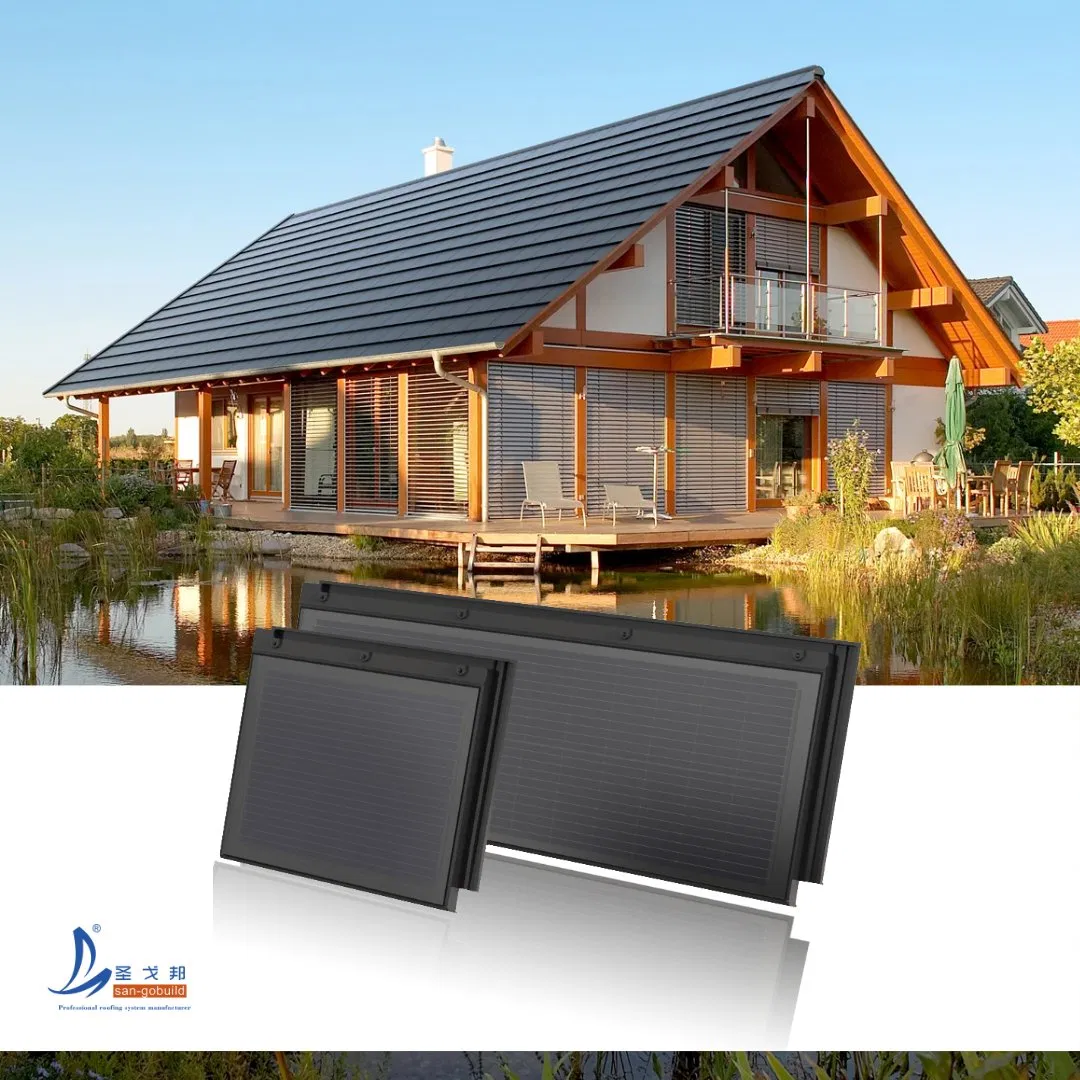

Solar Power Roof System
Solar Roof Tile Details
BIPV Solar Roof
Solar Tile Installation
Solar Energy Benefits

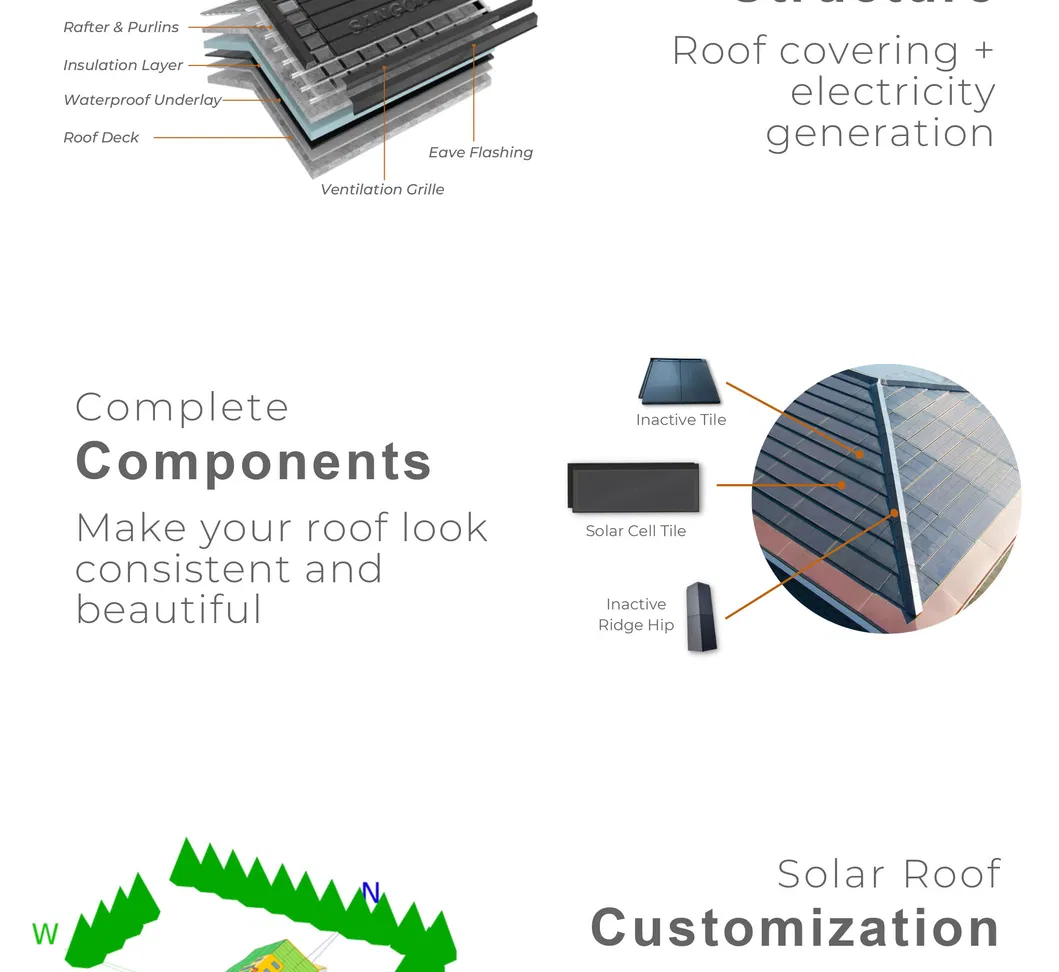

Solar Power Generation

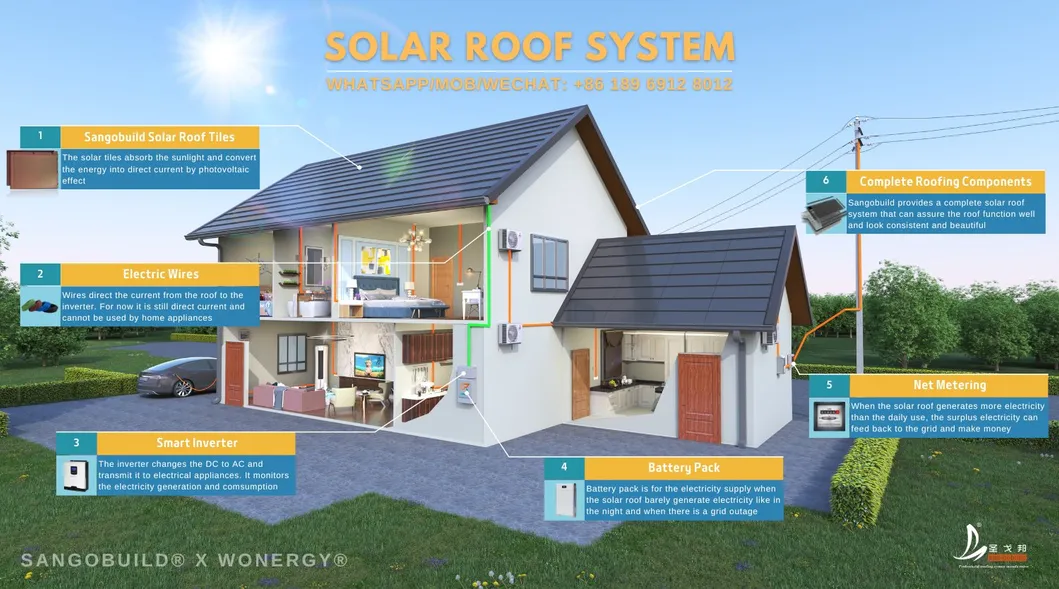

How Solar Roof Works?
How Solar Roof Works Diagram
Sunlight hits the solar cells to generate power, converting energy into DC electricity.
Electricity flows to the inverter and is converted into AC electricity for home appliances.
Excess power can be sold back to the utility through net metering to reduce bills.
Surplus electricity can be stored in battery systems for later use.
A mobile monitoring app tracks electricity creation, usage, and savings in real-time.
Solar Tile v.s Solar Panel
Solar Tile vs Solar Panel
Solar panels are well-known, but solar roof tiles offer a modern alternative. Key differences include:
Installation: Integrated directly into the roof structure.
Aesthetics: Sleek, hidden cells that look like traditional tiles.
Durability: High resistance to wind, hail, and fire.
Why Choose Our Solar Roof?
It's a Roofing Material!
Our Solar Roof Tile is a premium roofing material. It doesn't just generate power; it protects your home from rain, wind, and hail. It eliminates the need for traditional tiles and bulky mounting racks, preserving your home's architectural beauty.
Excellent Product Features
  • High efficient whole roof covering
  • Class A waterproofing & Fireproofing
  • Hail & Wind Resistant
  • More than 60 years lifespan
Frequently Asked Questions
Q1: What is the main advantage of solar tiles over traditional panels?
Solar tiles serve as both the primary roofing material and a power generator. They offer a much cleaner, more aesthetic look as the solar cells are almost invisible from a distance.
Q2: Are solar roof tiles durable enough for extreme weather?
Yes, our solar tiles are Class A fire-proof and designed to be hail and wind resistant, providing the same or better protection than conventional roofing materials.
Q3: How long do these solar tiles last?
The system is designed for longevity, with an expected lifespan of more than 60 years, making it a permanent solution for your home.
Q4: Can I install solar tiles on a historical or listed building?
Often, yes. Because solar tiles mimic the appearance of conventional roofs, they are frequently accepted by authorities for buildings with historical or architectural significance where standard panels are prohibited.
Q5: Can I monitor how much energy my roof is producing?
Absolutely. The system includes a mobile monitoring app that shows real-time data on electricity generation, home energy consumption, and total savings.
Q6: Is it cost-effective for new constructions?
Yes. When building a new roof or renovating, you save on both material and labor costs by installing a single product that functions as both a roof and a power plant.
